Used Single Head Chuck Cappers

Stock# 72561002

Used- Aesus Model Delta Chuckcap Automatic Single Chuck Capper. Capable of speeds up to 60 containers per minute. Has intermittent motion carton indexing with two station tightener (1 pre-spin station, 1 final torqueing station). Cap size range: 0" to 5" diameter x 0" to 1" thick (with changeparts). Bottle size range: 0" to 10" diameter x 0" to 14" tall. Allen Bradley Mircologix 1400 PLC, A/B Panelview Plus 600 HMI, Panasonic servo drives. Pneumatic height adjustment. Includes cap sorting elevator (oversized), for flat caps up to 5" diameter. Last used in nutritional supplement packaging operation. 1/60/208 Volt.

Stock# 72384002

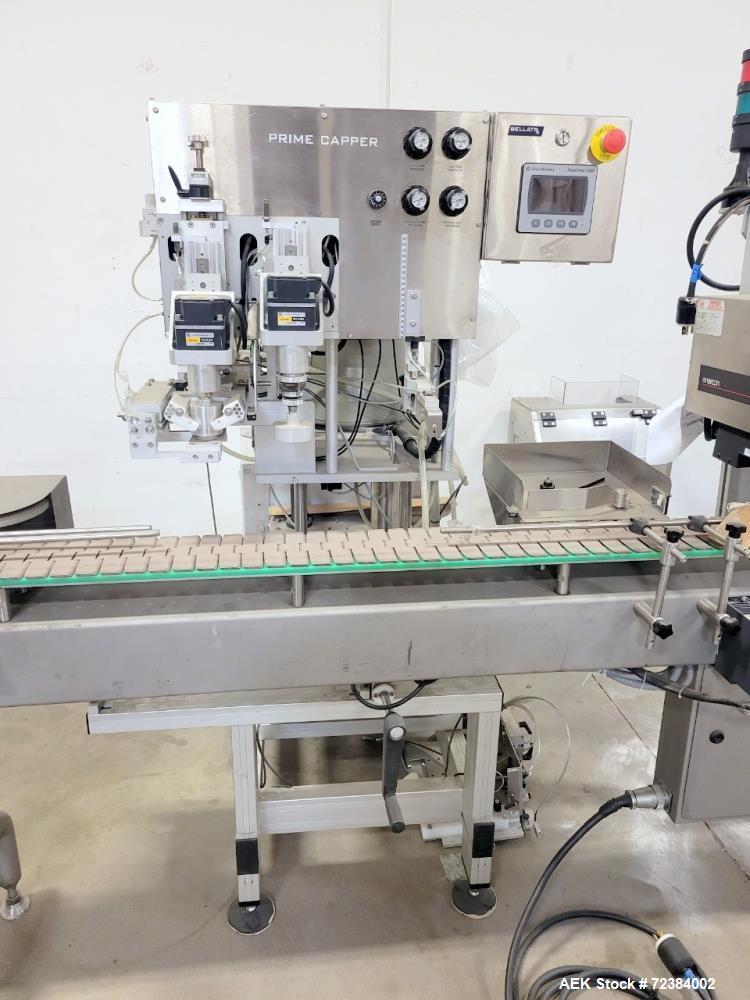

Used-Bellatrx Inline Cap Applicator, Model (PC) Prime Capper, Automatic inline cap applicator that consistently applies and torques closures onto containers. It controls application torque with a clutch system and is ideal for food and beverage applications. Standard Specifications: Up to 60 CPM, 15-63mm closure range with bowl, 15-130mm closure range with sorting elevator, 0.5"-8", 12" high (13-230mm, 304mm) Container range, Round, square, or oblong container types, 5-30 in-lbs (6-339Ncm) Application Torque range. Allen-Bradley PanelView C400 color touchscreen, Mechanical clutch torque control. Options: Cap Inspection Station; Guarding; Cap Change Parts (for 38mm, 45mm and 53mm caps); Container Neck Centering Device, Container Neck Centering Device Change Parts. Machine was built in 2016.

Stock# 72039005

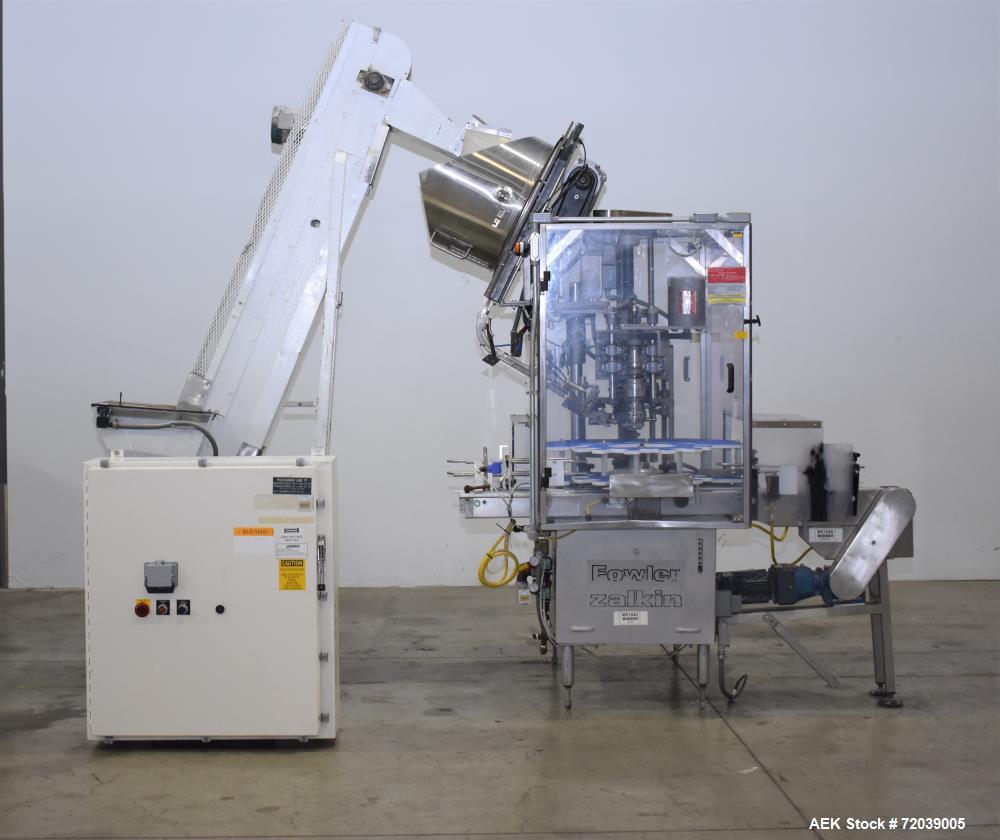

Used- Fowler Zalkin Single Head Chuck Capper. Approximate speeds up to 40 caps per minute maximum, depending on cap & bottle size. Control panel with Allen Bradley SLC 5/04 PLC. Includes bulk cap elevator with cleated belt and pinwheel-style cap sorter. Currently set up for square quart sized bottles with 38mm caps. Last running square quart bottles. 3/60/480V

Stock# 72370002

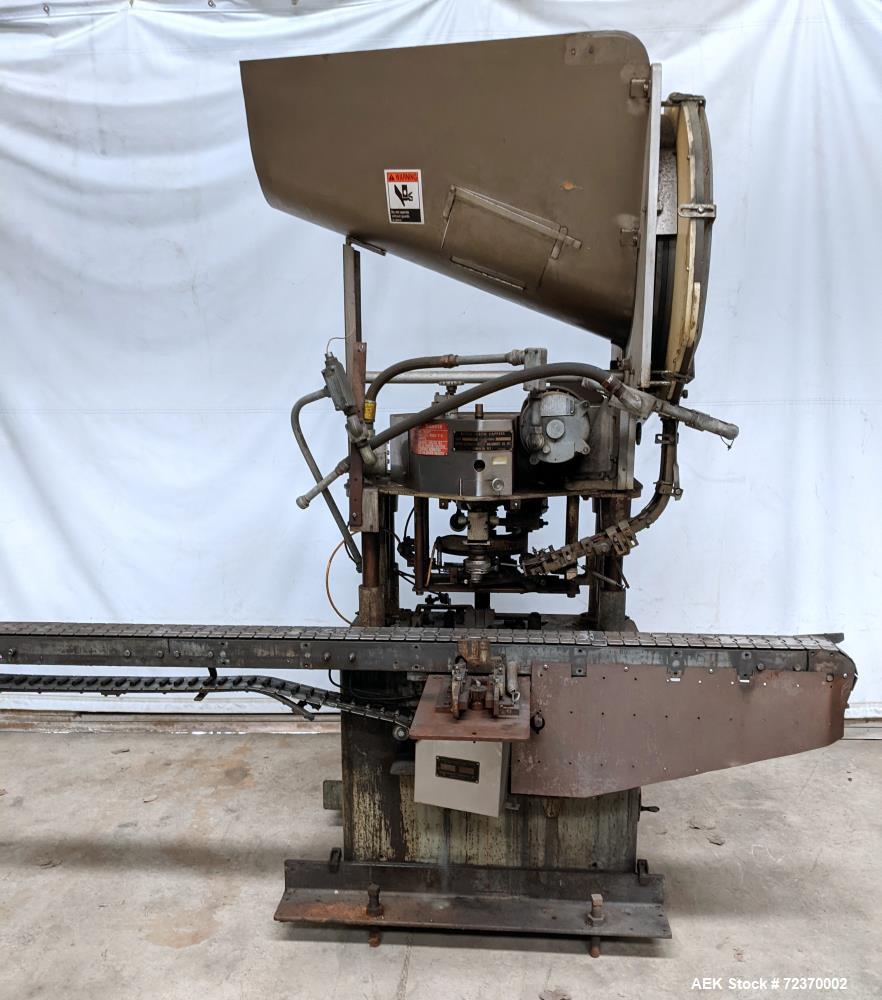

Used- Resina Model S-30 Automatic Single Head Chuck Capper. Capable of speeds up to 60 cpm depending on application. Cap size range: Diameter 13 mm - 70 mm with changeparts. Container range: Diameter up to 6"; Height 2-3/4" - 13". Currently set up on 28 mm caps with down pressure chuck. Double grip container handling. Can handle plastic, metal, and glass containers (with proper change parts). Has pin style cap sorting ring and was last used in chemical operation. Has XP electrics. Single Head Capper Model.

Stock# 72674001

Used- TurboFil Packaging Machines Hybrid Capper, Model HYP-25 X. Single head, chuck style. Speed up to 20 bottles per minute. Includes a cap loading elevator with chute. Emerson servo drives, Automation direct plc, IDEC HMI. Positive pressure control system, xp version. Serial# 1307-001. 1/60/110 Volt.

Stock# 72376001

Used-Zalkin TM300 Single-Head Automatic Capper with a present capacity of 1400 pcs of 1.32-gallon (5 liter) PET Jars/containers per Hr. (Max. recommended speed of 2,500 caps per hour). Two capping station configurations with two sequential single capping heads are available for two step operations to combine multiple functions (e.g., fitting of insert, followed by application of screw-on cap/lit). Intermittent 6 station star wheel motion for jar/container handling. Fast closure and container changeovers.Overall dimensions capper: 55.8" (1430 mm) x 42.9" (1100 mm) x 113.2" 2903 mm high. Incl. bucket elevator, 66.13 gallon (250 liter) for cap/lid feeding, frame mounted, on wheels. Overall dimensions bucket elevator: 46.10" (1205 mm) x 97.5" (2500 mm) x 156.7" (4018 mm) high. Complete with (1) Fa. Zalkin cap sorter, type UT90 and infeed. (1) Altrimex stainless steel double door control panel incl. Siemens touch panel (mounted on capper). (1) Inlet conveyer, (1) Outlet conveyer and additional operating infrastructure. Previous used in a pharmaceutical application. Mfg. 2018
