Stock #
73501005

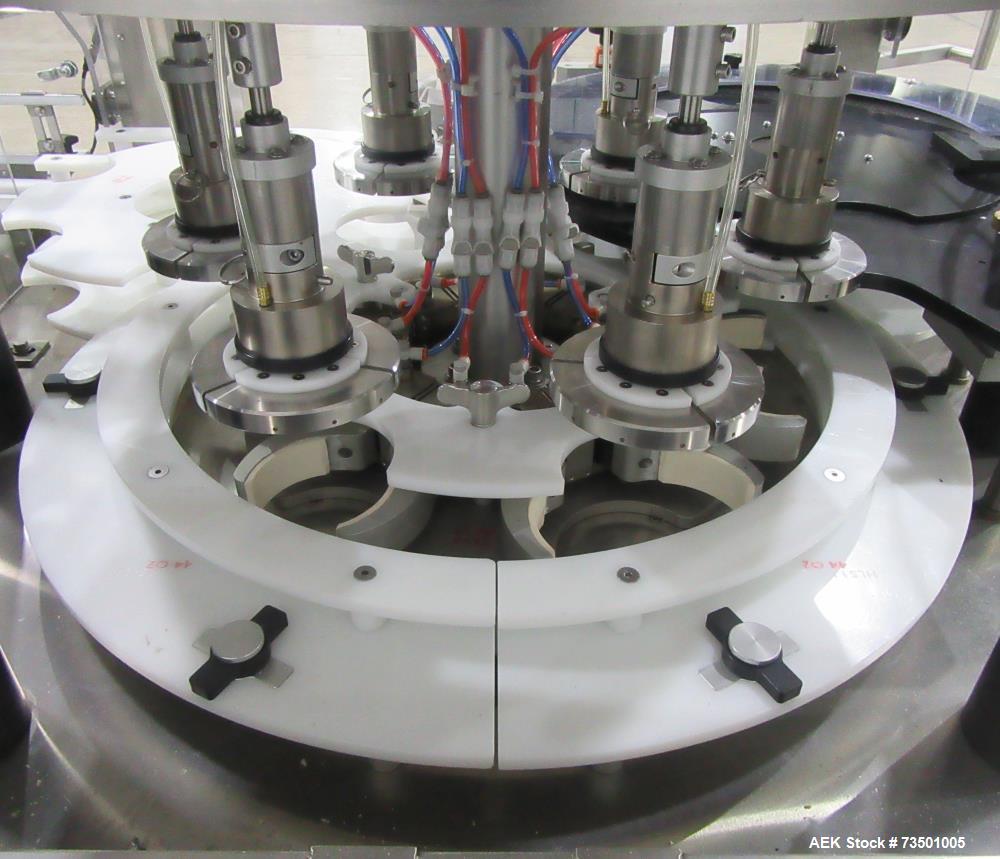

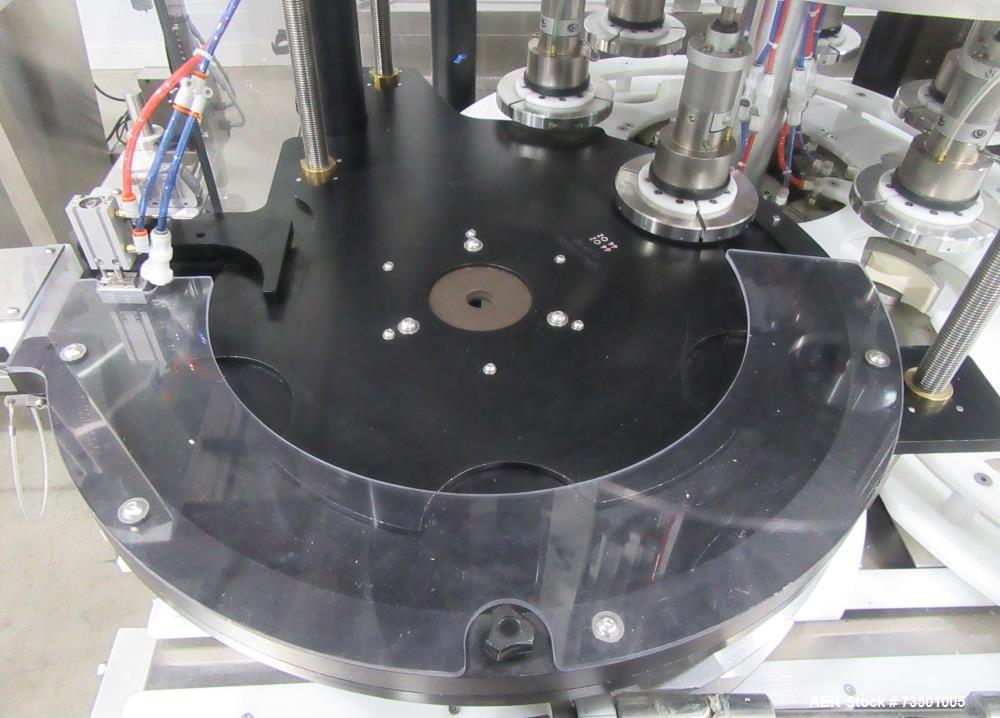

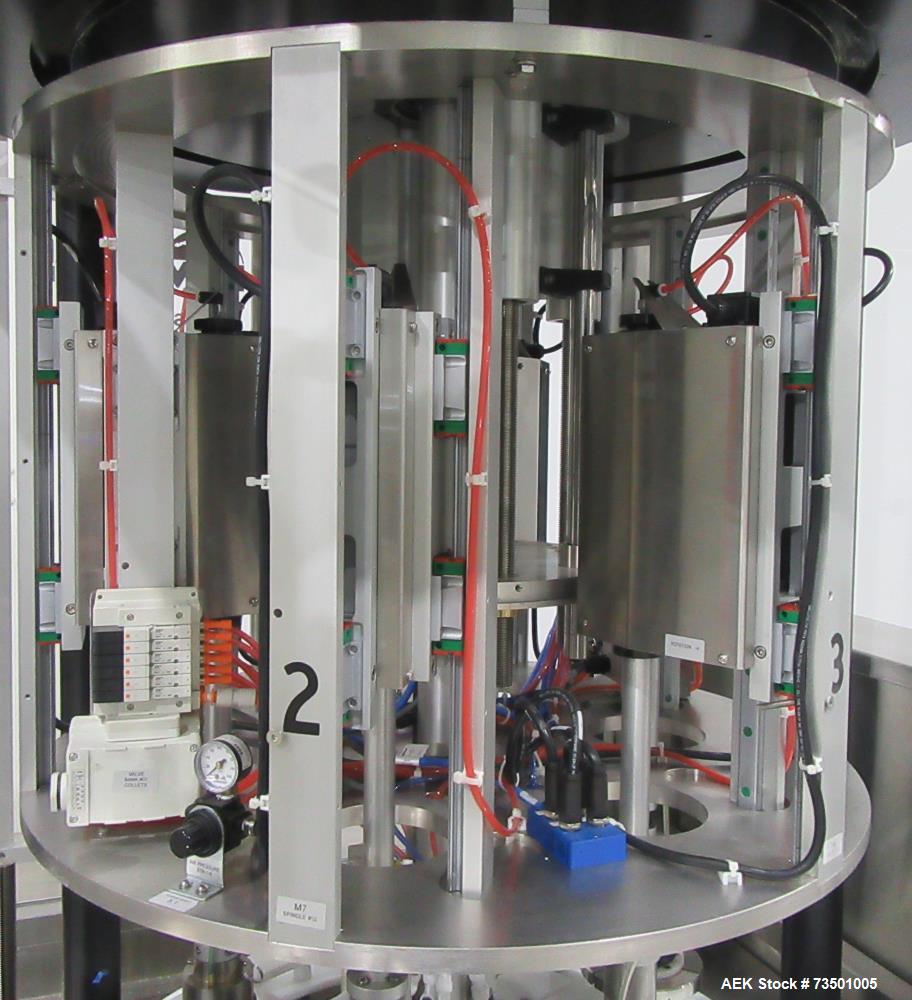

Unused New England Model NERCC-6 Rotary Chuck Capper. Capable of speeds over 200 CPM (Depending on application). Has integrated 20 cu ft cap sorter/elevator. Pharmaceutical grade finishes (anodized aluminum 6061 and 304 S/S construction), Allen Bradley CompactLogix 5380 with ethernet IP connectivity PLC controls with Allen Bradley PanelView 800 HMI. Has changeparts available for the following cap diameters (1 set included with machine: 89MM, 53mm, 63mm, 120mm and 110mm. Has the following options: digital container counter (BPM) missing cap foil liner detector, skewed/cross threaded cap detector, downstream motion detector, three speed mode (backlog surge control), low level warning in hopper, reject in chute for upside down caps, reject station / verification with missing cap inspection, one usb with machine, alarm list with recovery procedures, flange mounted disconnect, programming port for electrical cabinet, dedicated over current protection for individual inputs, PowerFlex 525 VFD's, physical barrier to separate high and low voltage, terminal blocks with standoffs, Allen Bradley series 30mm devices, Machine status Post with Audible Alarm and NAT Module. Originally designed to run the following containers: 89mm19oz/89mm25oz/89mm32oz/89mm36oz/89mm250cc/53mm400cc/63mm44oz/120mm64oz/120mm1500cc/110mm. 3/60/480V
Used Equipment Facts About This Machine
๐น Manufacturer Info
-

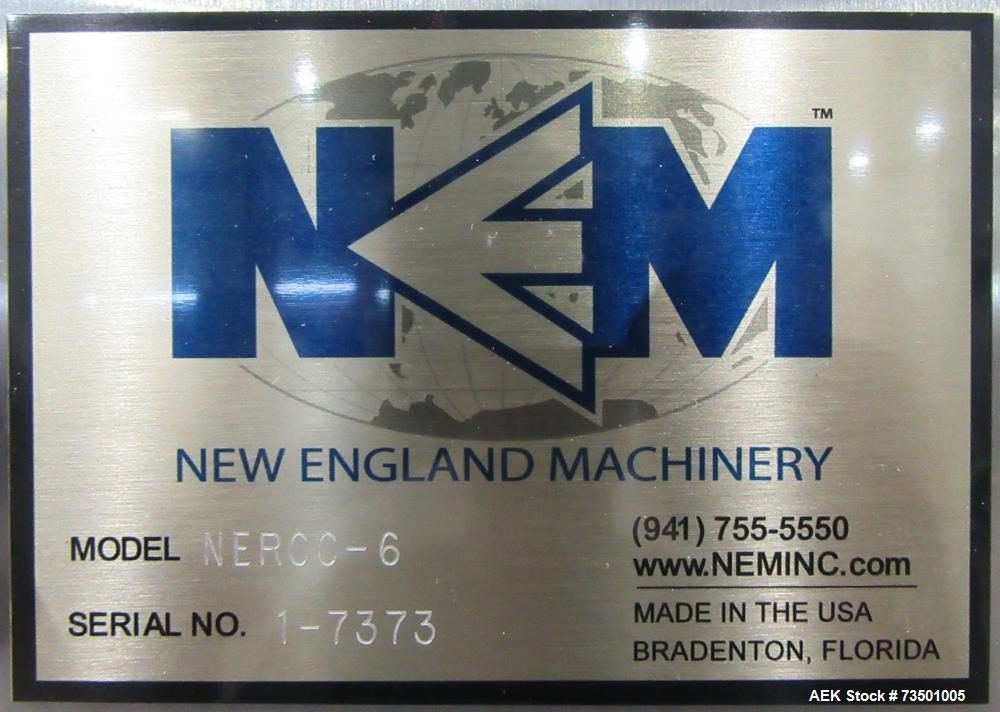

Manufacturer: New England Machinery, Inc.
-
Model: NERCC-6 (Rotary Chuck Capper)
-
Condition: Unused / Like New
-
Construction: 6061 Anodized Aluminum & 304 Stainless Steel (Pharmaceutical Grade)
-

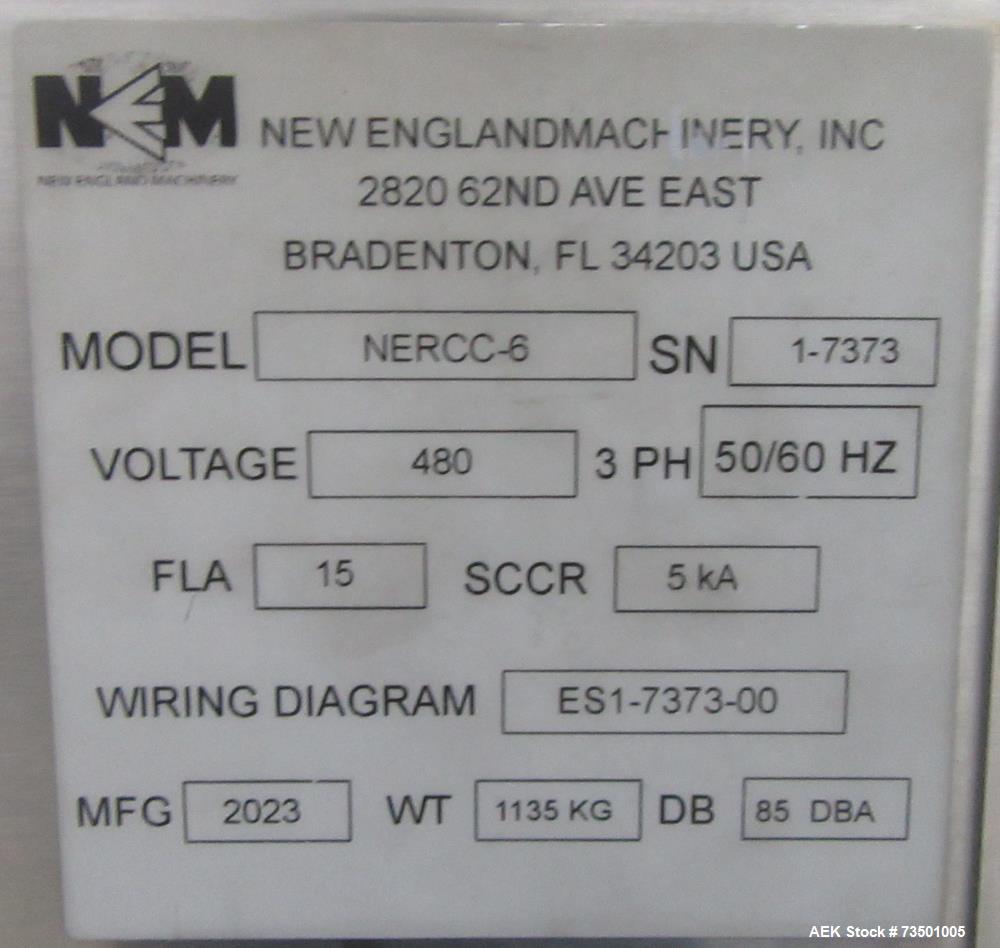

Power: 3 Phase / 60 Hz / 480V
-

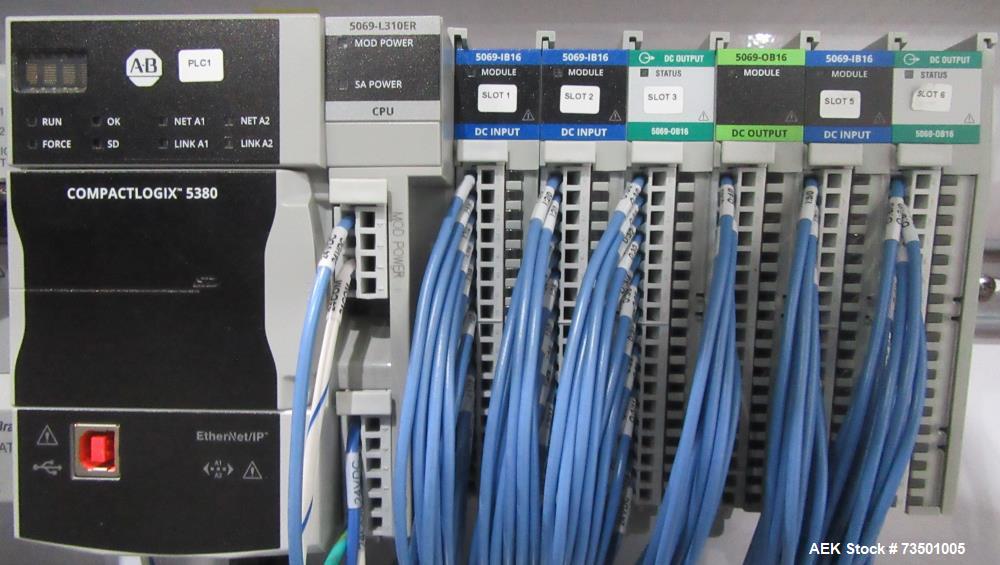

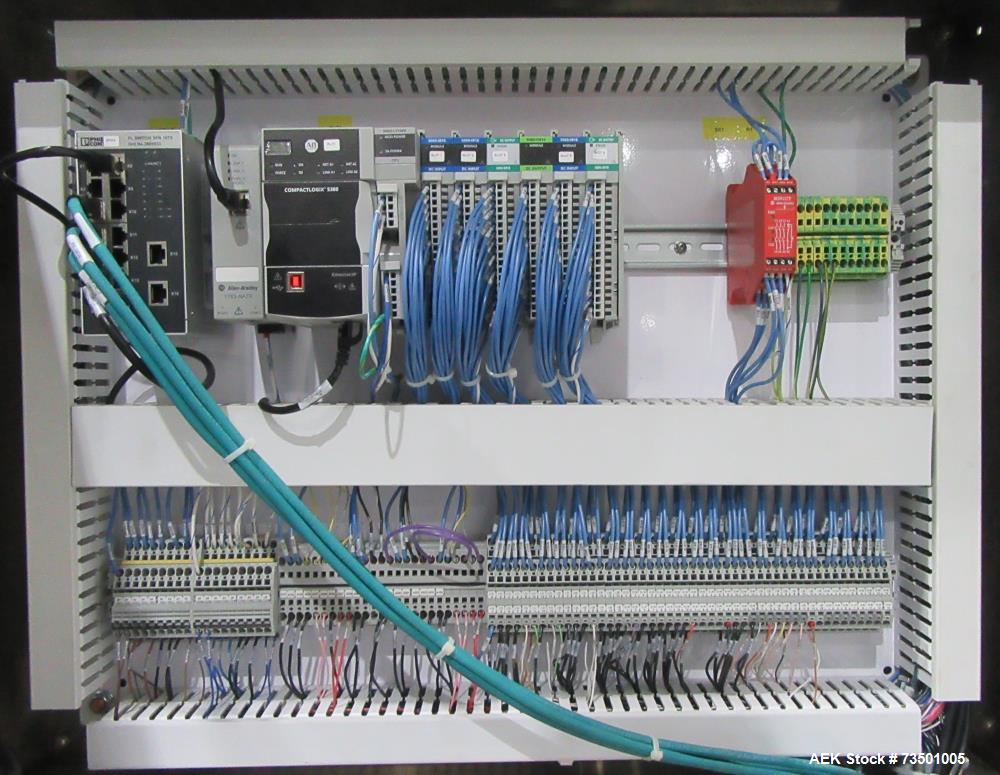

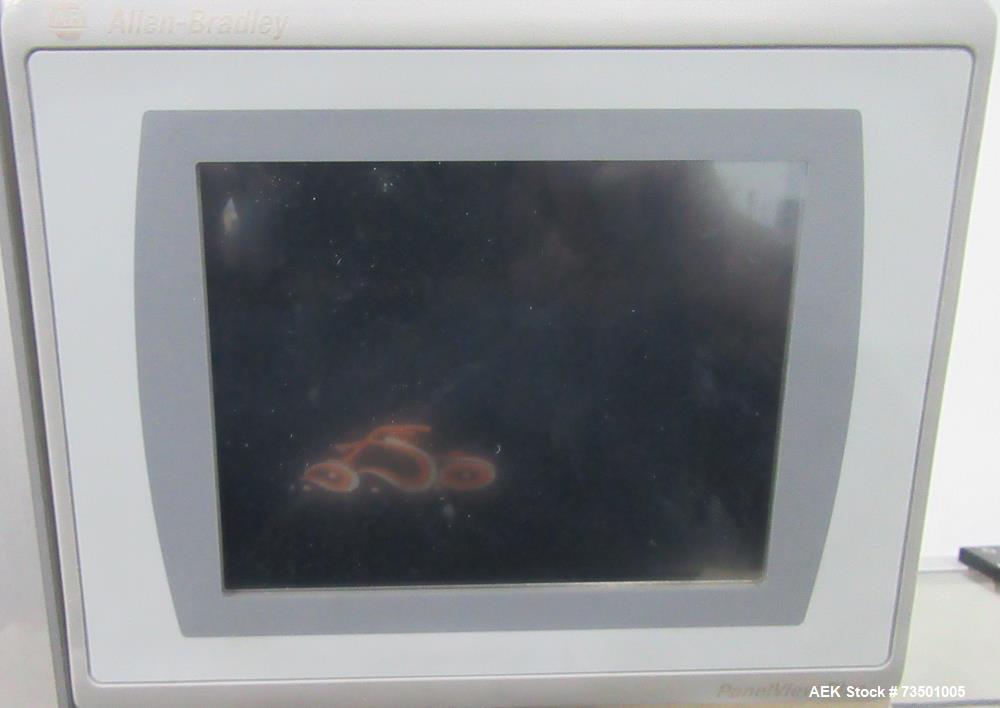

Control System: Allen Bradley CompactLogix 5380 PLC with PanelView 800 HMI
-
Industry Use: Food, Beverage, Nutraceutical, Pharmaceutical, and Consumer Goods
๐น Description

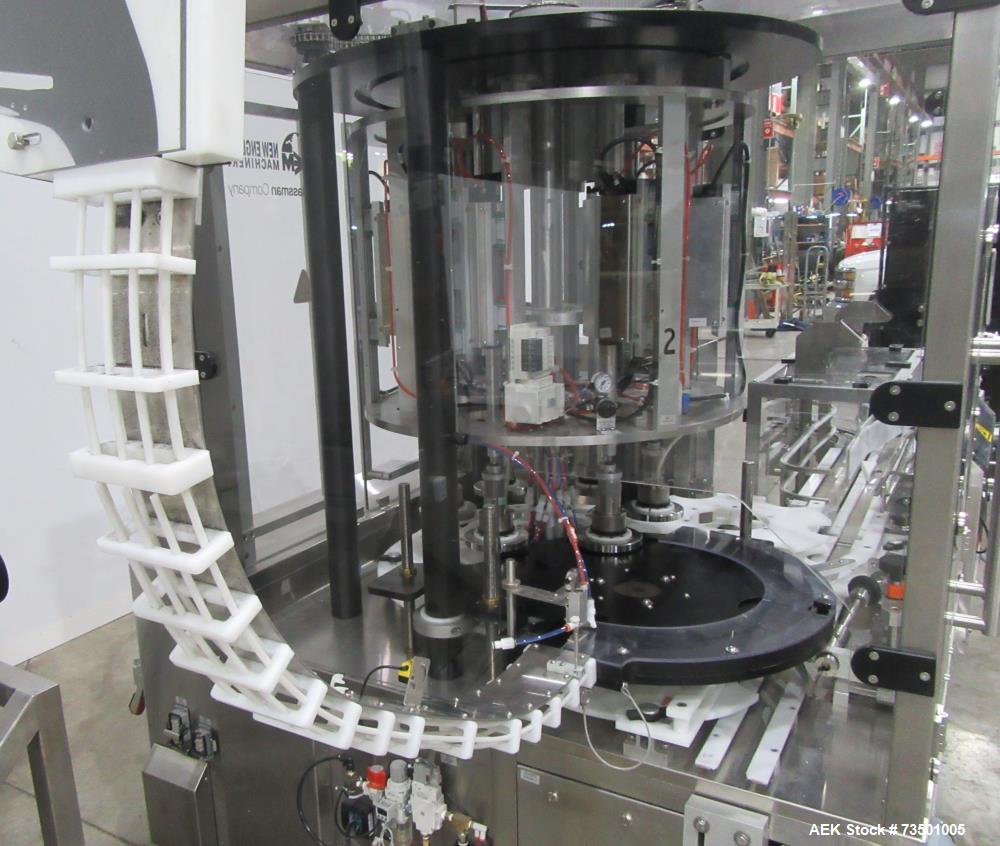

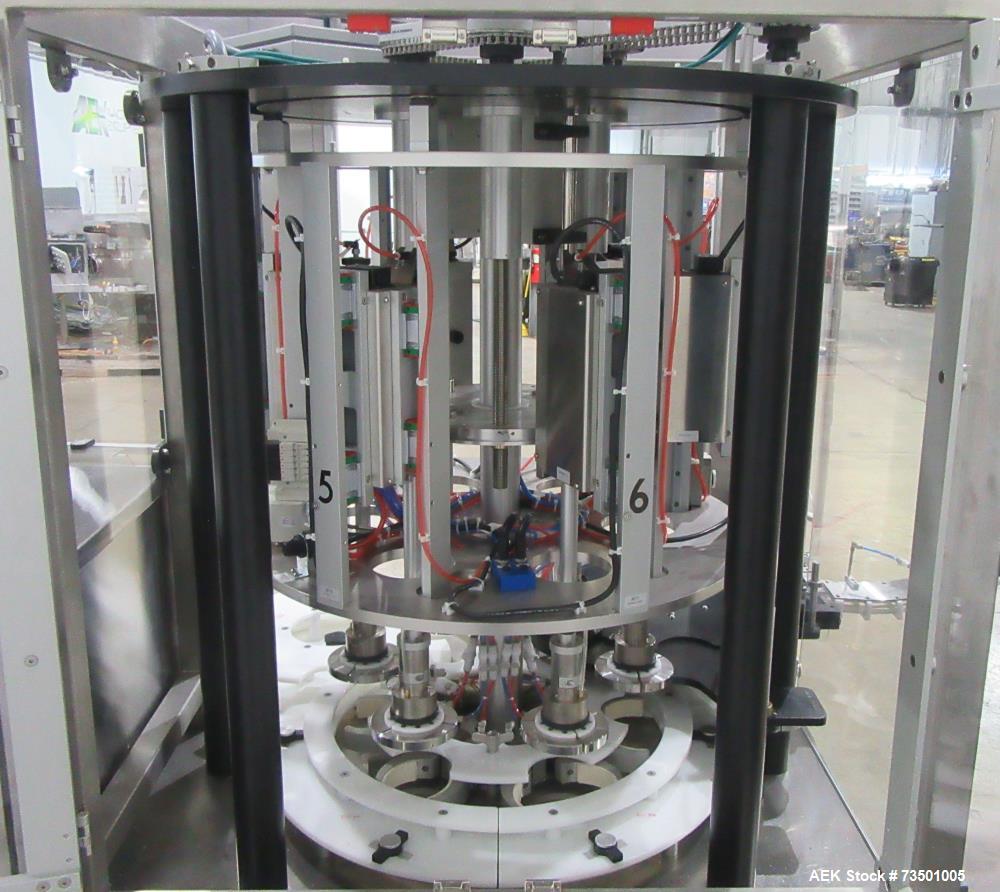

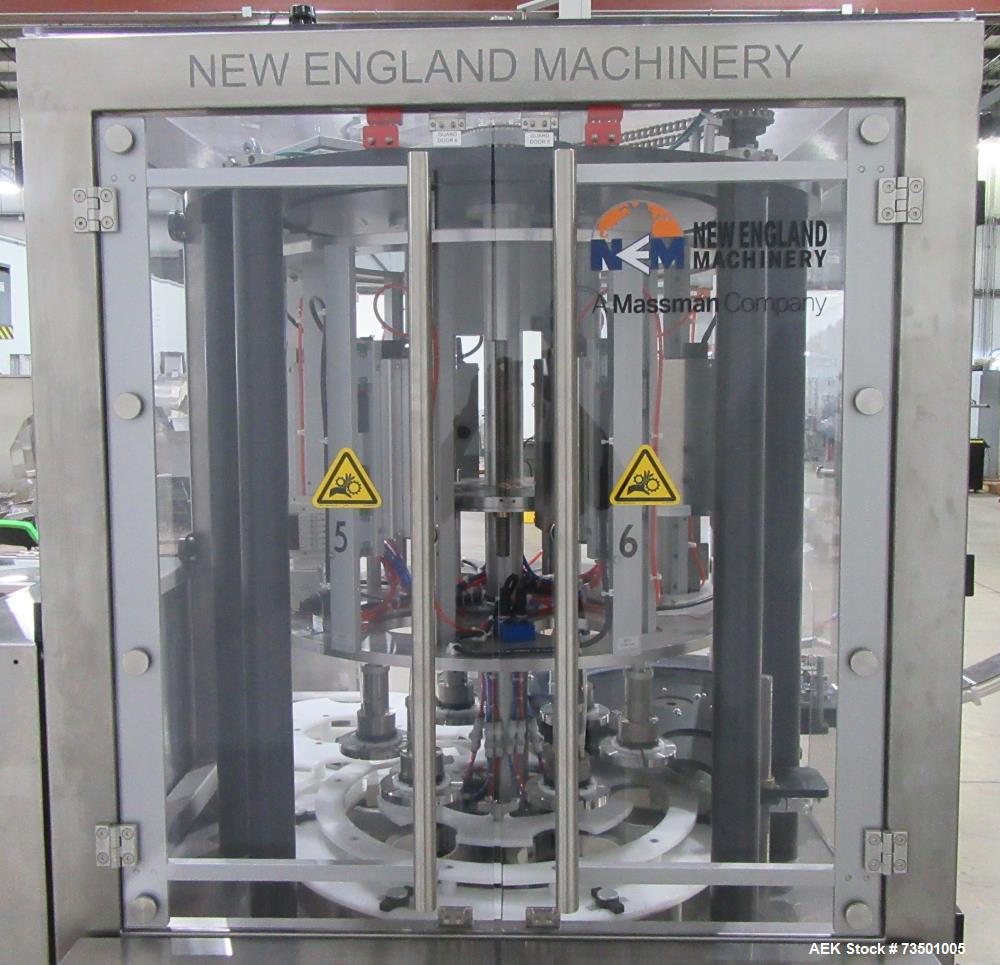

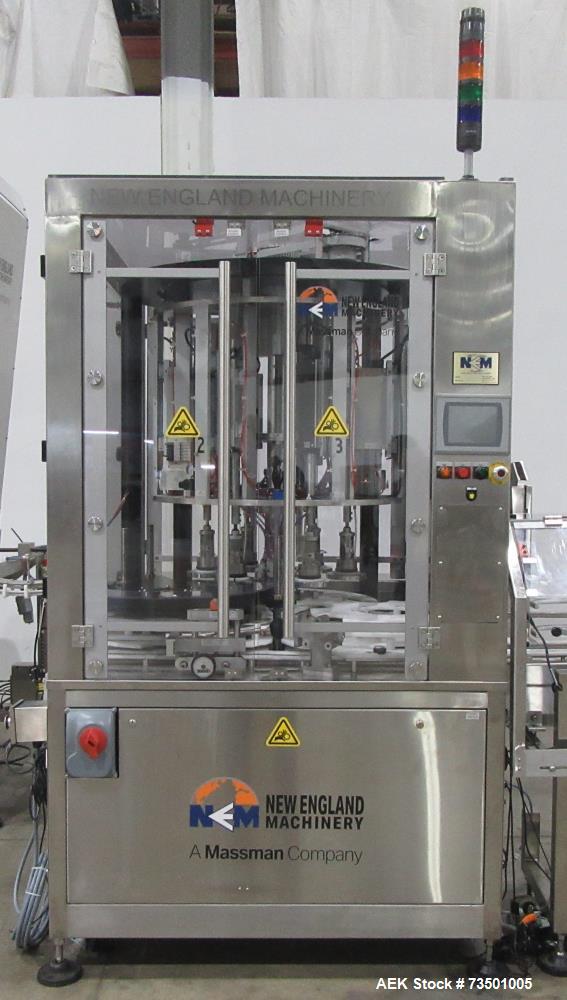

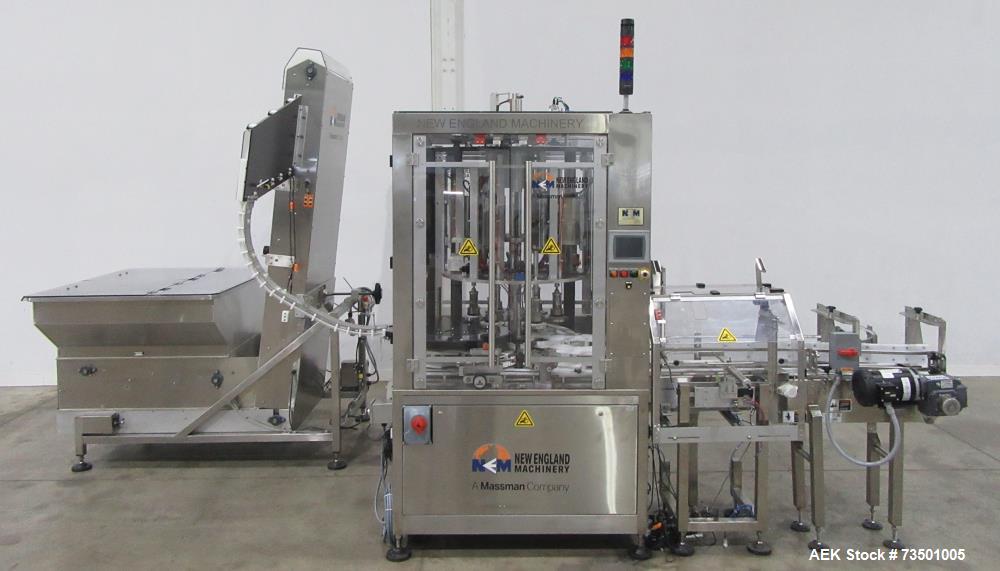

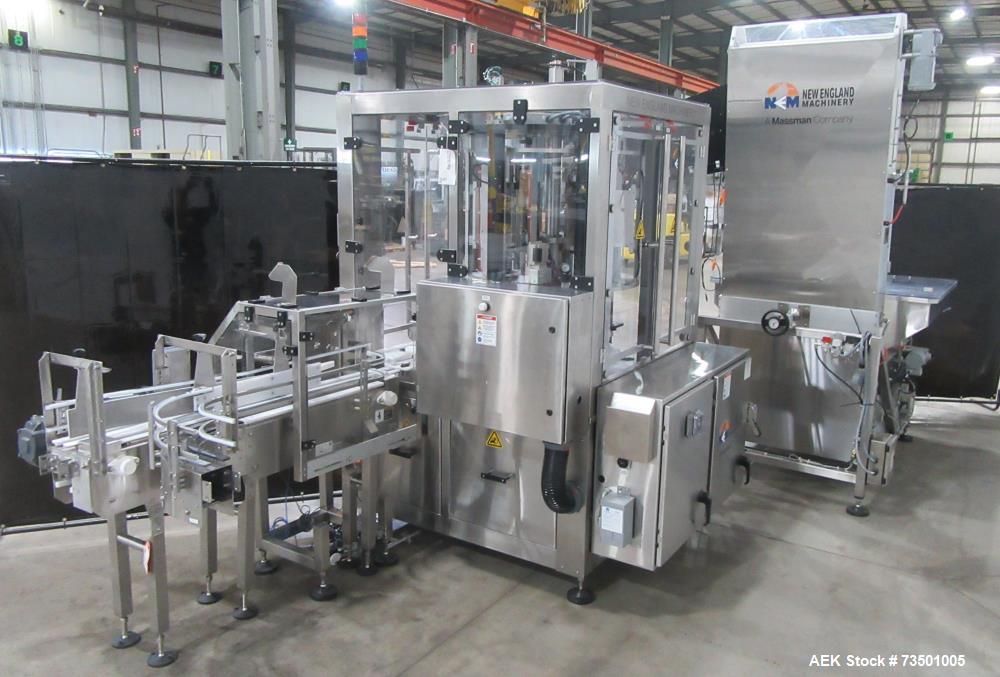

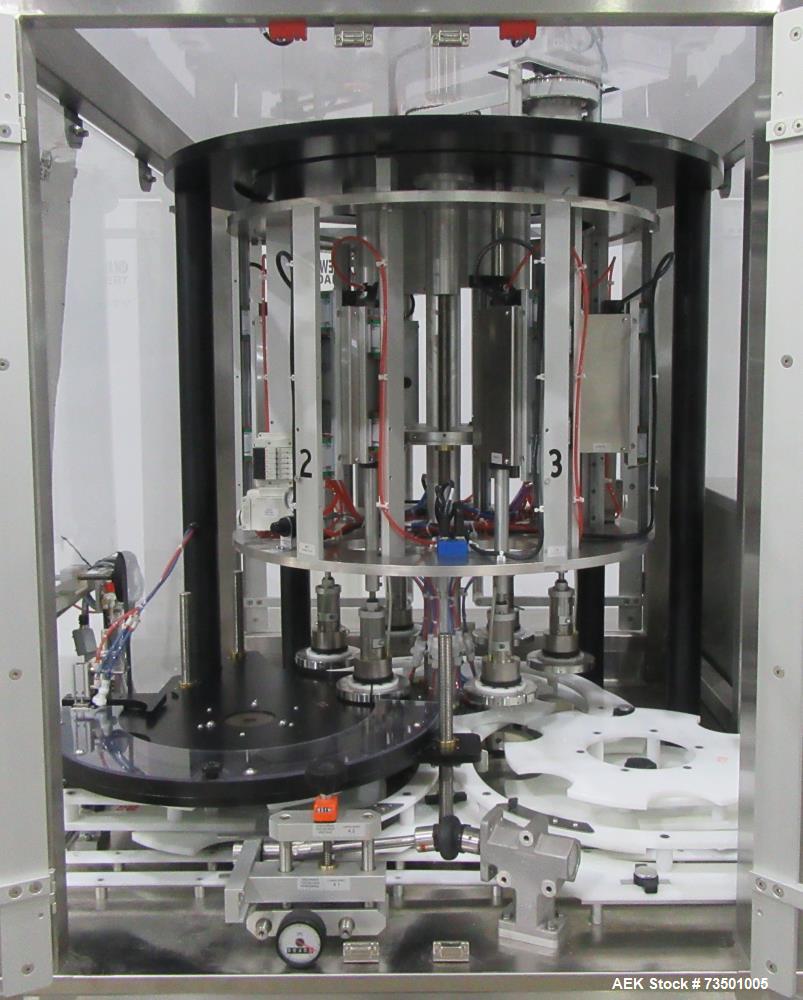

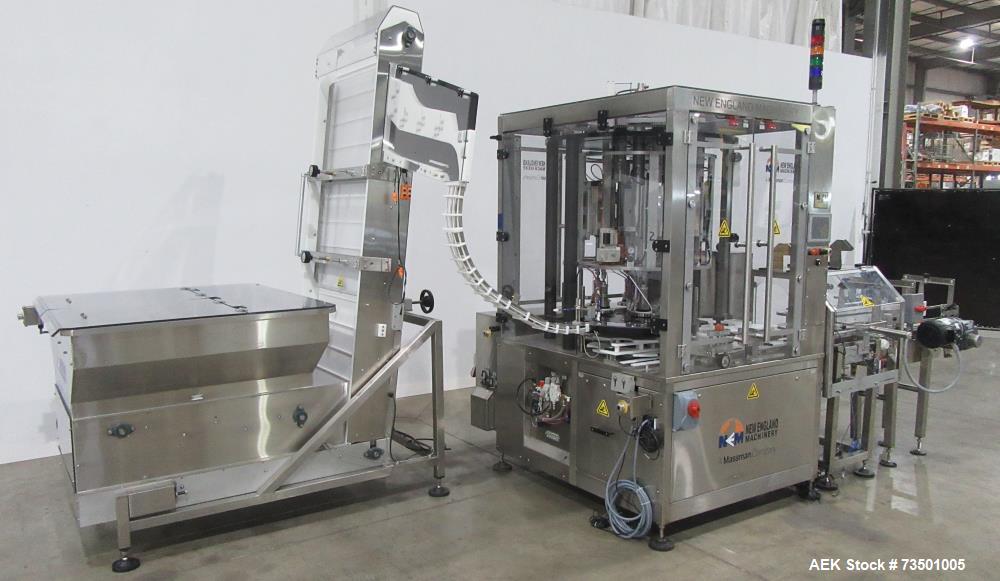

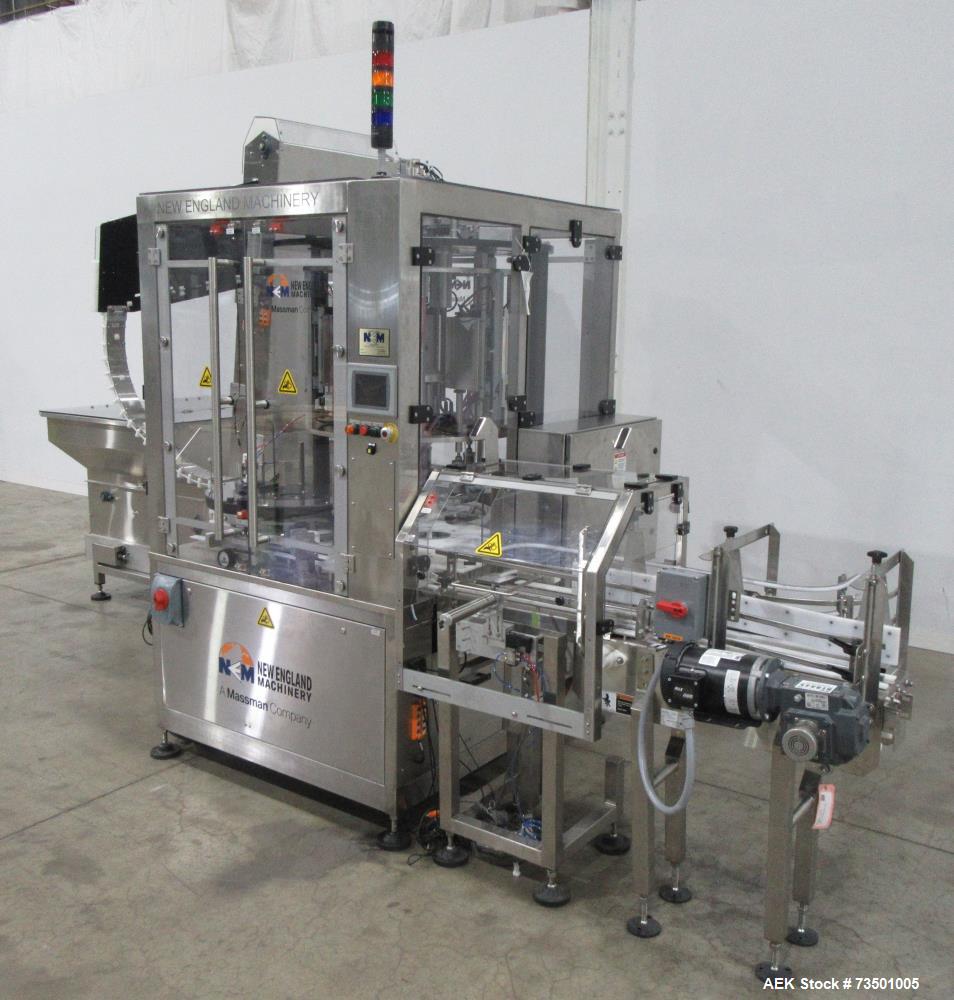

This Unused New England Model NERCC-6 Rotary Chuck Capper is a high-speed, servo-driven capper system engineered for container capping at speeds over 200 containers per minute (CPM), depending on application. Outfitted with an integrated 20 cu. ft. cap sorter/elevator, the unit ensures consistent cap delivery and orientation.

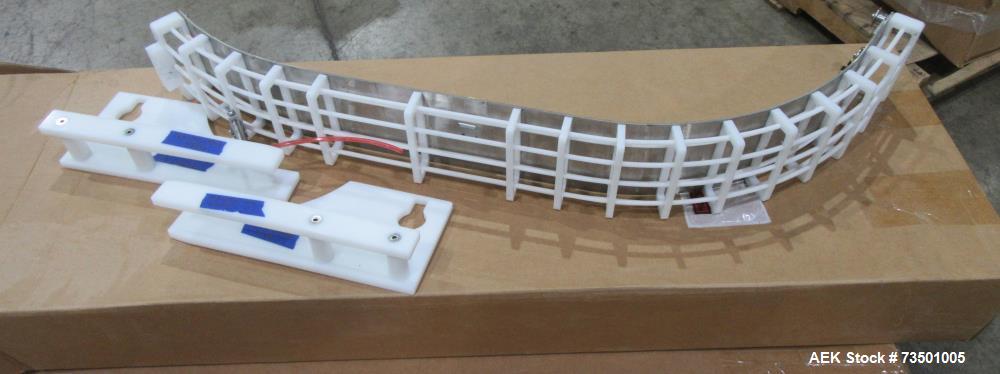

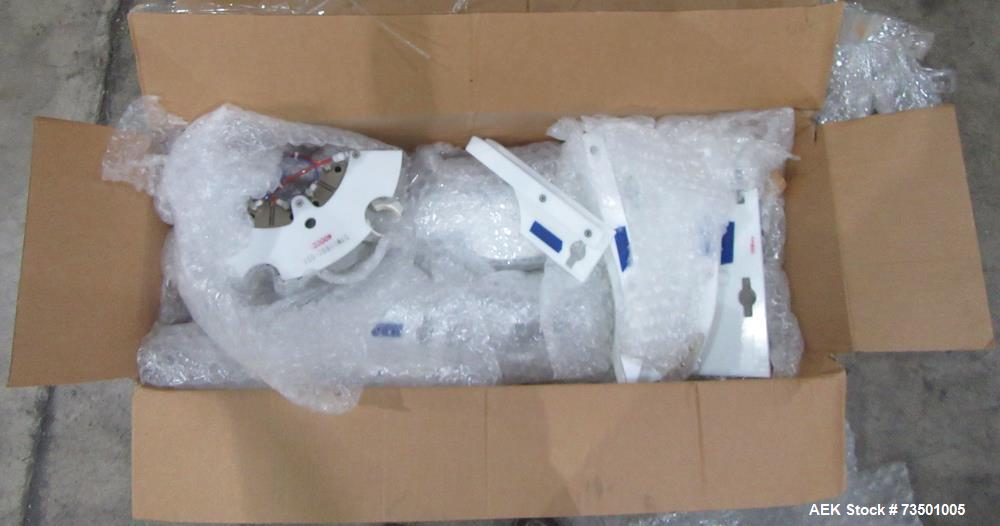

Built with pharmaceutical-grade finishes, it features a robust CompactLogix 5380 PLC, Ethernet/IP, and a PanelView 800 HMI for intuitive operator control. The machine includes comprehensive fault detection systems, change parts for 89mm, 53mm, 63mm, 110mm, and 120mm caps, and advanced rejection systems for upside-down or missing caps.
Enhanced with multiple smart sensors, surge-control modes, PowerFlex 525 VFDs, cap orientation rejection, and machine status light tower with alarm, this capper is ideal for cleanroom or GMP-regulated operations.
๐น Specifications
| Feature |
Specification |
| Model |
NERCC-6 Rotary Chuck Capper |
| Speed |
Over 200 CPM (application dependent) |
| Cap Sorter/Elevator |

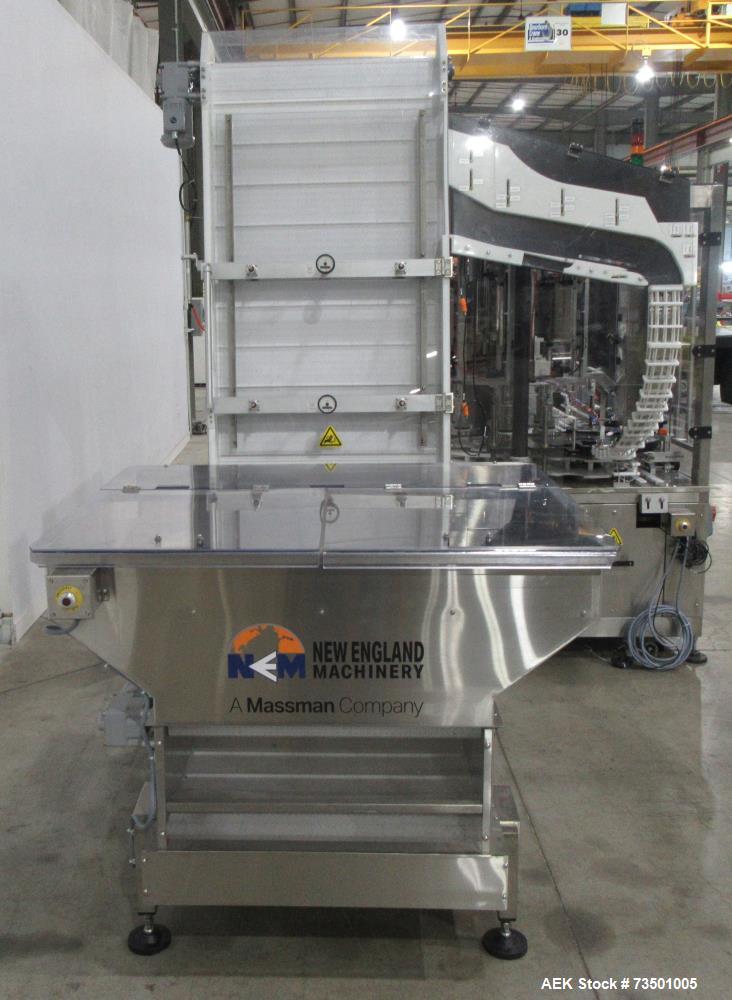

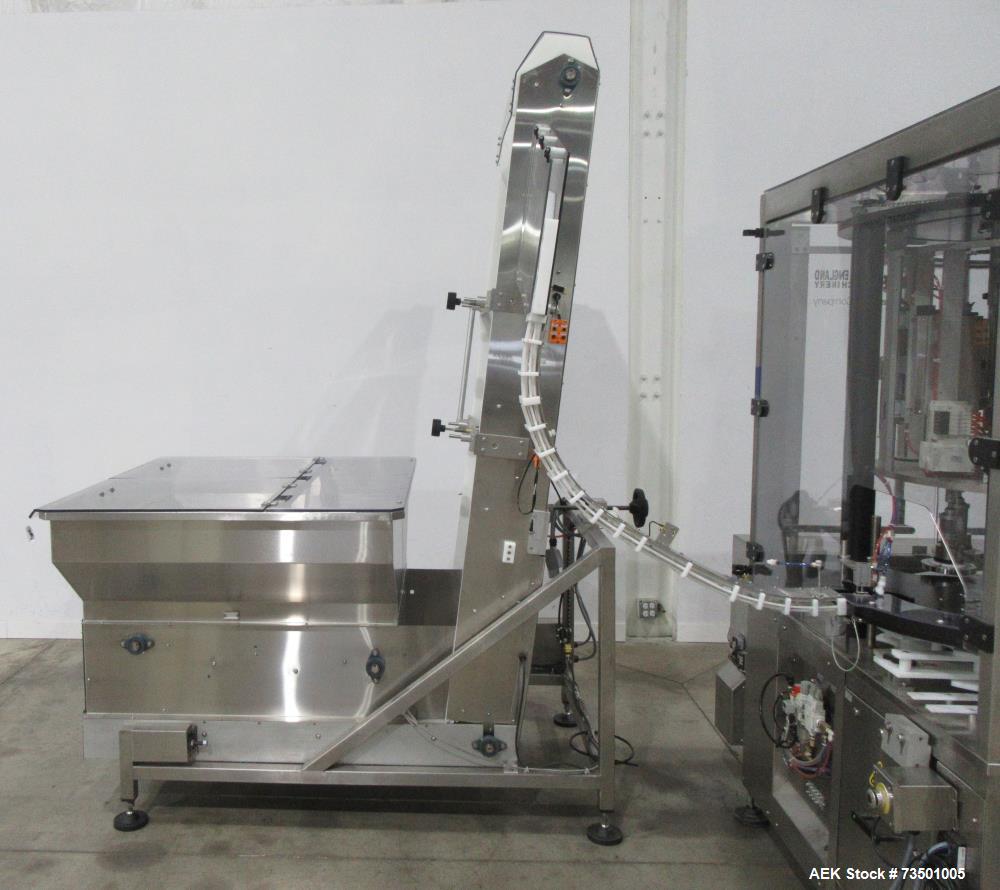

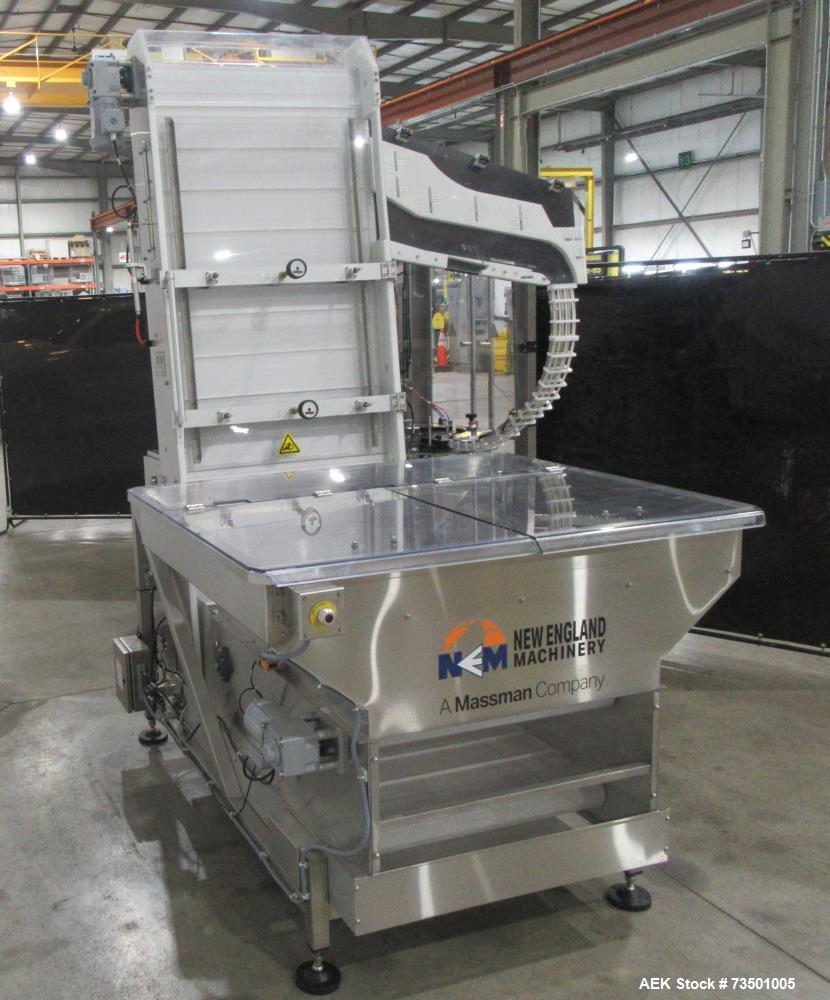

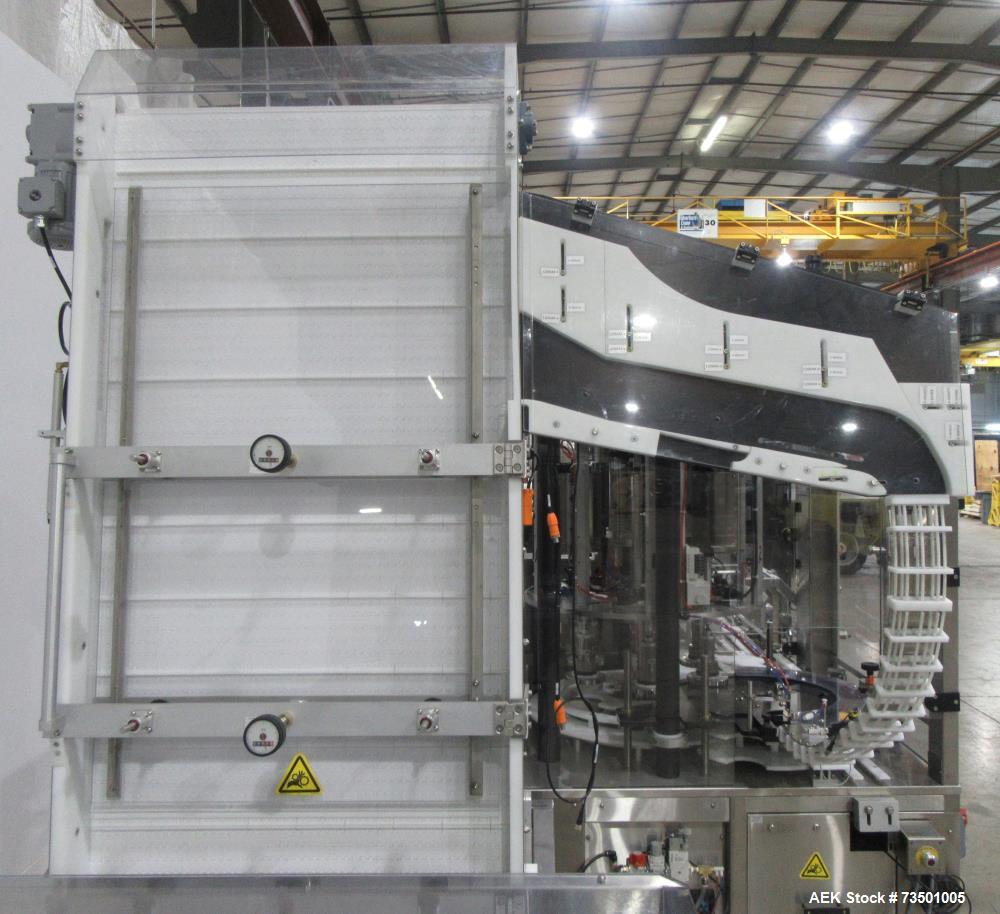

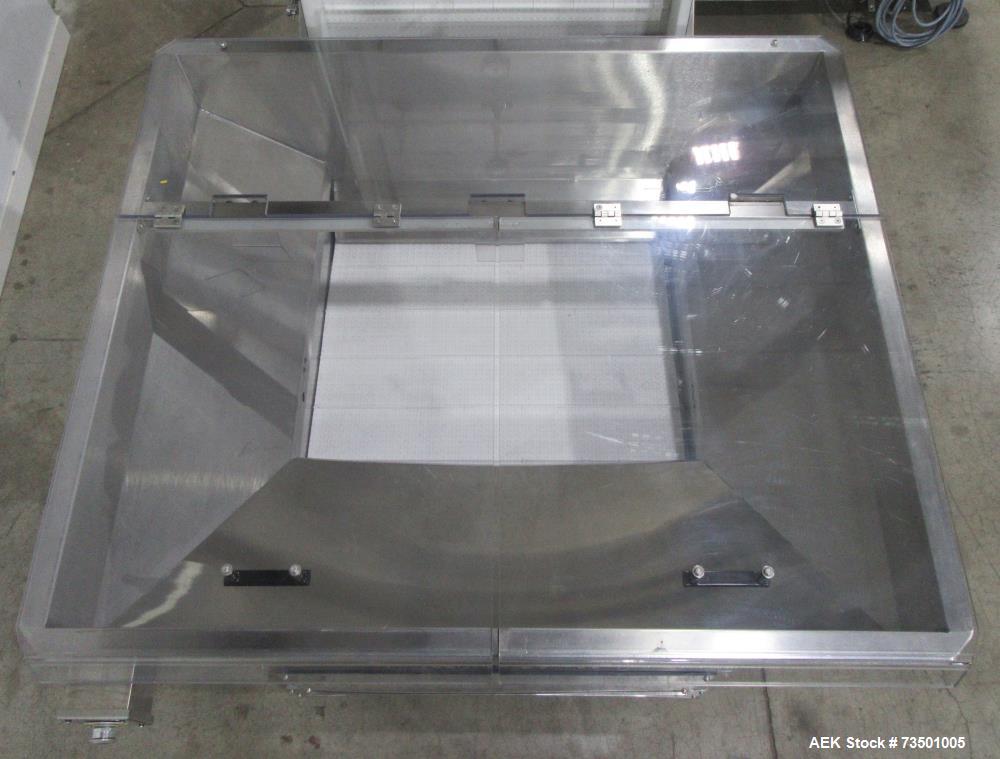

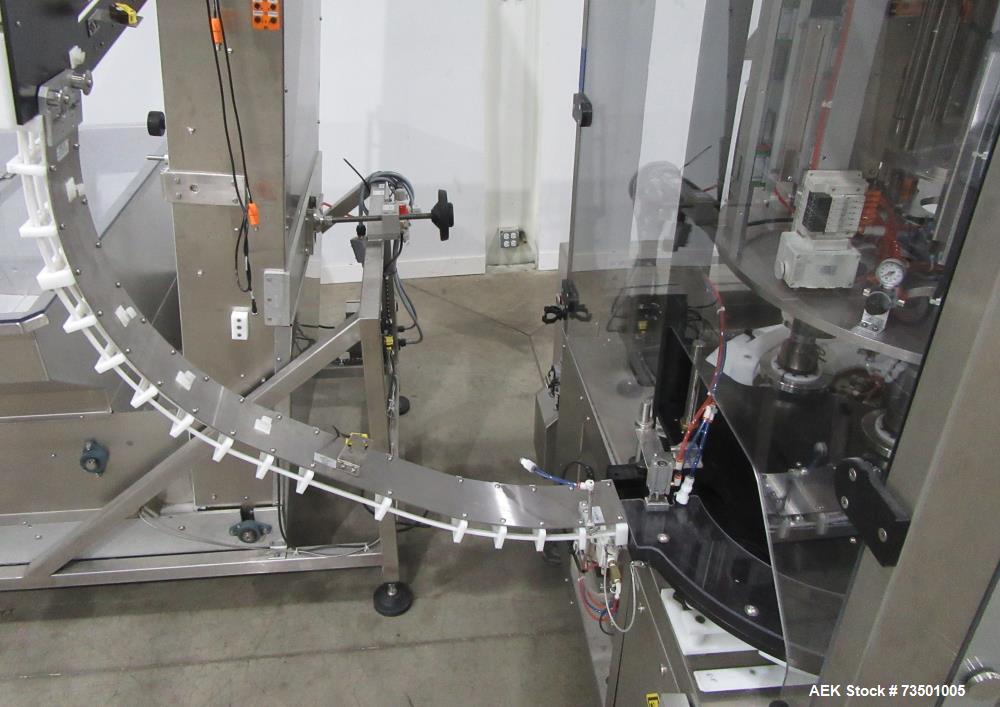

Integrated 20 cu. ft. hopper + vertical elevator |
| Container Compatibility |
PET, HDPE, PP round containers, 250cc to 64oz |
| Cap Diameters Supported |

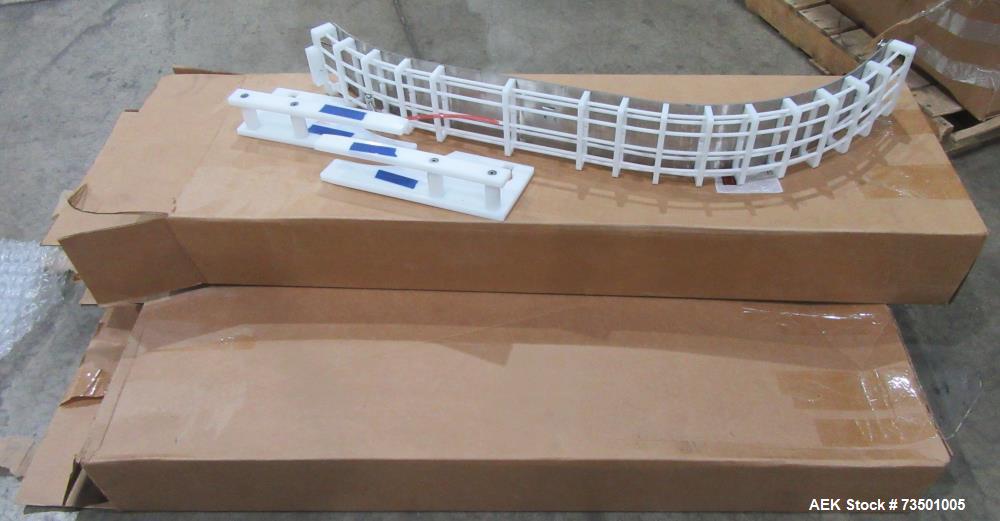

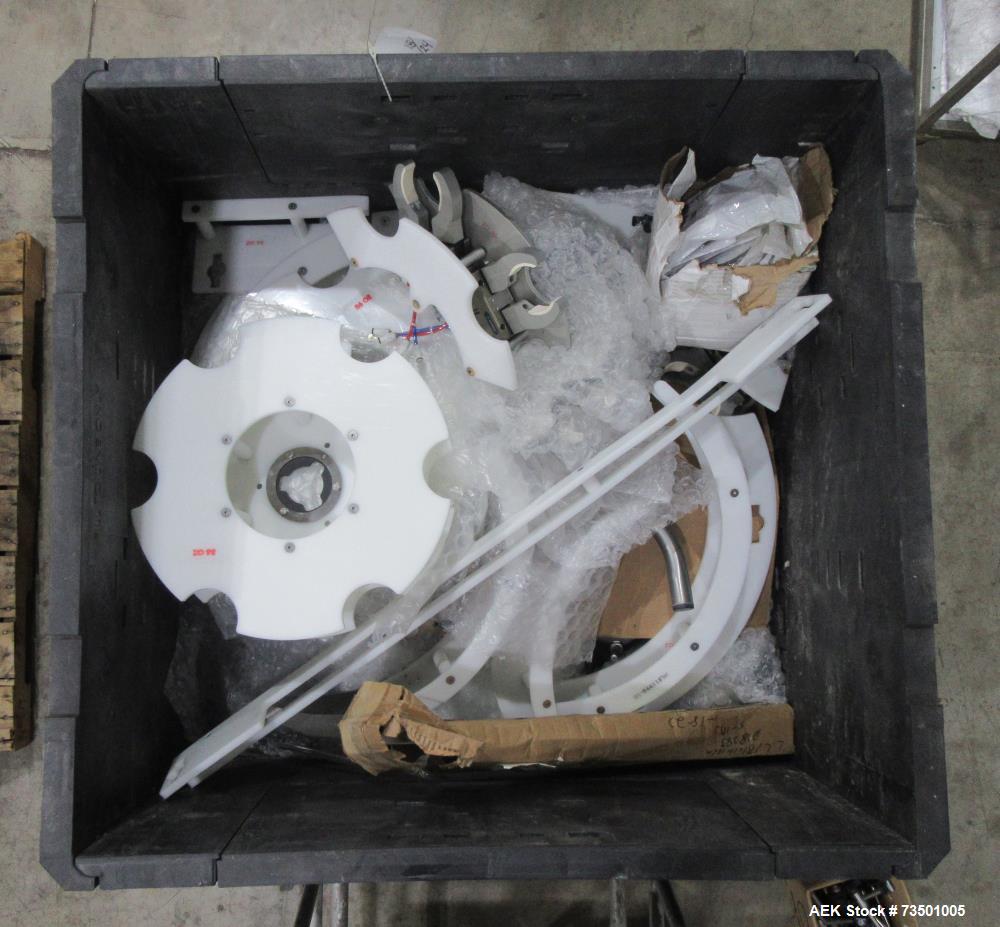

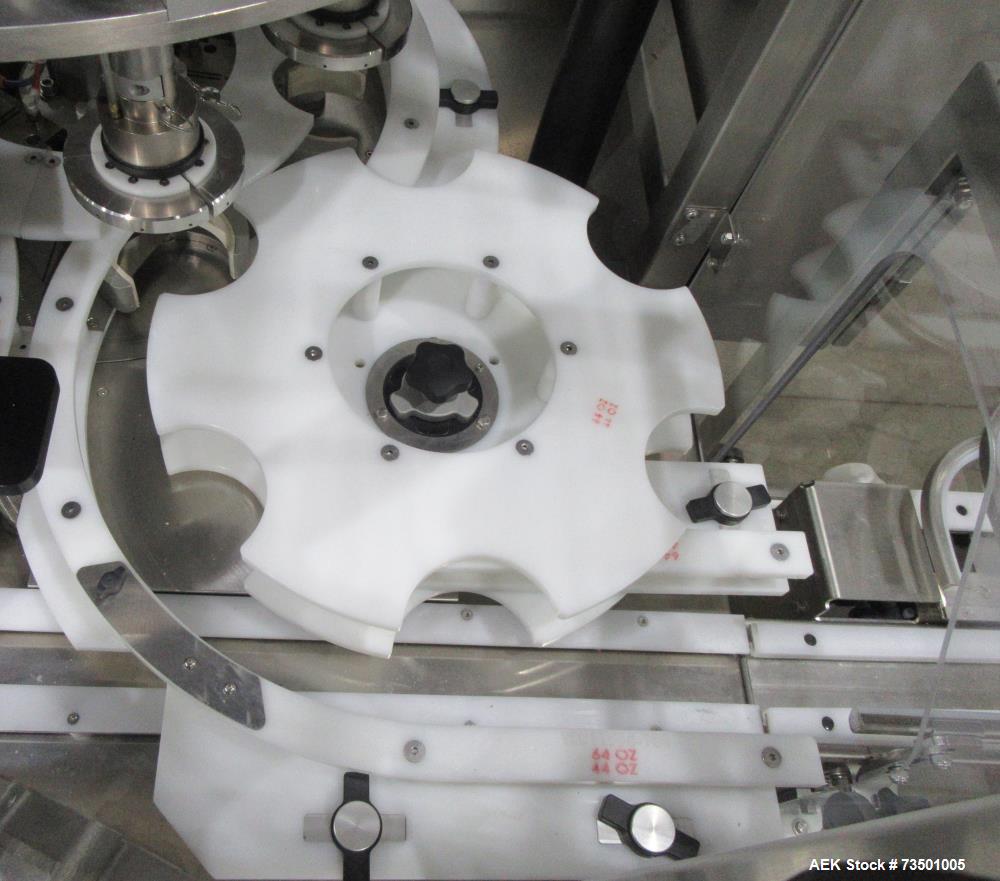

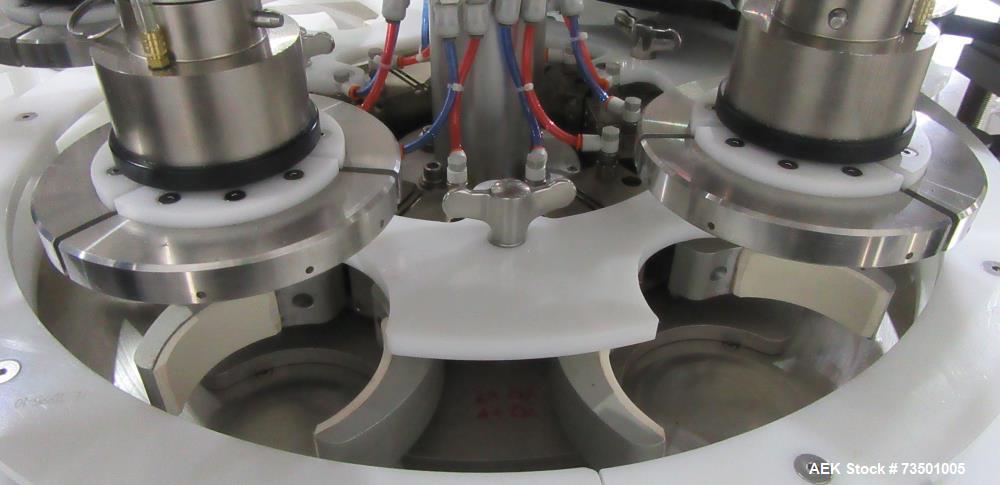

53mm, 63mm, 89mm, 110mm, 120mm (1 full set of change parts included) |
| Container Types Run |

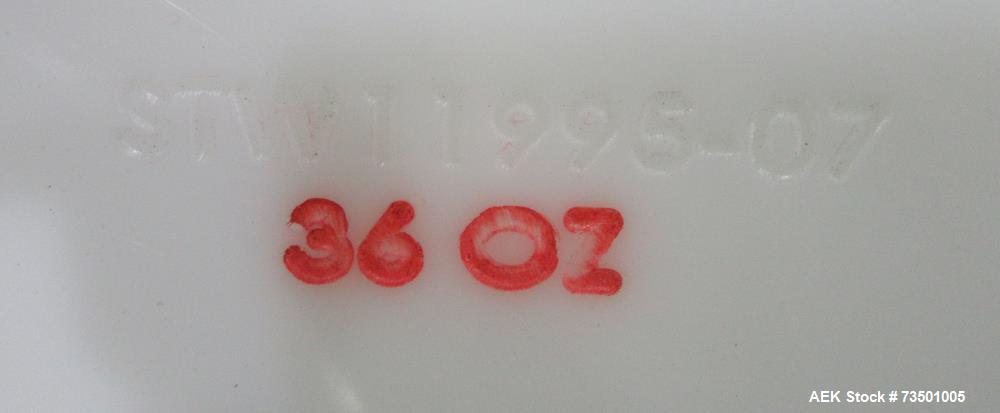

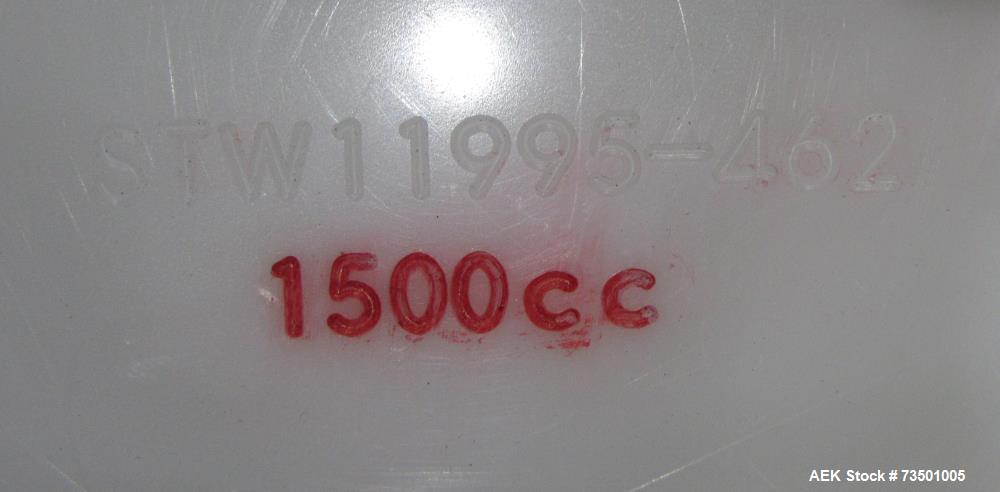

19oz, 25oz, 32oz, 36oz, 44oz, 64oz, 250cc, 400cc, 1500cc |
| Construction |
6061 Anodized Aluminum & 304 Stainless Steel |
| Control System |
Allen Bradley CompactLogix 5380 PLC |
| HMI Interface |

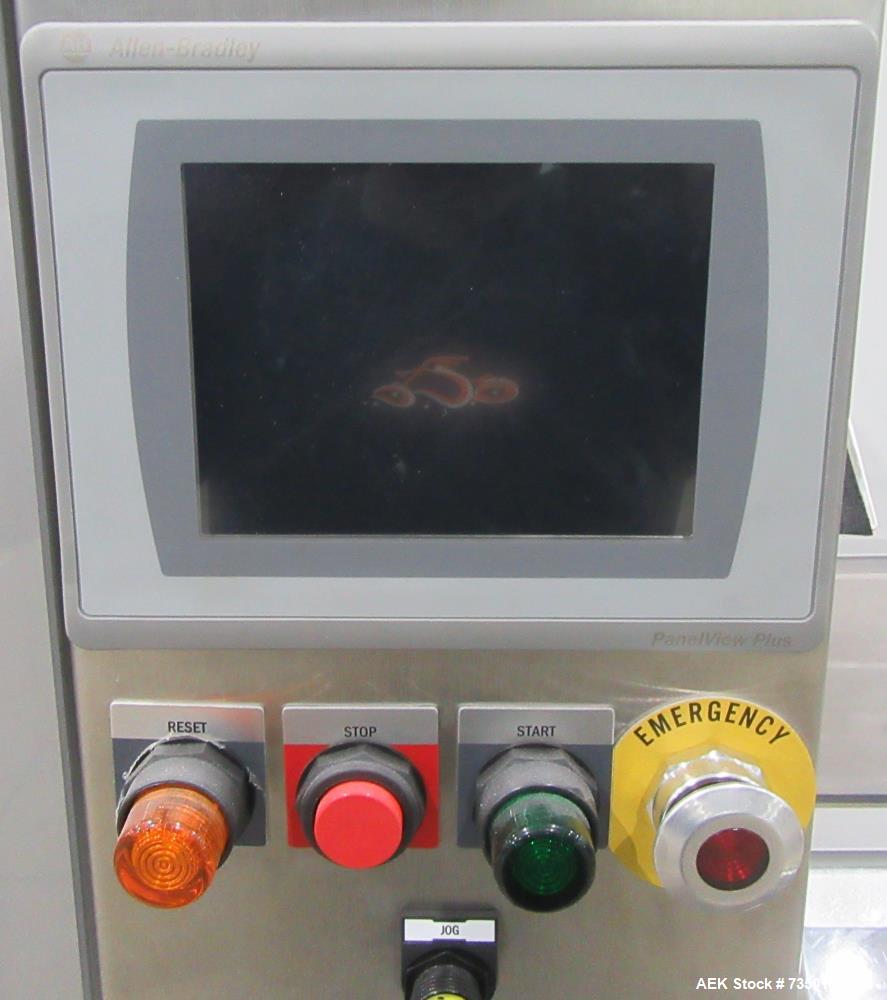

Allen Bradley PanelView 800 (Ethernet/IP) |
| Drive Type |

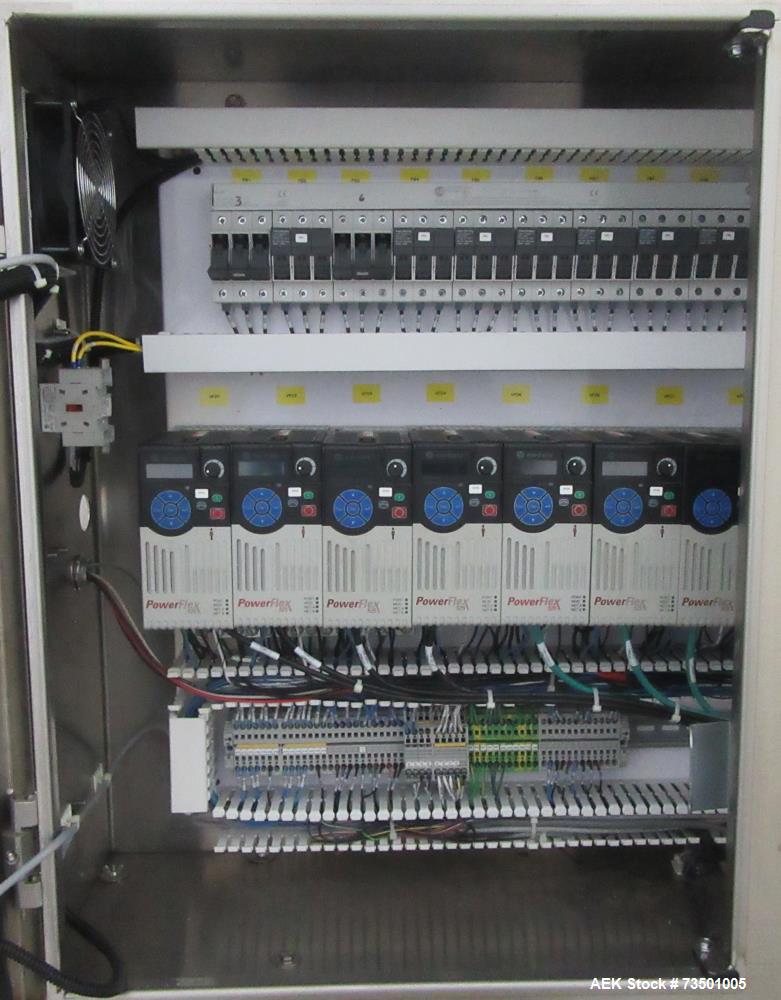

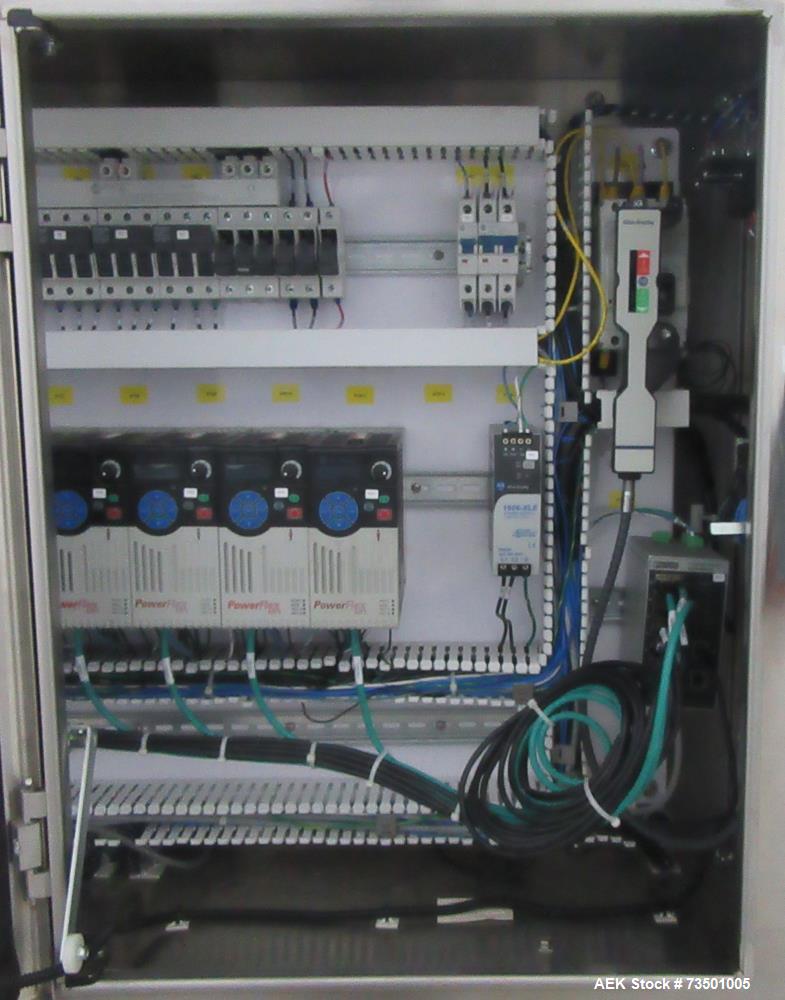

PowerFlex 525 Variable Frequency Drives (VFDs) |
| Voltage Requirements |
3 Phase / 60 Hz / 480V |
| Cap Handling Features |
Upside-down cap rejection, chute reject, low-level cap warning, cap miss detector |
| Detection Systems |
Missing foil liner, skewed/cross-threaded cap, downstream motion detector |
| Operational Modes |
Three-speed mode (Backlog / Surge / Normal) |
| Alarms & Safety |
Light tower with audible alarm, e-stop, flange-mounted disconnect, barrier separation |
| Programming Access |
USB port, electrical cabinet programming port, NAT module included |
| Wiring & Safety |
Individual circuit protection, standoffs, terminal blocks, 30mm AB components |
๐น Applications
-
High-speed capping of round containers
-
Powder, liquid, or solid product packaging
-
Nutraceutical and dietary supplement lines
-
Pharmaceutical cleanroom filling/capping
-
Food & beverage PET/HDPE bottle capping
-
Household and industrial chemical packaging
-
Cosmetic and personal care product lines
๐น What Products Would This Be Used For?
-
Protein and nutrition powders
-
Supplement and vitamin bottles
-
Liquid beverages (juices, smoothies, waters)
-
OTC pharmaceuticals (cough syrups, gels)
-
Nutritional shake containers
-
Food additives and dry goods jars
-
Large-volume powder PET containers
-
Cosmetic creams, lotions, or gels
-
Household cleaning liquids
-
Industrial chemical bottle packaging
