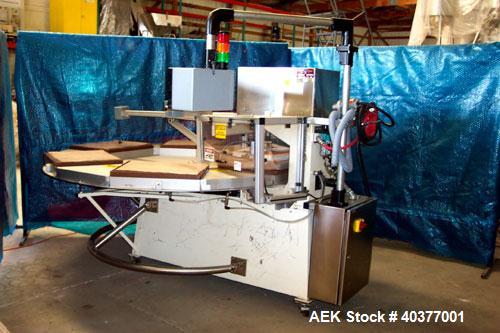

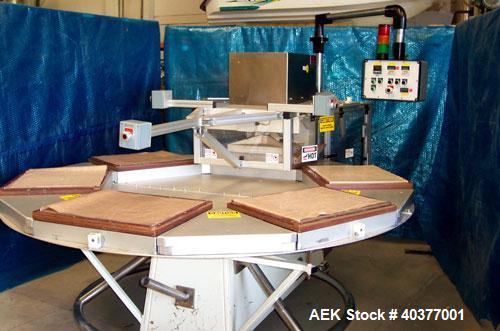

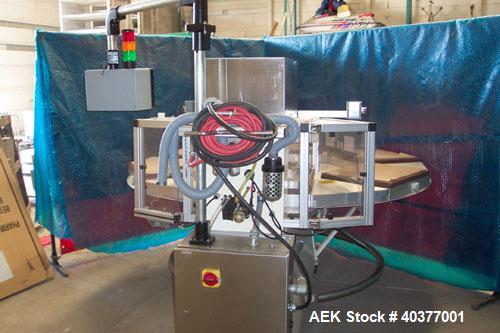

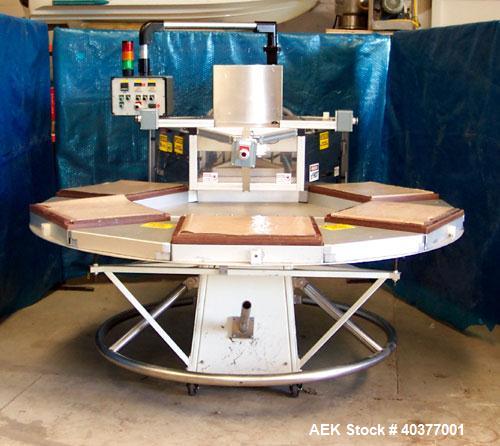

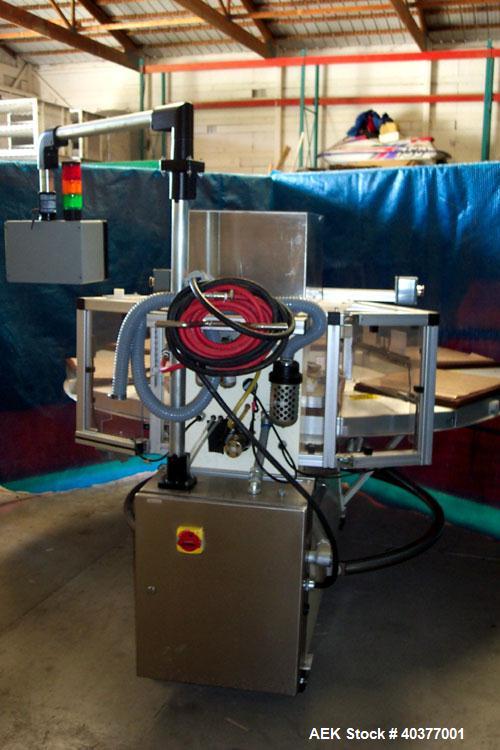

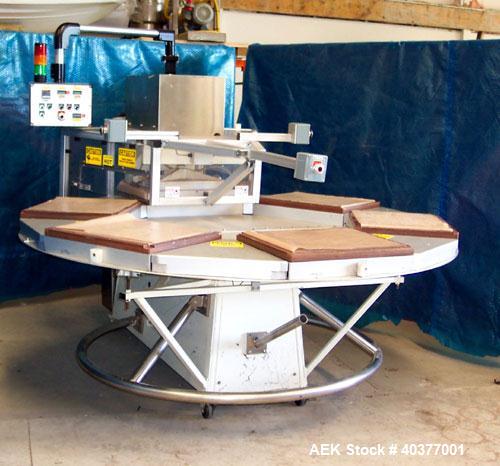

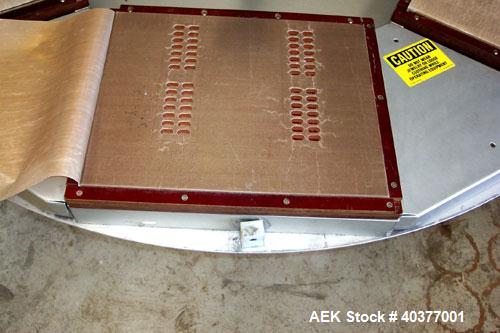

Used Visual Packaging Thermoforming Six Station Rotary Blister Sealer, model ESDS-6. Approximately 78” diameter turntable, 18" x 22" ( 45.7 cm x 56 cm ) seal area. Seal pressure 5000 lbs @ 100 psi (2268 Kg @ bar 7) seal temp precise digital controller 0 – 600 degrees (0-315.5 C) seal time adjustable 0-99 seconds, cycle speed variable 1 to 10 on average, air required 80-100 psi (bar 5-7). Air consumption per cycle 1.8 CD @ 100 psi (0.50m3 @ bar 7), electrical 220 volt single phase 25 amp. Operator station can be set up on left or right side, 3 emergency stop controls, digital temperature controllers, dwell timer, and seal timer. Dimensions 80” wide (203cm), 88” long ( 223.5 cm), 63” ht (160cm), weight 1300 lbs.
