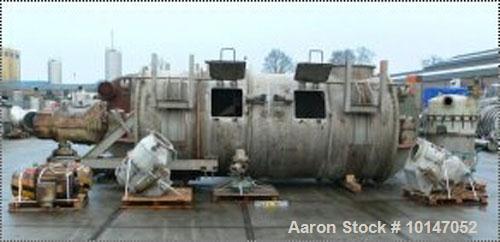

Used- Schichau-Griep Mischtechnik Bremen ribbon blender, type DS - 160

Used- Schichau-Griep Mischtechnik Bremen Ribbon Blender, Type DS - 160. Material of construction is 321 (1.4541) stainless steel, 653.25 cubic feet (18500 liter) capacity, 7'07" diameter x 16'2" (2176 mm diameter x 4990 mm st. side) non-jacketed body, (1) 16.38" x 16.38" (420 mm x 420 mm) product inlet, (1) 12.48" (320 mm) diameter and (1) 6.83" diameter (175 mm diameter) product outlets. (3) 23.6" x 23.6" (605 mm x 605 mm) manholes/inspection doors. Max ribbon speen 9 rpm via gearbox by an 87 hp/ 58 kw-500 volt/ 50 cycle, 3 Ph exp. motor, with adjustable packing glands. Included (1) Mikropul filter, type HP-12-4-BM, (1) Engelsmann discharge screw. Overall dimensions: 27'3" long x 9'4" width x 9'4" high (without filter) (84000 mm long x 2900 mm width x 2900 mm high).
