Industrial-Grade 350 Cu. Ft. Stainless Steel Ribbon Mixer for Large-Scale Blending

Manufacturer Information:
Brand: N/A
Model: 350 Cu. Ft. Ribbon Mixer

Description:

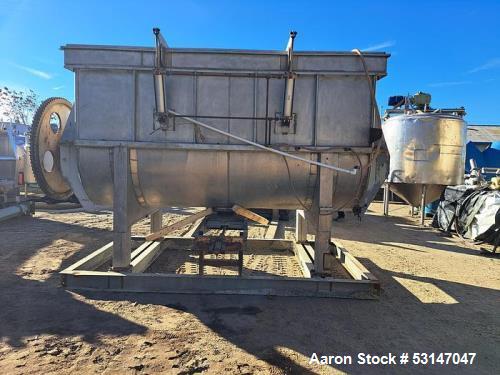

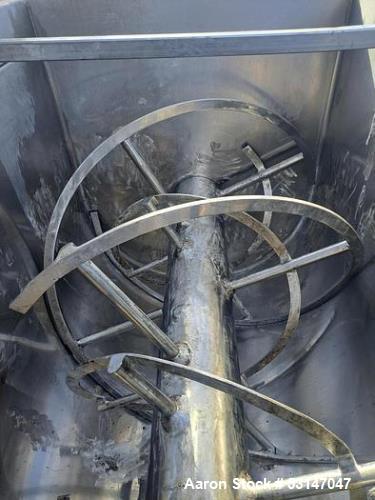

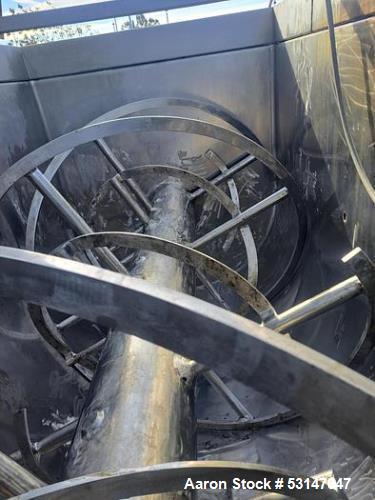

This used 350 Cu. Ft. Stainless Steel Ribbon Mixer is designed for high-capacity, efficient mixing of dry and semi-dry materials. It features a hinged cover with backrest and a pneumatically controlled cylinder for easy access. The ribbon assembly consists of a 15" diameter solid stainless steel shaft, 2" wide x 3/4" thick outer ribbons, 2" wide x 3/8" thick inner ribbons, and 2-1/8" thick spokes. The trough shell thickness is 0.196", ensuring durability. The mixer is powered by an approximately 100 HP, 440V gearhead motor via a roller chain drive. The knife-style pneumatic slide gate allows for smooth discharge at a height of 40". The unit is secured to a stainless steel frame and legs for added stability.

Specifications:

• Capacity: 350 Cu. Ft.

• Trough Dimensions: 146" L x 66" W x 80" D

• Ribbon Assembly: 15" solid stainless steel shaft

  • Outer Ribbons: 2" wide x 3/4" thick

  • Inner Ribbons: 2" wide x 3/8" thick

  • Spokes Thickness: 2-1/8"

• Trough Shell Thickness: 0.196"

• Motor Power: ~100 HP

• Voltage: 440V

• Drive System: Gearhead motor via roller chain

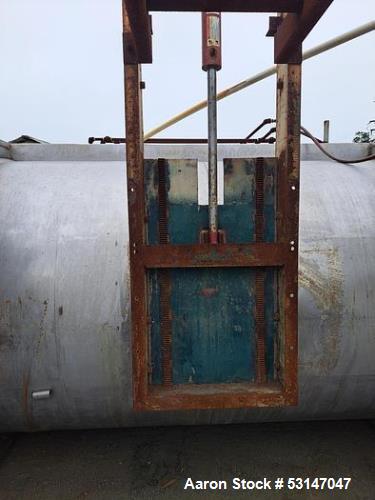

• Discharge Type: Knife-style pneumatic slide gate

• Discharge Height: 40"

• Frame & Legs: Stainless steel

Applications:
Ideal for mixing dry powders, granules, and semi-moist materials across various industries, including:

• Food Processing (flour, spices, protein blends)

• Pharmaceuticals (powdered medications, excipients)

• Chemical Processing (powders, catalysts, additives)

• Plastics & Resins (colorants, fillers, polymer blends)

• Construction Materials (cement blends, mortar mixes)

• Agricultural Feed & Seed Processing

What Products Would This Be Used For?

• Dry powder and granular mixing

• Food ingredient blending

• Feed and grain processing

• Chemical compound formulation

• Industrial material blending

• Plastic and resin mixing
