Dinnissen Pegasus Coffee Mixing Paddle System

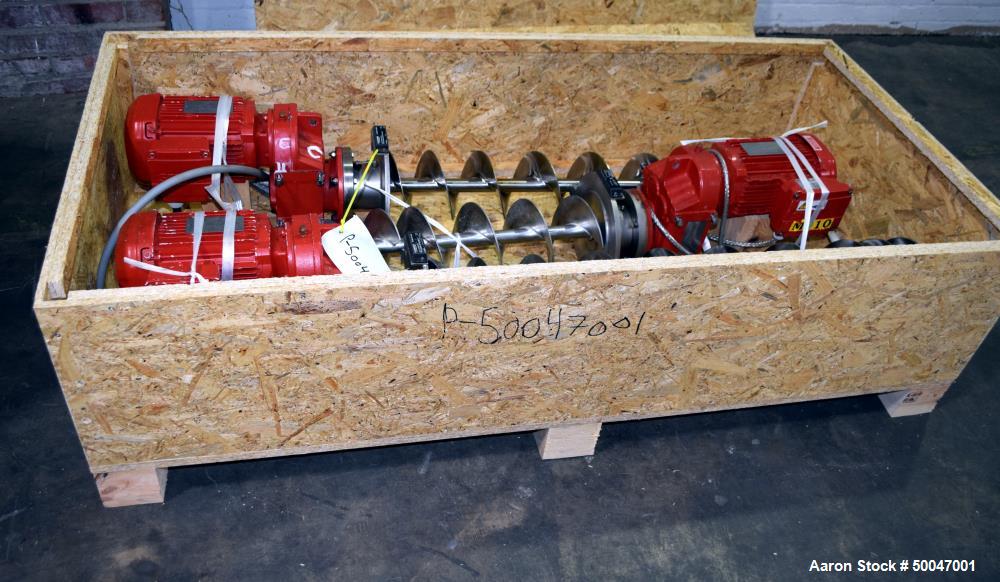

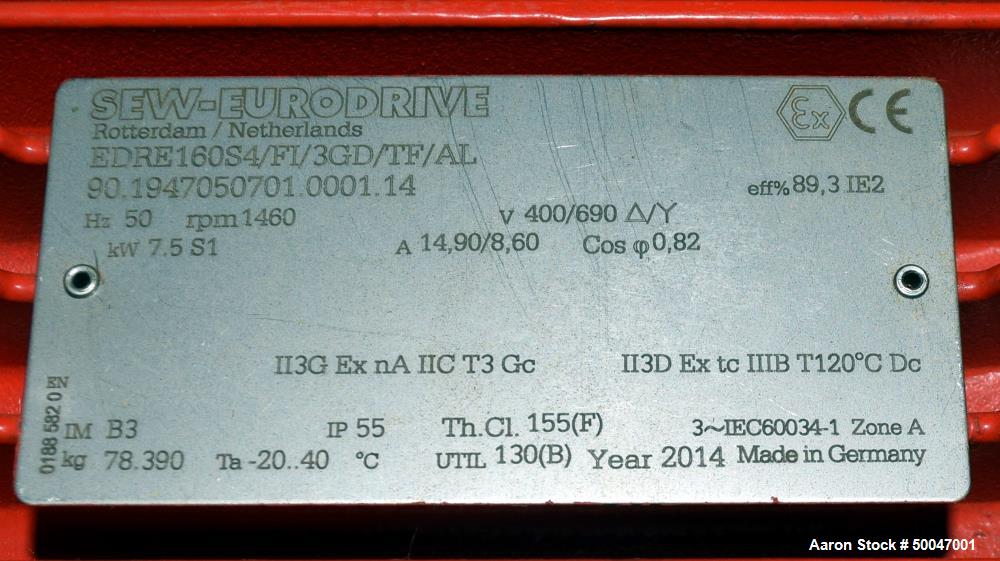

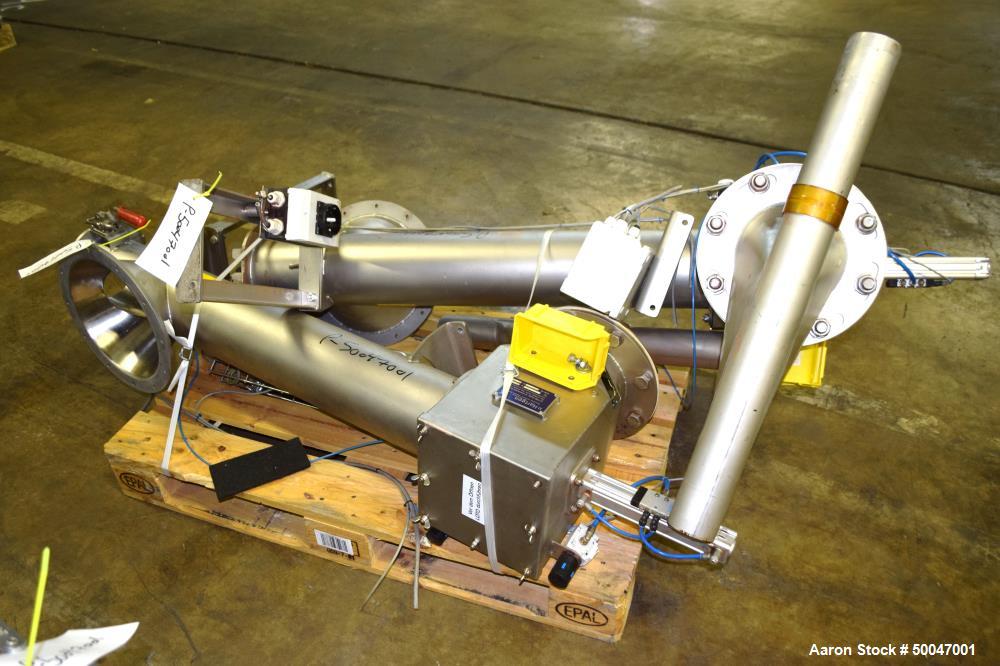

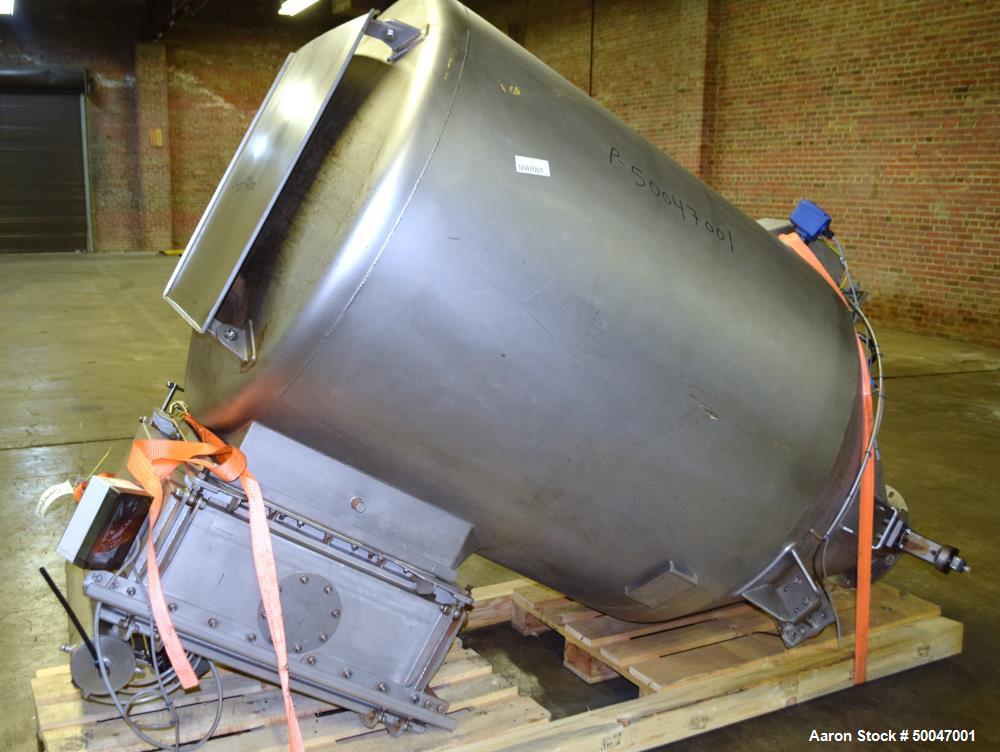

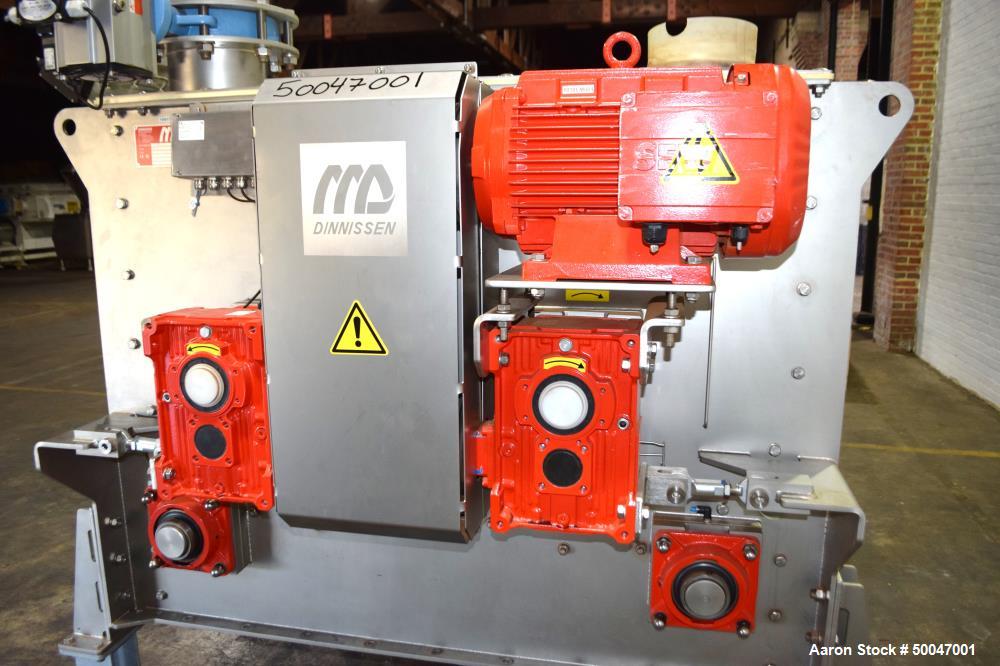

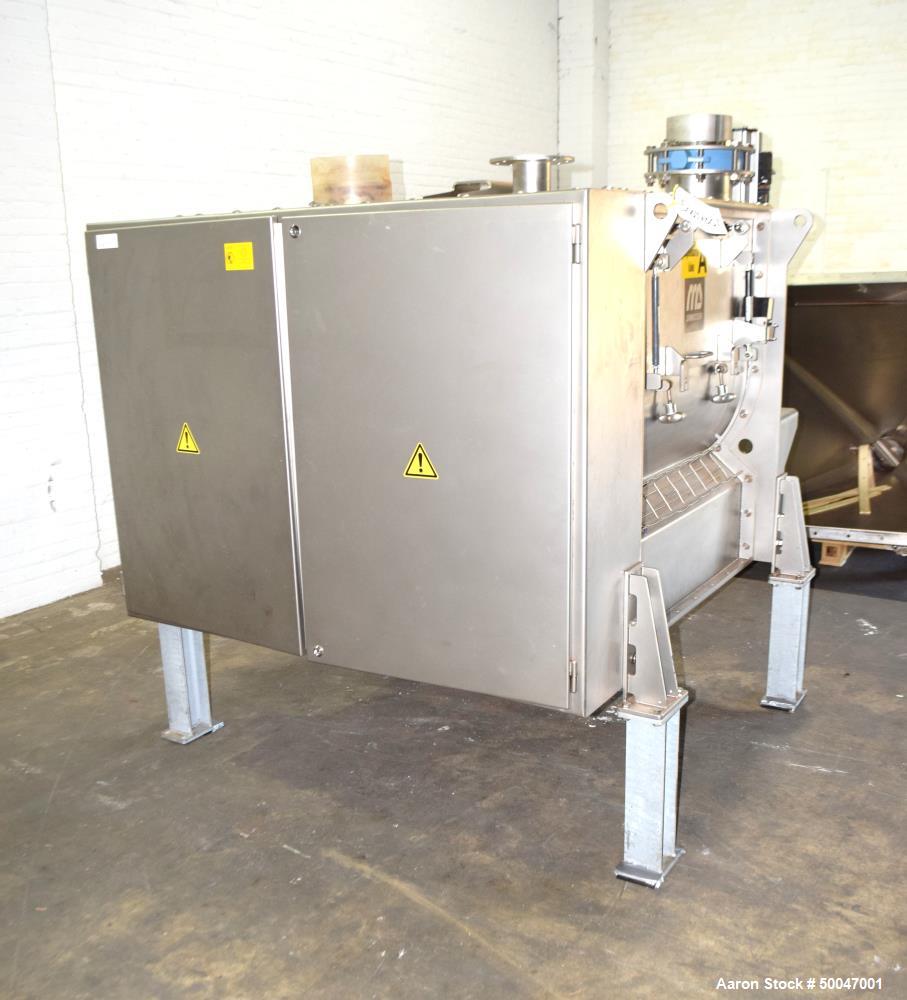

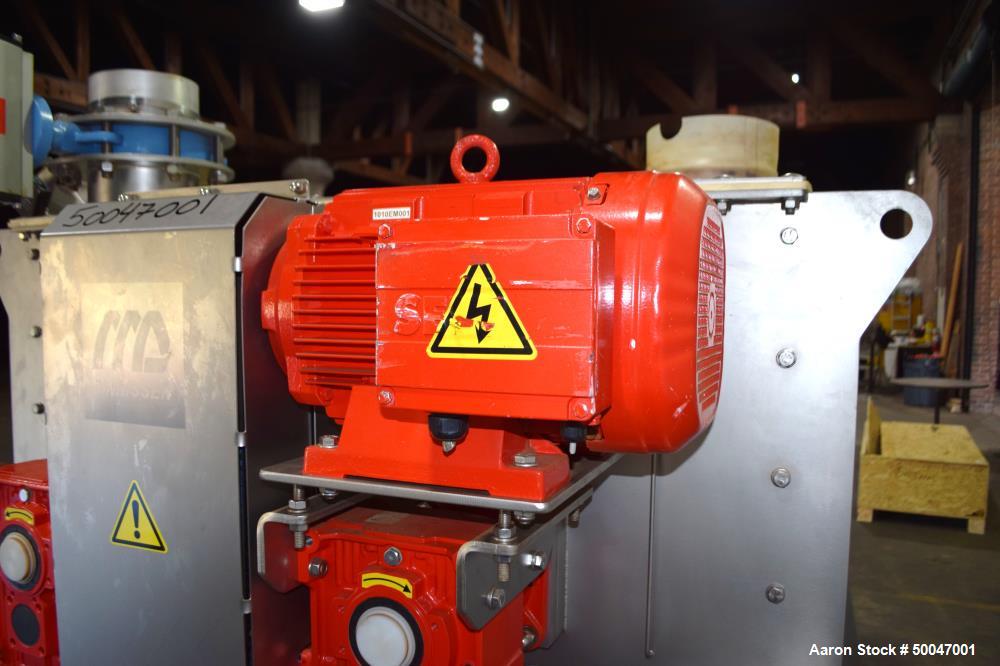

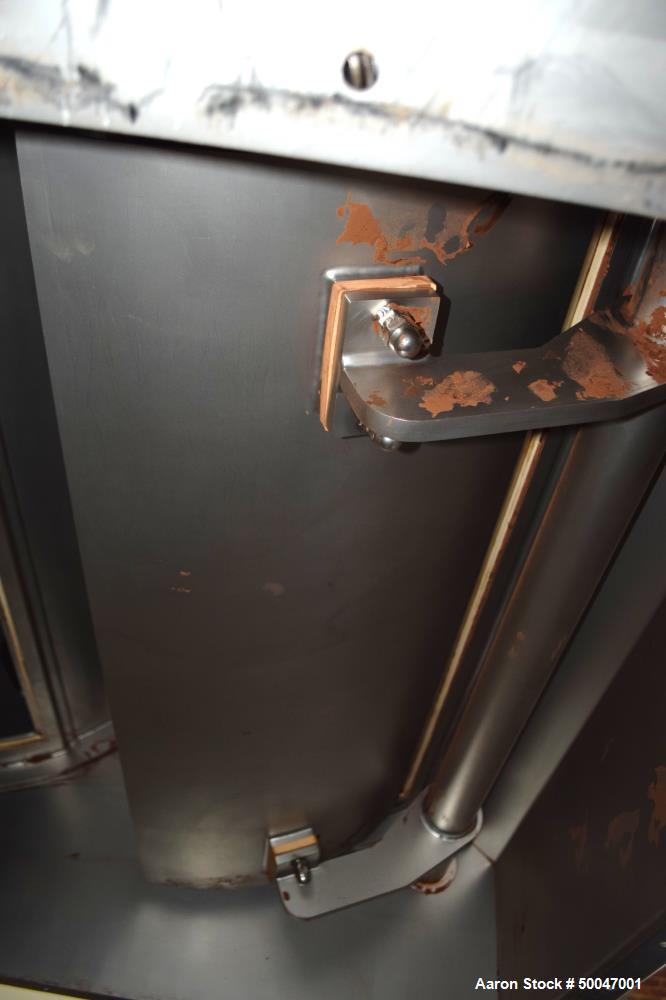

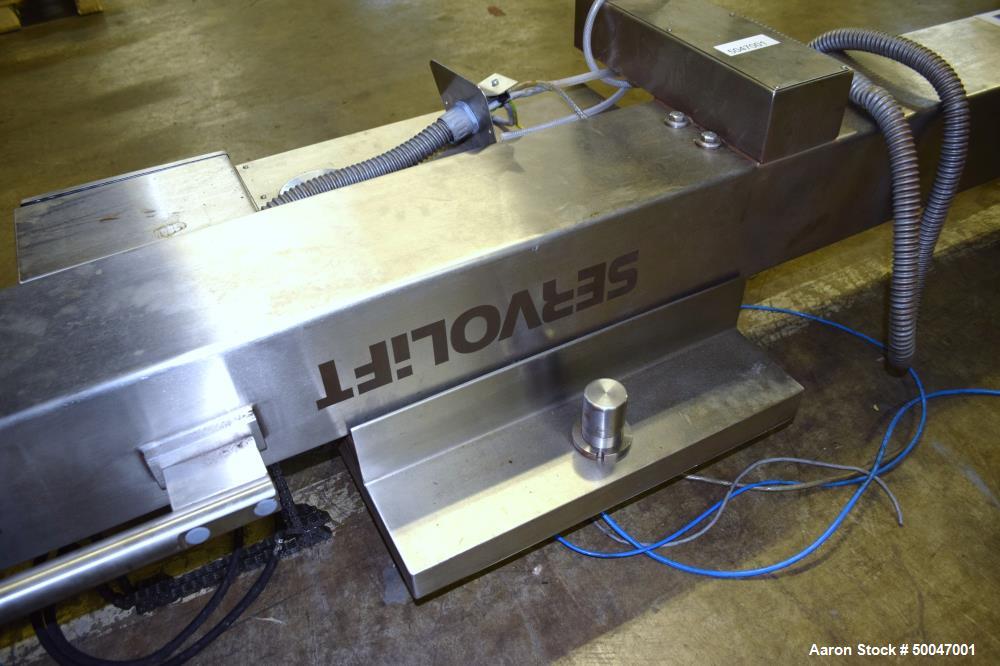

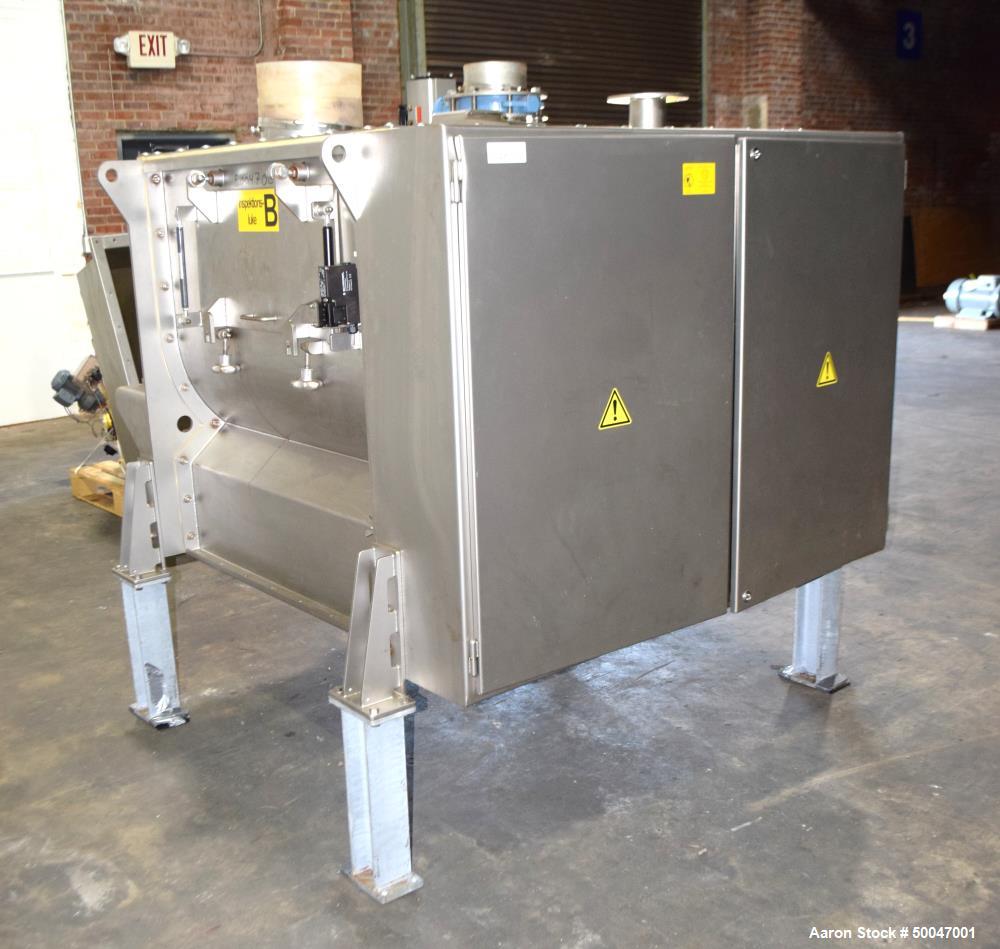

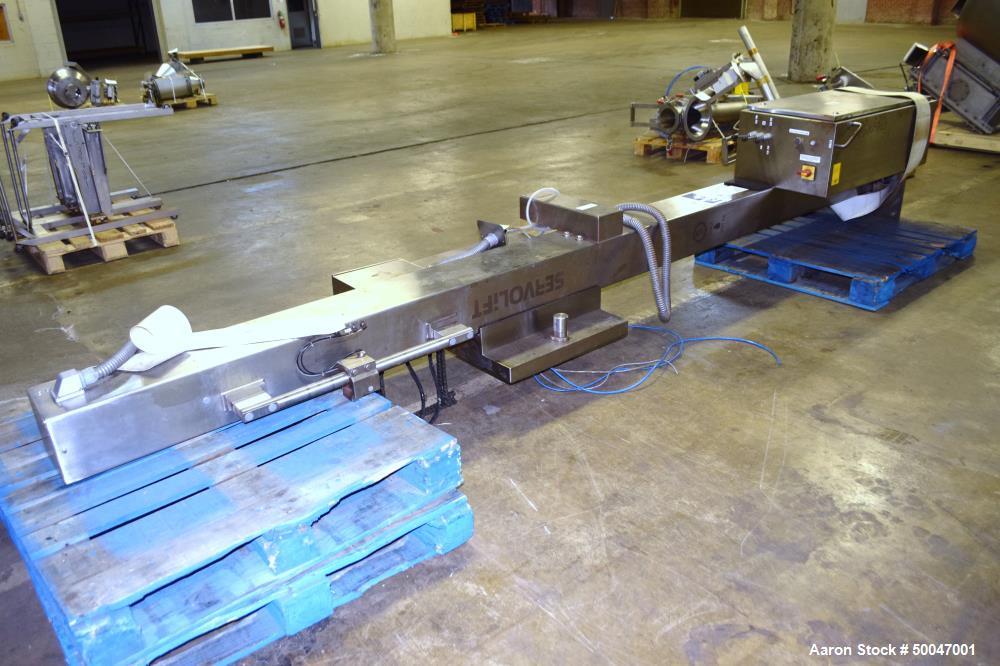

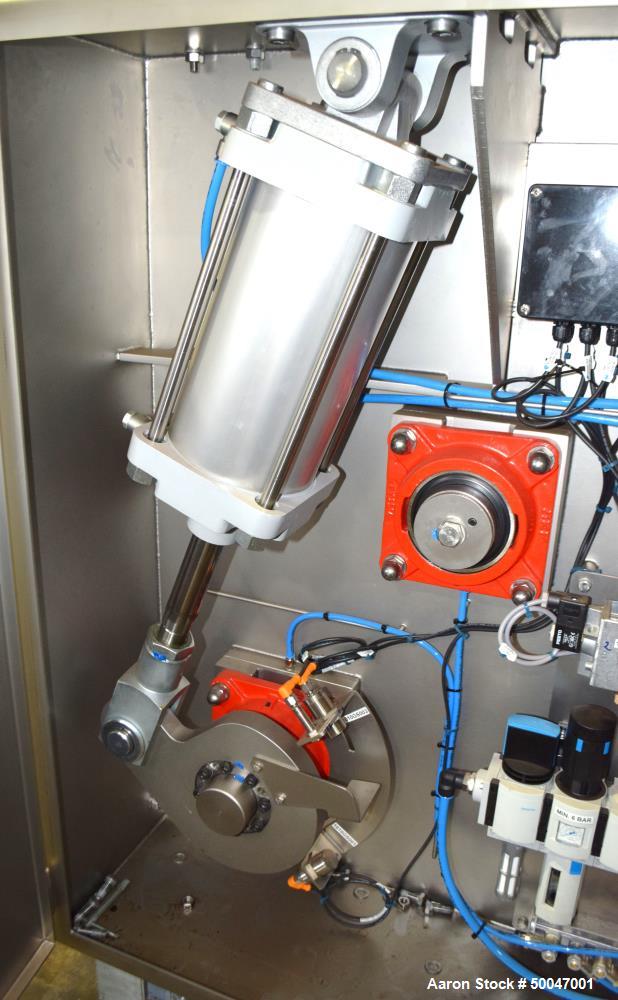

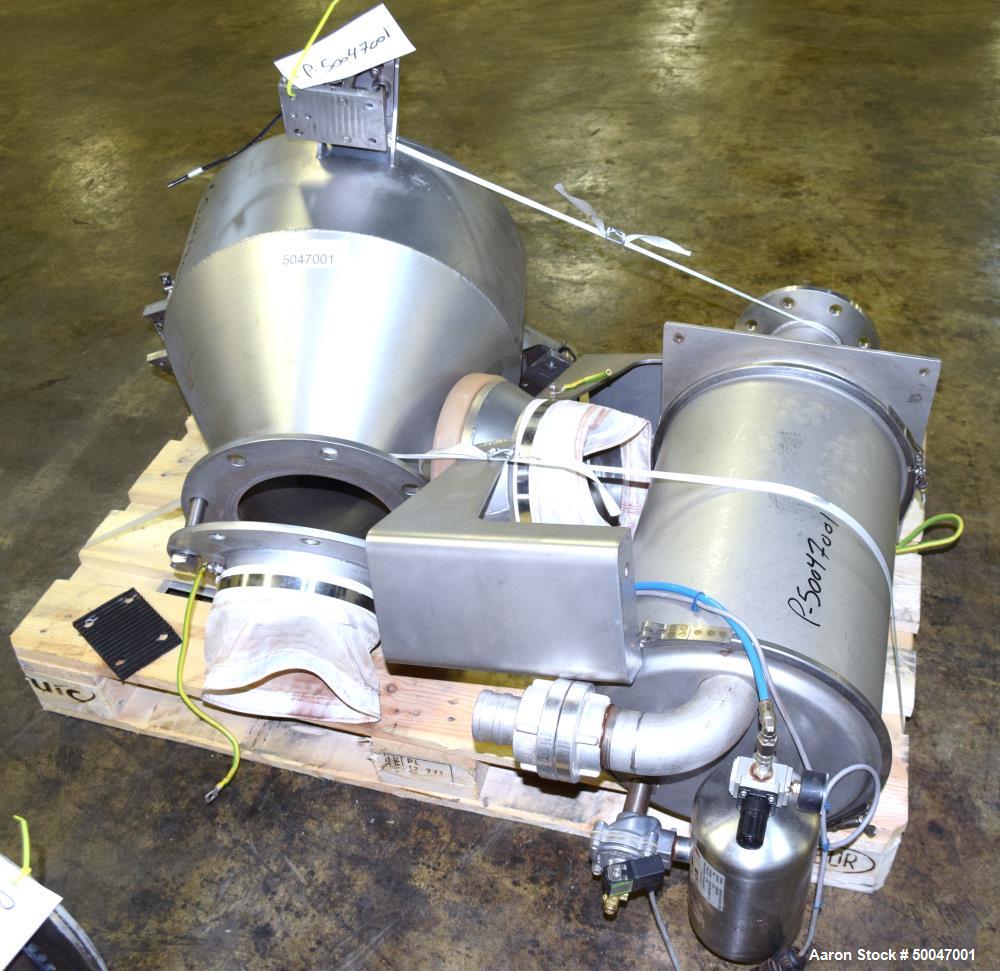

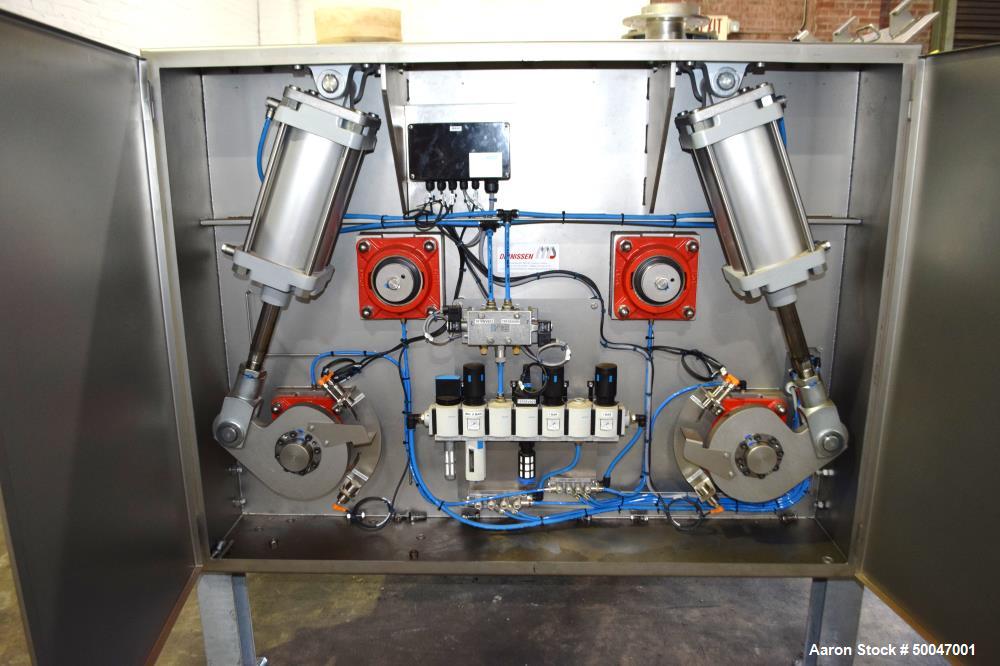

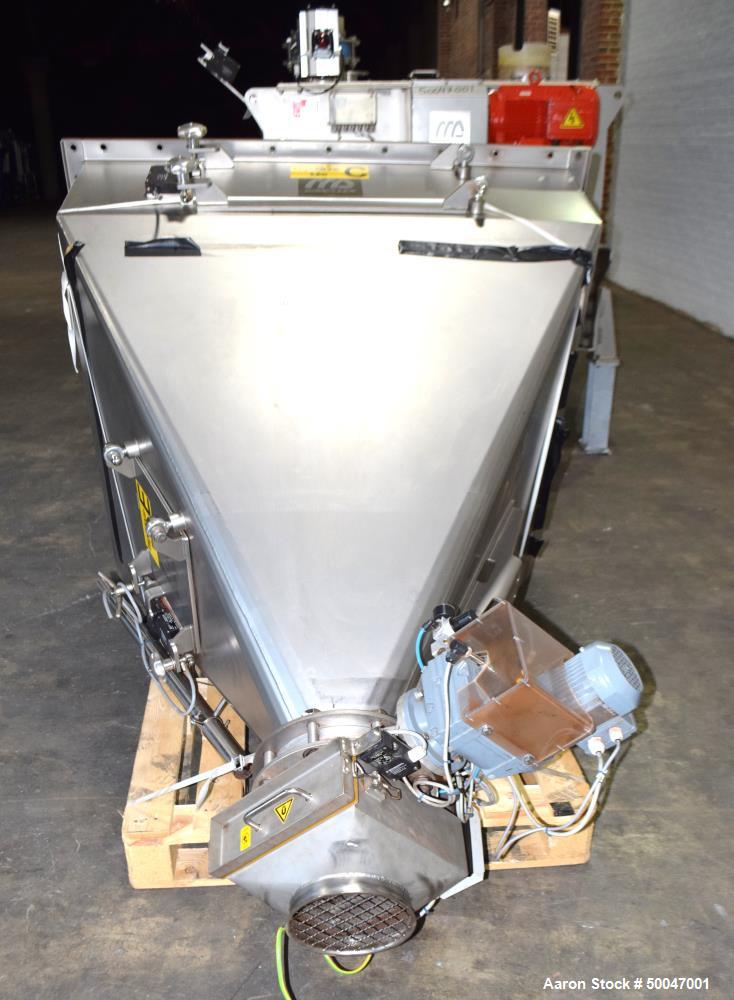

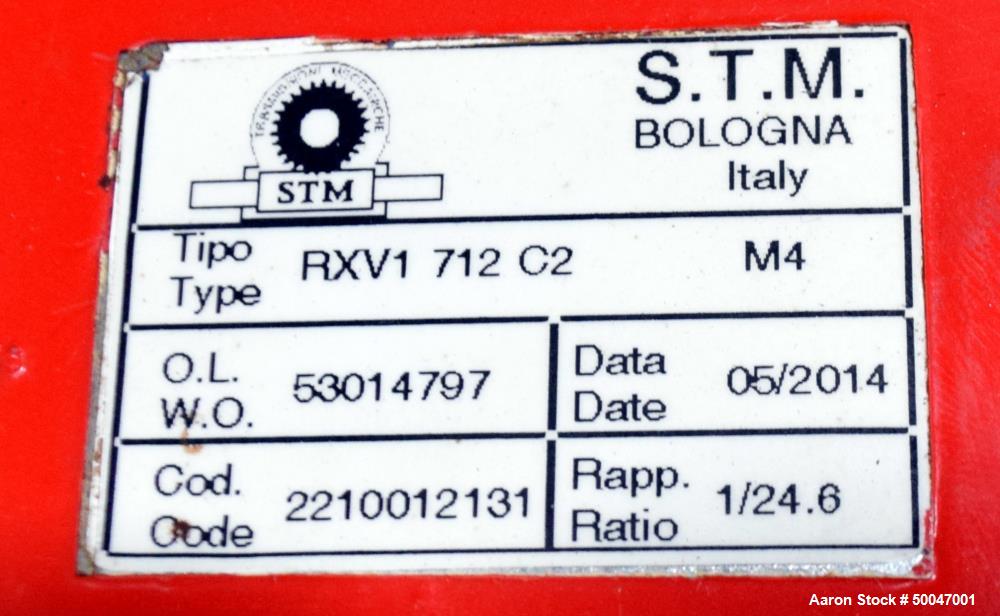

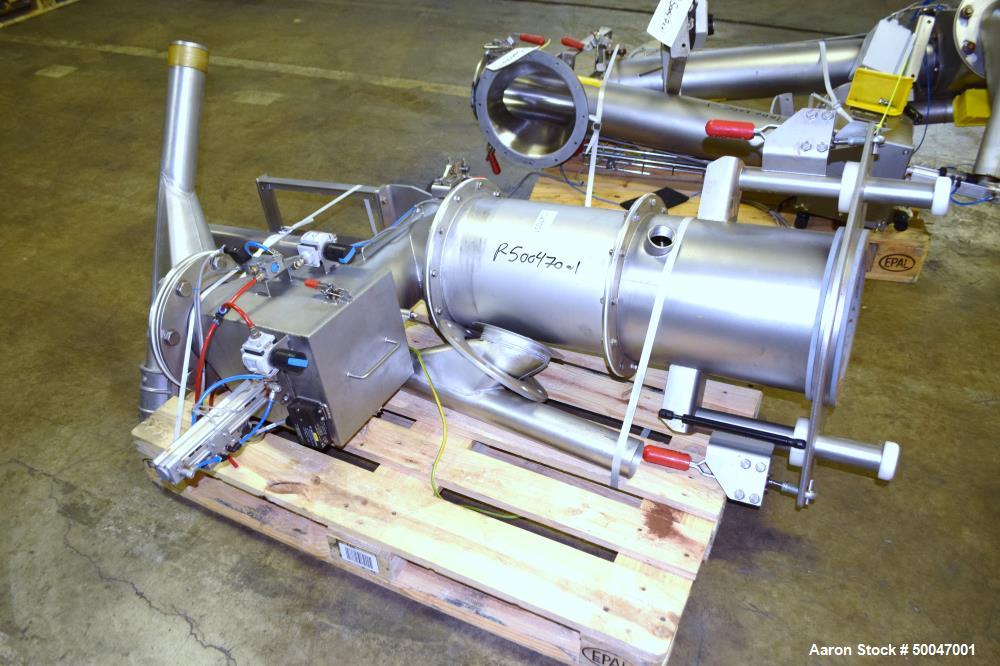

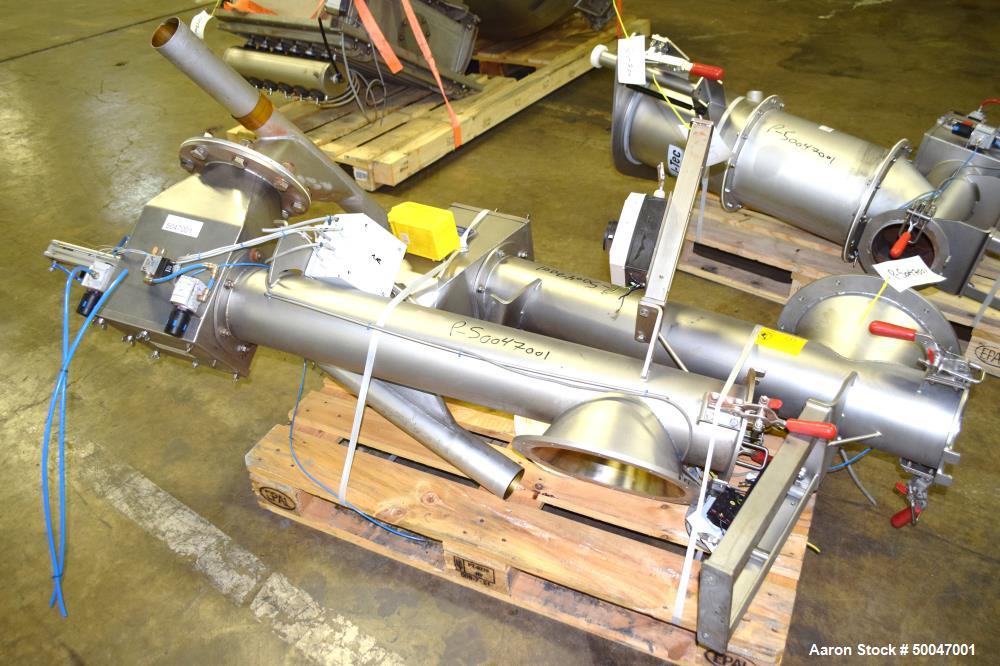

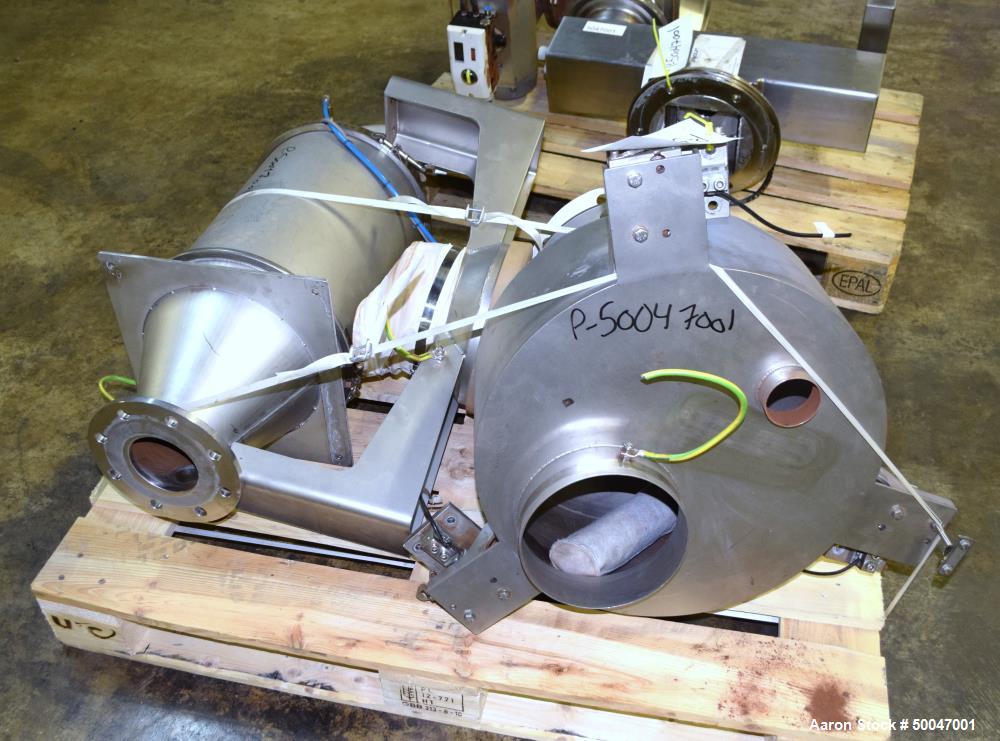

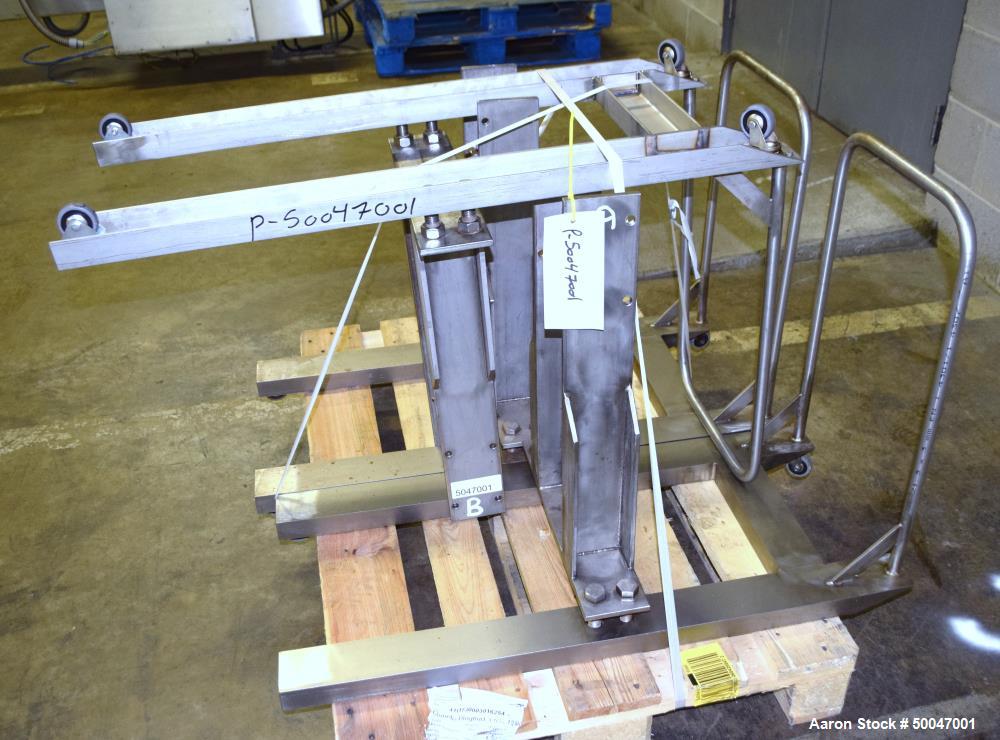

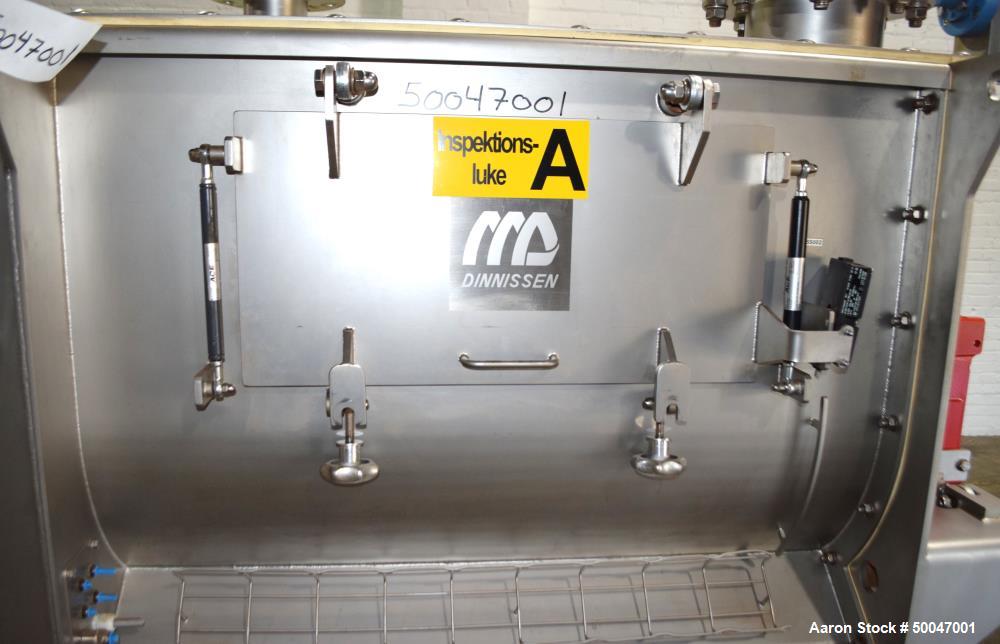

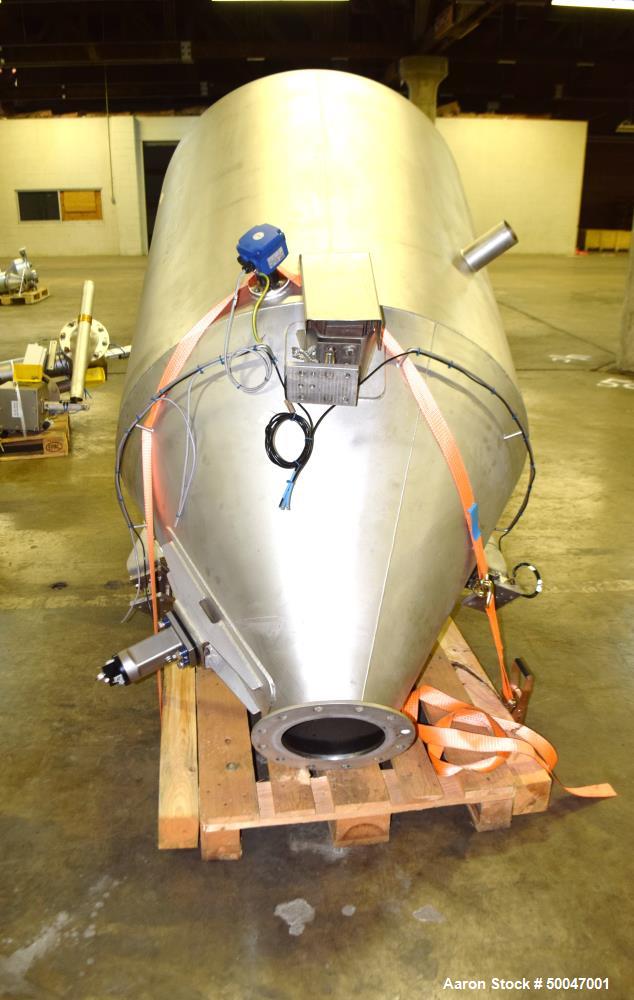

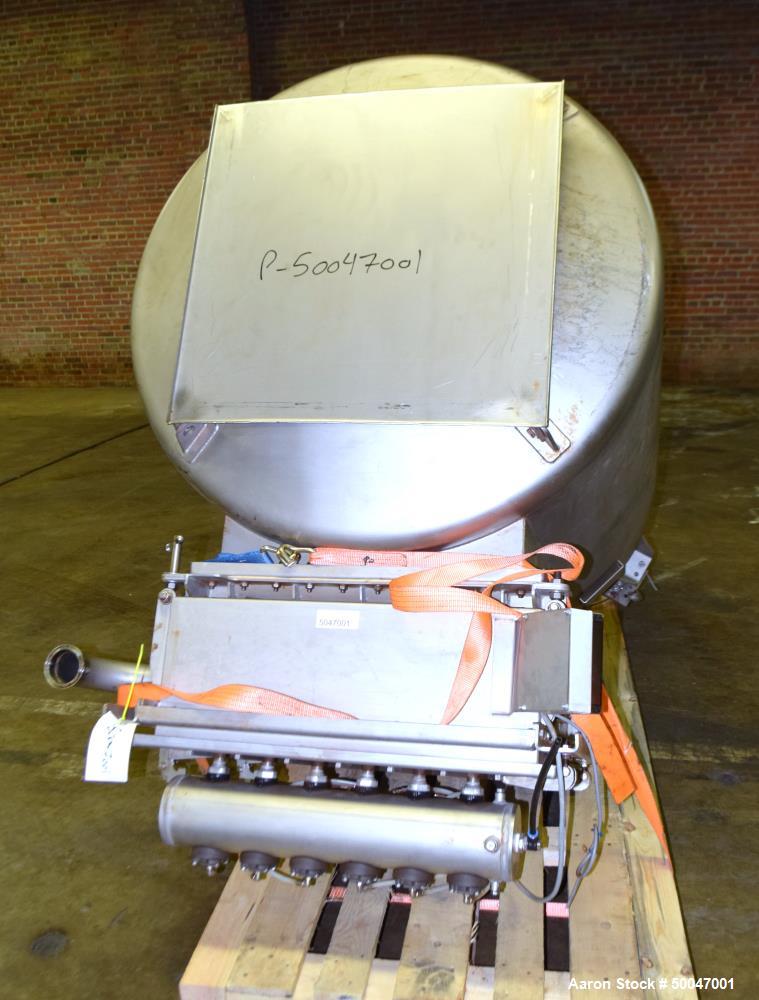

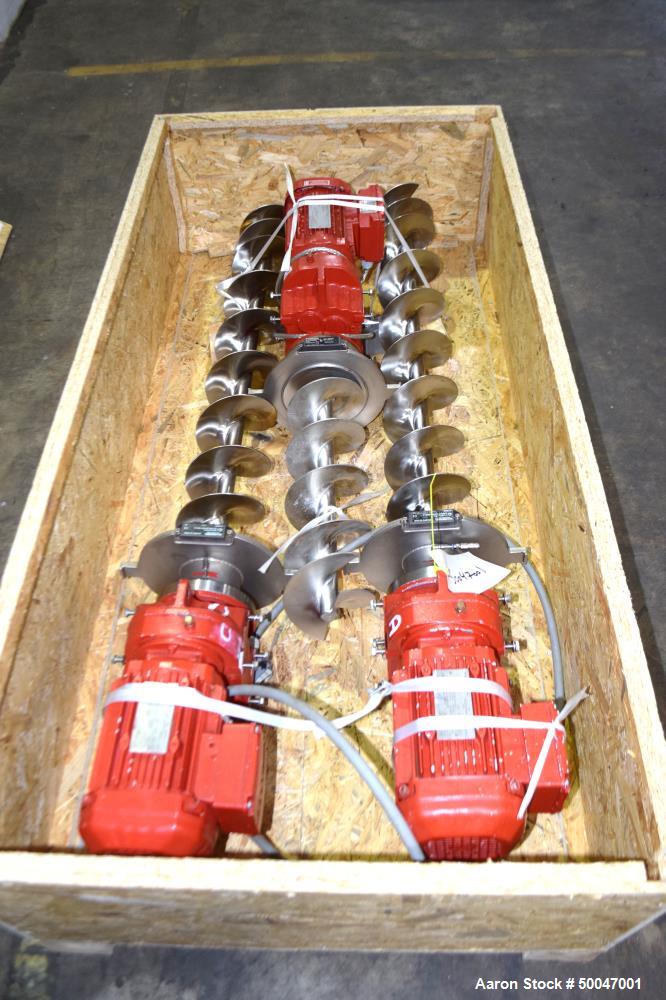

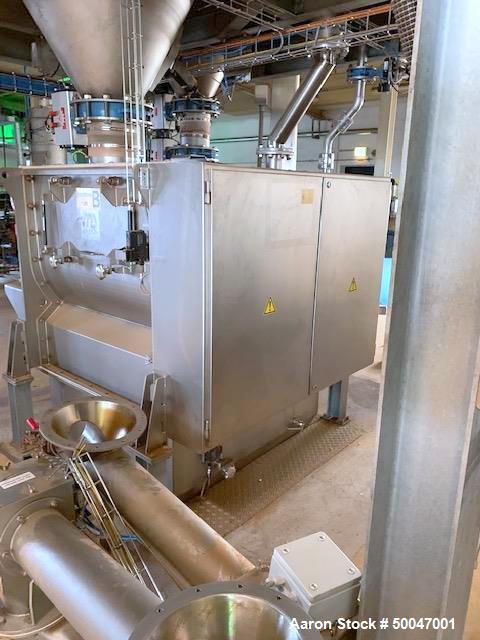

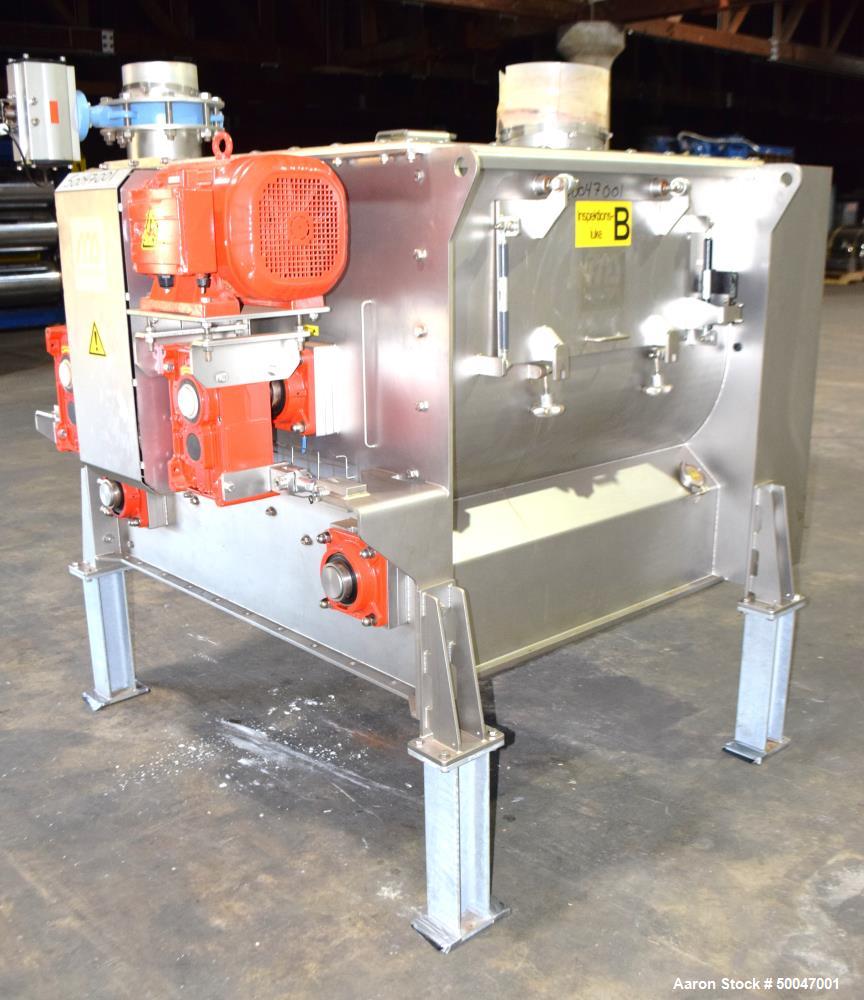

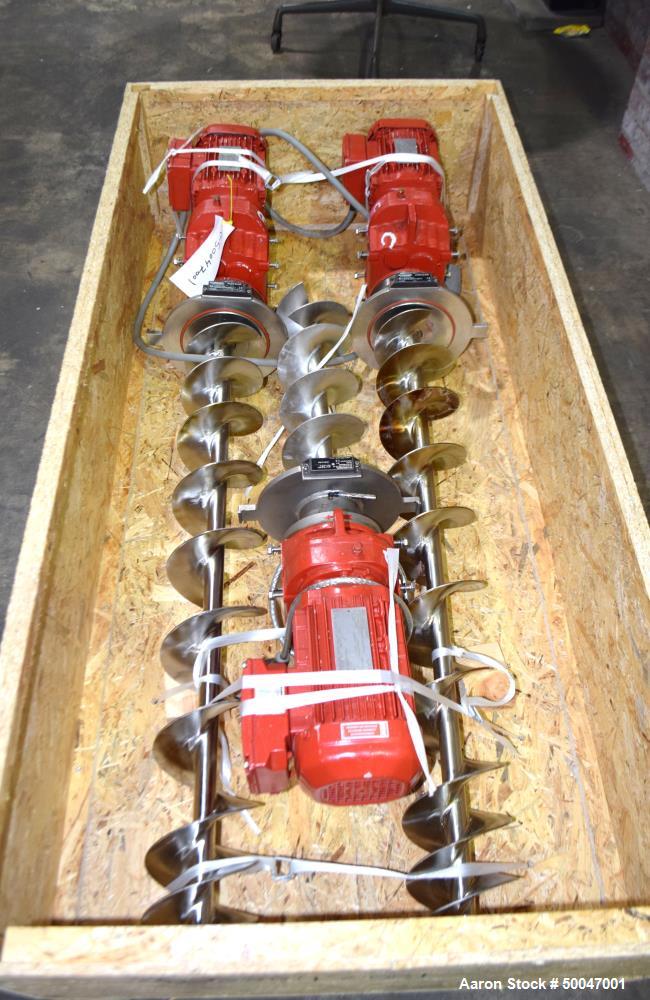

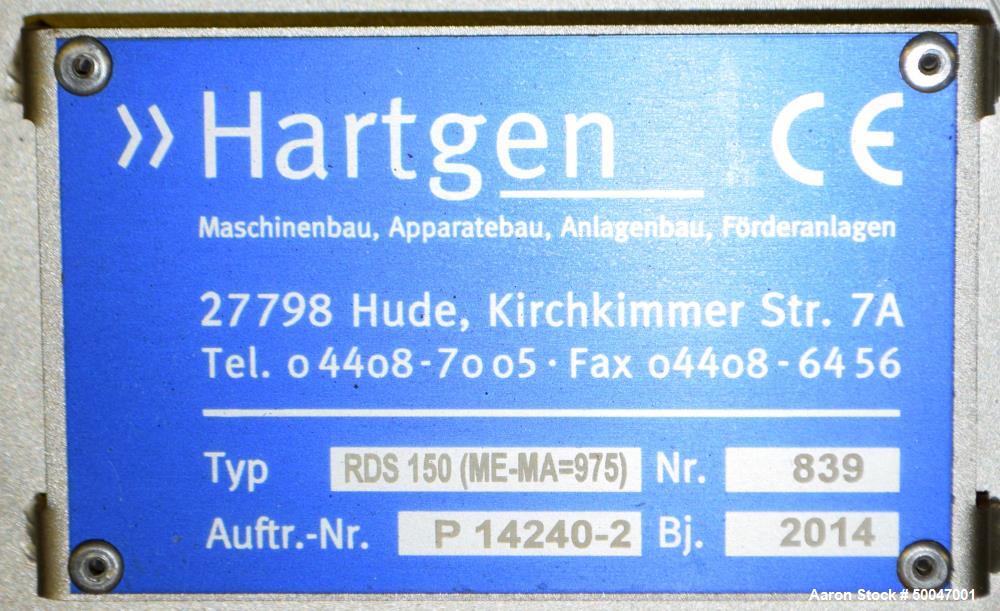

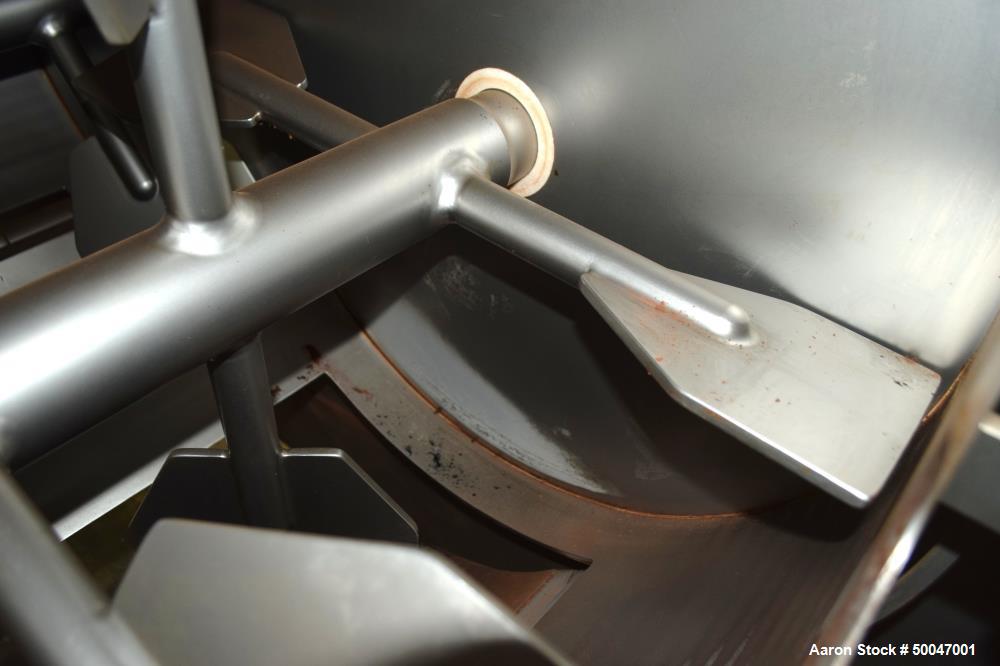

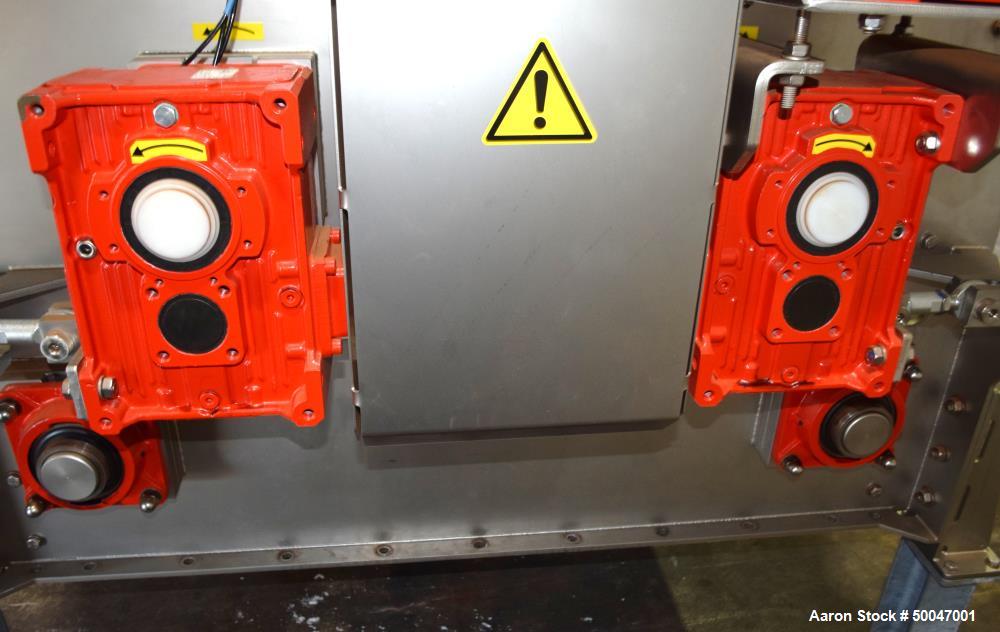

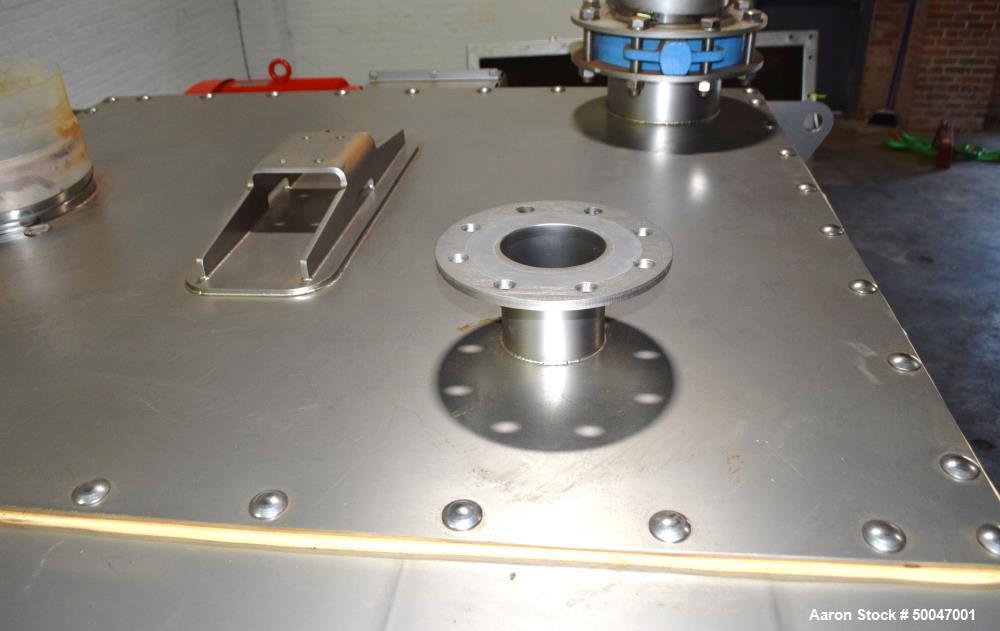

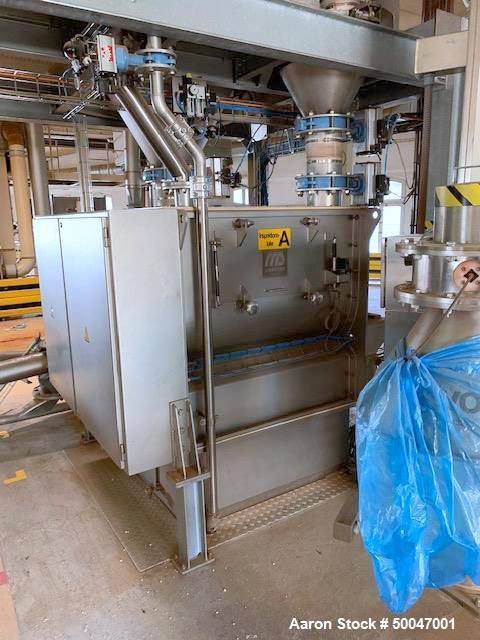

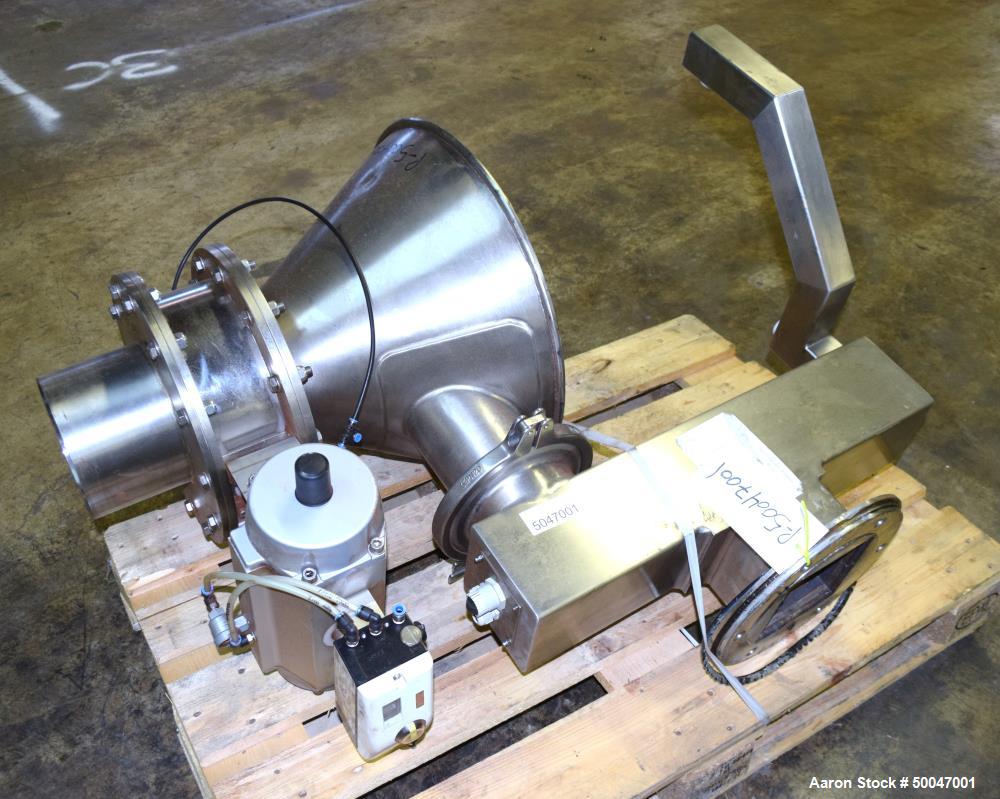

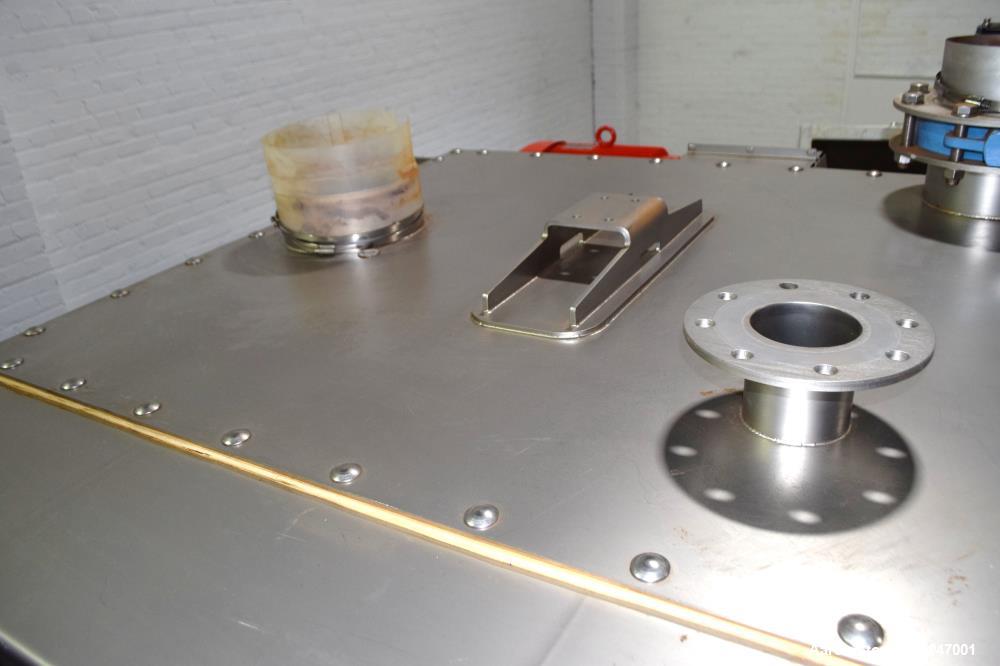

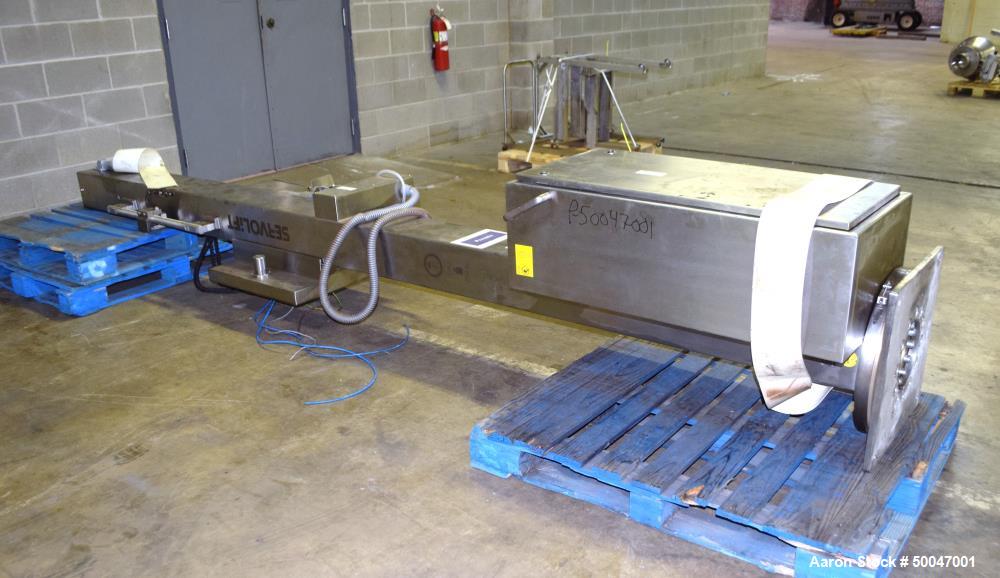

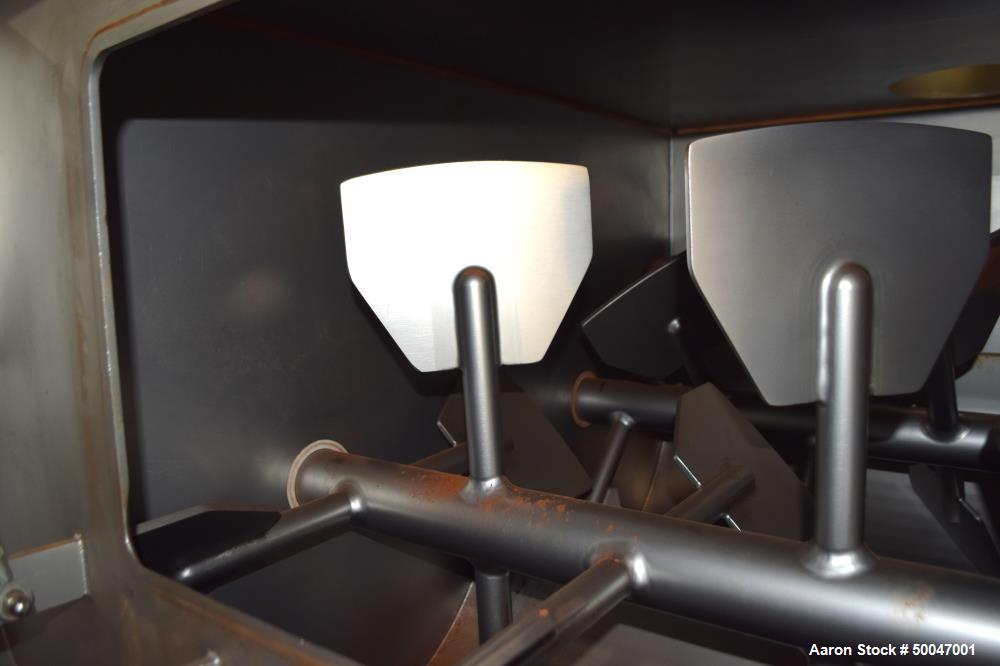

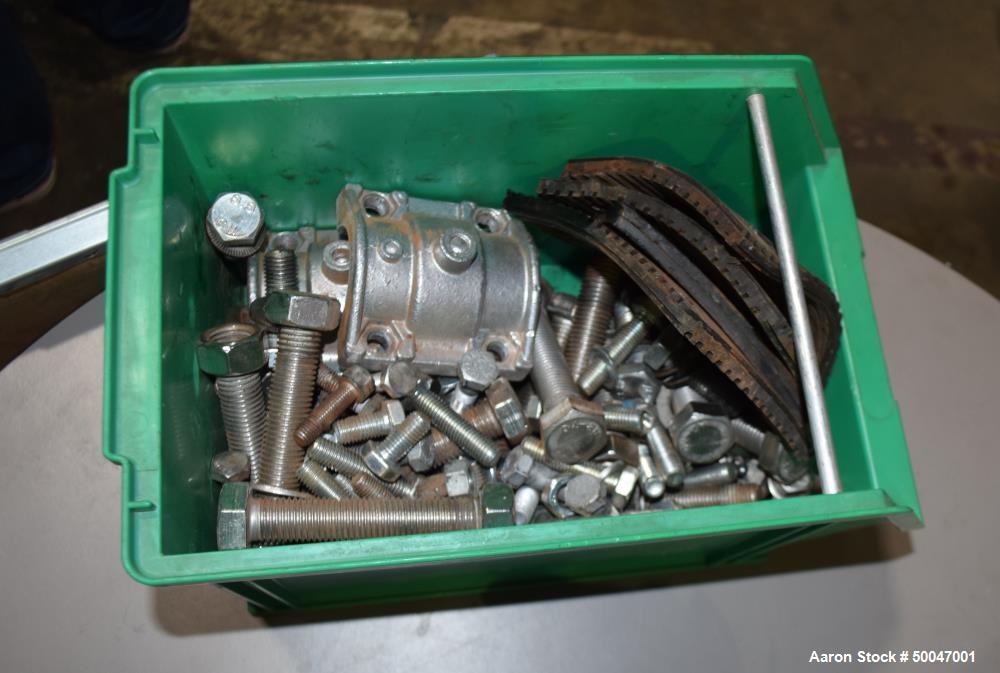

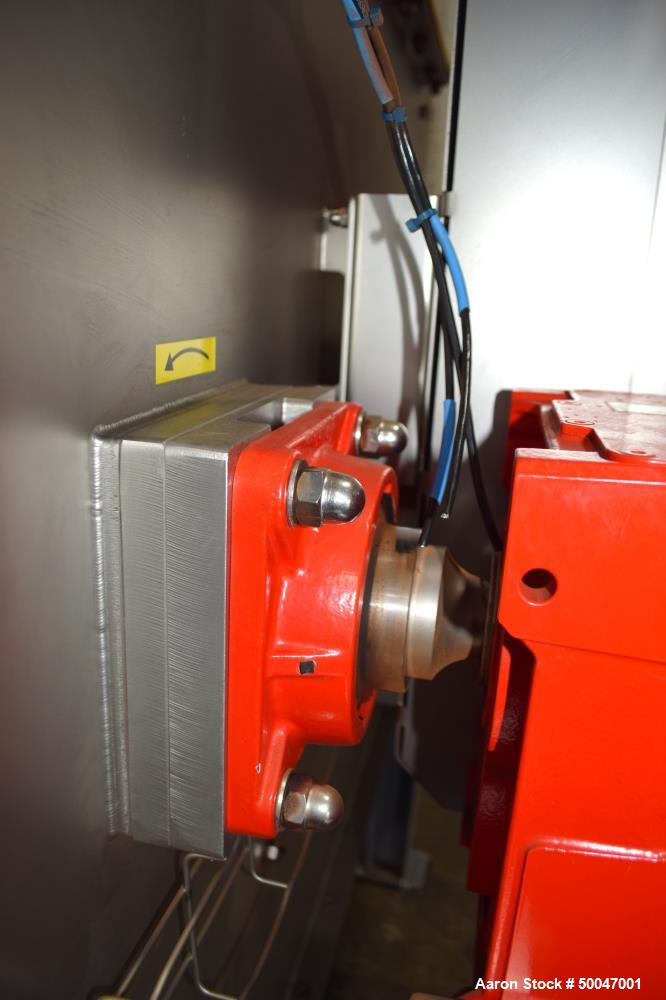

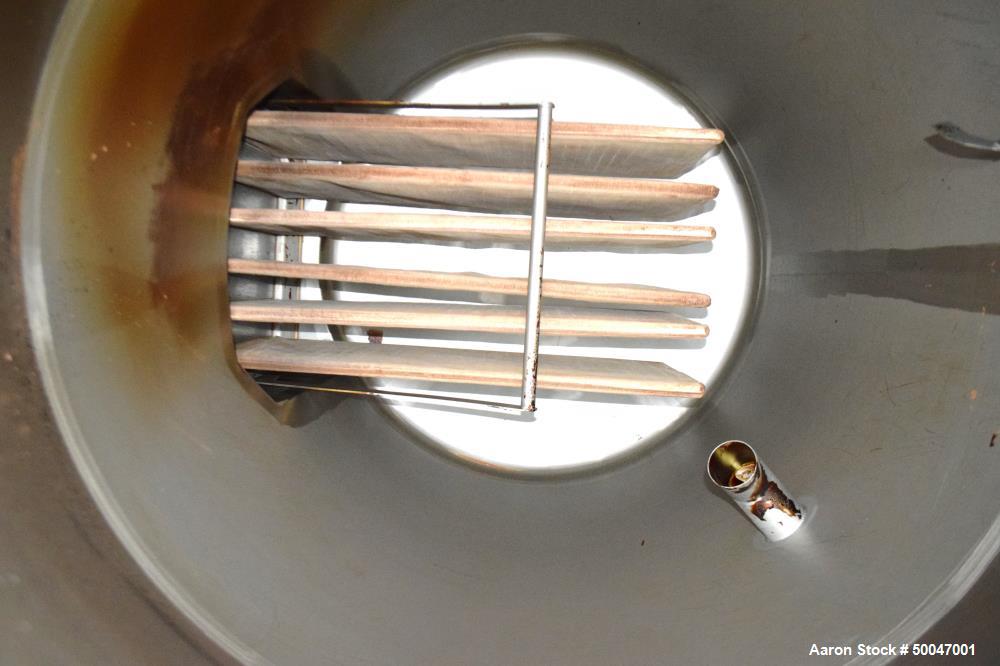

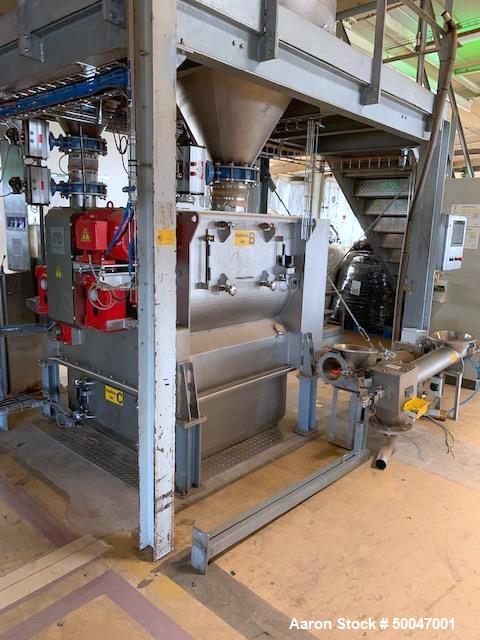

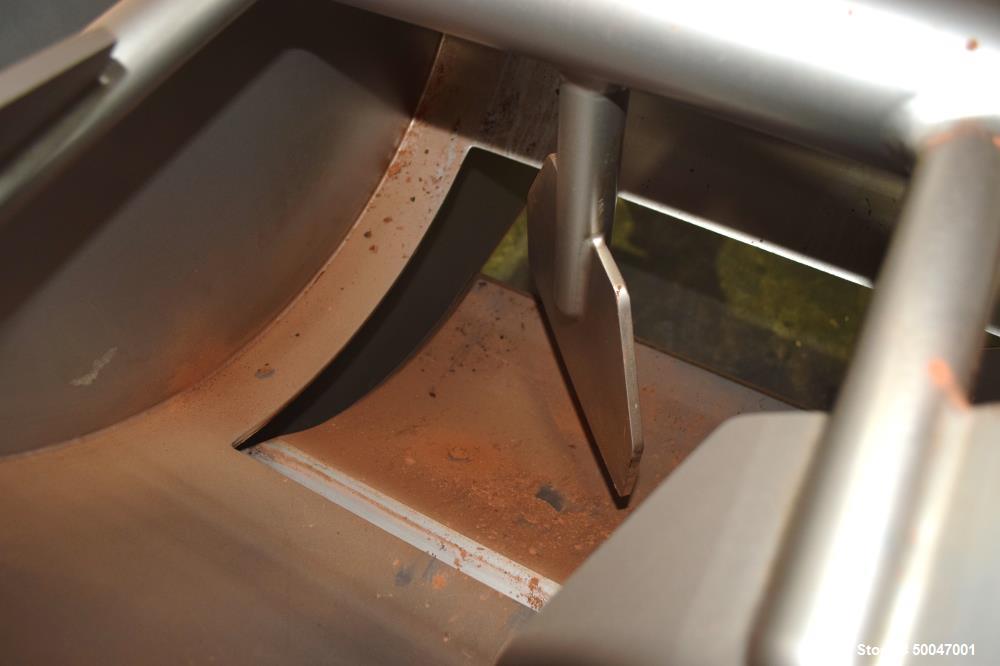

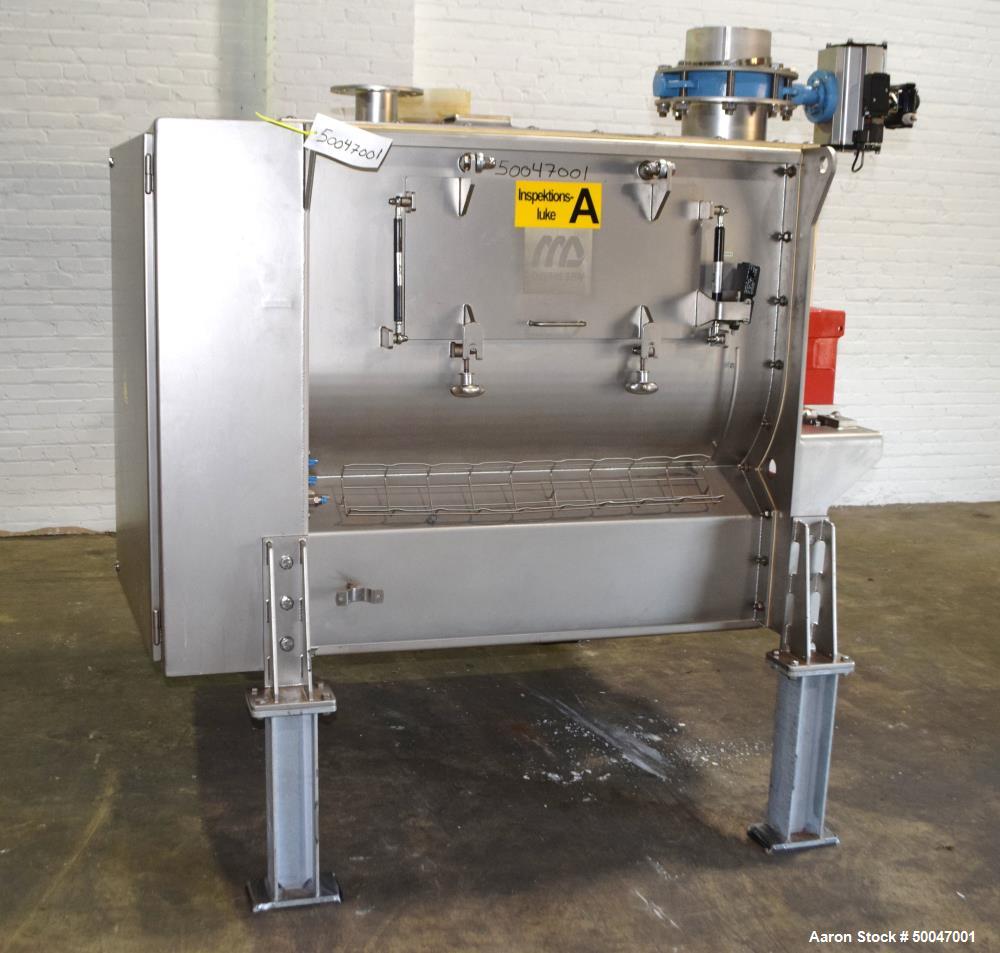

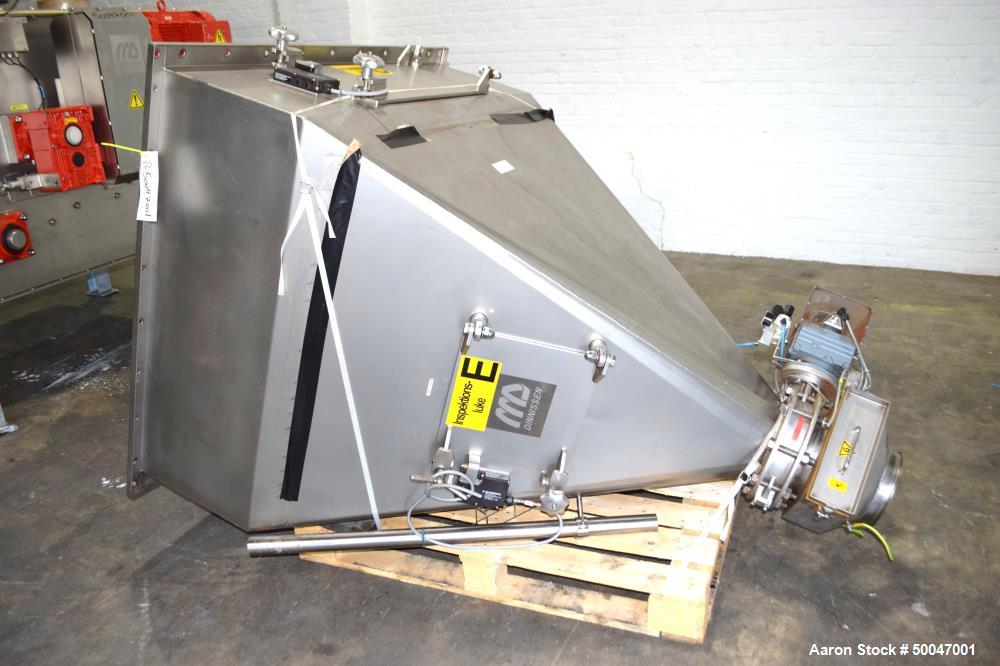

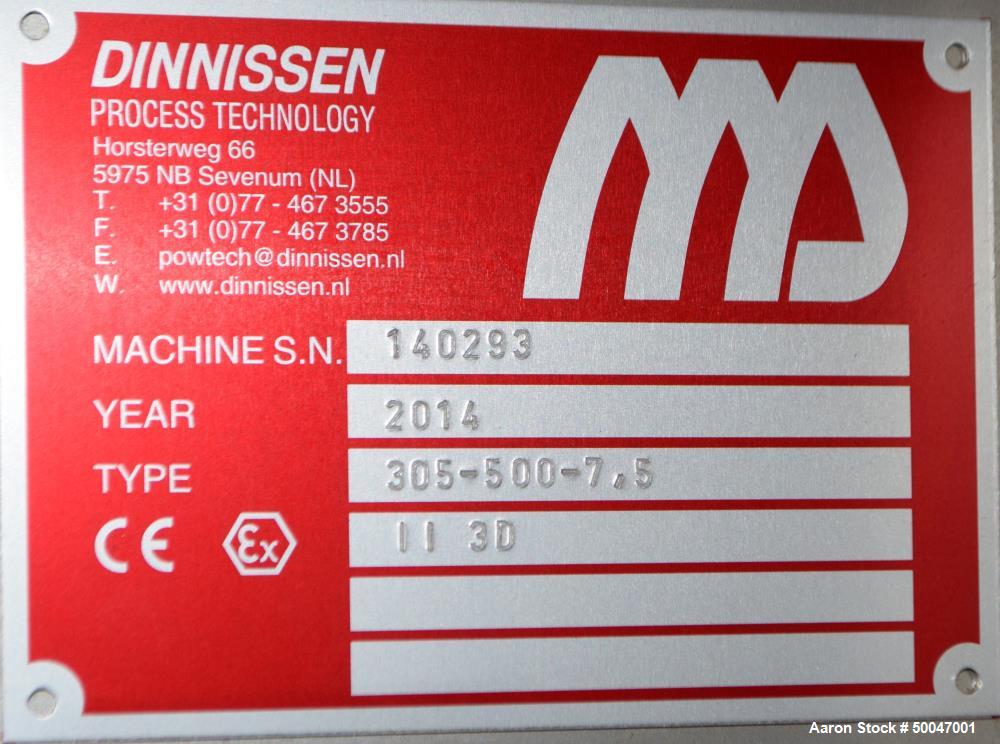

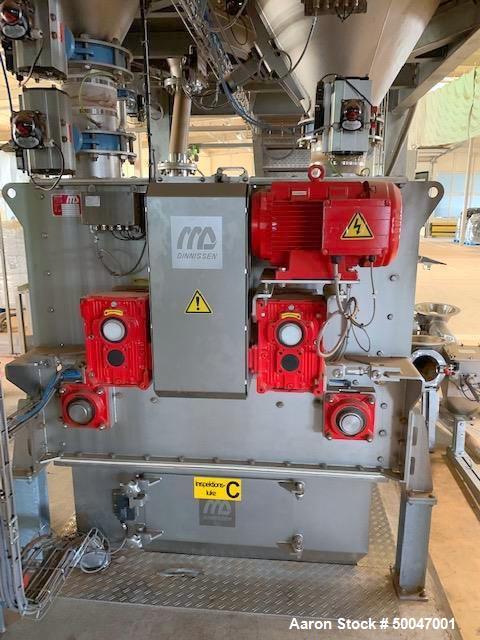

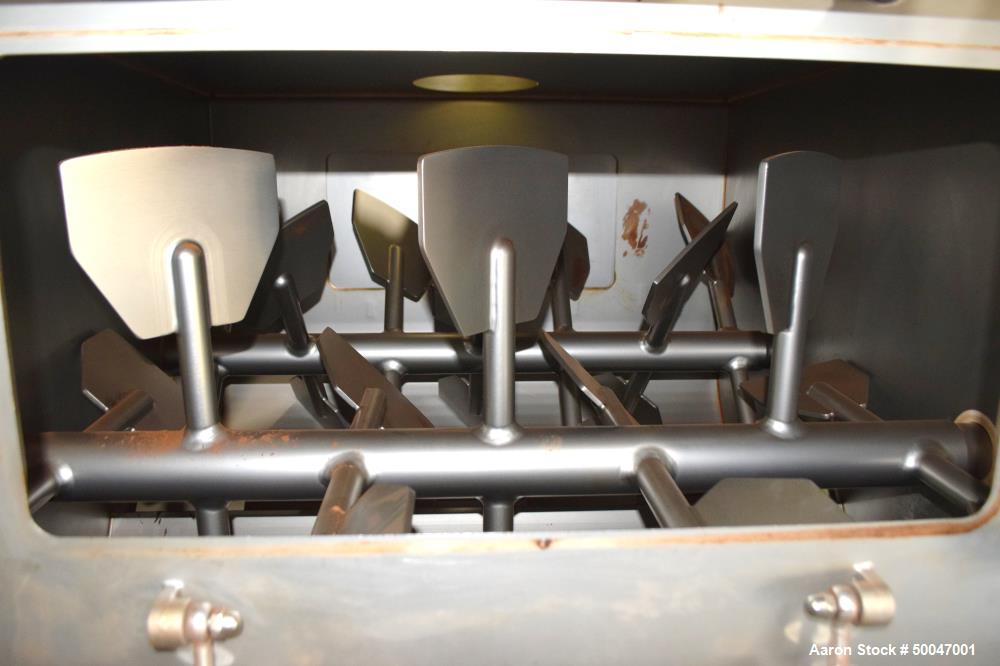

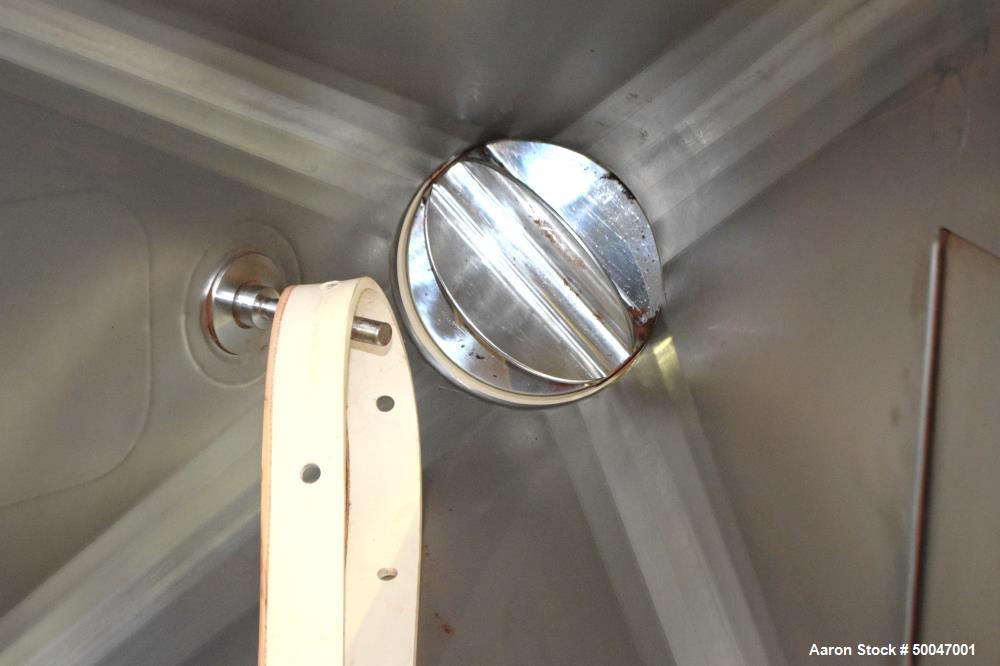

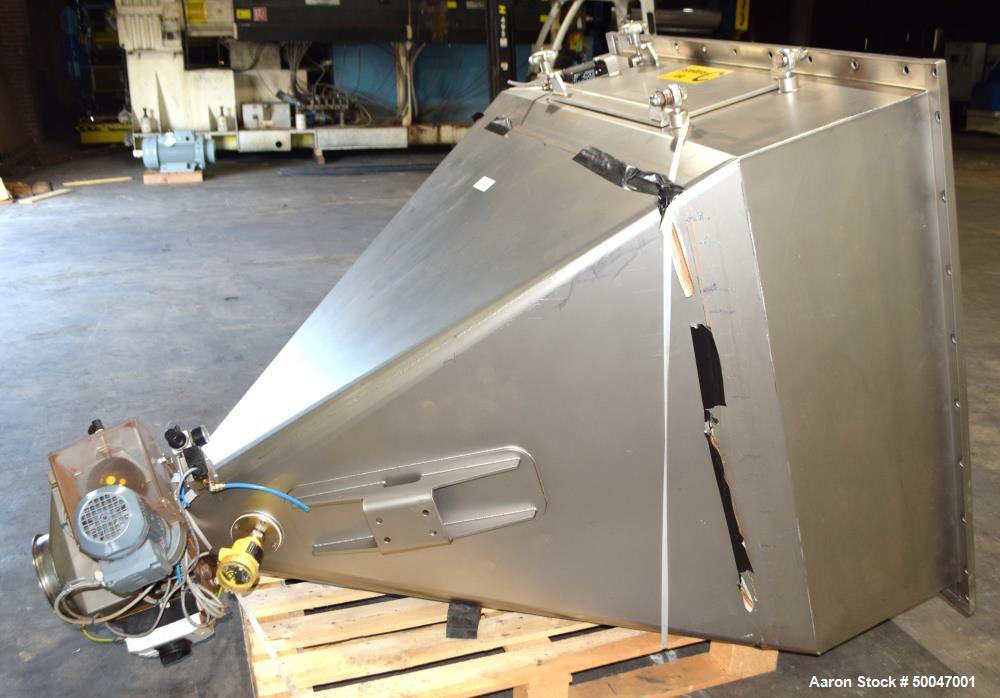

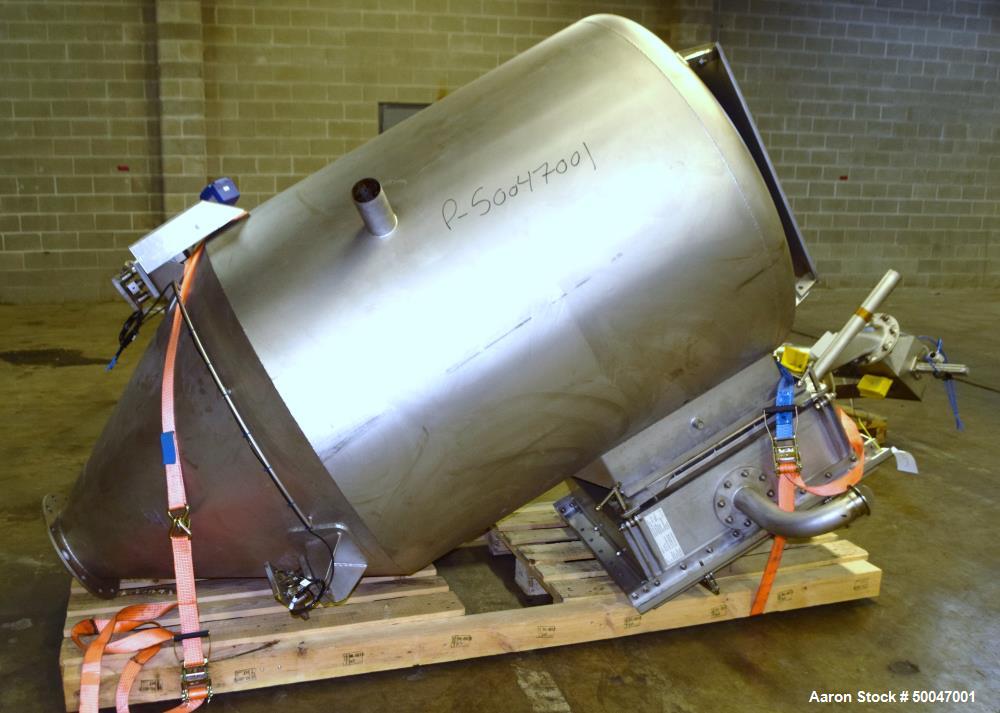

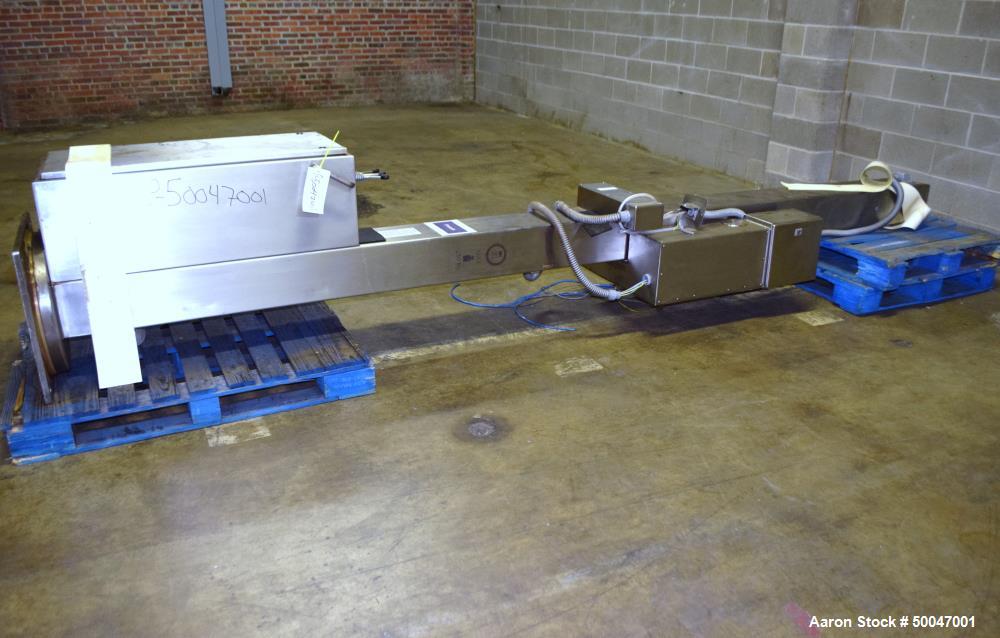

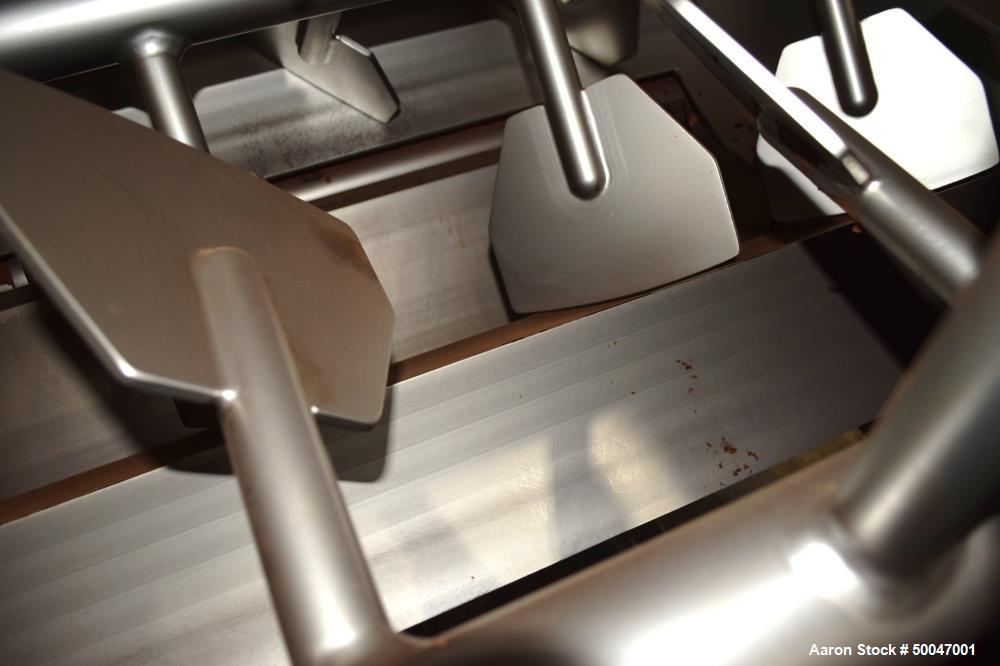

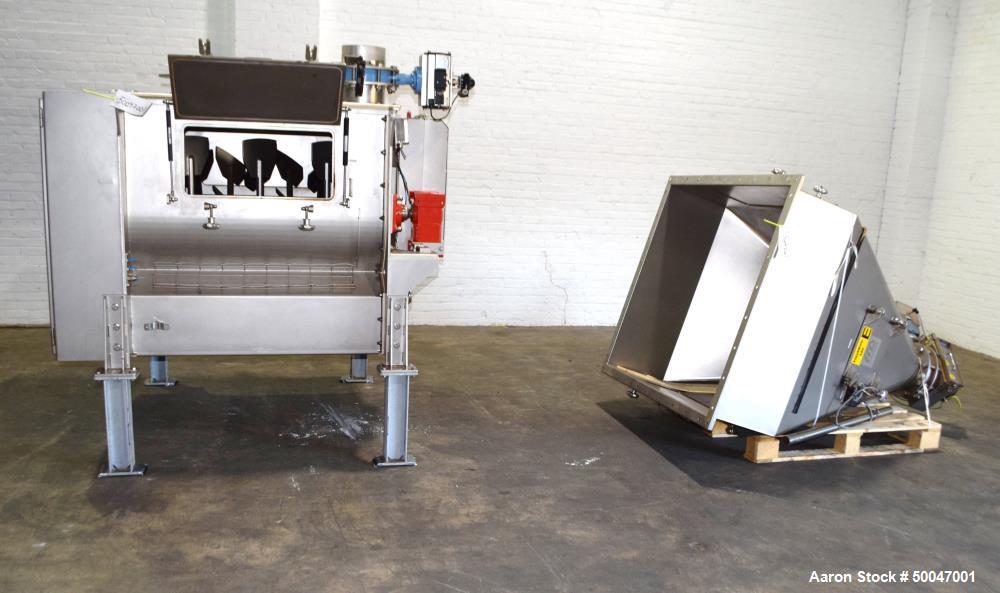

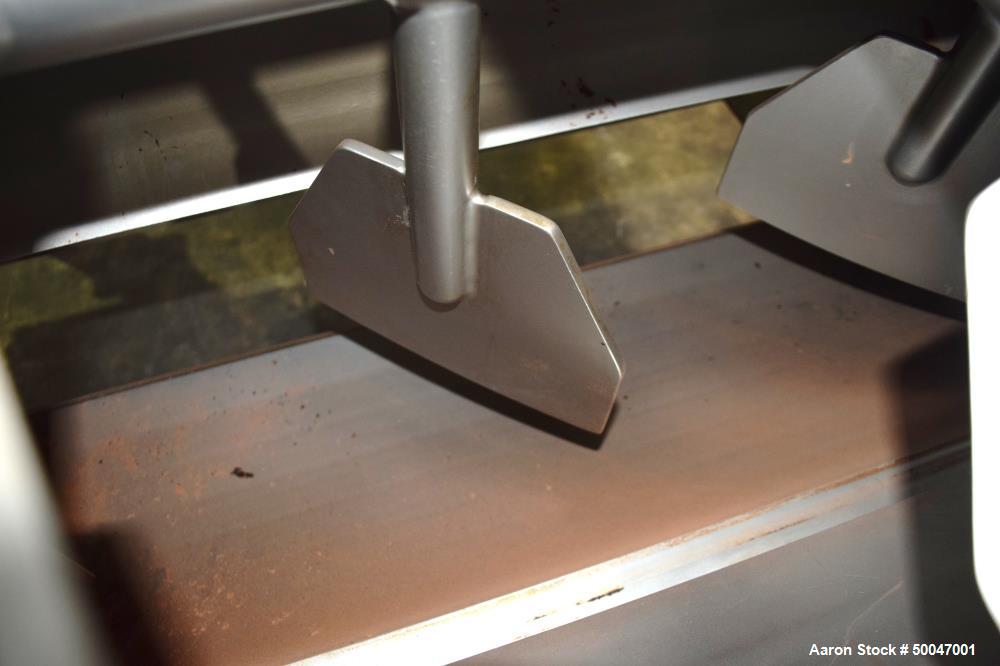

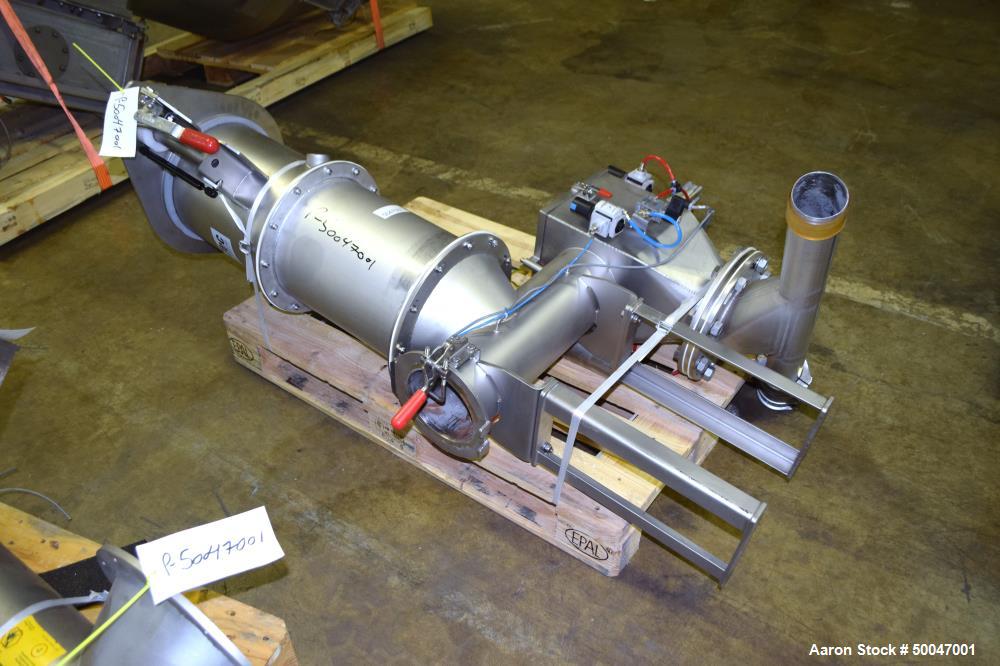

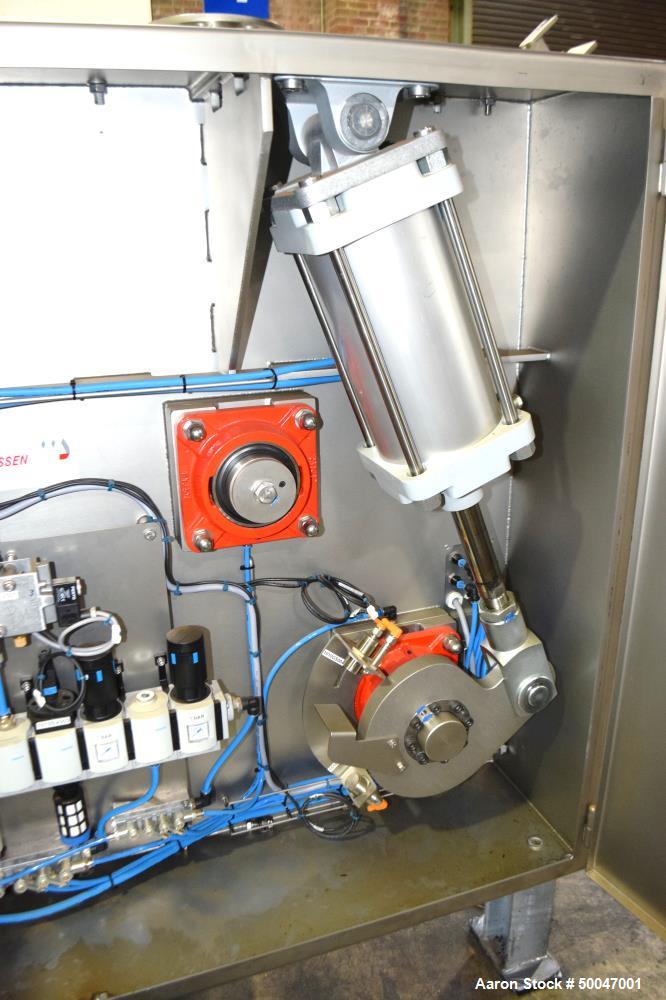

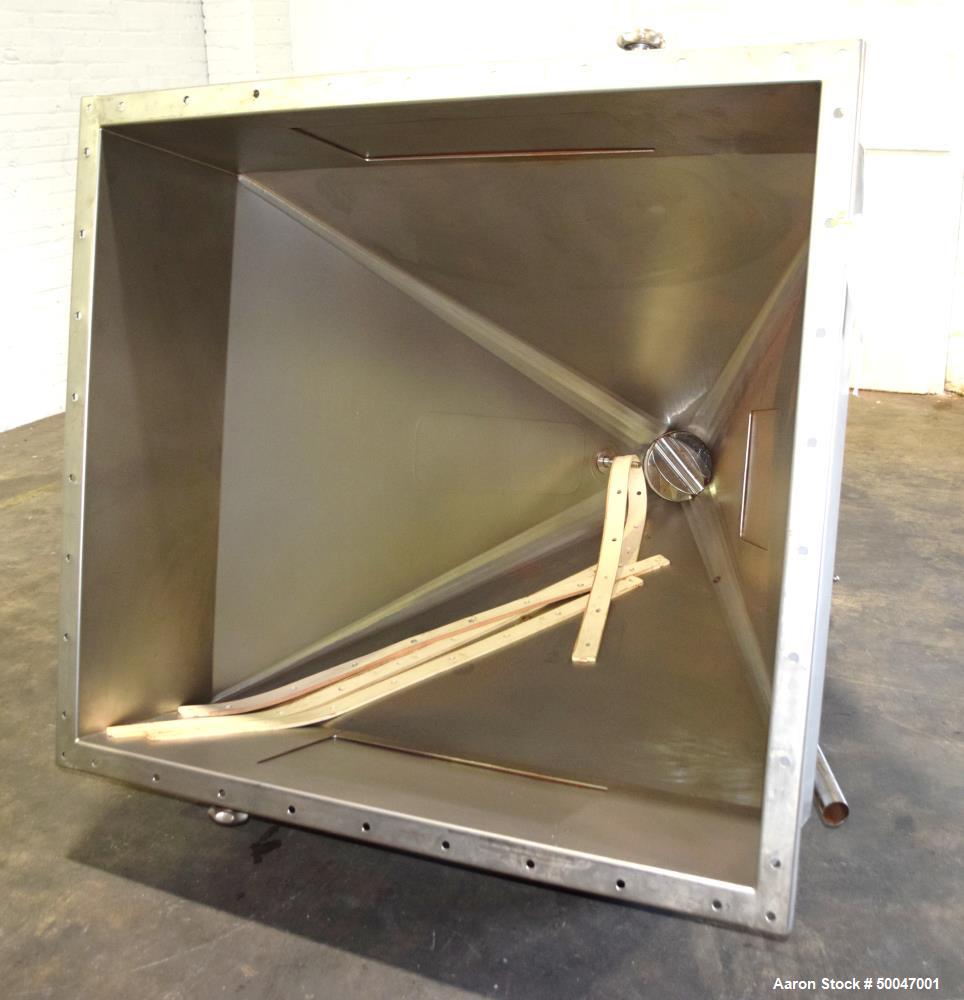

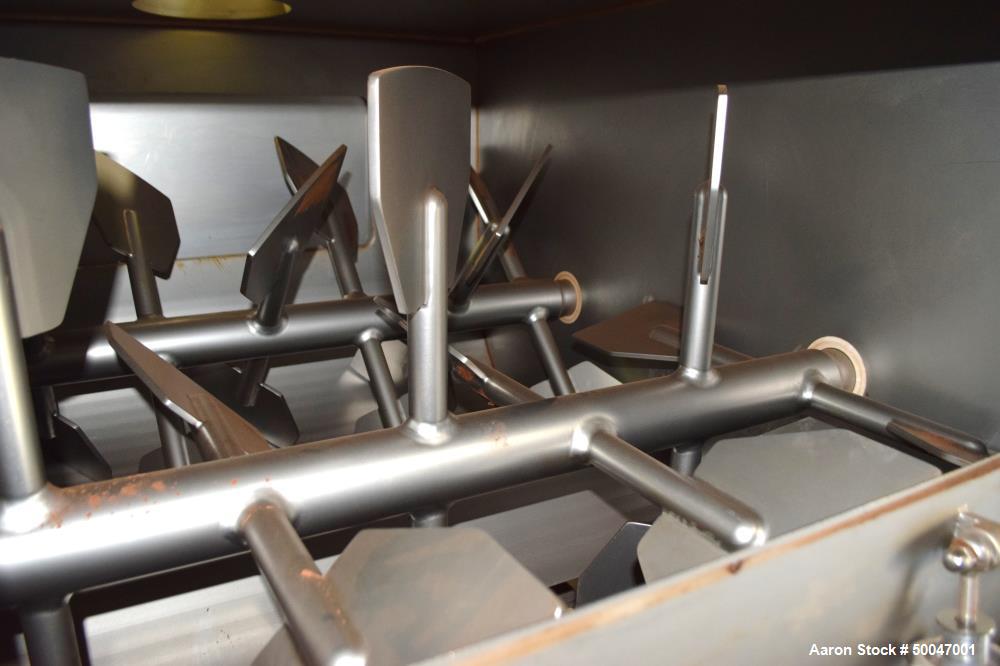

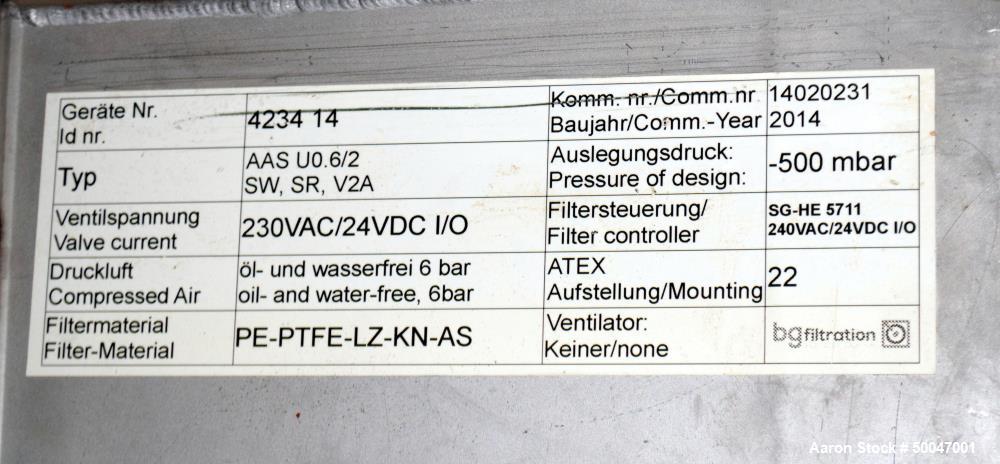

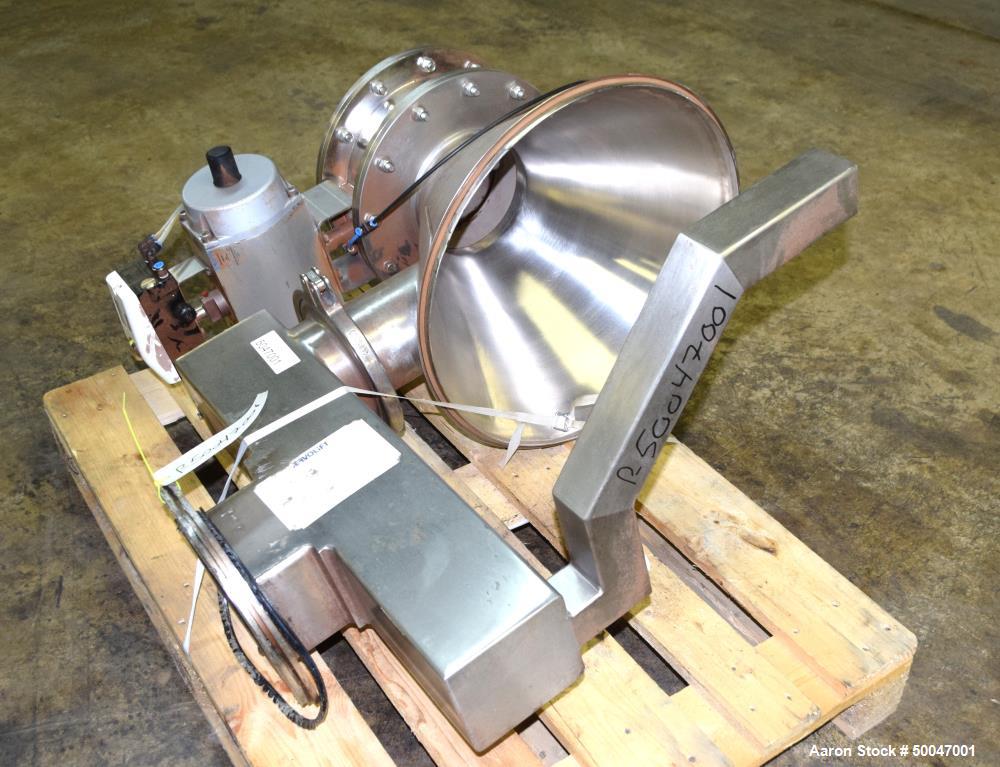

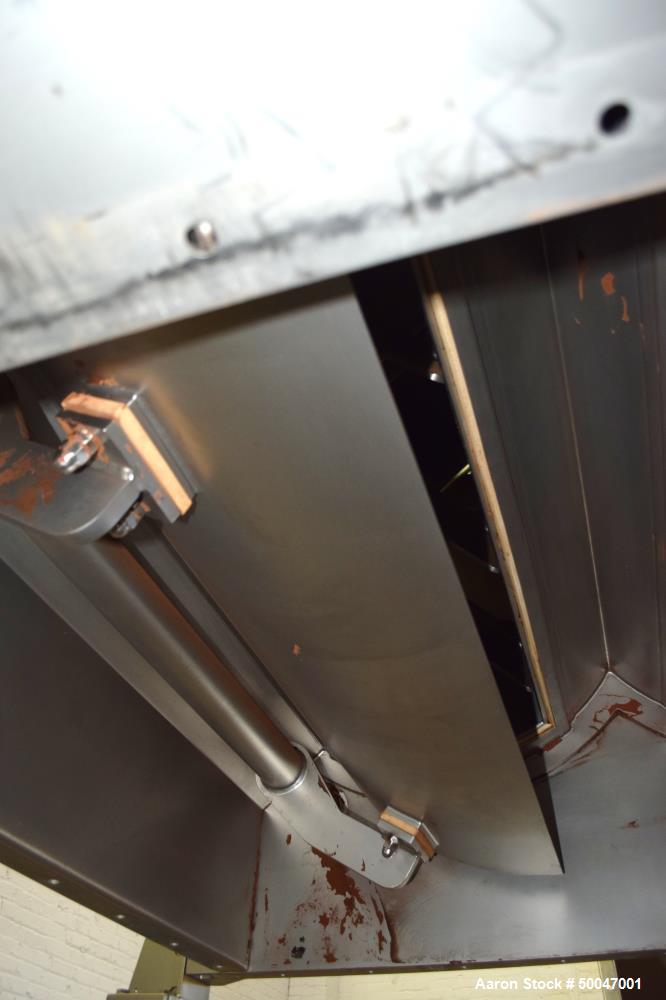

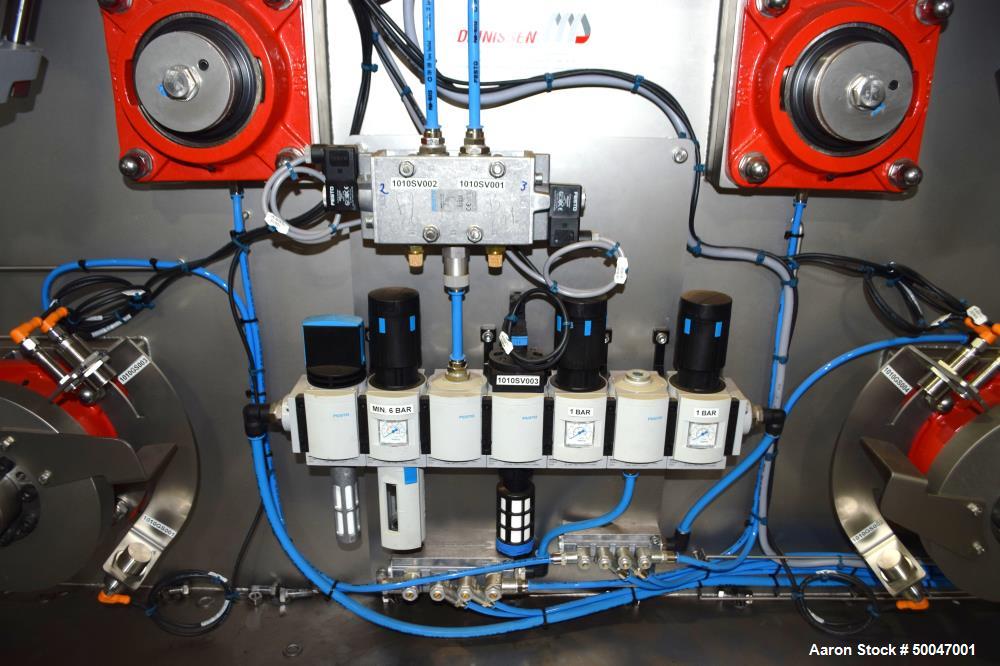

Used- Twin Shaft 304 Stainless Steel Dual Shaft Fluidized Paddle Mixing System. Manufactured by Dinnissen Process Technology. Model Pegasus Mixer. Previously used in a coffee application. Type 305-500-7.5. Built in 2014, Serial# 140293. CE Certified. Includes the following: (1) BG Filtration SS Dust Collector, (3) Hartgen SS Screw Conveyors, (1) Servolift SS, w/Carriage and (3) SS Carts, (1) SS Hopper and Misc. Parts. The Mixing Chamber is Non-Jacketed and is Approx. 51-1/2" F-B, 45-1/2" L-R and 27" Deep. It has (2) 3" Diameter SS Shafts each having 9" W x 3/8" thick Paddles welded to an approx. 1-1/2" Dia. Post. Driven by a 7.5 kw, 3/50/400/690 Volt, 1460 rpm Motor thru (2) shaft mounted reducers having a 24.6/1 Gear Ratio. Top Cover is flat in design and bolted on with misc. Feed Openings. The discharge is a dual Bombay Style with Air Operated Doors and a SS Bottom Discharge Hopper. The Mixer shell is also equipped with Side Inspection Doors. See all photos to see the installed photos of the complete system. It was used one week a month for a period of 4 years and is in excellent condition. Manual and Prints are on file, request them from your Sales Rep and the System is available for inspection in Memphis, TN. Overall Dims can be provided at your request.
