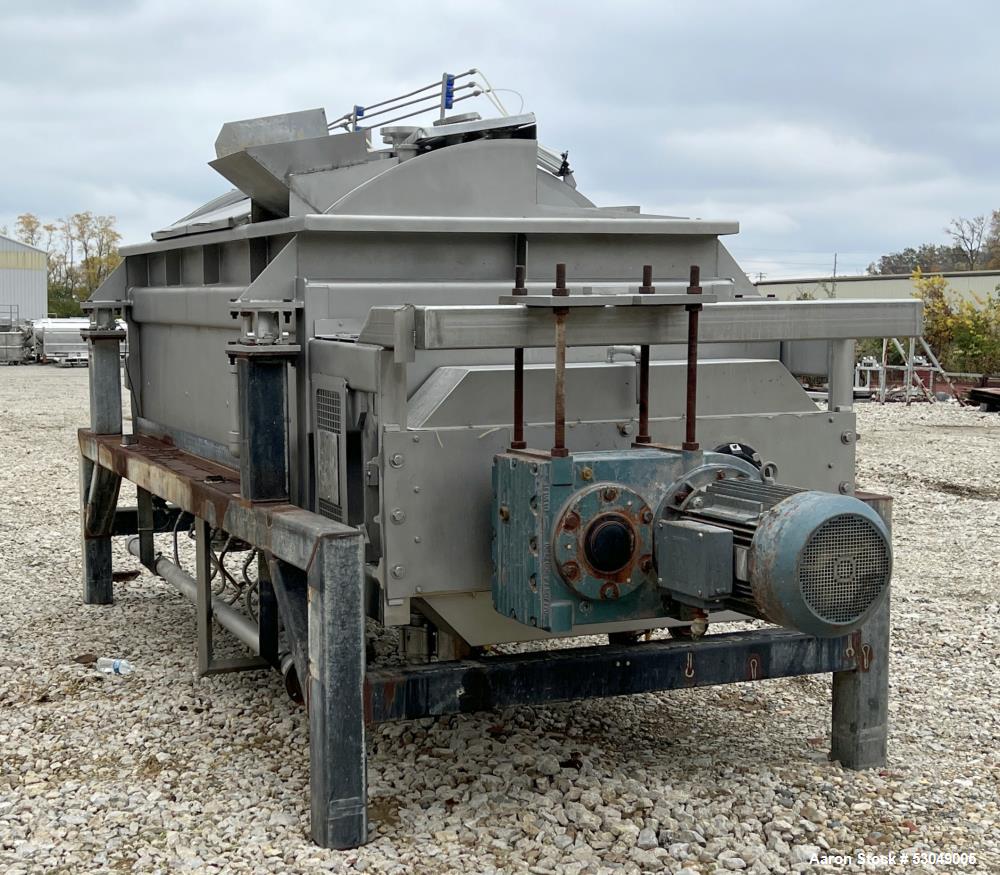

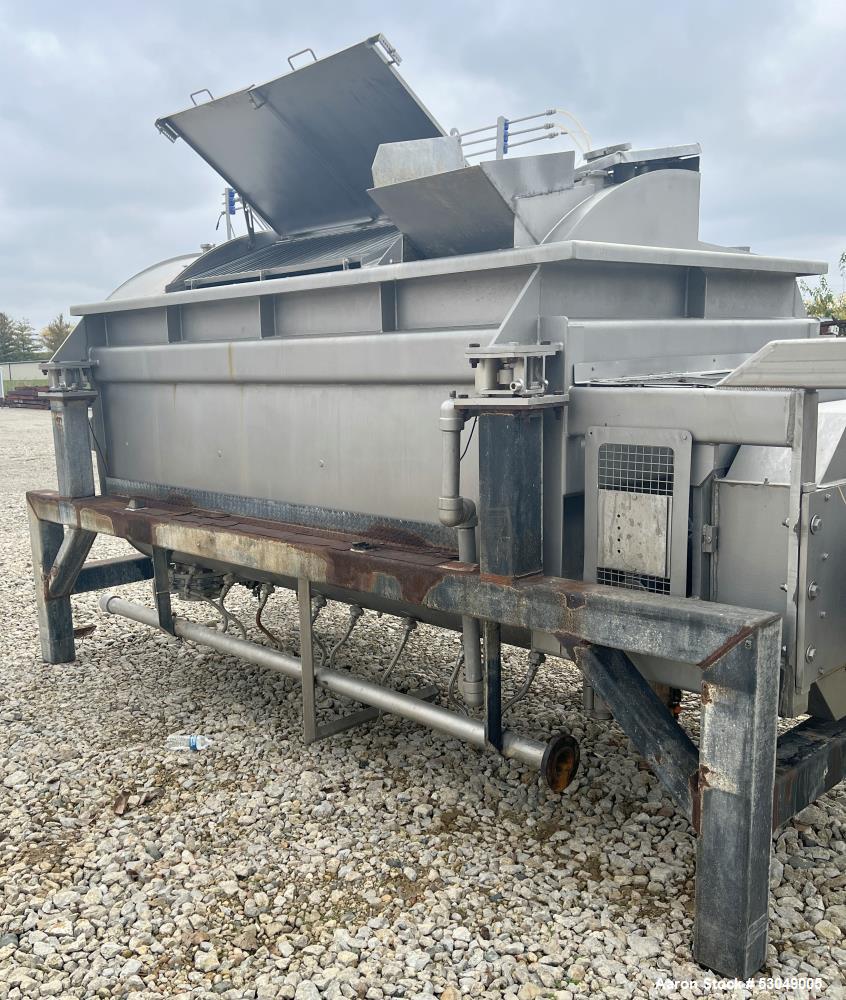

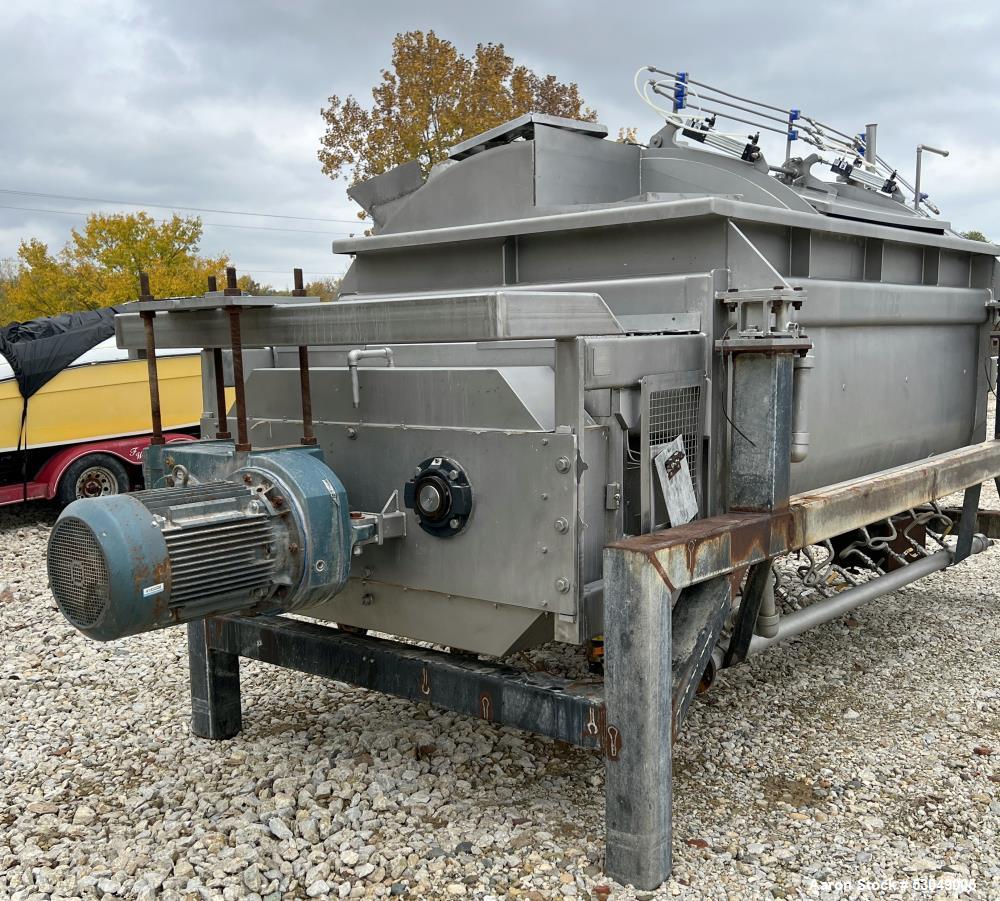

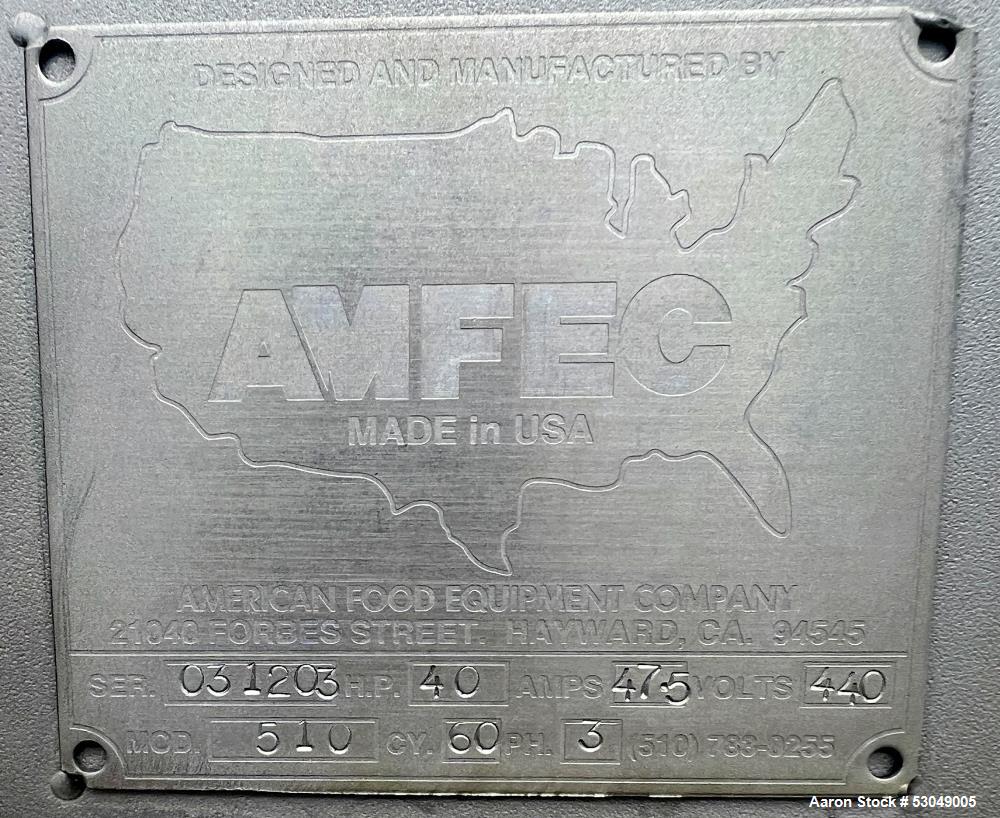

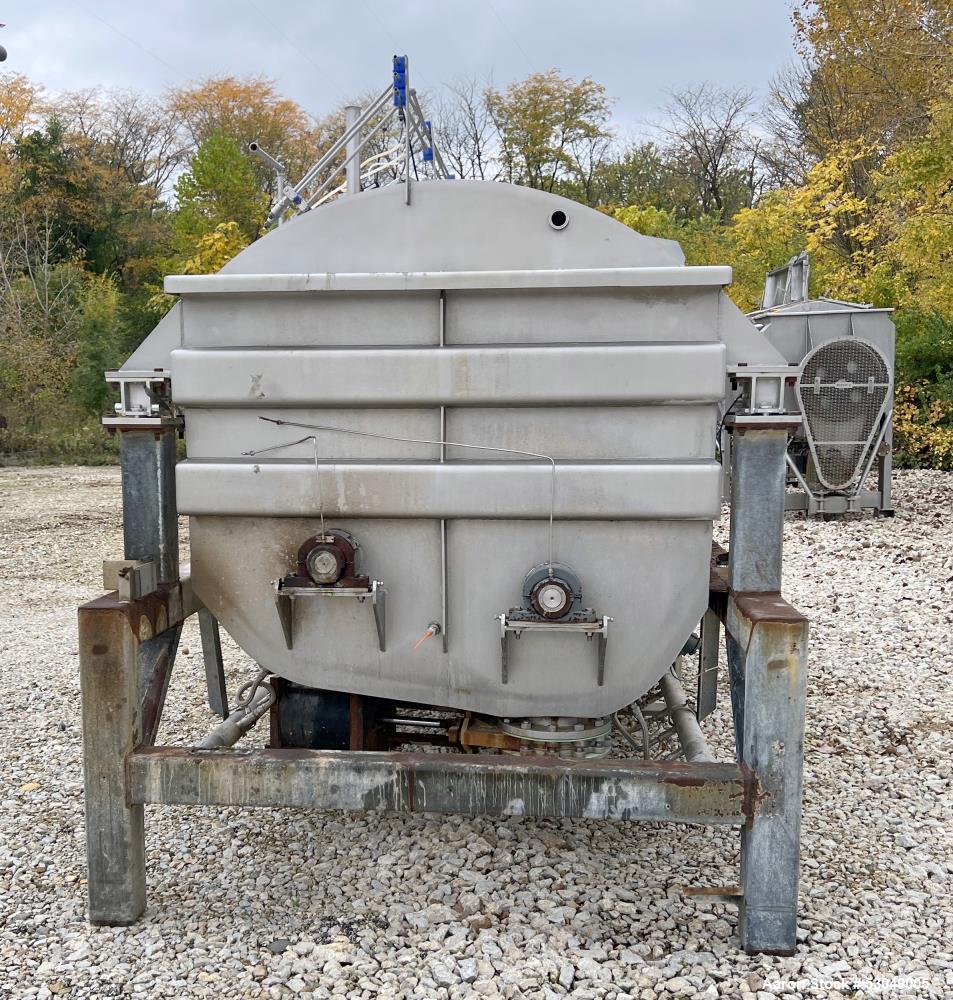

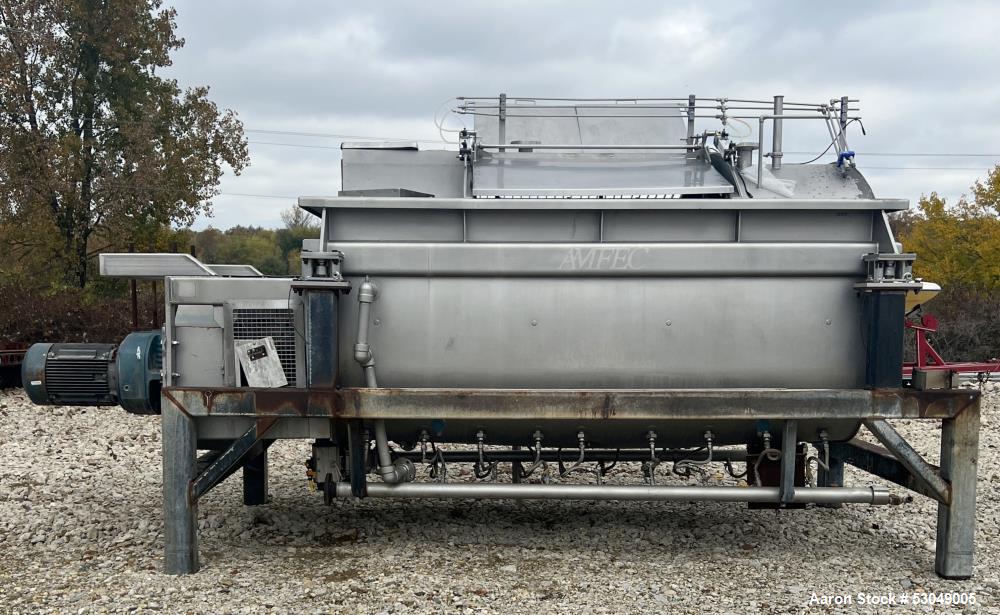

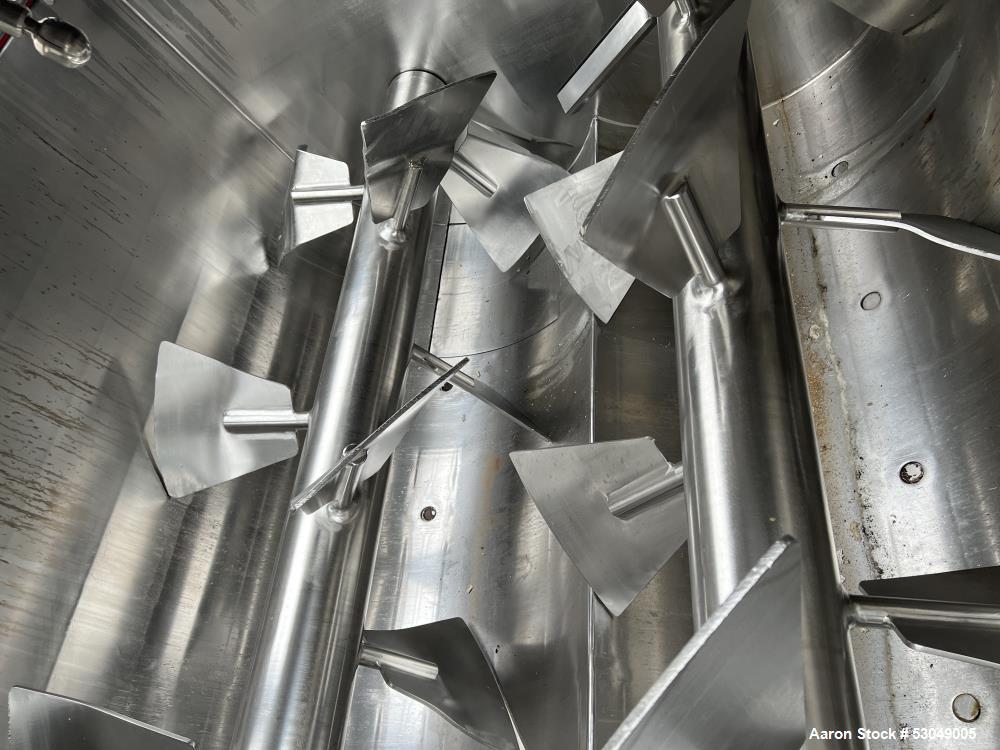

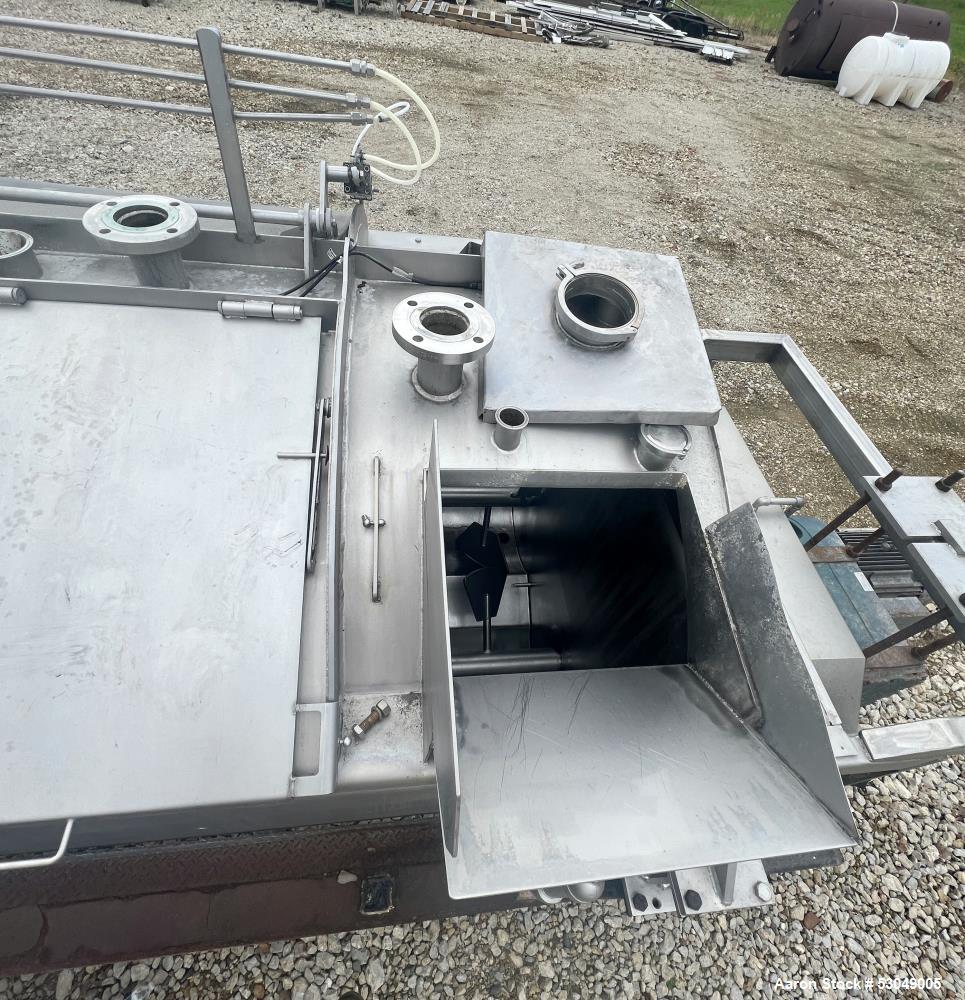

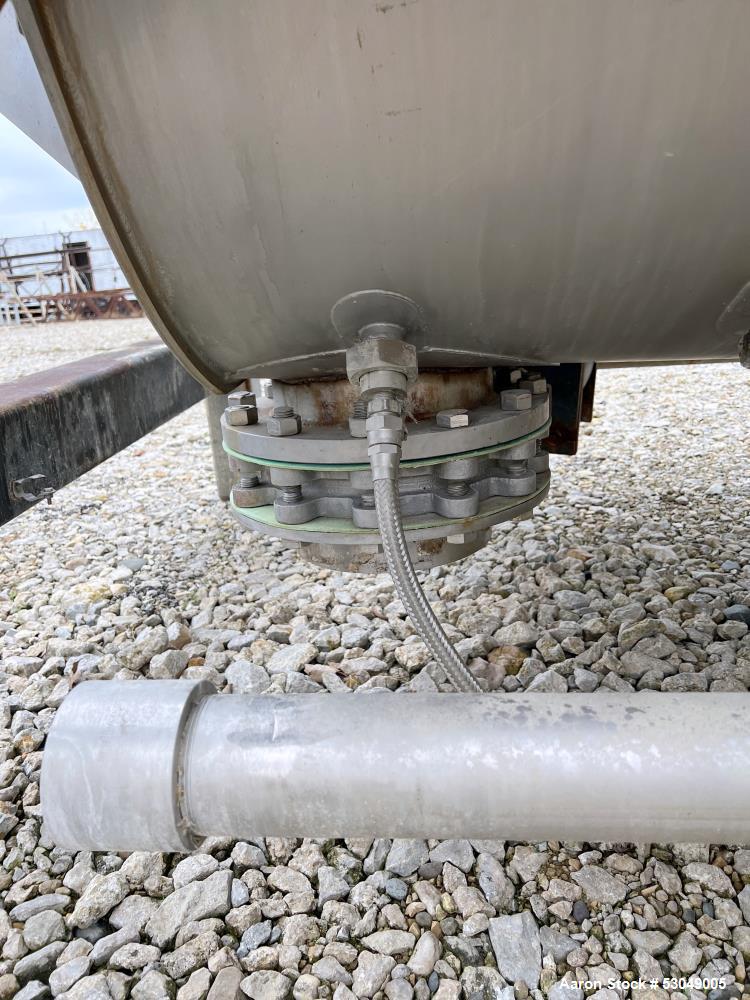

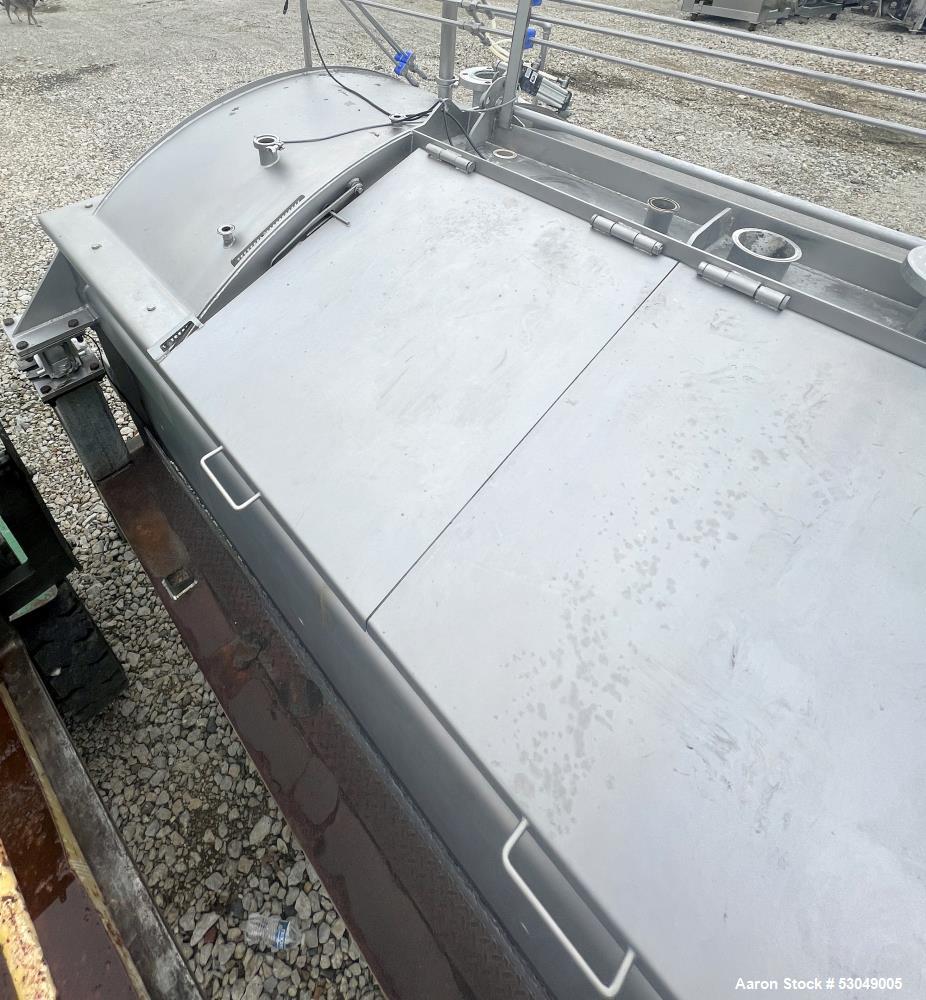

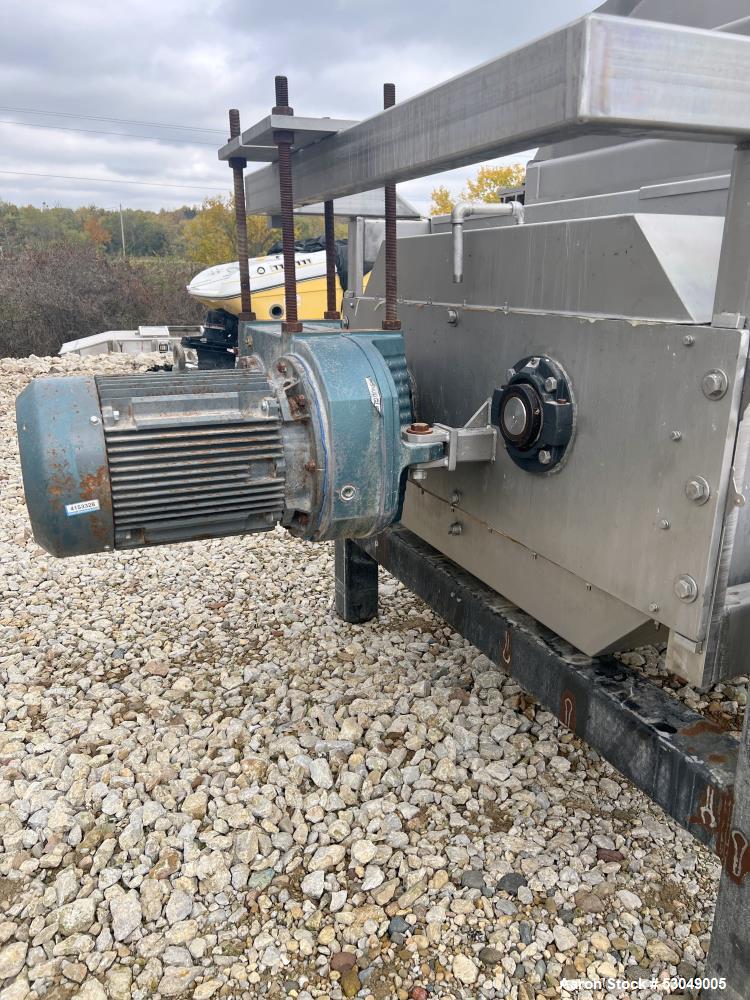

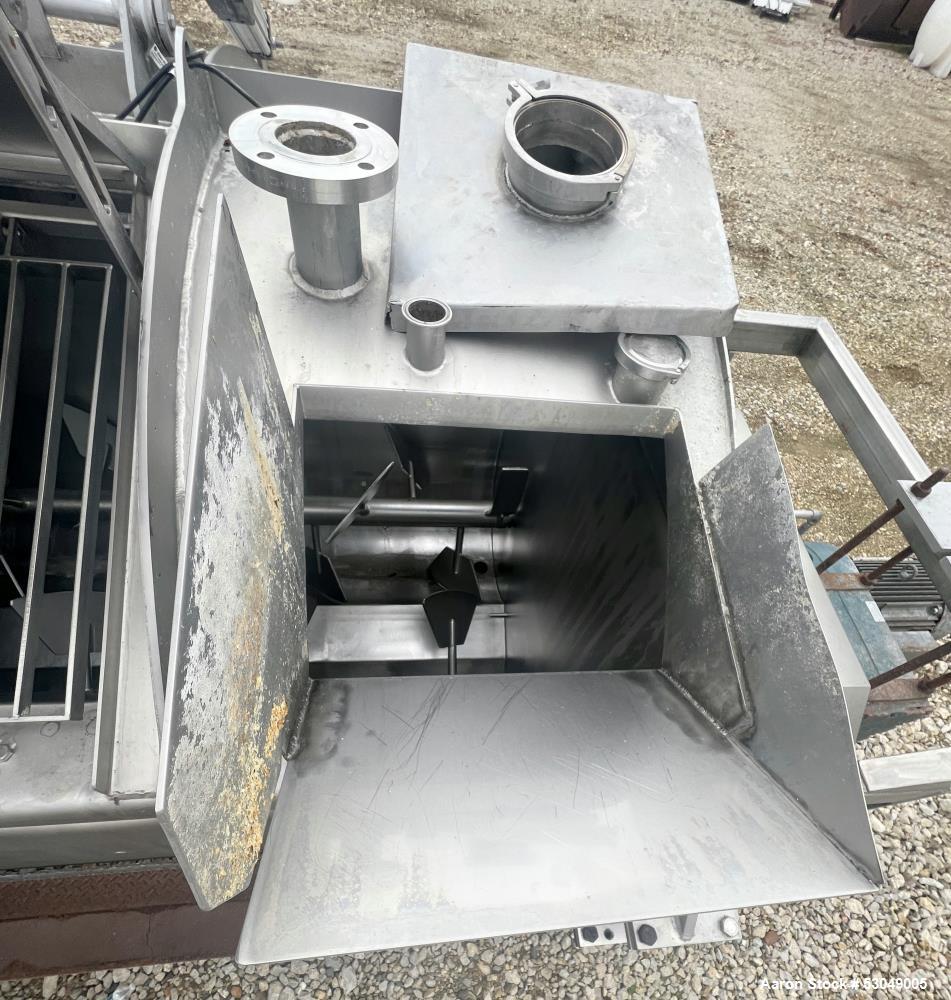

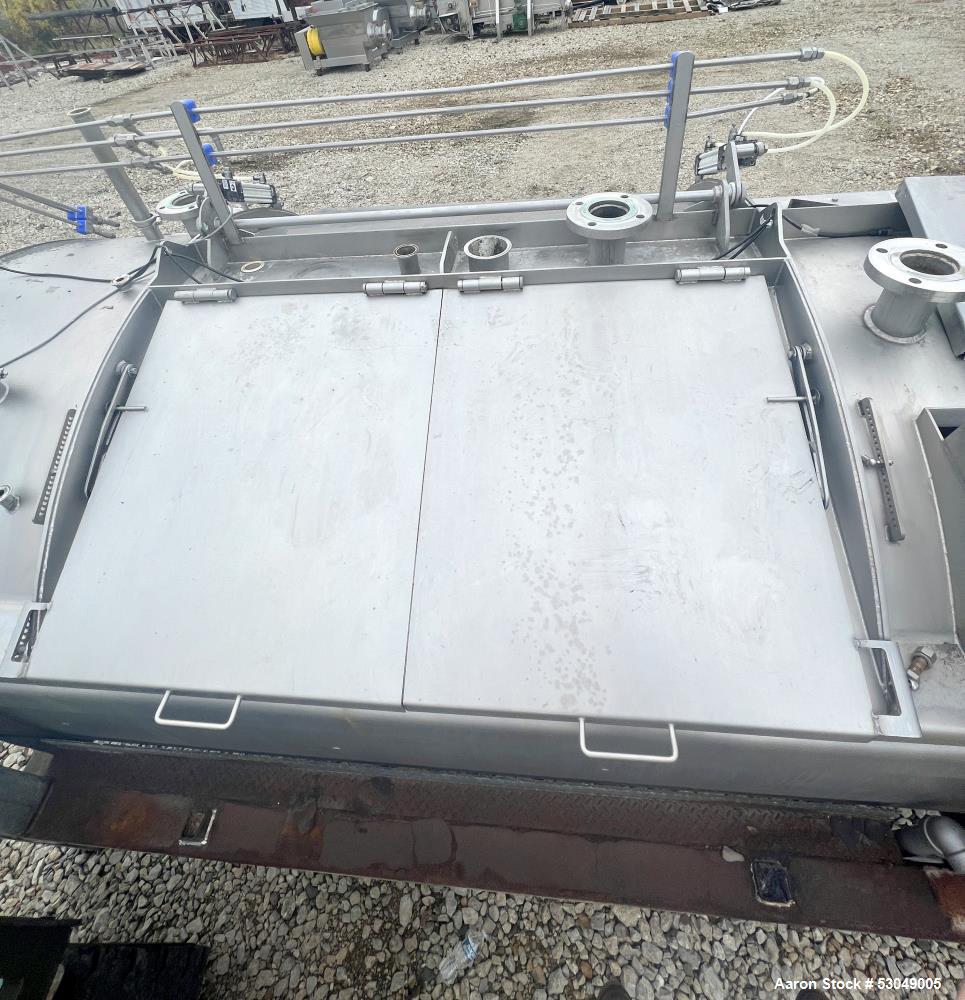

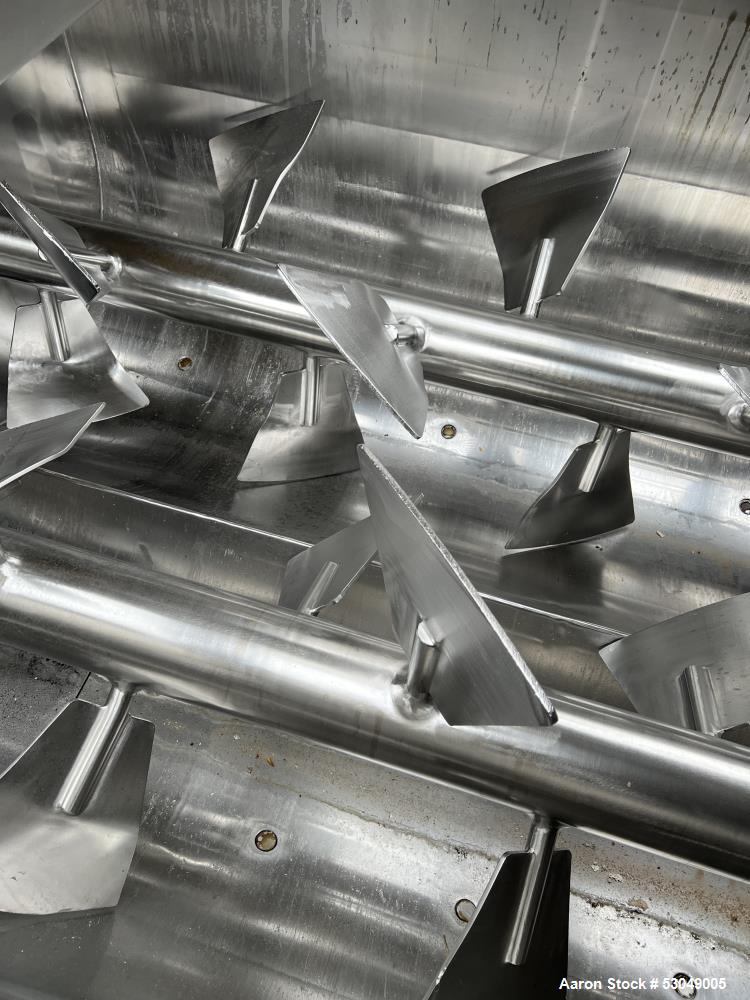

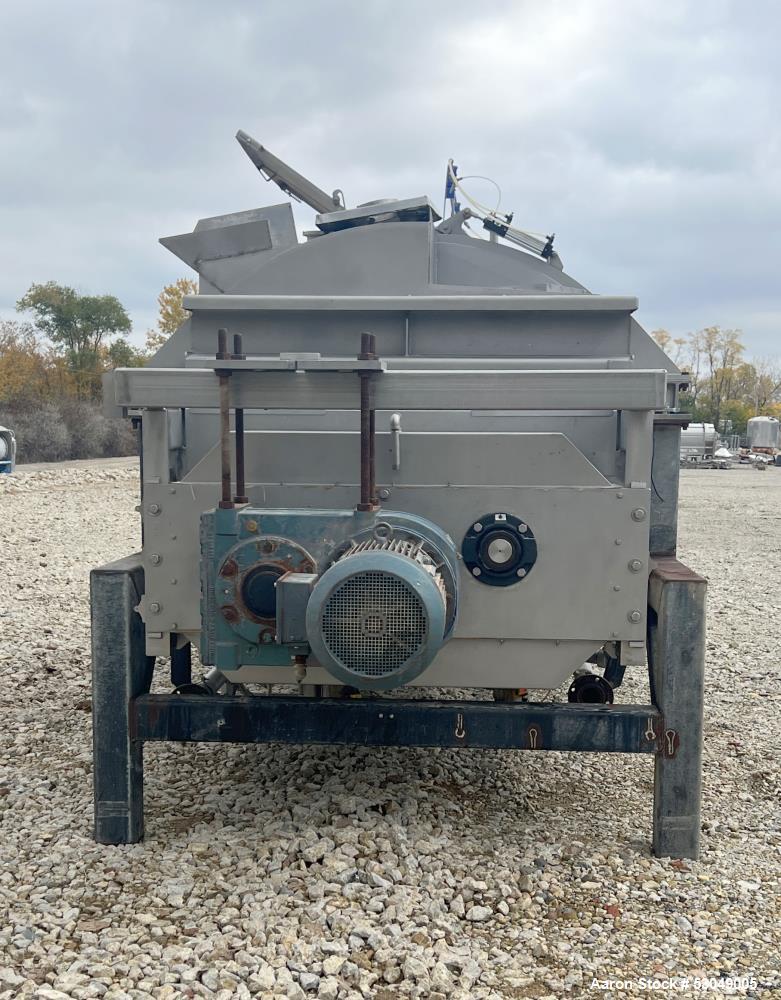

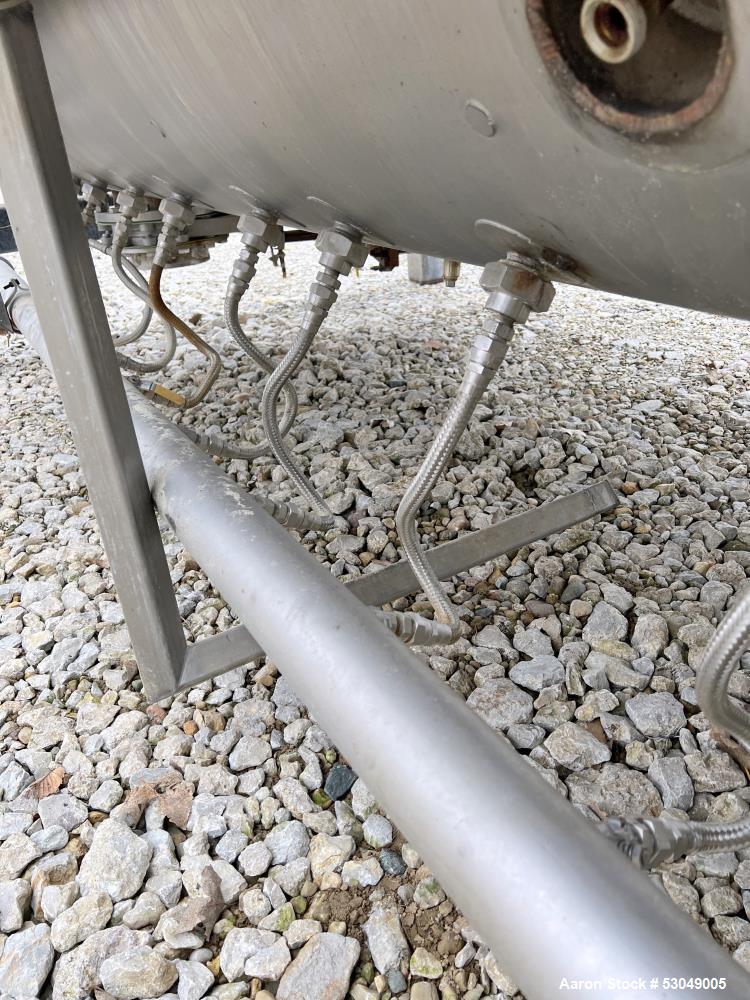

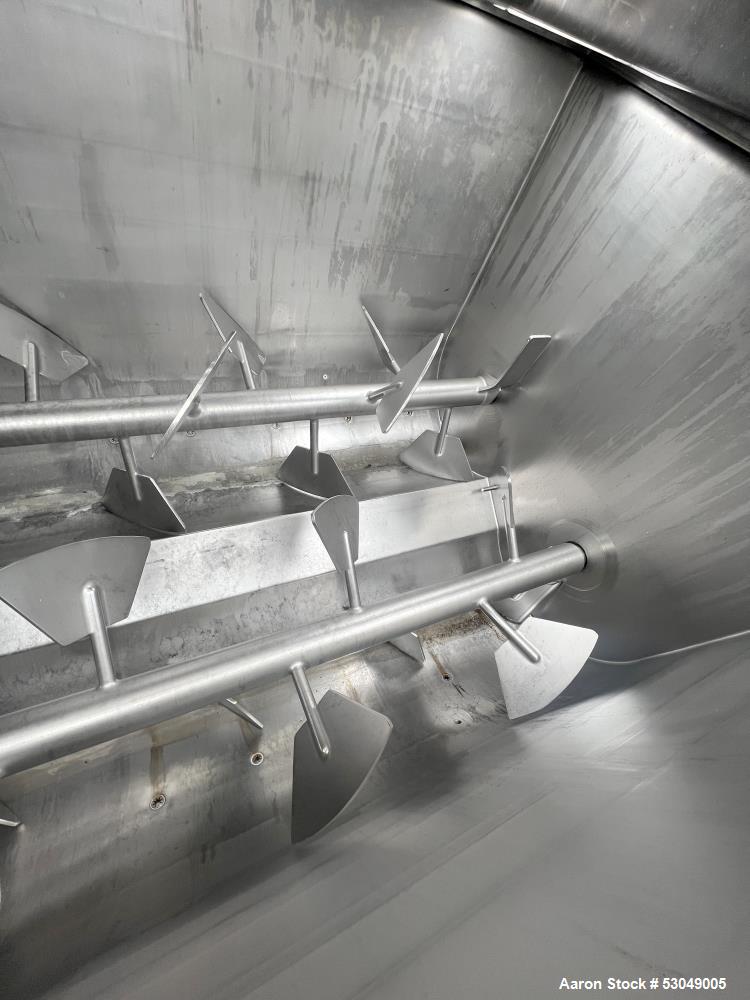

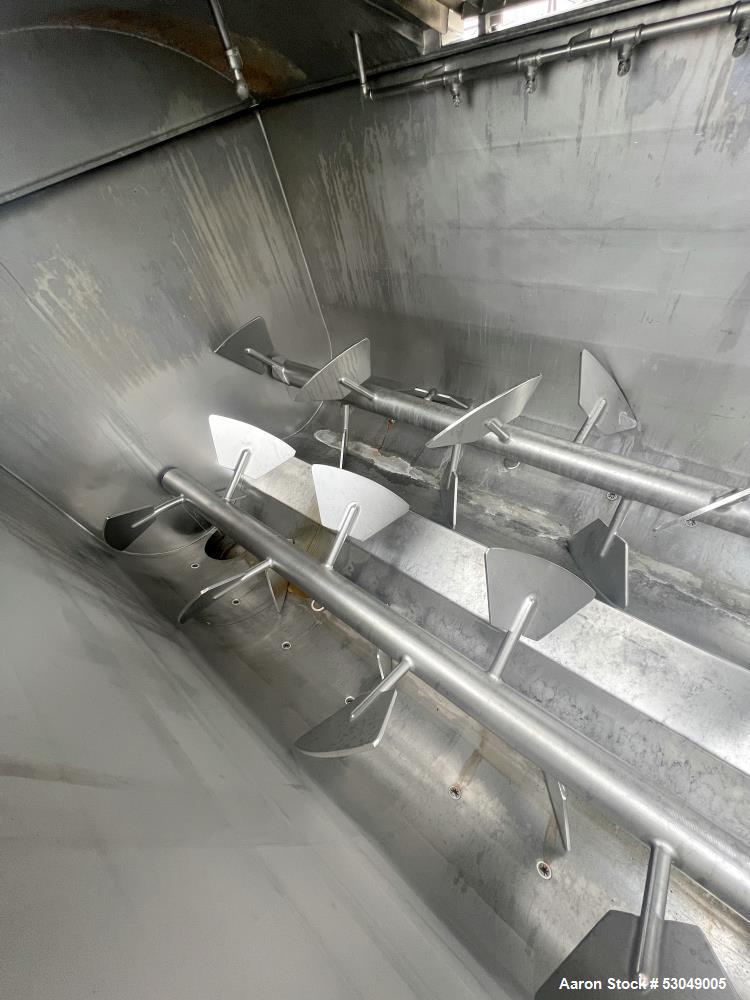

Used AMFEC Paddle Mixer, Model 510, 304 Stainless Steel. Maximum capacity 209.90 cubic feet (5,000 kgs), working capacity 140 cubic feet (3,000 kgs). Jacketed trough approximately 118" x 72" x 56" deep (low pressure jacket). Dual shafts approximate 5" diameter, offset by 6". paddles 6" wide. Driven by 40hp, 3/60/460 volt gear motor. (9) Steam injection ports on each side. 10" End bottom outlet with pneumatic slide gate valve. Includes (1) product transfer pump. Serial# 031203.
The AMFEC Paddle Mixer Model 510 is a heavy-duty industrial mixer designed for efficient mixing and homogenization of bulk materials. With its dual-shaft paddle mechanism and robust stainless steel construction, this mixer ensures uniform blending, making it ideal for high-capacity industrial applications. The low-pressure jacket and steam injection ports make it suitable for temperature-sensitive mixing processes.
Key Features:
Parameter | Details |
---|---|
Model | AMFEC Paddle Mixer 510 |
Material | 304 Stainless Steel |
Maximum Capacity | 209.90 cubic feet (5,000 kg) |
Working Capacity | 140 cubic feet (3,000 kg) |
Trough Dimensions | Approximately 118" x 72" x 56" deep |
Jacket Type | Low-pressure jacket for heating or cooling |

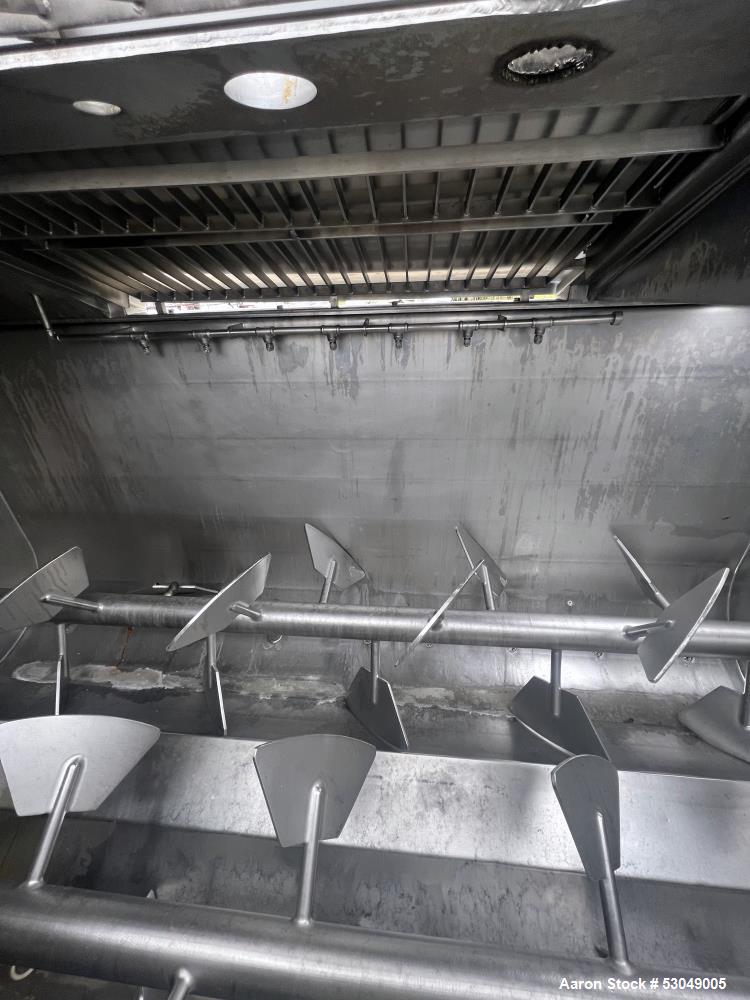

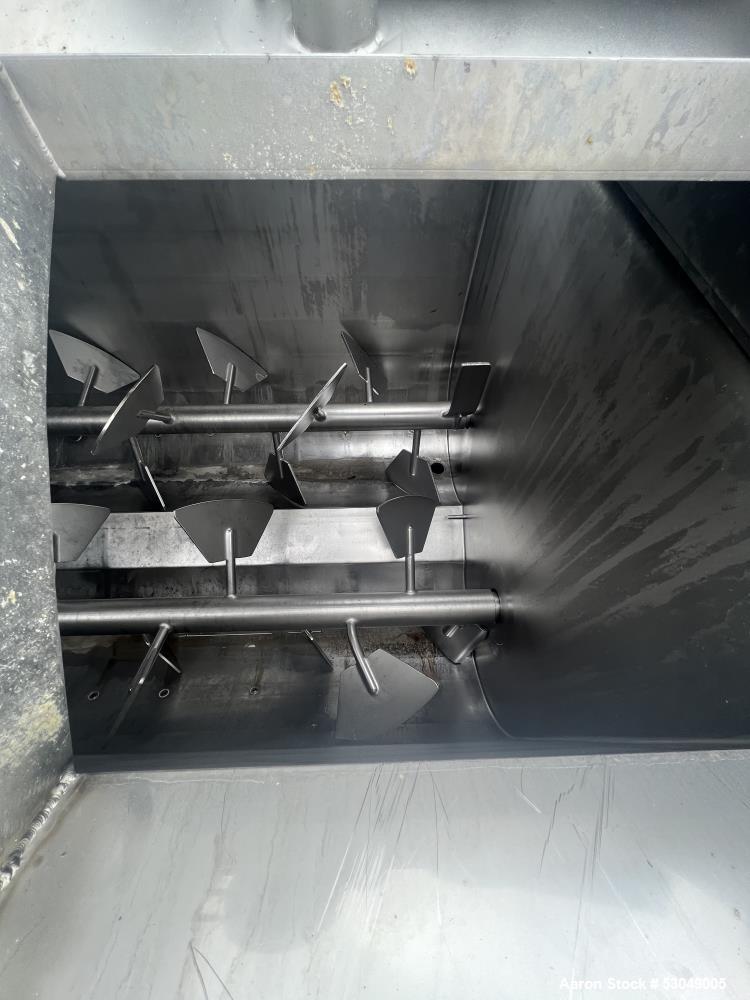

Shafts | Dual shafts, approximately 5" diameter, offset by 6" |
Paddle Width | 6" |
Steam Injection Ports | (9) ports on each side |
Outlet | 10" end bottom outlet with pneumatic slide gate valve |
Motor Power | 40 HP, 3-phase, 60 Hz, 460 Volt gear motor |
Applications | Mixing, blending, and cooking for industrial-scale processes |
This mixer is ideal for a wide range of industries requiring large-scale mixing of powders, granules, and semi-solid materials.
Food Processing:
Pharmaceutical Industry:
Chemical Processing:
Agricultural Products:
Building Materials:
Agricultural, Agricultural Chemicals, Agricultural Industry, Agricultural Products, Agriculture, Blending, Building Industry, Building Materials, Building Products, Chemical Industries, Chemical Plants, Chemical Powders, Chemical Products, Construction Materials, Consumer Goods, Consumer Products, Contract Blending, Contract Manufacturing, dog food, Dog Treats, Dough, Drink Powder, Food and Beverage, Food Industry, Food Ingredients, Food Manufacturing, Food Powder, Food Processing, Food Production, Food Products, Foods, Ingredients, Meat, Meat & Seafood, Meat and Poultry Patties, Meat Equipment, Petrochemical Industry, Pharmaceutical, Pharmaceutical Industries, Pharmaceutical Products, Pharmaceuticals, Powder Drink Mix, Powder Production, Powdered Cheese
