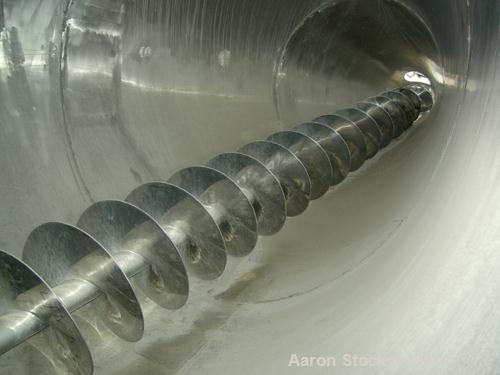

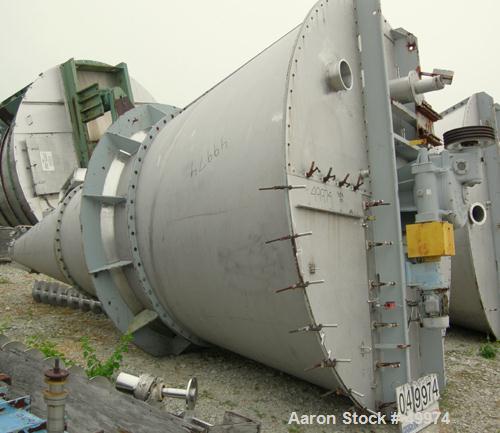

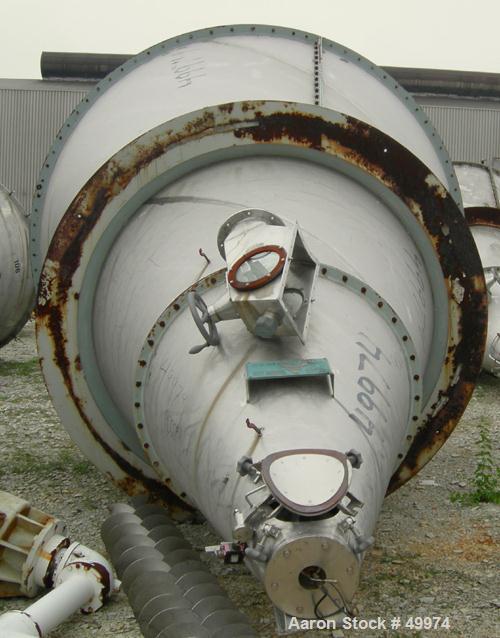

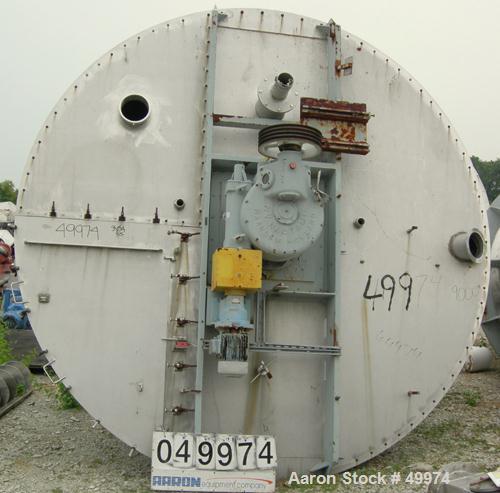

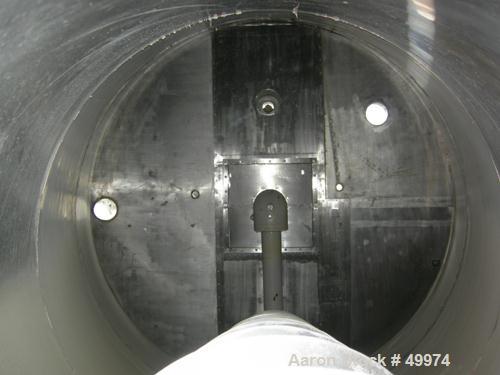

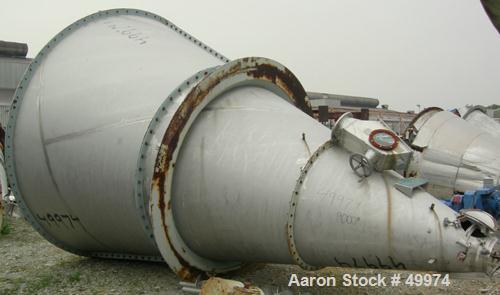

USED:Nauta mixer, type MBX100R, 304 stainless steel construction.12'2" diameter x 16'6" straight side. 3740mm diameter x 5085mm mixingchamber. 352 cu ft working capacity (10,000 liter). Not jacketed andnot rated for vacuum. In 3 sections bolted together; top section canbe split into 2 pieces. Main drive motor is 33 hp, 500 volt/3 ph/50cycle/1500 rpm. Gear drive motor is 3 hp/500 volt/3 ph/50 cycle/53rpm. (3) 11.7" (300mm) diameter top inlets. (1) 8" diameter (206mm)bottom outlet. Overall dimensions are: 12'2" diameter x 20'5" long(3740mm diameter x 6288mm long).
USED:Nauta mixer, type MBX100R, 304 stainless steel construction.12'2" diameter x 16'6" straight side. 3740mm diameter x 5085mm mixingchamber. 352 cu ft working capacity (10,000 liter). Not jacketed andnot rated for vacuum. In 3 sections bolted together; top section canbe split into 2 pieces. Main drive motor is 33 hp, 500 volt/3 ph/50cycle/1500 rpm. Gear drive motor is 3 hp/500 volt/3 ph/50 cycle/53rpm. (3) 11.7" (300mm) diameter top inlets. (1) 8" diameter (206mm)bottom outlet. Overall dimensions are: 12'2" diameter x 20'5" long(3740mm diameter x 6288mm long).
