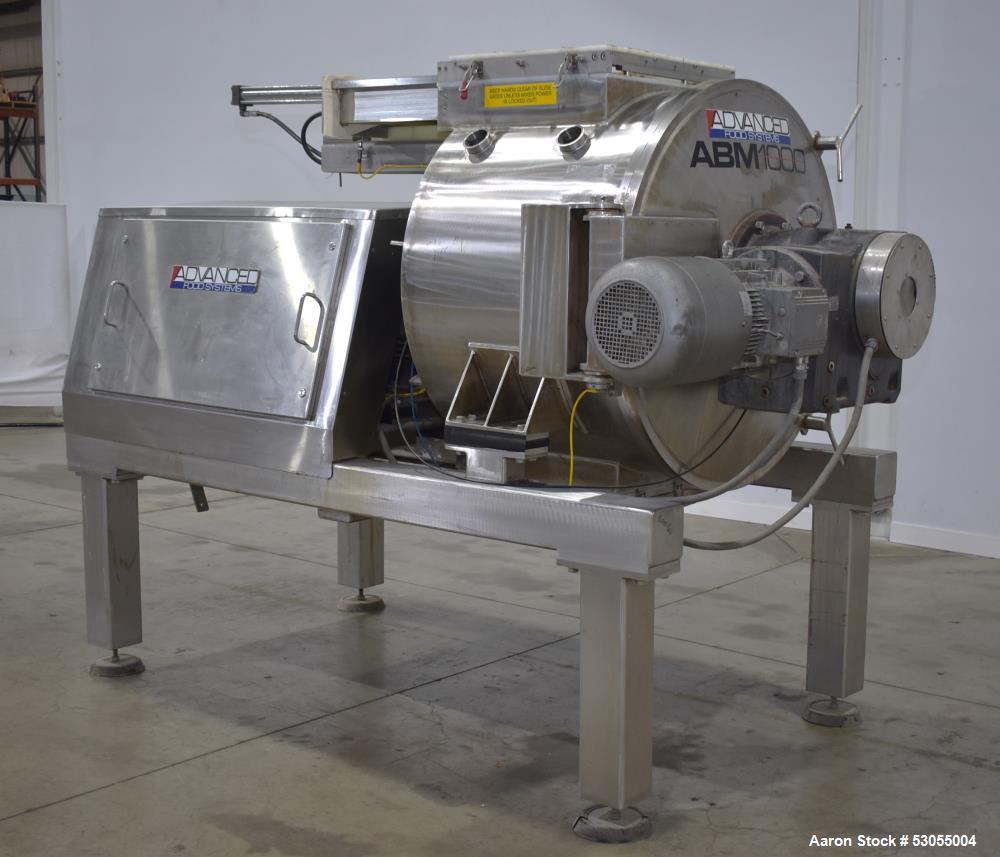

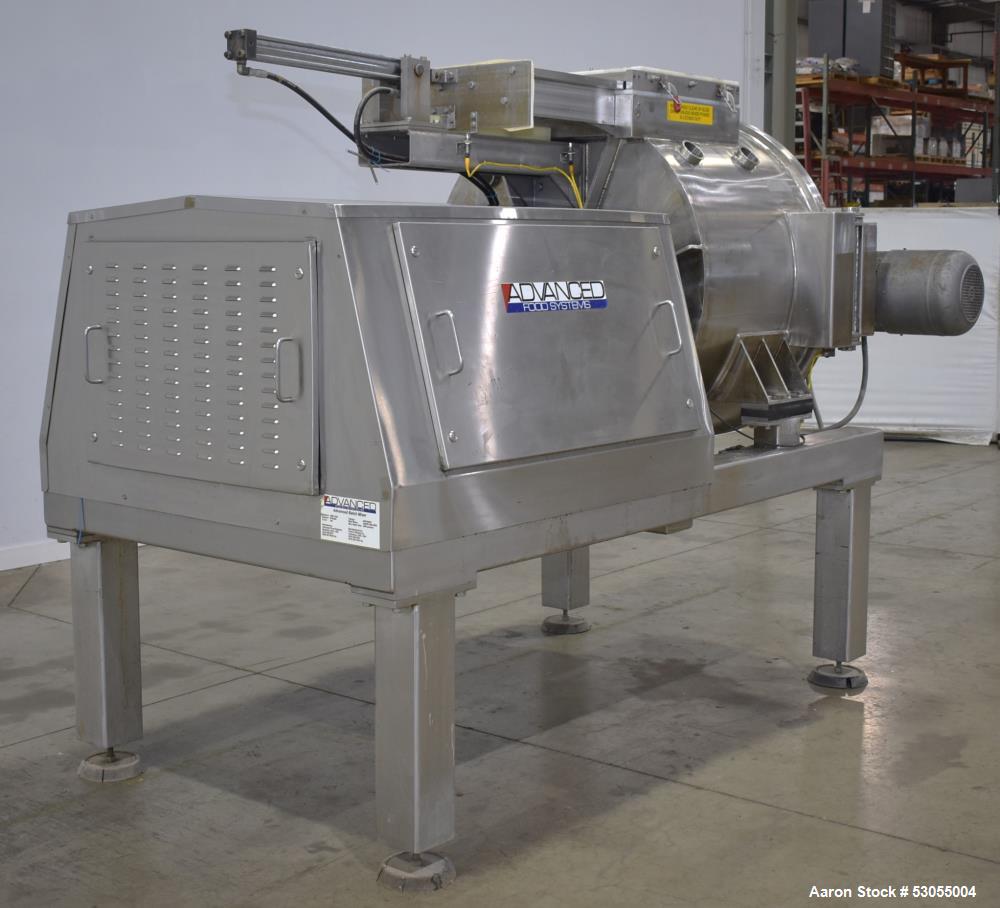

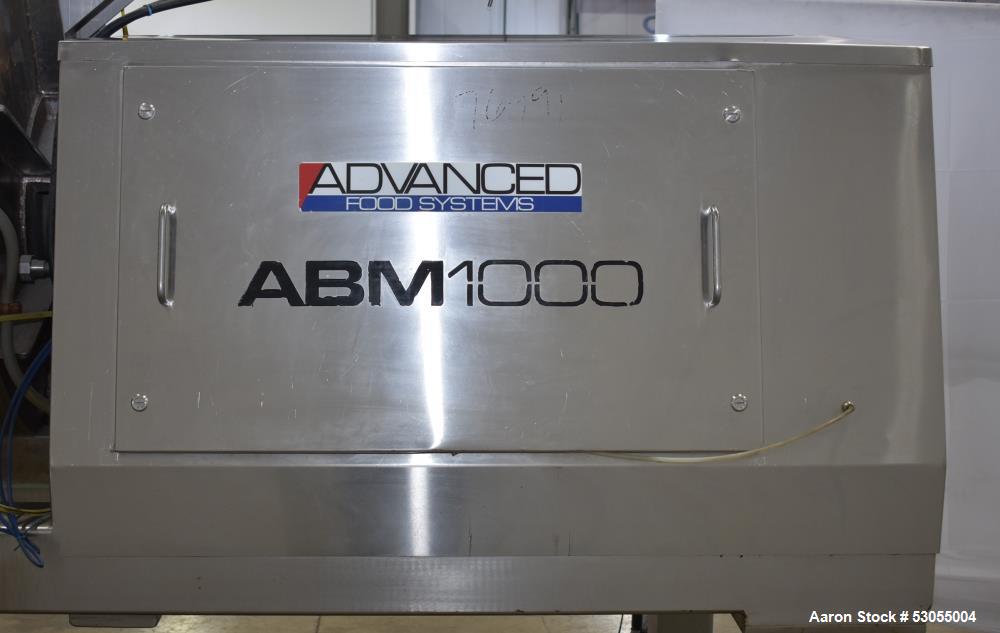

Advanced Food Systems Batch Mixer, Model ABM1000

Used - Advanced Food Systems Batch Mixer, Model ABM1000

1,000 lb Capacity | 304 Stainless Steel | Allen Bradley Controls

Overview

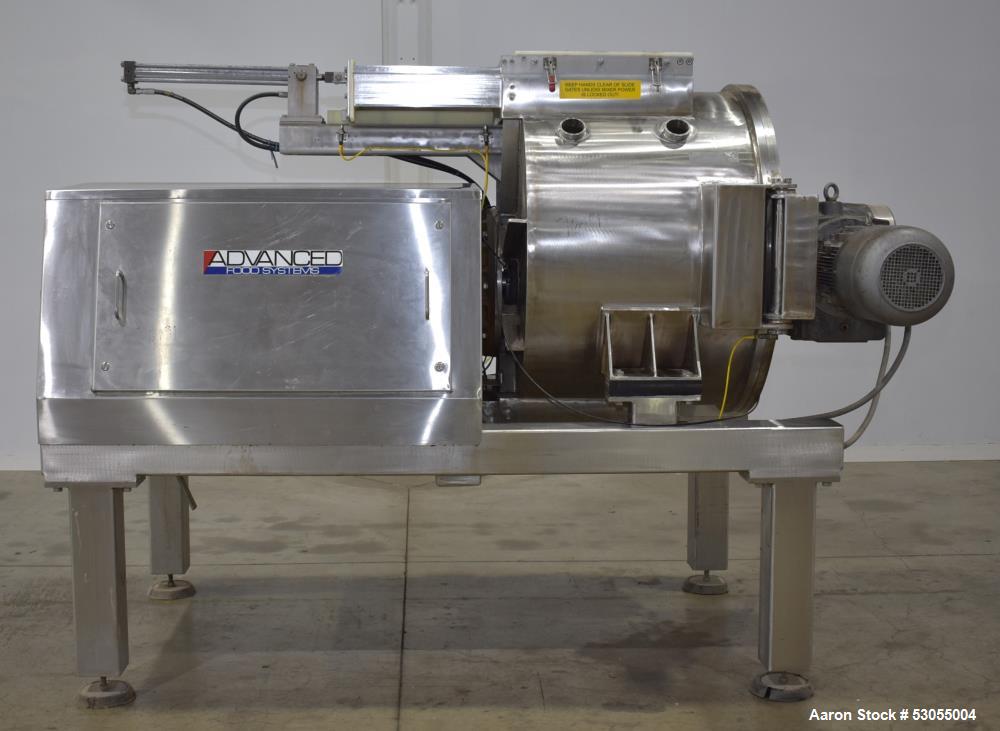

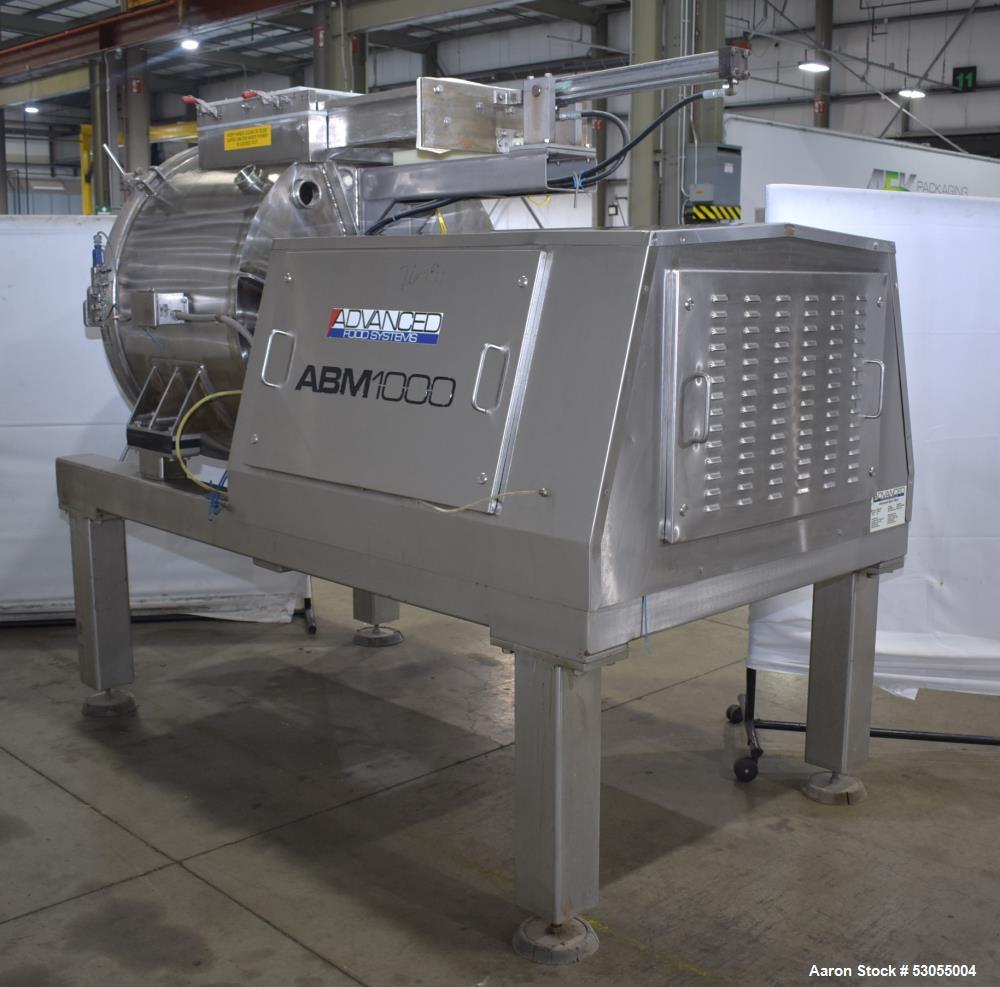

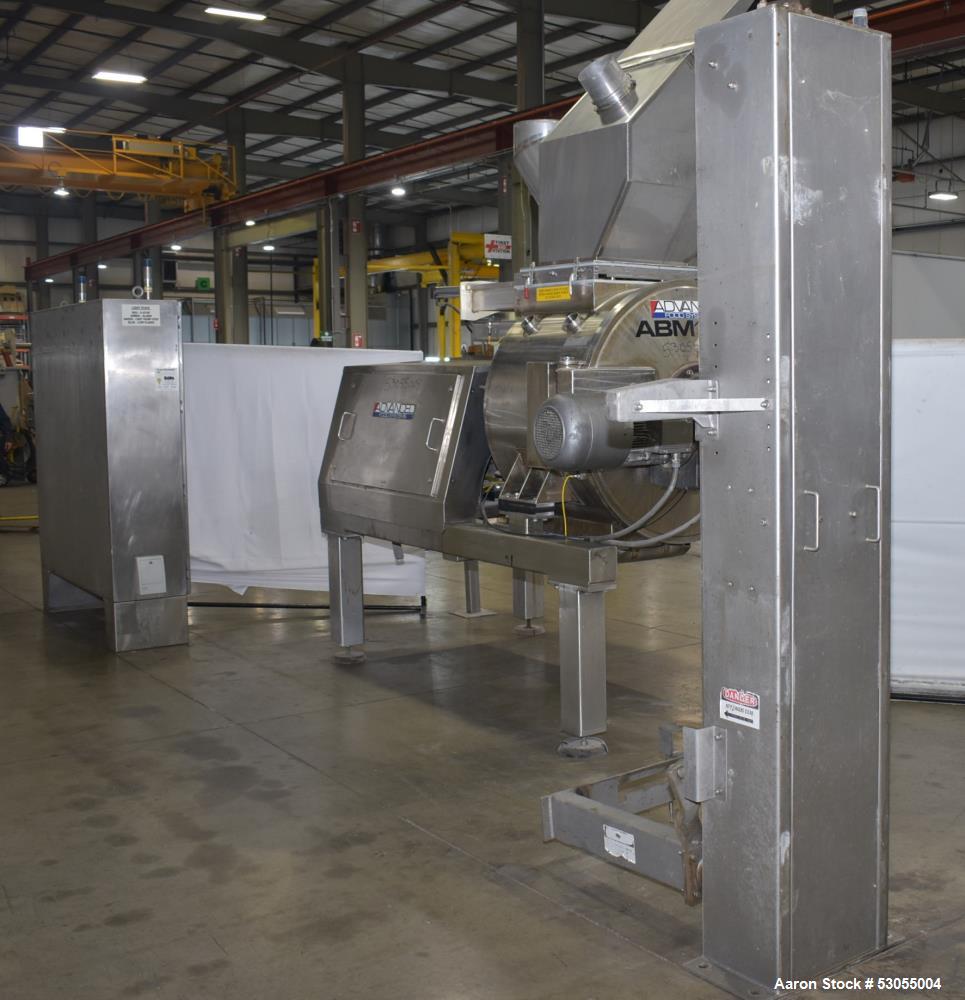

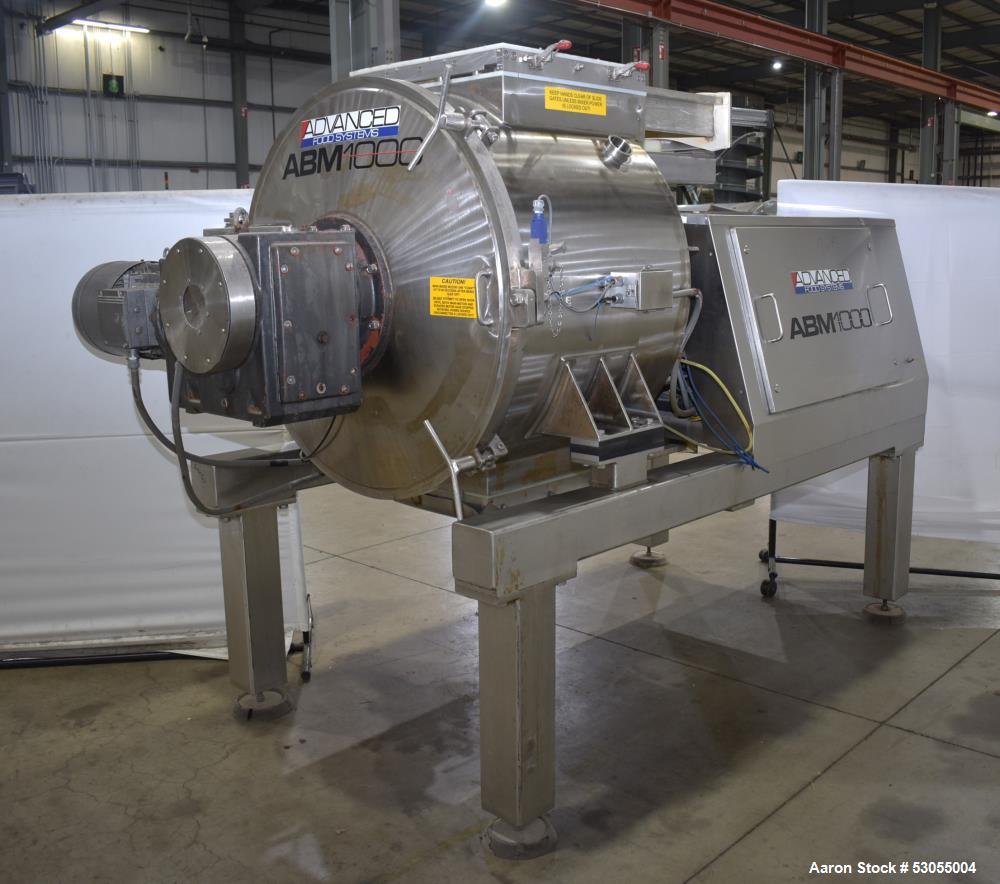

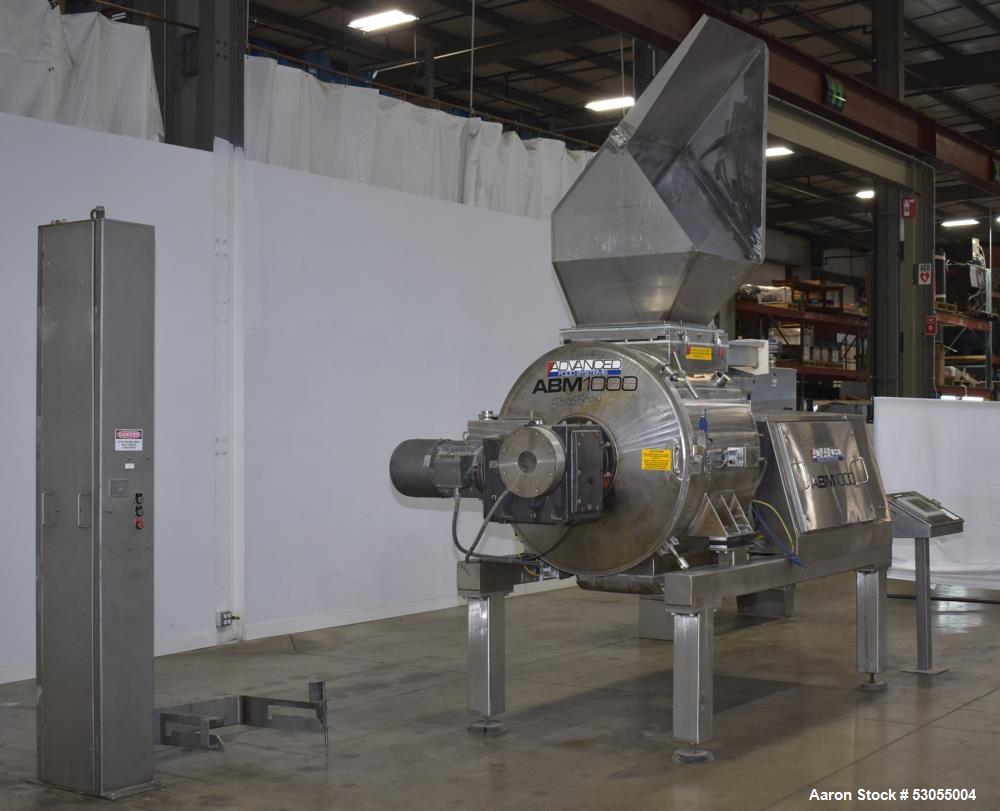

This Used Advanced Food Systems Batch Mixer, Model ABM1000, is a high-capacity, heavy-duty batch mixer designed for food and industrial processing applications. Built with 304 stainless steel construction, this mixer has a 1,000-pound capacity and is engineered for efficient mixing of powders, granules, or pastes.

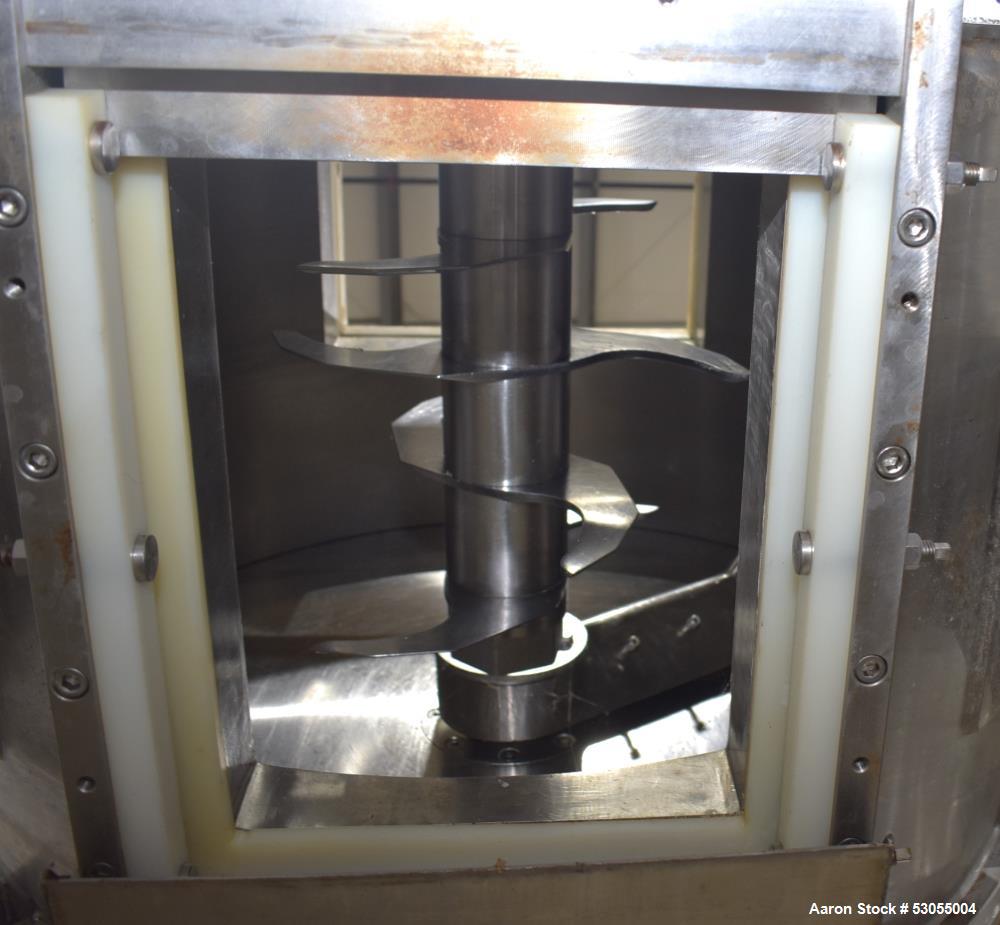

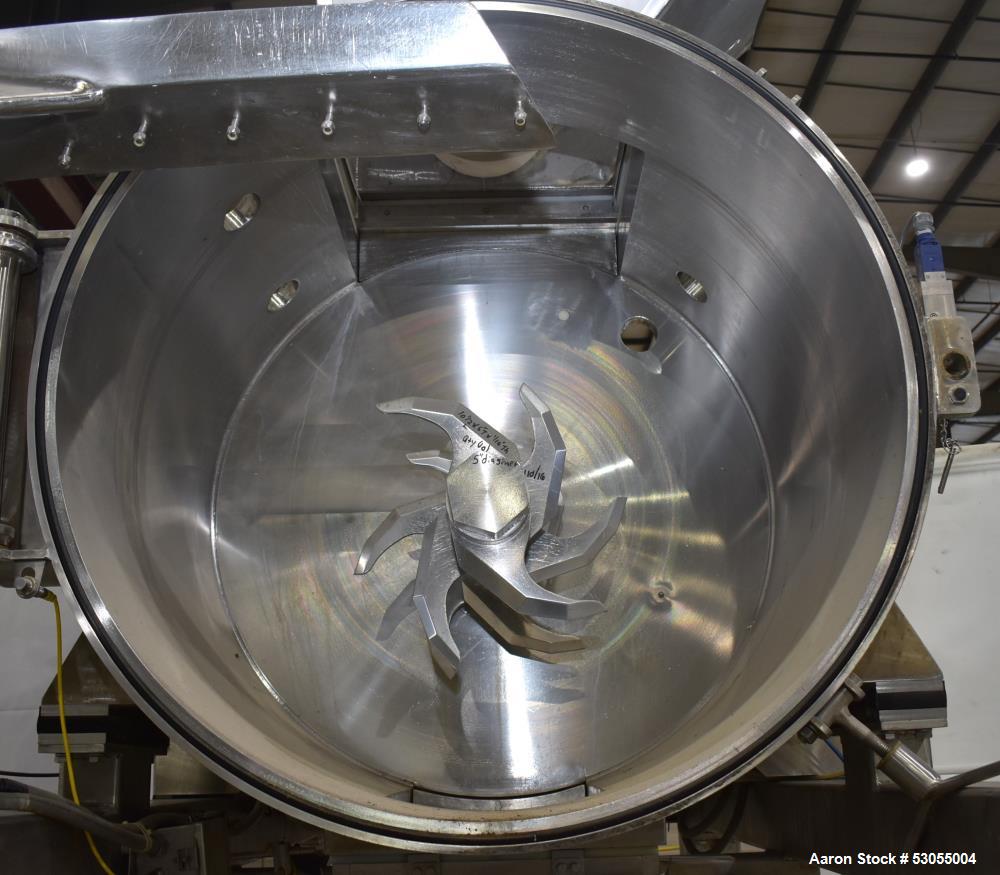

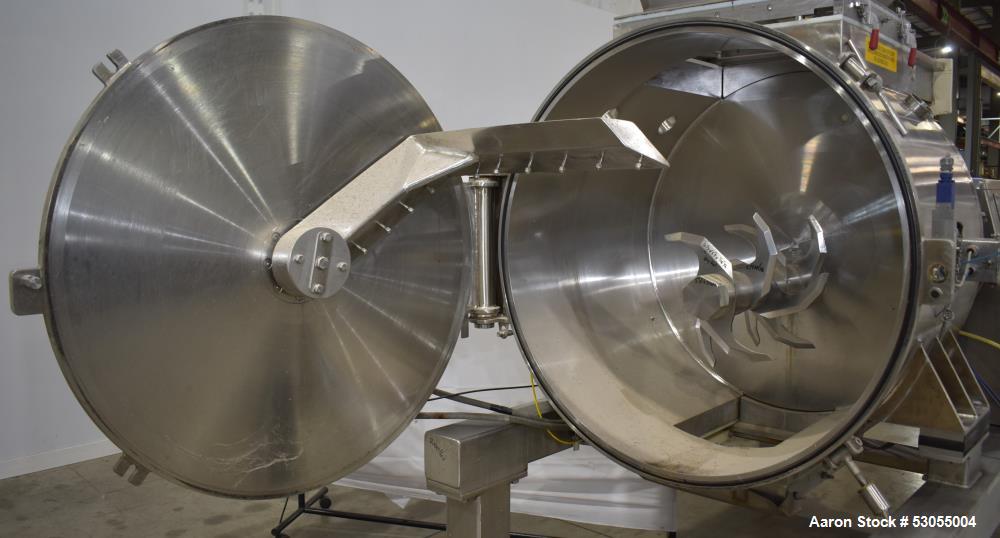

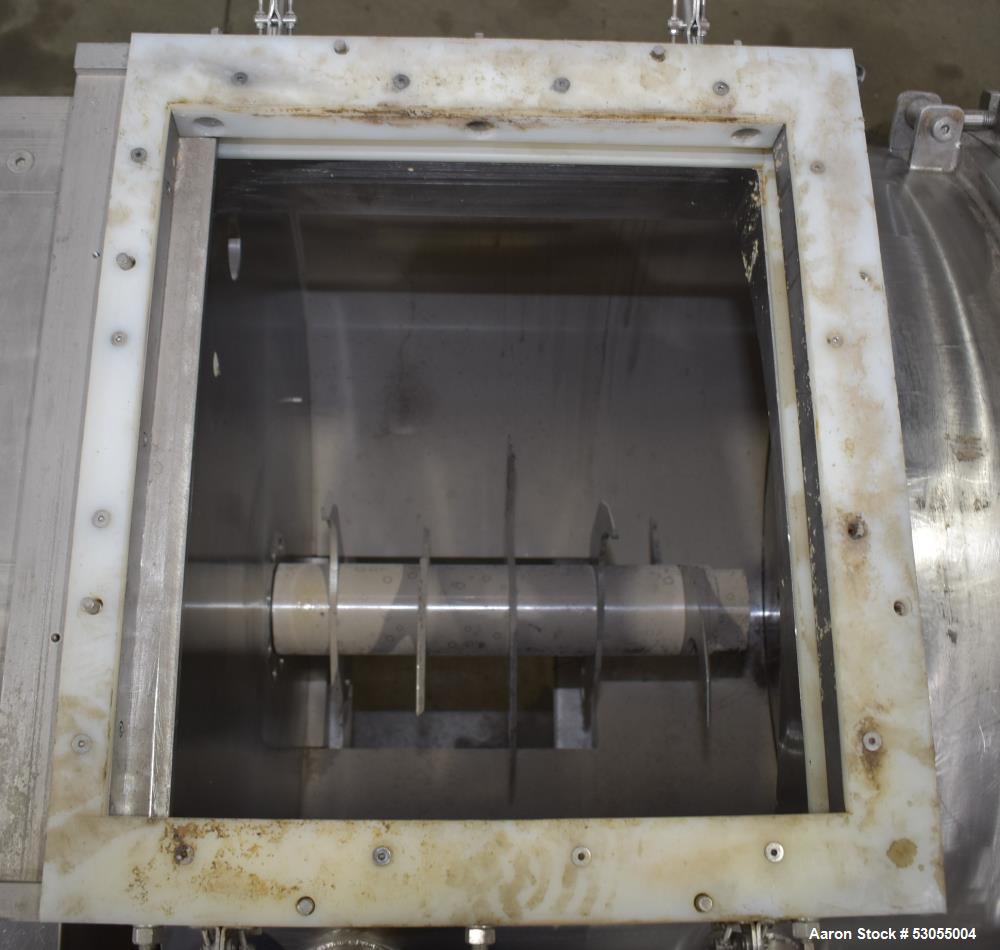

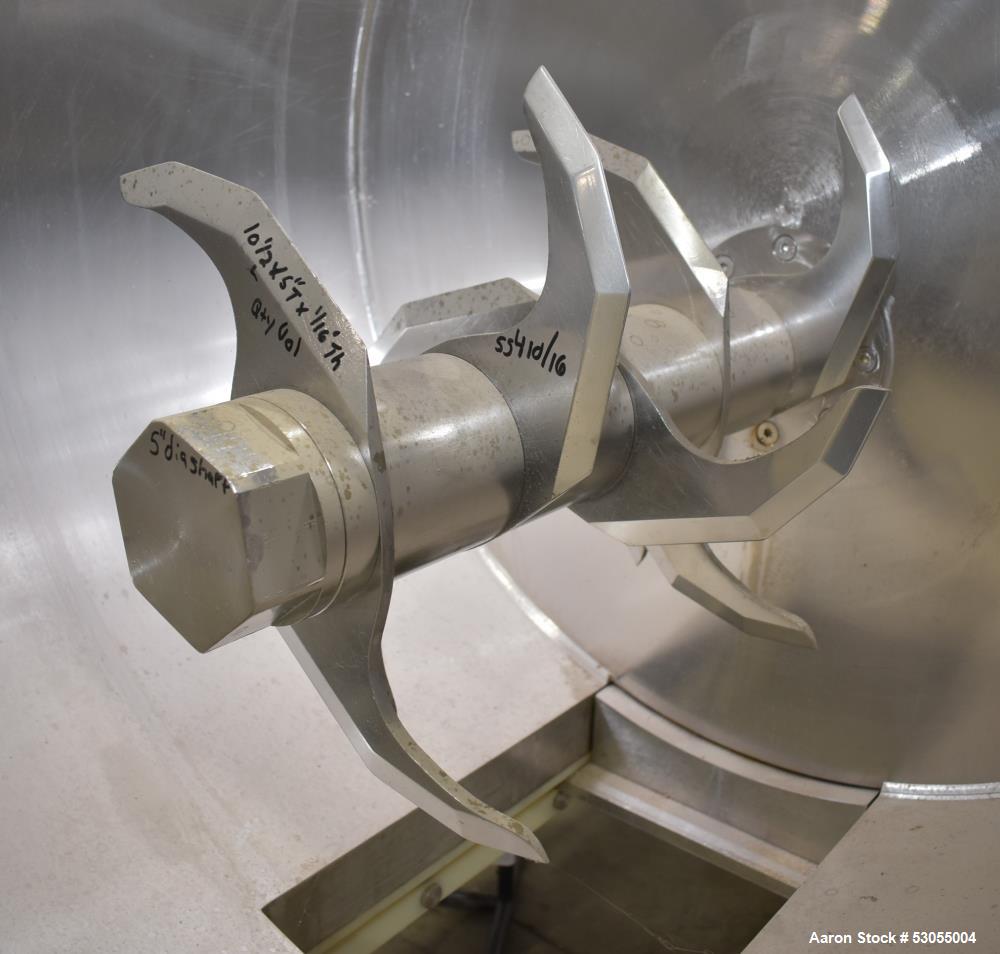

The system features a 46" diameter x 30" deep mixing chamber, equipped with a 5" diameter shaft and (10) 10-1/2" long x 5" wide x 1/16" thick blades made from 410/16 stainless steel for robust performance. A 150 HP main motor powers the mixer, and a spray bar allows for liquid additions during the mixing cycle. The door scraper is driven by a 3 HP gear motor, ensuring smooth discharge through the center bottom outlet.
The unit includes an Allen Bradley Panel View Plus 1000 Color Touchscreen Controller for intuitive operation, along with a stainless steel two-door electrical enclosure for control and safety.

Key Specifications

• Manufacturer: Advanced Food Systems
• Model: ABM1000
• Construction: 304 Stainless Steel
• Capacity: 1,000 Pounds
• Chamber Dimensions: 46" Diameter x 30" Deep

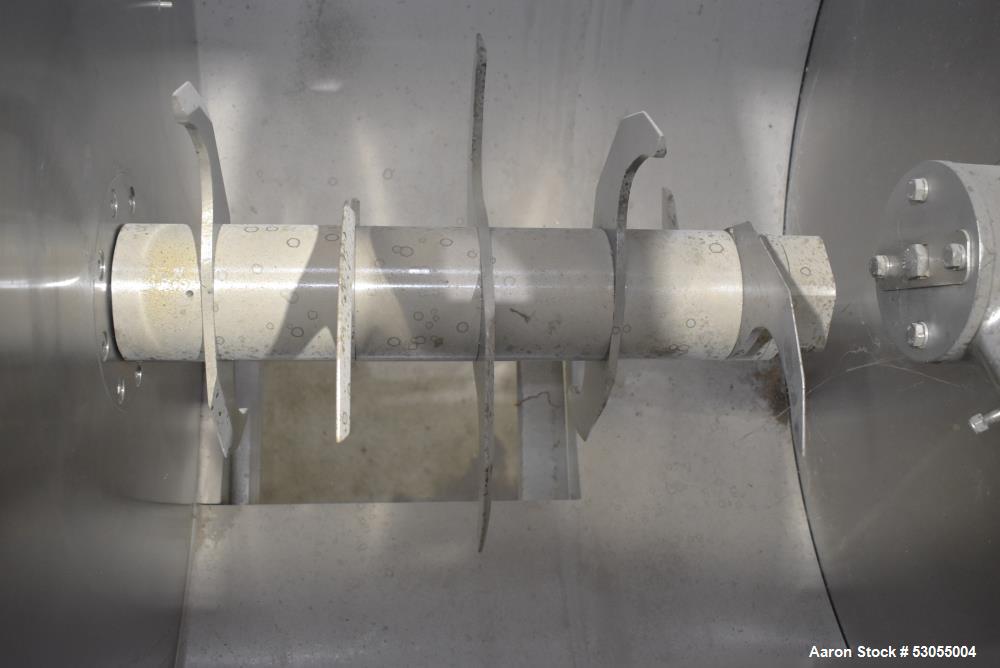

• Main Shaft: 5" Diameter
• Blades: (10) Blades, 10-1/2" Long x 5" Wide x 1/16" Thick, 410/16 Stainless Steel

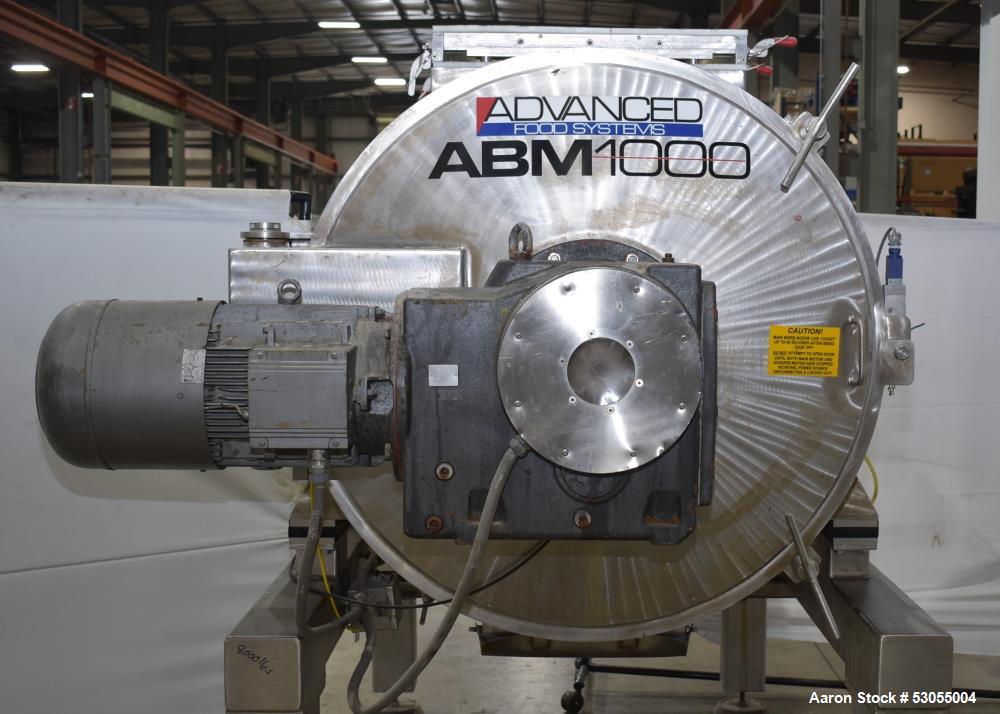

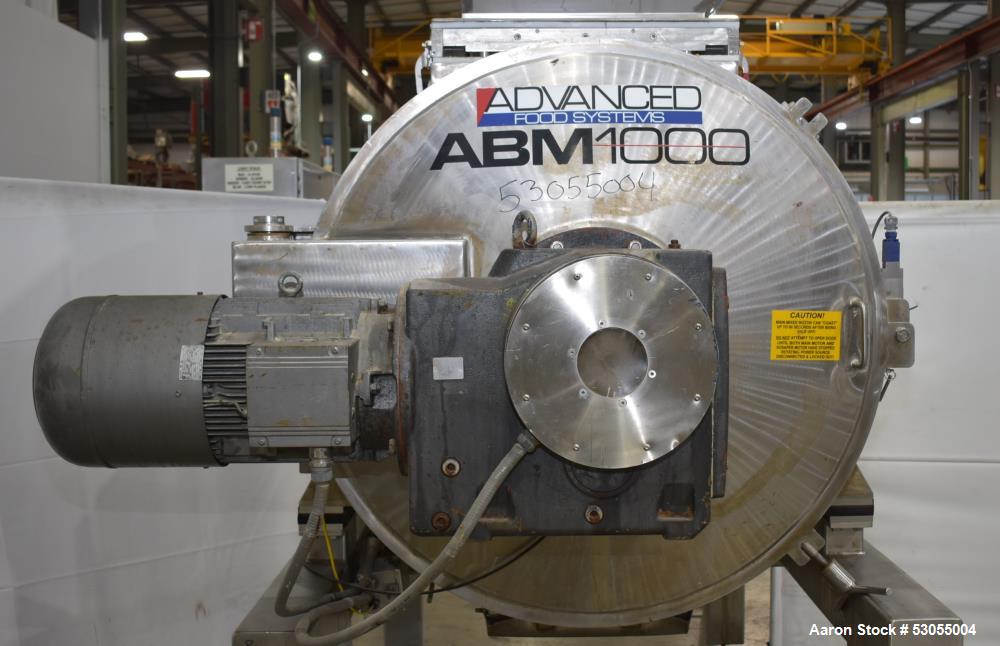

• Main Drive Motor: 150 HP
• Spray Bar: For liquid additions

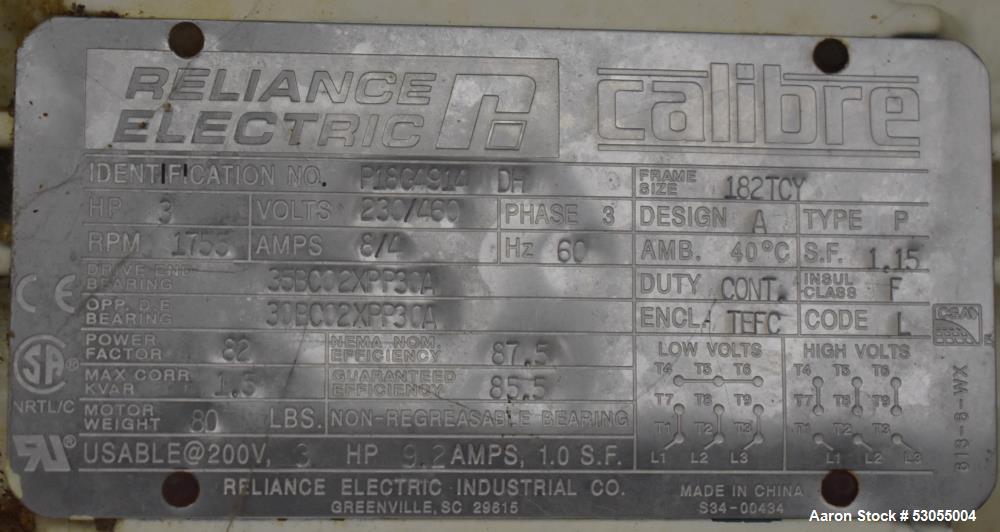

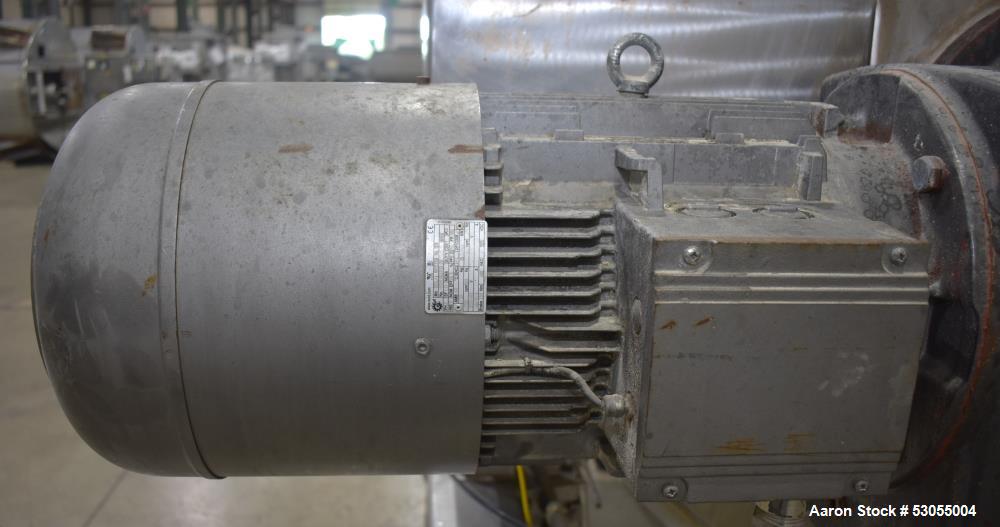

• Door Scraper Motor: 3 HP, 3/60/230/460V, 1755 RPM Gear Motor
• Openings:

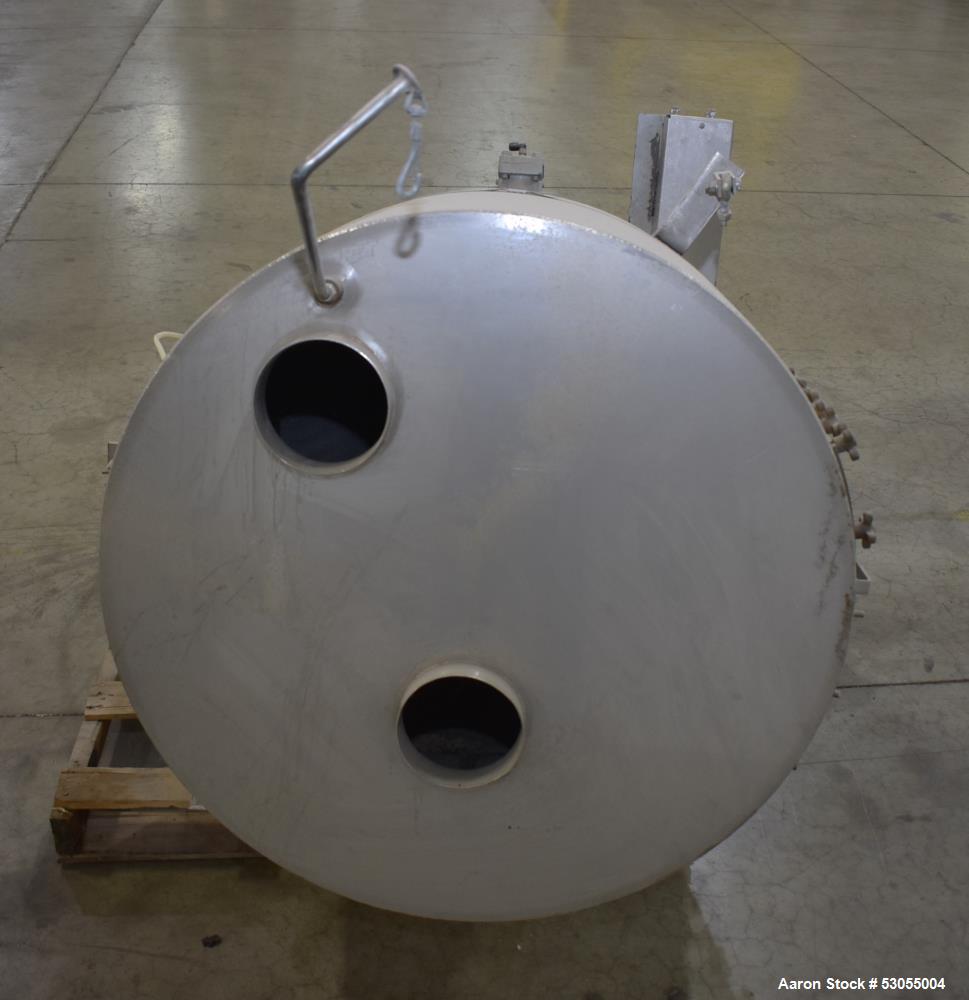

  • (4) 3" Diameter Ports

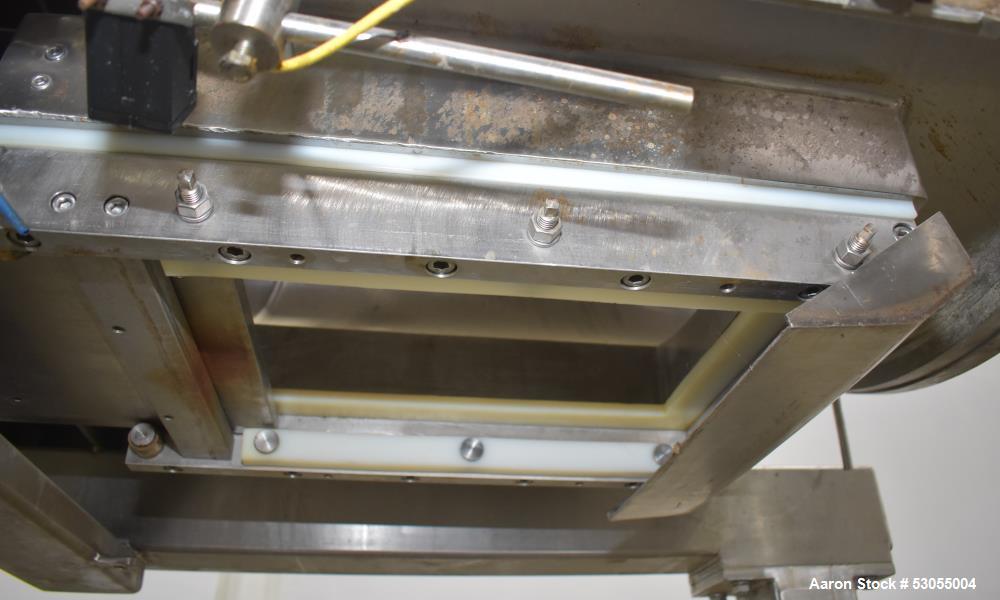

  • 18-1/4" x 13" Wide Center Bottom Outlet

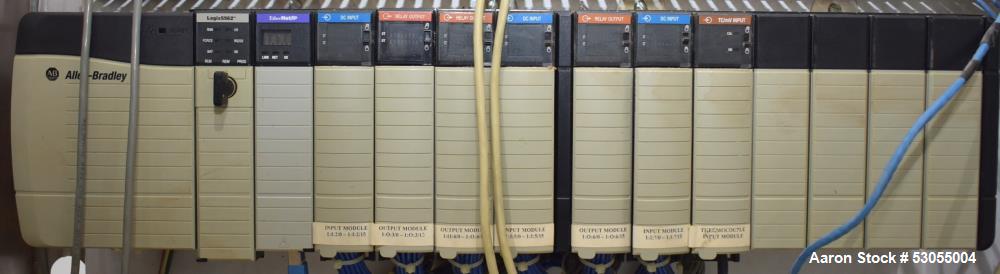

• Control System:

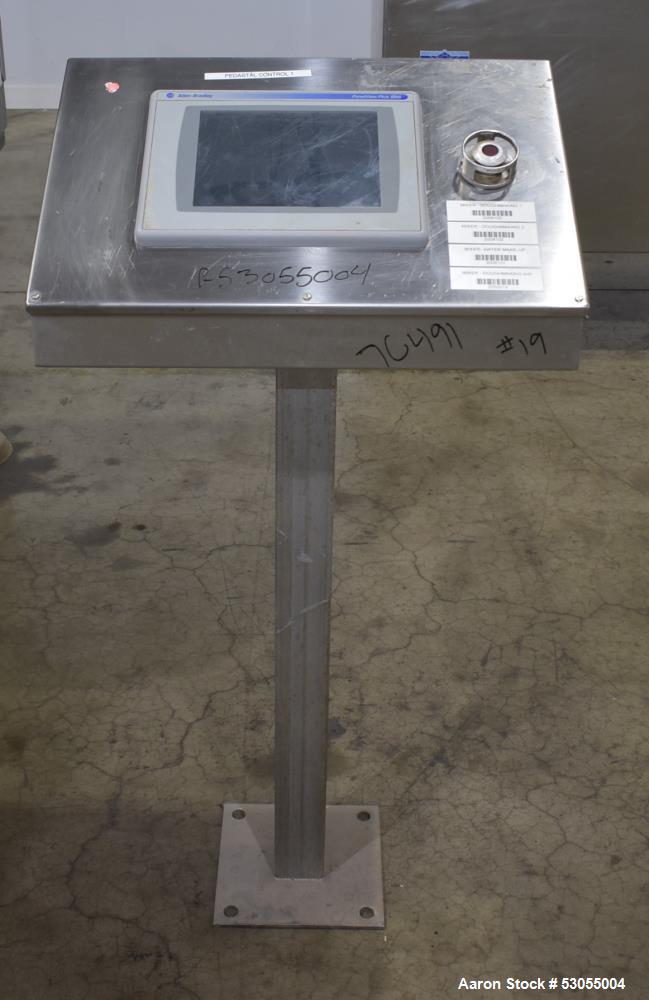

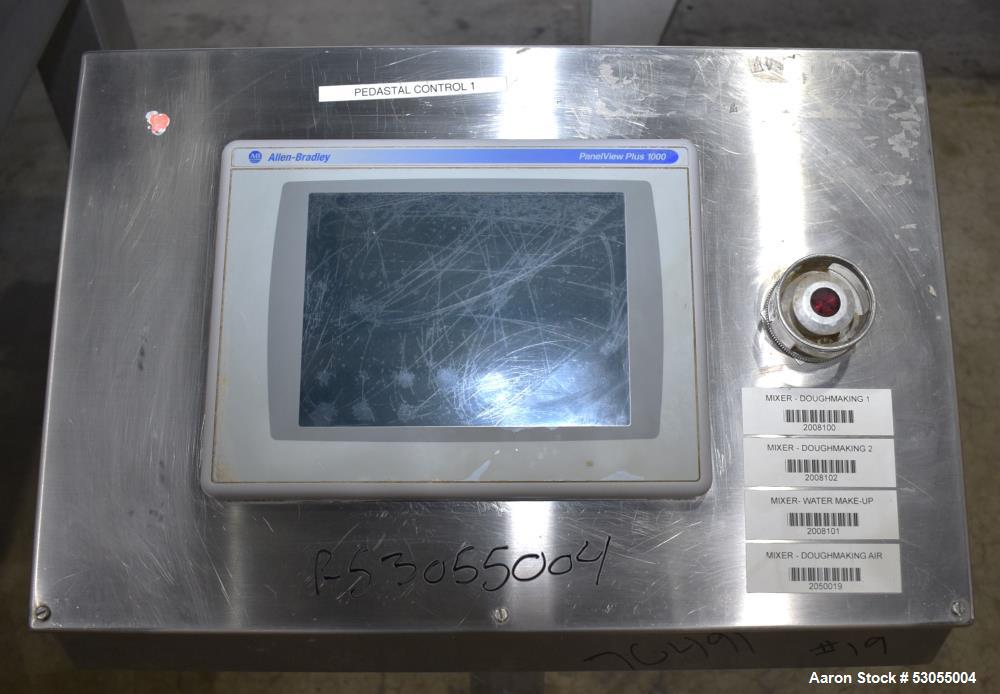

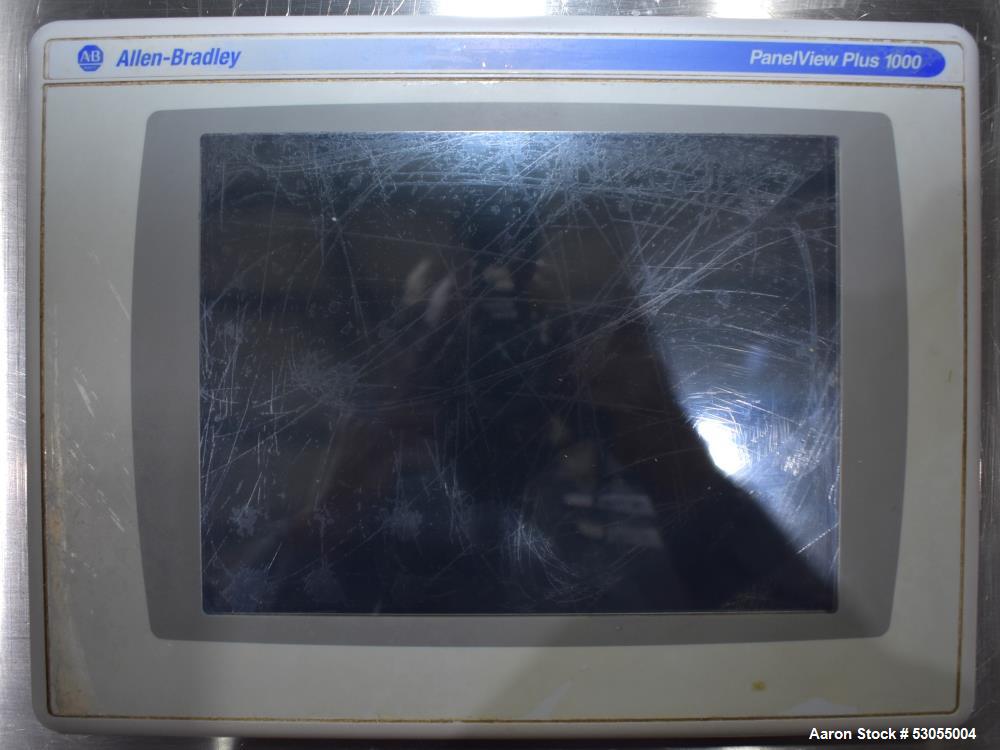

  • Allen Bradley Panel View Plus 1000 Color Touchscreen Operator Controller

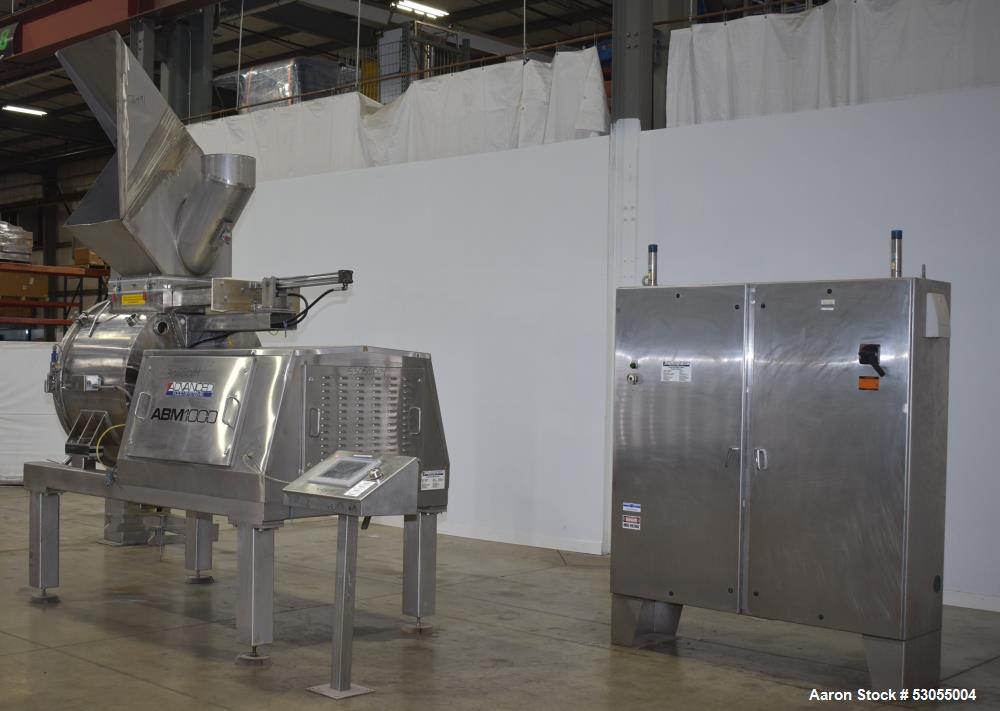

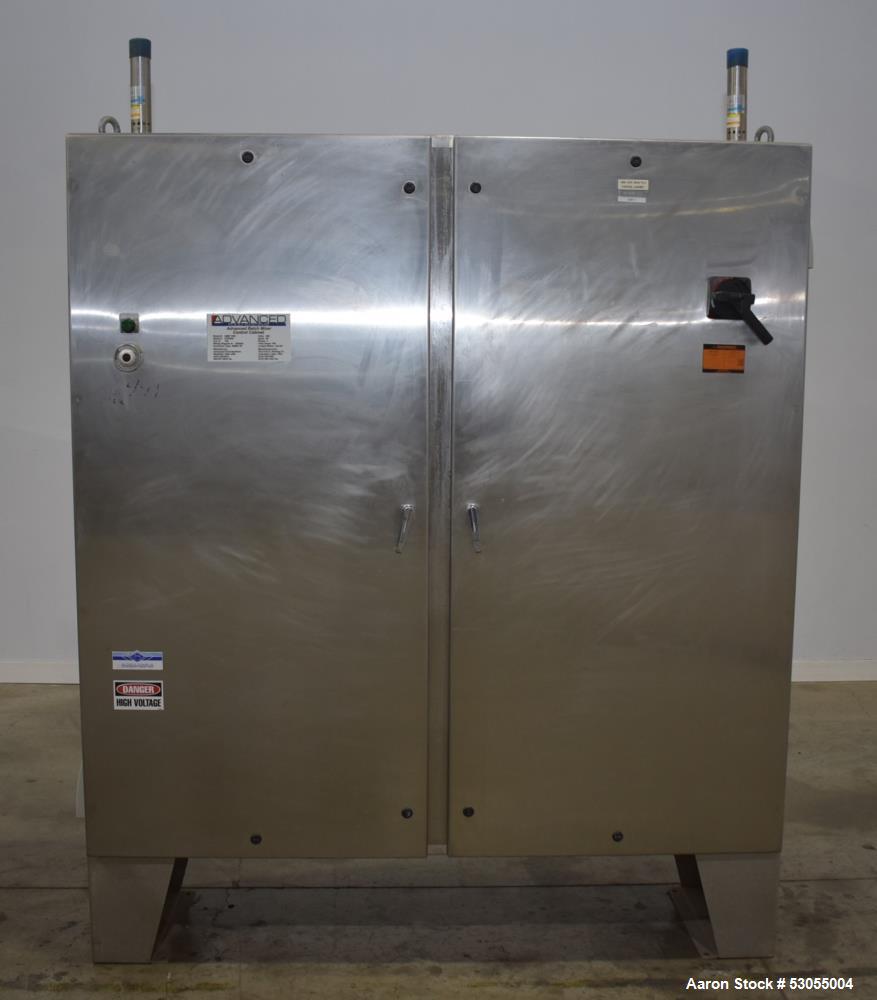

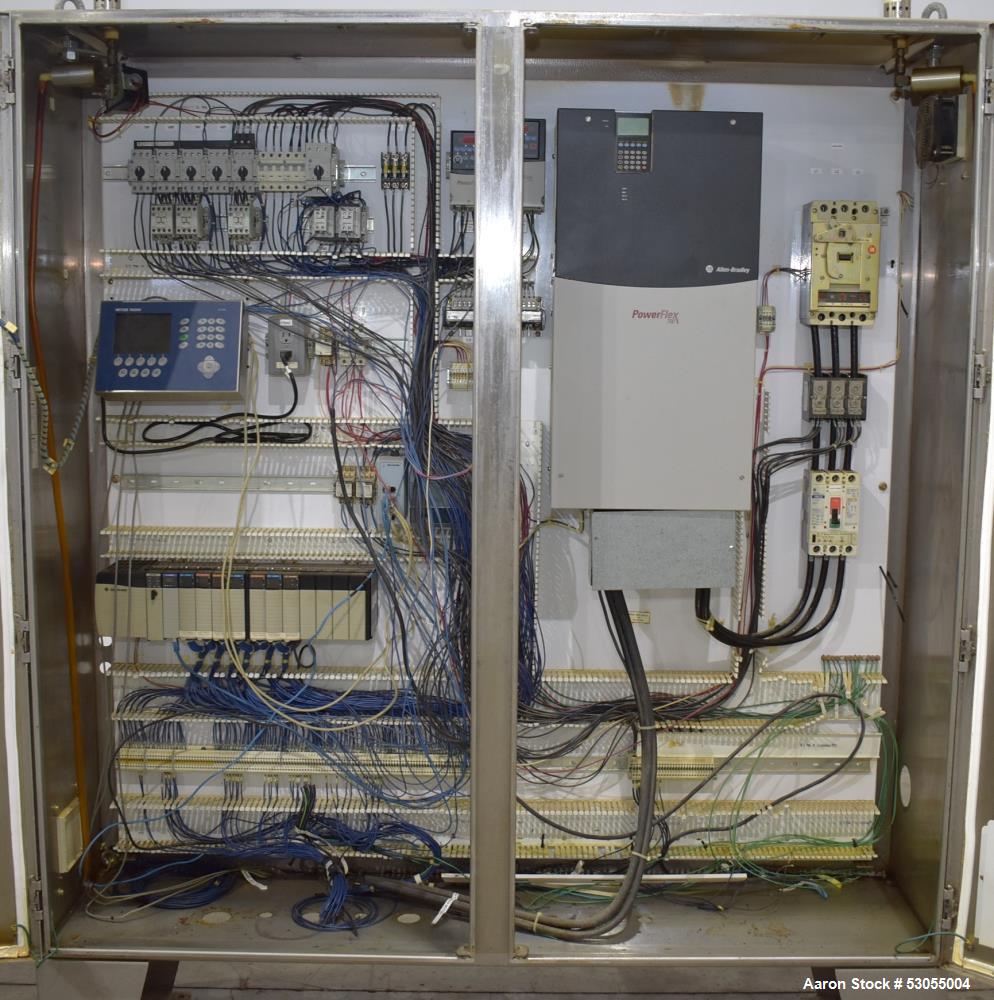

  • Stainless Steel Two Door Electrical Enclosure

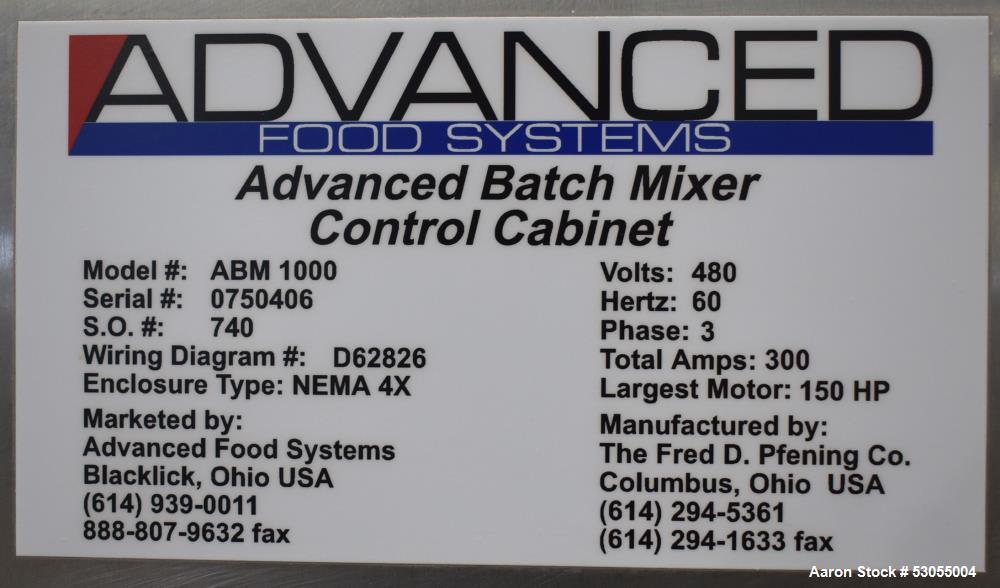

• Serial Number: 0750406

Features & Benefits

• High-Capacity Batch Mixing – Handles up to 1,000 lbs of material per batch
• Robust Stainless Steel Construction – 304 SS for corrosion resistance and sanitary processing
• Powerful 150 HP Motor – Drives heavy-duty mixing applications
• Spray Bar System – Enables the addition of liquids during mixing for enhanced blending
• Efficient Discharge – Door scraper and center bottom outlet for smooth product flow
• Advanced Control System – Allen Bradley touchscreen for easy operation and monitoring
• Versatile Applications – Suitable for food, pharmaceutical, nutraceutical, chemical, and industrial products

Applications

• Food Processing
  • Doughs, Batters, Protein Mixes
• Nutraceuticals & Supplements
• Pharmaceutical Blending
• Chemical and Powder Mixing
• Pet Food & Animal Nutrition

Industries Served

• Food & Beverage
• Pharmaceutical & Nutraceutical
• Pet Food Manufacturing
• Chemical Processing
• Industrial Applications
