Used- C.E. Raymond 18" High-Speed, Air-Swept, Vertically Arranged Hammermill

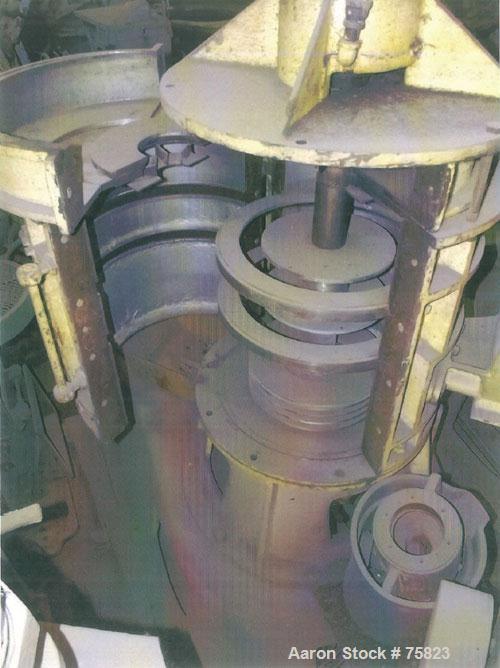

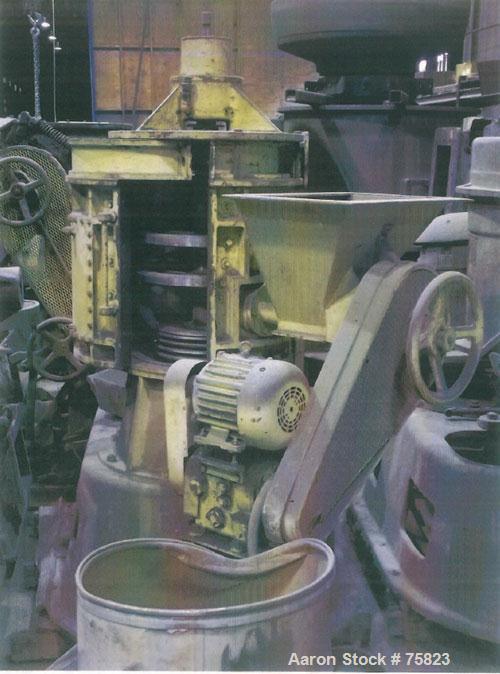

Used- C.E. Raymond 18" High-Speed, Air-Swept, Vertically Arranged Hammermill. Designed for ultra-fine grinding. Unit includes vertical shaft that carries all rotating internal components, rotor, (requires hammers and whizzer blades)fan blades, mill base, mill body with liners, screw feeder assembly, upper bearing housing, lower bearing housing, 25 hp drive motor.

• Raymond® Vertical Mill is a high-speed air swept swing hammer mill used to pulverize materials in the extreme fineness range. The principle of integral air classification, originally developed by Raymond, has been applied with outstanding success to this mill. As a result, a large number of products can be reduced to 95% to 99% passing 15 to 20 microns while others with smaller crystalline structure can be ground as fine as 95% to 99% passing 5 to 10 microns.
• Raymond® Vertical Mill is well adapted to the grinding of non-metallic minerals and manufactured materials in the extreme fineness range. Typical materials processed include graphite, limestone, cocoa powder, marble, kaolin, sugar, talc, certain synthetic resins, organic and inorganic colors, phosphate, chemicals, glass, enamel, food products, pharmaceuticals and a variety of chemicals
• Raymond® Vertical Mill Advantages
