Unused- Patterson Industries 5' Diameter x 6' Long Ball Mill

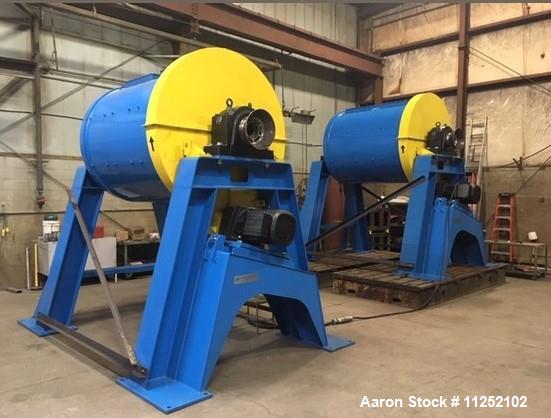

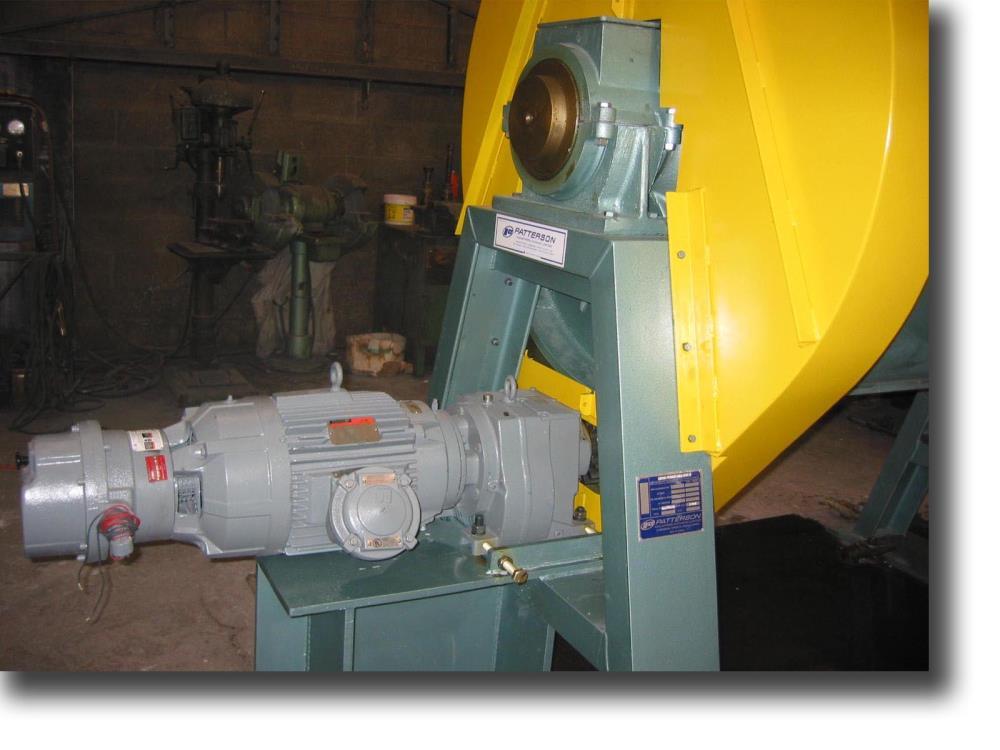

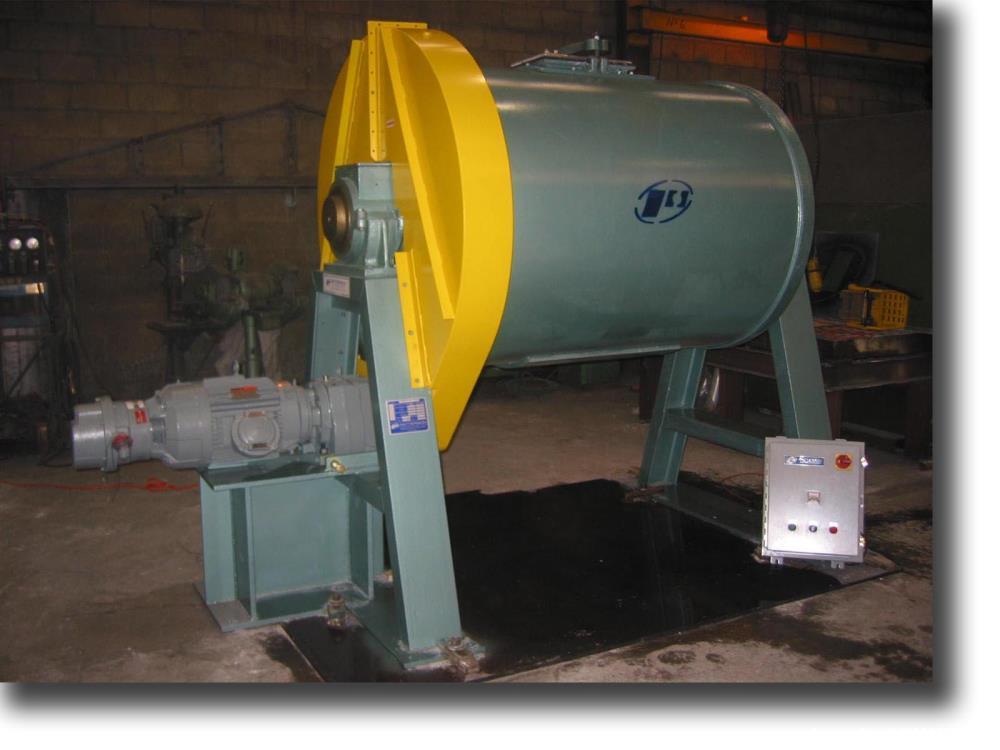

Unused- Patterson Industries 5' Diameter x 6' Long Ball Mill, Type D, non-jacketed, with AR400 steel liners. Includes 30 hp, 3 phase, 60 Hz, 230-460 V, 1725 rpm motor. Mill drive is integrally coupled to horizontal parallel shafted helical gear reducer. Continuous type, with product feeding through spiral inlet trunnion and exiting through the discharge end trunnion. Features cylinder manway access door for cleaning. Internal volume measures approximately 839 USG (112 CF). Mill shell is lined with (24) 1/4" thick liner plates, each head lined with (8) 3/8" thick pie-shaped liner plates. Mounted on stand with approximately 66" clearance between the mill cylinder and floor. Mills were intended for use in glass particle size reduction but were never installed. Manufactured in 2019, unit still in factory plastic wrap.
