Stock No.: 53147104

Used ANIVI 8’ x 15’ Ball Mill Grinding System – 370 HP Drive, Air Classifier & Dust Collection, Complete Zircon Milling Plant

Used- ANIVI 8 x 15 Ball Mill Grinding System 370 HP Drive, Air Classifier & Dust Collection, Complete Zircon Milling Plant. Driven by 275 kW (370 HP) motor through 10:1 gear reducer, inside dimensions measure 2420mm diameter by 4500 mm long. Includes girth ring, trunnions, and spare motor. System includes Ramsey Weigh Belt Feeder, 600 mm wide, with load cells, controls, and spare belt; 8 diameter ANIVI-Sturtevant Dynamic Air Classifier driven by 25kW motor; (3) 9" diameter Jervis B. Web Screw Conveyors, measuring 12, 20, and 22 long; (2) Mikro-Pulsaire Dust Collectors (model 49S-4-20, 461 Sq Ft and model 81S-8-20, 762 Sq Ft); and 40 high ANIVI Bucket Elevator. Previously milling dry zircon with 7.5 Mohs hardness at capacity of 10 metric tons per day.

CategoryMills
SubcategoryBall Mill

Used equipment facts about this machine

Manufacturer Information

Primary Manufacturer: ANIVI Ingeniería
Classifier: ANIVI-Sturtevant Dynamic Air Classifier
Dust Collectors: Mikro-Pulsaire
Weigh Feeder: Ramsey
Screw Conveyors: Jervis B. Webb
Previous Material: Dry Zircon (7.5 Mohs Hardness)
Capacity: Approx. 10 Metric Tons Per Day

ANIVI is internationally recognized for mineral grinding and classification systems designed for high-efficiency industrial milling operations in mining, ceramics, and specialty mineral industries.

Description

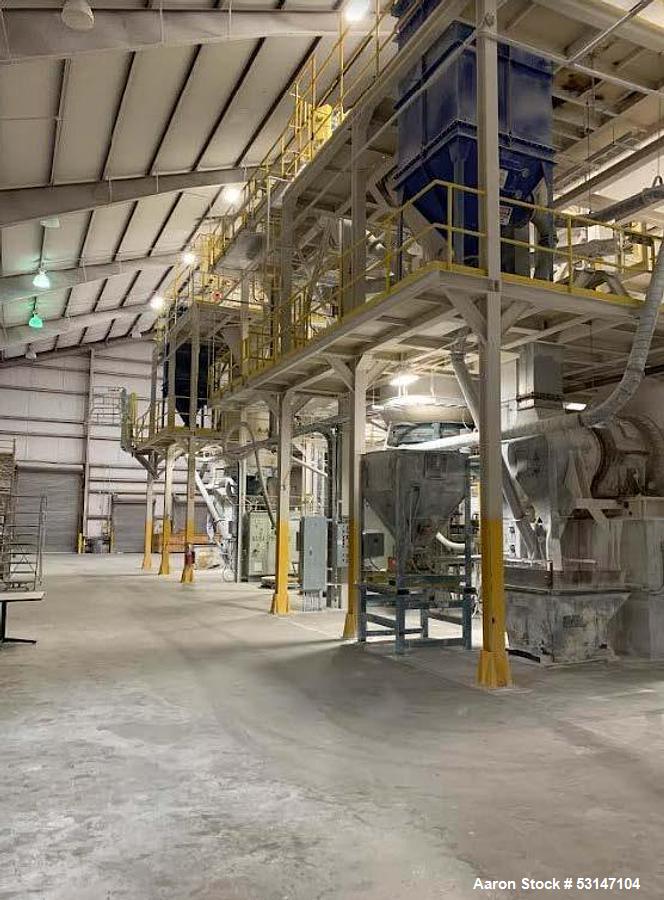

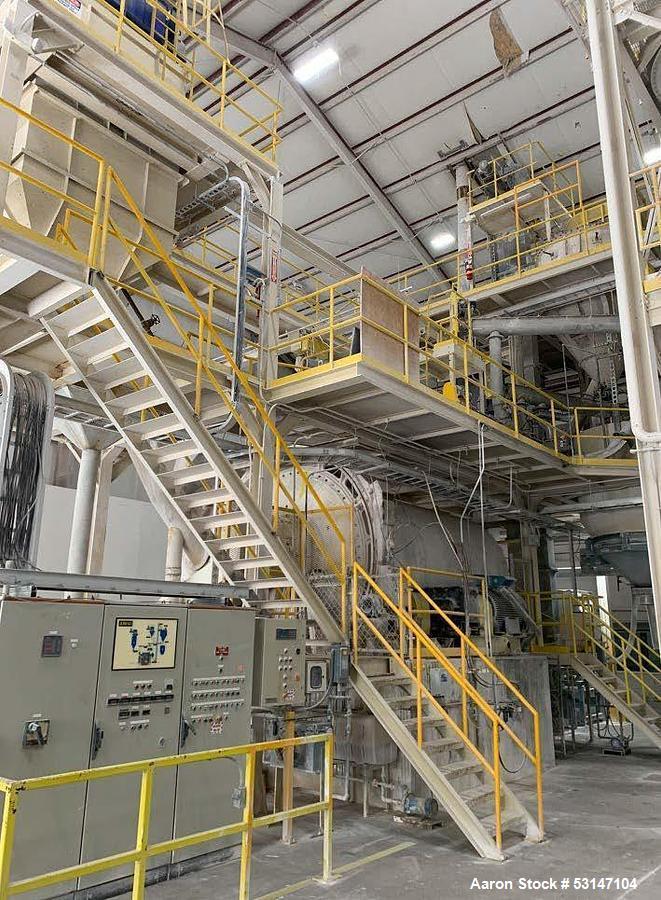

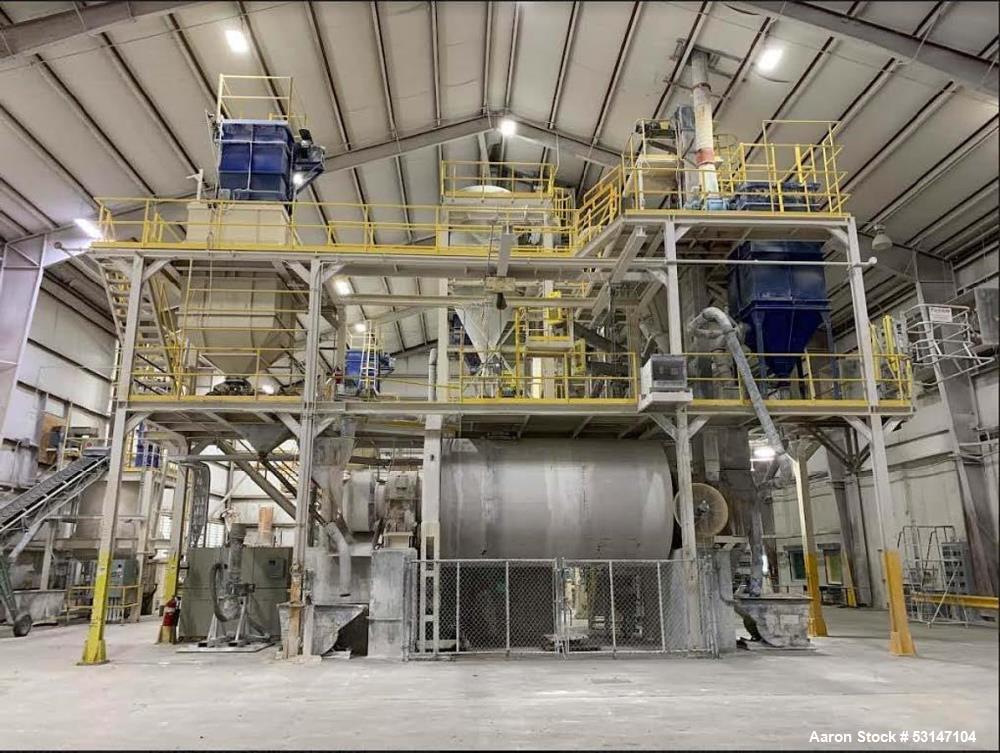

This Used ANIVI 8’ x 15’ Ball Mill System is a complete closed-circuit grinding plant featuring dynamic air classification and integrated dust collection. Previously utilized for milling dry zircon (7.5 Mohs hardness) at approximately 10 metric tons per day, this system is engineered for fine mineral processing applications requiring precision particle size control.

The ball mill is powered by a 275 kW (370 HP) motor through a 10:1 gear reducer, delivering substantial torque for processing hard materials. The mill’s internal dimensions measure 2420mm diameter x 4500mm long, providing efficient grinding volume.

The system includes:

8’ diameter ANIVI-Sturtevant Dynamic Air Classifier (25 kW drive)
Ramsey 600mm Weigh Belt Feeder with load cells and controls
Three Jervis B. Webb screw conveyors (9” diameter)
Two Mikro-Pulsaire Dust Collectors
40’ High ANIVI Bucket Elevator

This is a fully integrated mineral grinding and classification system ideal for expansion, relocation, or specialty mineral processing operations.

Ball Mill Specifications

Manufacturer: ANIVI
Mill Size: 8’ Diameter x 15’ Long
Inside Dimensions: 2420mm Diameter x 4500mm Length
Drive Motor: 275 kW (370 HP)
Gear Reducer: 10:1 Ratio
Includes: Girth ring and trunnions
Spare Motor Included
Application: Dry grinding

System Components & Specifications

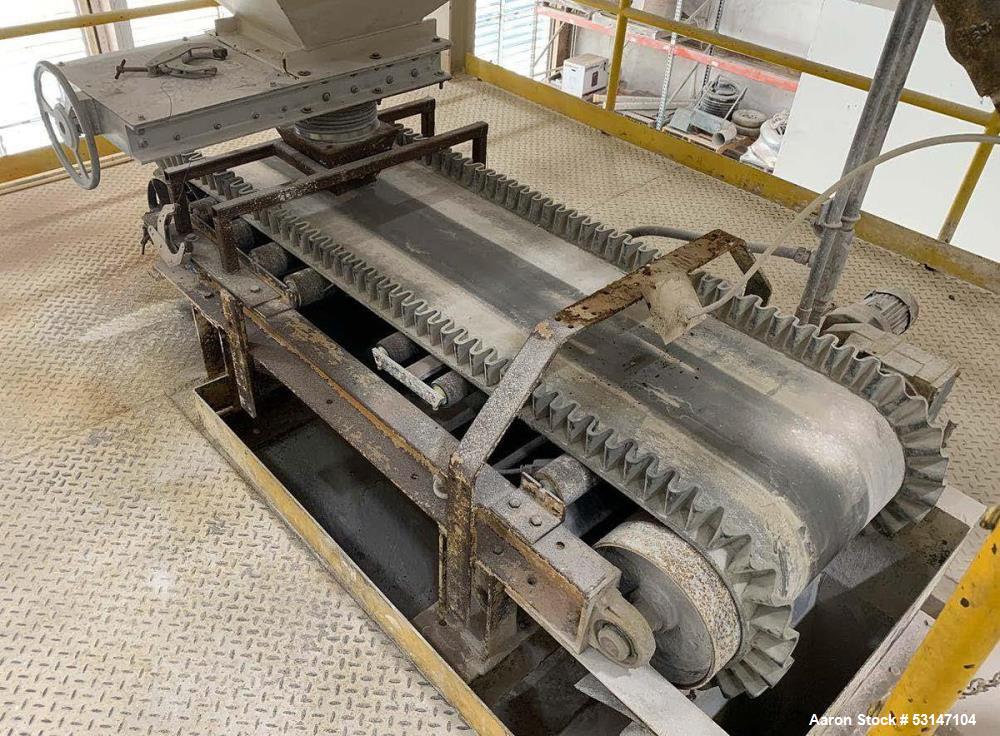

Weigh Belt Feeder

Manufacturer: Ramsey
Belt Width: 600 mm
Features: Load cells, controls
Includes spare belt

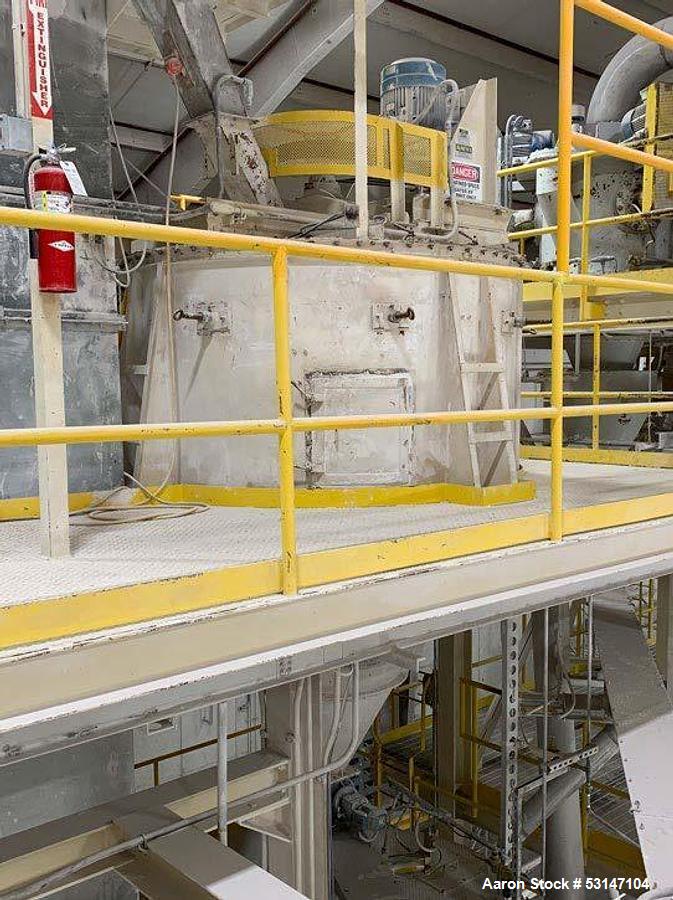

Air Classifier

Manufacturer: ANIVI-Sturtevant
Type: Dynamic Air Classifier
Diameter: 8’
Drive Motor: 25 kW

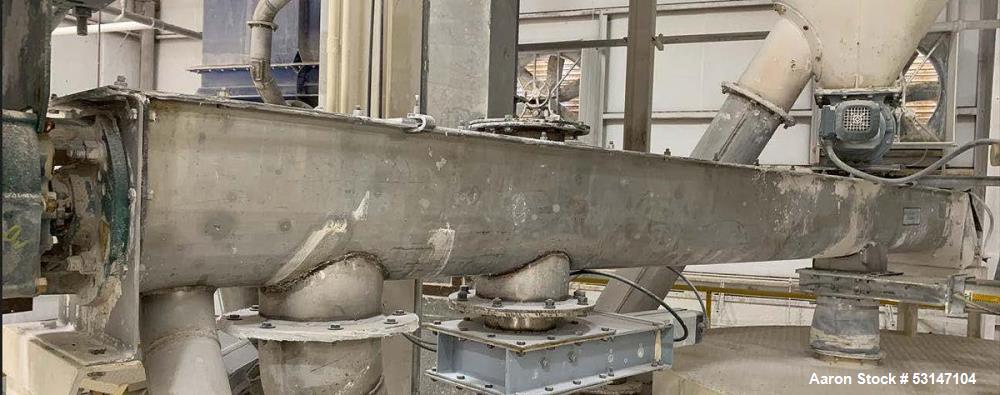

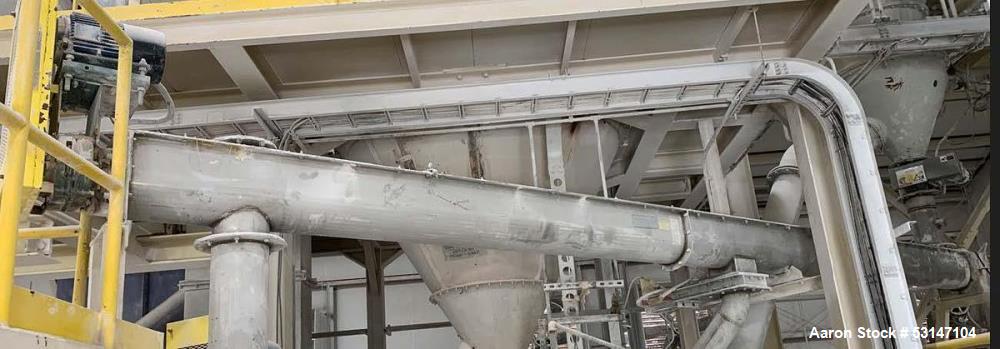

Screw Conveyors

Manufacturer: Jervis B. Webb
Diameter: 9”
Lengths: 12’, 20’, and 22’

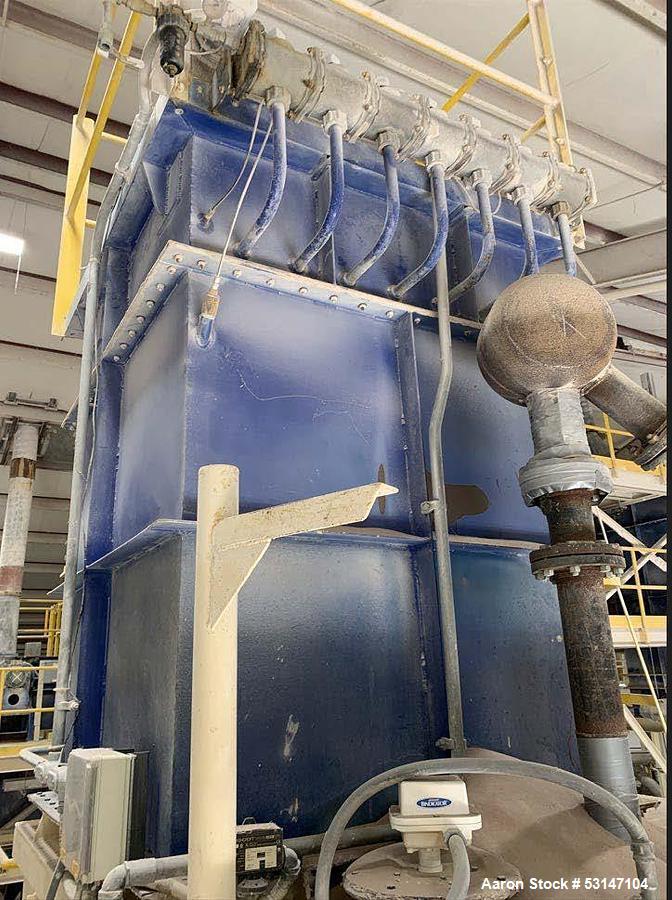

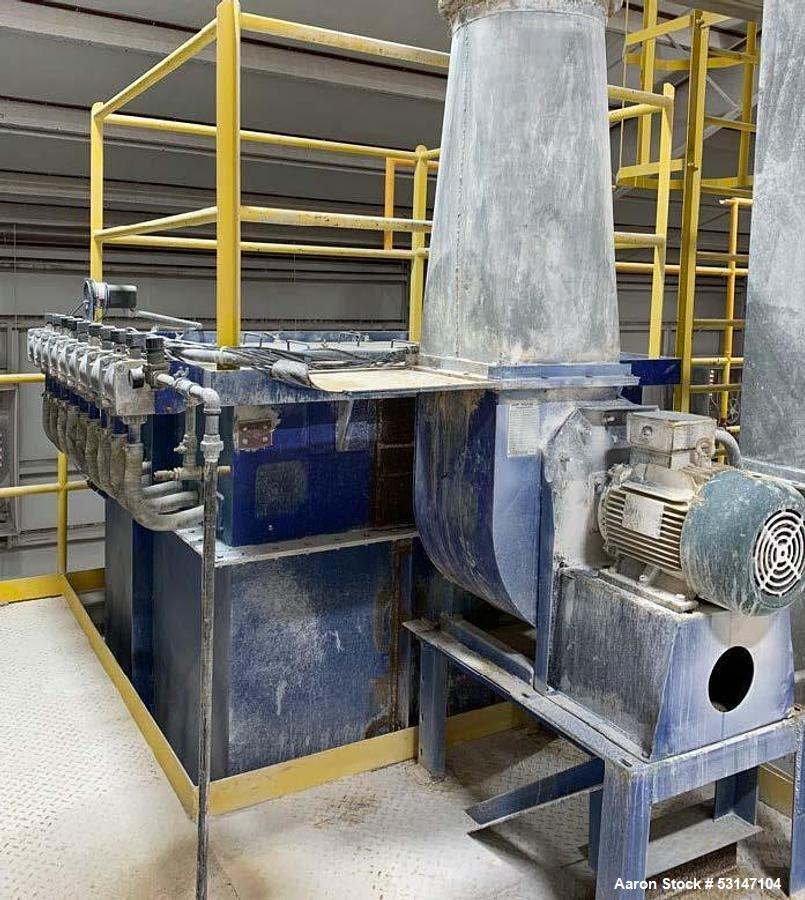

Dust Collection

Manufacturer: Mikro-Pulsaire
Model 49S-4-20 – 461 Sq Ft
Model 81S-8-20 – 762 Sq Ft

Bucket Elevator

Manufacturer: ANIVI
Height: 40’

Applications

Mineral grinding
Zircon processing
Ceramic raw material milling
Industrial filler production
Refractory material grinding
Silica processing
Feldspar milling
Specialty mineral classification
Dry powder processing
Mining and mineral beneficiation

What Might This Be Used For?

Closed-loop fine grinding systems
Hard mineral size reduction
Ceramic plant raw material preparation
High-precision particle classification
Industrial filler production
Refractory production lines
Mining plant expansion
Specialty chemical powder milling
Contract toll milling operations
Dry bulk material processing

Products This Equipment Is Used For

Zircon flour
Ceramic glazes
Refractory powders
Silica flour
Feldspar powder
Mineral fillers
Industrial abrasives
Pigment extenders
Specialty industrial powders
Processed mining concentrates
