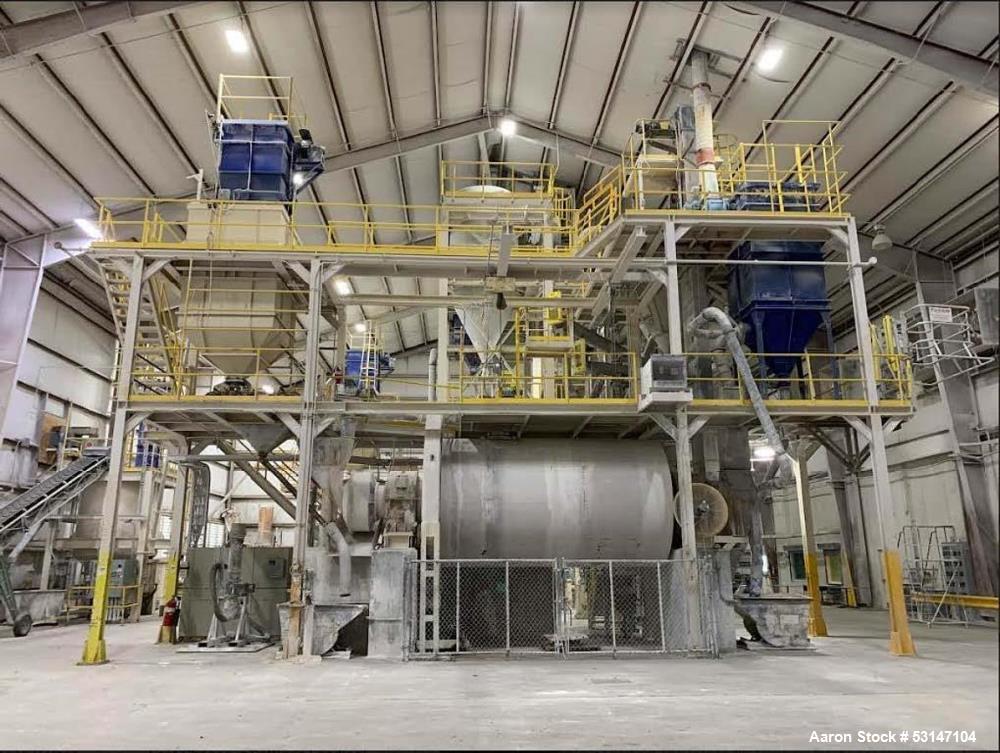

Used ANIVI 8’ x 15’ Ball Mill Grinding System – 370 HP Drive, Air Classifier & Dust Collection, Complete Zircon Milling Plant

Manufacturer Information

Primary Manufacturer: ANIVI Ingeniería
Classifier: ANIVI-Sturtevant Dynamic Air Classifier
Dust Collectors: Mikro-Pulsaire
Weigh Feeder: Ramsey
Screw Conveyors: Jervis B. Webb
Previous Material: Dry Zircon (7.5 Mohs Hardness)
Capacity: Approx. 10 Metric Tons Per Day

ANIVI is internationally recognized for mineral grinding and classification systems designed for high-efficiency industrial milling operations in mining, ceramics, and specialty mineral industries.

Description

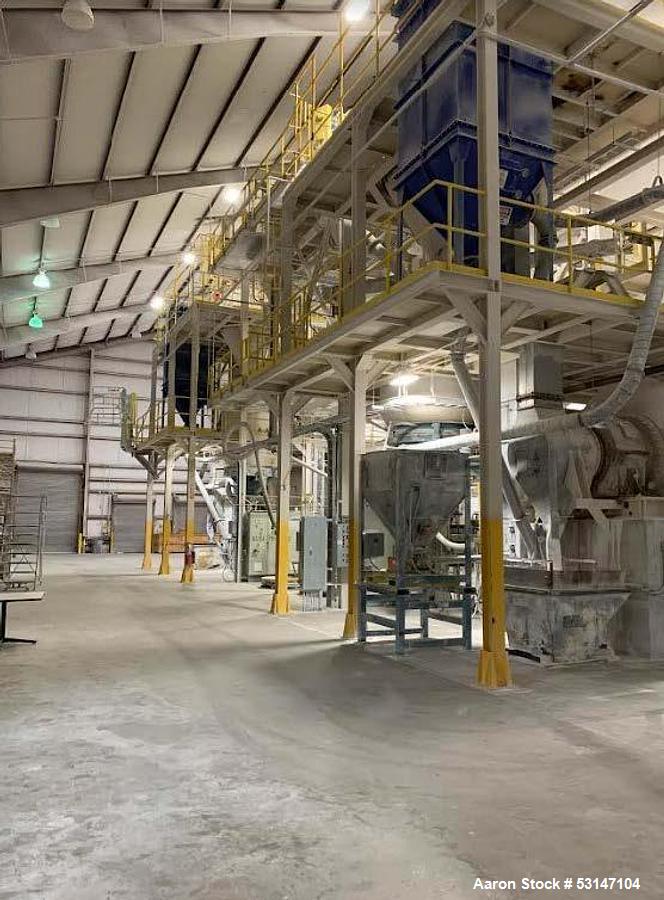

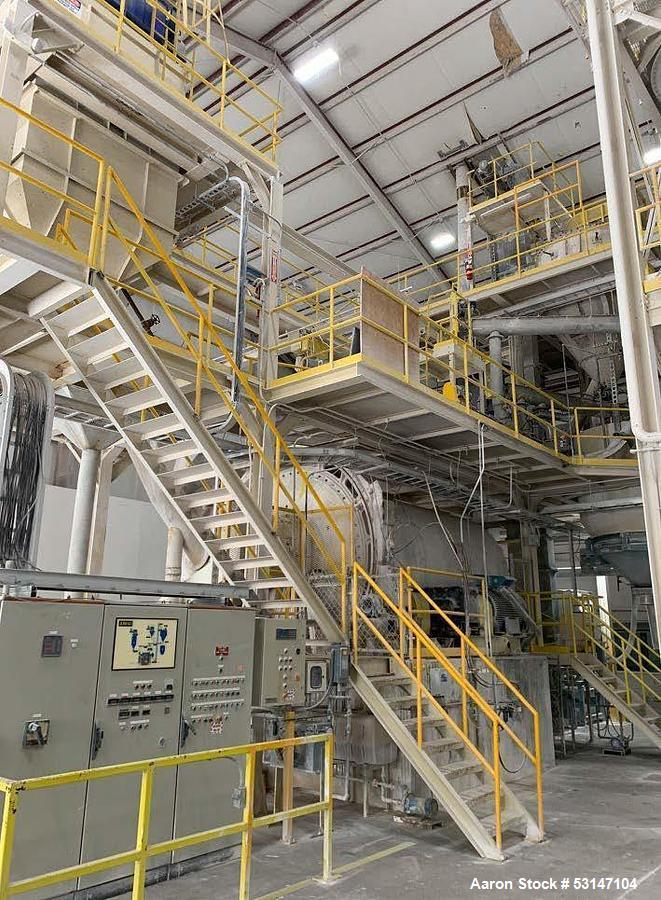

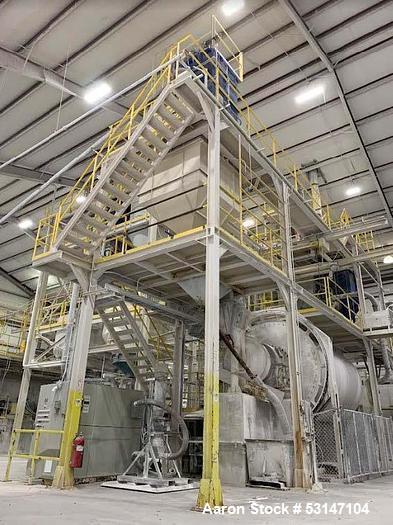

This Used ANIVI 8’ x 15’ Ball Mill System is a complete closed-circuit grinding plant featuring dynamic air classification and integrated dust collection. Previously utilized for milling dry zircon (7.5 Mohs hardness) at approximately 10 metric tons per day, this system is engineered for fine mineral processing applications requiring precision particle size control.

The ball mill is powered by a 275 kW (370 HP) motor through a 10:1 gear reducer, delivering substantial torque for processing hard materials. The mill’s internal dimensions measure 2420mm diameter x 4500mm long, providing efficient grinding volume.

The system includes:

• 8’ diameter ANIVI-Sturtevant Dynamic Air Classifier (25 kW drive)

• Ramsey 600mm Weigh Belt Feeder with load cells and controls

• Three Jervis B. Webb screw conveyors (9” diameter)

• Two Mikro-Pulsaire Dust Collectors

• 40’ High ANIVI Bucket Elevator

This is a fully integrated mineral grinding and classification system ideal for expansion, relocation, or specialty mineral processing operations.

Ball Mill Specifications

• Manufacturer: ANIVI

• Mill Size: 8’ Diameter x 15’ Long

• Inside Dimensions: 2420mm Diameter x 4500mm Length

• Drive Motor: 275 kW (370 HP)

• Gear Reducer: 10:1 Ratio

• Includes: Girth ring and trunnions

• Spare Motor Included

• Application: Dry grinding

System Components & Specifications

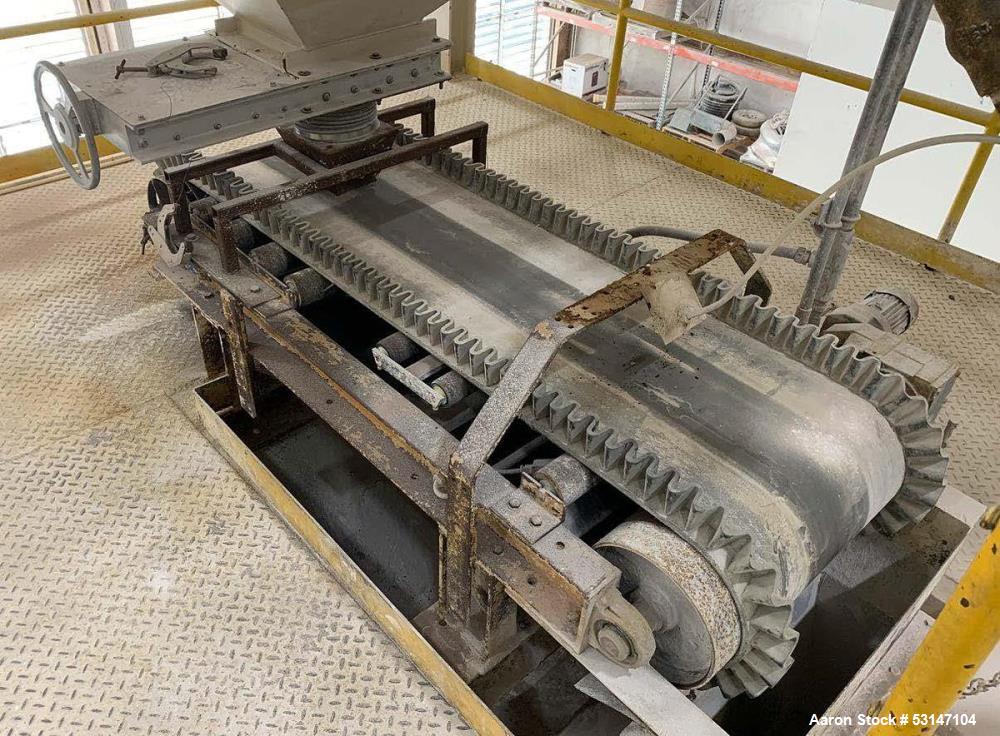

Weigh Belt Feeder

• Manufacturer: Ramsey

• Belt Width: 600 mm

• Features: Load cells, controls

• Includes spare belt

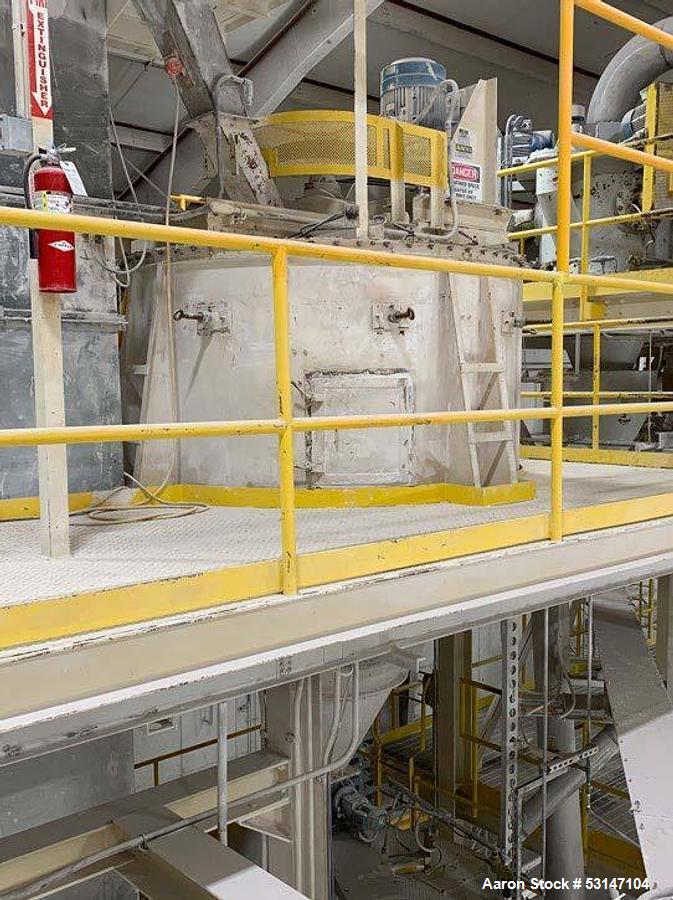

Air Classifier

• Manufacturer: ANIVI-Sturtevant

• Type: Dynamic Air Classifier

• Diameter: 8’

• Drive Motor: 25 kW

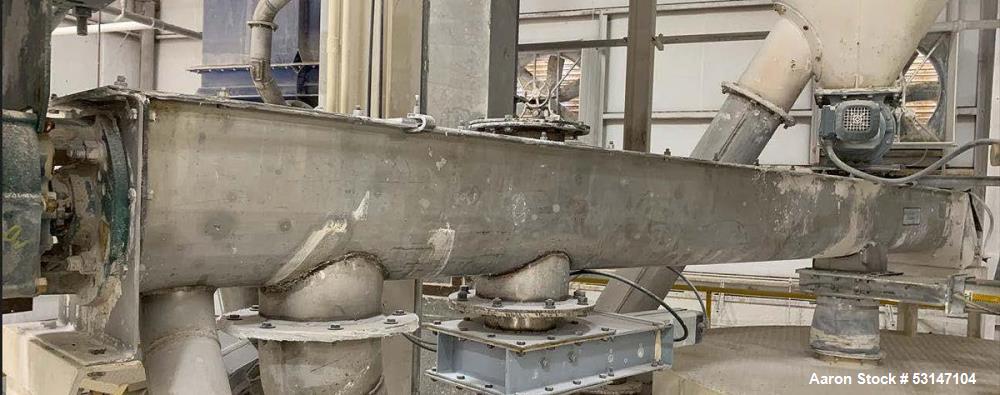

Screw Conveyors

• Manufacturer: Jervis B. Webb

• Diameter: 9”

• Lengths: 12’, 20’, and 22’

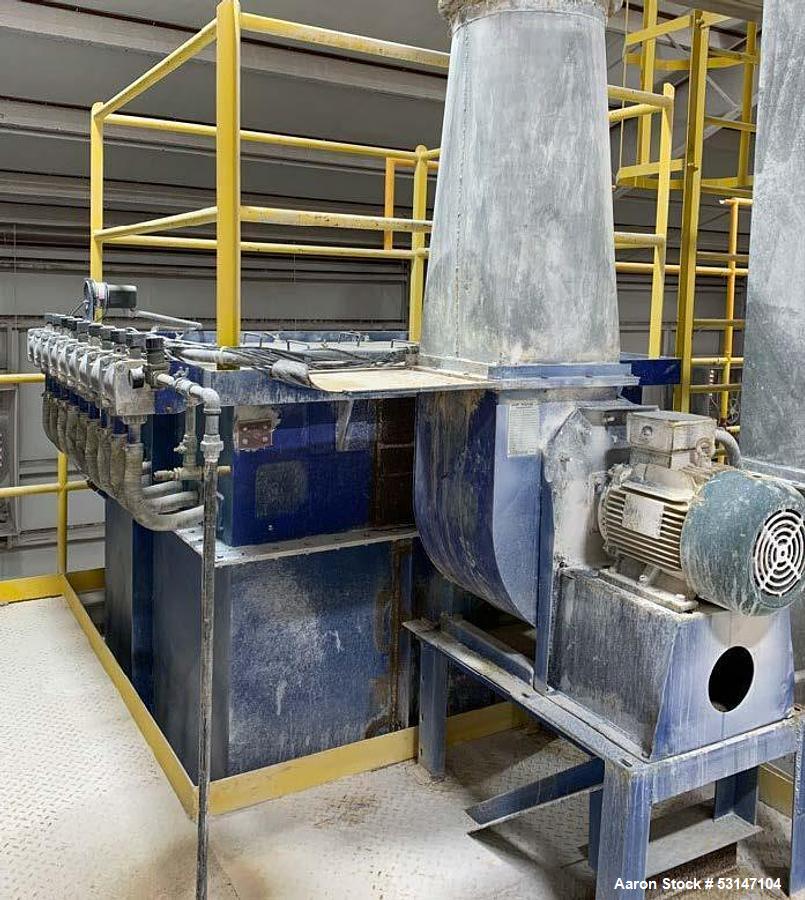

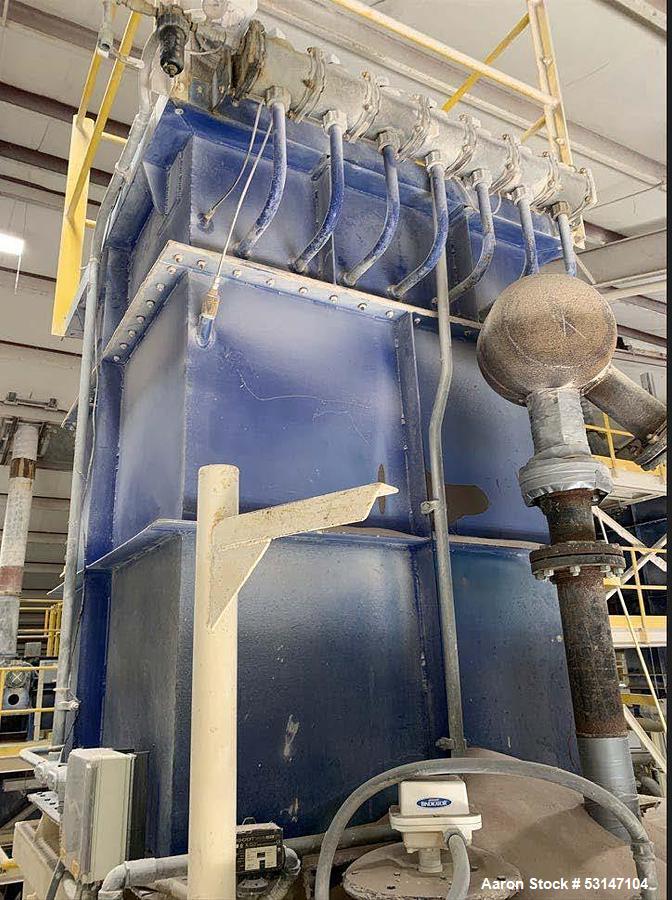

Dust Collection

• Manufacturer: Mikro-Pulsaire

• Model 49S-4-20 – 461 Sq Ft

• Model 81S-8-20 – 762 Sq Ft

Bucket Elevator

• Manufacturer: ANIVI

• Height: 40’

Applications

• Mineral grinding

• Zircon processing

• Ceramic raw material milling

• Industrial filler production

• Refractory material grinding

• Silica processing

• Feldspar milling

• Specialty mineral classification

• Dry powder processing

• Mining and mineral beneficiation
