Used Taylor Hobson 142-201 Ultra Autocollimator – 2-Axis | 0.001 Sec Read | SM2003 Software | Tripod & Reflector

Manufacturer Information:

• Brand: Taylor Hobson (Ametek)

• Model: 142-201

• Type: 2-Axis Photoelectric Ultra Autocollimator

• Technology: Solid-state infrared LED light source with digital camera detector

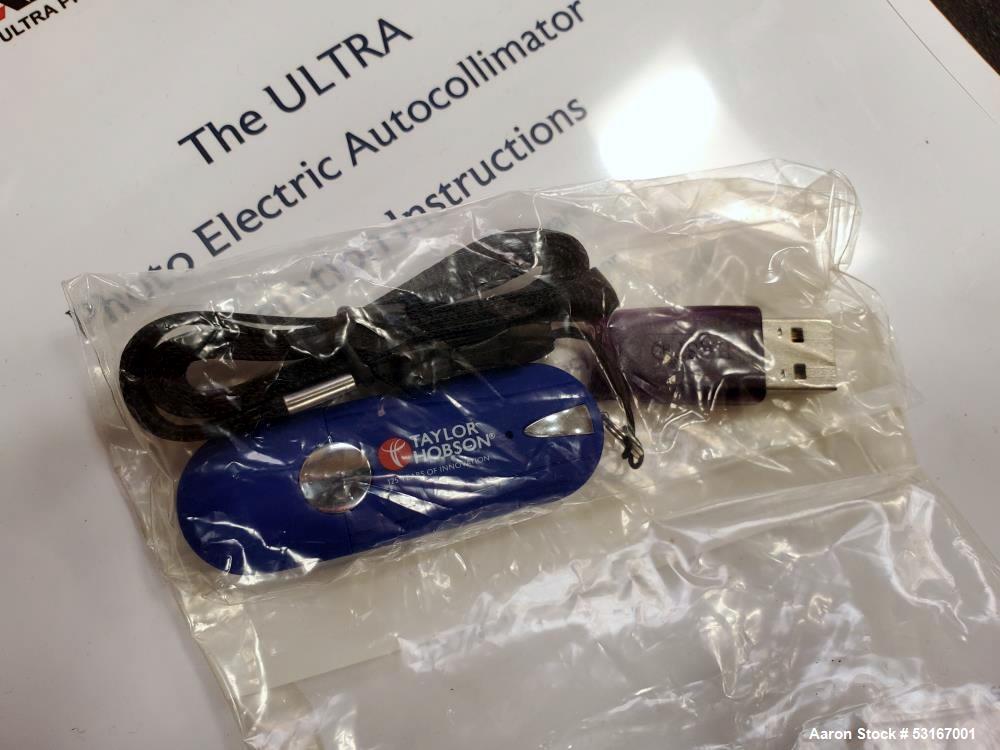

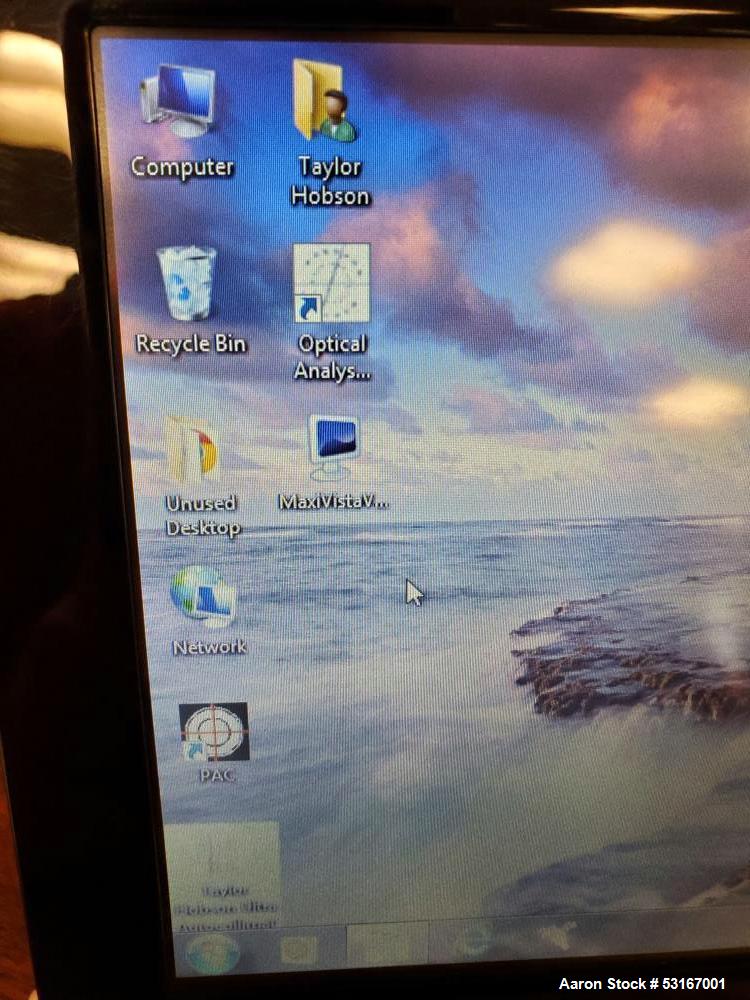

• Software Included: SM2003 REV 2.9

• Condition: Used

Description:

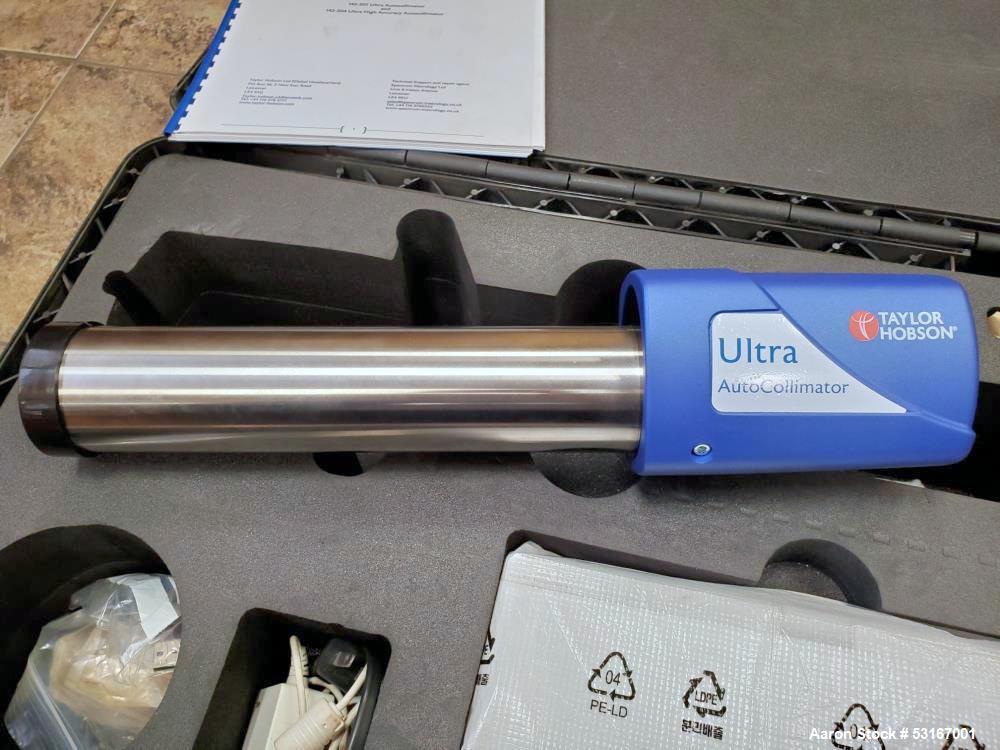

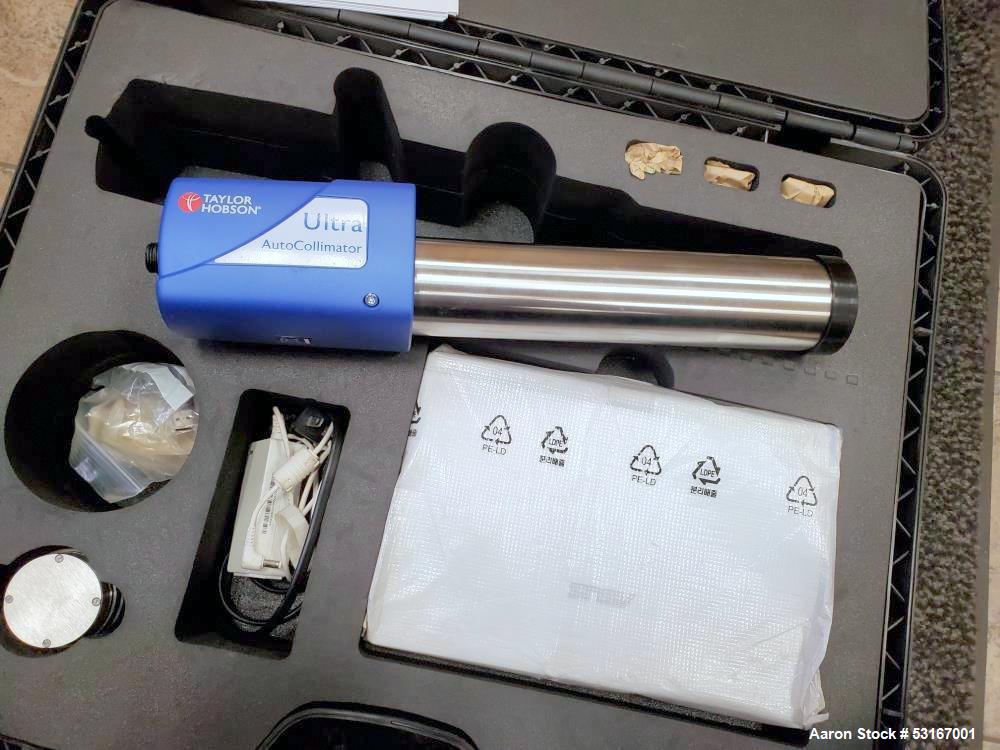

This Used Taylor Hobson (Ametek) Model 142-201 Ultra Autocollimator is a precision 2-axis photoelectric autocollimator designed for ultra-fine angular measurement with high accuracy. The unit has a range of 1800 seconds of arc, and provides direct readings down to 0.001 sec, offering exceptional resolution for demanding metrology applications. It uses an infrared LED light source and digital camera detection, ideal for both manual and automated alignment verification tasks.

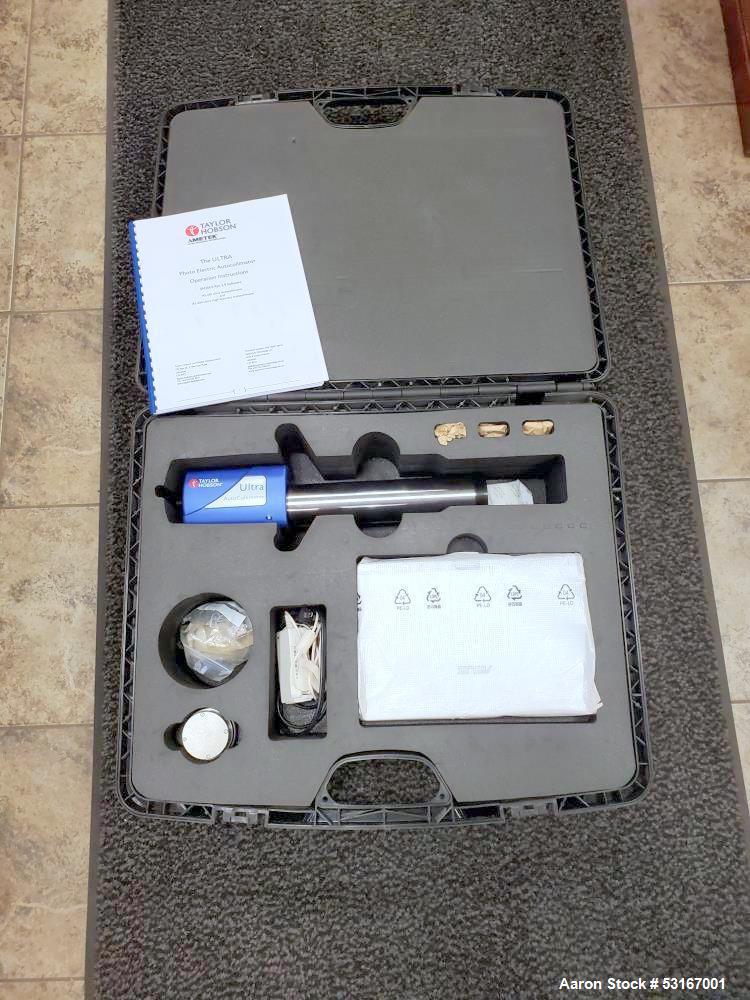

The package includes SM2003 REV 2.9 software, a 50mm mounted flat reflector, and an adjustable tripod stand with top plate—making this a complete, ready-to-use setup.

Specifications:

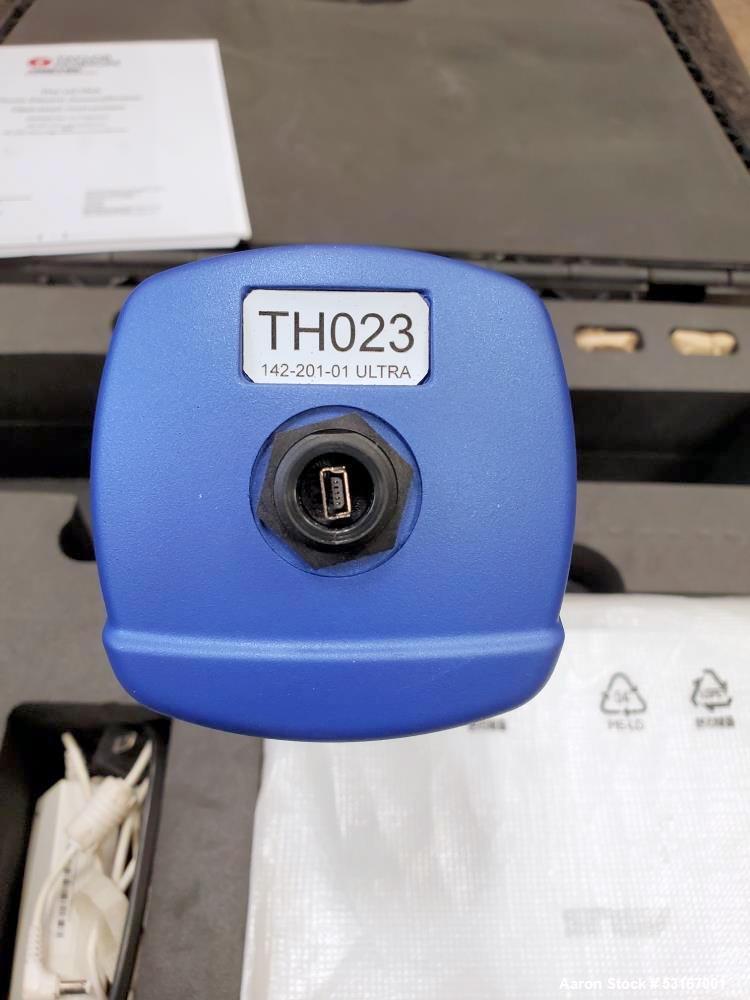

• Model: 142-201 Ultra Autocollimator

• Axes: 2-axis measurement

• Accuracy: 0.2 seconds of arc (over central 800 seconds)

• Range: ±1800 seconds of arc

• Resolution: 0.001 seconds of arc (direct read)

• Light Source: Solid-state infrared LED

• Detector: Digital camera

• Software: SM2003 REV 2.9 (included)

• Accessories:

  • 50mm mounted flat reflector

  • Adjustable tripod stand

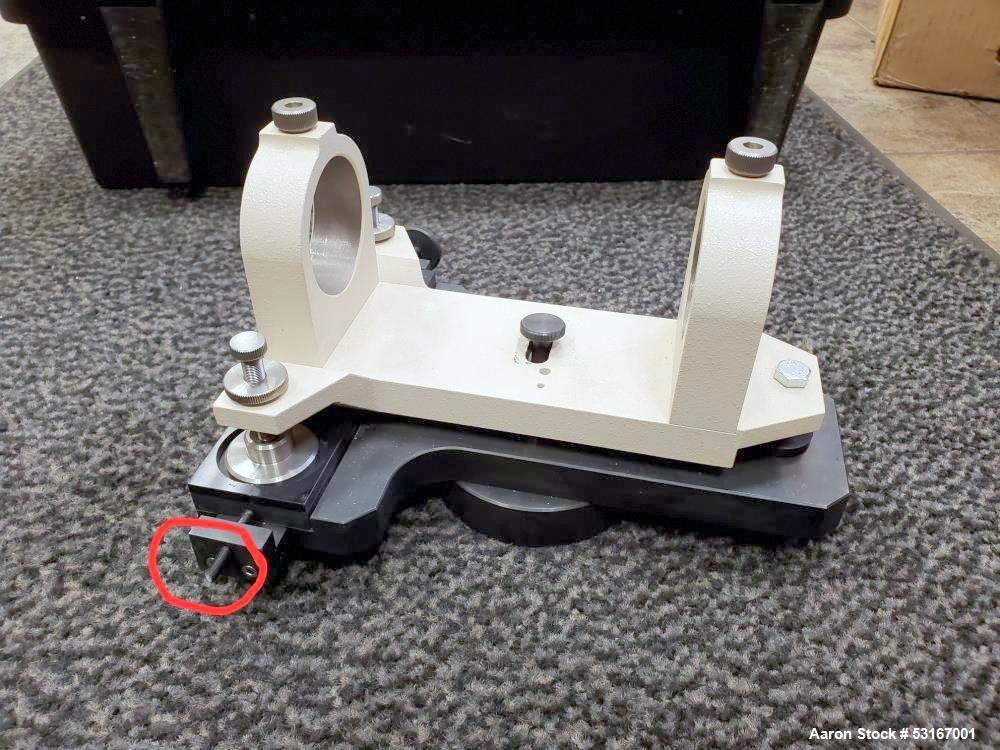

  • Tripod top mounting plate

• Condition: Used – excellent working condition

Features:

• Dual-axis measurement for angular displacement analysis

• High-resolution digital reading with direct 0.001 sec readout

• Designed for ultra-precise angular accuracy and alignment inspection

• LED-based light source provides long-lasting, stable illumination

• Digital imaging ensures accuracy and data capture consistency

• Software-controlled analysis with live graphical feedback

• Complete setup with stand, plate, and target reflector

• Ideal for calibration labs, precision machining setups, and alignment tasks

Applications:

• Indexing head angular accuracy measurement

• Straightness of machine tool slides in X and Y axes

• Squareness checking between slideways and columns

• Parallelism verification in precision slide systems

• Calibration of rotary and linear axes

• High-accuracy alignment of optical or mechanical assemblies

• Flatness and tilt measurements in engineering components

• Metrology labs, QA departments, and R&D environments

What might this be used for?

• Verifying the squareness of CNC machine tool columns to their baseways

• Measuring the angular precision of rotary indexers or dividing heads

• Ensuring parallelism of guide rails in precision slide systems

• Testing the straightness of machine bed slideways during rebuild or commissioning

• Providing high-precision reference measurements in aerospace and automotive R&D

• Supporting calibration routines in metrology labs or OEM testing facilities

• Assisting in mechanical component inspection for ultra-low angular deviation

• Setting up optical benches or laser alignment systems

• Supporting quality assurance processes in ultra-precise manufacturing

• Performing ISO or NIST-traceable alignment verification
