Used Yula Shell and Tube Heat Exchanger, Model WCV-8J-144A2S. Design shell and tube for 150 psi @ 300 deg F. 724 square foot surface area, designed for cooling edible oil shell side, water tube side....

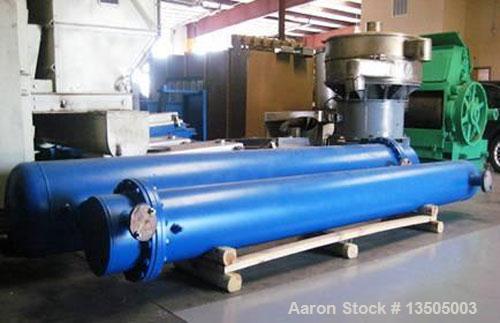

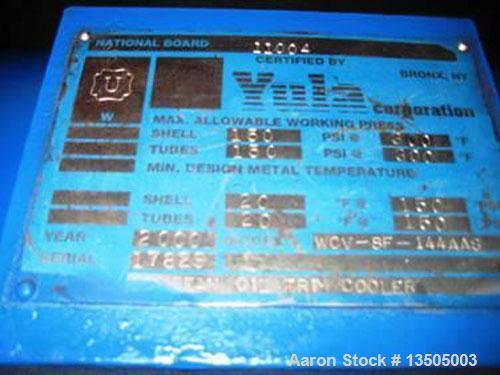

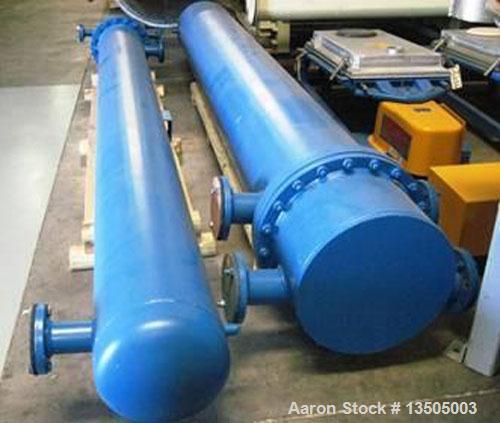

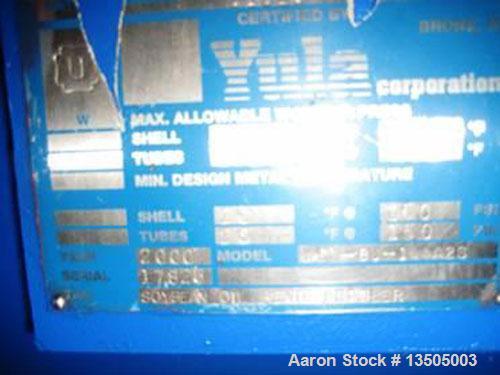

Used-Yula Shell and Tube Heat Exchanger, Model WCV-8J-144A2S. Design shell and tube for 150 psi @ 300 deg F. 724 square foot surface area, designed for cooling edible oil shell side, water tube side. Approximate capacity is 120-122 gallons/minute. Size 20" diameter x 13'9" long overall. U-tube, tube size 5/8" OK x 12' long, 8 tube side passes. Stainless steel tubes, carbon steel shell. The oil runs outside the tube. The cooling solution must contain around 40" propylene glycol. Manufactured 2000.
