Stock No.: 47205025

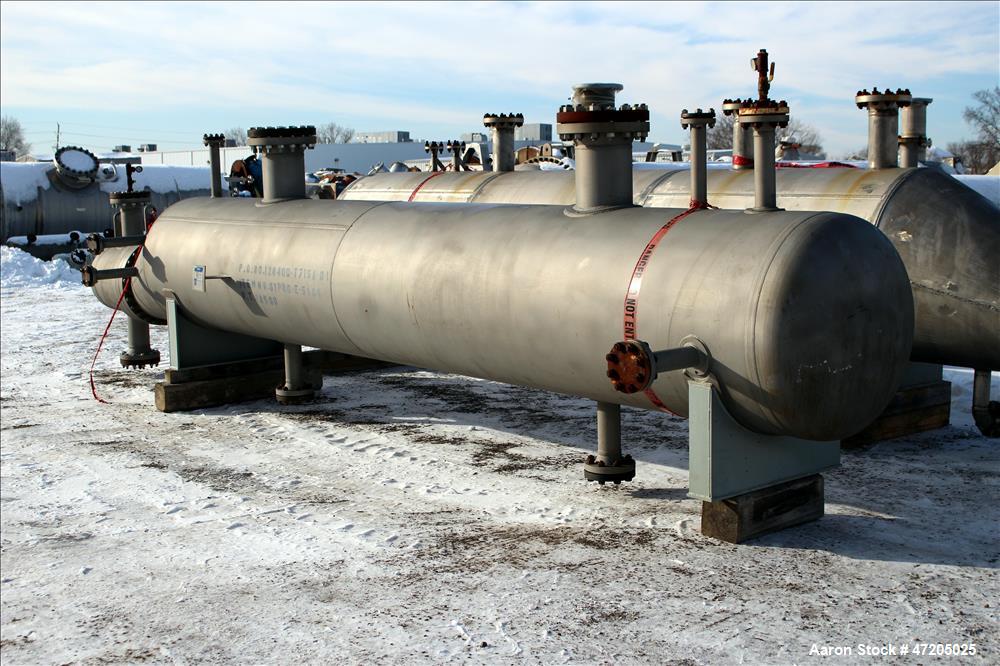

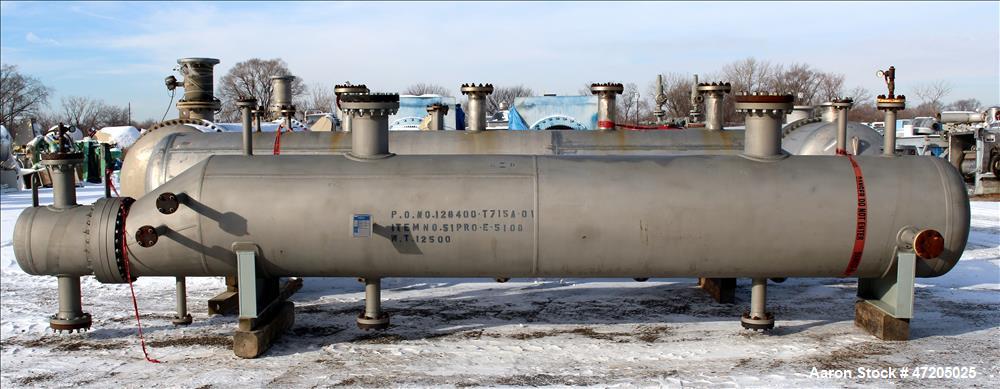

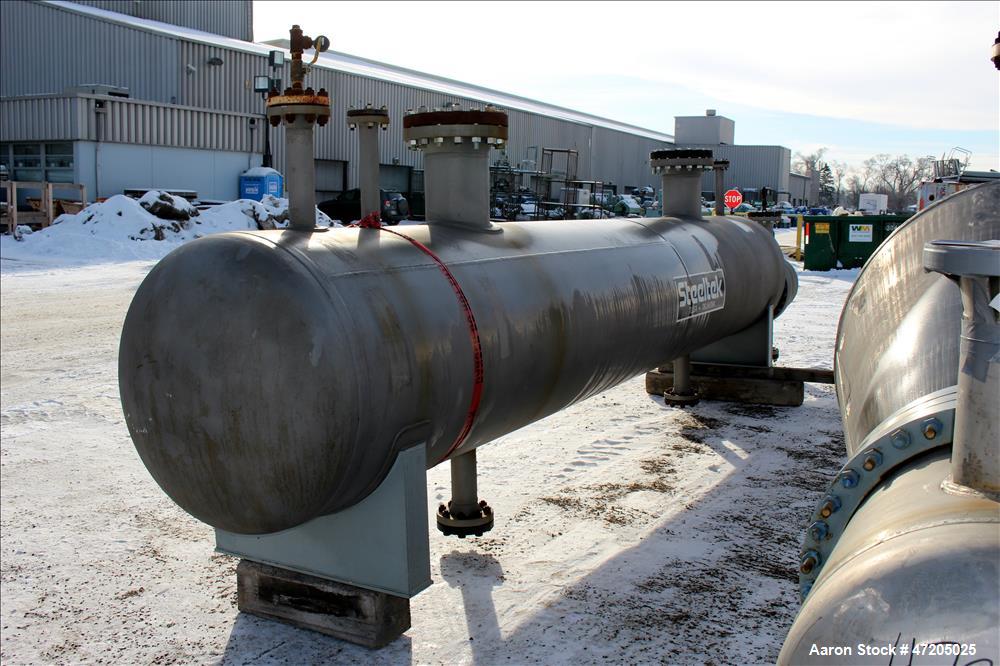

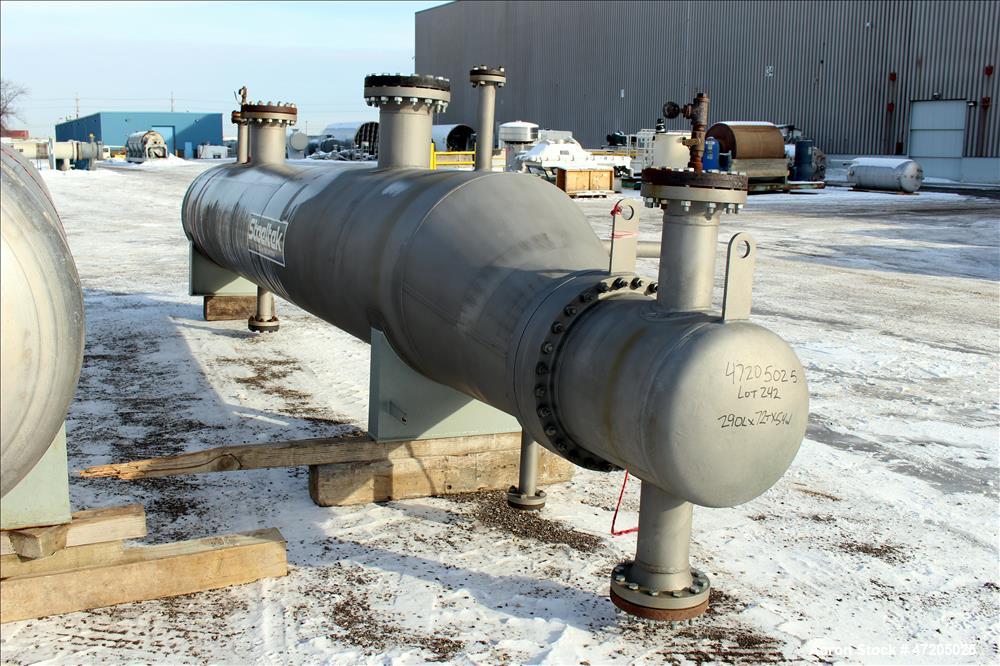

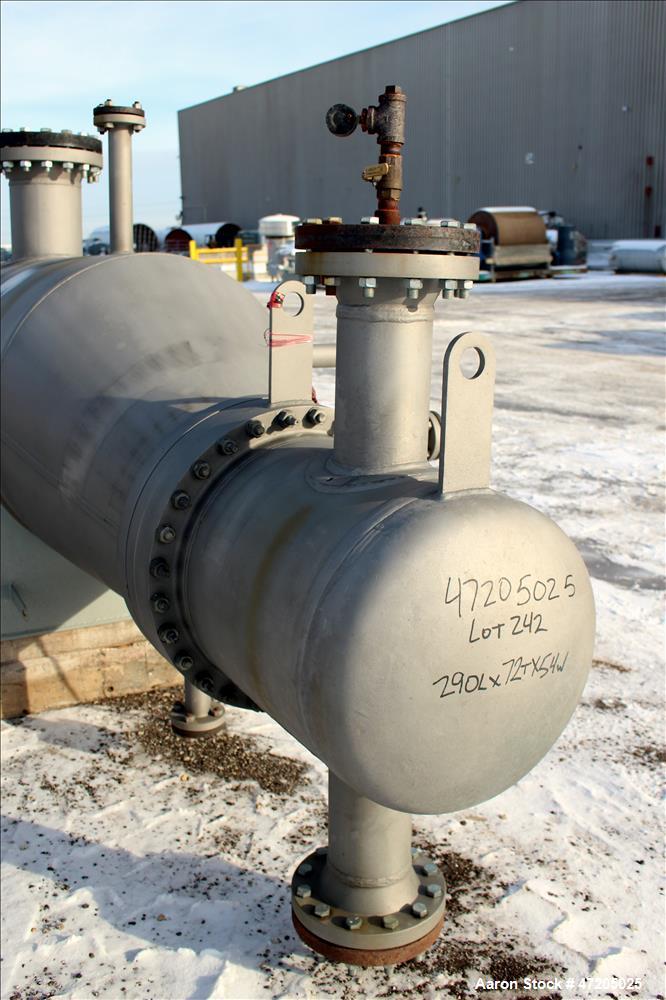

Unused- Steeltek "U" Tube Heat Exchanger

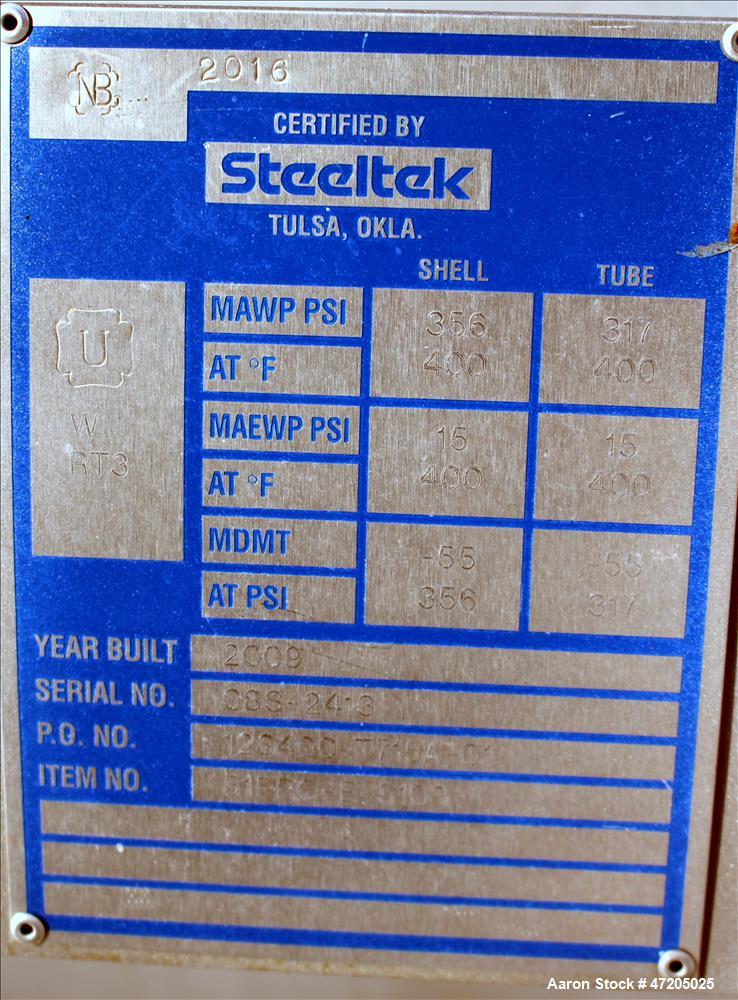

Unused- Steeltek "U" Tube Heat Exchanger, Approximate 1,355 Square Feet, Type BKU, Size 21/36-240, Horizontal. 304L Stainless steel shell rated 356 psi/Full Vacuum at -55 to 400 degrees F. (172) 3/4" Diameter x 20 long tubes rated 317 psi/Full Vacuum at -55 to 400 degrees F. 304L Stainless steel tubesheet and head. Openings shell: (2) 10", (2) 4", tubes: (2) 6". Saddle mounted. Serial# 08S-2413, National Board# 2016, built 2009.
-
ManufacturerSteeltek
-
ModelBKU 21/36-240
-
Serial #08S-2413
-
CategoryHeat Exchangers
-
SubcategoryShell & Tube Stainless
-
Square Footage1355
-
Horizontal Or VerticalHorizontal
-
Shell Material304 Stainless Steel
-
Shell Pressure350 psi/ FV
-
Shell Temperature-55 to 400 degrees F
-
Number Of Shell Openings4
-
Size Of Shell Openings(2) 10", (2) 4"
-
Tube Material304 Stainless Steel
-
Tube Pressure300 psi/FV
-
Tube Temperature-55 to 400 degrees F
-
Number Of Tube Openings2
-
Size Of Tube Openings6"
-
Head Material304 Stainless Steel
-
MountedSaddle Mounted
-
Year Built2009
-
Tube Length20'
