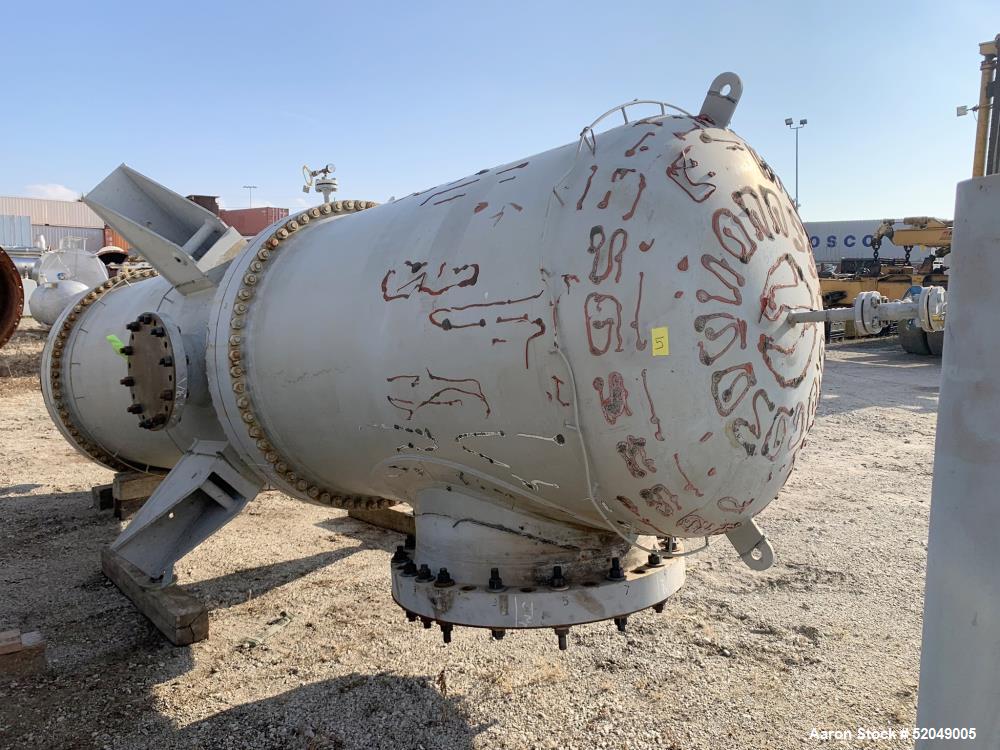

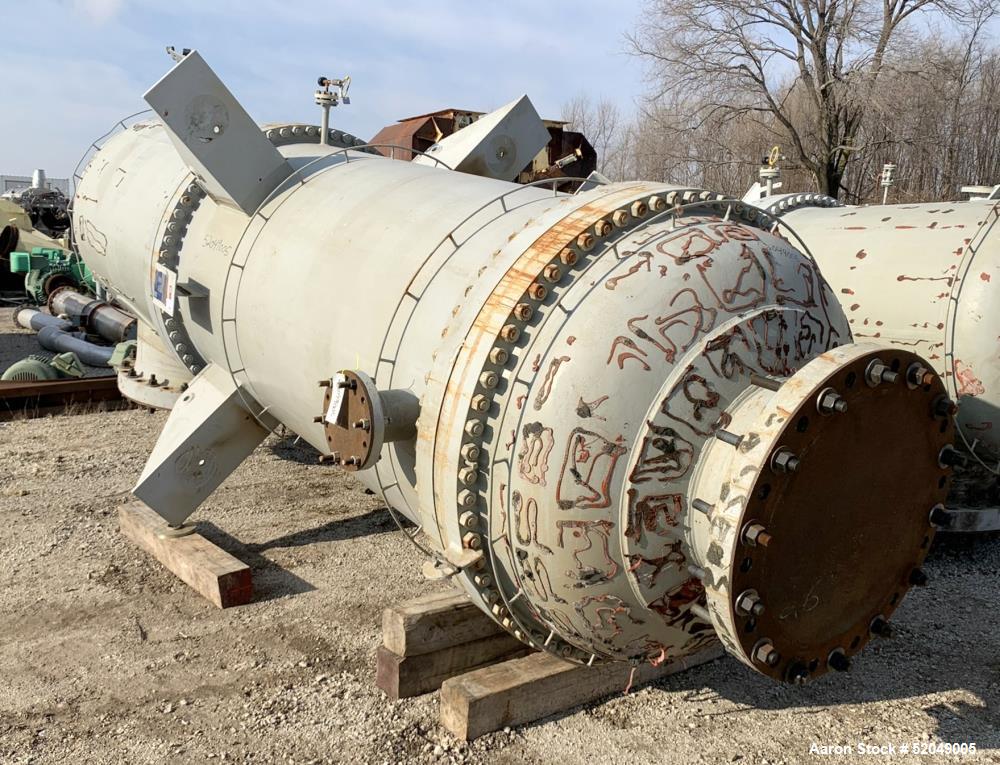

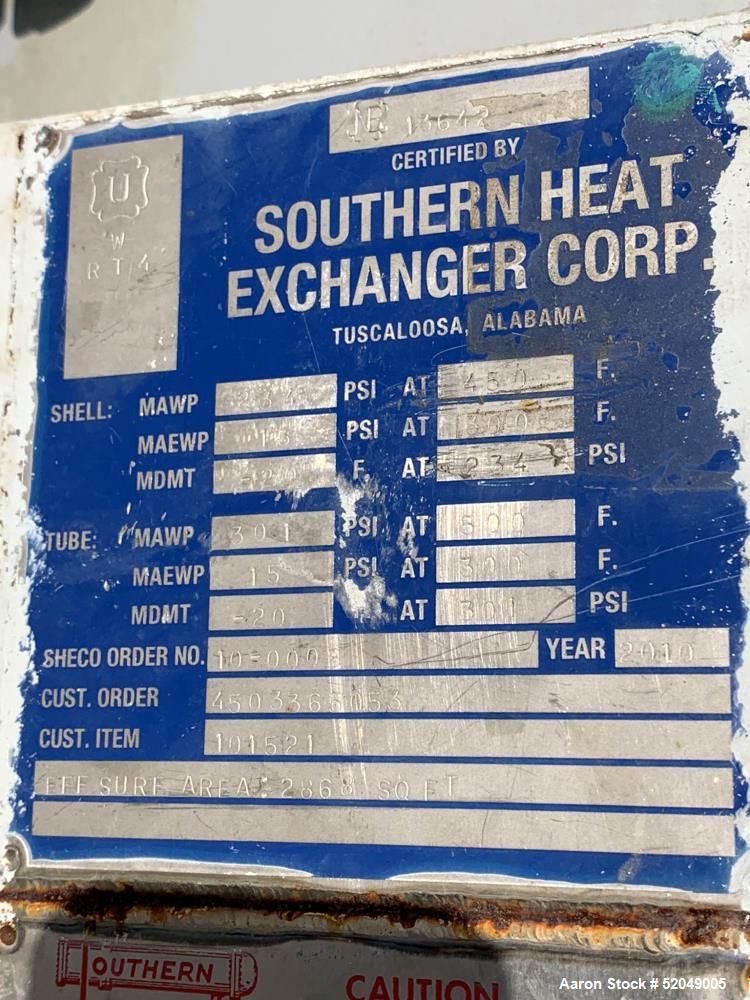

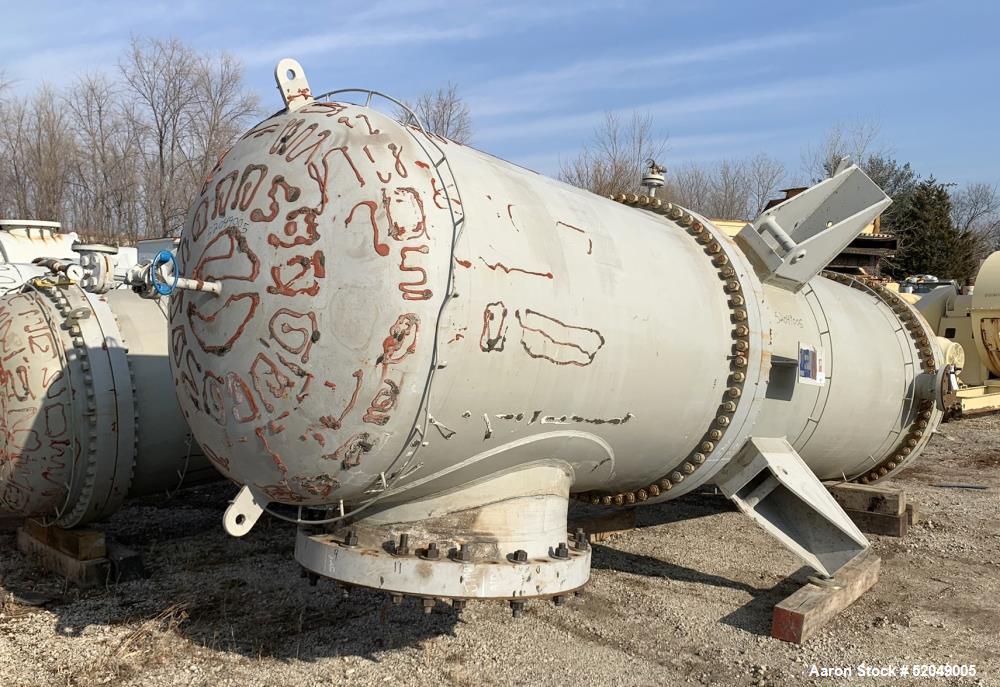

Installed but Unused- Southern Shell & Tube Heat Exchanger, 2,868 Square Foot, Vertical. Carbon steel shell rated 234 psi / full vacuum at -20 to 450 degrees F. (1,053) Duplex 2507 stainless steel 1-1/4" diameter x 9' long x 14 gauge tubes rated 301 psi / full vacuum at -20 to 500 degrees F. Openings: shell side 14", 6", tube side 40", 26". Tubesheet SA-516 clad with SA-240 Alloy 2507. Carbon steel heads. Side lug mounted. Serial# 10-0008, National Board# 13642, Built 2010.
This installed but unused vertical shell and tube heat exchanger by Southern Shell & Tube offers 2,868 square feet of heat transfer area. Constructed with a carbon steel shell and Duplex 2507 stainless steel tubes, the unit is rated for 234 psi/full vacuum at -20 to 450°F on the shell side and 301 psi/full vacuum at -20 to 500°F on the tube side. It features a tubesheet clad with SA-240 Alloy 2507, carbon steel heads, and side lug mounts for stability.
Installed but Unused- Southern Shell & Tube Heat Exchanger, 2,868 Square Foot, Vertical. Carbon steel shell rated 234 psi / full vacuum at -20 to 450 degrees F. (1,053) Duplex 2507 stainless steel 1-1/4" diameter x 9' long x 14 gauge tubes rated 301 psi / full vacuum at -20 to 500 degrees F. Openings: shell side 14", 6", tube side 40", 26". Tubesheet SA-516 clad with SA-240 Alloy 2507. Carbon steel heads. Side lug mounted. Serial# 10-0008, National Board# 13642, Built 2010.
This installed but unused vertical shell and tube heat exchanger by Southern Shell & Tube offers 2,868 square feet of heat transfer area. Constructed with a carbon steel shell and Duplex 2507 stainless steel tubes, the unit is rated for 234 psi/full vacuum at -20 to 450°F on the shell side and 301 psi/full vacuum at -20 to 500°F on the tube side. It features a tubesheet clad with SA-240 Alloy 2507, carbon steel heads, and side lug mounts for stability.
