Stock No.: 52049010

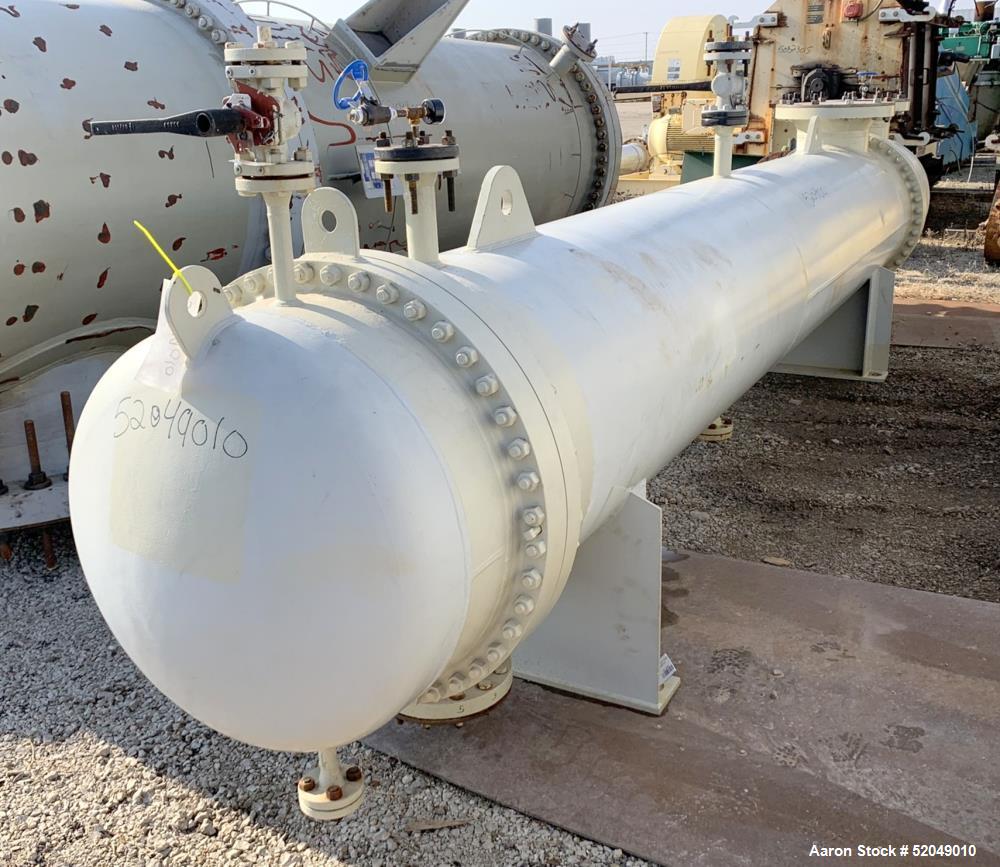

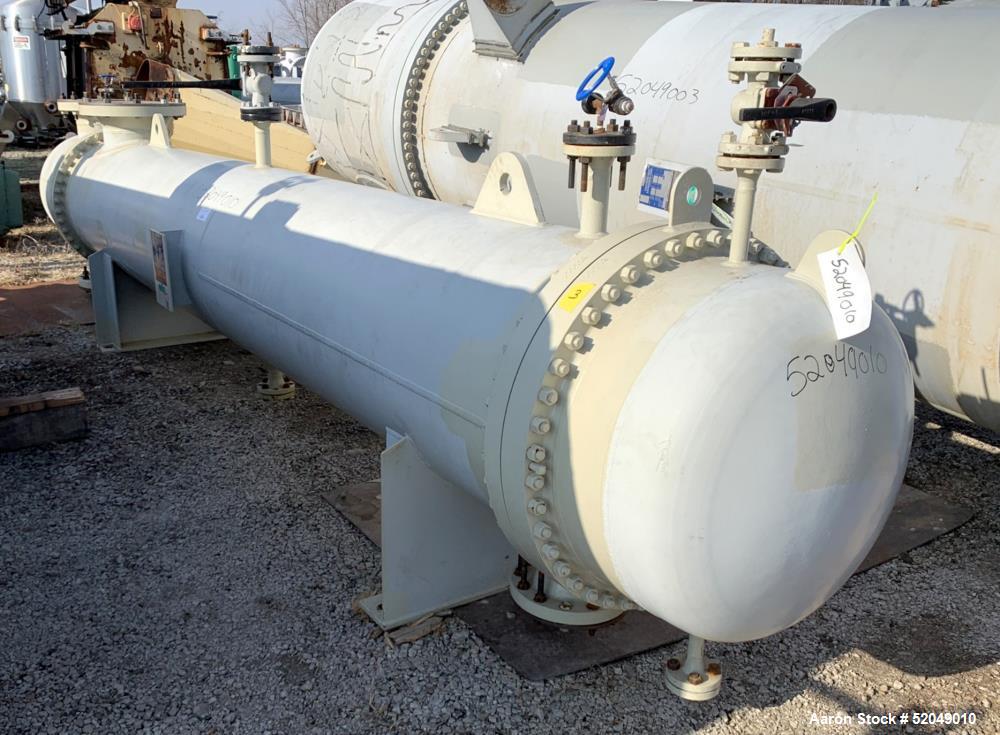

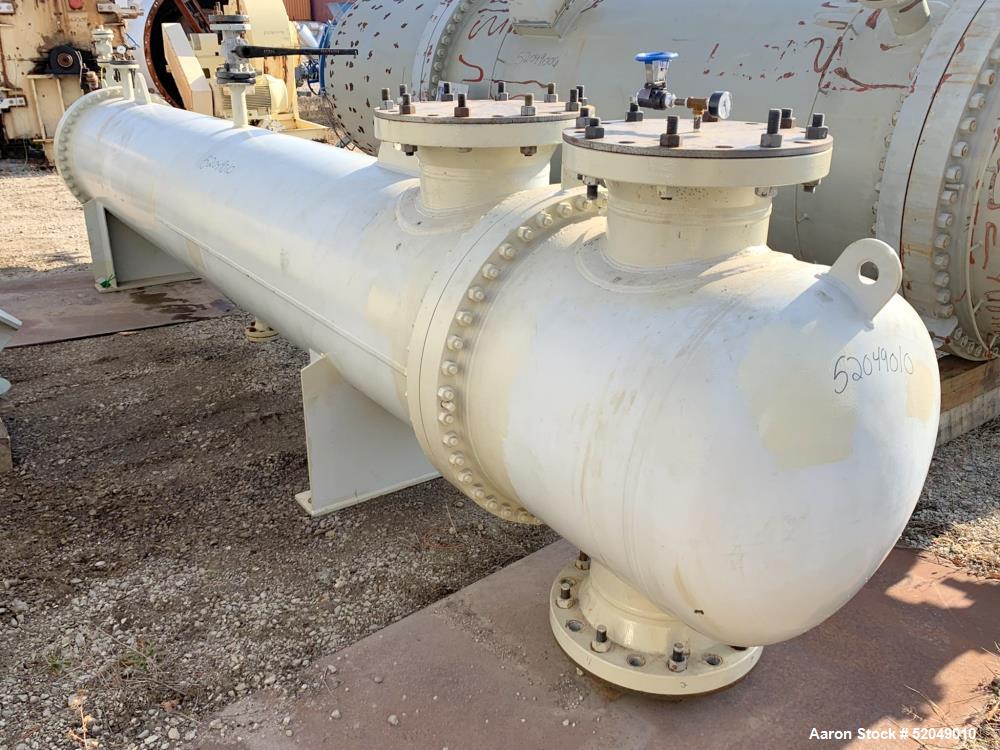

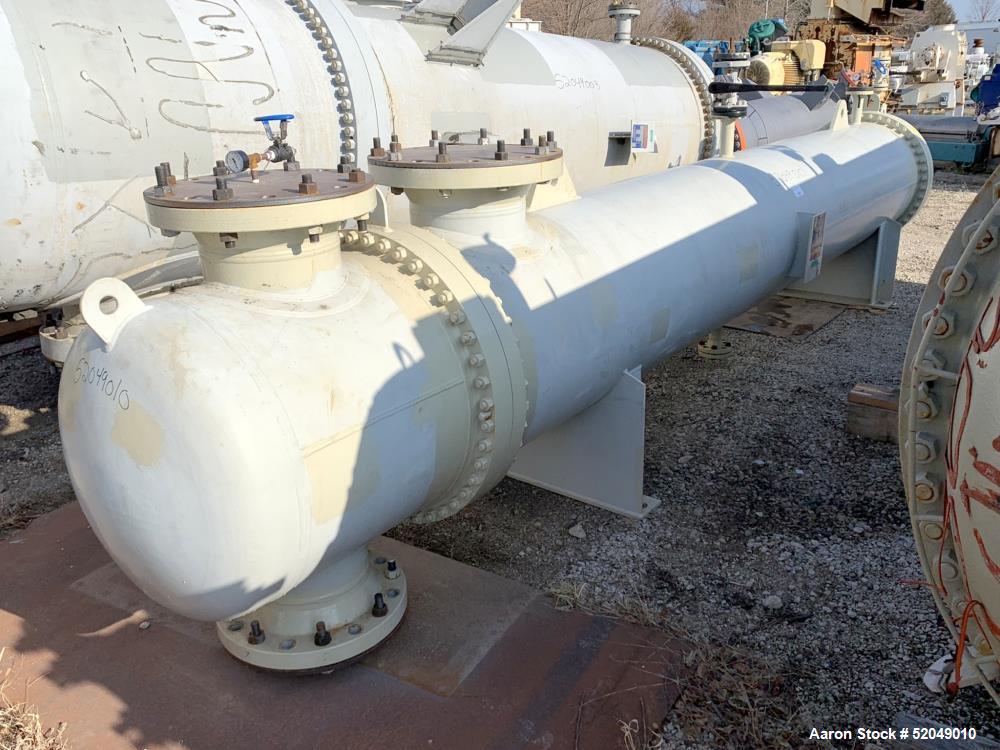

Installed but Unused- Southern Corp 1,445 Sq Ft. Shell & Tube Heat Exchanger

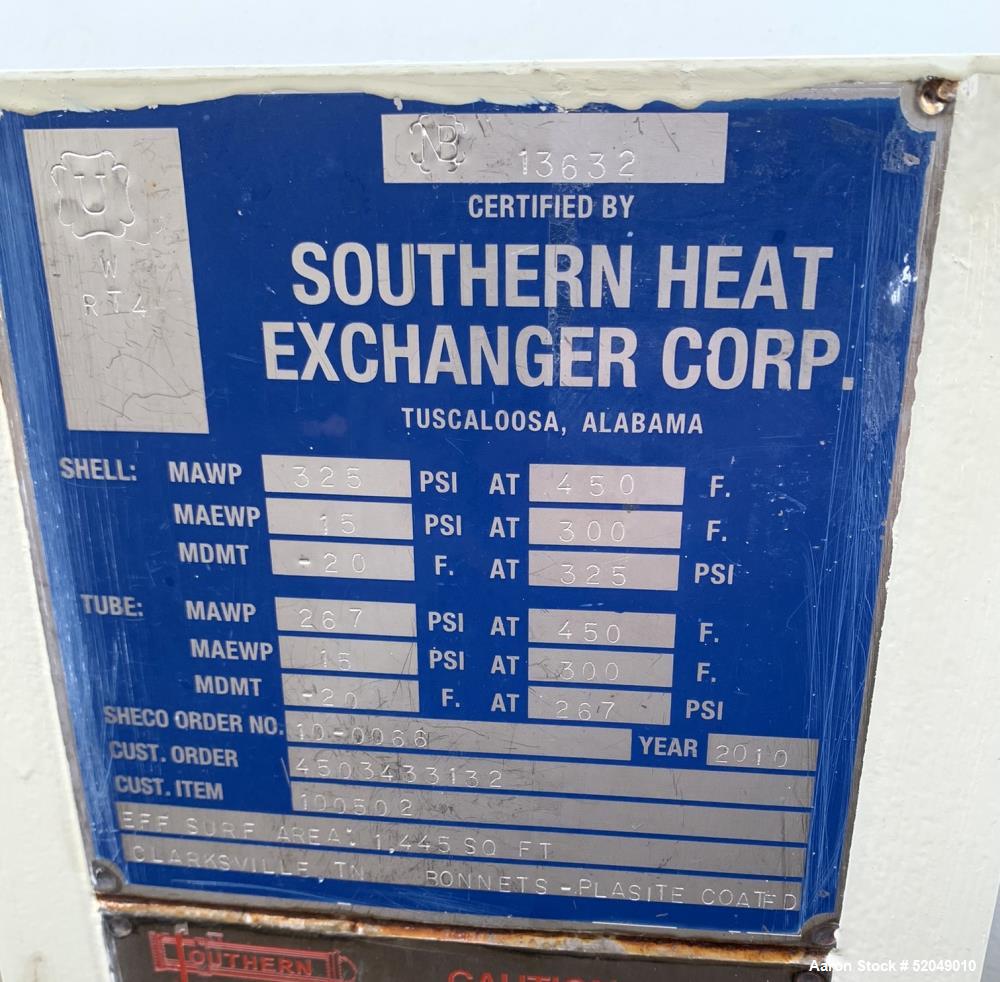

Installed but Unused- Southern Heat Exchanger Corp Shell & Tube Heat Exchanger, 1,445 Square Foot, Horizontal. Carbon steel shell rated 325 psi / full vacuum at -20 to 450 degrees F. (379) Duplex 2205 stainless steel 1" diameter x 15' long x 14 gauge thick straight tubes rated 267 psi / full vacuum at -20 to 450 degrees F. Openings: shell side 14", 6", (3) 2", tube side (2) 12", (2) 1". Tubesheet SA-516 clad with SA-240 Alloy 2205. Carbon steel heads. Saddle mounted. Serial# 10-0066, National Board# 13632, Built 2010.
-
ManufacturerSouthern Heat Exchanger
-
Model29-180 BEM
-
Serial #10-0066
-
CategoryHeat Exchangers
-
SubcategoryShell & Tube Stainless
-
Square Footage1,445
-
Horizontal Or VerticalHorizontal
-
Shell MaterialCarbon Steel
-
Shell Pressure325 psi / FV
-
Shell Temperature-20 to 450 degrees F.
-
Tube Pressure267 psi / FV
-
Tube Temperature-20 to 450 degrees F.
-
Number Of Tube Openings379
-
Size Of Tube Openings1"
-
Head MaterialCarbon Steel
-
MountedSaddle Mounted
-
National Board No.13632
-
Year Built2010
-
Tube Length15'
