Stock No.: 45402002
Unused Graham Corporation Multi-Pass Shell & Tube Heat Exchanger – 1,160 Sq. Ft., Horizontal
Unused- Graham Corporation Multi-Pass Shell & Tube Heat Exchanger, Approximate 1160 Square Feet, Horizontal. Carbon steel shell rated Full Vacuum and 20 psig at 250 degrees F. (370) 3/4" Diameter x 16 long 304 stainless steel straight tubes rated 400 psig at 250 degrees F. 304L Stainless steel tube sheet, carbon steel heads. Openings shell 18" vapor outlet, 4" vapor inlet, 2" condensate outlet, openings heads (2) 8". Mounted on (2) saddles. National Board # 30843, Serial # 01-46300-8.
-
ManufacturerGraham Manufacturing
-
Serial #01-46300-8
-
CategoryHeat Exchangers
-
SubcategoryShell & Tube Stainless
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information
- Manufacturer: Graham Corporation

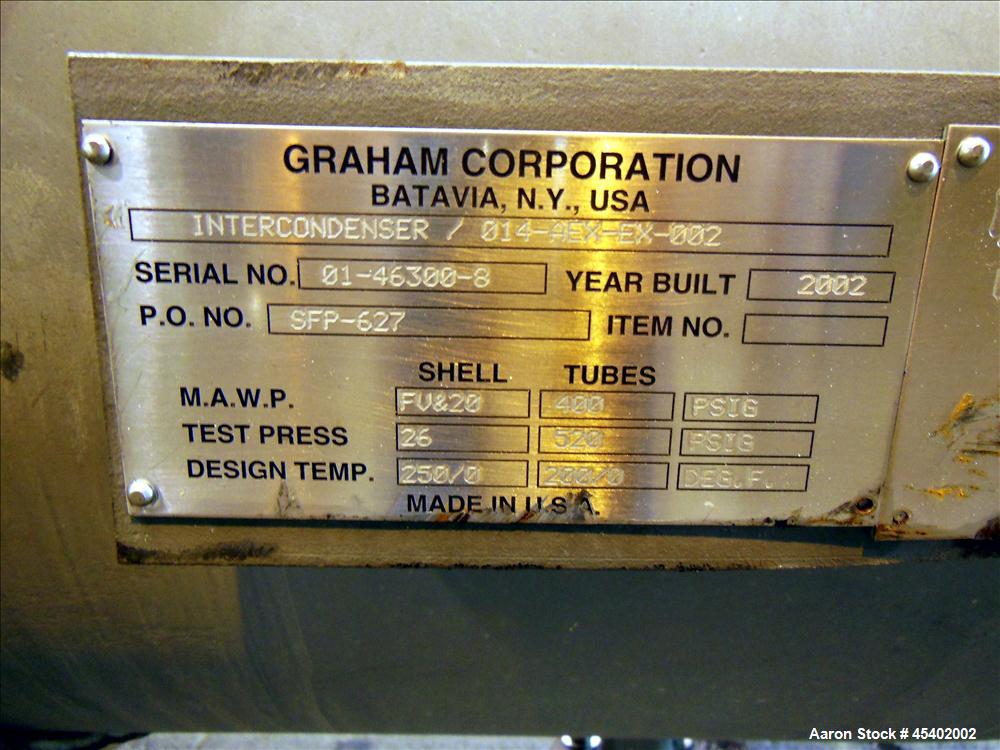

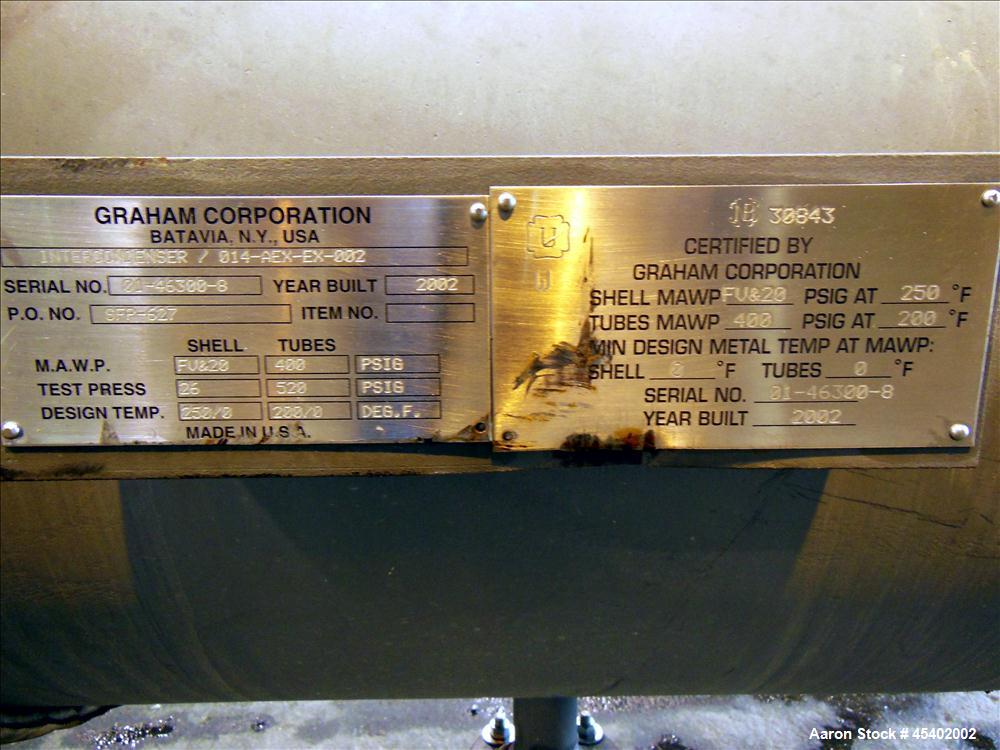

- Serial Number: 01-46300-8

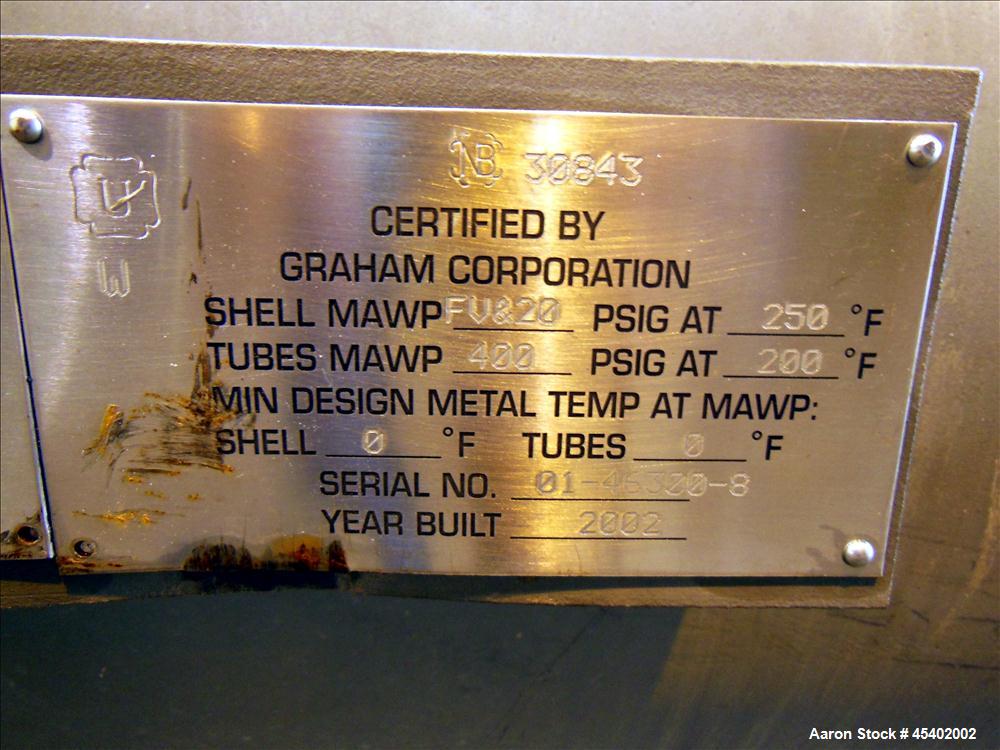

- National Board Number: 30843
Description
This unused Graham Corporation multi-pass shell & tube heat exchanger features a horizontal orientation with a 1,160 square foot heat transfer area. Built for durability and efficiency, it includes a carbon steel shell rated for full vacuum and 20 psig at 250°F and 304 stainless steel tubes rated 400 psig at 250°F. The unit is mounted on two saddles, with 304L stainless steel tube sheets and carbon steel heads.
Specifications
- Design: Multi-pass shell & tube heat exchanger
- Orientation: Horizontal
- Shell Material: Carbon steel
- Shell Rating: Full vacuum & 20 psig at 250°F
- Tube Material: 304 Stainless Steel (3/4" diameter x 16' length)
- Tube Rating: 400 psig at 250°F

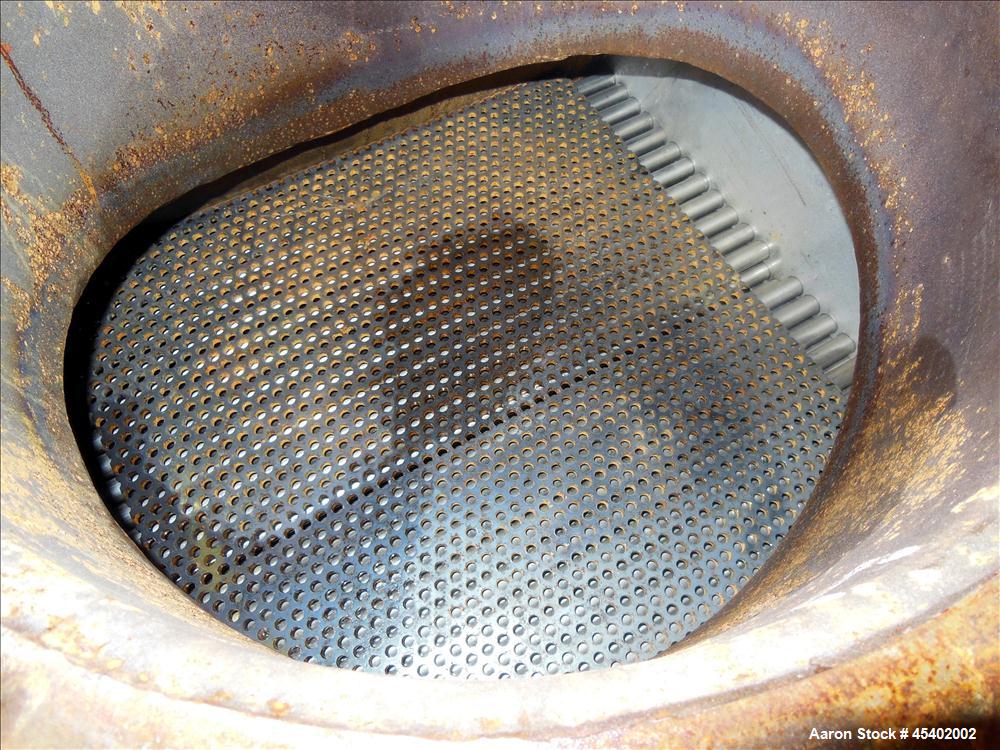

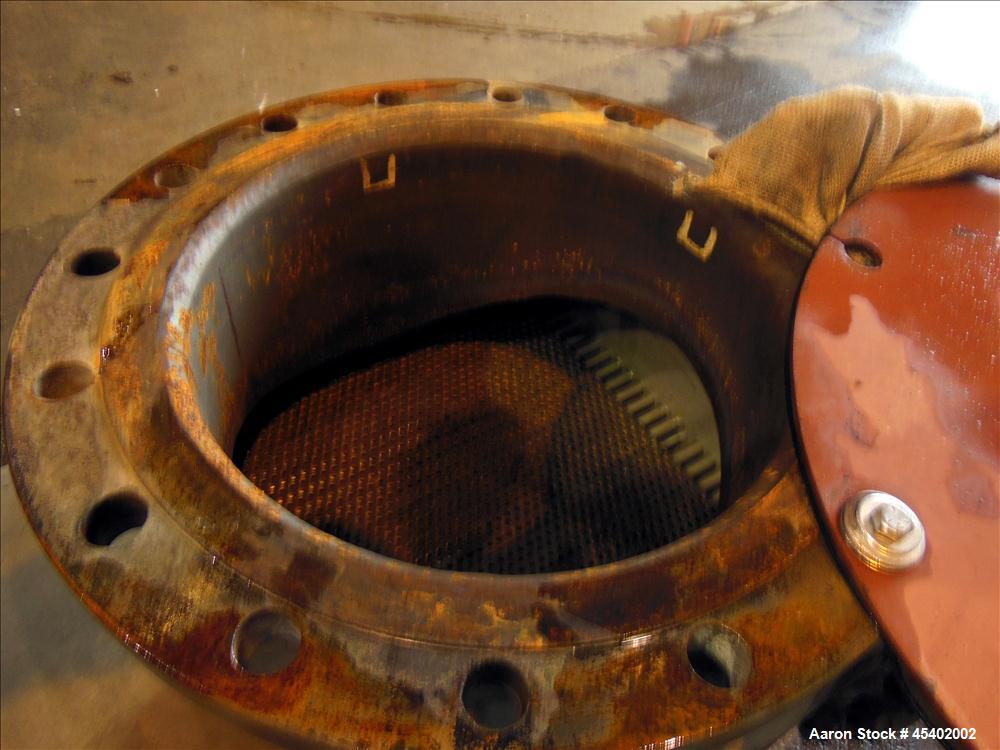

- Tubesheet: 304L Stainless Steel
- Head Material: Carbon steel
- Openings:
- Shell Side: 18" vapor outlet, 4" vapor inlet, 2" condensate outlet

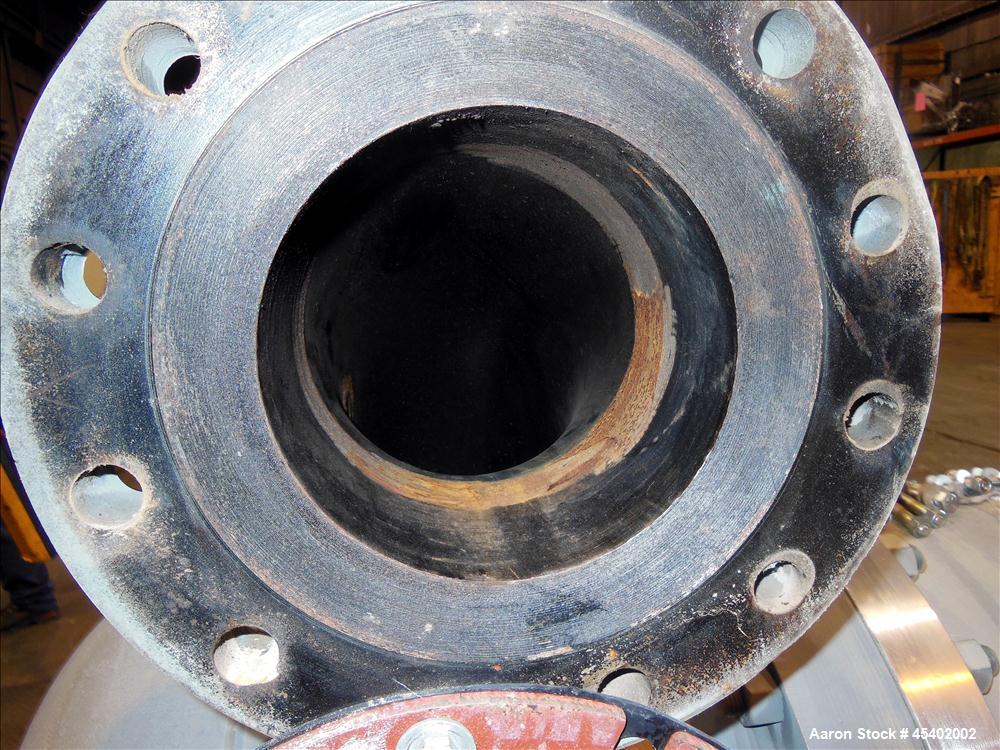

- Heads: (2) 8" openings
- Mounting: (2) saddles
Applications
This heat exchanger is suitable for a range of industrial heat transfer applications, including:
- Chemical processing
- Oil refining
- Petrochemical plants
- Power generation
- Steam and condensate systems
- Industrial cooling and heating processes
- HVAC and refrigeration systems
What Products Would This Be Used For?
- Condensation of vapors in industrial processes
- Steam or liquid heat transfer applications
- Cooling and heating process fluids
- Thermal recovery systems
- Air and gas cooling applications
