Stock No.: 10128050

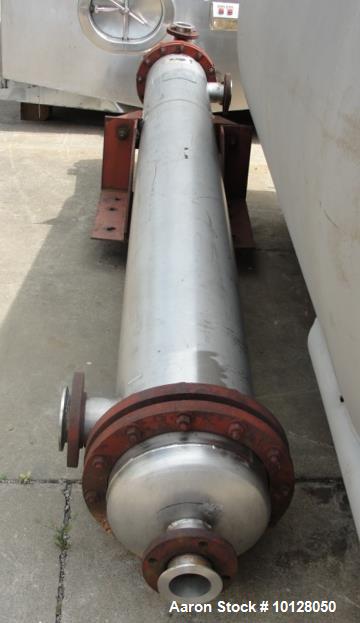

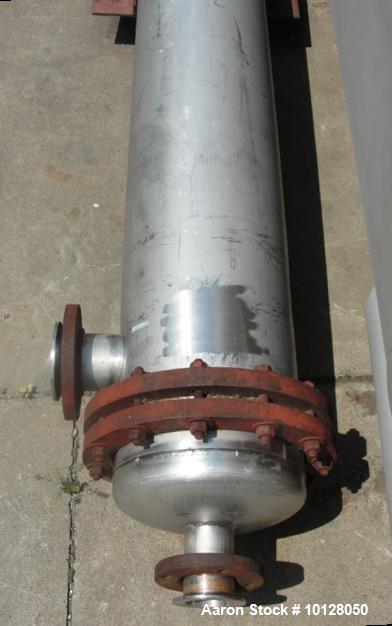

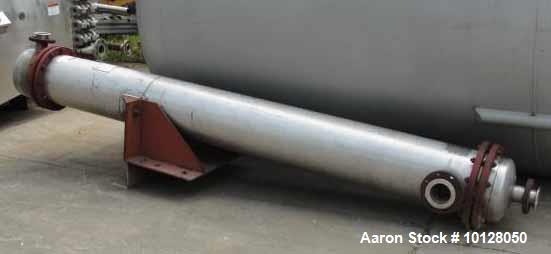

Used Perry Vertical Shell and Tube Heat Exchanger
Used- Perry Vertical Shell and Tube Heat Exchanger, Model FTSS267. Stainless Steel, channel shell. 105" thick, heads .120" thick, 14" radius shell. 105" thick. Unit has mounting brackets with wall mounting plate. Shell side is 14" OD x 120" long with two 4" 150# LJ nozzles, top head 14" OD x 12" long with one 3" 150" LJ flange nozzle, and bottom head 14" OD x 5" long with one 3" 150# LJ flange nozzle. Materials of construction SA240T304 shell with SA249T304 tubes. Unit has 136- 3/4" diameter 17 gauge tubes.
-

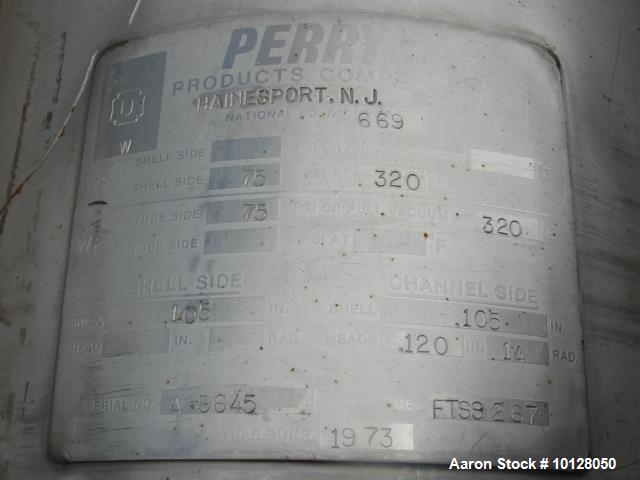

ModelFTSS267
-
Serial #A-9645
-
CategoryHeat Exchangers
-
SubcategoryShell & Tube Stainless
-
Horizontal Or VerticalVertical
-
Shell Material304 Stainless Steel
-
Shell Pressure75 psi
-
Shell Temperature320 deg. f
-
Tube Material304 Stainless Steel
-
Tube Pressure75 psi
-
Tube Temperature320 deg. f
-
Number Of Tube Openings136
-
Size Of Tube Openings3/4"
-
Year Built1973
