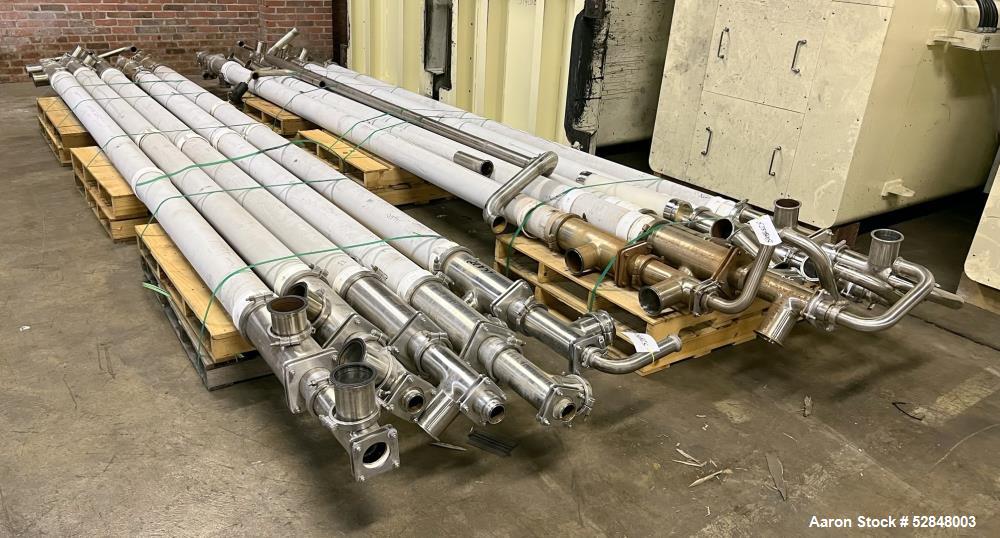

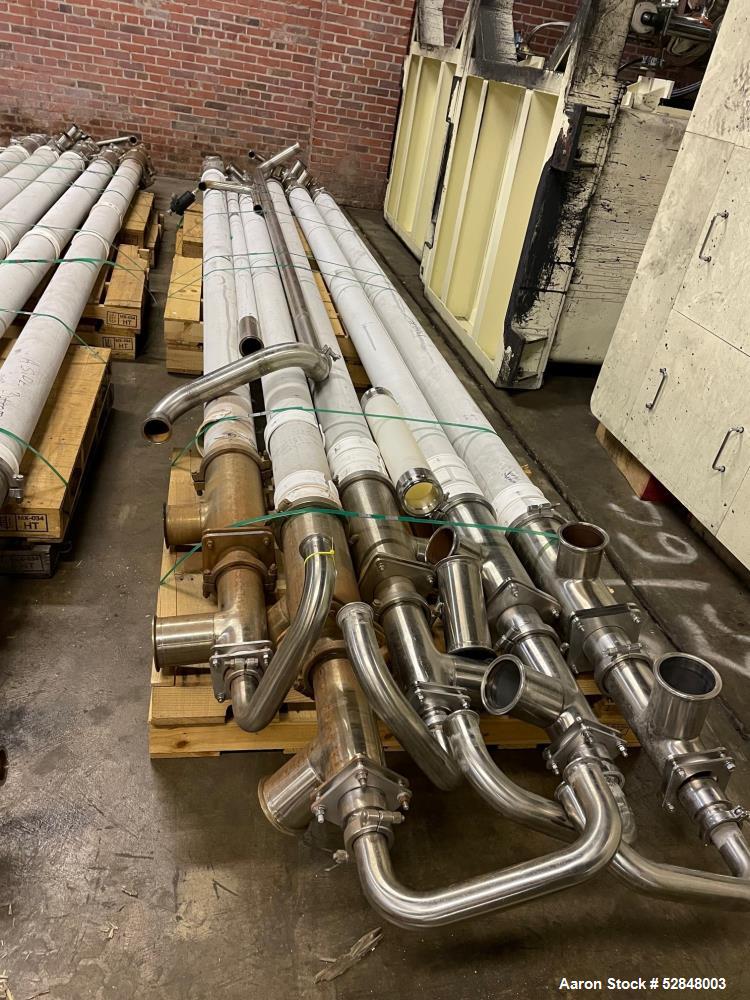

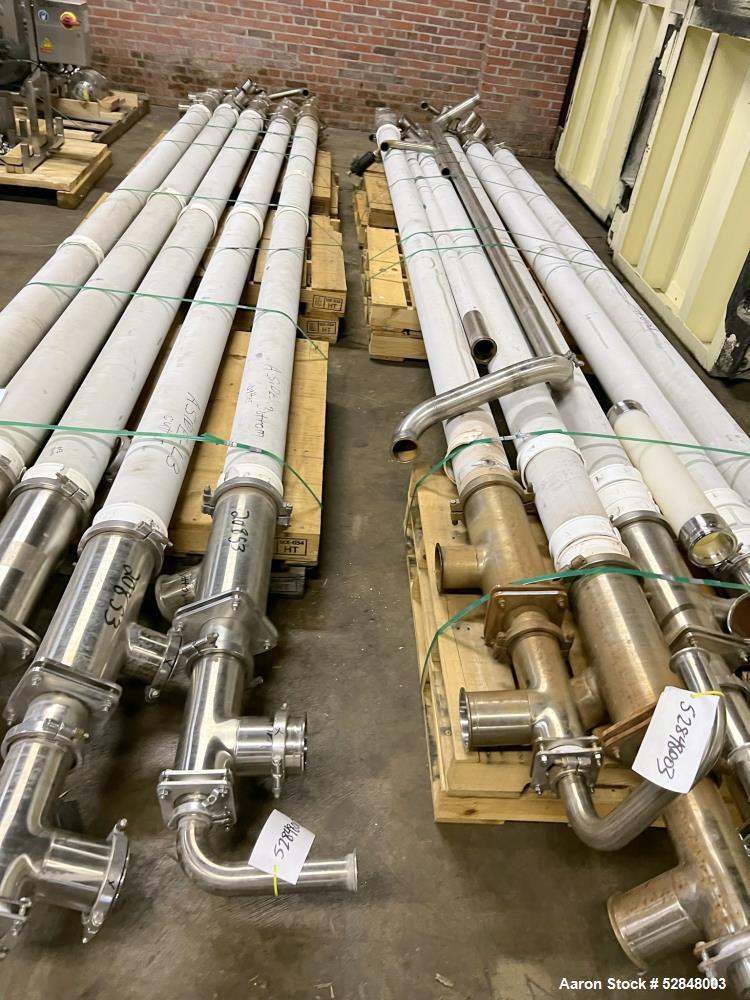

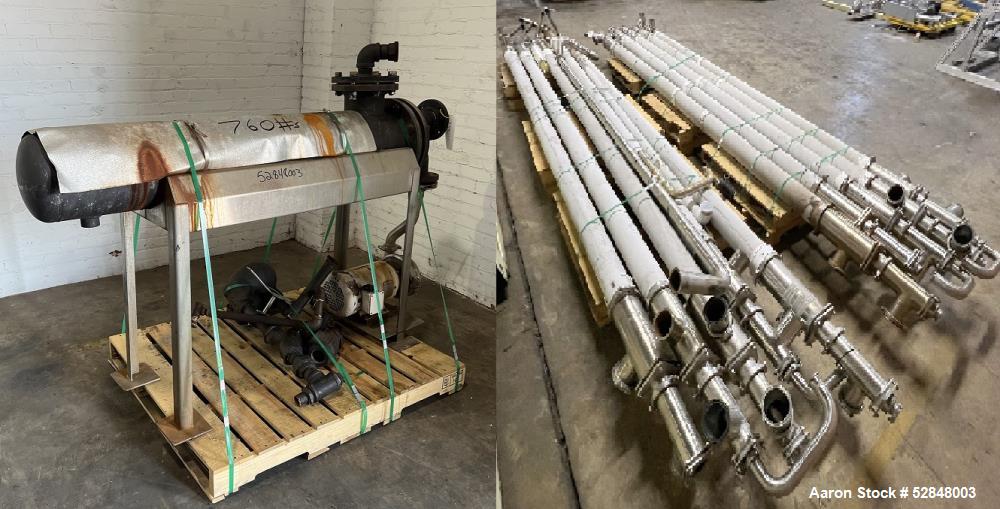

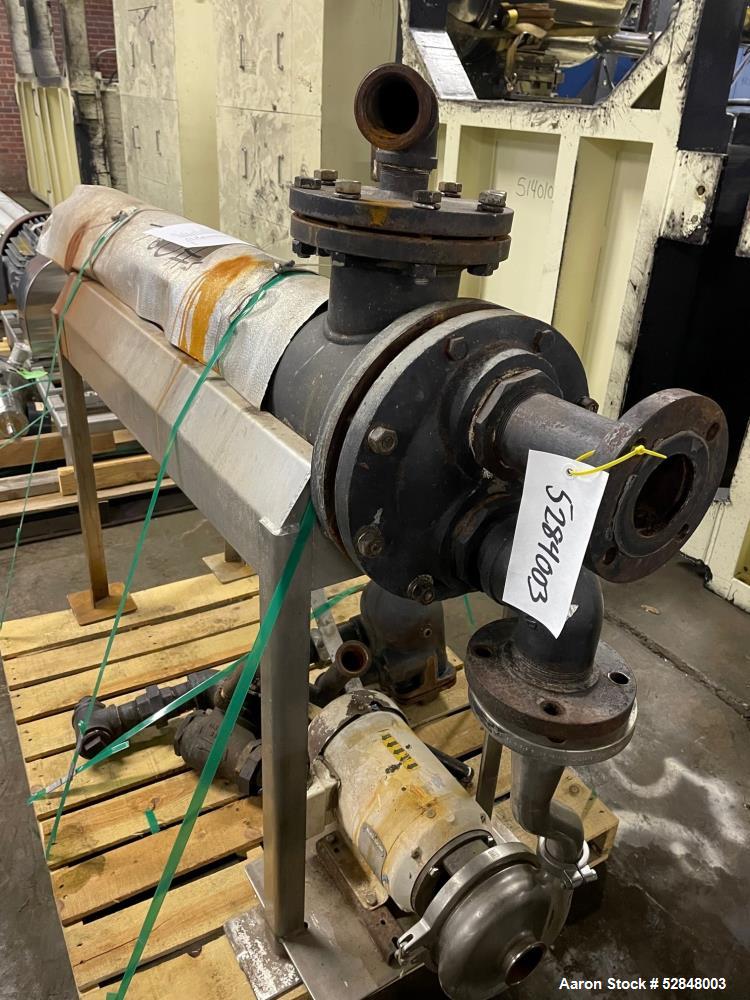

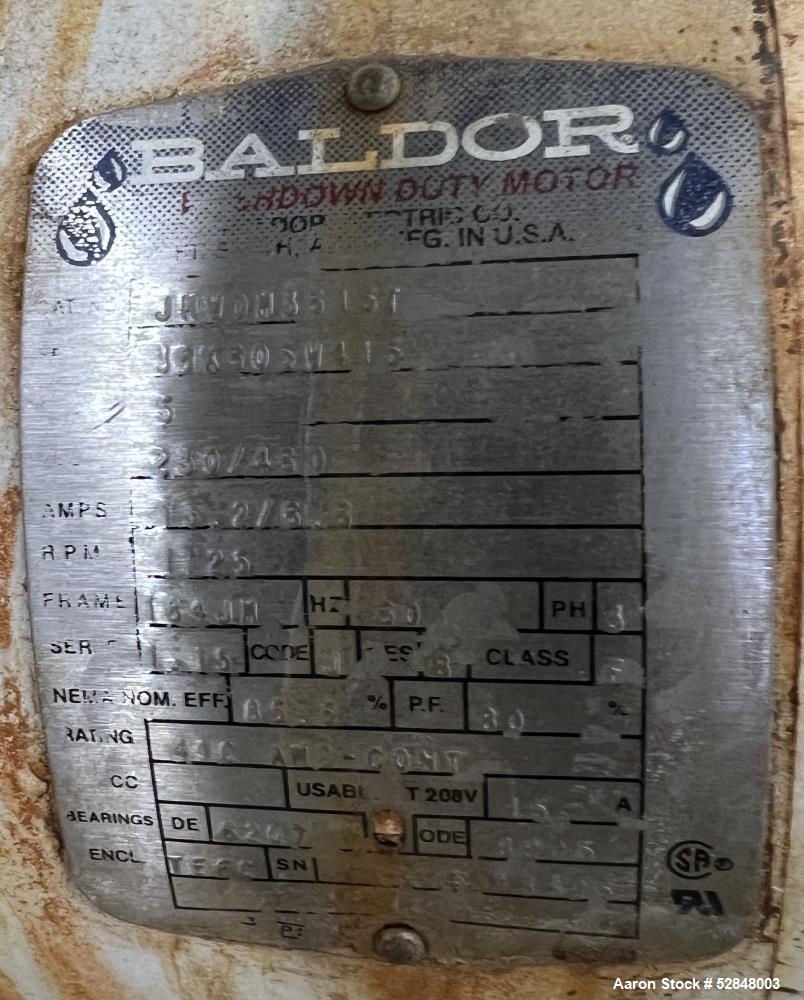

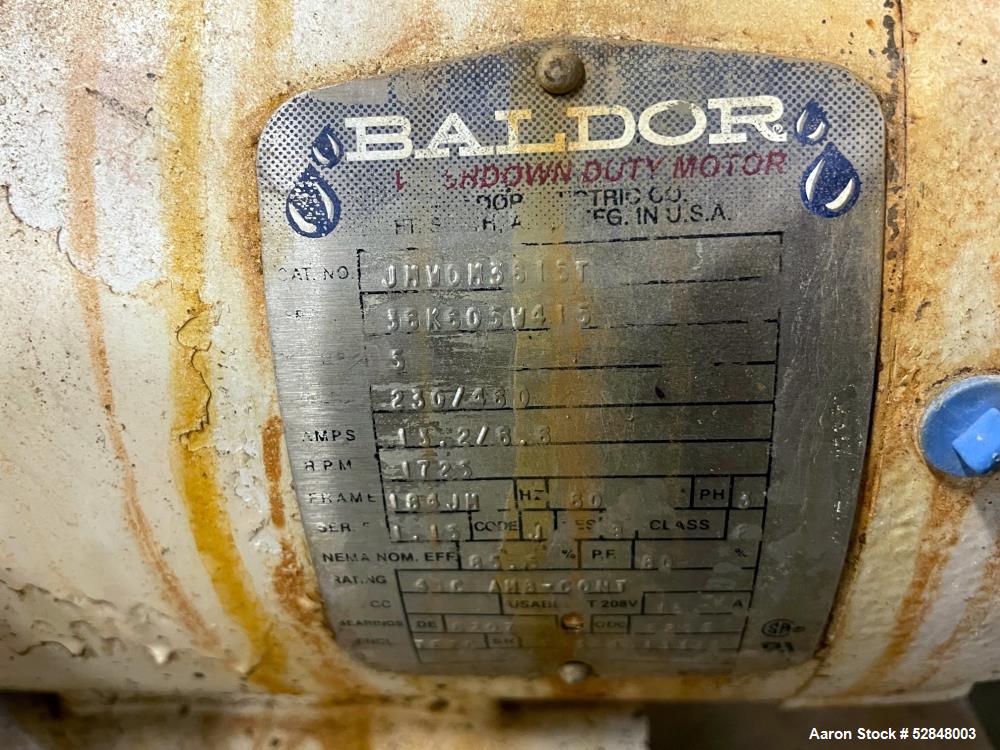

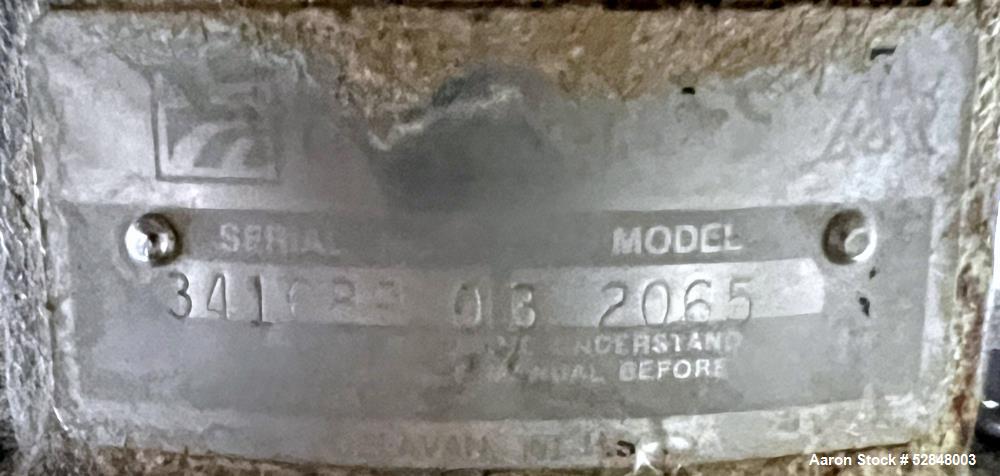

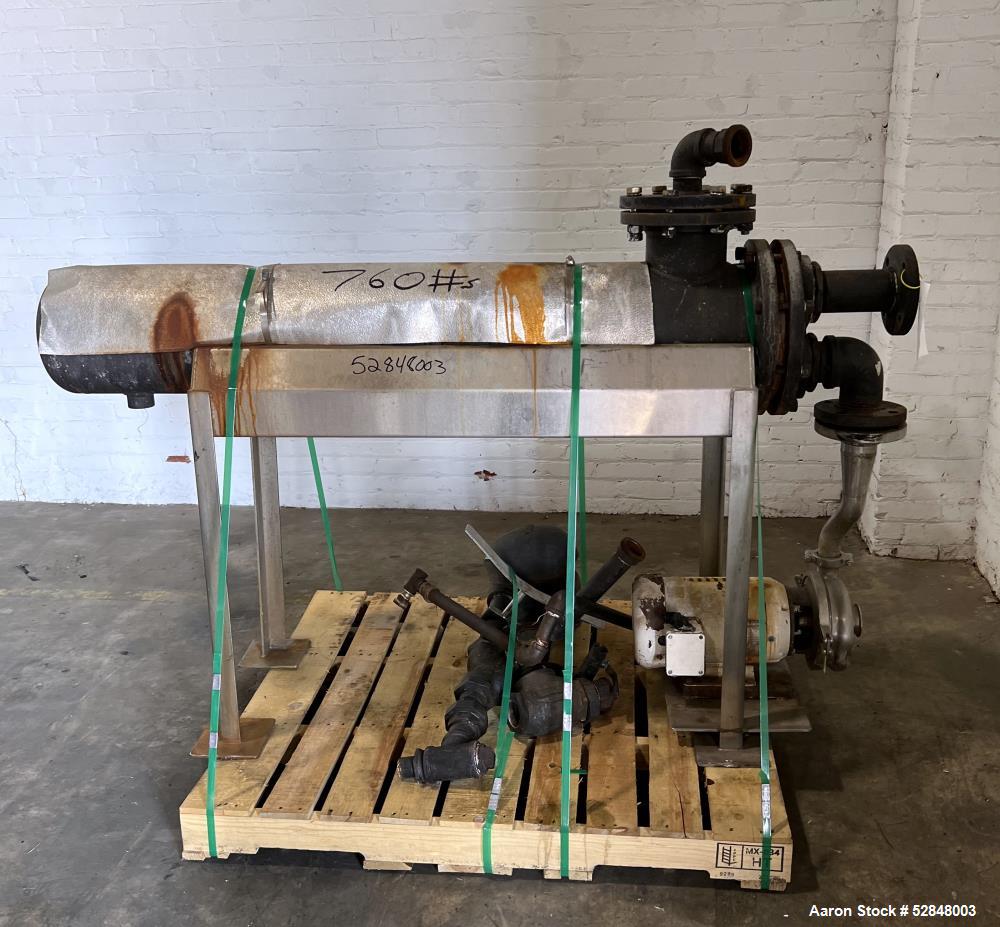

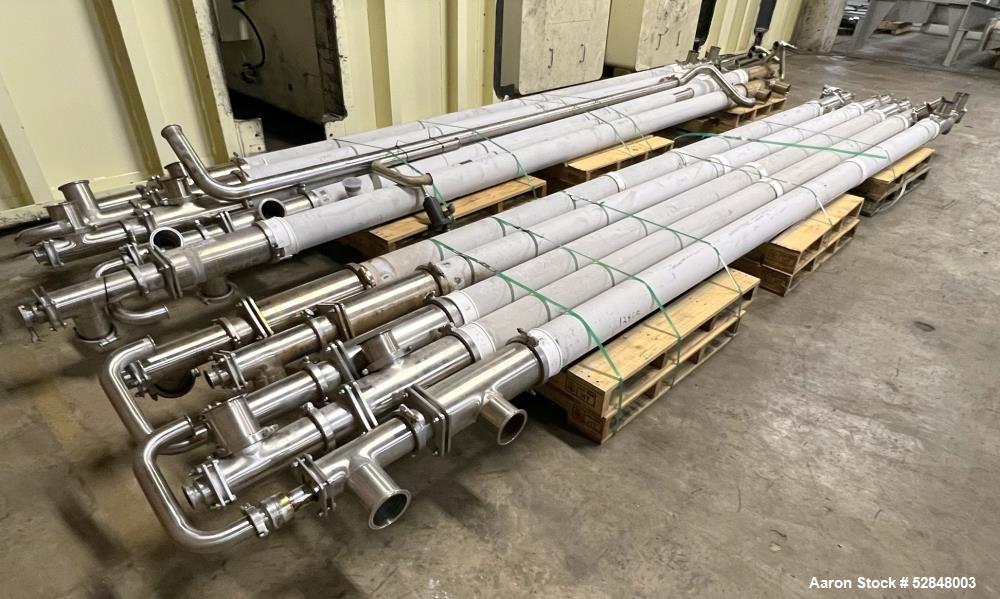

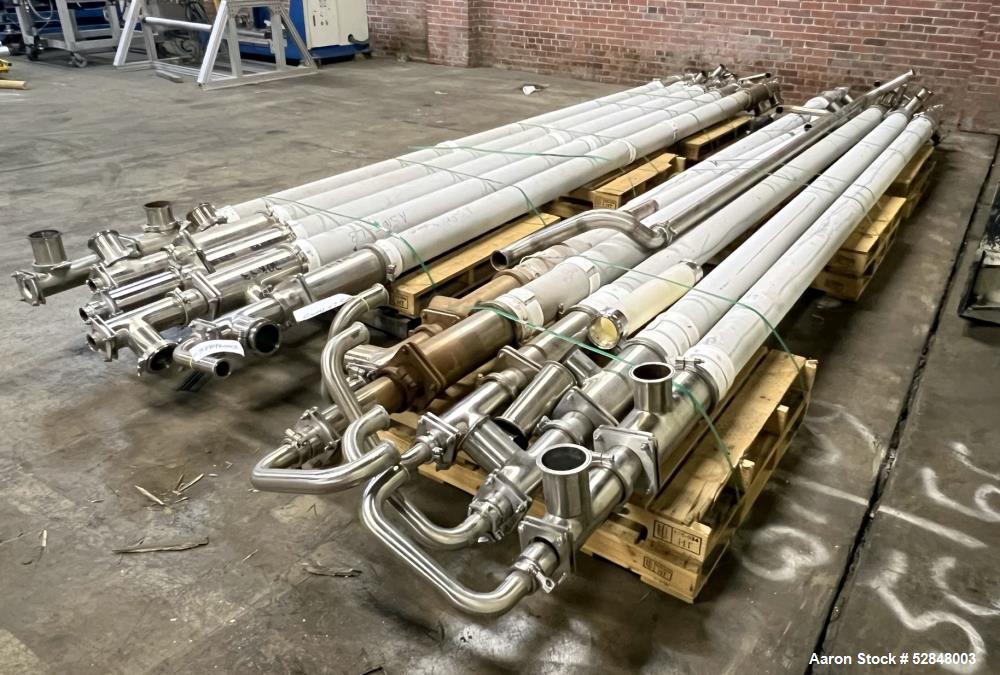

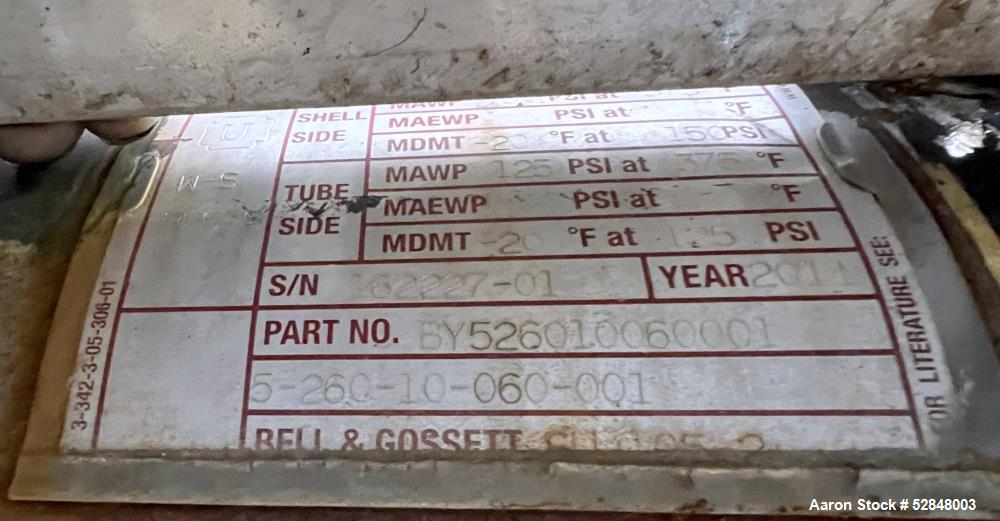

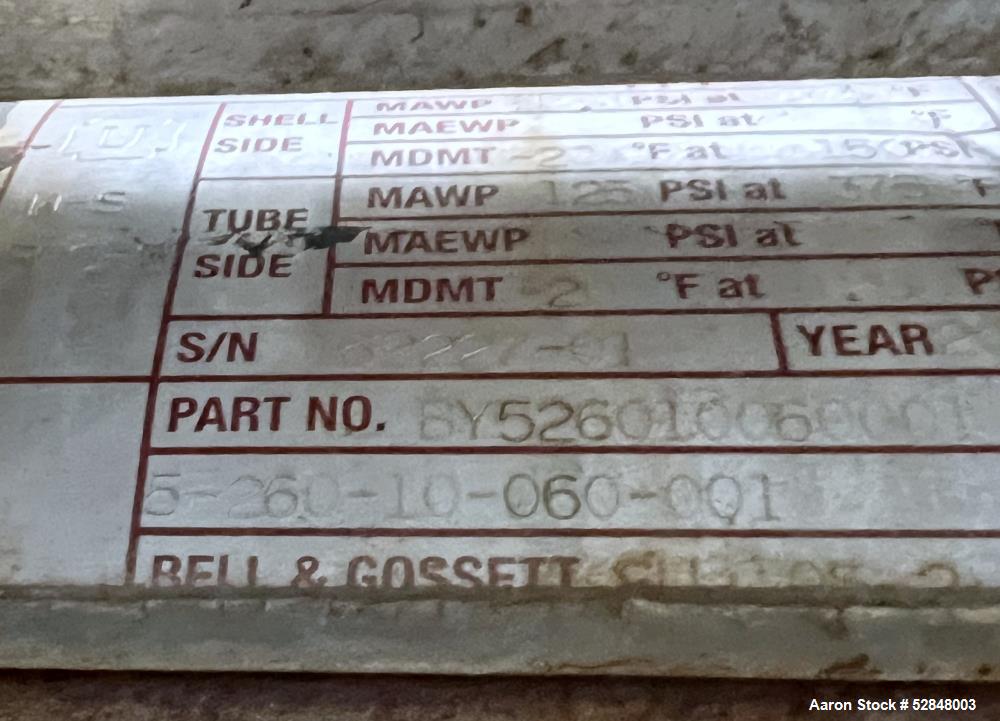

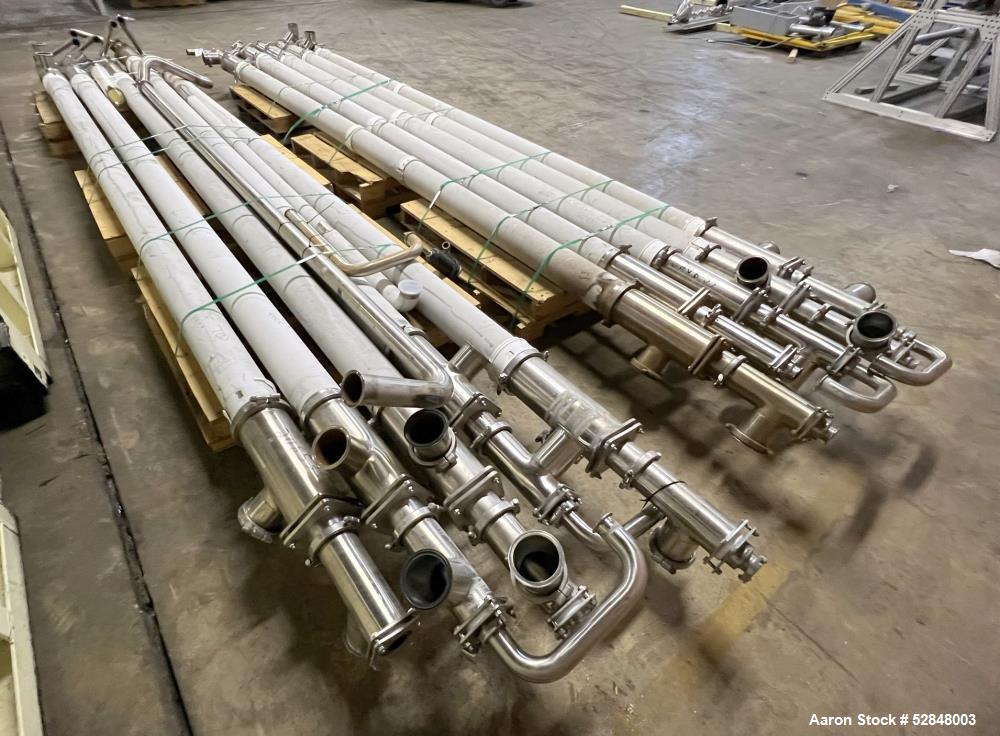

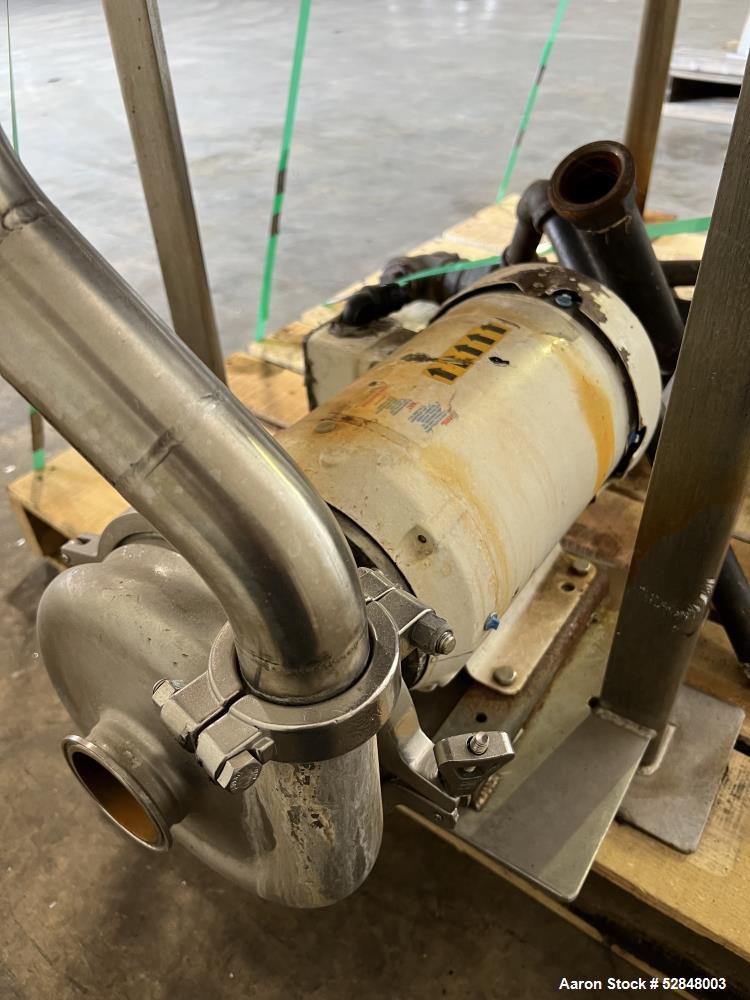

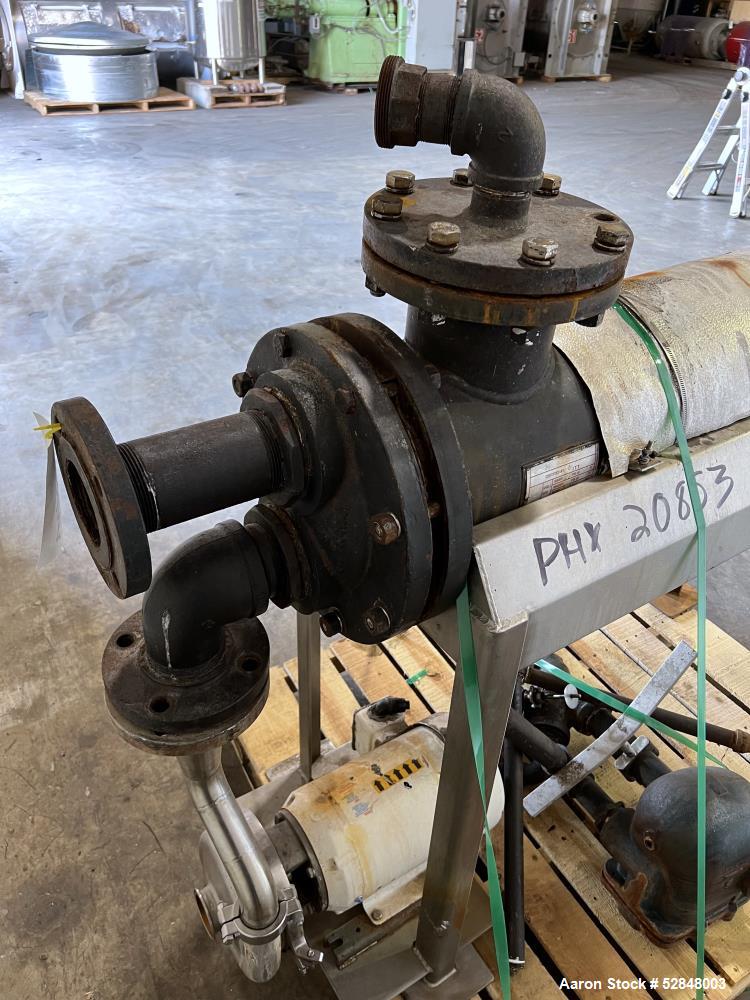

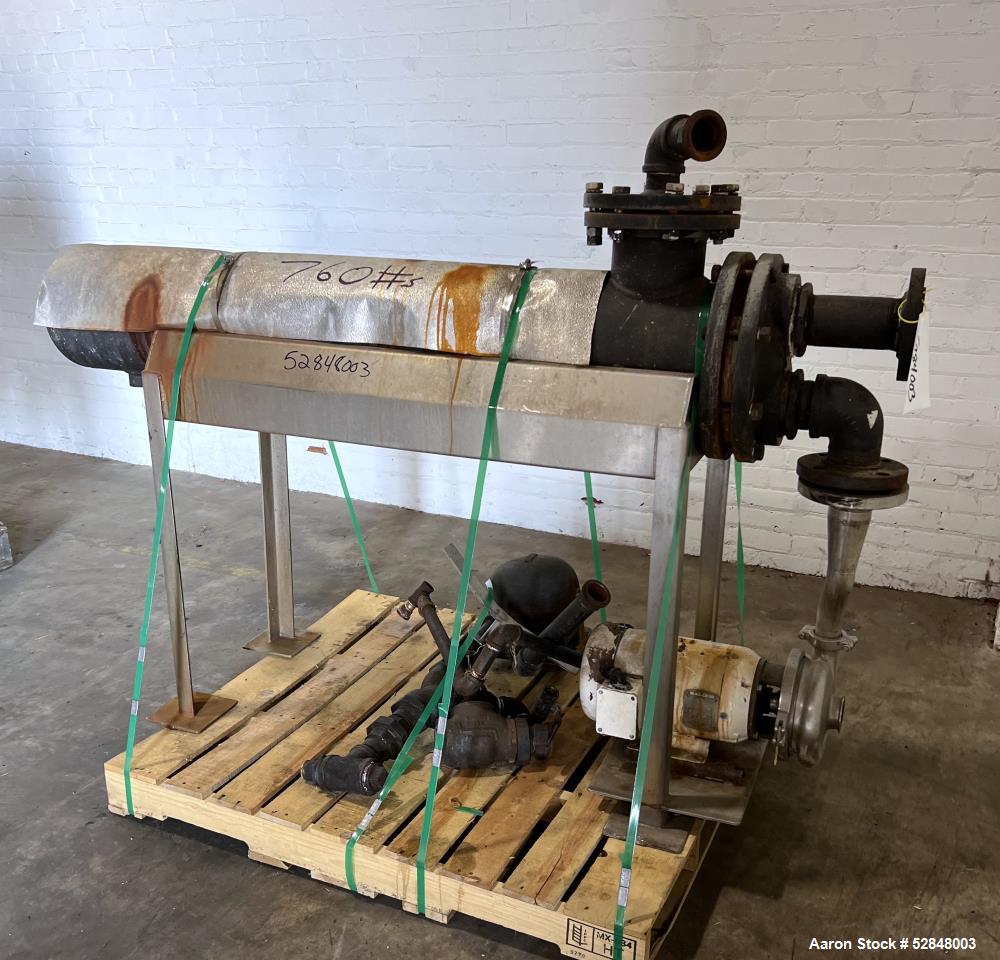

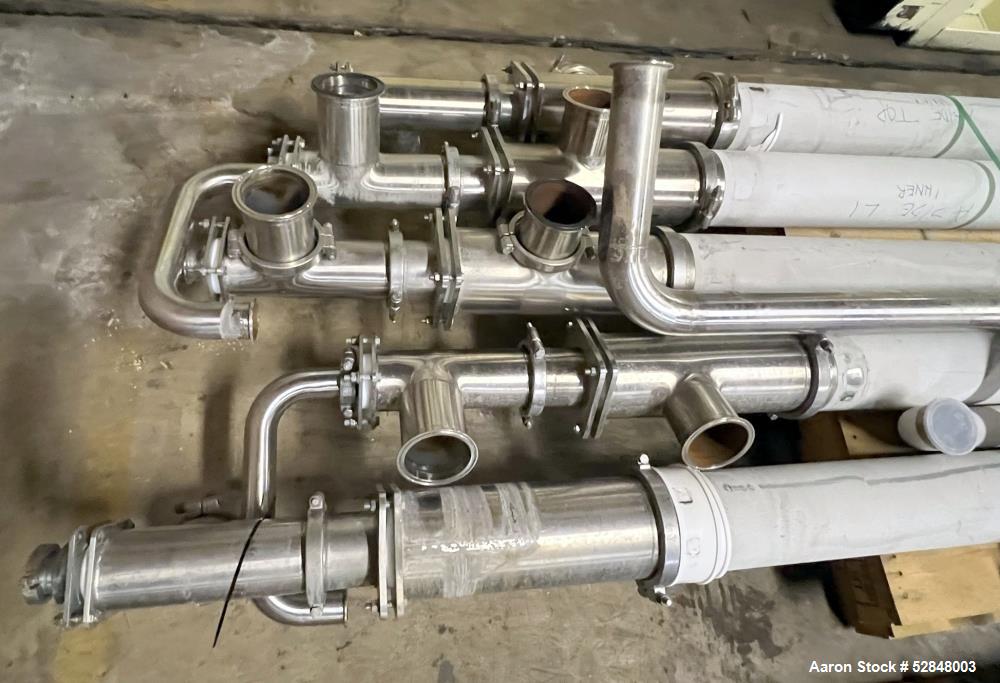

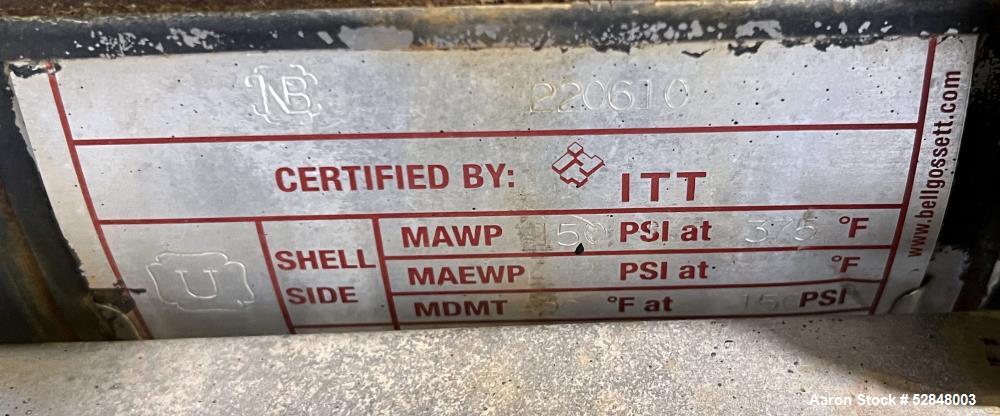

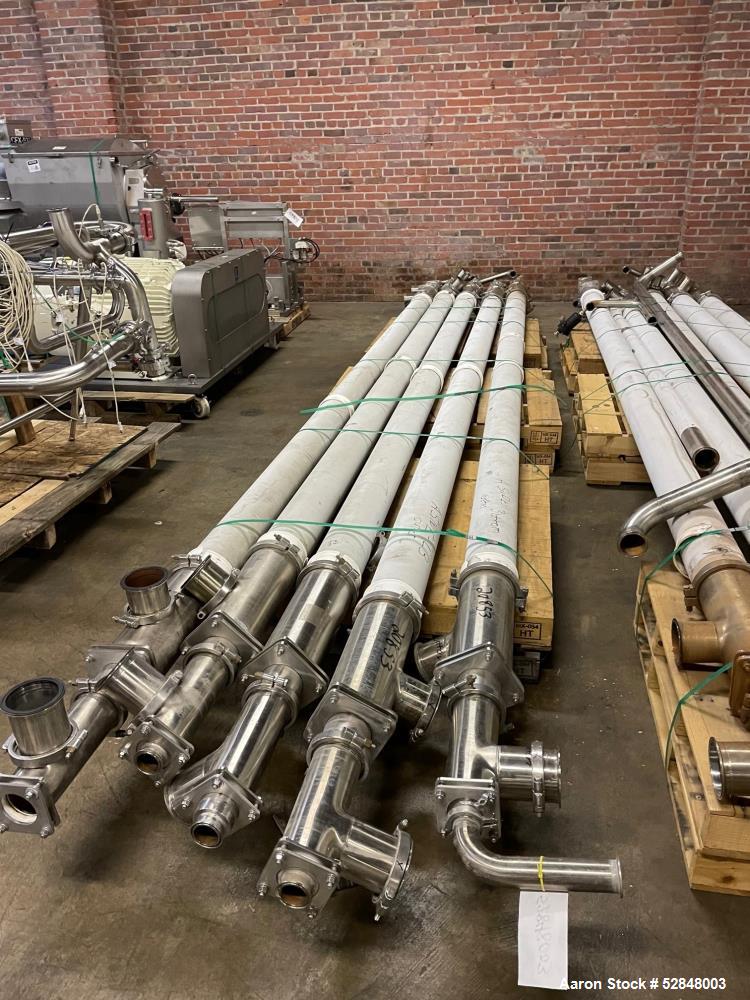

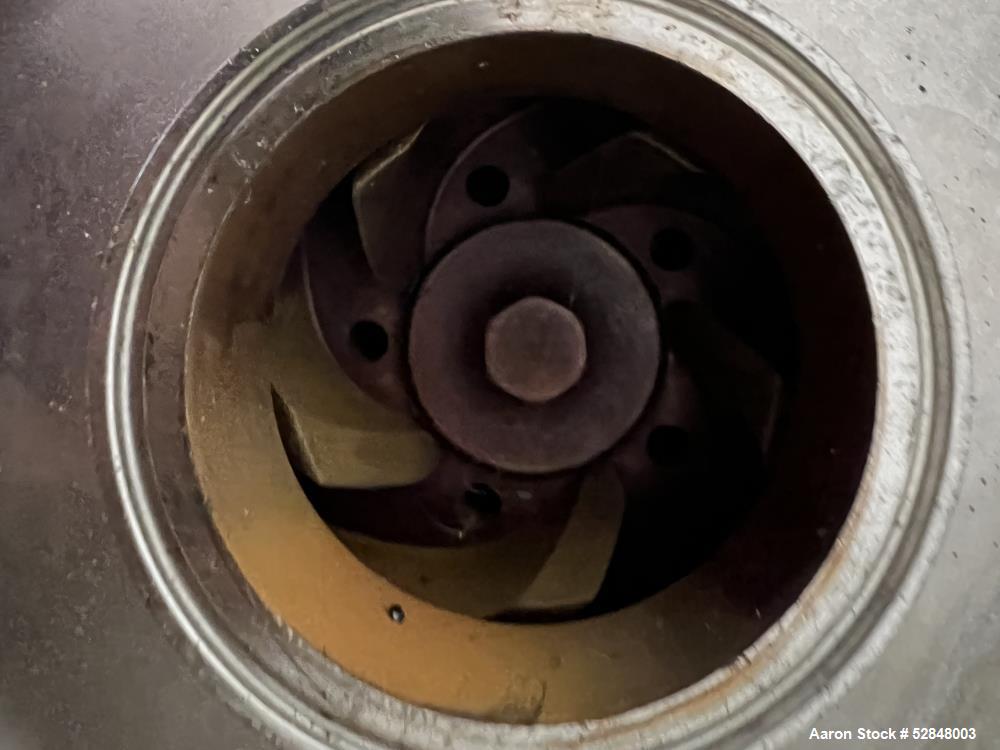

Used Feldmeier 6" x 4" x 2" Triple Tube Heater System with Hot Water Circulating Unit. Last used on citrus pulp for 20,000 lb/hr. (10) Approximate 6" diameter x 207" long tubes. 4" Product Inlet / Outlets. 4" Water Inlet / Outlets. Product side rated approximate 150 psi. Hot water circulating system consisting of: ITT "U-tube" heat exchanger, approximate 72 square feet, (38) .750" SB75 C122000 (Alloy Copper) U-tubes rated 125 psi at -20 to 375 degrees F., carbon steel shell rated 150 psi at -20 to 375 degrees F. Waukesha model 2065 centrifugal pump, driven by a 5hp, 3/60/230/460 volt, 1725 rpm motor.
