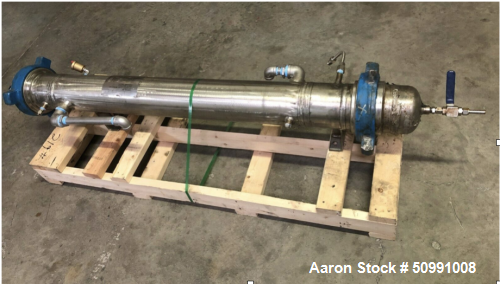

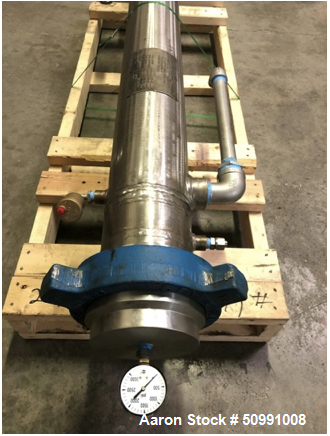

Used- CH Murphy Stainless Steel Shell & Tube Heat Exchanger

Used- CH Murphy Stainless Steel Shell & Tube Heat Exchanger. Rated for 1500 PSI at 250 Degrees F. 6' Long. Previously used in food processing for CO2 heating. Shell MAWP = 150 PSI at 350 Degrees F. Shell Ports: Media inlet/outlet 1-1/2" FNPT, Drain/Vent " FNPT. Tube MAWP = 1500 PSI at 250 Degrees F. Tube Ports/Sizes: " FNPT bottom cap, " FNPT top port, 1/2" tangential side inlet and " side top outlet approximate 48 SF Heat Exchange Area, 98 x " SS304 Tubes, 47.75" Tubesheet-to-Tubesheet. Tubesheets ground flush. Minimum Design Temperature = -20 degrees F. Built 2017.
