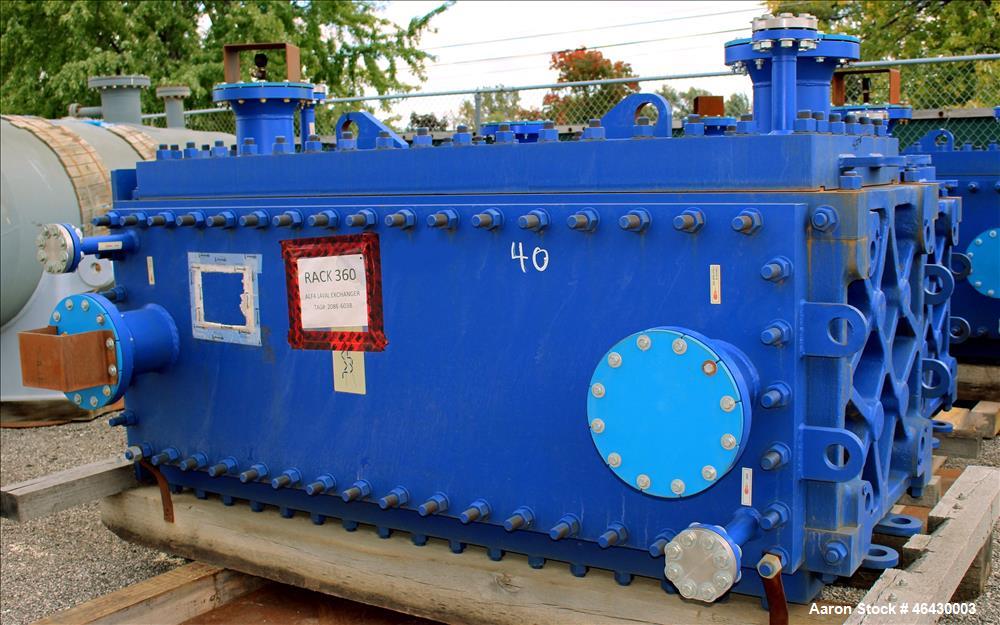

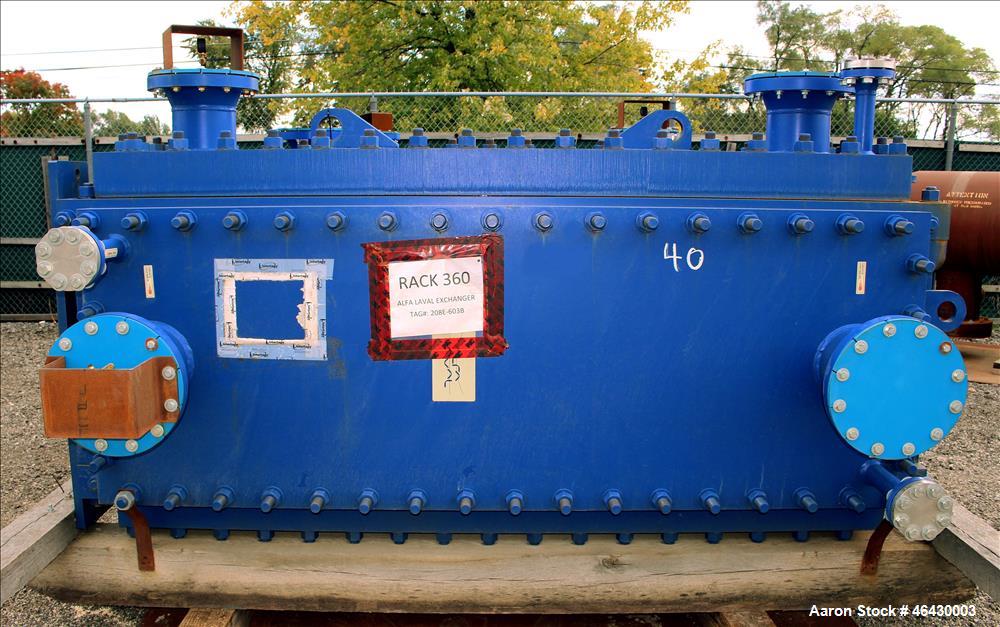

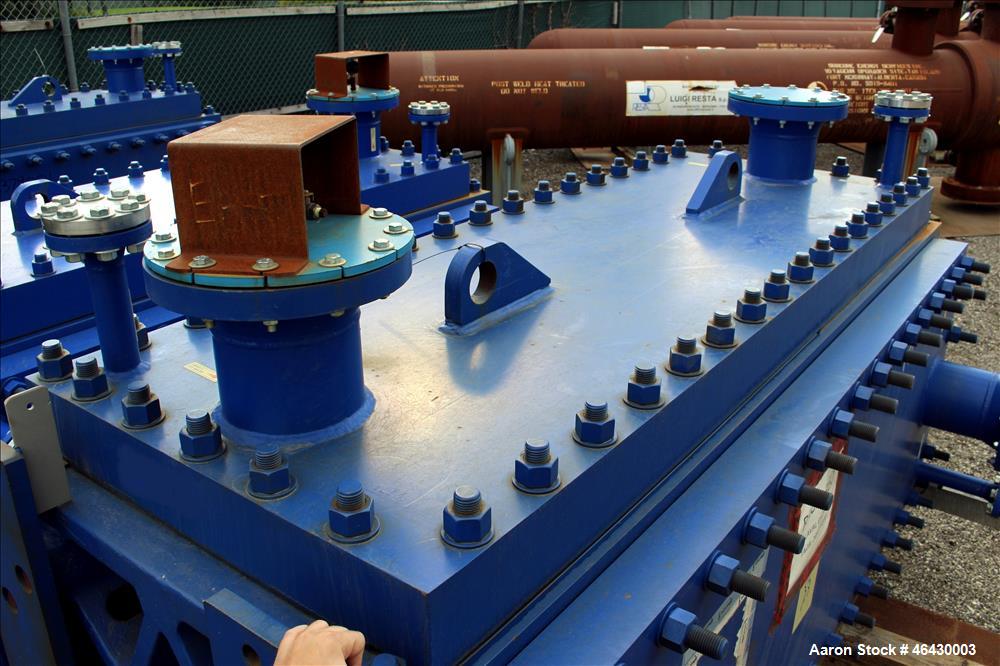

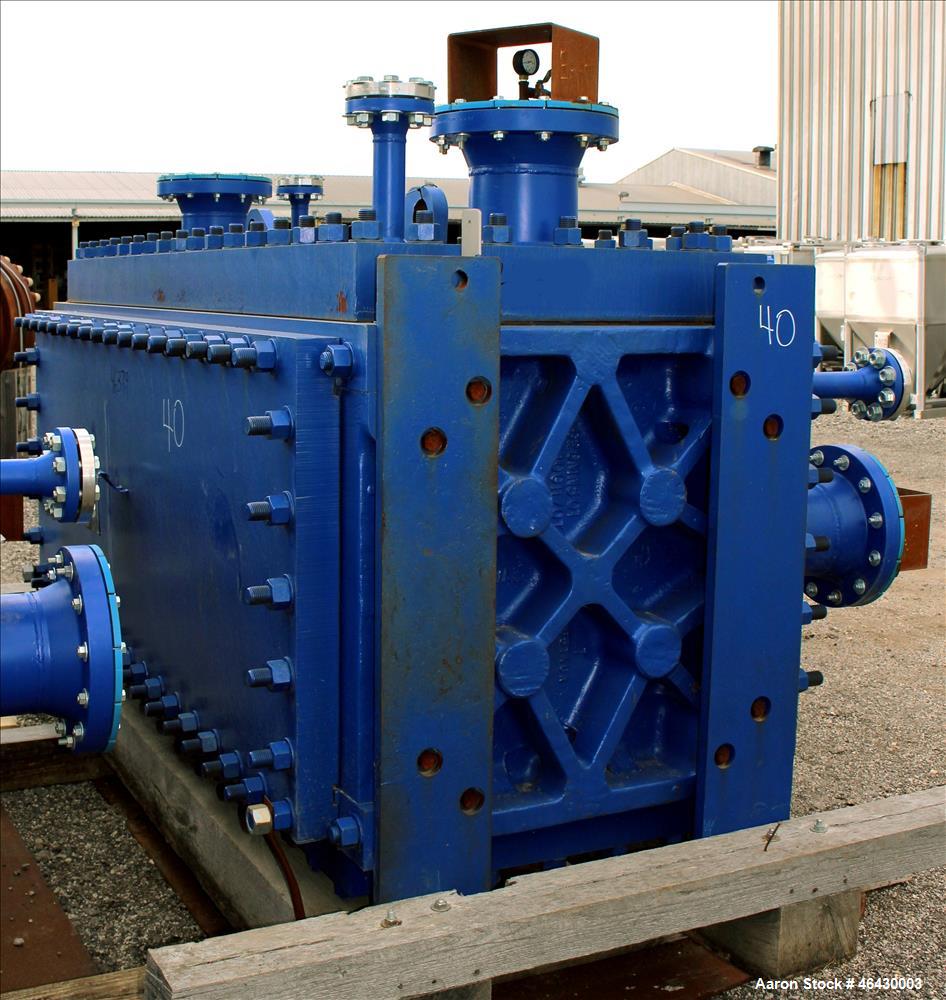

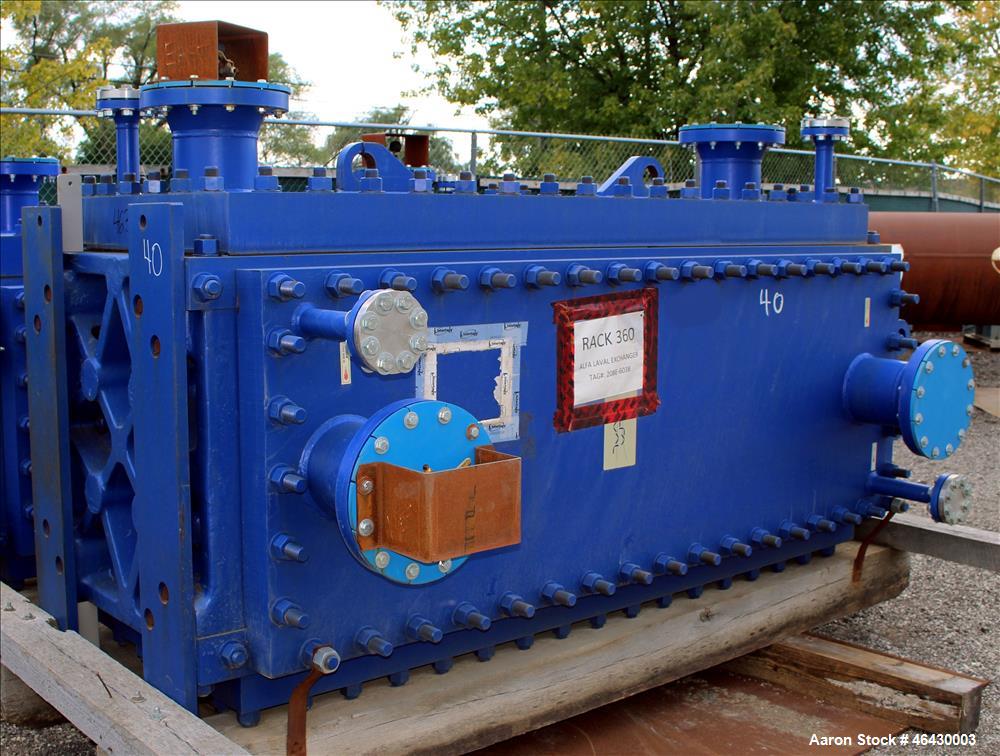

Unused- Alfa-Laval Compabloc Welded Plate Heat Exchanger

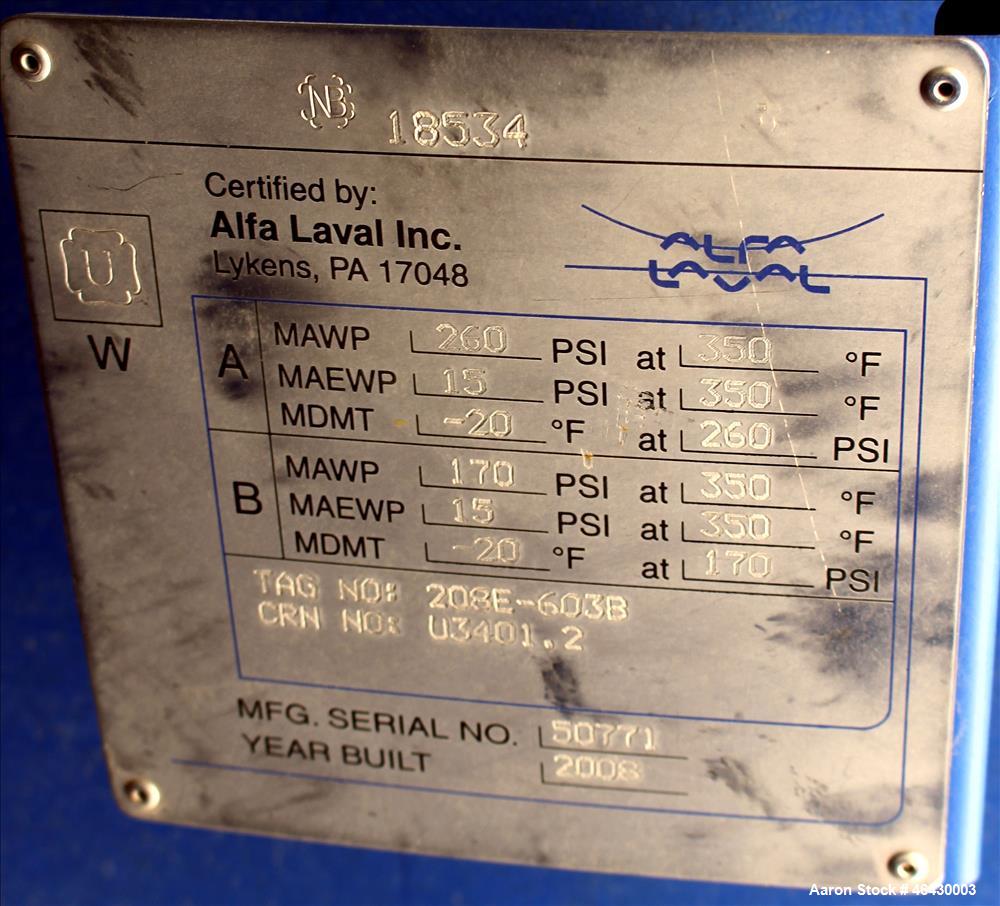

Unused- Alfa-Laval Compabloc Welded Plate Heat Exchanger, 2751.3 Square Feet Surface Area, Model CPL75-V-400, Vertical. (400) 316L Stainless steel plates. Hot side rated 260 psi/Full Vacuum at -20 to 350 degrees F, cold side rated 170 psi/Full Vacuum at -20 to 350 degrees F. Carbon steel removable side panels faced with stainless steel. 8" Inlets and outlet, 2" vents. National Board # 18534, Serial# 50771. Built 2008.

ManufacturerAlfa Laval
ModelCPL75-V-400
Serial #50771
CategoryHeat Exchangers
SubcategoryPlate Type
Horizontal Or VerticalVertical
Square Footage2751.3
Year Built2008

We offer a variety of finance programs. Please contact your sales person for more information.
