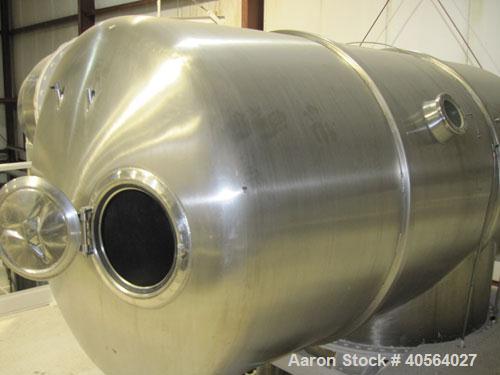

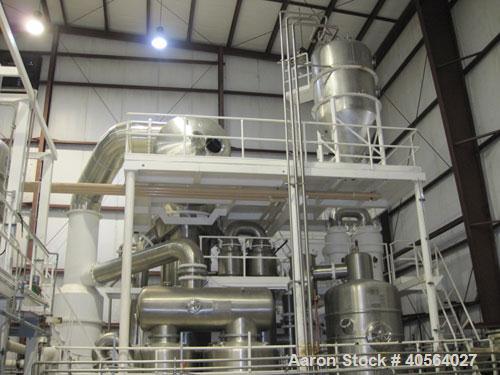

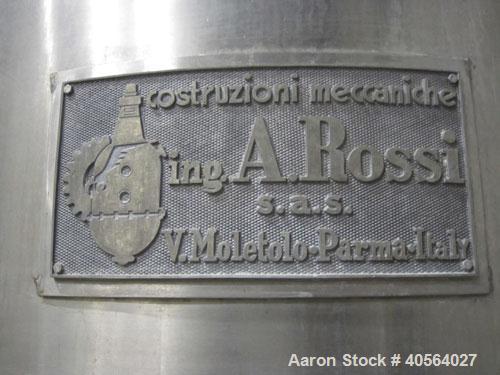

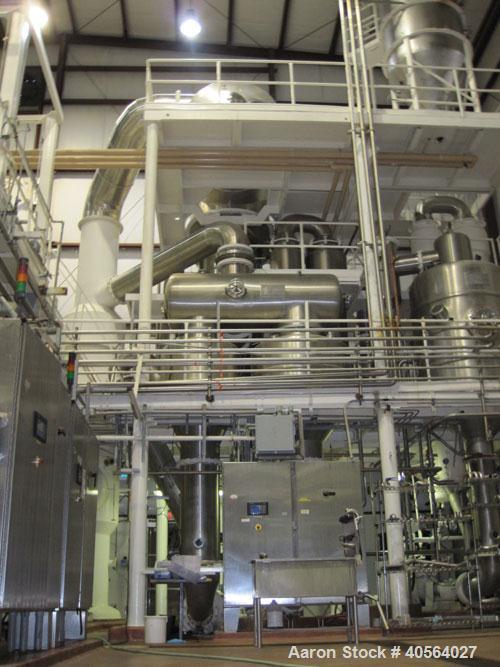

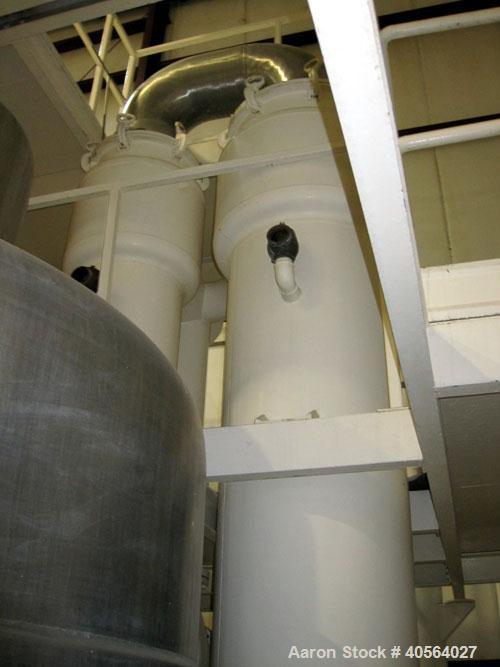

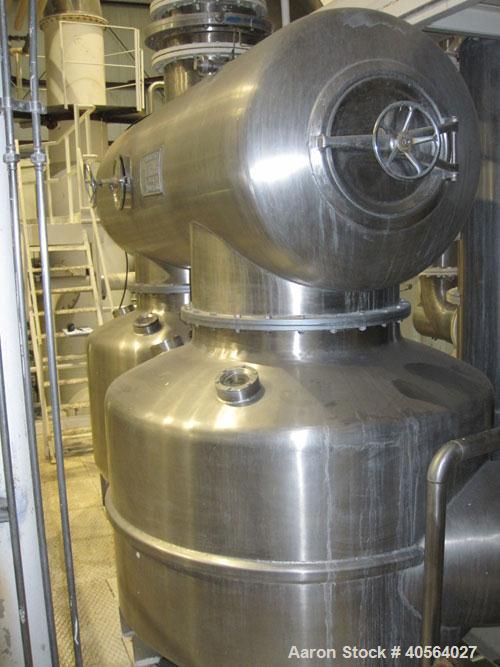

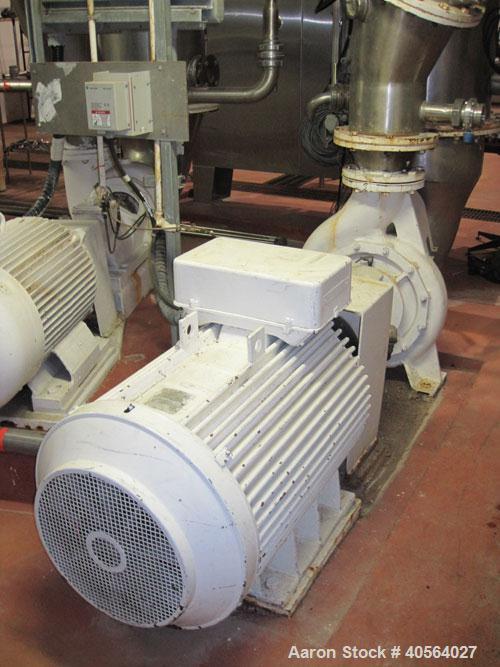

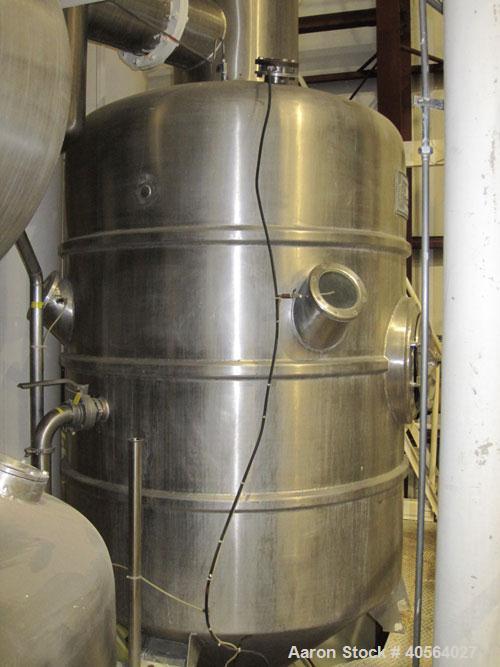

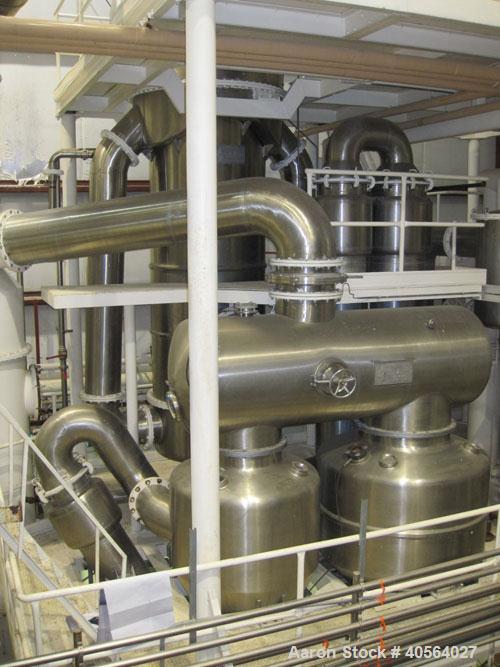

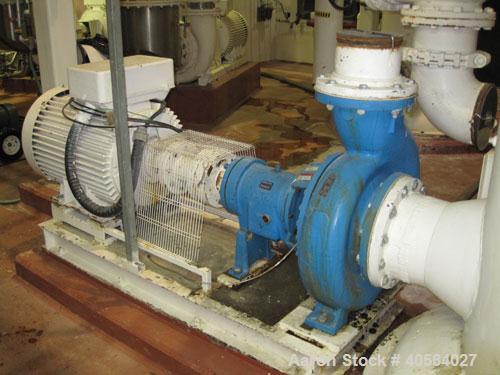

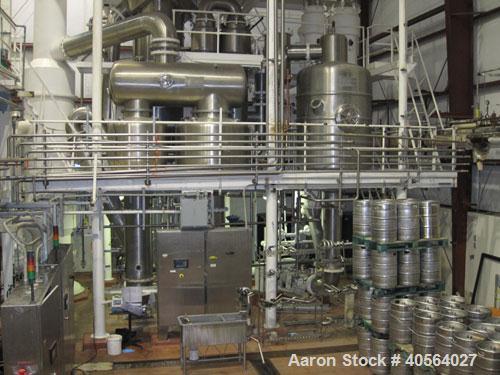

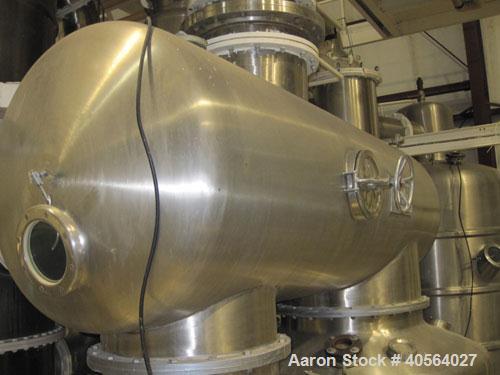

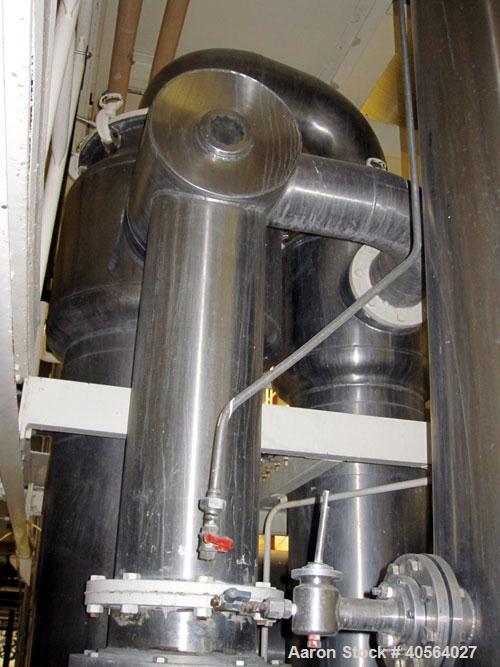

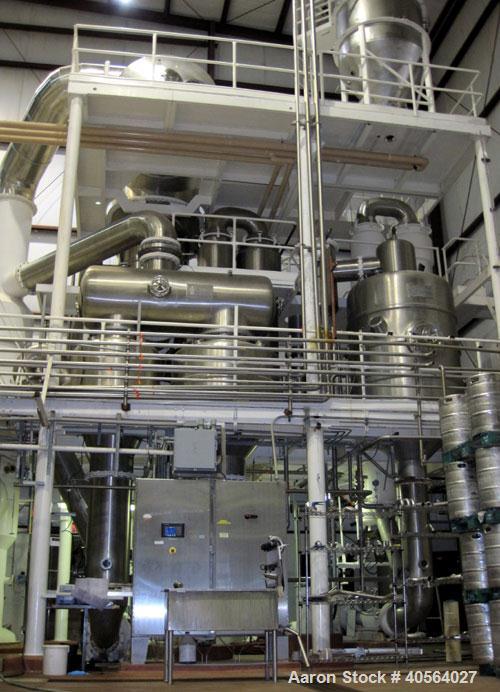

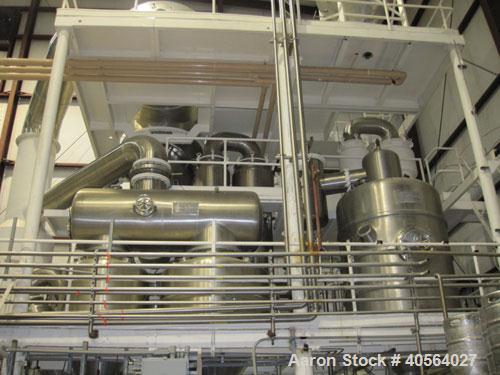

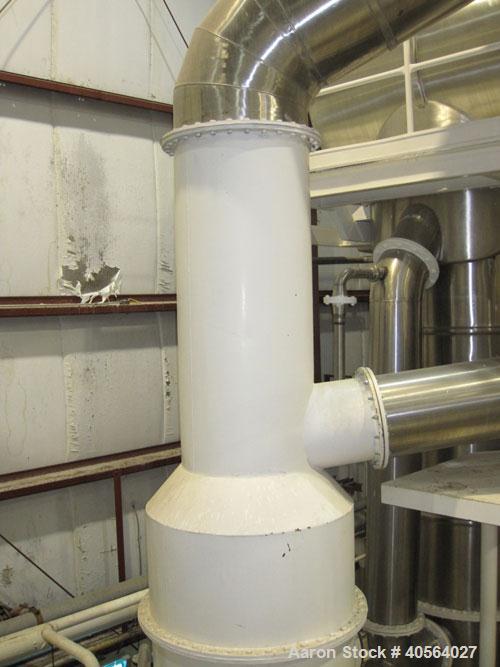

Used Ing. A. Rossi Triple Effect Continuous Fractional Evaporator, model ULTER, 316 stainless steel product contact areas. Approximately 2,500 to 3,000 square foot area. Forced circulation, rising film, rated 20,300 kg/ hour capacity. Install power 376.5 hp, steam consumption 7,200 Kg/H, water recirculation at 30C -500M3/H, water consumption -35M3/H. Designed for apple juice concentrate. "No Essence Recovery". Unit consists of: (1) Concentrator, 72" diameter x 84" straight side with (2) piece steam humidifiers, (1) 26" diameter x 114" long, (1) 20" diameter x 15' long with a steam humidifier. (1) FBM product circulation pump, model TR31VS, serial #1231. 12" inlet, 8' outlet, 18" impeller, driven by a 50 hp, 575 volt motor. (1) 1st stage finisher, 60" diameter x 32" straight side x 32" coned bottom, (1) 2nd stage finisher 48" diameter x 24" straight side x 32" coned bottom with horizontal condensate collection tank, 40" diameter x 105" long, vacuometers, and (2) FBM product circulation pumps, (1) Type UH40957B170KW24, 12" inlet, 9" outlet, 20" impeller, driven by a 50 hp, 575 volt motor, serial #871563, (1) FBM product circulation pump, model TR30, serial #1247. 12" inlet, 8' outlet, 18" impeller, driven by a 50 hp, 575 volt motor, (1) Travini primary condensate extraction pump, model BTT501/3KC/RA, serial #CA1383, driven by a 10 hp, 575 volt motor, includes a separator tank. (1) Preconcentrator, 24" diameter x approximately 15' long with 1-1/4" diameter tube section approximately 90" long. (1) Vertical condenser, approximately 18" long with a 316 stainless water extraction Goulds pump, model 3196, type XLT-X, size 8x10.15, rated 275 psi at 100 degrees F, driven by a 60 hp, 575 volt motor, serial #238C823, and a top horizontal tank. (2) Sihi vacuum pumps, model L53/2C/GH, serial #s 67219, 67220, no motors.
Used Ing. A. Rossi Triple Effect Continuous Fractional Evaporator, model ULTER, 316 stainless steel product contact areas. Approximately 2,500 to 3,000 square foot area. Forced circulation, rising film, rated 20,300 kg/ hour capacity. Install power 376.5 hp, steam consumption 7,200 Kg/H, water recirculation at 30C -500M3/H, water consumption -35M3/H. Designed for apple juice concentrate. "No Essence Recovery". Unit consists of: (1) Concentrator, 72" diameter x 84" straight side with (2) piece steam humidifiers, (1) 26" diameter x 114" long, (1) 20" diameter x 15' long with a steam humidifier. (1) FBM product circulation pump, model TR31VS, serial #1231. 12" inlet, 8' outlet, 18" impeller, driven by a 50 hp, 575 volt motor. (1) 1st stage finisher, 60" diameter x 32" straight side x 32" coned bottom, (1) 2nd stage finisher 48" diameter x 24" straight side x 32" coned bottom with horizontal condensate collection tank, 40" diameter x 105" long, vacuometers, and (2) FBM product circulation pumps, (1) Type UH40957B170KW24, 12" inlet, 9" outlet, 20" impeller, driven by a 50 hp, 575 volt motor, serial #871563, (1) FBM product circulation pump, model TR30, serial #1247. 12" inlet, 8' outlet, 18" impeller, driven by a 50 hp, 575 volt motor, (1) Travini primary condensate extraction pump, model BTT501/3KC/RA, serial #CA1383, driven by a 10 hp, 575 volt motor, includes a separator tank. (1) Preconcentrator, 24" diameter x approximately 15' long with 1-1/4" diameter tube section approximately 90" long. (1) Vertical condenser, approximately 18" long with a 316 stainless water extraction Goulds pump, model 3196, type XLT-X, size 8x10.15, rated 275 psi at 100 degrees F, driven by a 60 hp, 575 volt motor, serial #238C823, and a top horizontal tank. (2) Sihi vacuum pumps, model L53/2C/GH, serial #s 67219, 67220, no motors.
