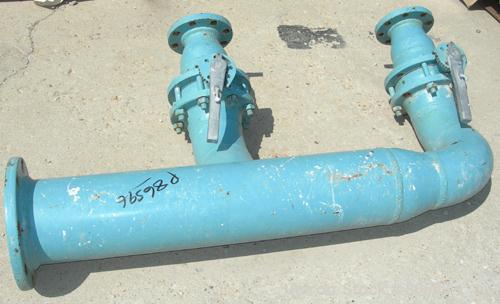

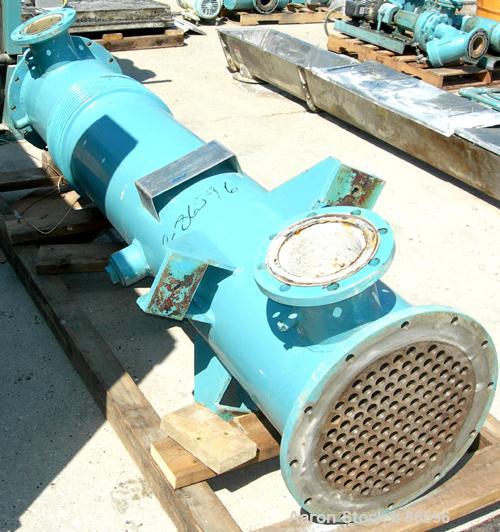

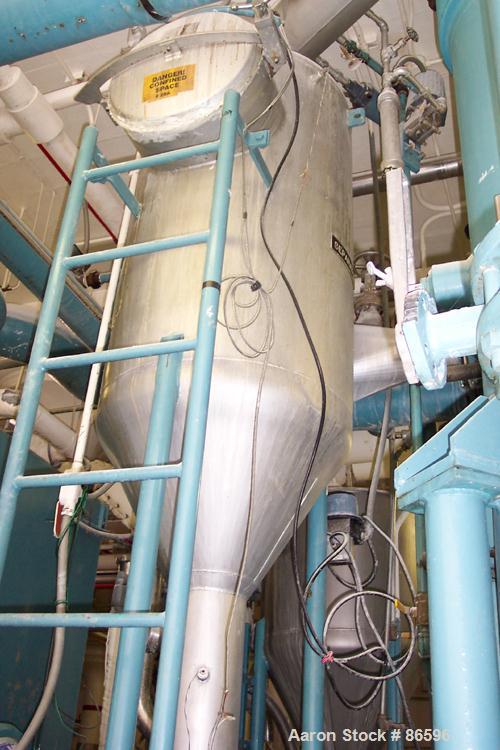

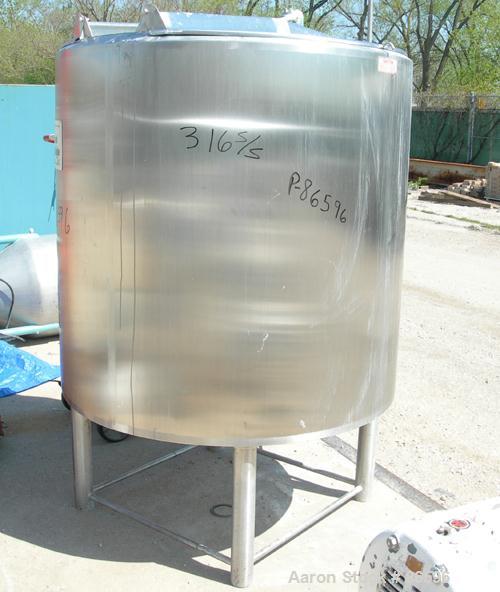

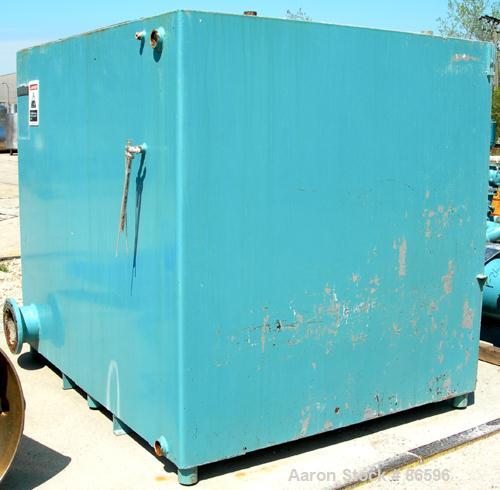

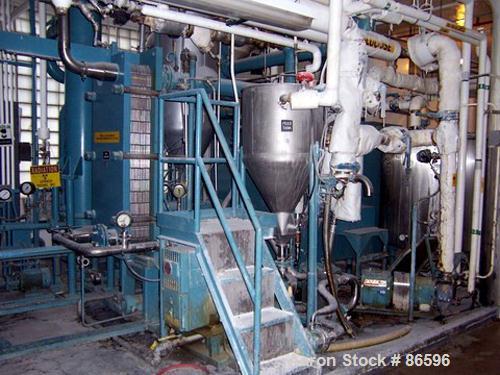

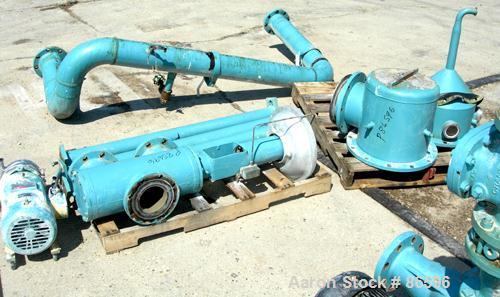

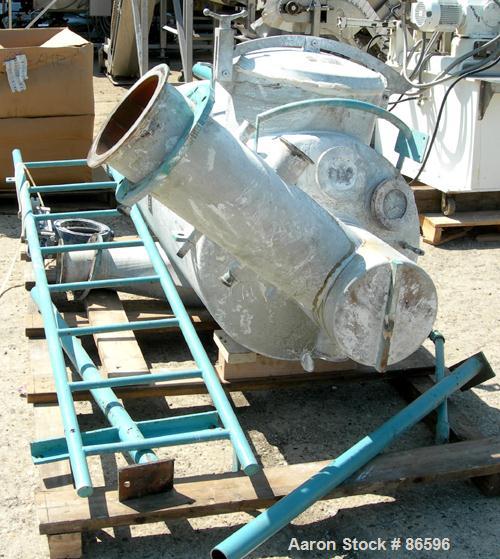

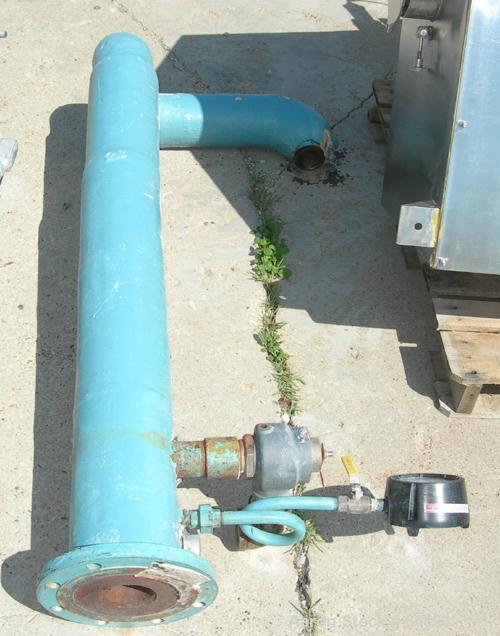

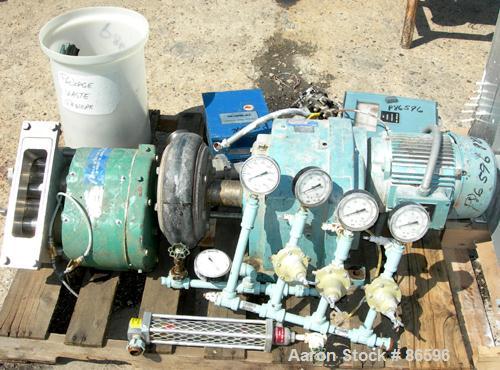

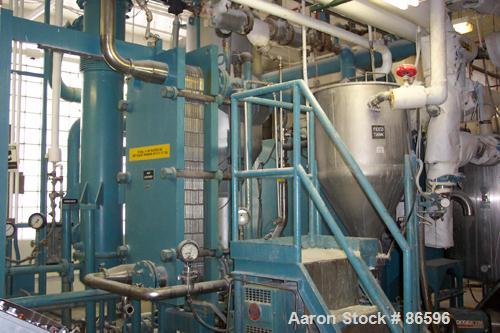

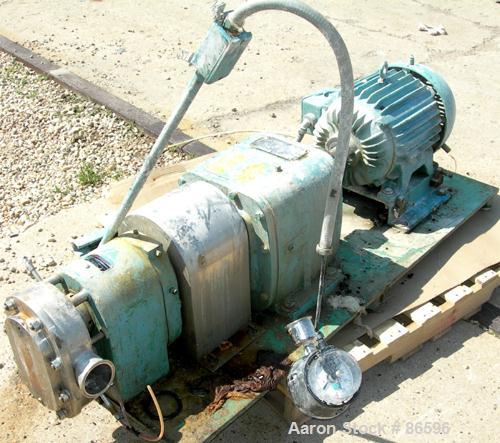

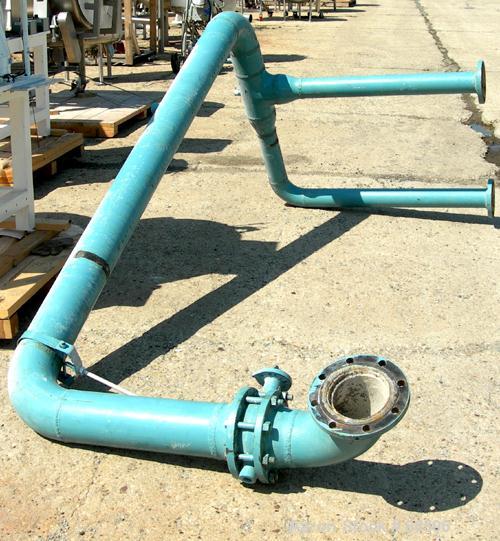

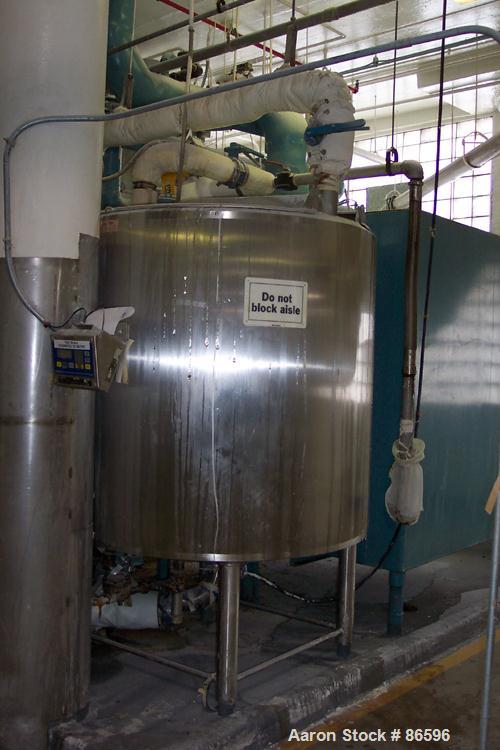

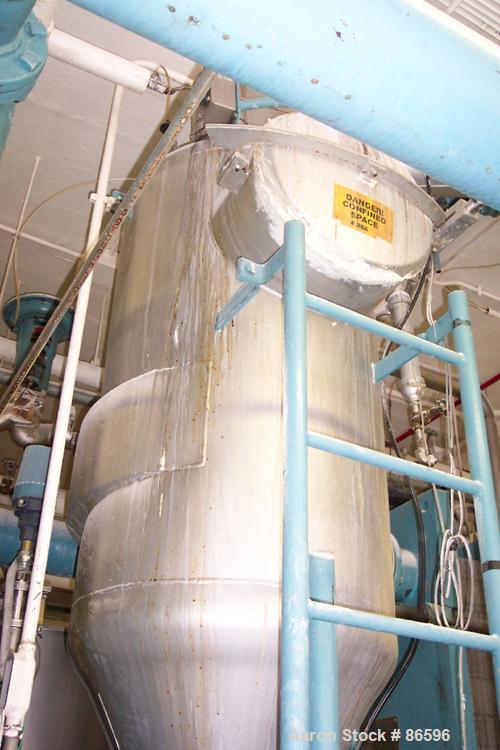

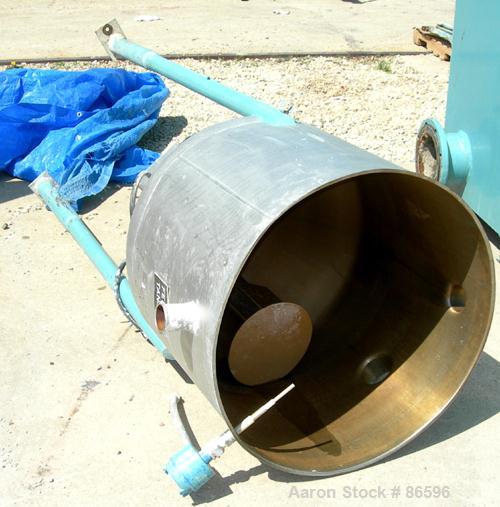

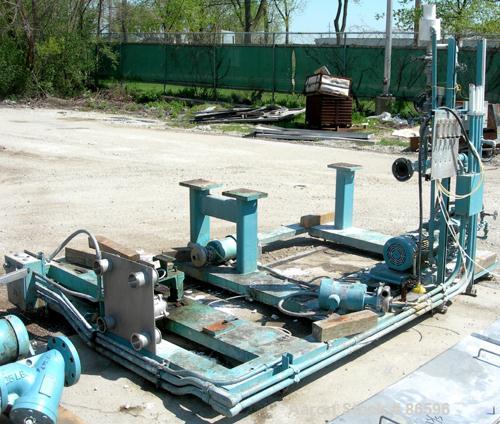

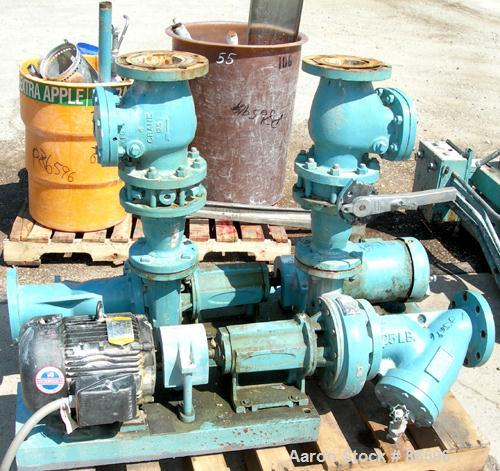

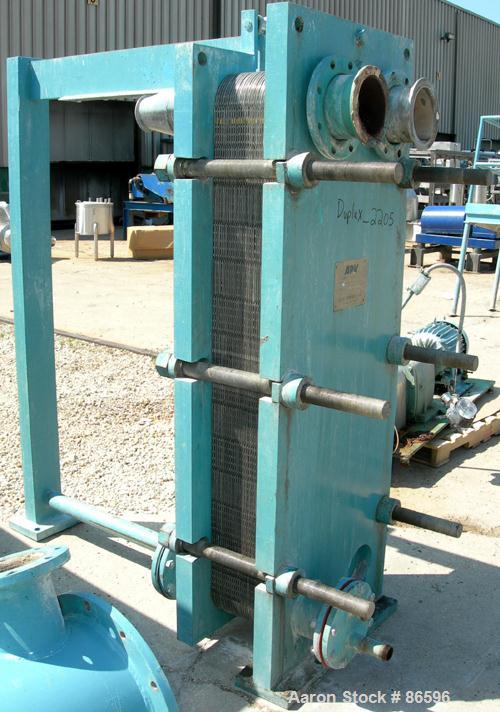

Used APV Single Effect Paravap Rising Film Evaporator, Model R86, 316 Stainless Steel. Approximate feed rate 10,000 pounds/hour, product rate 9412 pounds/hour, evaporation rate 588 pounds/hour. System consists of (1) APV R86 plate heat exchanger having (60) plates approximately 2' wide x 5' high with roughly 600 sqft area. (1) approximate 150 gallon separator/ vapor body approximately 28" diameter 48" straight side with 21" sloped bottom to an 8"x26" discharge tube and domed top with 10" top feed. 28" hinged manway on side. Feed has (2) 4" flanges and (4) 3/4" npt fittings Head has 1" npt, (2) 3/8" tubes and (2) 4" sight glasses. Bottom discharge is 9"x2-1/2" with 4" side sanitary fitting and 3" sight glass (1) approximate 75 gallon feed balance tank, (1) Crepaco 450 gallon jacketed surge tank rated 75 psi, (1) approximate 221 square foot shell and tube heat exchanger, (121) tubes x 7/8" diameter x 8' long, shell rated 75 psi at 95 deg F, tubes 30" hg at 140 deg F, (1) Sihi vacuum pump, Model LPHB 3704, M 001 02 2, No. 2772 109,Motor is 5hp 3/60/230./460V (1) approximate 1700 gallon carbon steel holding tank, (3) Tri Clover positive displacement pumps, (6) centrifugal pumps, (1) frame/base, misc piping, valves and panels. LAST PRODUCT RUN ON THIS SYSTEM WAS CORN SYRUP. FOOD GRADE.
Used APV Single Effect Paravap Rising Film Evaporator, Model R86, 316 Stainless Steel. Approximate feed rate 10,000 pounds/hour, product rate 9412 pounds/hour, evaporation rate 588 pounds/hour. System consists of (1) APV R86 plate heat exchanger having (60) plates approximately 2' wide x 5' high with roughly 600 sqft area. (1) approximate 150 gallon separator/ vapor body approximately 28" diameter 48" straight side with 21" sloped bottom to an 8"x26" discharge tube and domed top with 10" top feed. 28" hinged manway on side. Feed has (2) 4" flanges and (4) 3/4" npt fittings Head has 1" npt, (2) 3/8" tubes and (2) 4" sight glasses. Bottom discharge is 9"x2-1/2" with 4" side sanitary fitting and 3" sight glass (1) approximate 75 gallon feed balance tank, (1) Crepaco 450 gallon jacketed surge tank rated 75 psi, (1) approximate 221 square foot shell and tube heat exchanger, (121) tubes x 7/8" diameter x 8' long, shell rated 75 psi at 95 deg F, tubes 30" hg at 140 deg F, (1) Sihi vacuum pump, Model LPHB 3704, M 001 02 2, No. 2772 109,Motor is 5hp 3/60/230./460V (1) approximate 1700 gallon carbon steel holding tank, (3) Tri Clover positive displacement pumps, (6) centrifugal pumps, (1) frame/base, misc piping, valves and panels. LAST PRODUCT RUN ON THIS SYSTEM WAS CORN SYRUP. FOOD GRADE.
