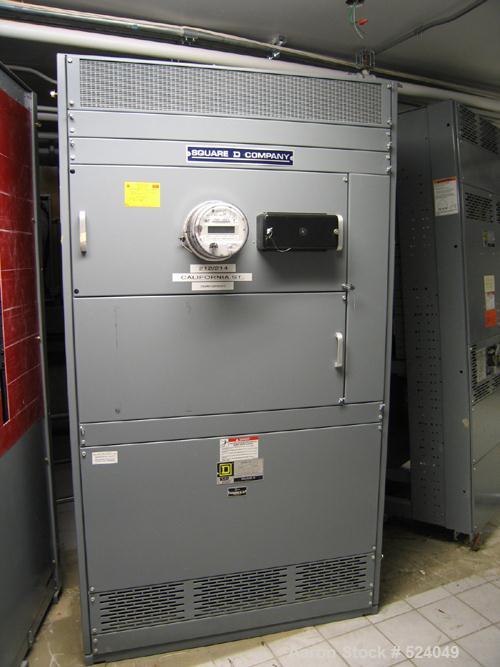

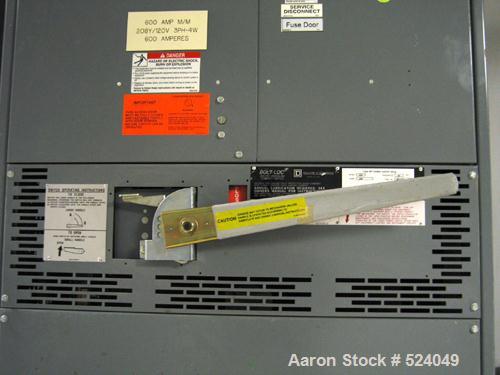

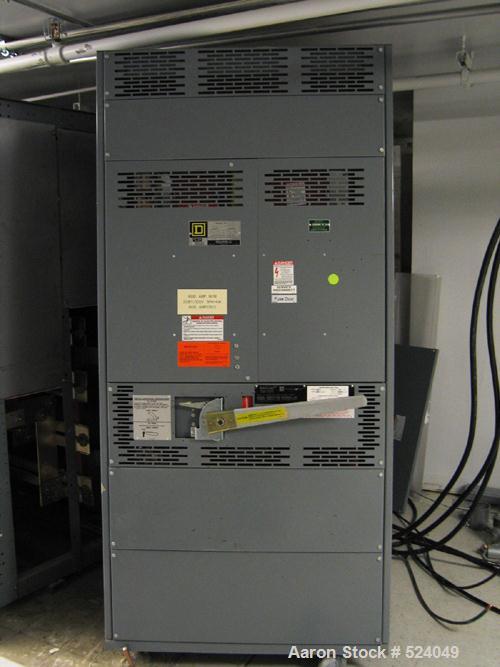

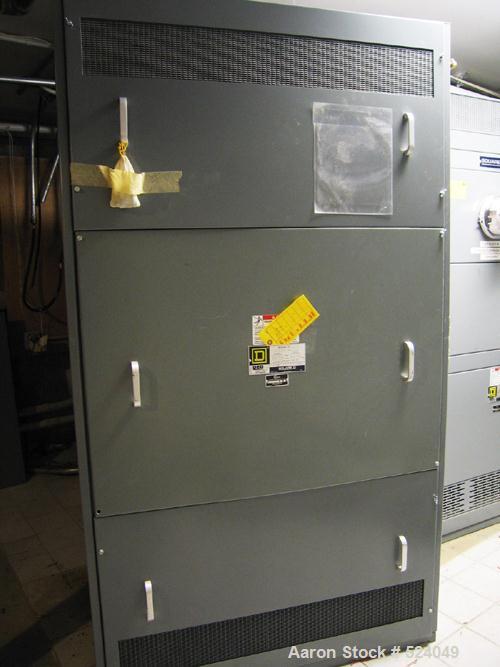

USED: Square D custom power style QED switchboard. 600A, 208Y/120 VAC,3 ph, 4W, 60 hz, suitable for use as service entrance equipment.Section 1: Deadfront switchboard section short circuit current rating200KA RMS SYM. Incoming: Bottom left/cable feed. Bussing: Plated ALBus/UL 891 heat rise. Section 2: Metering hot sequence. Utility:Pacific Gas & Electric Co UGPS/CT compliant. Section 3: Main over-current protection M1: Fixed mounted bolted pressure SW W/Class Lclips Square D type BP per UL 977 standards, 600A/3P. QM enclosuredata: Nema type 1 free standing reduced height all sections, StandardANSI 49. Section 1: 75" high x 42" wide x 19.5" deep. Section 2: 75"high x 42" wide x 27" deep. Section 3: 75" high x 36" wide x 27" deep.Accessibility: front and left sides.
USED: Square D custom power style QED switchboard. 600A, 208Y/120 VAC,3 ph, 4W, 60 hz, suitable for use as service entrance equipment.Section 1: Deadfront switchboard section short circuit current rating200KA RMS SYM. Incoming: Bottom left/cable feed. Bussing: Plated ALBus/UL 891 heat rise. Section 2: Metering hot sequence. Utility:Pacific Gas & Electric Co UGPS/CT compliant. Section 3: Main over-current protection M1: Fixed mounted bolted pressure SW W/Class Lclips Square D type BP per UL 977 standards, 600A/3P. QM enclosuredata: Nema type 1 free standing reduced height all sections, StandardANSI 49. Section 1: 75" high x 42" wide x 19.5" deep. Section 2: 75"high x 42" wide x 27" deep. Section 3: 75" high x 36" wide x 27" deep.Accessibility: front and left sides.
