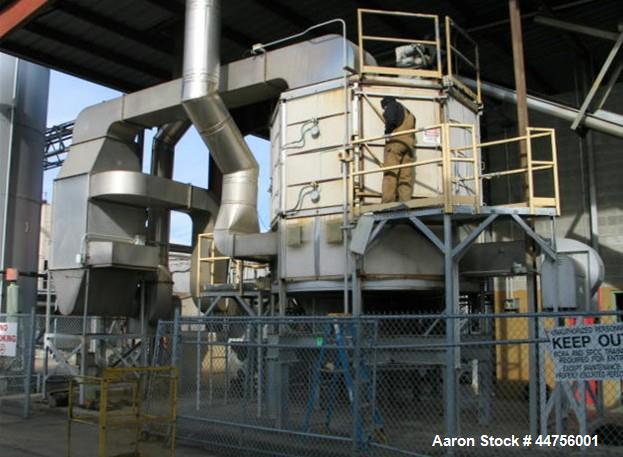

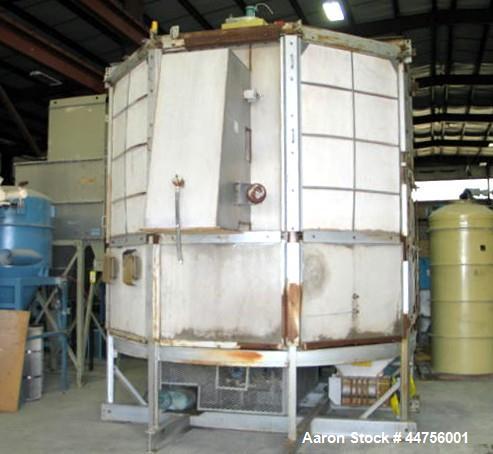

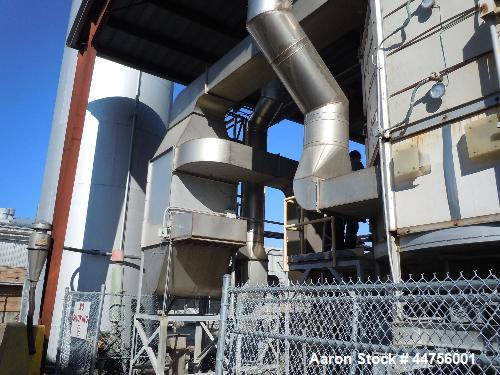

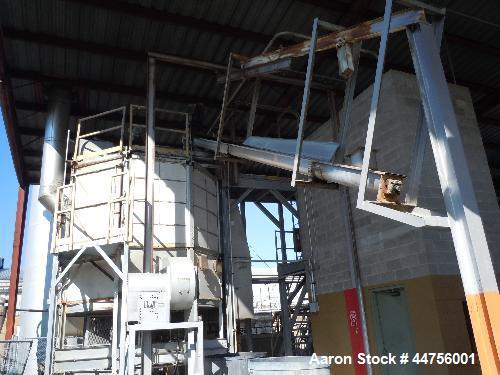

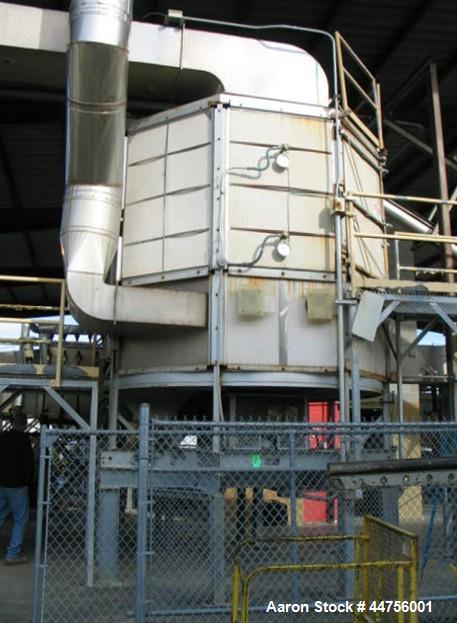

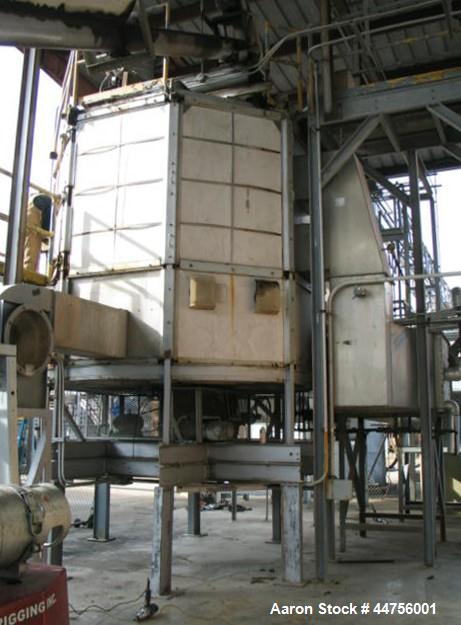

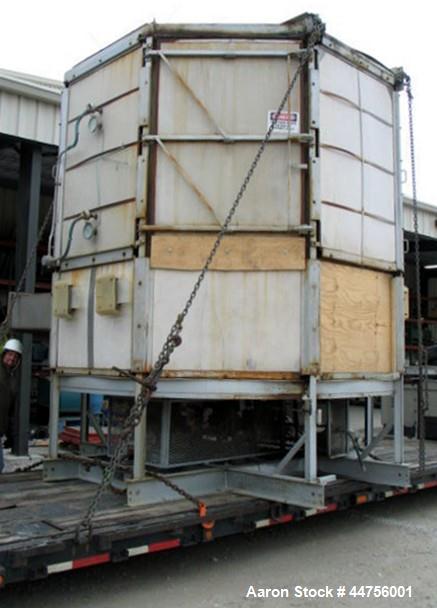

Used Wyssmont Turbo Dryer- Cooler Model OE-20. The main dryer is 316 stainless steel for normal material contact parts: trays, wipers, levelers, floor; and the rest of the dryer (the gas contact parts): inner walls, interior roof and all duct work is 304 stainless steel. External parts are carbon steel painted with "Steel It". Dryer has 16 shelves for drying and 4 shelves for cooling. Unit can be converted to an all rrying unit with no cooling if desired with modifications. Dryer is driven by a 3/4 hp variable speed tray drive and a 3 hp variable speed turbo fan drive. Basic dryer shipping dimensions are 13' 4-1/4" tall x approximately 11'8" wide depending on shipping orientation/firection. Dryer has a secondary and separately removable structural steel base that is 48" tall. Multiscrew Feeder: Wyssmont Model Msf-1554-173; 1 hp, 460 volt, 3 phase variable speed from 2.3 to 20 rpm. Stainless Steel. Discharge Airlock: Wyssmont Model Al-815; 1/2 hp, 230/460/3/60 rated up to 75 cfh with normal operating speed of 12 cfh. Stainless steel. Recirculation Fan: 7.5 Hp, 230/460/3/60 normally running at nominal 6400 acfm at 210F at 1056 rpm, belt driven. Stainless steel gas contact parts. Exhaust Fan: 5.0 Hp, 230/460/3/60, normally running at 5750 acfm at 140F at 1082 rpm. Stainless Steel Gas Contact Parts. Cooling Fan: 5.0 Hp, 230/460/3/60 Normally Running At 4400 Acfm At 70F At 1349 Rpm. Stainless Steel Gas Contact Parts. Steam Coil Package: Six Bank Steam Coil Package. Slide Out Coil Design. At Normal Operating Condition The Original Steam Consumption Was Estimated To Be 862 Lb/Hr At 150 Psig With A Max Design Limit Of 1240 Lb/Hr. Stainless Steel Gas Contact Parts. Heat Recuperator: Designed To Preheat The Incoming Drying Air With The Exhaust Air. Stainless Steel Construction. Built In 1987.
Used Wyssmont Turbo Dryer- Cooler Model OE-20. The main dryer is 316 stainless steel for normal material contact parts: trays, wipers, levelers, floor; and the rest of the dryer (the gas contact parts): inner walls, interior roof and all duct work is 304 stainless steel. External parts are carbon steel painted with "Steel It". Dryer has 16 shelves for drying and 4 shelves for cooling. Unit can be converted to an all rrying unit with no cooling if desired with modifications. Dryer is driven by a 3/4 hp variable speed tray drive and a 3 hp variable speed turbo fan drive. Basic dryer shipping dimensions are 13' 4-1/4" tall x approximately 11'8" wide depending on shipping orientation/firection. Dryer has a secondary and separately removable structural steel base that is 48" tall. Multiscrew Feeder: Wyssmont Model Msf-1554-173; 1 hp, 460 volt, 3 phase variable speed from 2.3 to 20 rpm. Stainless Steel. Discharge Airlock: Wyssmont Model Al-815; 1/2 hp, 230/460/3/60 rated up to 75 cfh with normal operating speed of 12 cfh. Stainless steel. Recirculation Fan: 7.5 Hp, 230/460/3/60 normally running at nominal 6400 acfm at 210F at 1056 rpm, belt driven. Stainless steel gas contact parts. Exhaust Fan: 5.0 Hp, 230/460/3/60, normally running at 5750 acfm at 140F at 1082 rpm. Stainless Steel Gas Contact Parts. Cooling Fan: 5.0 Hp, 230/460/3/60 Normally Running At 4400 Acfm At 70F At 1349 Rpm. Stainless Steel Gas Contact Parts. Steam Coil Package: Six Bank Steam Coil Package. Slide Out Coil Design. At Normal Operating Condition The Original Steam Consumption Was Estimated To Be 862 Lb/Hr At 150 Psig With A Max Design Limit Of 1240 Lb/Hr. Stainless Steel Gas Contact Parts. Heat Recuperator: Designed To Preheat The Incoming Drying Air With The Exhaust Air. Stainless Steel Construction. Built In 1987.
