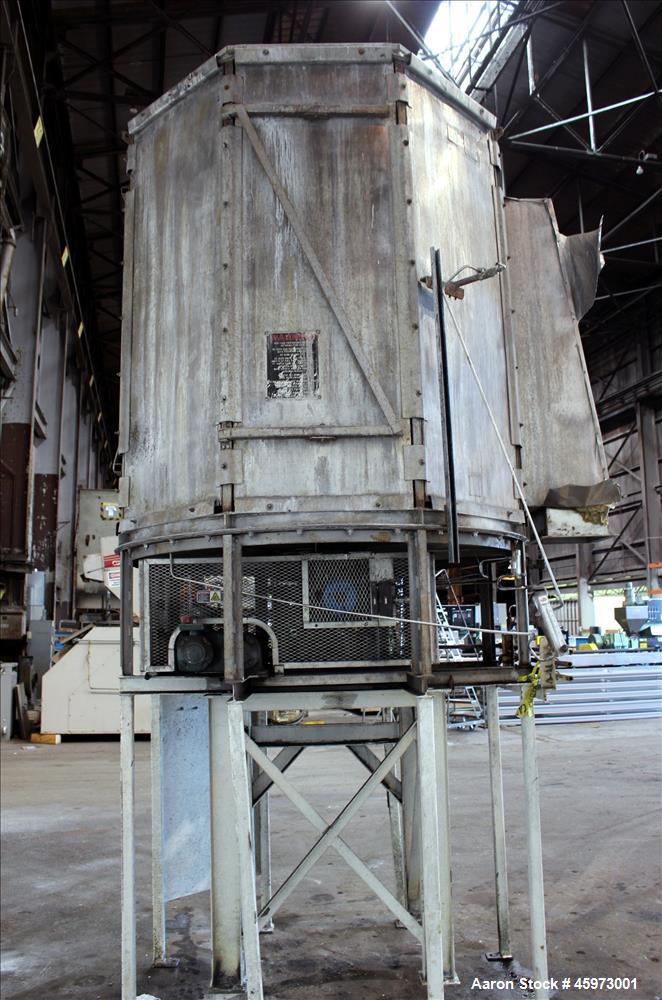

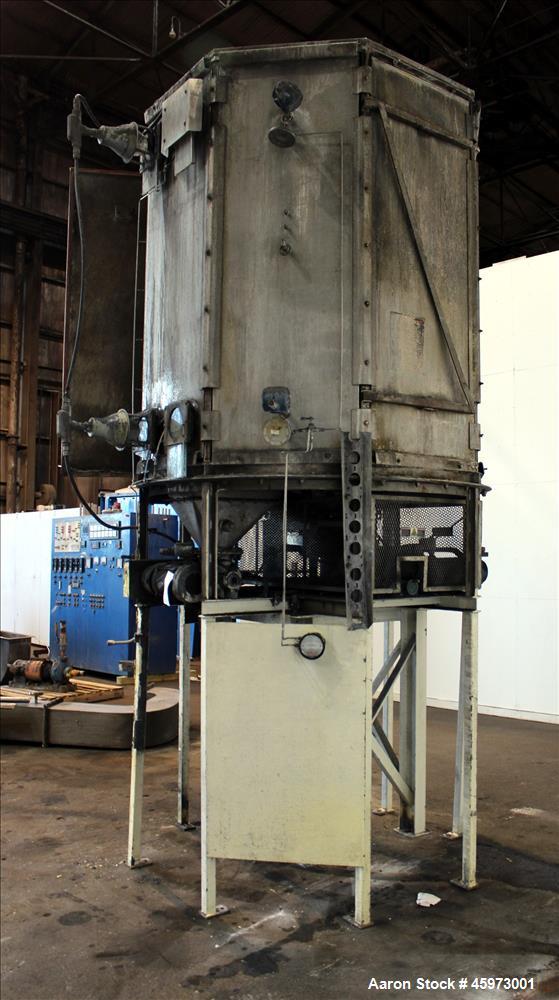

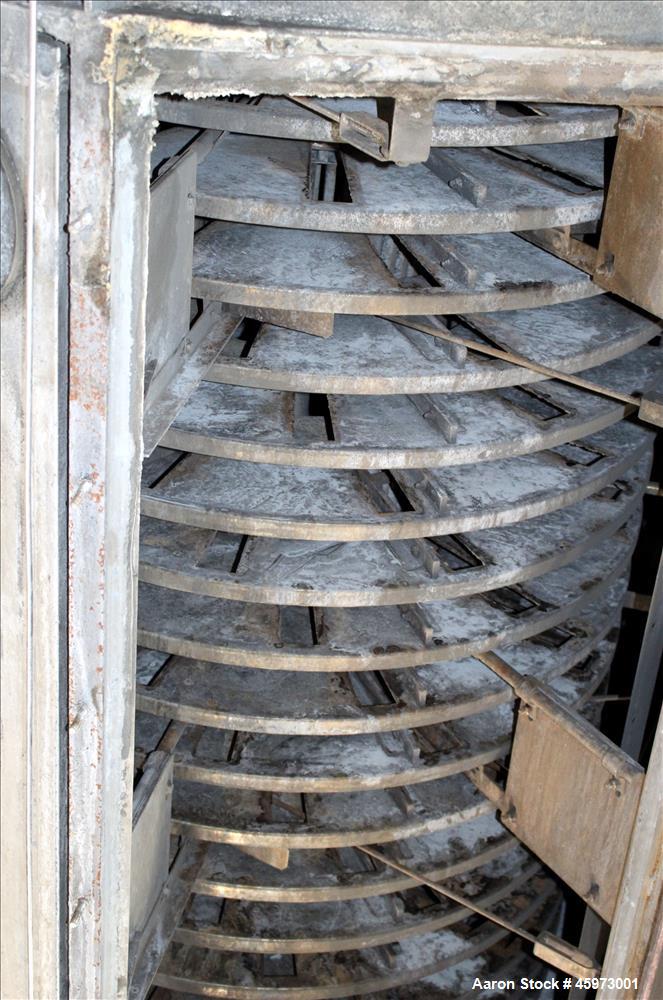

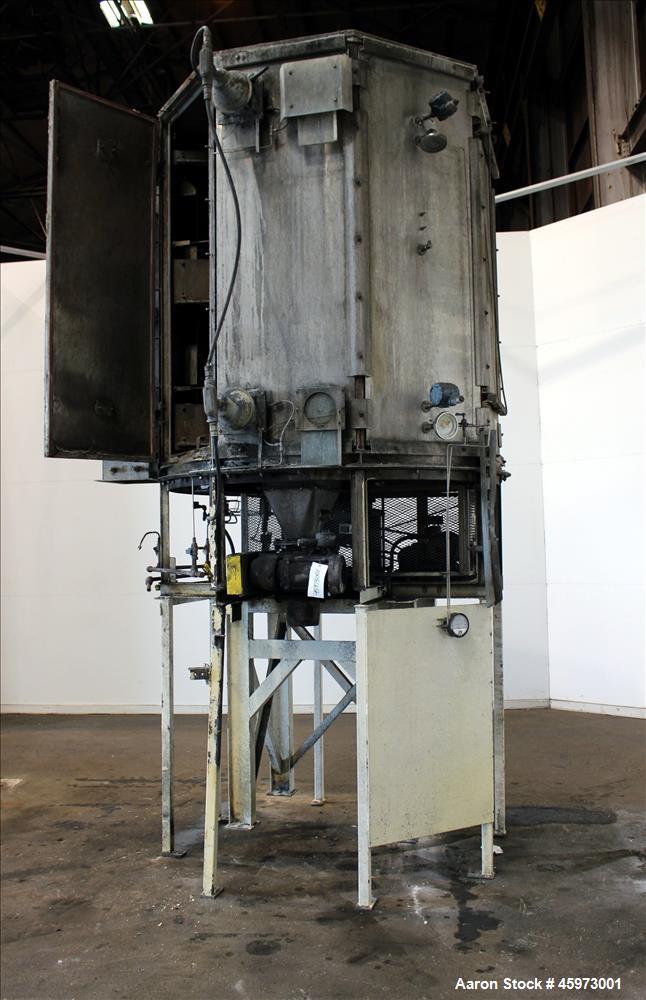

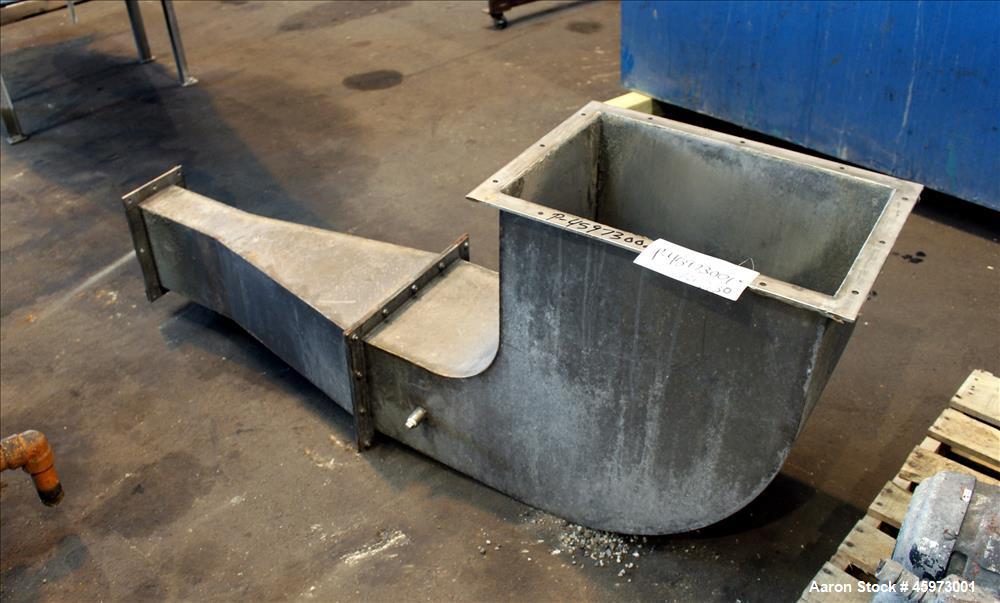

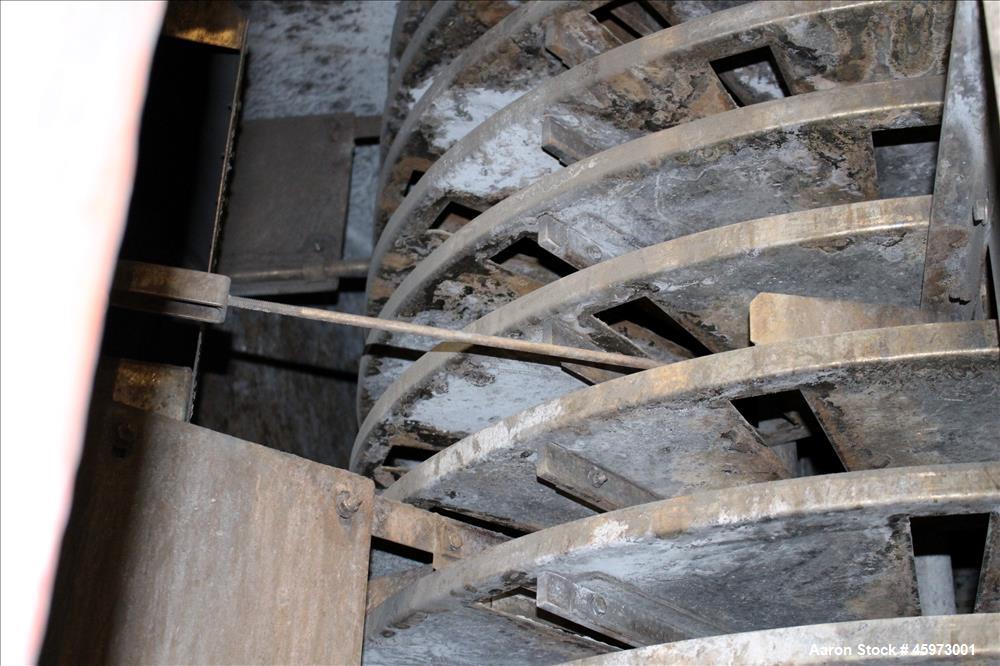

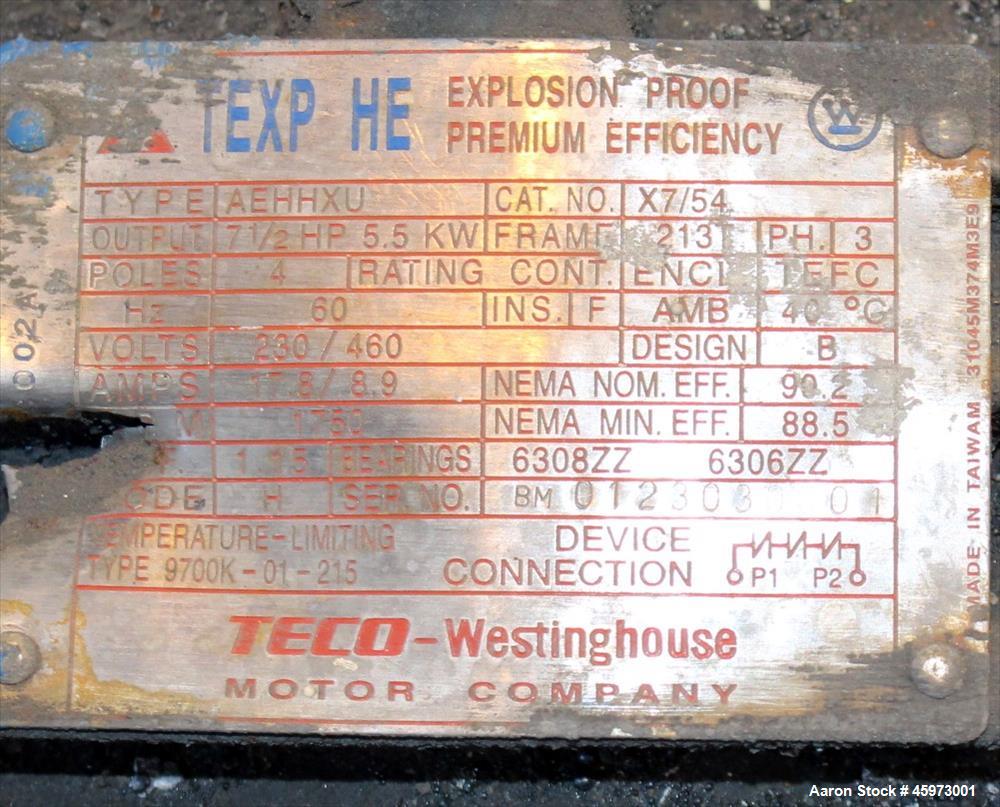

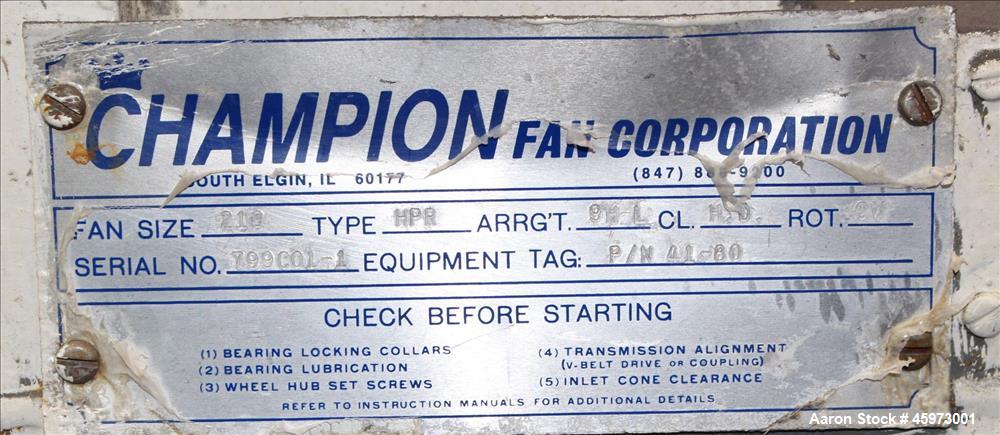

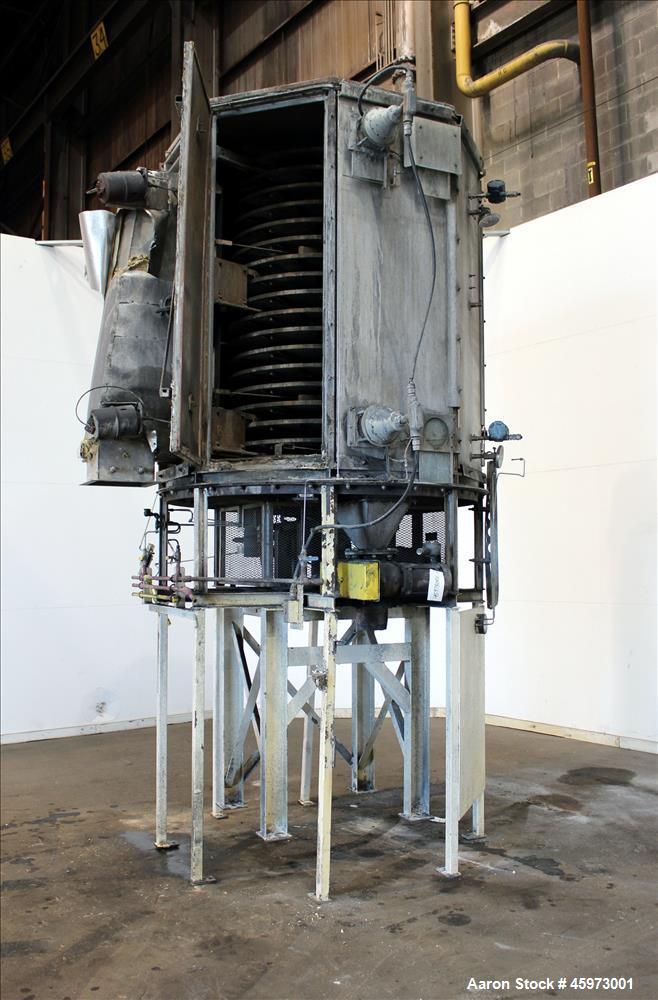

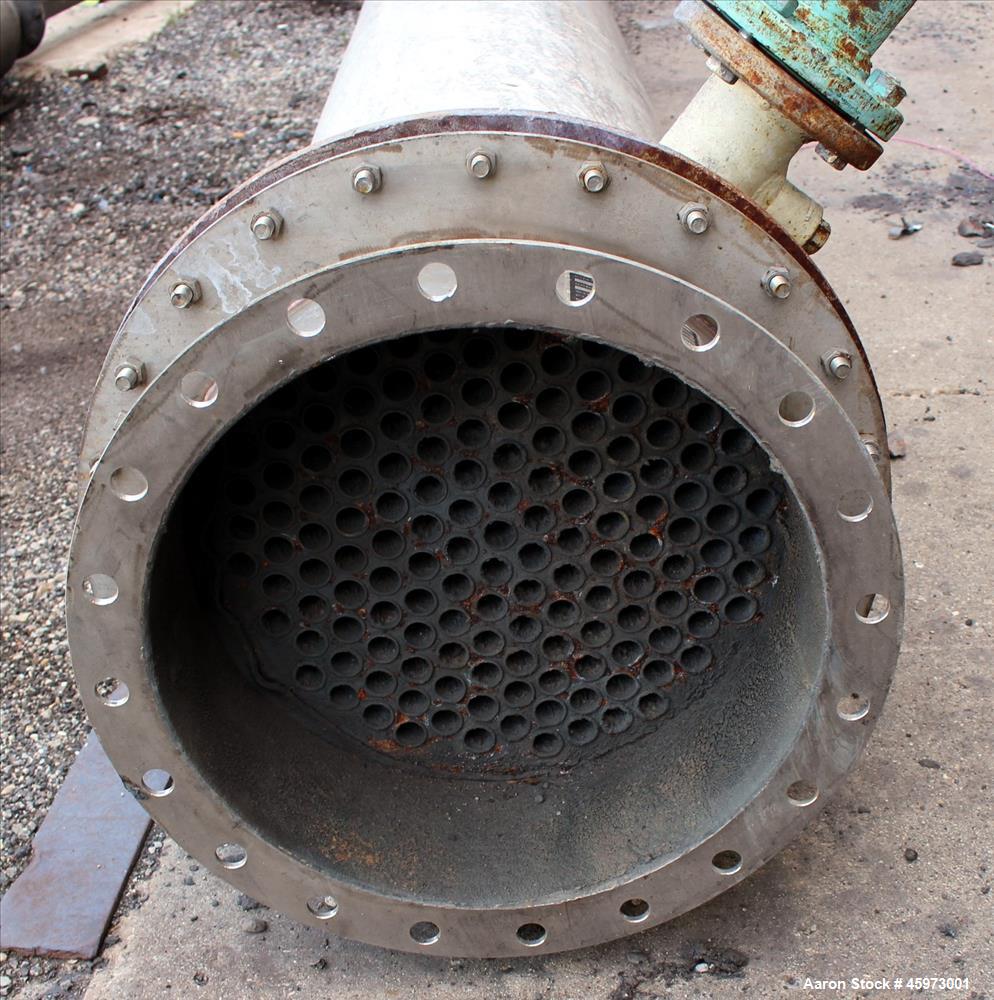

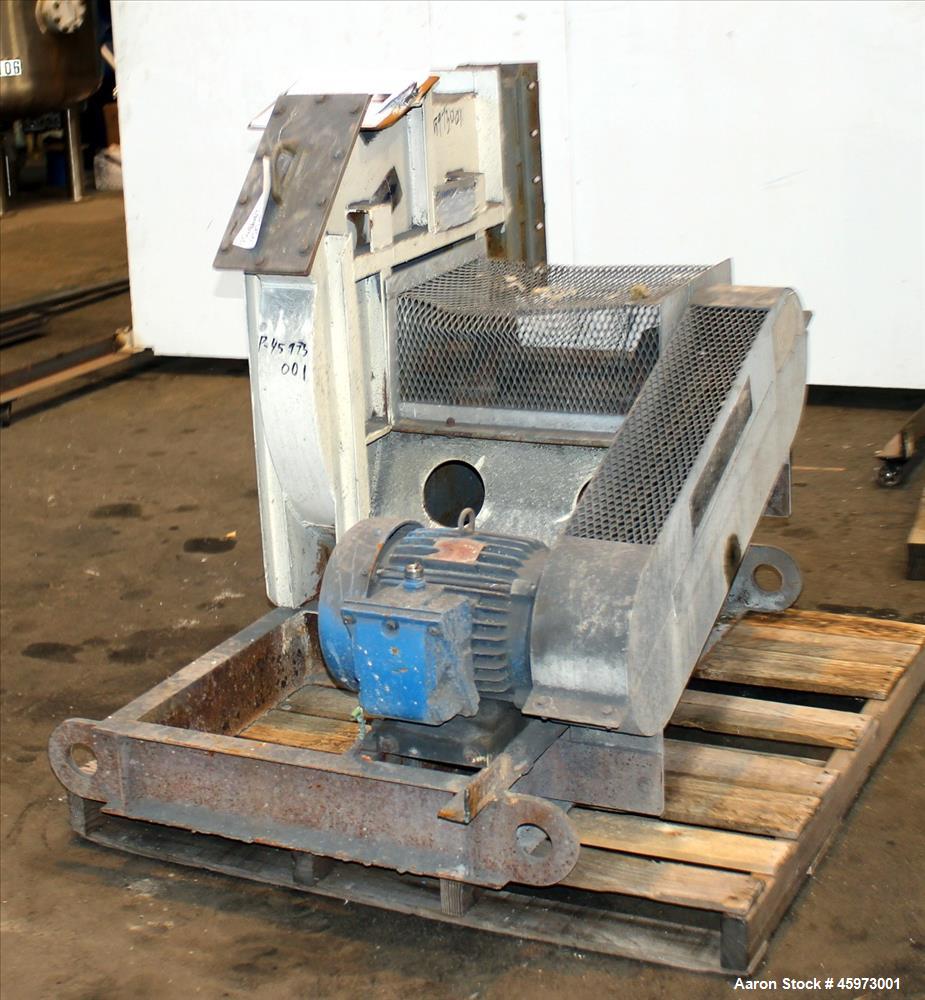

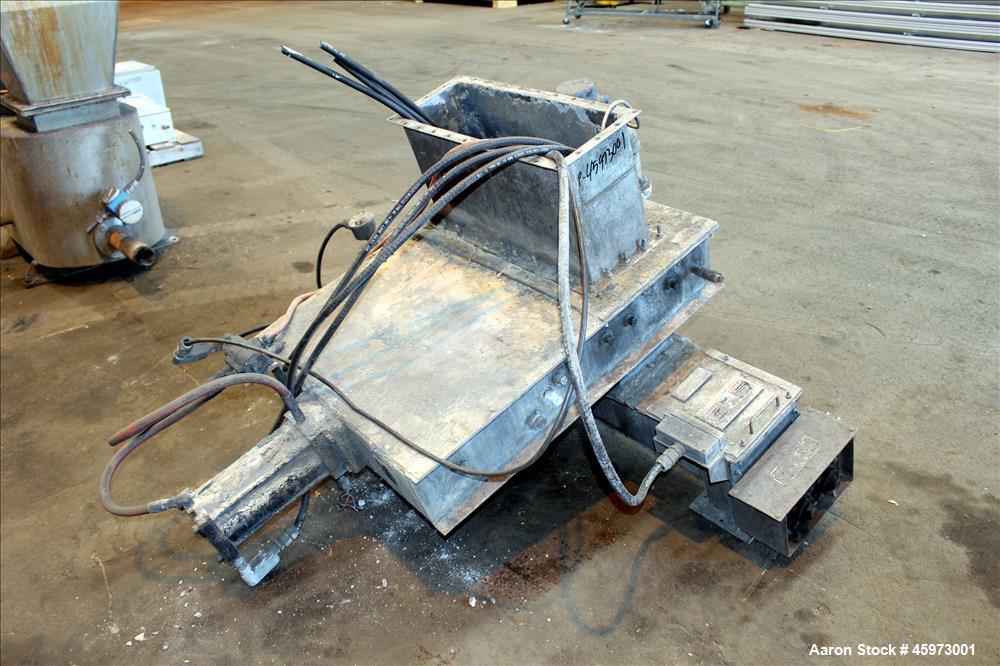

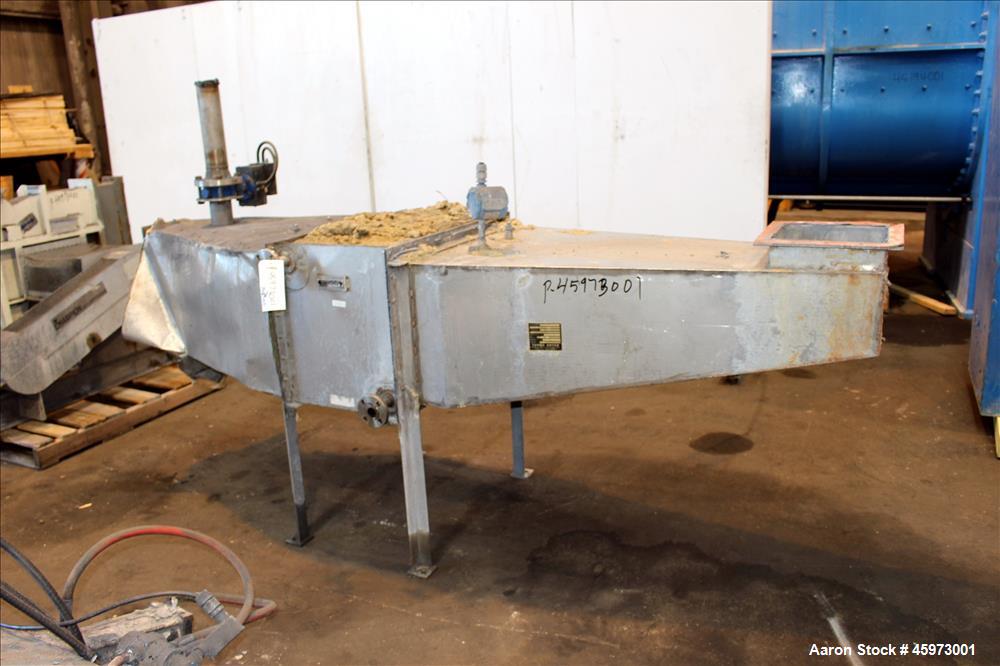

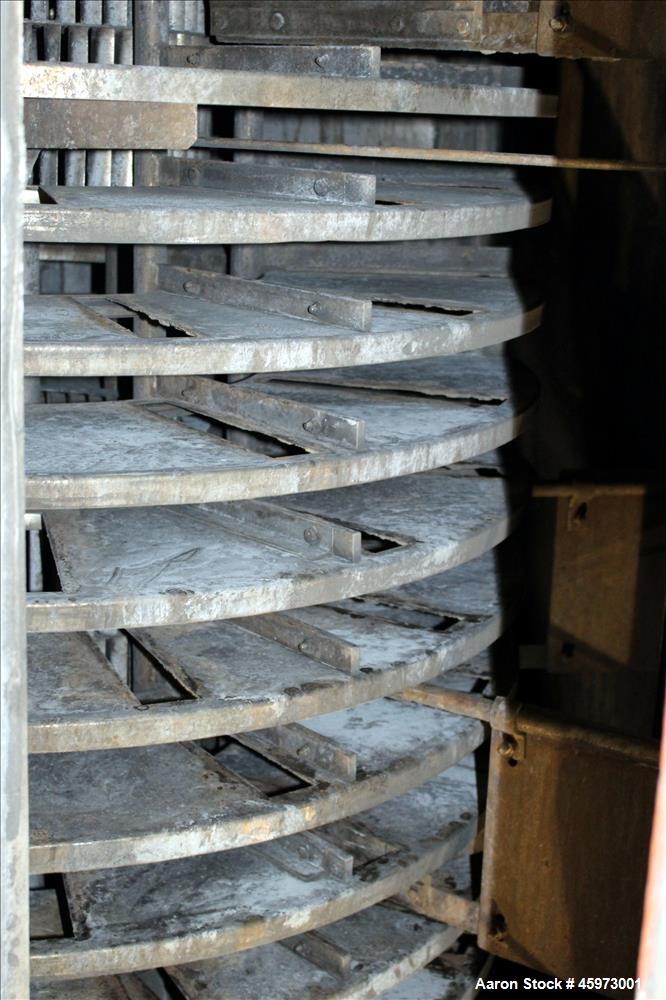

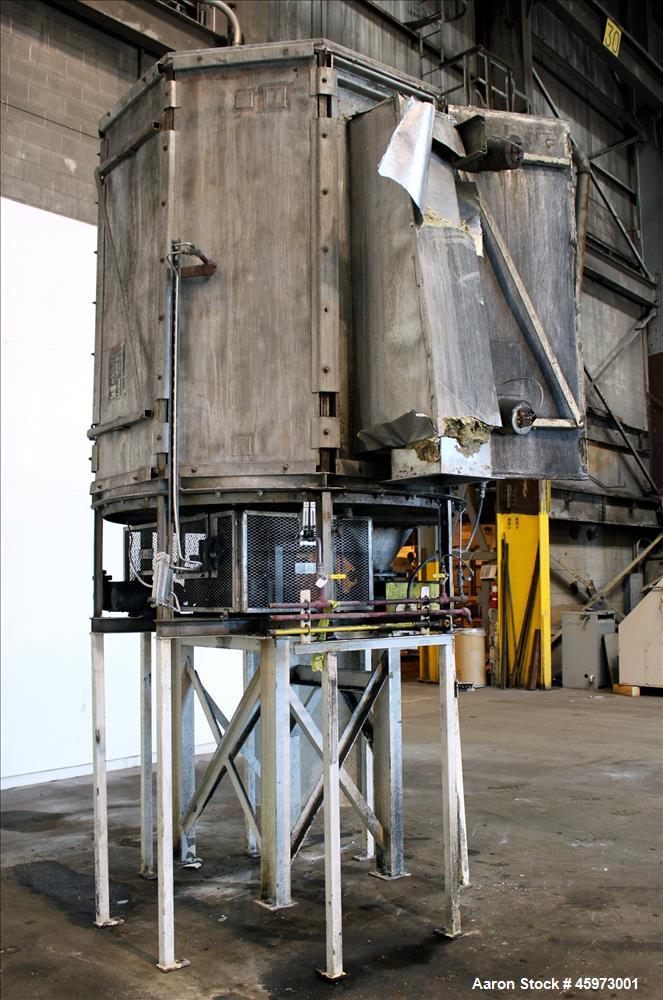

Used Wyssmont Turbo-Dryer, Model L-18, 304 Stainless Steel. Top inlet with hopper into a Wyssmont multiple screw feeder, Model MSF-836, (2) 4" diameter x approximate 36" long screws, approximate capacity 2 to 20 cubic feet an hour, driven by a 1/2 hp variable speed gear motor, 1.6 to 16 rpm range. (18) Approximate 12" wide trays, wiper and leveling assemblies. Trays driven by a 1/2 hp variable speed gear motor, tray speed range 0.08 to 0.8 rpm. (1) Turbo fan assembly with (3) turbo fans, driven by a 1/2 hp gear motor, approximate 150 rpm. Off center bottom discharge with chute into a Rotlok 6" rotary valve, driven by a 1/2 hp gear motor, approximate capacity at 22 rpm is 80 cubic feet an hour. (1) Champion Fan recycle blower, size 210. Designed for 1421 ACFM at 17" S.P. at 2736 rpm at 65 degrees F. Driven by a 7.5 hp motor. (1) Mist eliminator, (1) air heater. Top air exhaust outlet with (1) Airecon cyclone, Model T2/1, Size 8, (1) Condensor. Last drying Zinc Powder. Wet feed 777 pounds per hour, water 10%, layer depth 1", dry product 700 pounds per hour at 0.1% maximum, evaporation 77 pounds per hour. Entrainer flow to dryer 1700 acfm at 300 degrees F, exhaust flow from dryer 5 acfm at 210 degrees F. Serial# J161-MER-B01033. Built 2001.
