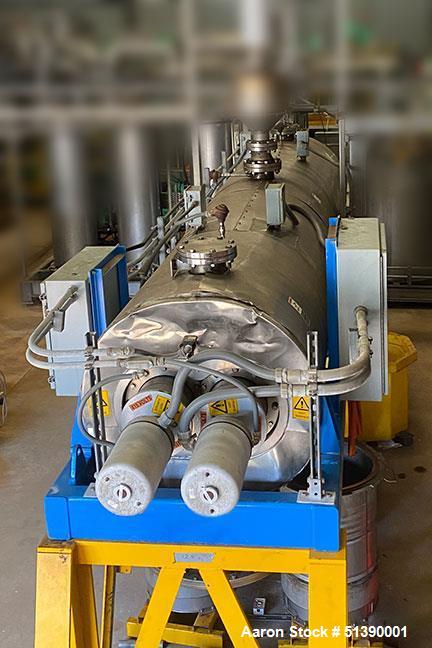

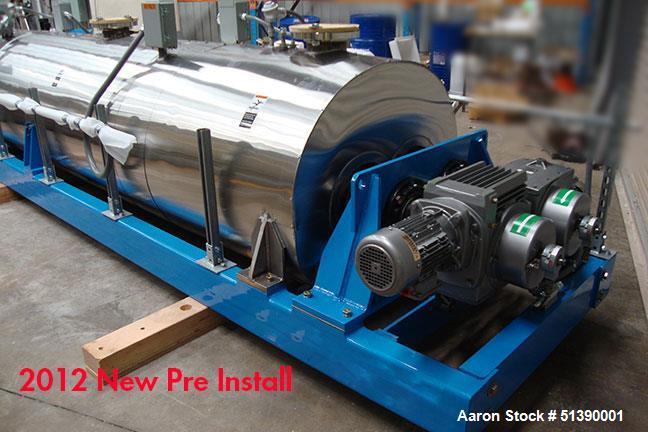

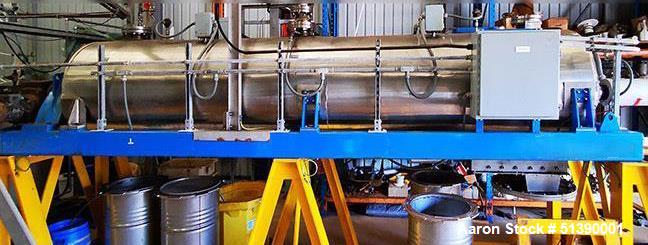

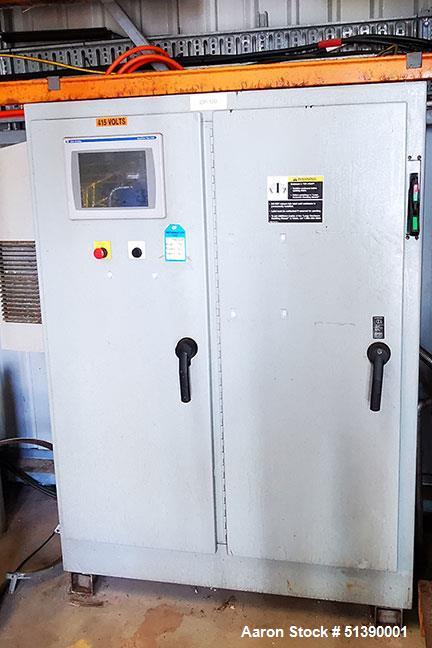

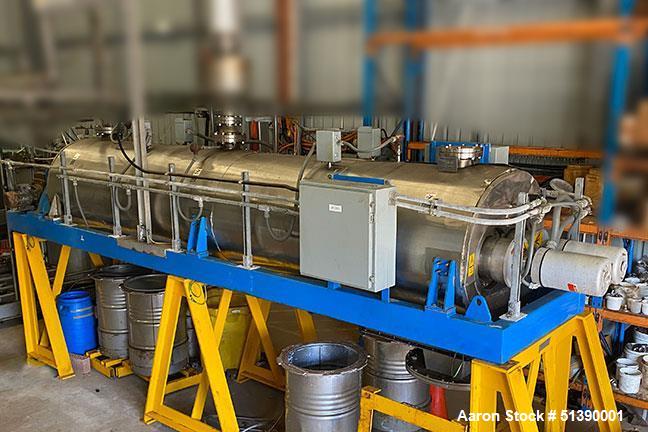

Used Therma-Flite, Model ESD 14D-16-3 Electrically Heated, Twin Screw Conveyor. With electrical resistance heaters in the housing and augers. Typically used for indirect heating, drying, calcining, or pyrolyzing of solids, sludges and slurries in a continuous flow method. The unit incorporates multiple ports along the top can be utilized to capture volatile distillates. This unit includes several premium add-ons, including zoned heating for independent heating control along the rotor and housing. The retention time in the unit, and rate of mixing are adjustable through the HMI. There are more than a dozen TCs along with Pressure transmitters and other sensors. It incorporates independent closed loop drives for self-cleaning and clearing when processing materials that are sticky or tend to bake onto the heat transfer surfaces. The unit includes the control panel with PLC, HMI, VFD motor, and SCR heater controllers. Design Specs: Twin 14" augers, 16' in length with a 3" pitch. 150kW heaters with a maximum thermal temperature at the heating elements of 1600 degree F. Process temperatures vary based on feed. Nominal 900 degree F 1350 degree F, Design voltage: 415V/3Ph/50Hz specifications for conversion to 480V/3Ph/60Hz. Nominal process chamber pressure 10" to 15" WC. MOC for process chamber 304SS, 3 HP closed loop independent drive motors on each rotor. The unit incorporates independent variable frequency drives. The unit saw minimal use in a pilot program to heat inorganic materials at the 900 degree F to 1000 degree F temperature range. The equipment ships with the O&M manual, certified inspection report, general arrangement, and electrical power distribution drawings. Shipping: Equipment is fitted securely into a 40' shipping container. Shipping Weight is less than 30,000 pounds.
Used Therma-Flite, Model ESD 14D-16-3 Electrically Heated, Twin Screw Conveyor. With electrical resistance heaters in the housing and augers. Typically used for indirect heating, drying, calcining, or pyrolyzing of solids, sludges and slurries in a continuous flow method. The unit incorporates multiple ports along the top can be utilized to capture volatile distillates. This unit includes several premium add-ons, including zoned heating for independent heating control along the rotor and housing. The retention time in the unit, and rate of mixing are adjustable through the HMI. There are more than a dozen TCs along with Pressure transmitters and other sensors. It incorporates independent closed loop drives for self-cleaning and clearing when processing materials that are sticky or tend to bake onto the heat transfer surfaces. The unit includes the control panel with PLC, HMI, VFD motor, and SCR heater controllers. Design Specs: Twin 14" augers, 16' in length with a 3" pitch. 150kW heaters with a maximum thermal temperature at the heating elements of 1600 degree F. Process temperatures vary based on feed. Nominal 900 degree F 1350 degree F, Design voltage: 415V/3Ph/50Hz specifications for conversion to 480V/3Ph/60Hz. Nominal process chamber pressure 10" to 15" WC. MOC for process chamber 304SS, 3 HP closed loop independent drive motors on each rotor. The unit incorporates independent variable frequency drives. The unit saw minimal use in a pilot program to heat inorganic materials at the 900 degree F to 1000 degree F temperature range. The equipment ships with the O&M manual, certified inspection report, general arrangement, and electrical power distribution drawings. Shipping: Equipment is fitted securely into a 40' shipping container. Shipping Weight is less than 30,000 pounds.
