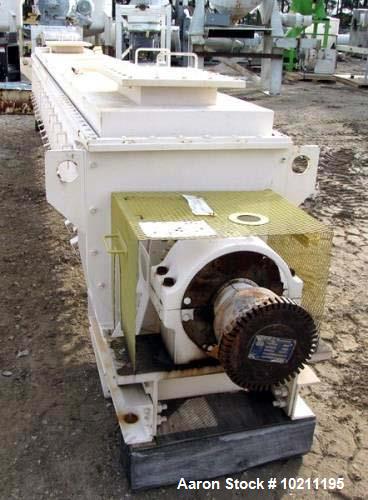

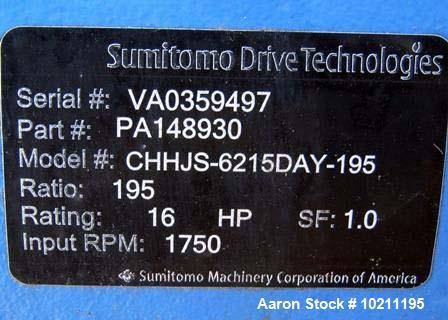

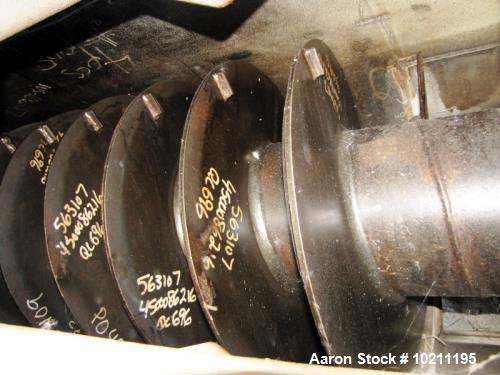

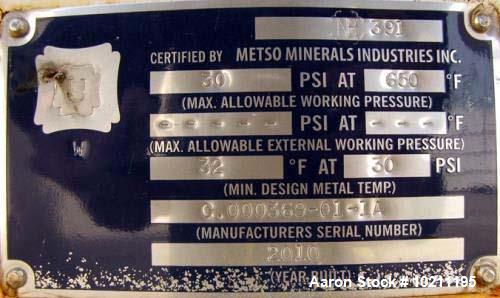

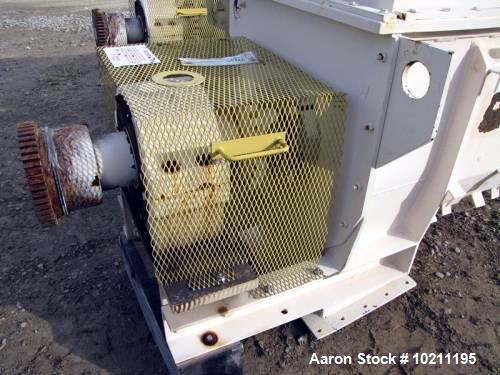

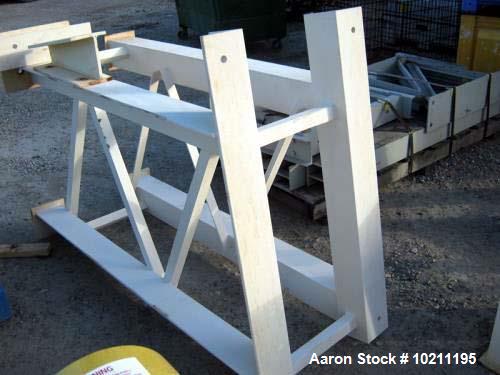

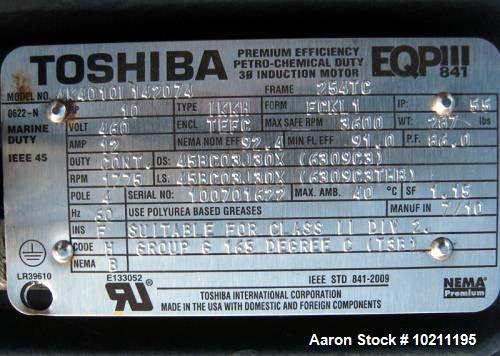

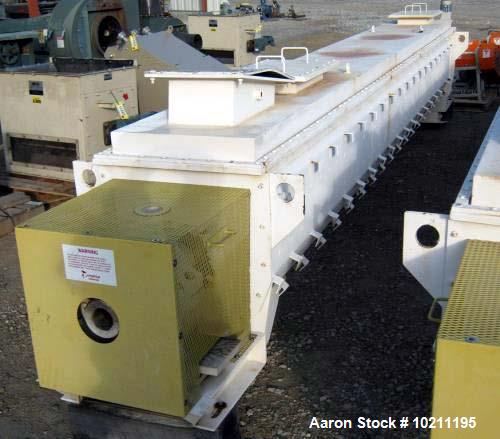

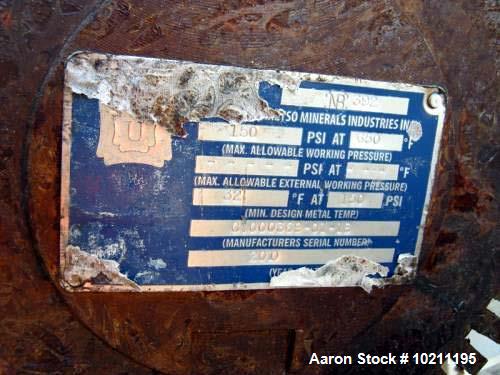

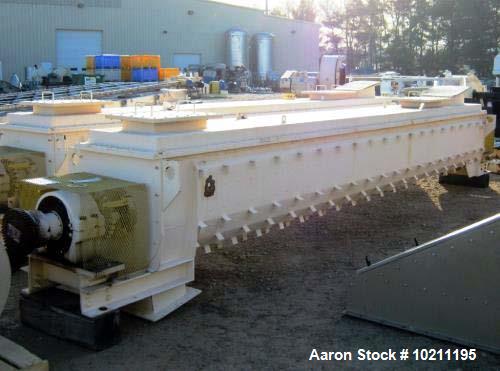

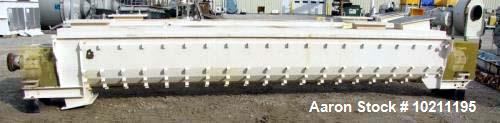

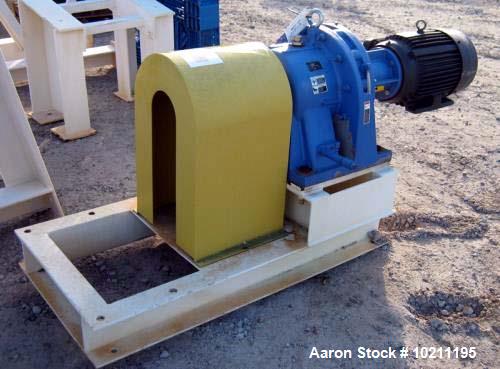

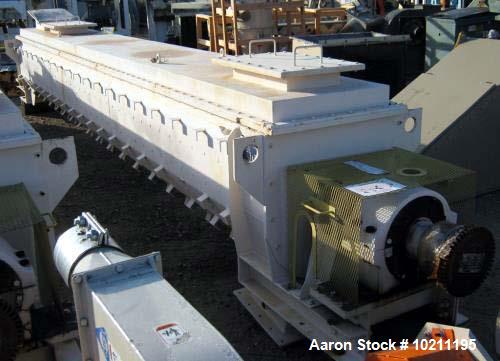

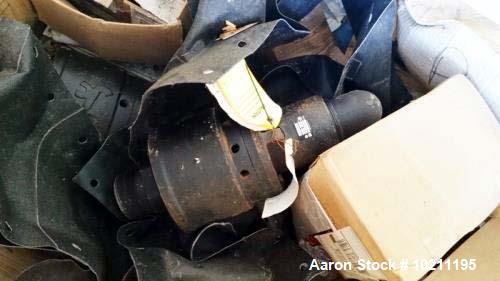

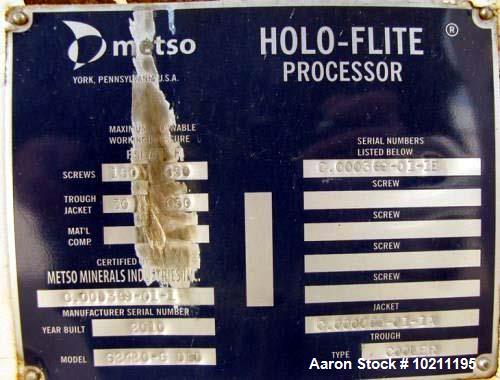

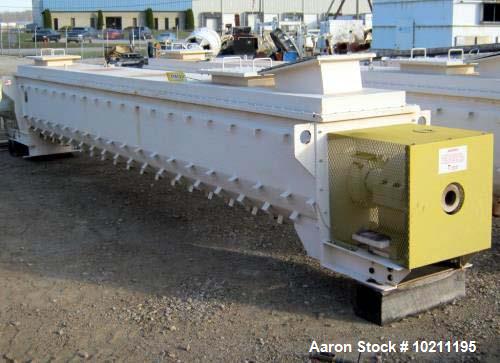

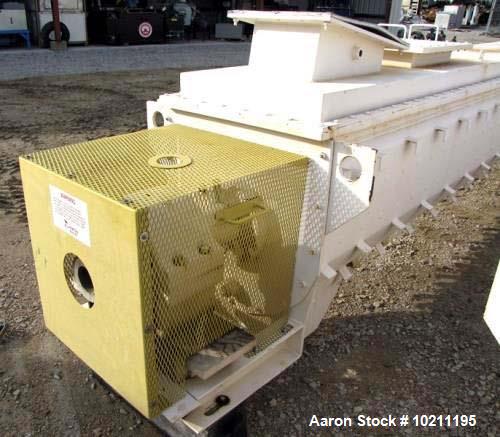

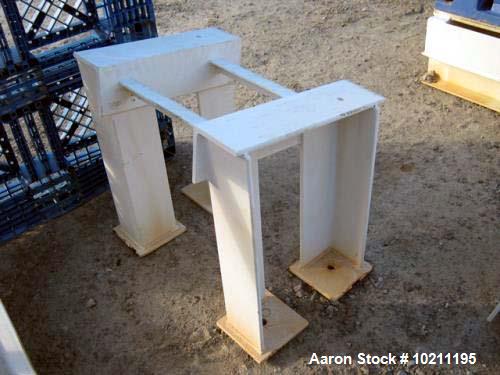

Unused- Metso Minerals Holo-Flite Cooler Jacketed Thermal Processor, Model S2420-6-DED. Mild steel SA 516 grade 70 material contact parts. 24" screw x 20' long is rated for 150 psi at 650 degrees F. 6" pitch on screws. Mixing lugs are welded to face flight, (3) lugs per pitch for entire screw length. Jacket is rated for 30 psi at 650 degrees F. Trough jacket includes insulation angle clips. 10 hp Toshiba motor, 1775 rpm, 460 volt, 254 tc frame. Sumitomo in-line gear reducer, 195:1 ratio. Direct drive. Structural steel supports, one at each end of the holo-flight for and inclination of 10 degrees with the material discharge end upward. Designed for liquid coolant heat transfer medium. Designed to cool granular organic solids (45 pcf) from 185 degrees F down to 77 degrees F at a rate of 8,000 lbs. / hour. 253 square ft. of screw area. 96 square ft. of jacket area. Trough volume equals 40 cubic ft. 132 gallons of screw fluid volume. 58 gallons of jacket fluid volume. 3" kadant rotary joint. Screw speen equals 5.7 rpm. 23.1 minutes of residence time. Cover includes (2) 12" x 20" raised inspection covers, 20-7/8" x 25" inlet. 12" x 20" outlet. Mfg. 2010.
