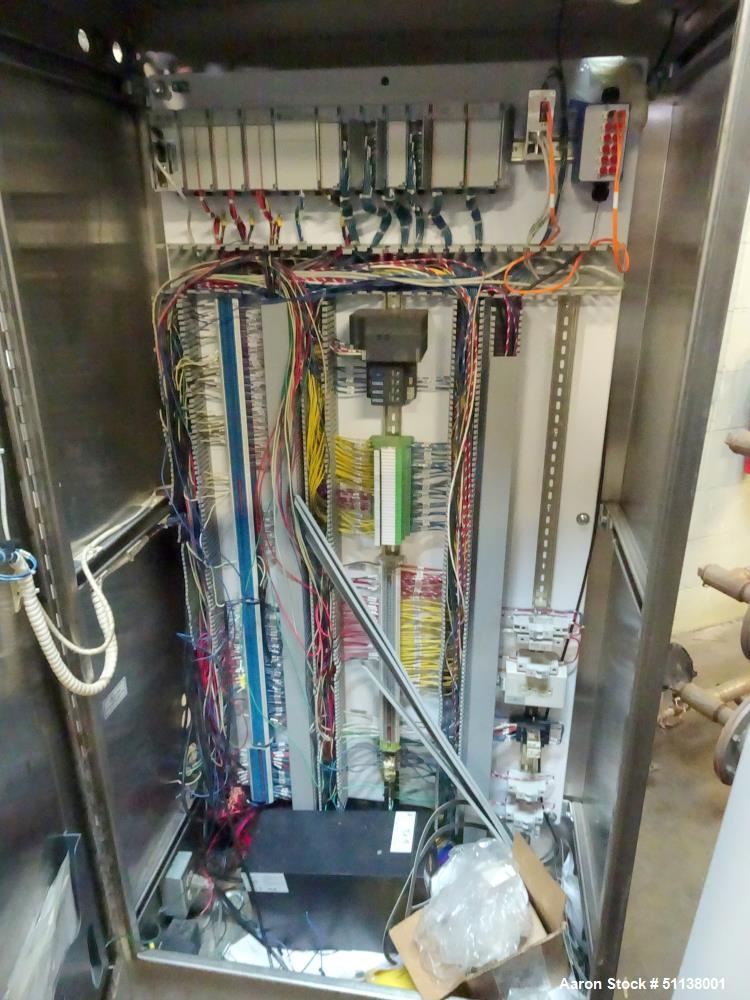

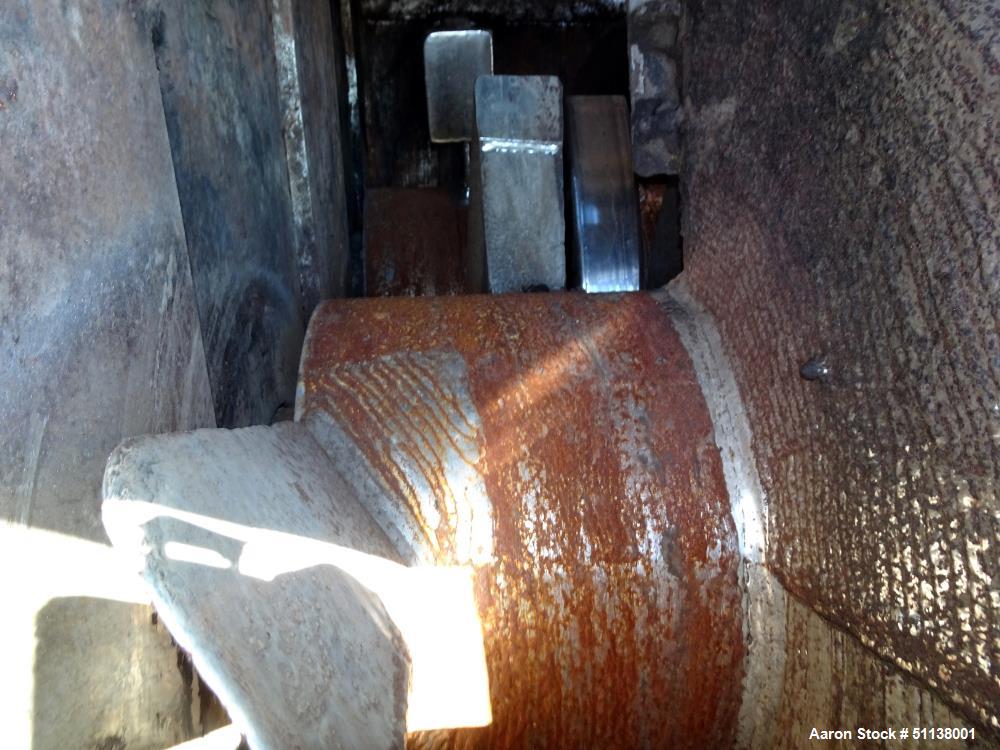

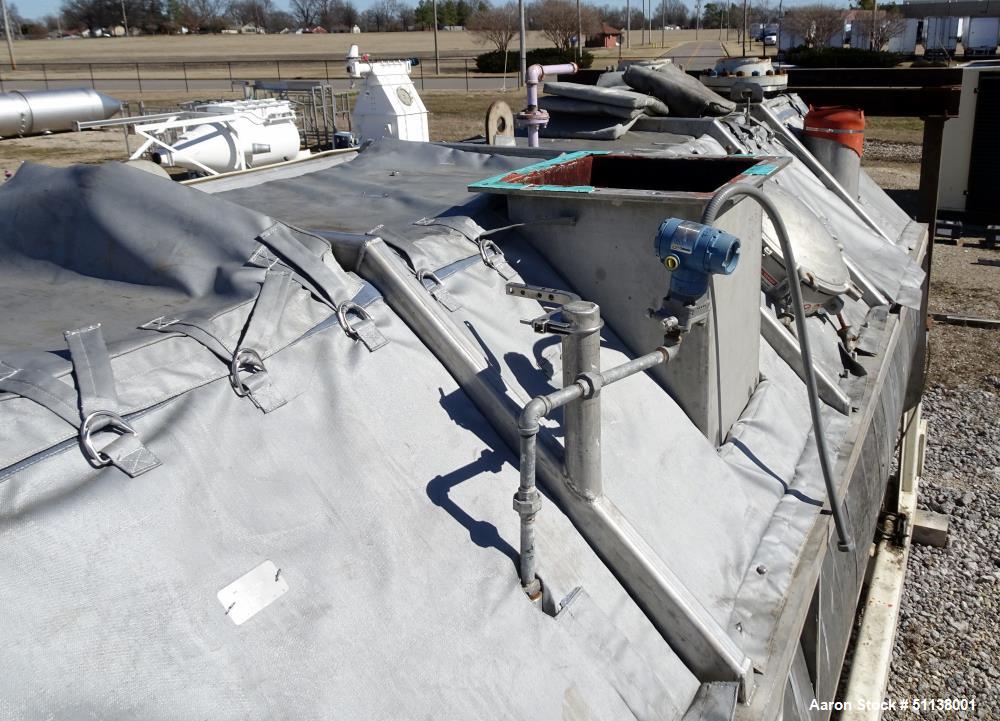

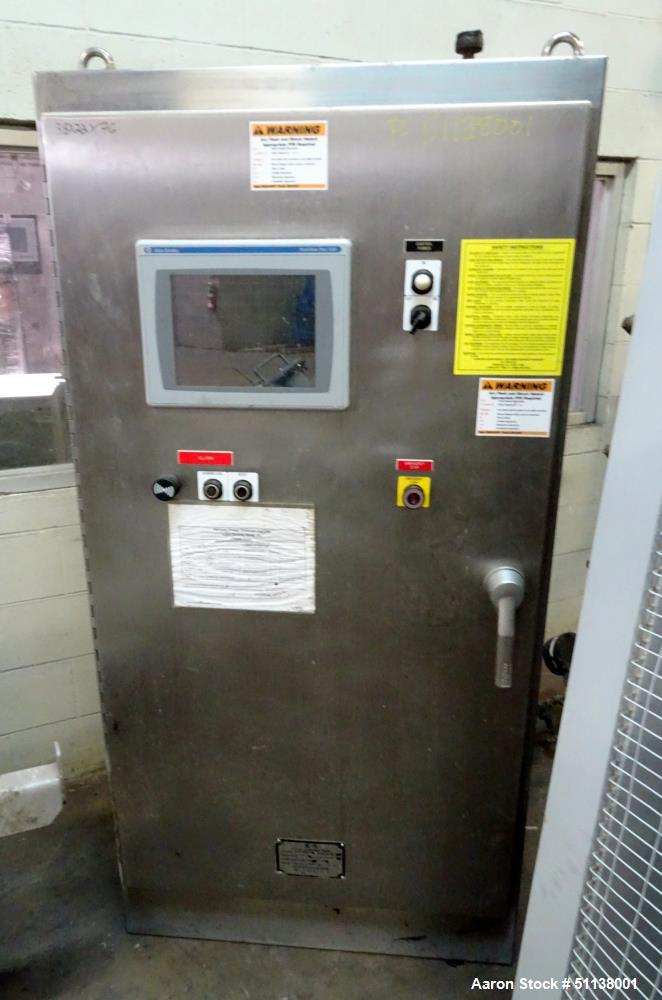

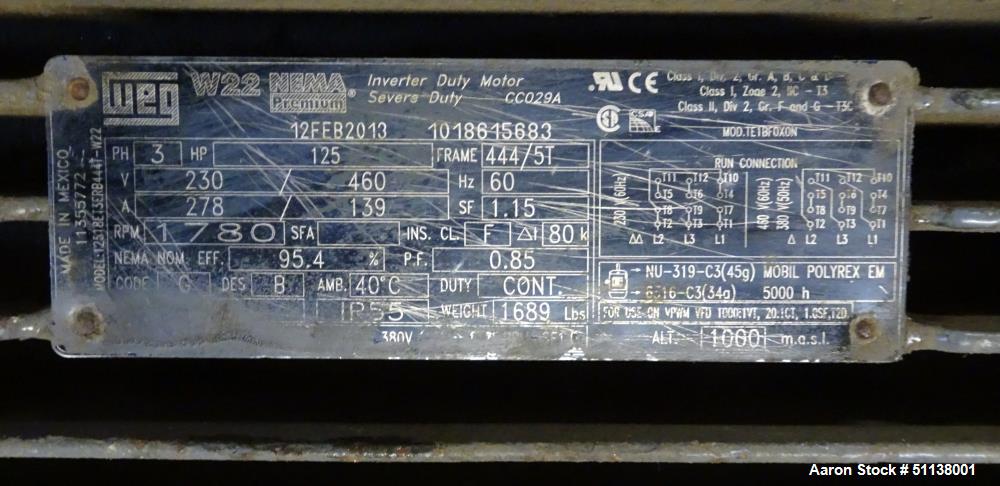

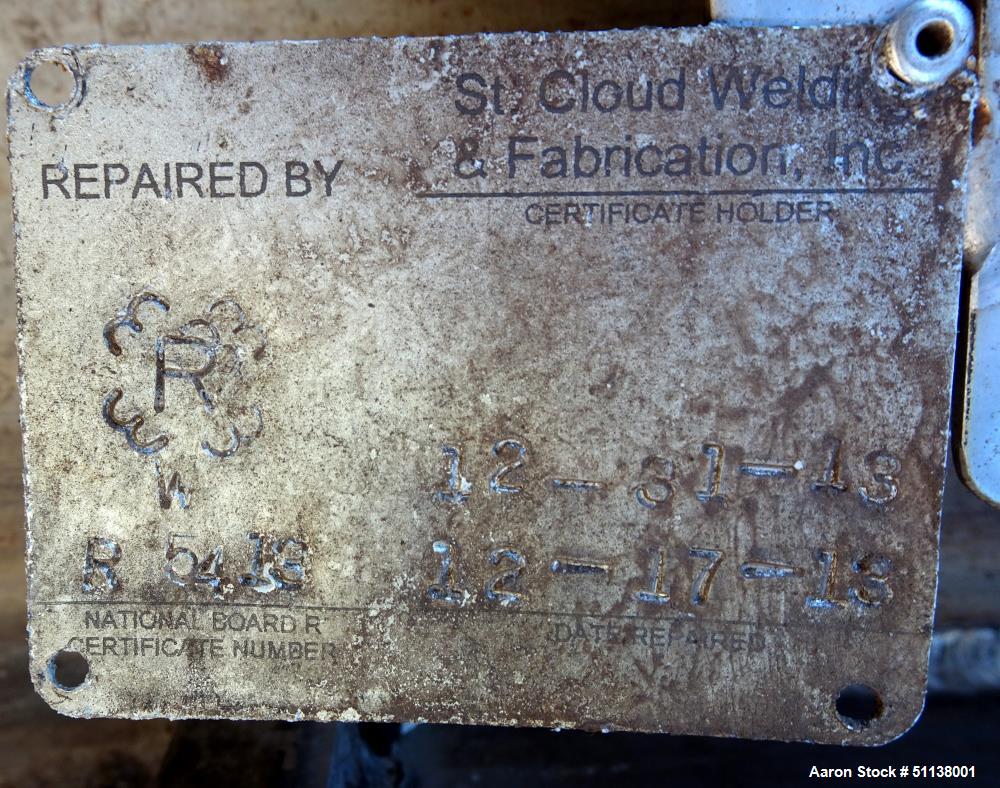

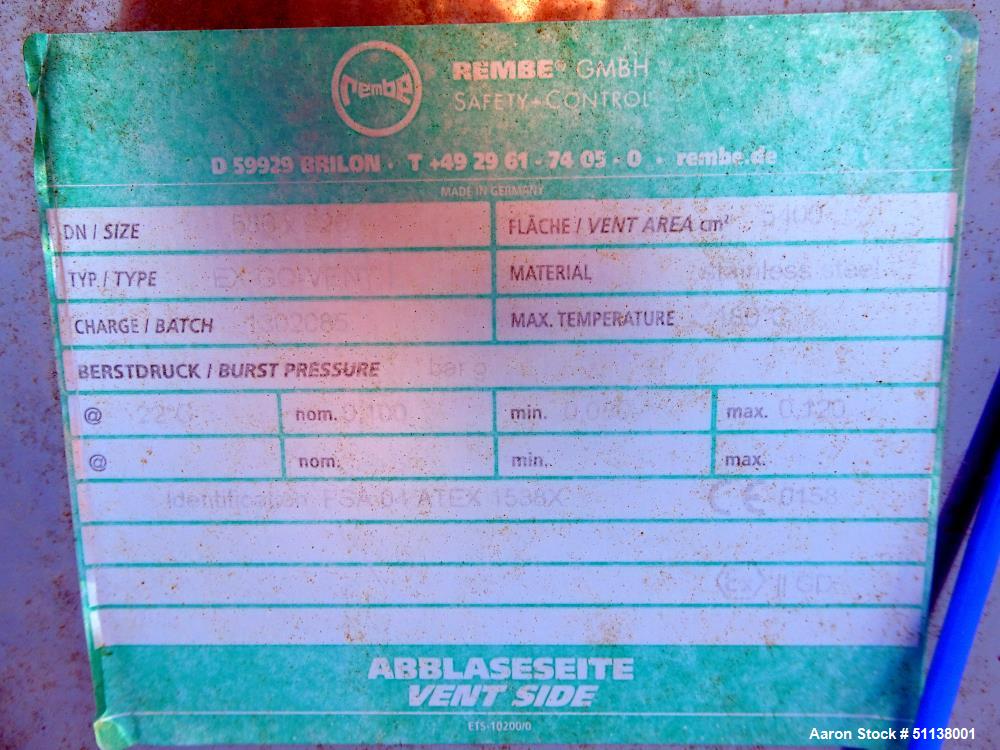

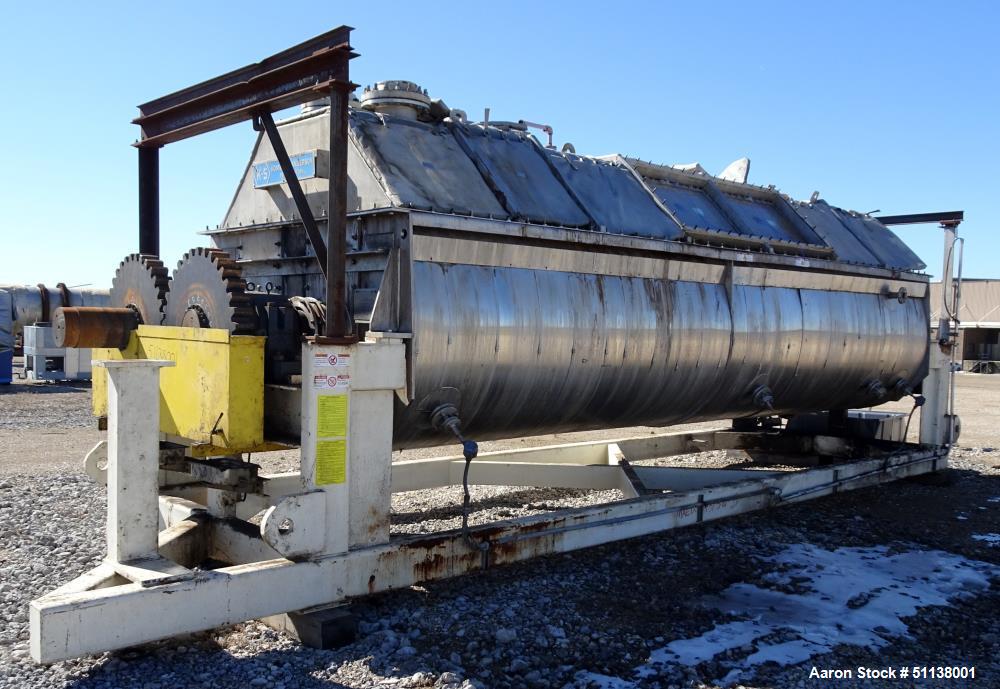

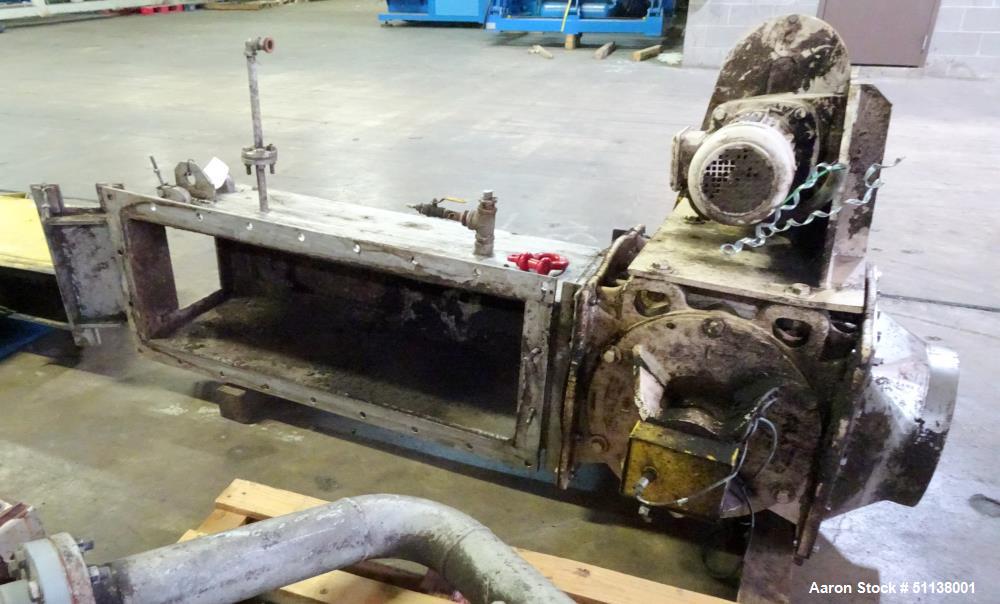

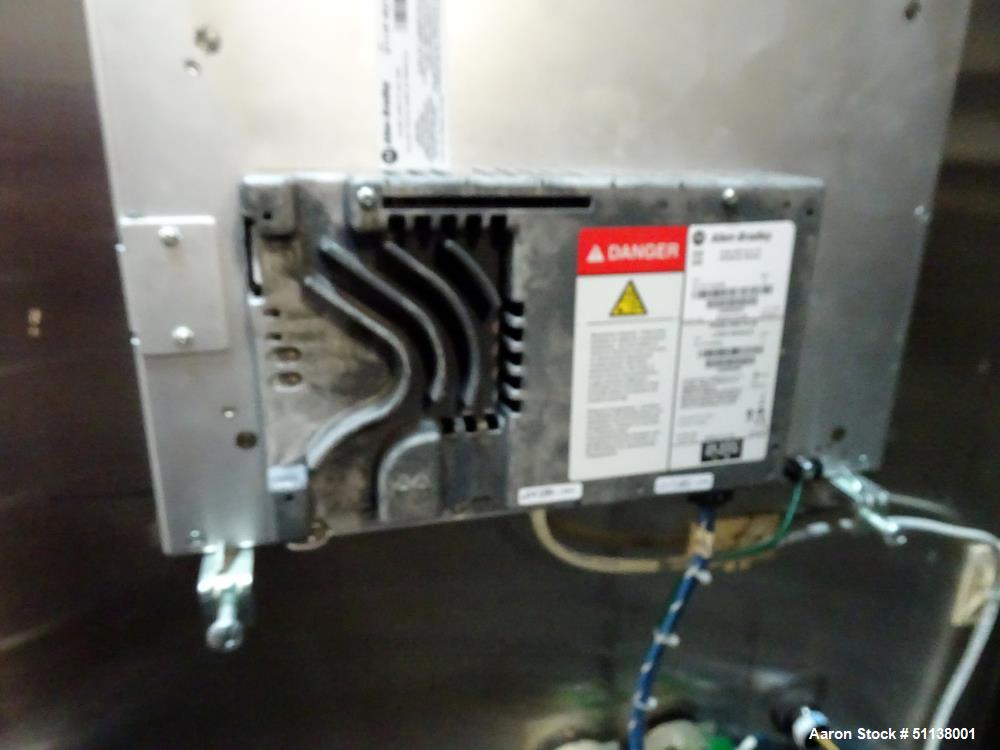

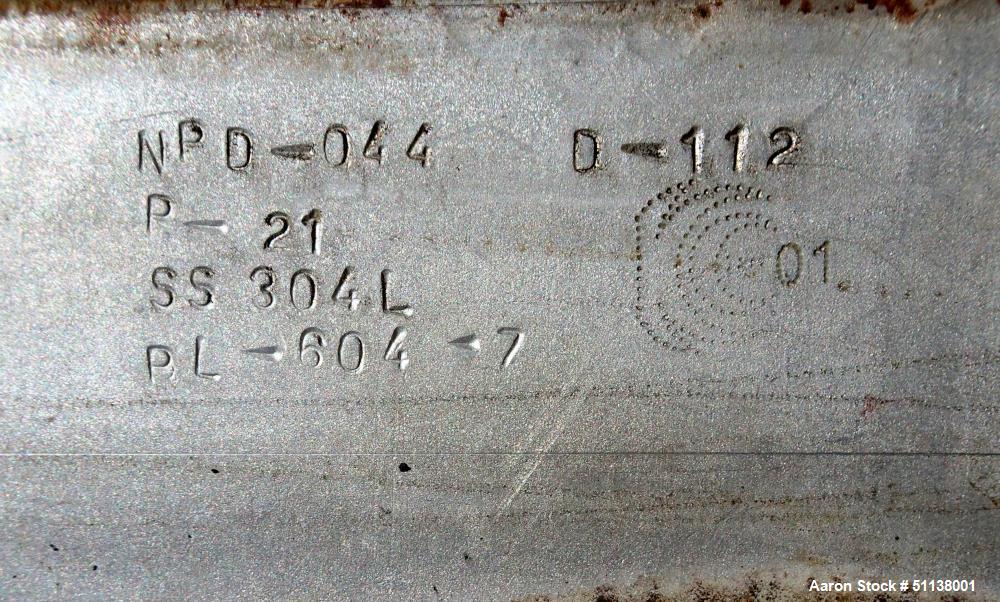

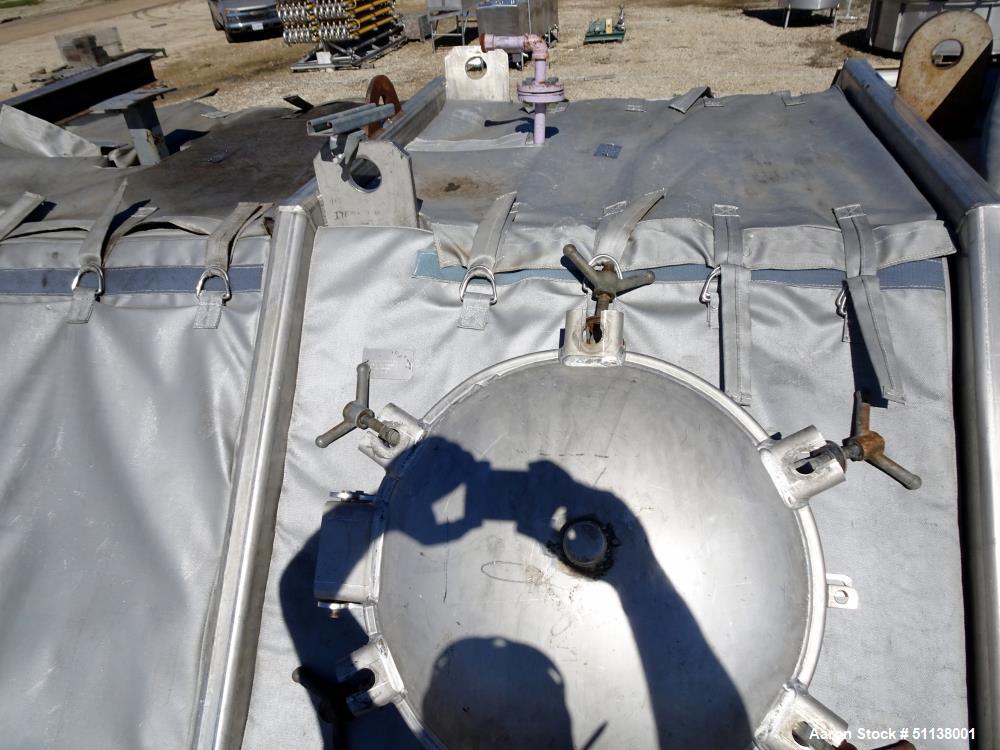

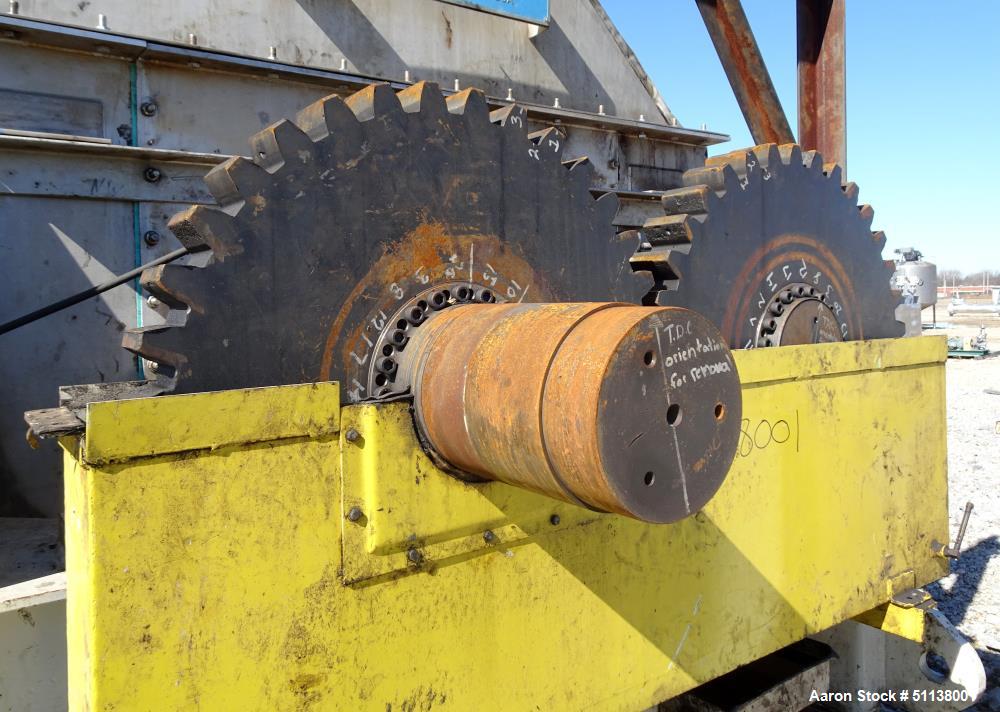

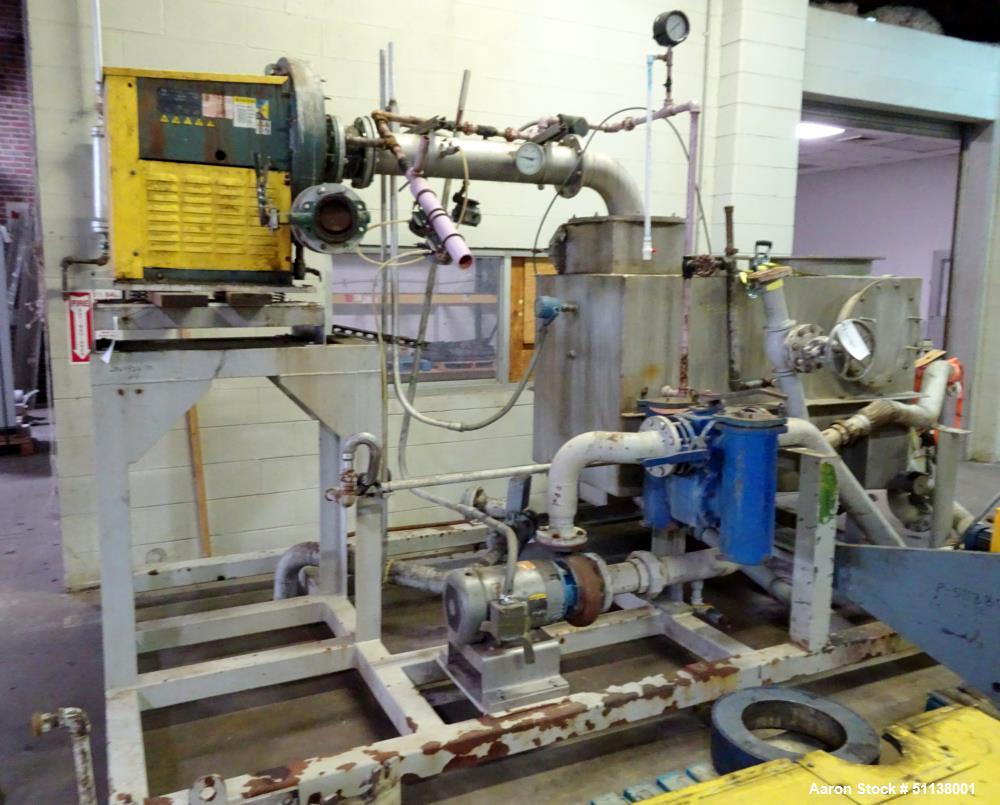

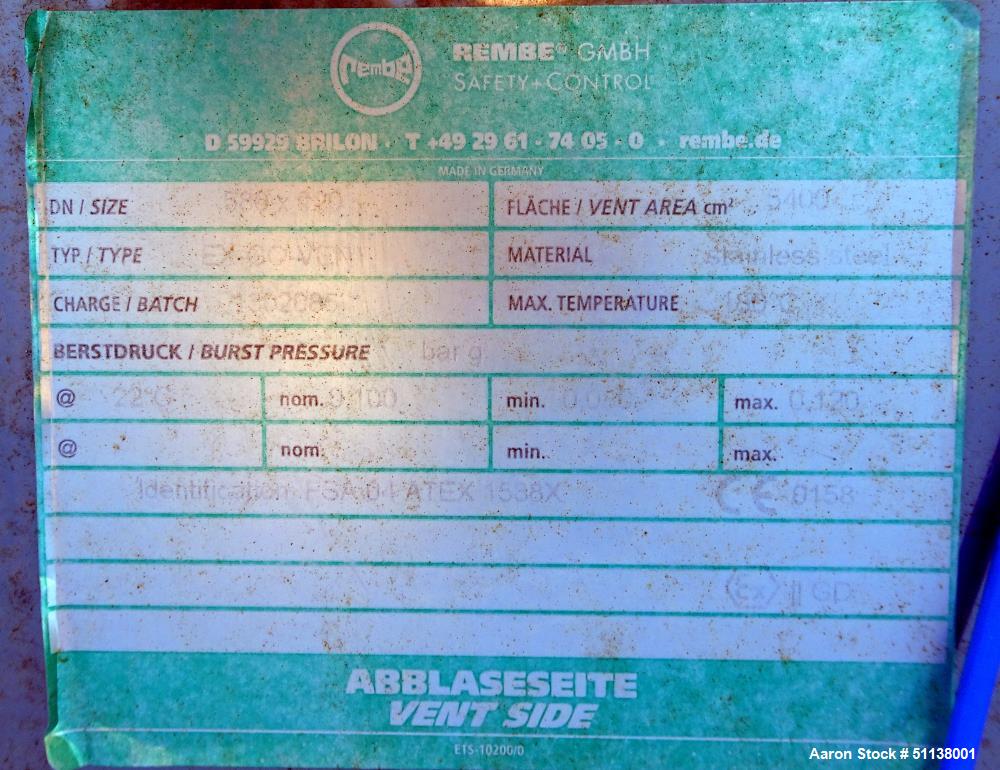

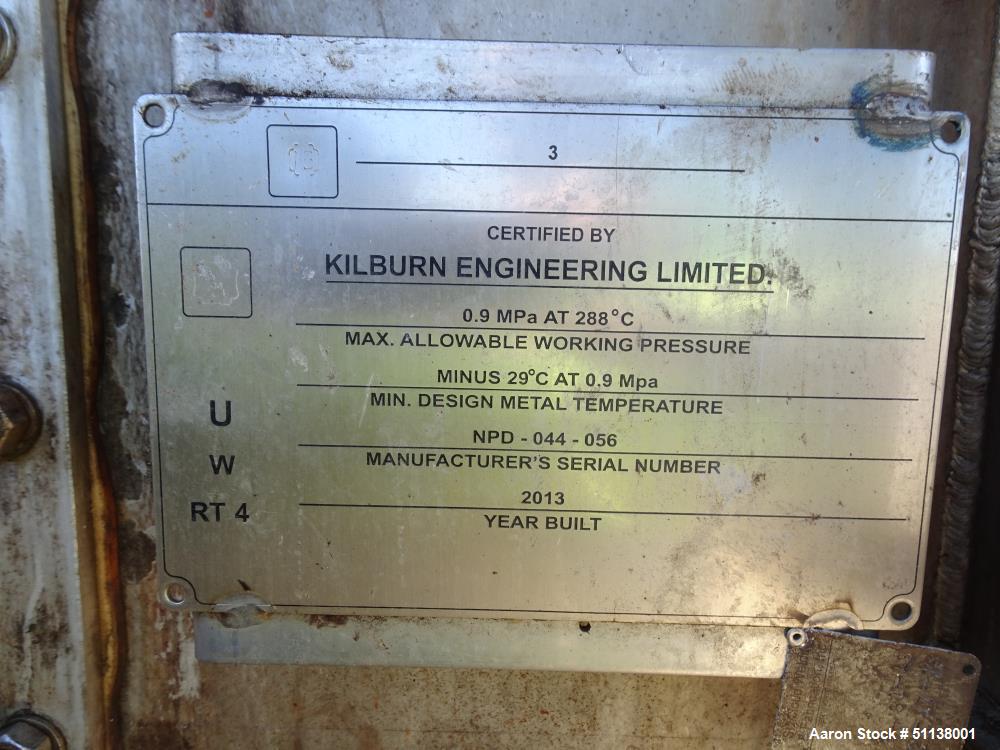

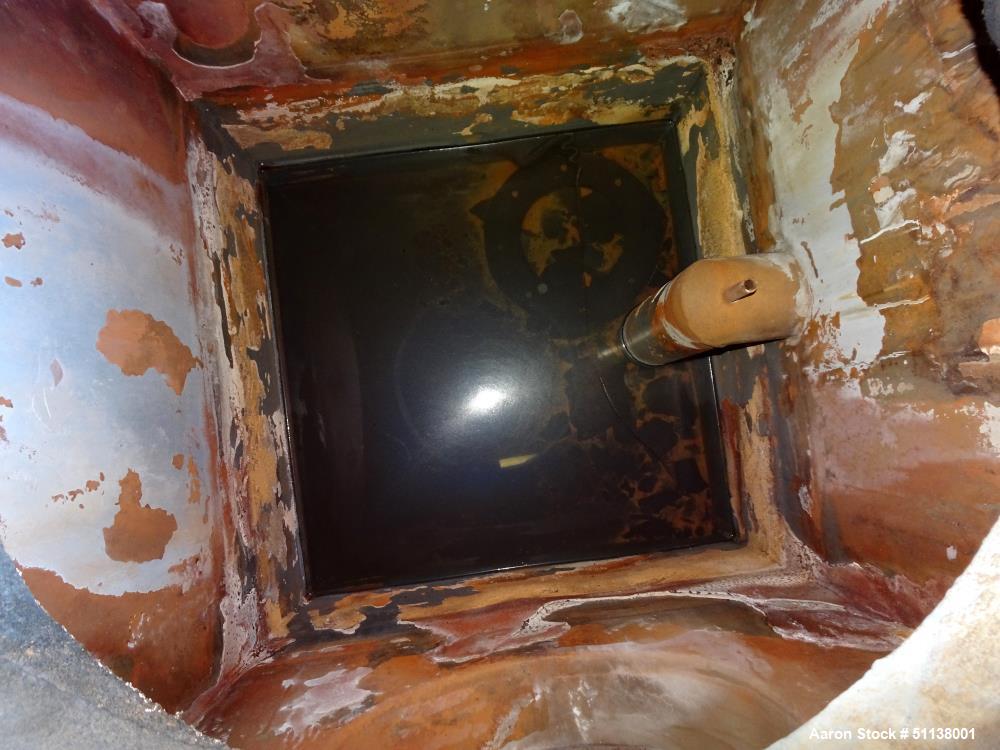

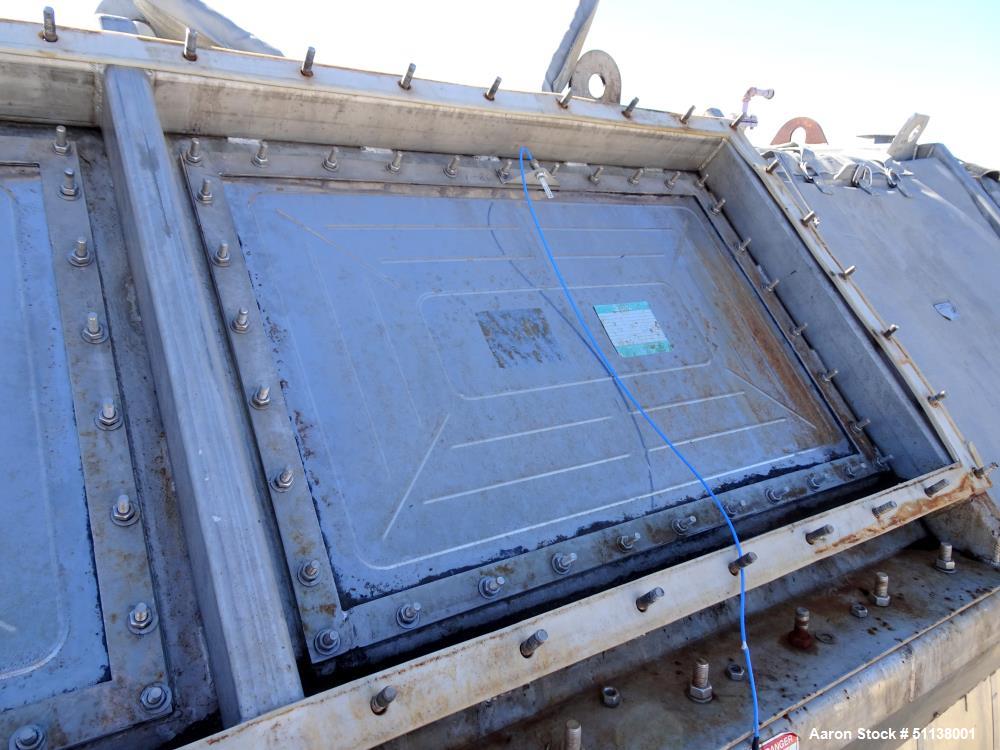

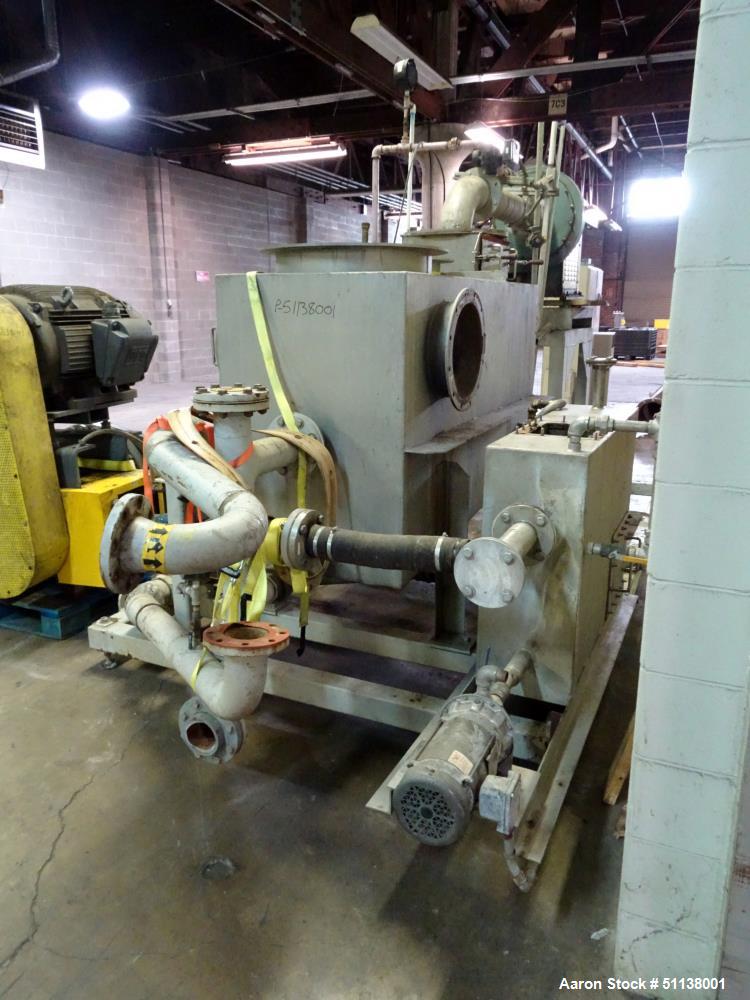

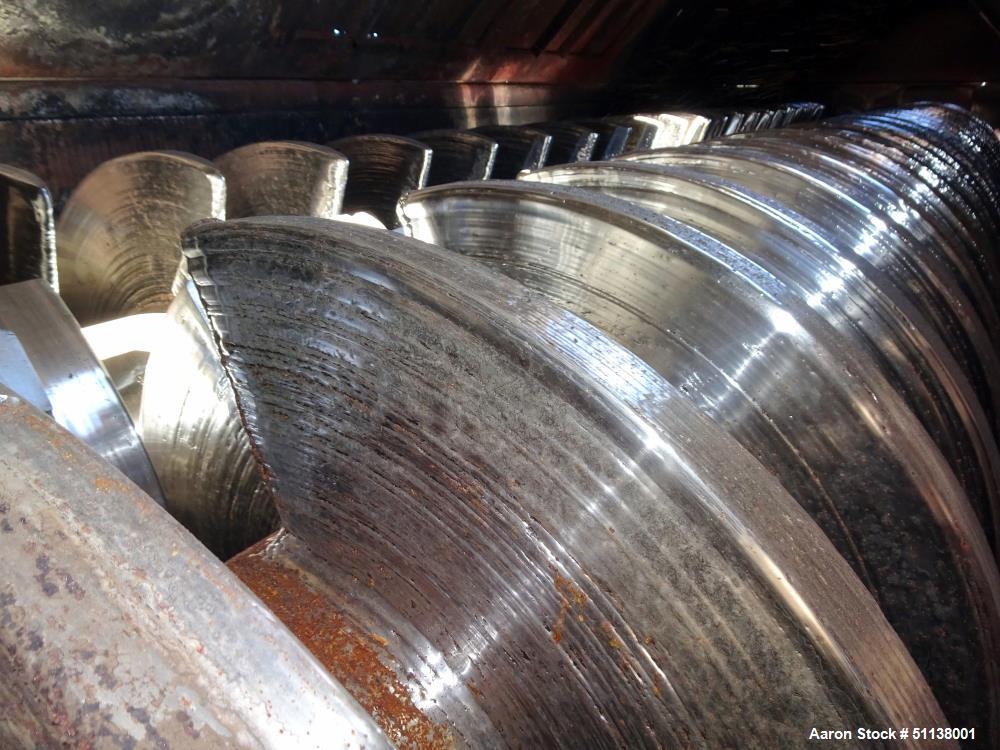

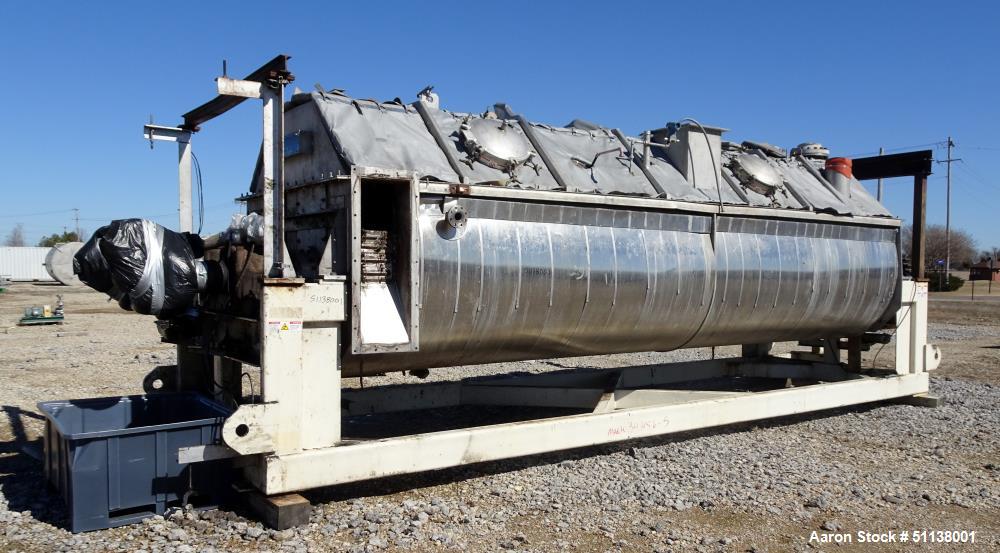

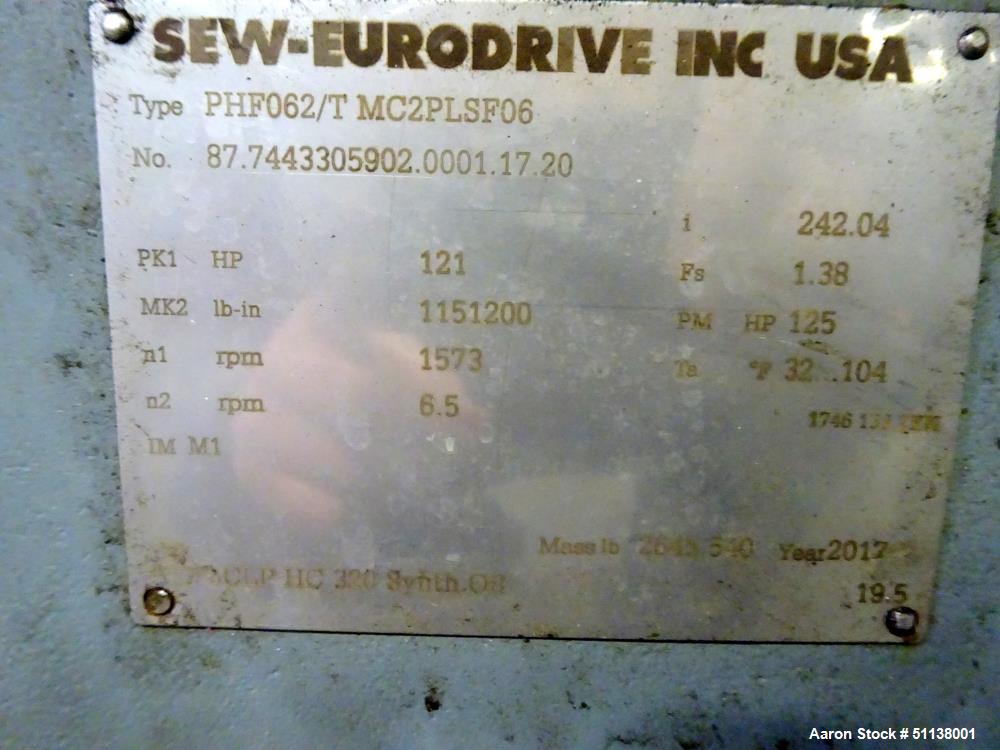

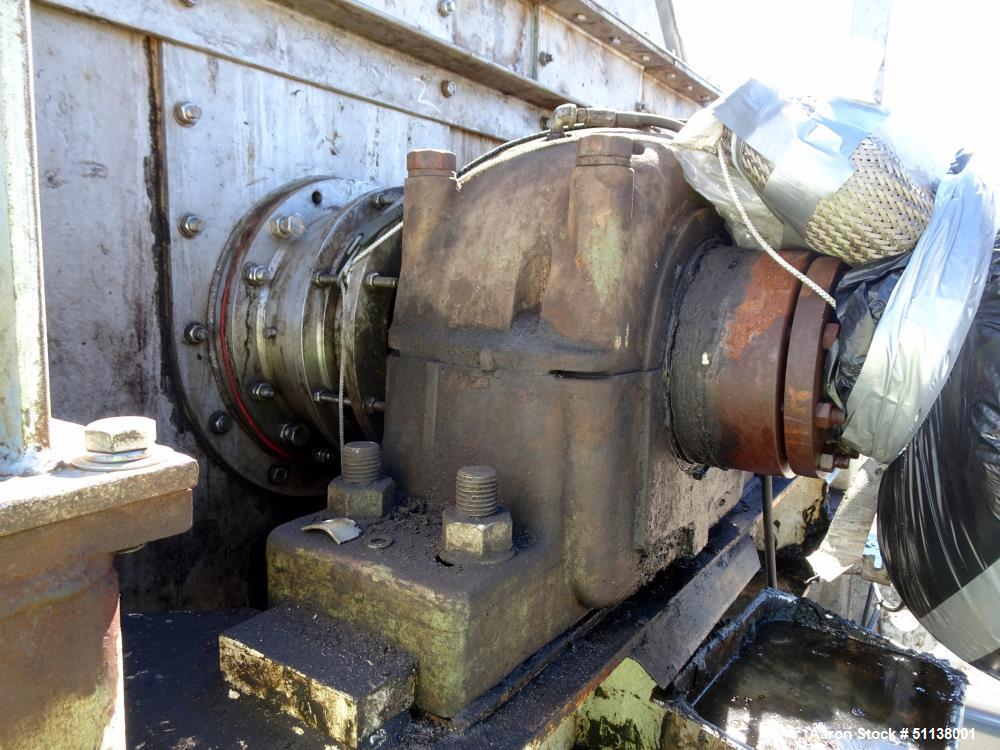

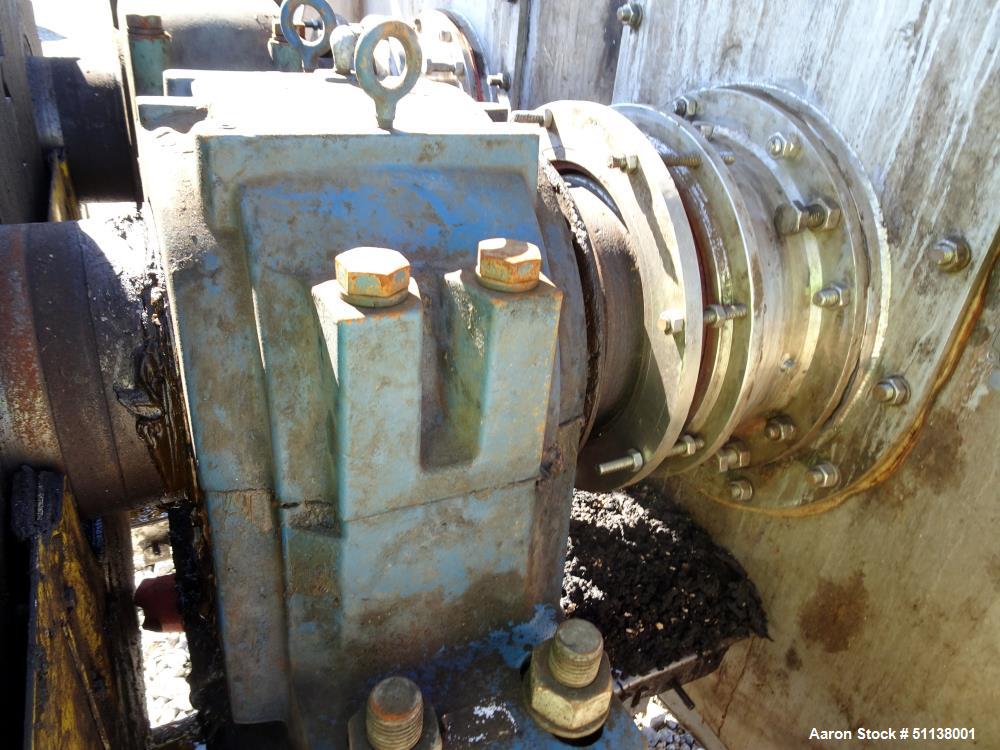

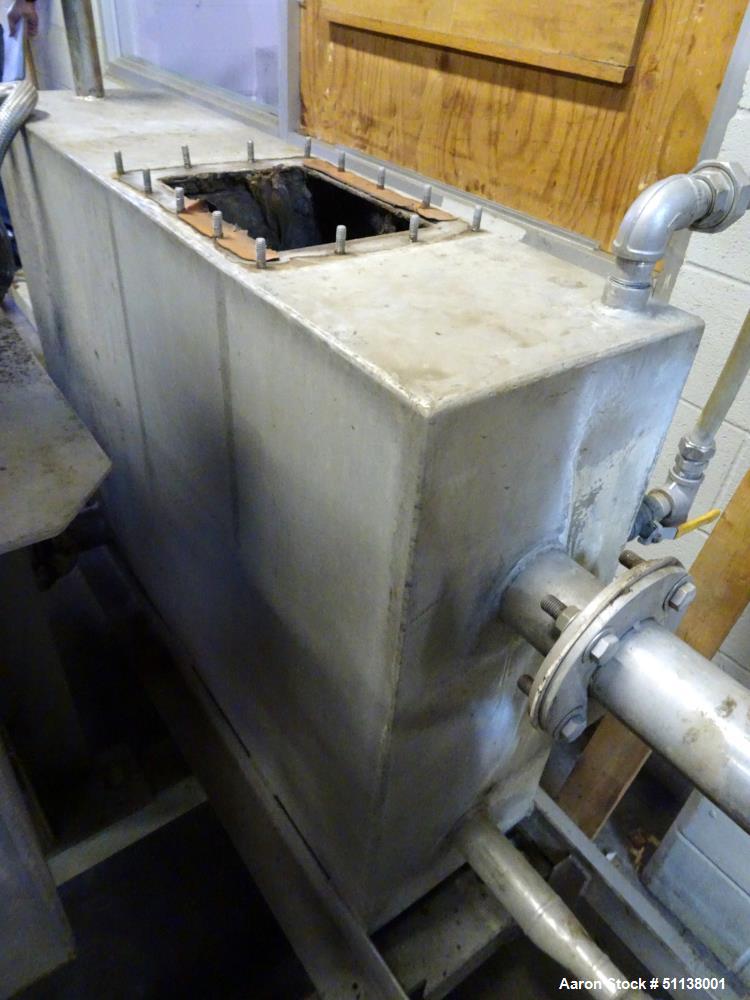

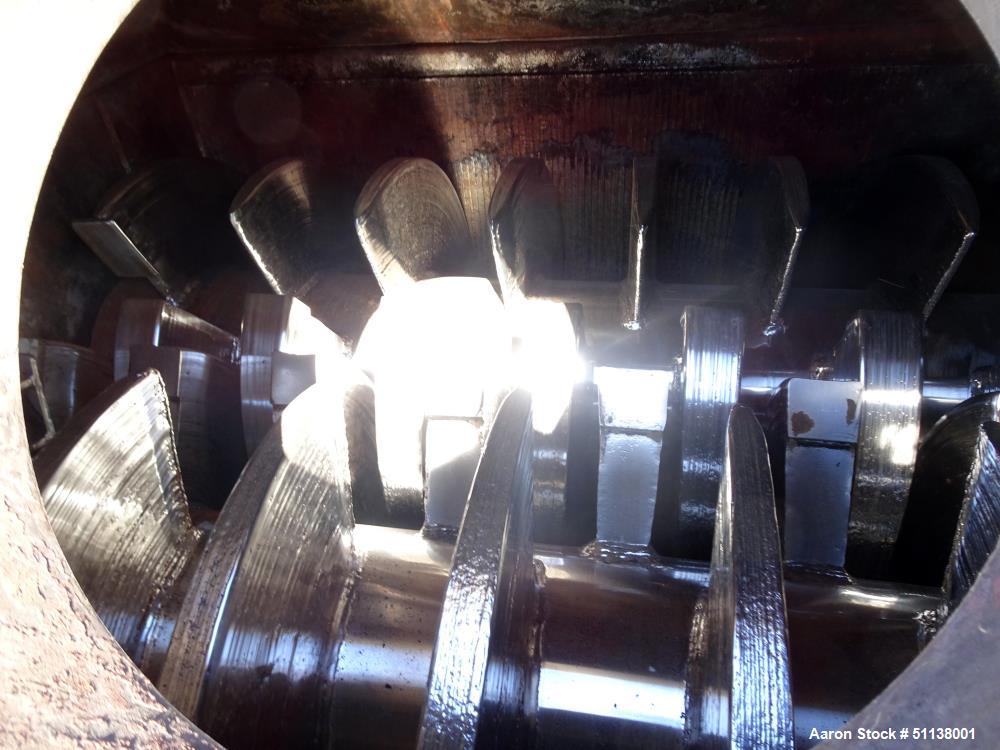

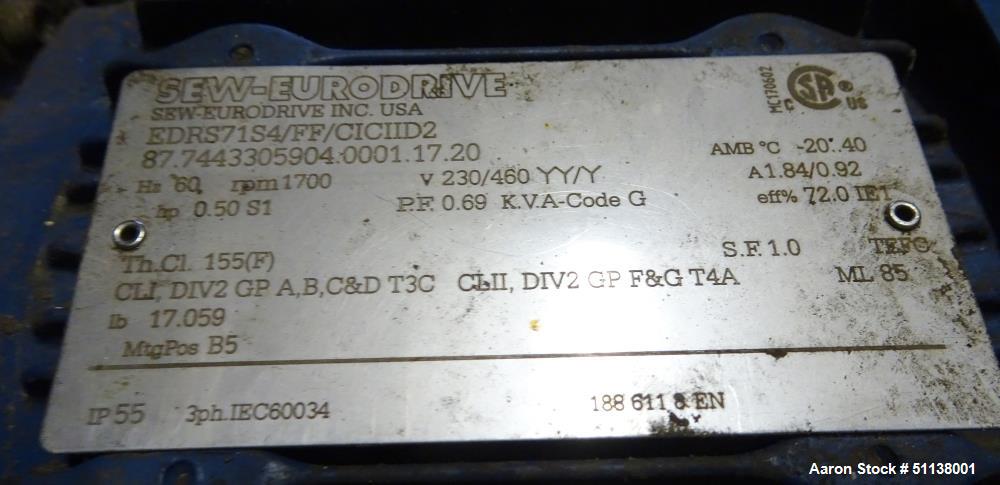

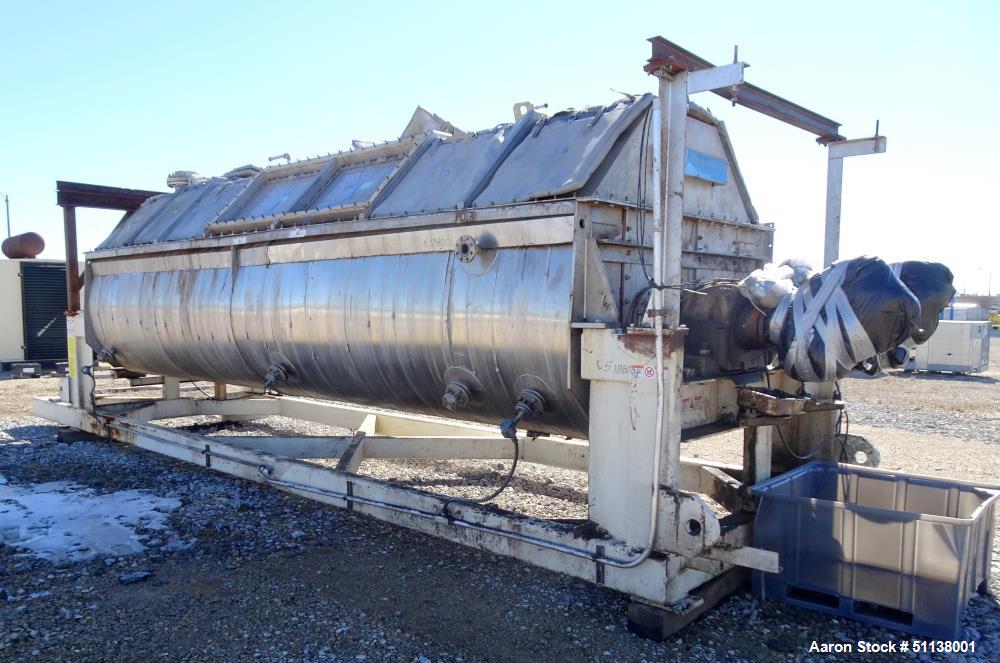

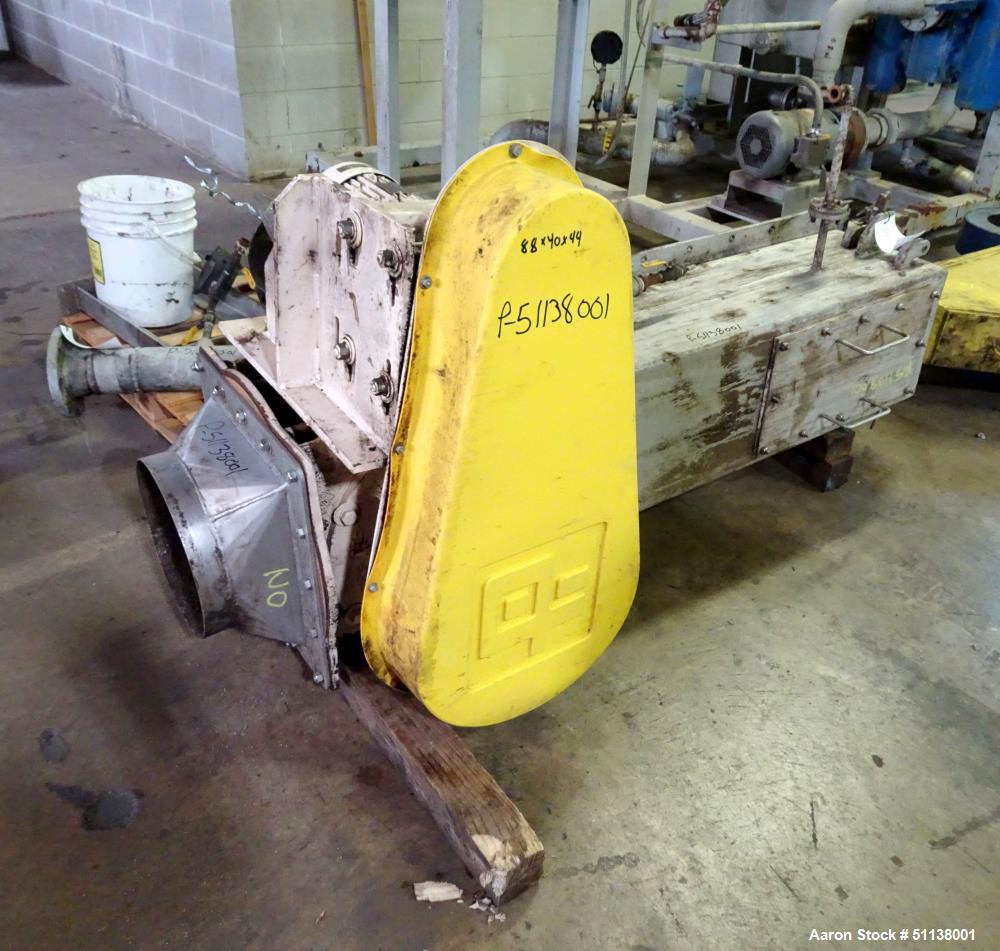

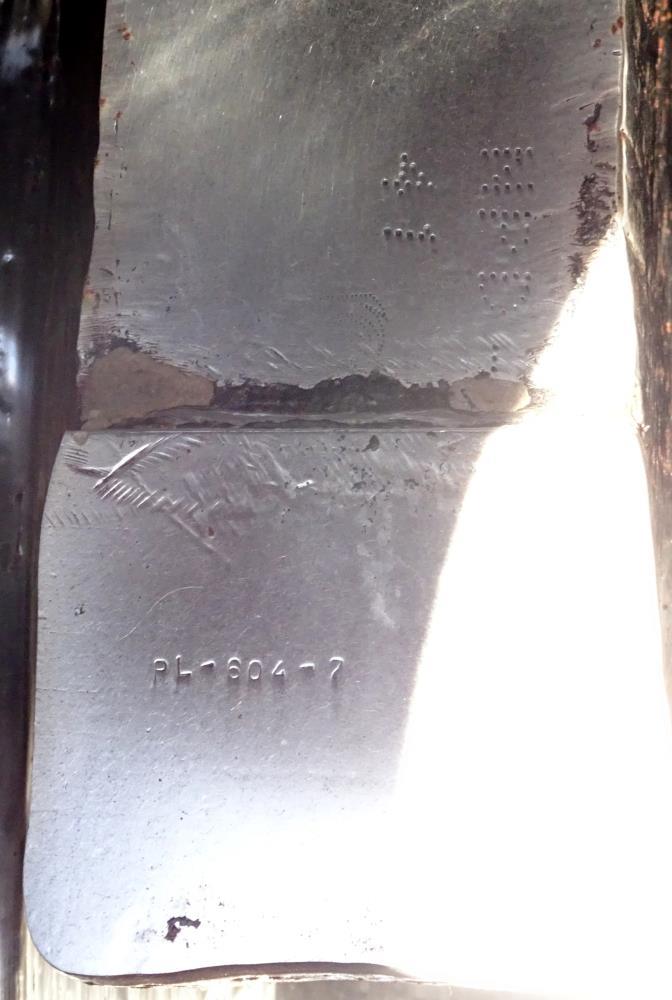

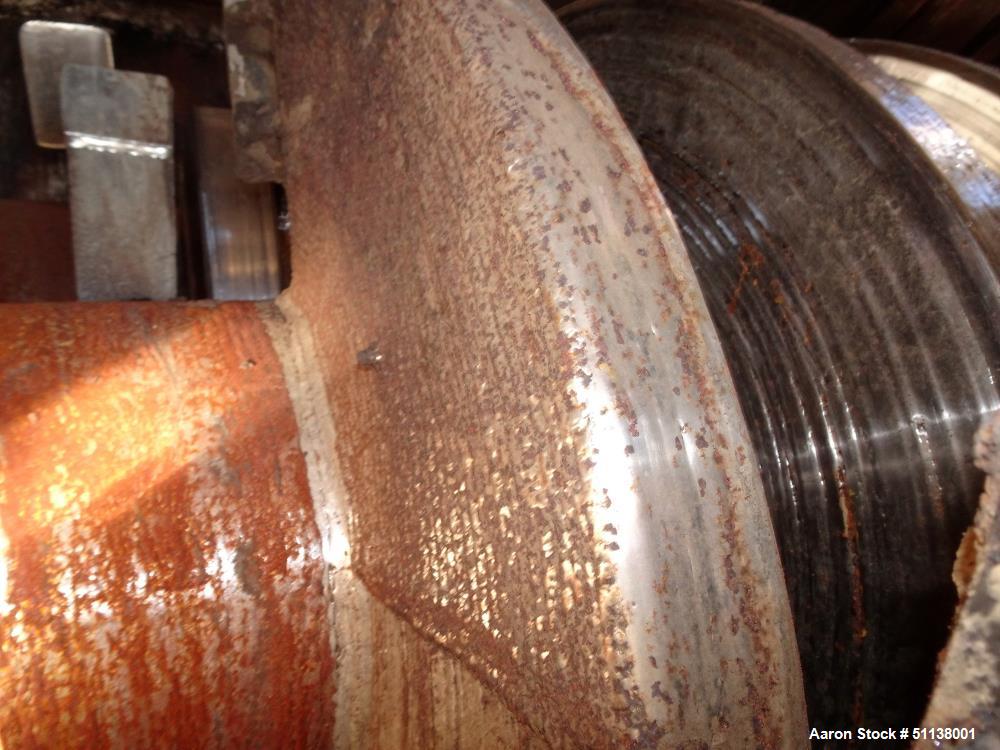

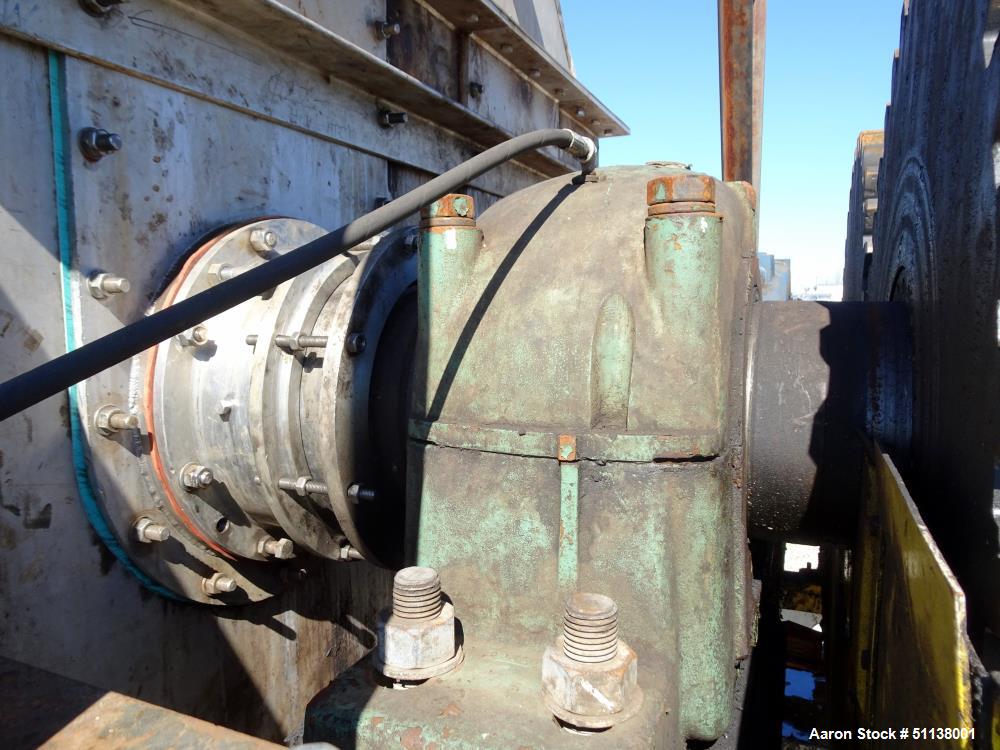

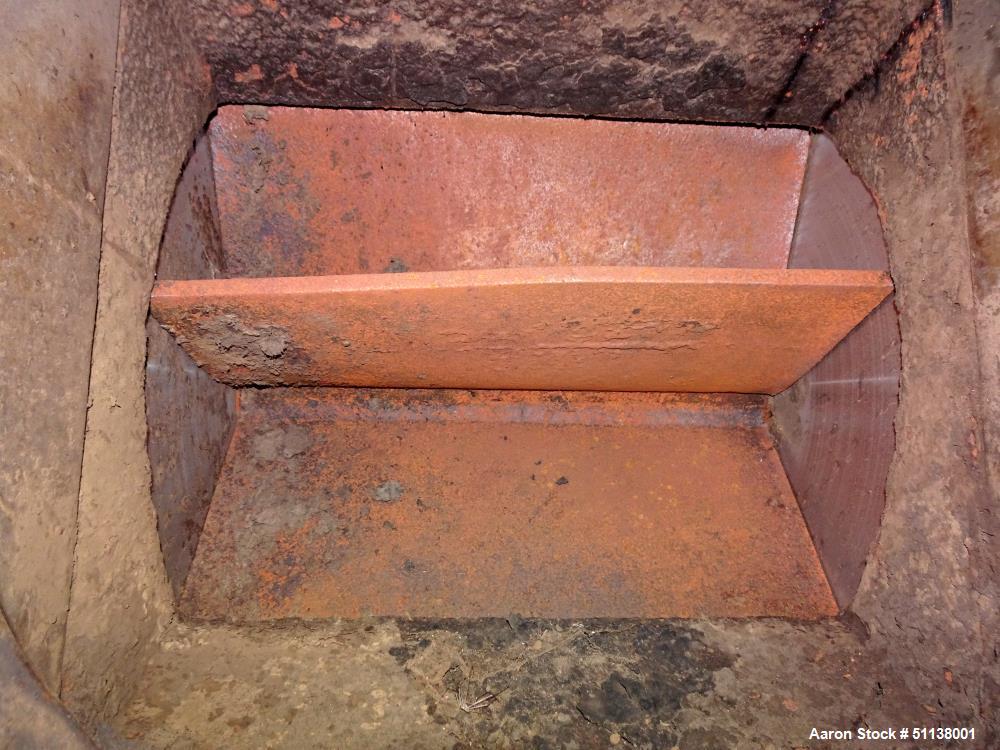

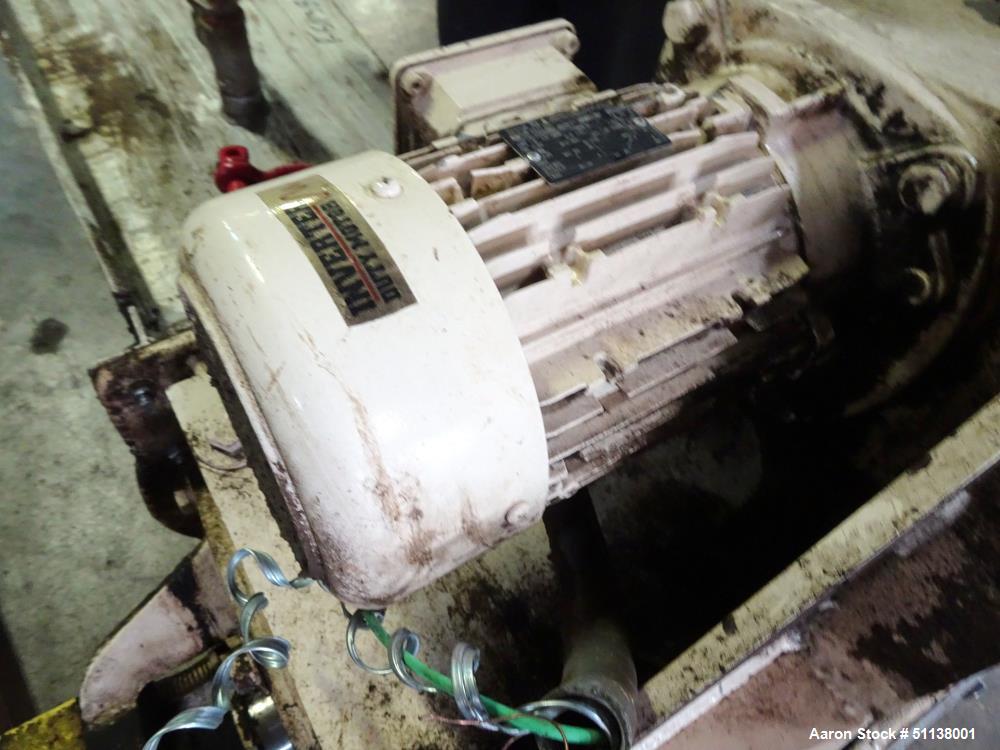

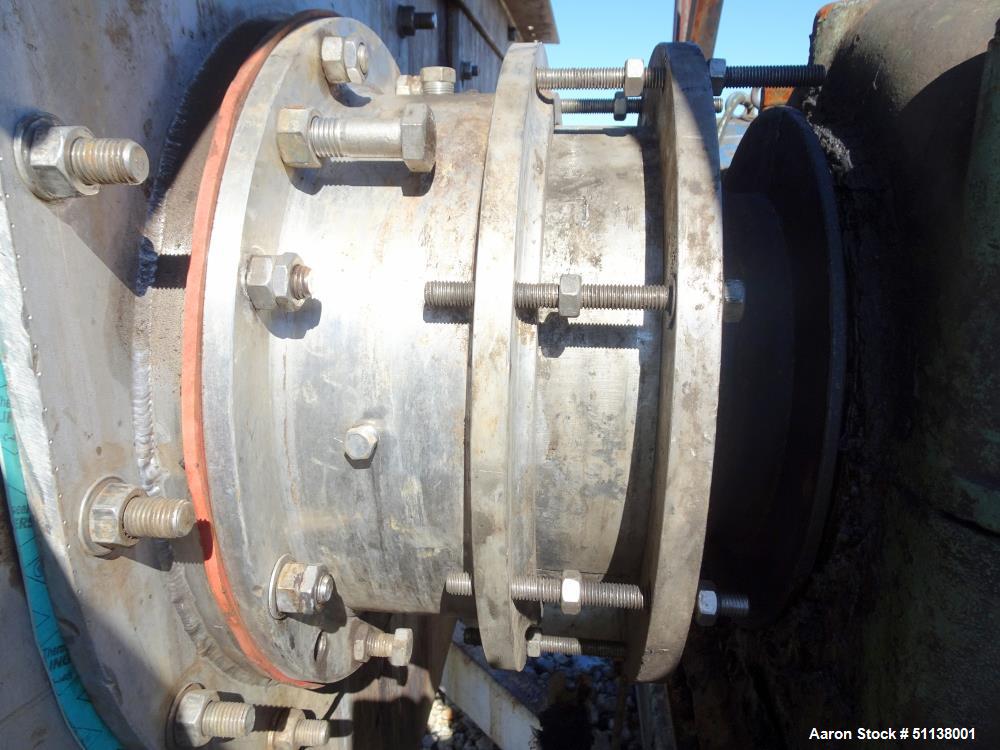

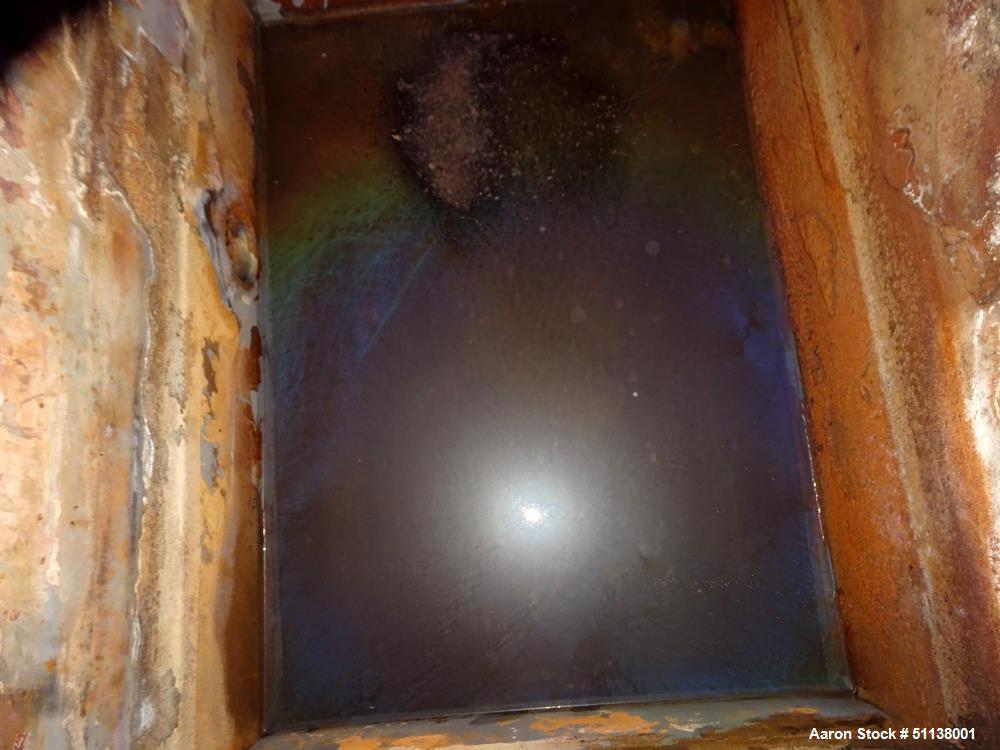

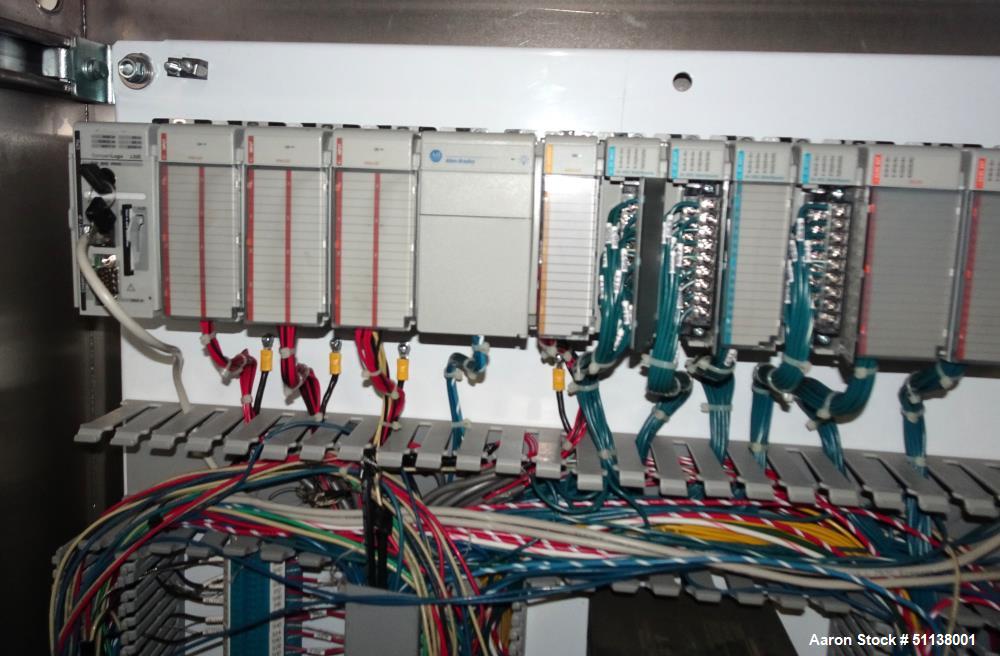

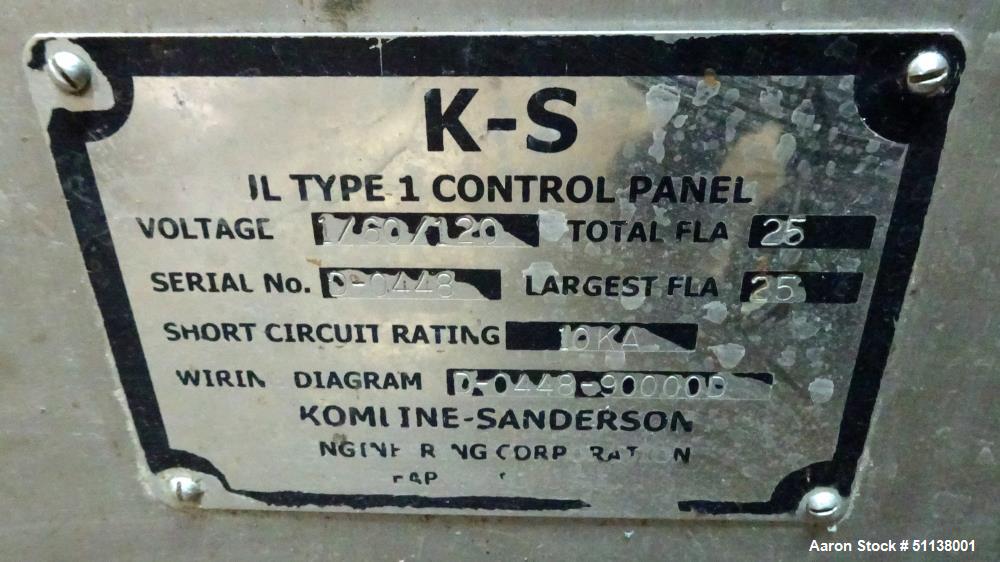

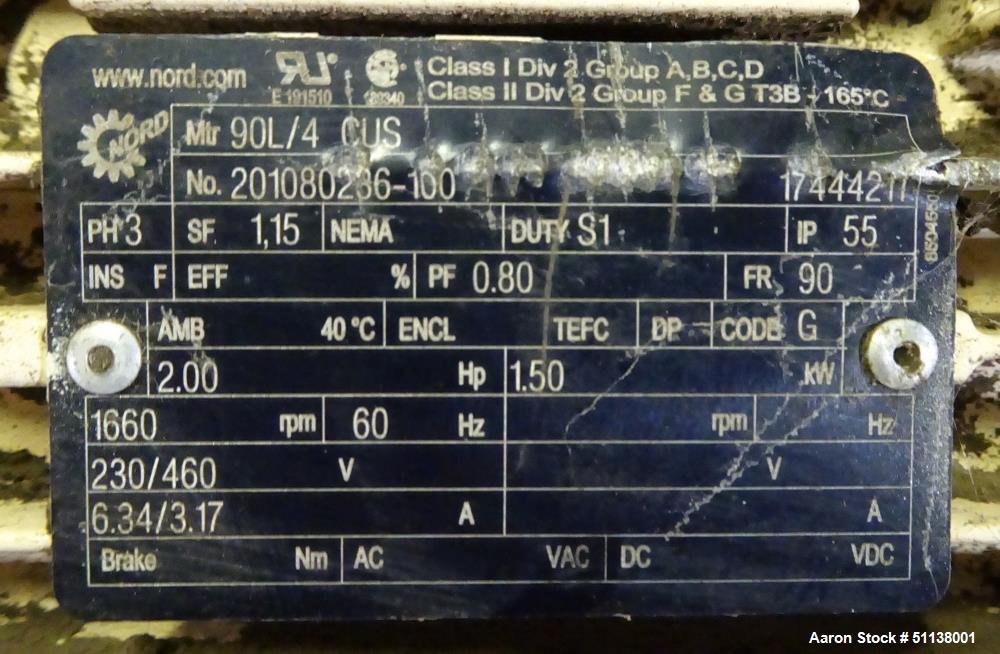

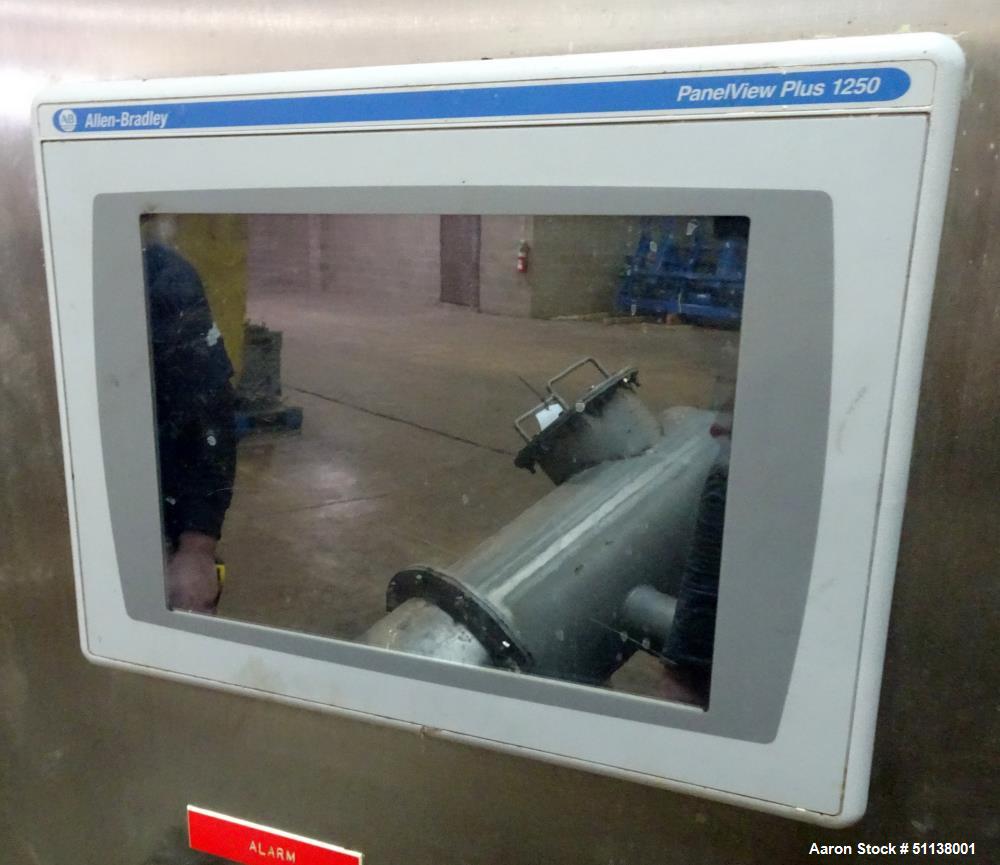

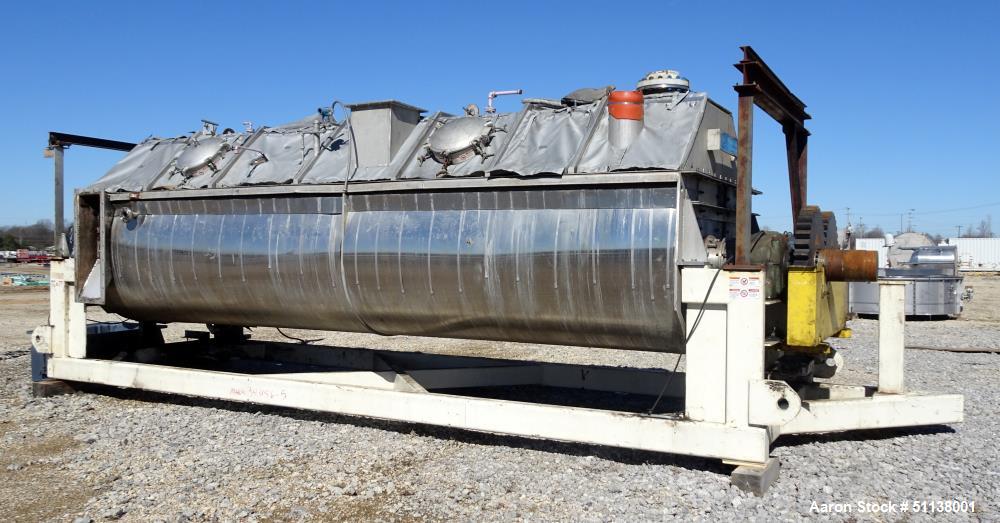

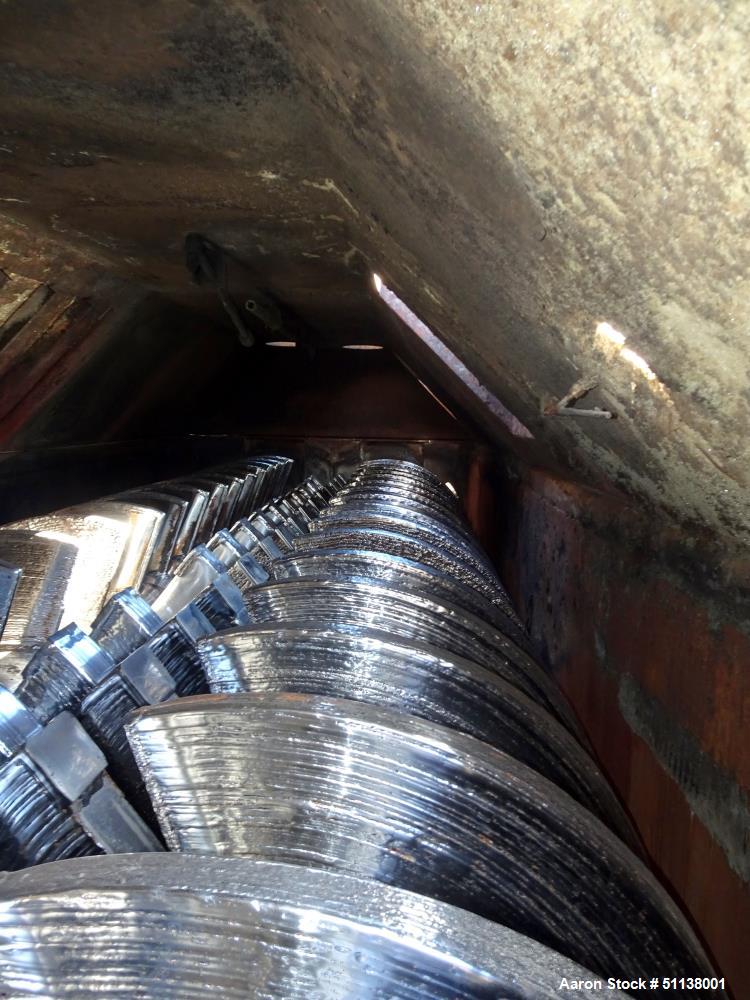

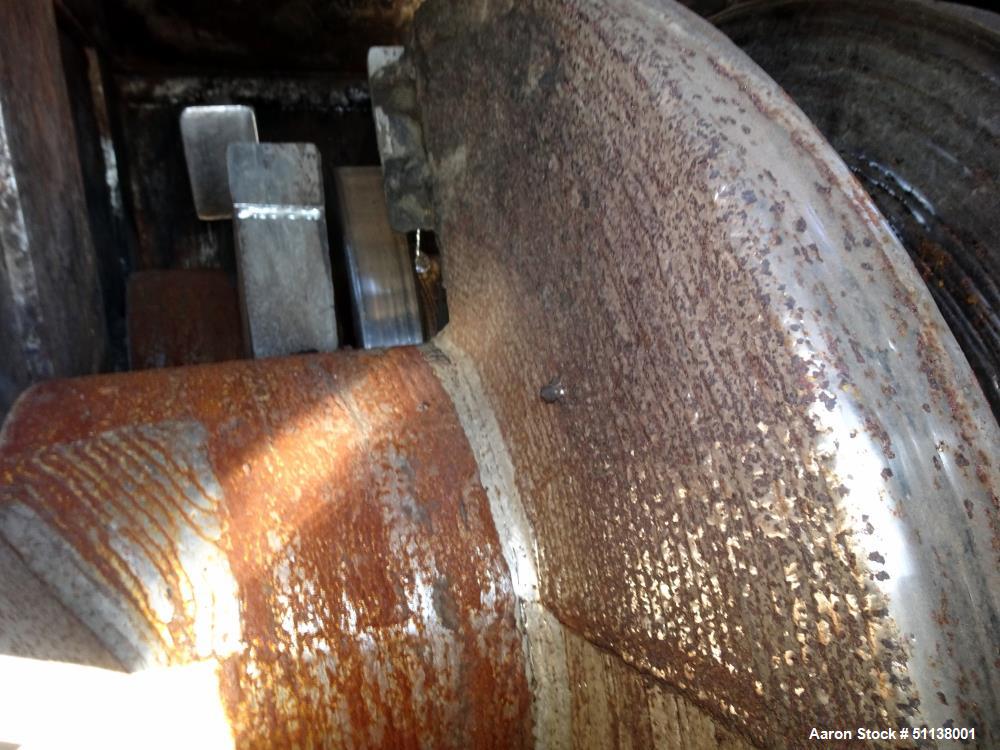

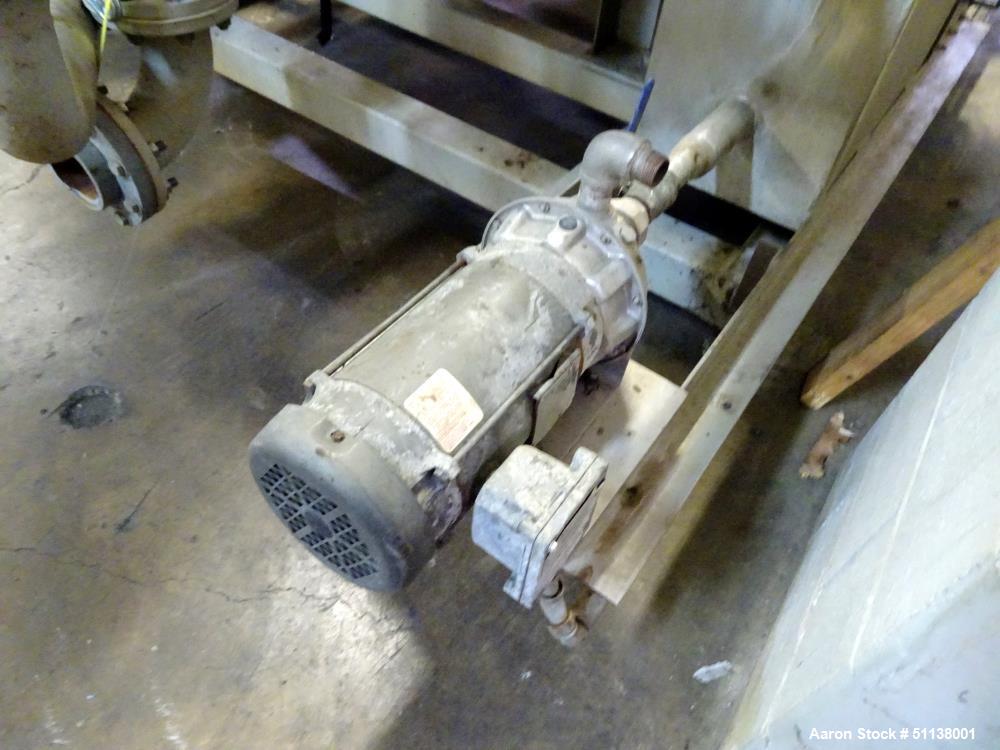

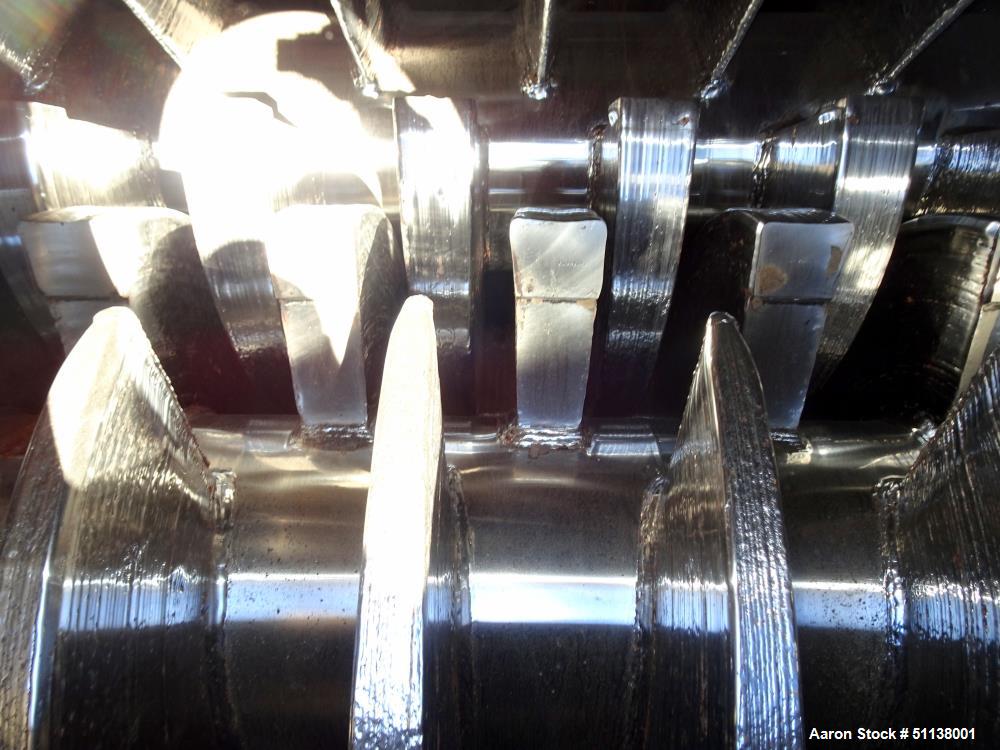

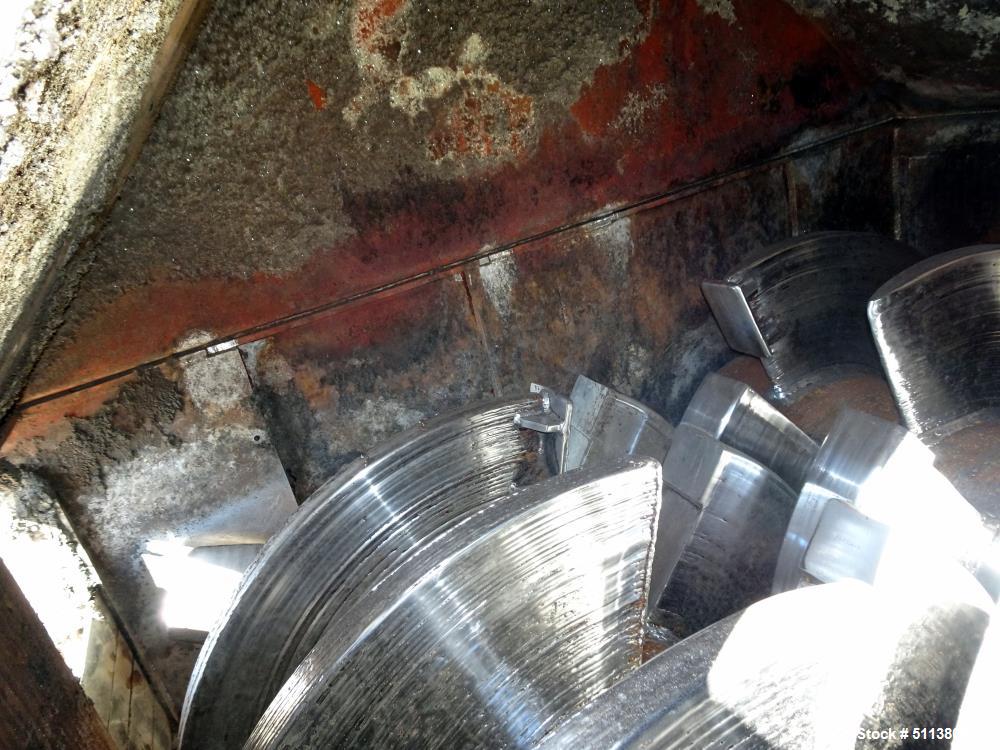

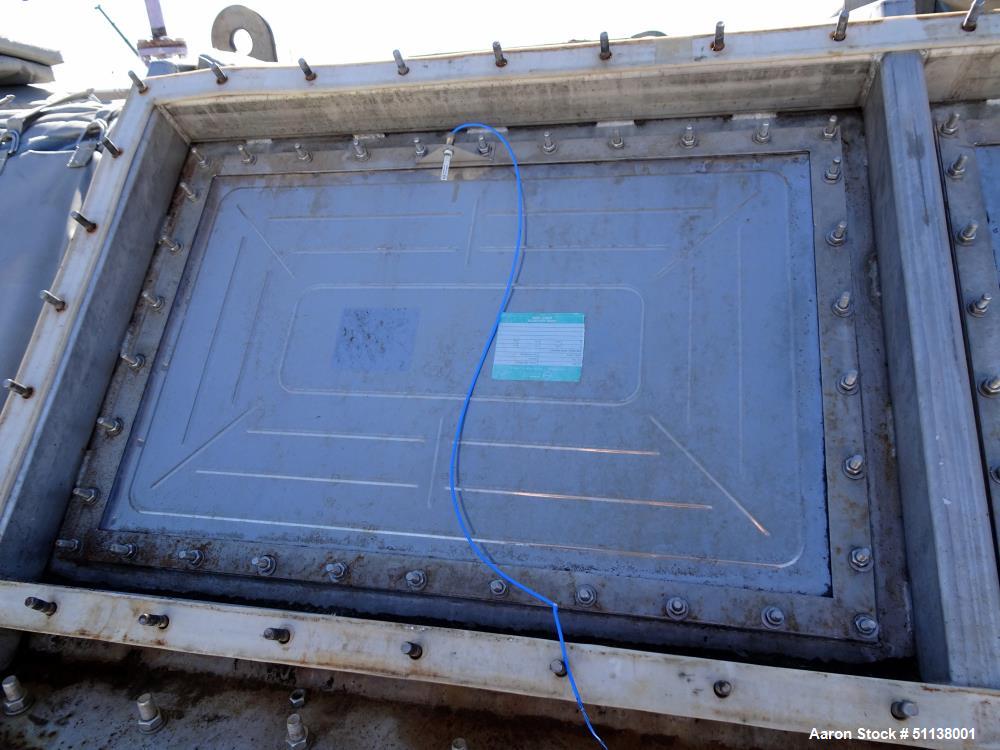

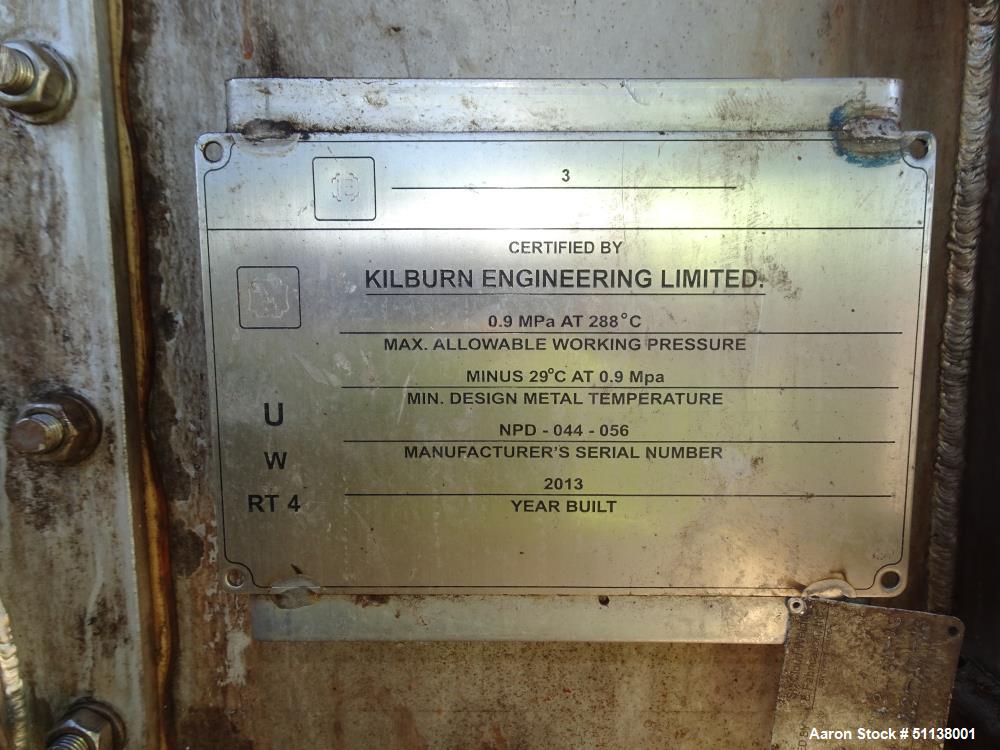

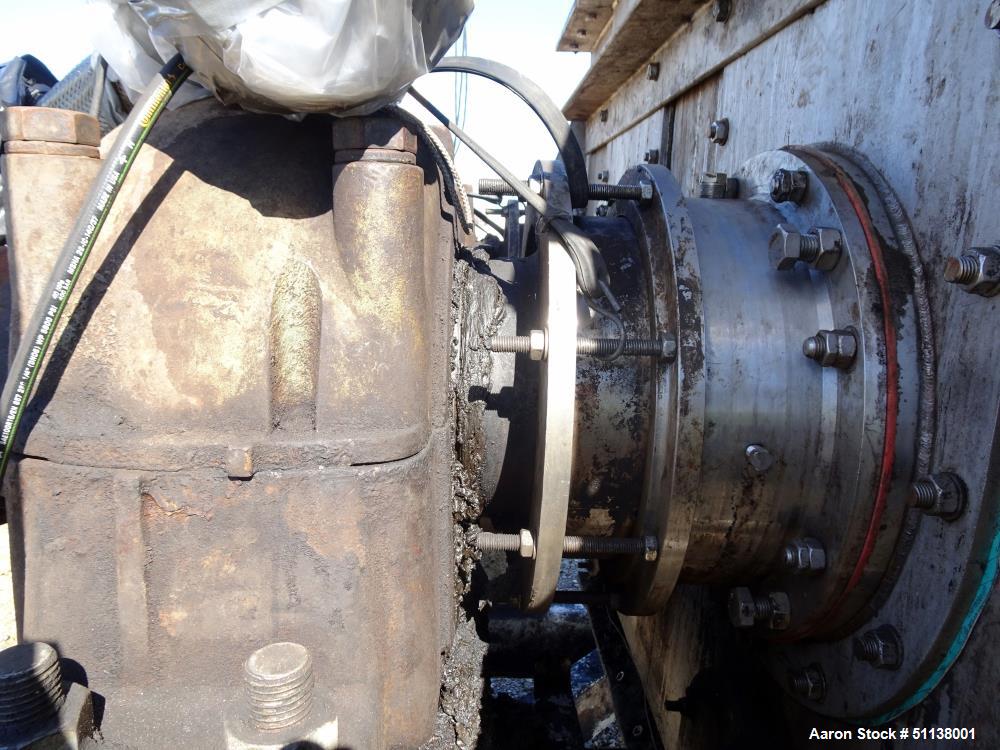

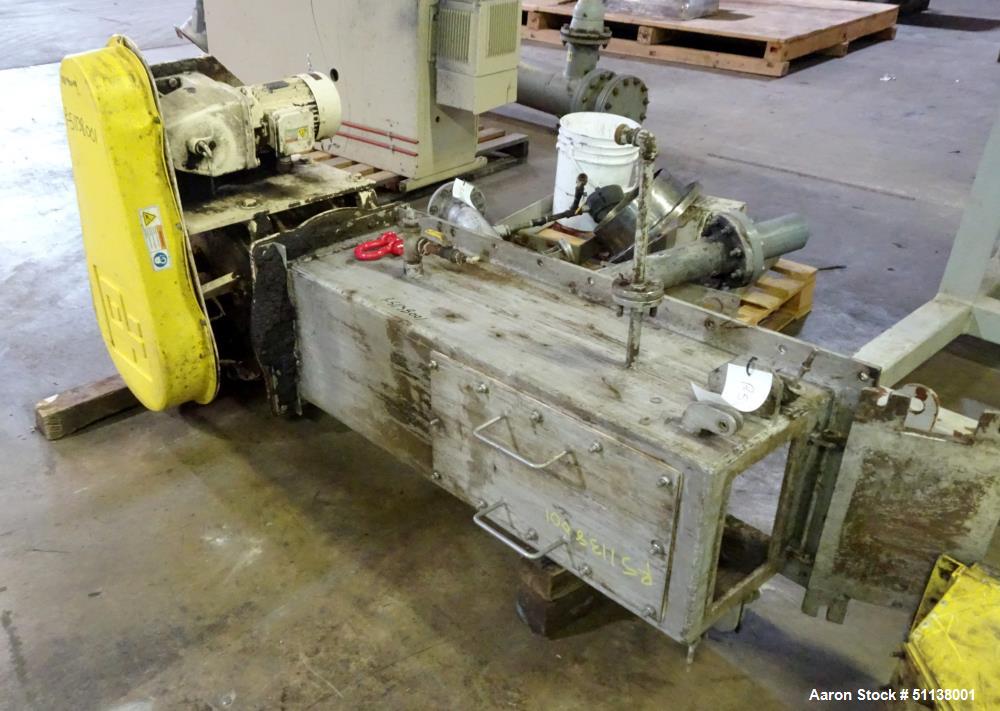

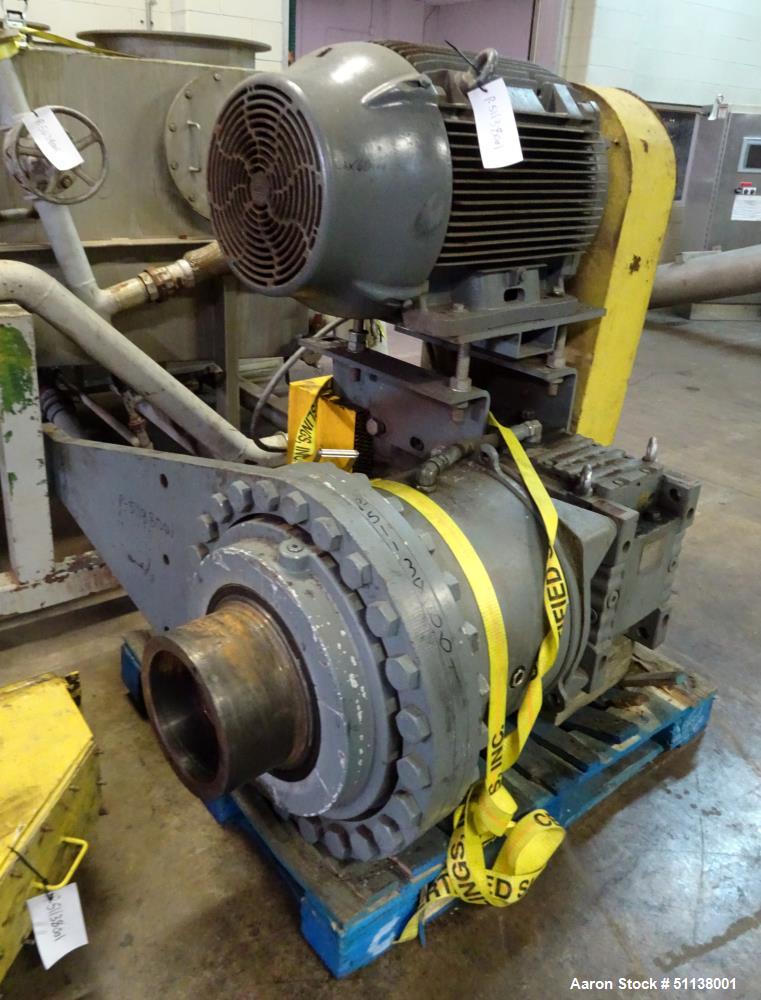

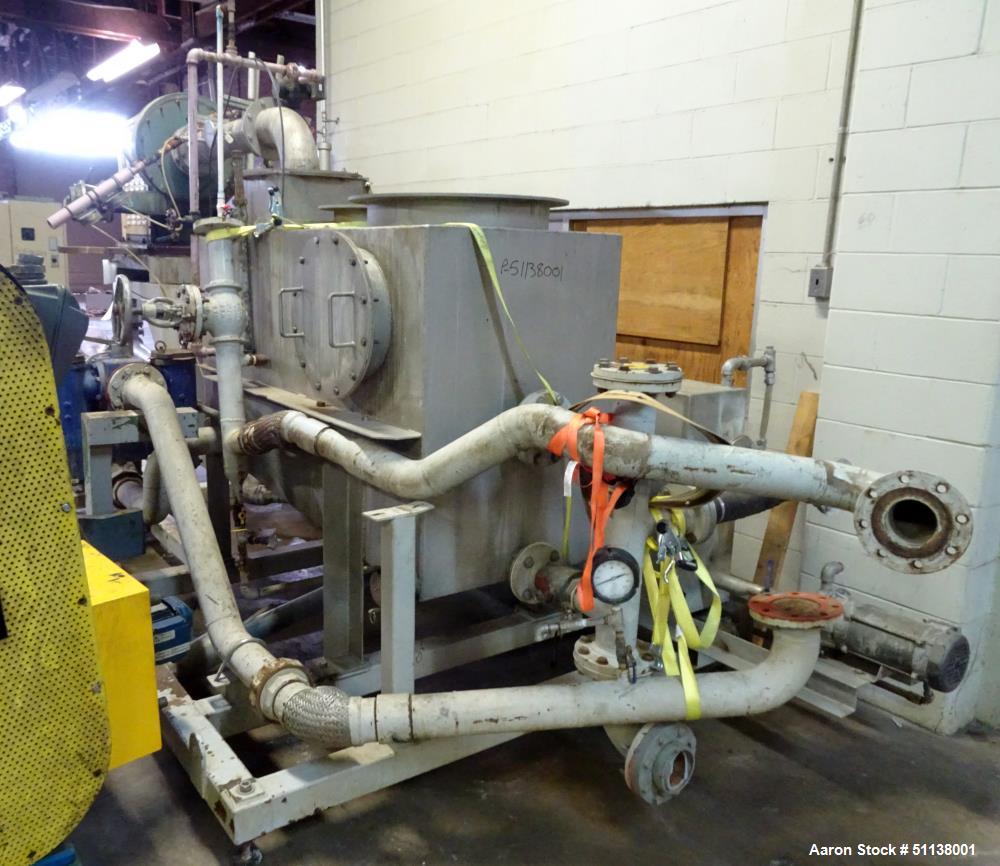

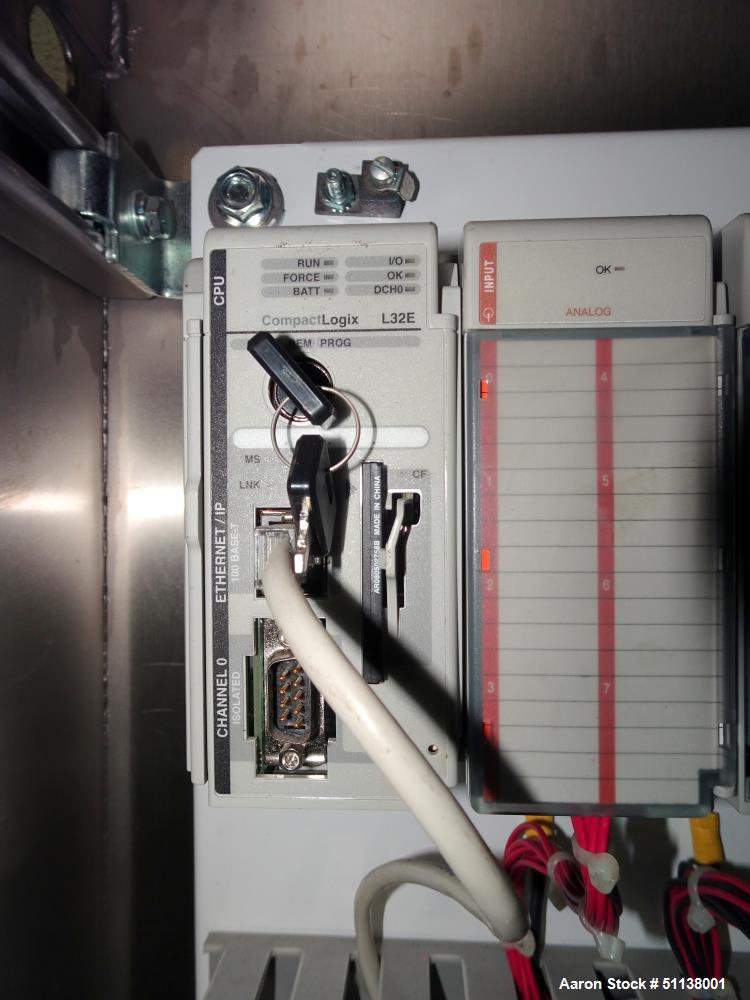

Used Komline Sanderson NARA Paddle Sludge Dryer, Model 11W-1200. 304L Stainless steel jacketed trough approximately 261" long x 80 wide, 1200 square feet of heat transfer area. Jacket rated 125 psi at 550 degrees F, "U" stamped. Dual counter-rotating shafts with intermeshing wedge-shaped paddles approximately 43.3 (1.1 meter) diameter cored screws, rated 125 psi at 550 degrees F, "U" stamped. Process side +/- 13" W.C. at 550 degrees F, cover vent rated 1.45 psi at 550 degrees F. Driven by 125 hp, 3/60/460 volt, approximate 1800 rpm gear motor. Completely rebuilt drive assembly and gear box 2019. Top bolt-on cover with openings: (2) 10" feed inlets, (1) 18" vapor outlet, (2) 20" manway with covers, (1) 10" return inlet, 29-3/16" x 86" deflagration duct connection, (1) 6" view port with wiper. Side 14" x 14" discharge. Bottom discharge 14" x 34", and (2) 8" diameter clean outs. Includes feeder, control panel with A/B panelview 1250 HMI and A/B compactlogix L32E PLC. Job # D0448.
