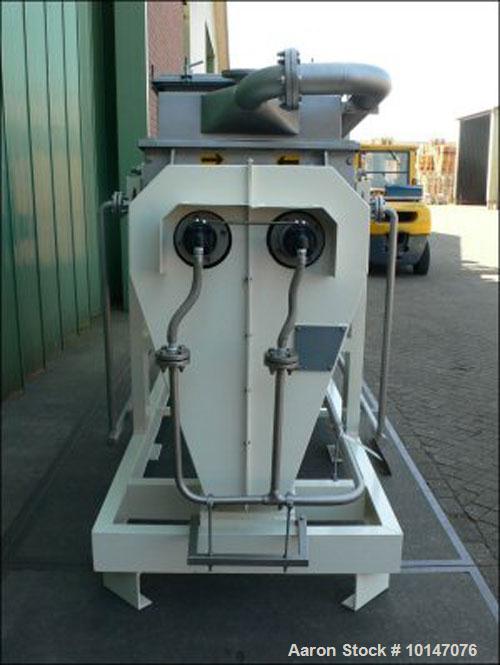

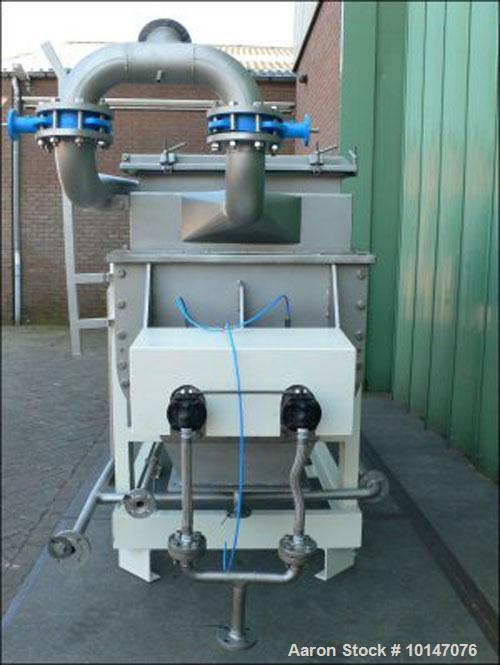

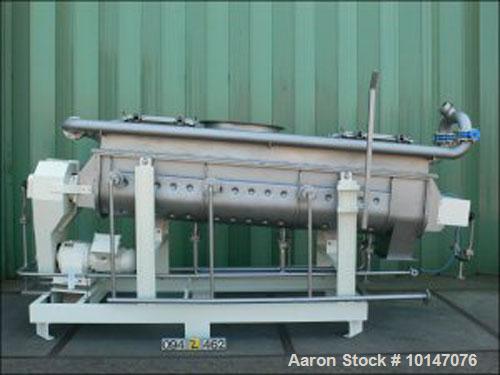

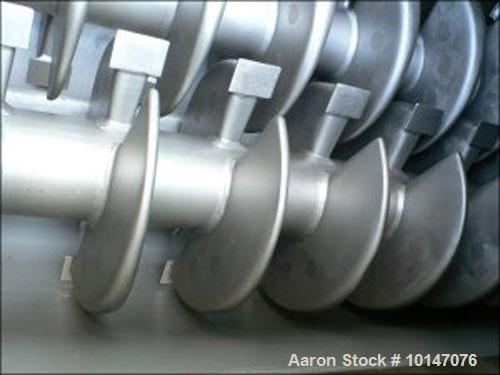

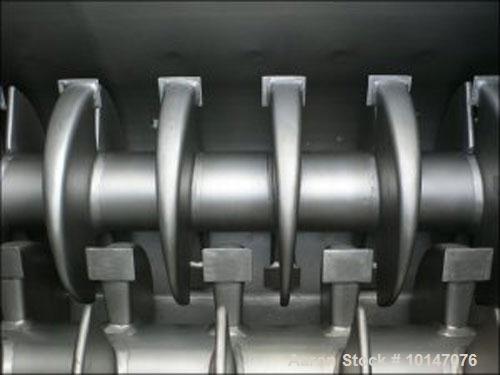

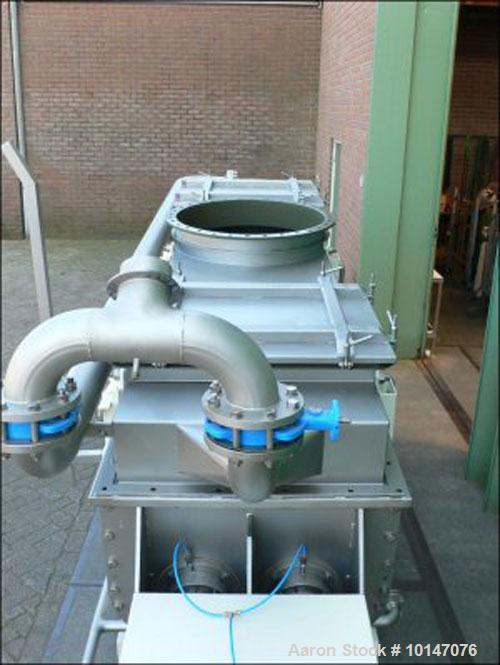

Used GMF Goudsche Nara 4W Paddle Dryer, 316L stainless steel, capacity 24 cubic feet (680 liter). Trough size diameter 2.6' x 10.5' (800 x 3200 mm), (2) manholes 2.4' x 1.8' (745 x 545 mm), outlet 9.5" x 15.8" (240 x 400 mm). With jacket 15.9 gallons (60 liter). Working pressure 175 psi (12 bar), shaft can be heated 15/15.5 gallons (56.8/58.4 liters), working pressure 175 psi (12 bar). Maximum temperature 392 deg F (200 deg C), with adjustable packing glands. Motor 7.3 hp/5.5 kW, 220/380 volt (ex), 50 hz, speed mixing shaft 18 rpm. Heating surface 2 shafts 98 square feet (9.1 m2), heating surface jacket 29.8 square feet (3.7 m2), mounted on frame and reconditioned.
Used GMF Goudsche Nara 4W Paddle Dryer, 316L stainless steel, capacity 24 cubic feet (680 liter). Trough size diameter 2.6' x 10.5' (800 x 3200 mm), (2) manholes 2.4' x 1.8' (745 x 545 mm), outlet 9.5" x 15.8" (240 x 400 mm). With jacket 15.9 gallons (60 liter). Working pressure 175 psi (12 bar), shaft can be heated 15/15.5 gallons (56.8/58.4 liters), working pressure 175 psi (12 bar). Maximum temperature 392 deg F (200 deg C), with adjustable packing glands. Motor 7.3 hp/5.5 kW, 220/380 volt (ex), 50 hz, speed mixing shaft 18 rpm. Heating surface 2 shafts 98 square feet (9.1 m2), heating surface jacket 29.8 square feet (3.7 m2), mounted on frame and reconditioned.
