Stock No.: 10147161

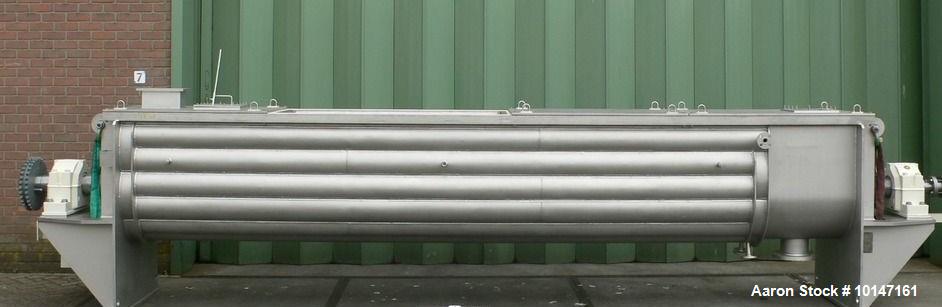

Used Bethlehem Continuous Paddle Dryer "Porcupine Processor"

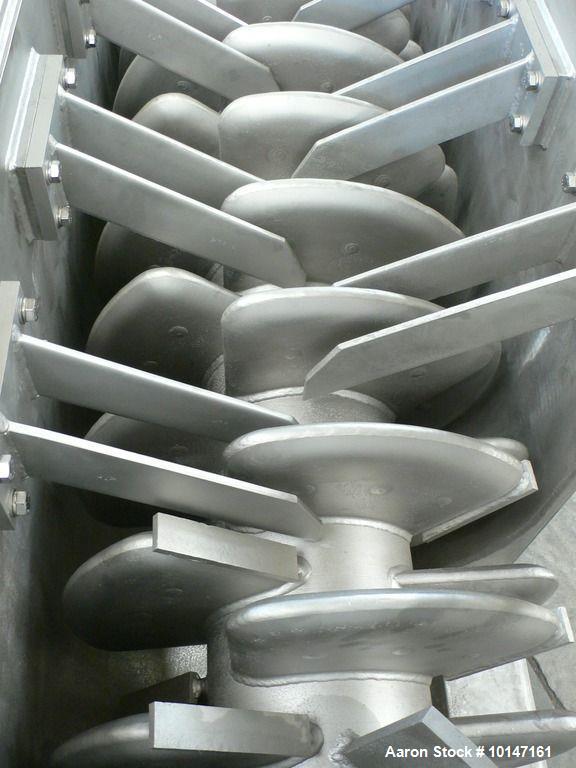

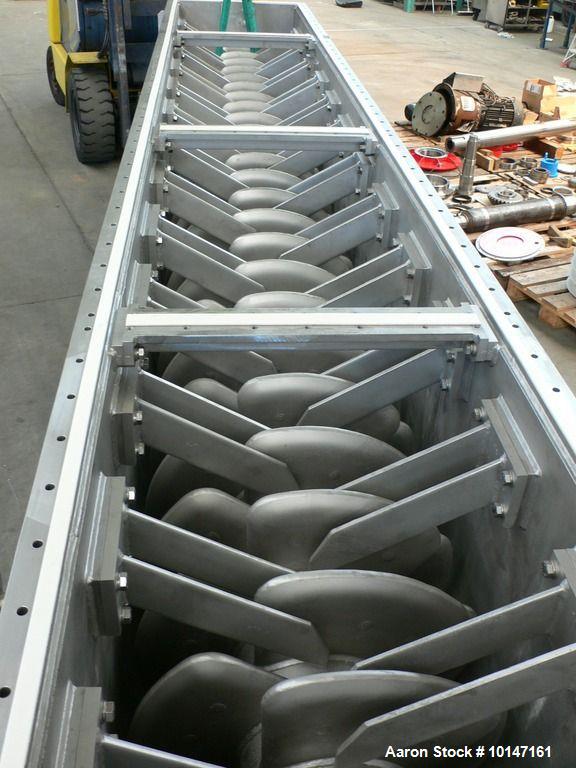

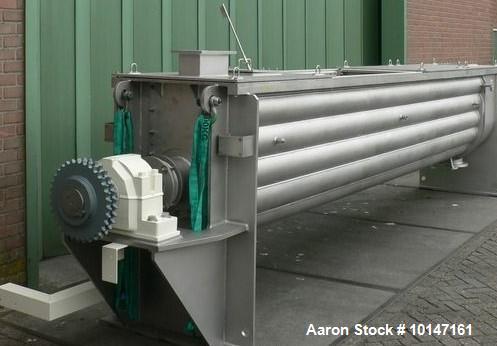

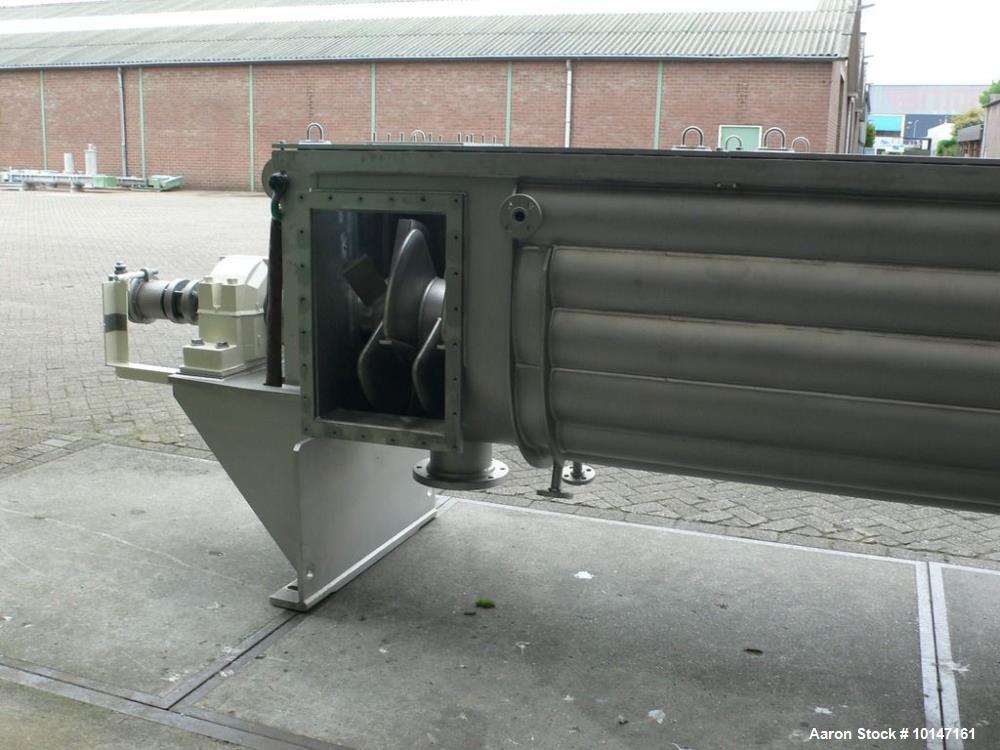

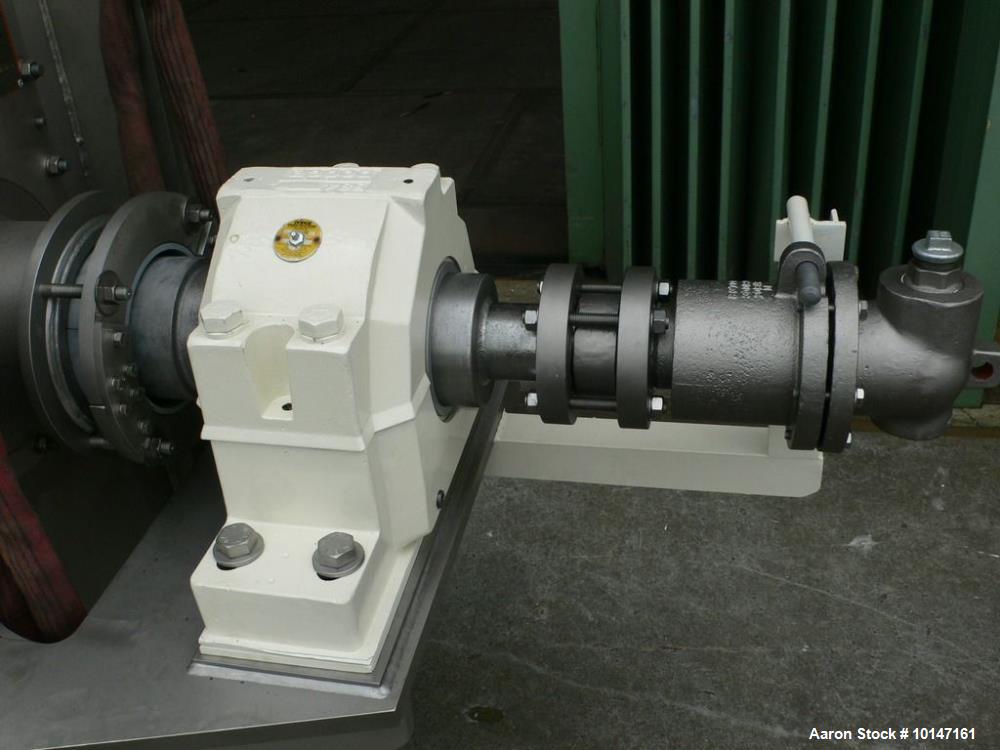

Used- Bethlehem Continuous Paddle Dryer "Porcupine Processor", Model 1P-3018-JTC. Material of construction is 316L (1.4404) on product contact parts. Jacketed Working pressure 153 PSI (10.2 bar), Test pressure 216 PSI (14.4 bar). Capacity 115.6 gallon (437 liters). Heating surface drying body 8.7 M2. Paddle diameter 25" (762 mm) diameter x 178" (5486 mm) straight side heated paddle includes shaft. Maximum temperature 365 degree F (185 deg. C). Driven via a gearbox by a 45HP/30 KW-220-240/380-415Volt/50cycle/3Ph motor. Includes top covers. Overall dimensions: 25 long x 43" width x 55" high (7700 mm long x 1300 mm width x 1700 mm high-dryer body only). Serial # 35-2440. New year 2000. Reported reconditioned.
-
ManufacturerBethlehem
-
Model1P-3018-JTC
-
Serial #35-2440
-
CategoryDryers - Drying Equipment
-
SubcategoryHollowscrew
-
Material Of Construction316L Stainless Steel
-
Capacity115.6 gallon (437 liters)
-
Screw Diameter25" (762 mm) dia
-
Screw Length178" (5486 mm)
-
Pressure Jacket153 PSI (10.2 bar)
-
Temperature Jacket365 deg F. (185 deg. C.)
-
Control PanelNo
-
Overall Dimensions25' L x 43" W x 55" H
-
Year Built2000
