Used-Glatt Model GRG30 Batch Style Fluid Bed Dryer / Granulator System consisting of main tower assembly, air discharge bag ...

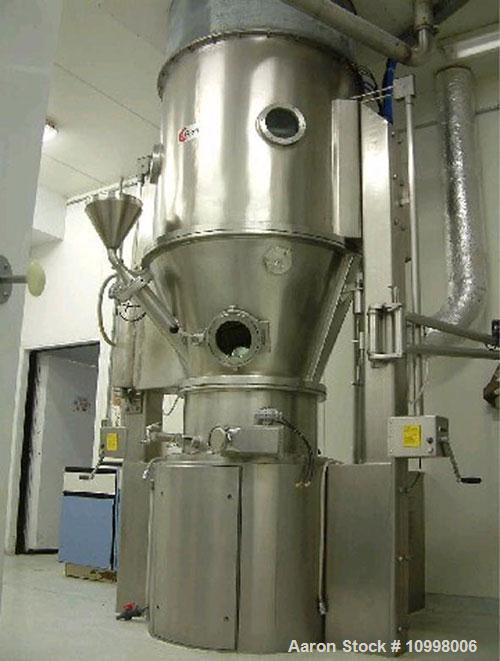

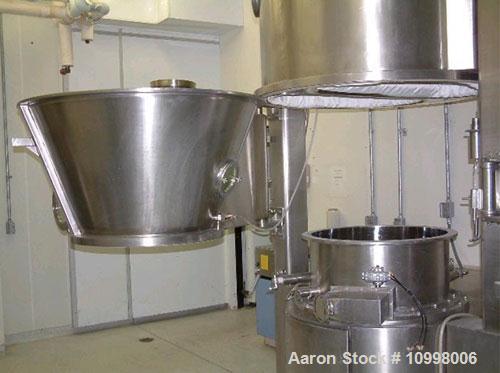

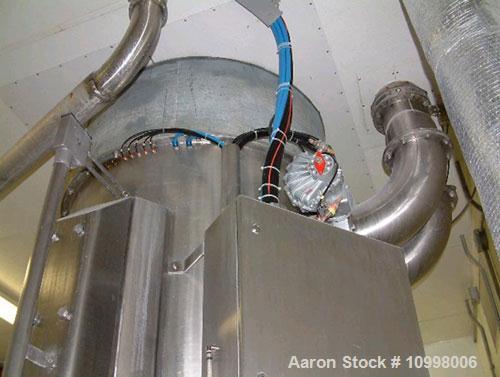

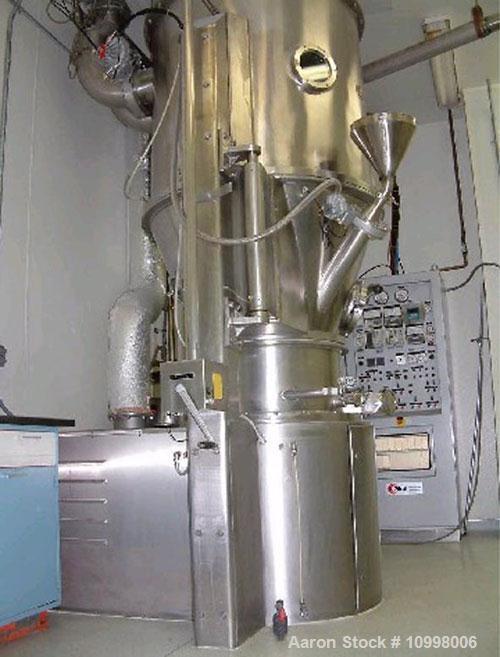

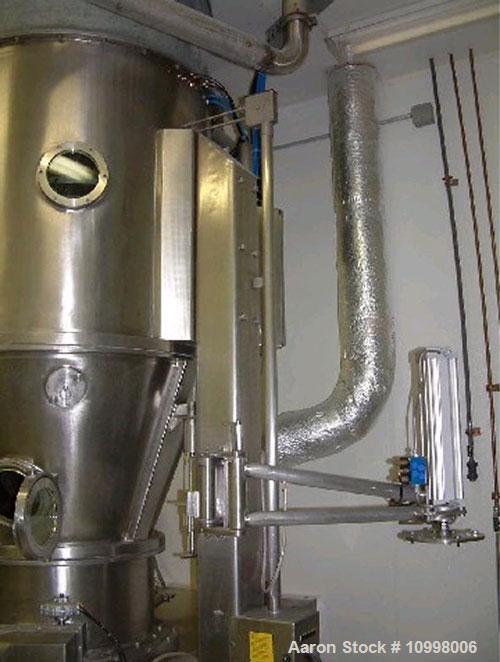

Used-Glatt Model GRG30 Batch Style Fluid Bed Dryer / Granulator System consisting of main tower assembly, air discharge bag filtration system, air handling unit with HEPA filtration, roof top blower and associated control cabinets. Warm filtered air is drawn in from the bottom of the tower crossing the air slit between rotor disc and product container, creating a whirling effect. This air flow, along with the rotation of the disc, results in a doughnut like movement of the product providing uniform exposure of air to particle surface. Injecting liquids through the spray nozzle during this process allows for granulation of the particles. The bag type filter system at the air outlet retains the suspended particles. 304 Stainless steel contact parts with polished interior. Capacity 5 to 40 kg dry (11 to 88 lb). Maximum working volume 60 liters. Temperature range -10 to 60 Celsius. Total heating capacity 50 kW. Maximum air volume 1500 cubic meters/hour (52,972 cubic feet/hour). Steam consumption 80 kg/hour (176 lb/hour). Compressed air consumption 45 cubic meters/hour (1589 cubic feet/hour). OAD of main tower 65" wide x 70" long x 125' high. 3/60/480. Air 6 bar, steam 4 bar.
