Used Carmen Model FBP-562 Vibratory Fluid Bed Dryer System – 45" x 17'6", Dual Zone, SS, w/ Crusher, Screener, Sifter & Heater

🔹 Manufacturer:

Carmen Industries, Inc.
(Additional Equipment by: Stedman Machine, Kason, Horizon Systems, Stelter & Brinck, and Sweco)

🔹 Description:

This Used Carmen Industries Vibratory Fluid Bed Processor (Model FBP-562) is a complete drying and processing system designed for thermal drying and moisture reduction of high-fat content materials, such as proteins or feedstock.

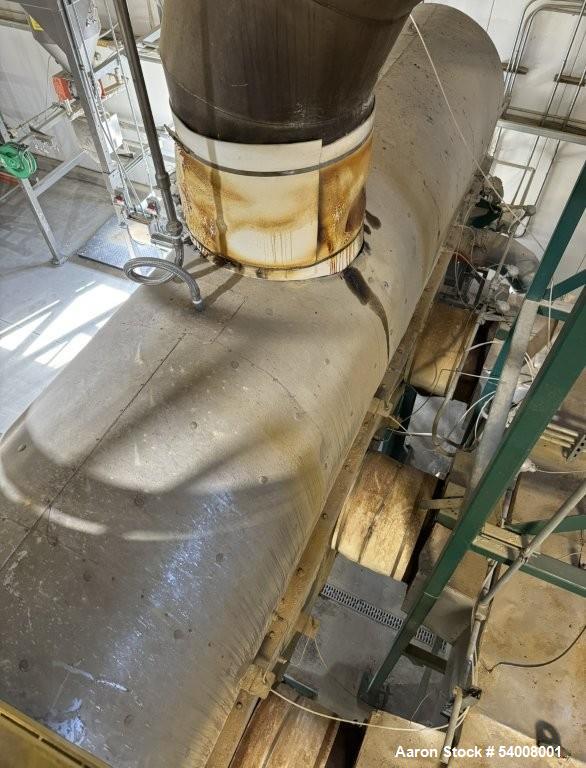

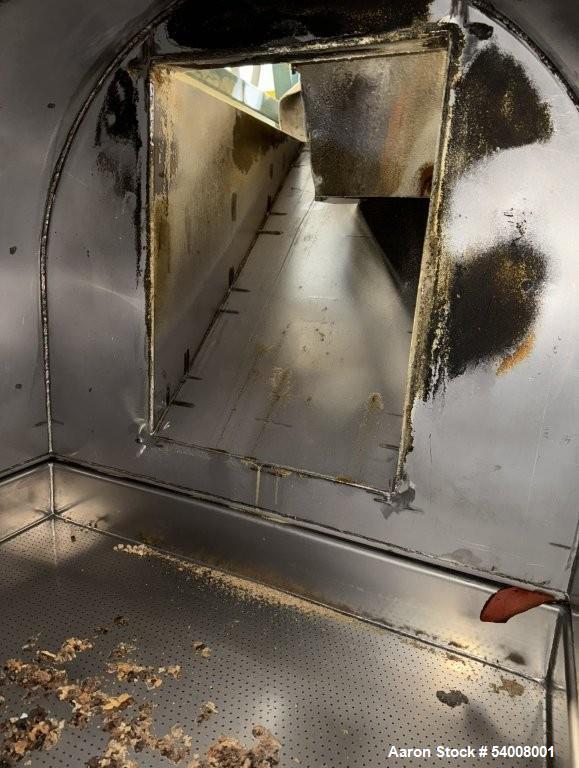

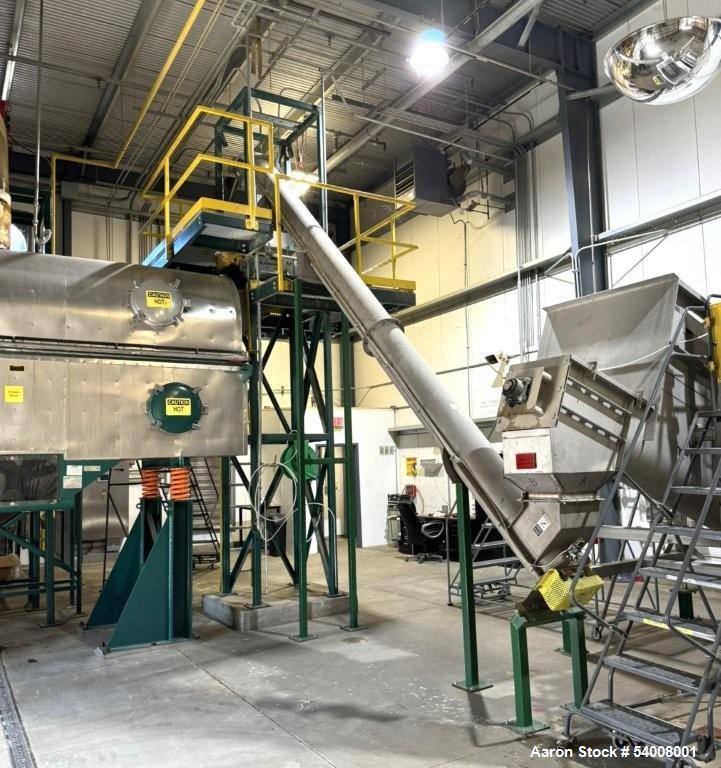

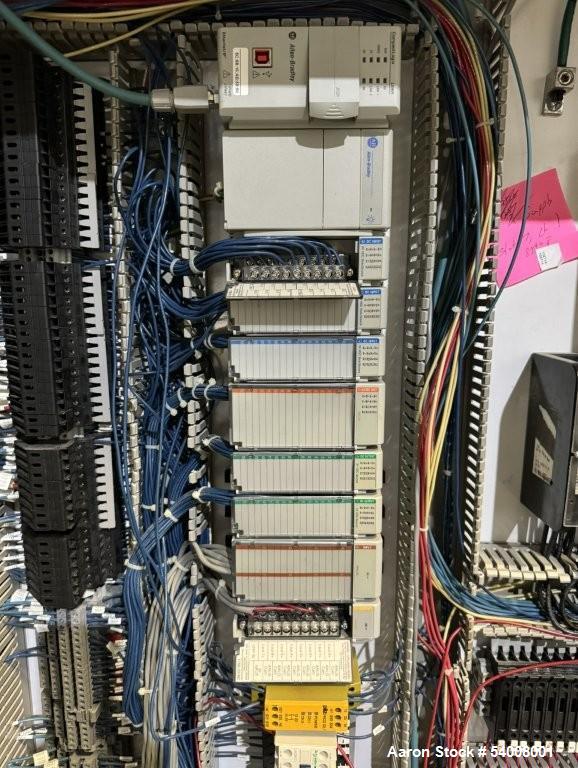

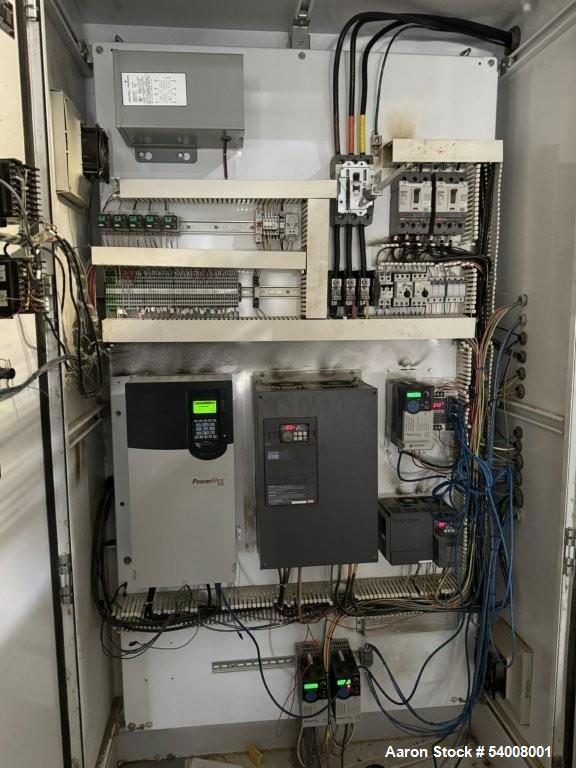

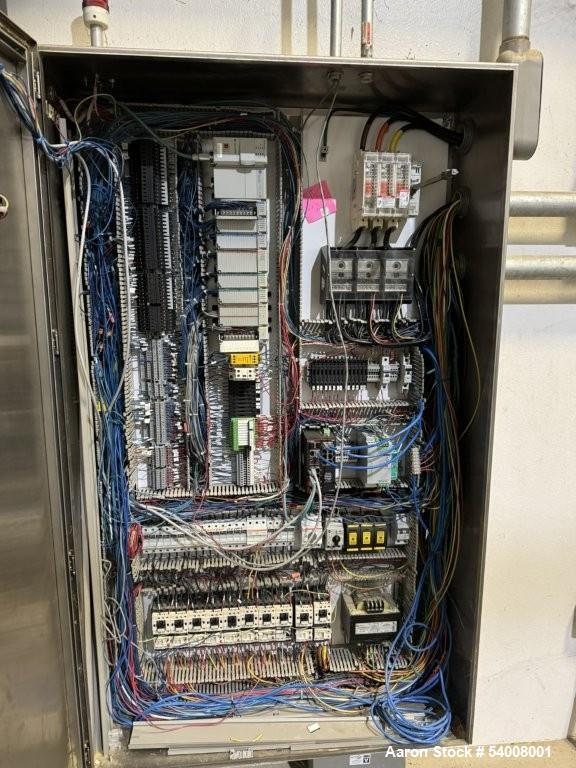

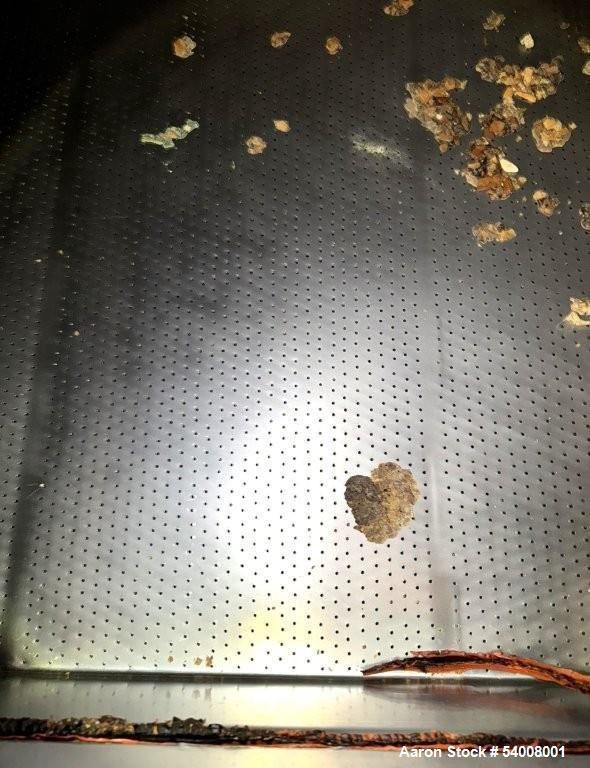

The stainless steel unit features a perforated bed measuring approximately 45" wide x 17'6" long, with two drying zones and one cooling zone, reaching a maximum drying temperature of 300°F. Driven by a 7.5 HP motor, it includes a top plenum, control panel, and Stelter & Brinck natural gas-fired air heater.

The full system includes auxiliary downstream components such as:

• Stedman Machine Aurora Dual Rotor Crusher

• Kason Centri-Sifter

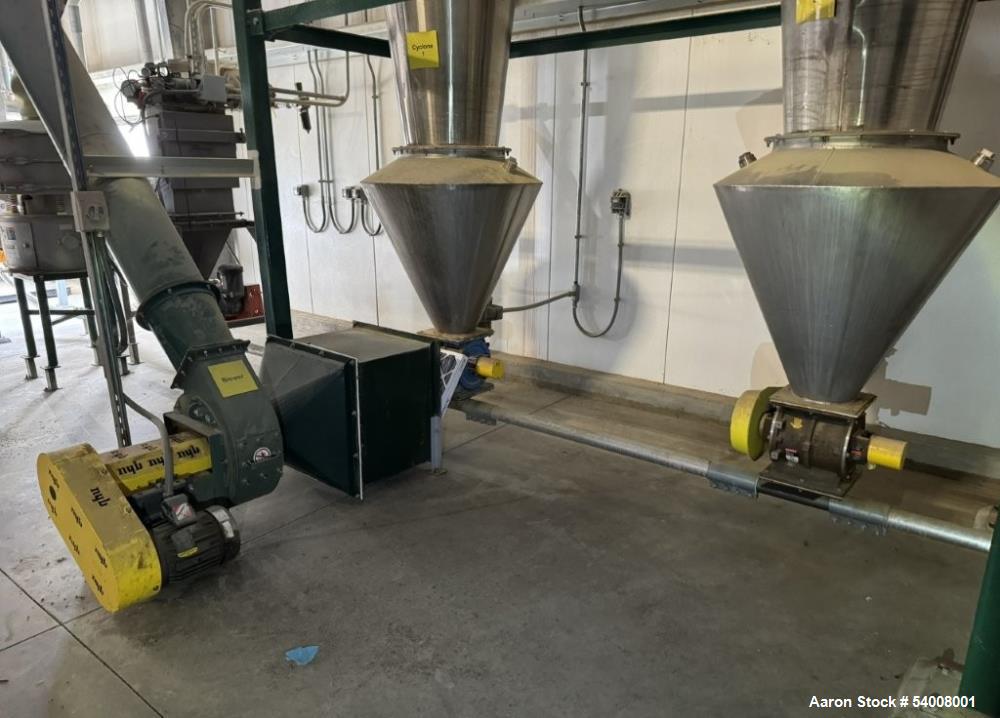

• Horizon Systems VHF Vent Hopper with filter/blower

• Sweco 40” Single Deck Screener

Previously used for drying fatty proteins at a feed rate of 3,200 lbs/hour (65% moisture), discharging at 6% final moisture. Built in 2016, this integrated stainless-steel contact system offers efficient, continuous drying, sifting, crushing, and classification in a unified skid.

🔹 System Specifications:

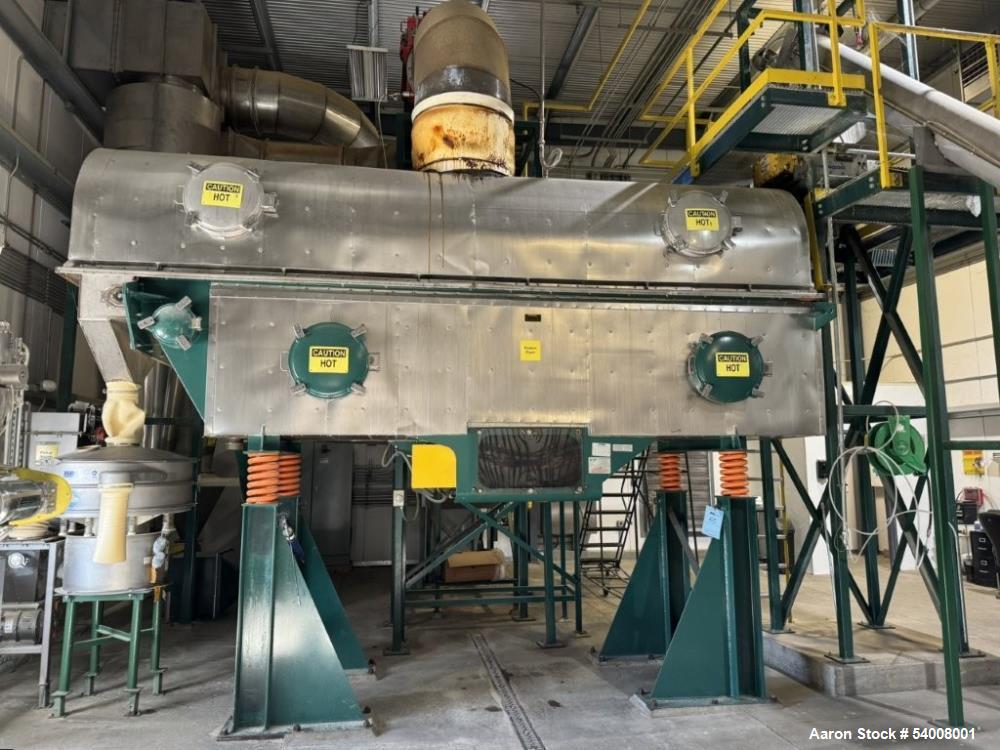

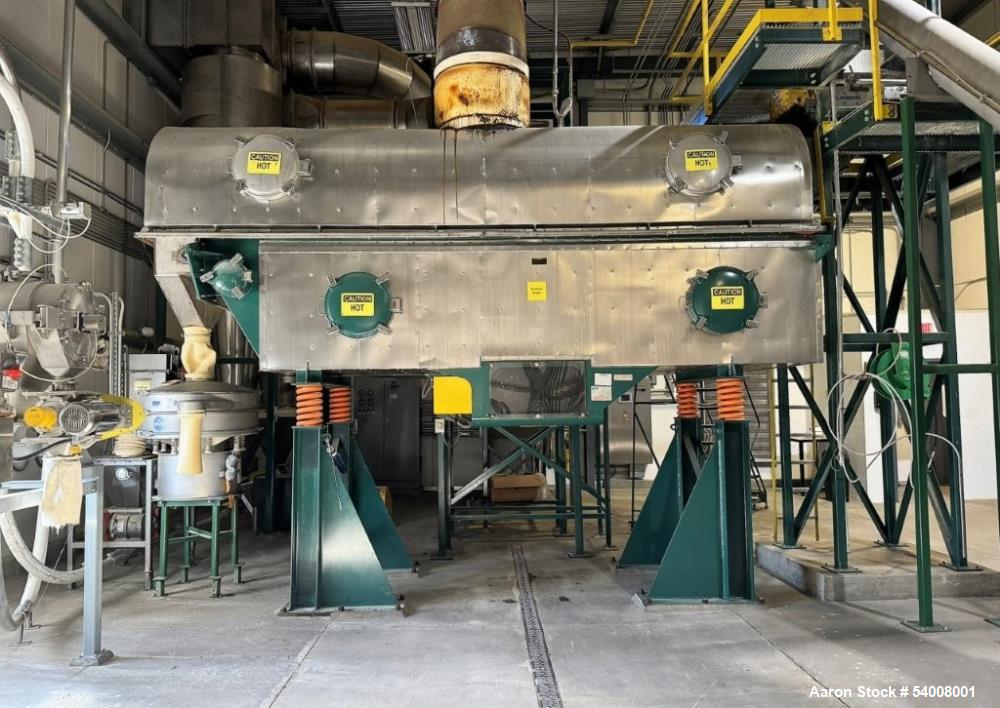

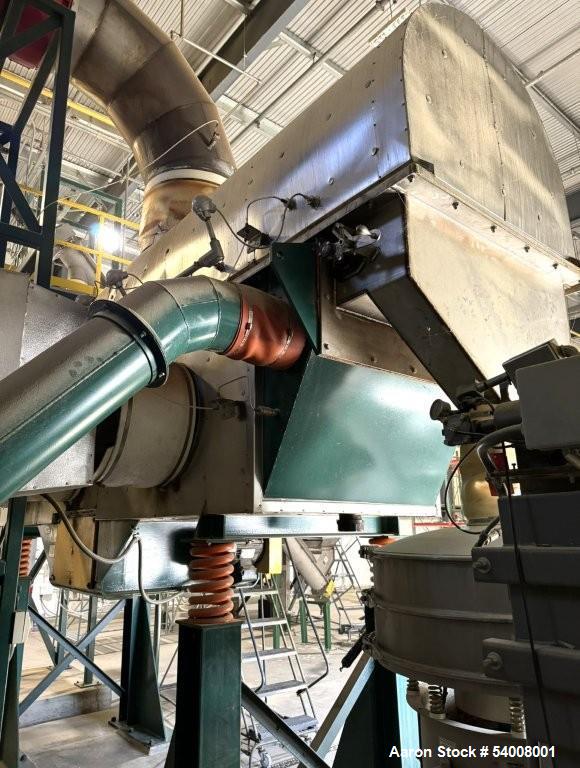

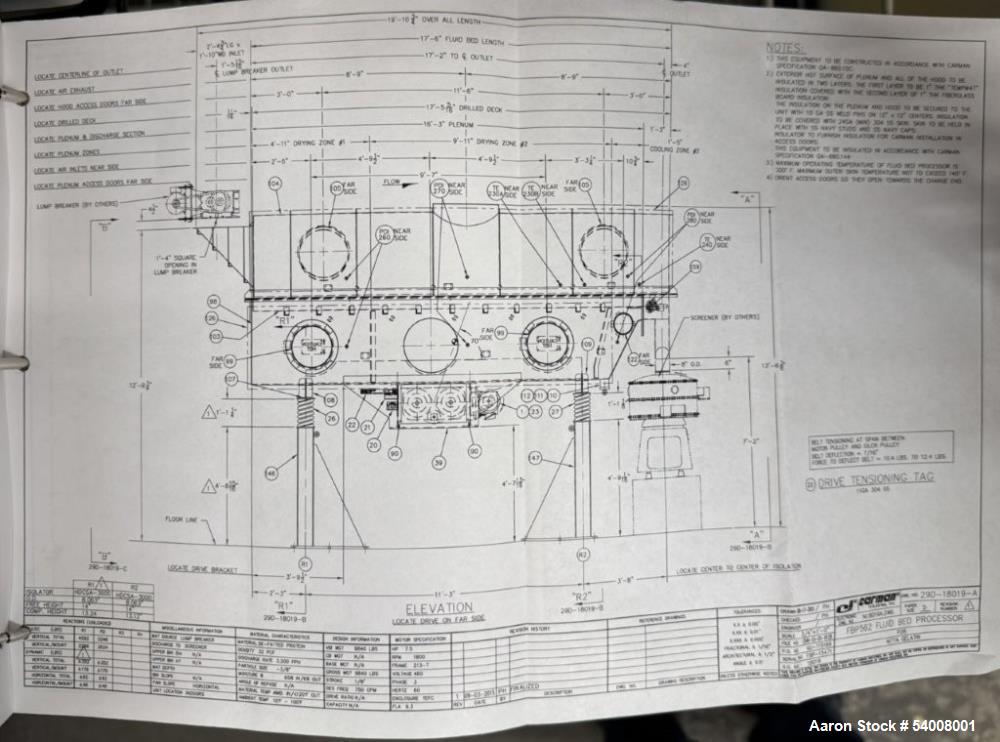

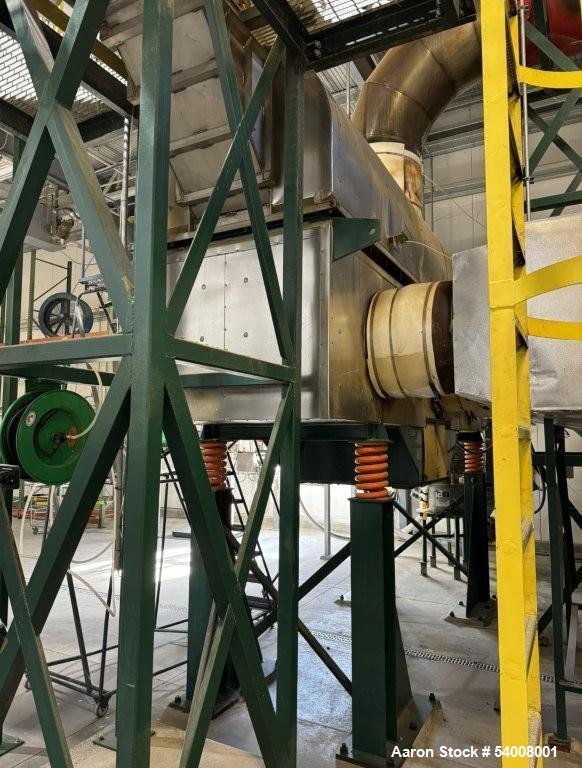

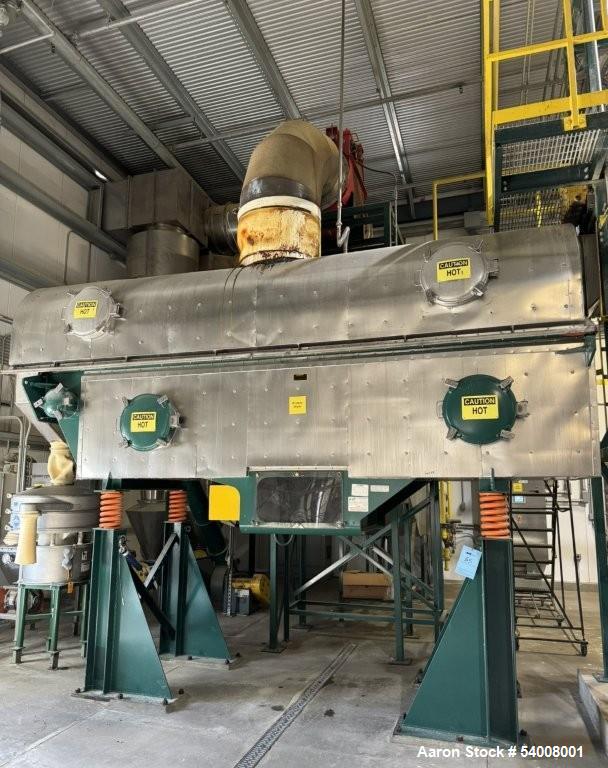

➤ Vibratory Fluid Bed Dryer (Carmen FBP-562):

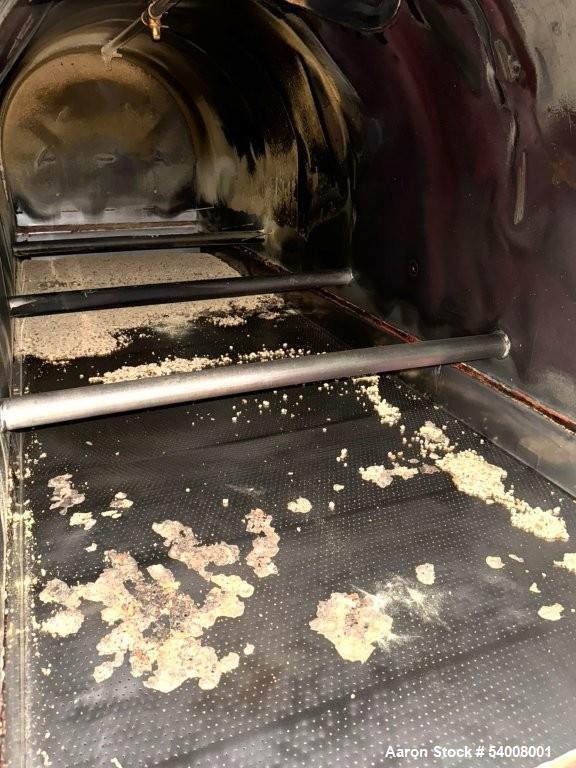

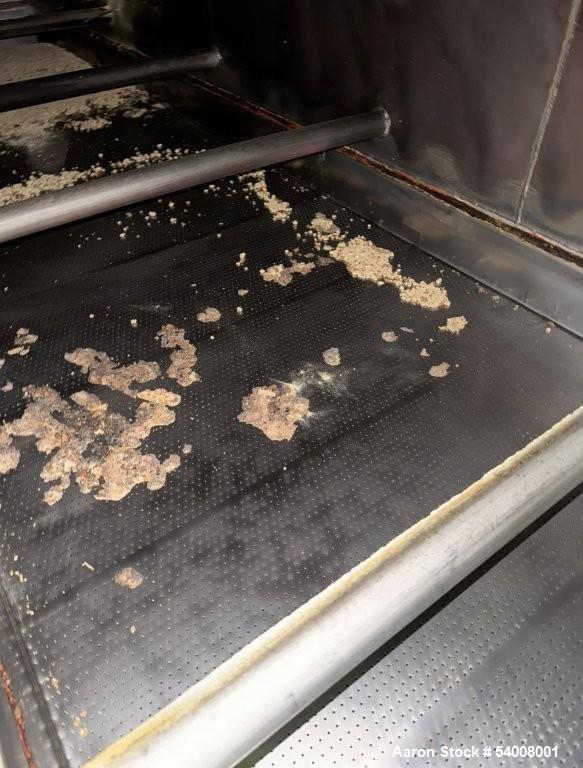

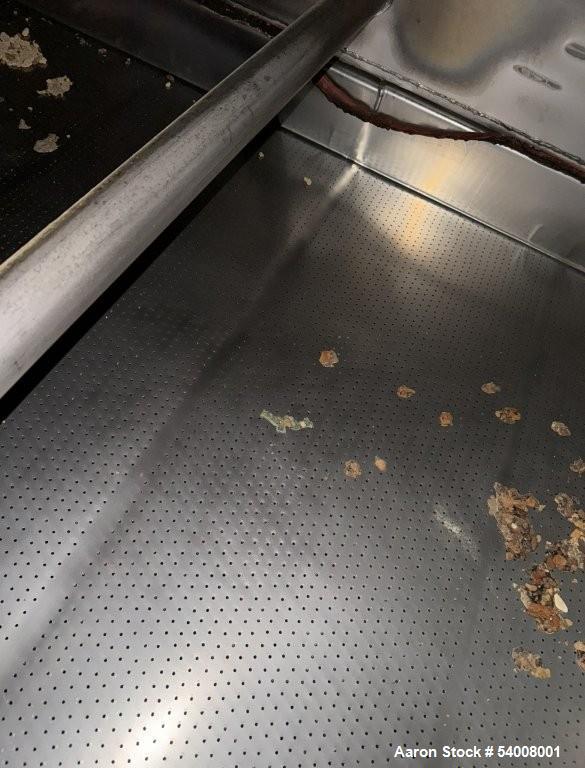

• Bed Dimensions: 45” W x 17’6” L

• Zones: 2 Drying + 1 Cooling

• Drying Temp Max: 300°F

• Construction: Stainless steel product contact surfaces

• Motor: 7.5 HP

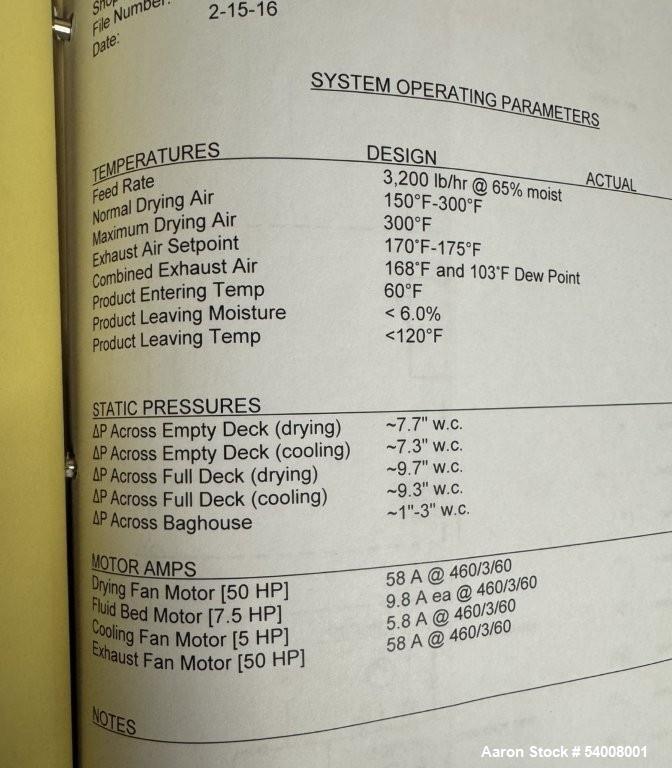

• Feed Rate: 3,200 lbs/hr (65% moisture in, 6% out)

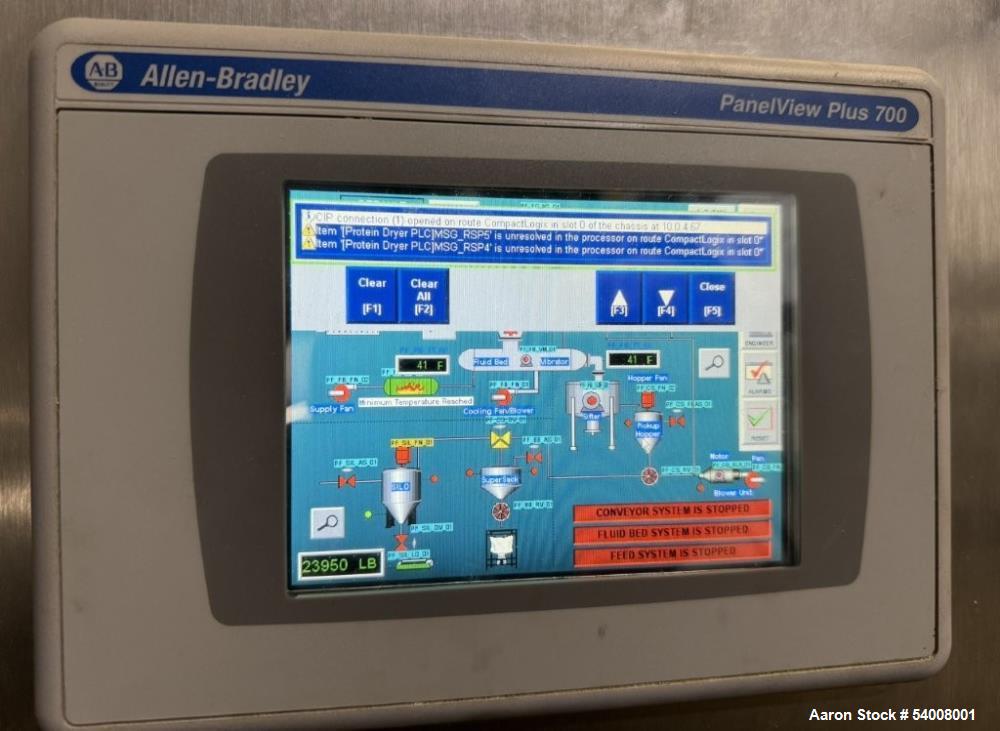

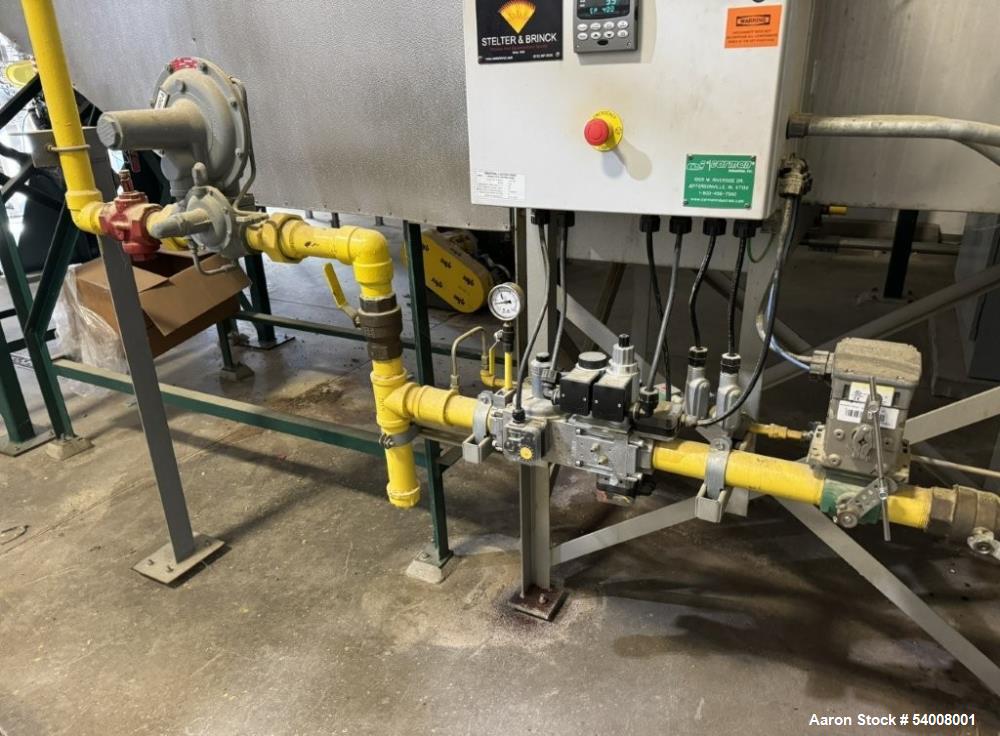

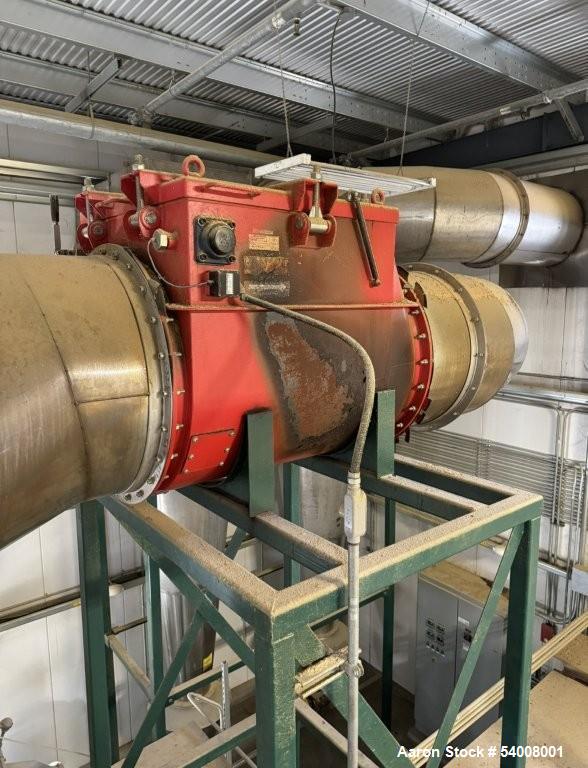

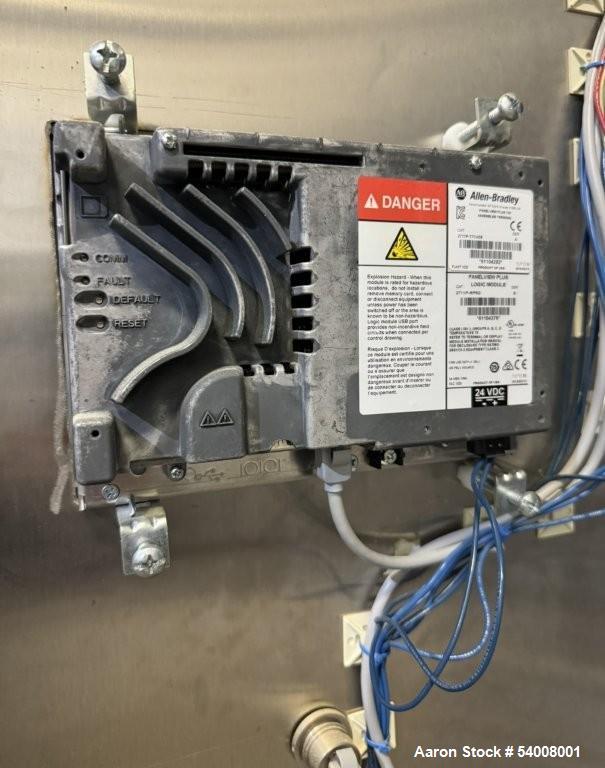

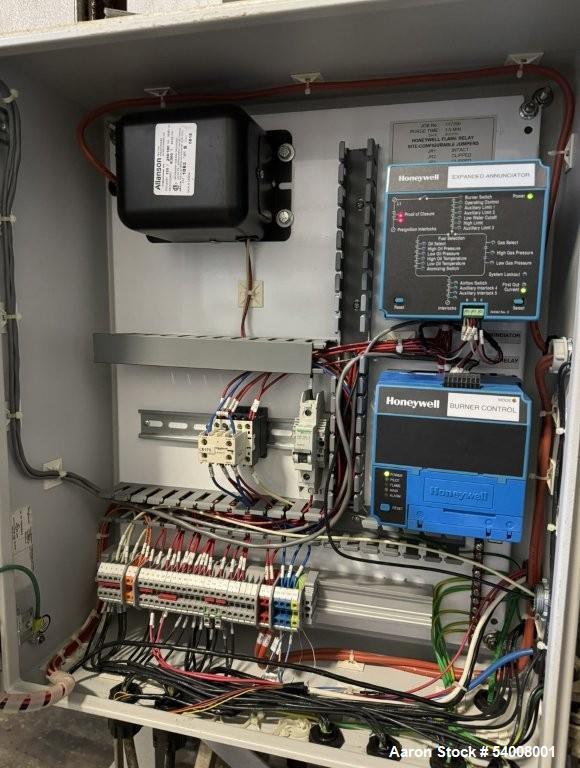

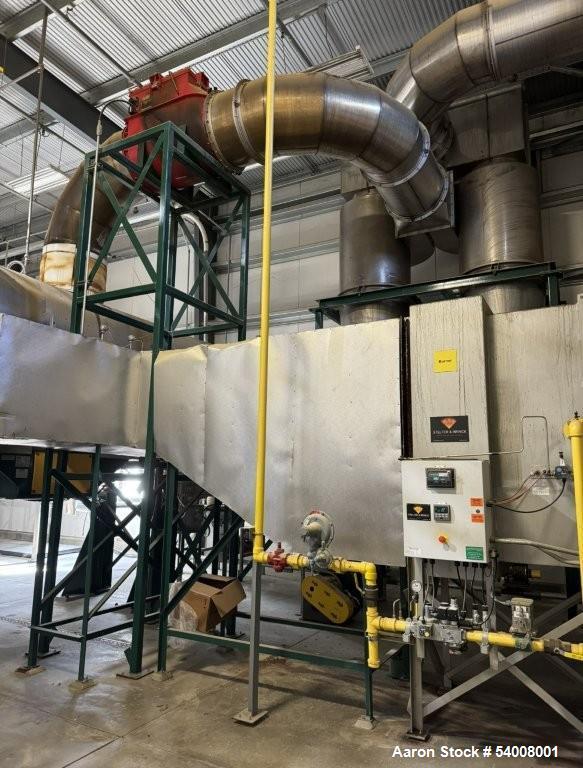

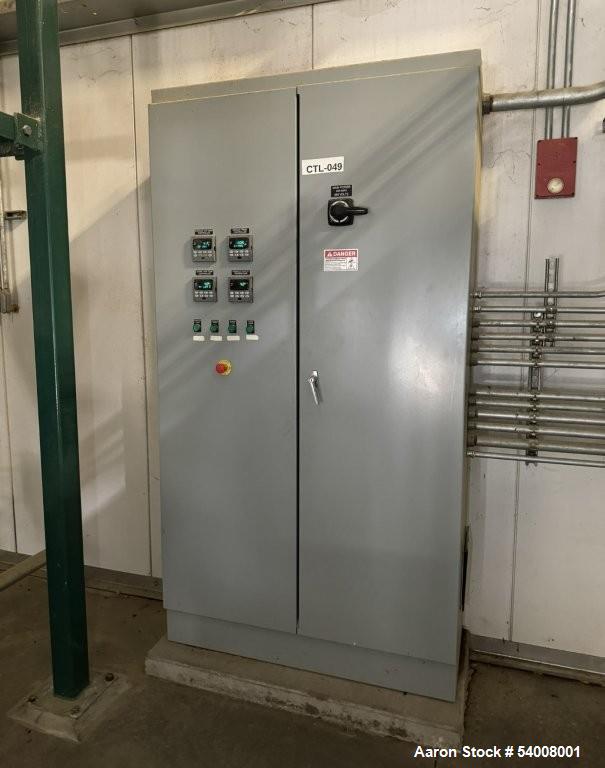

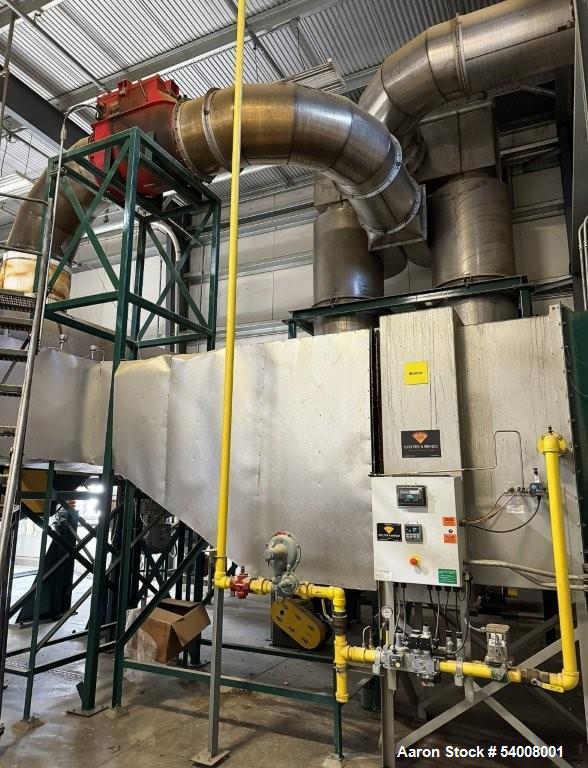

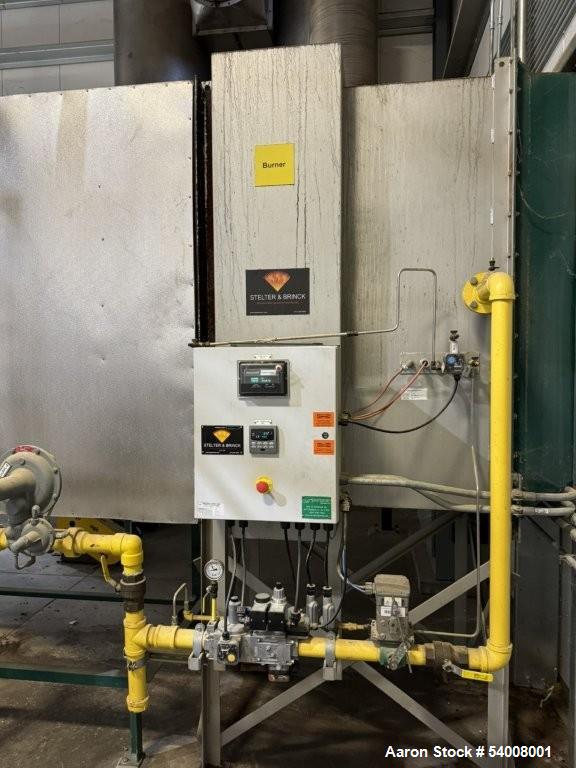

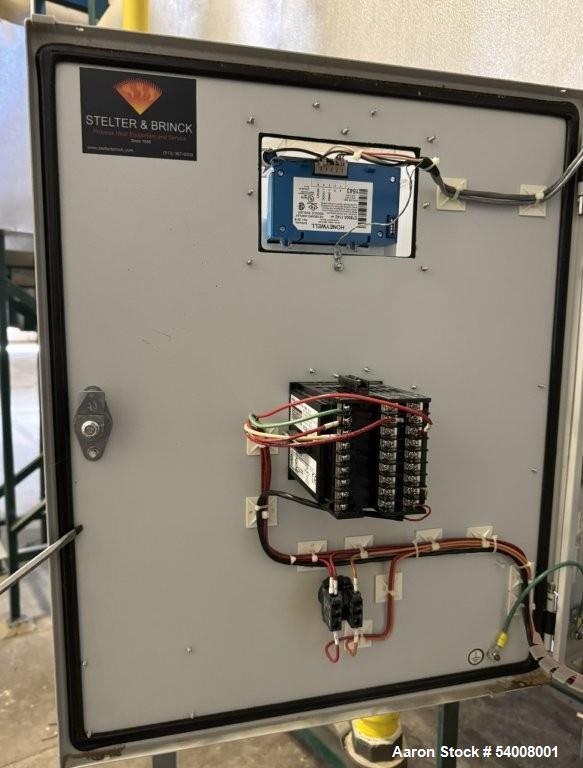

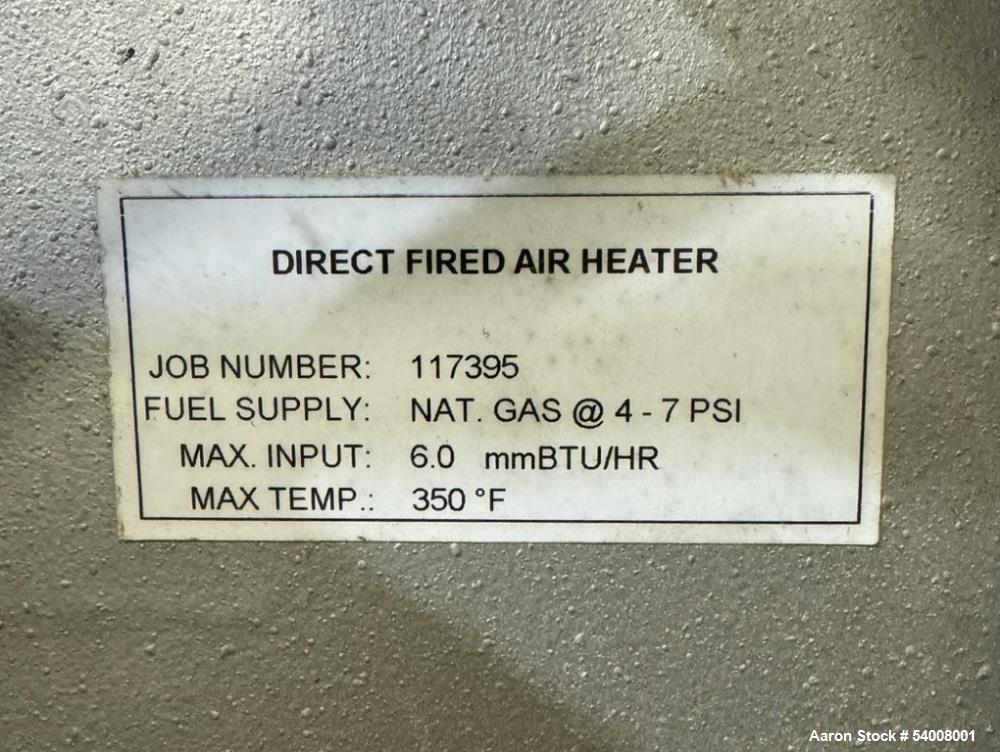

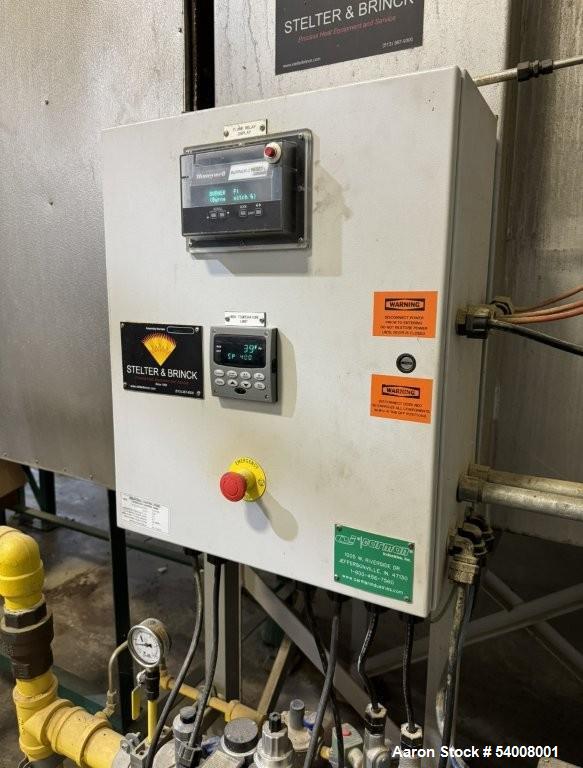

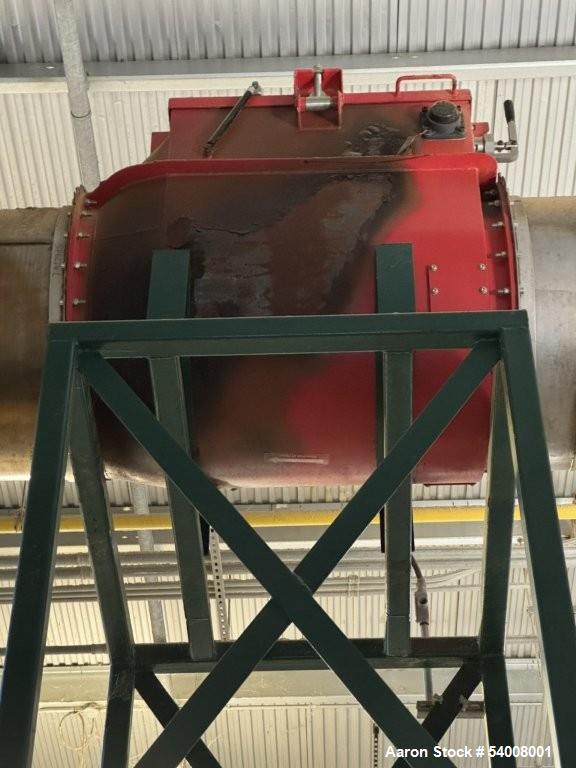

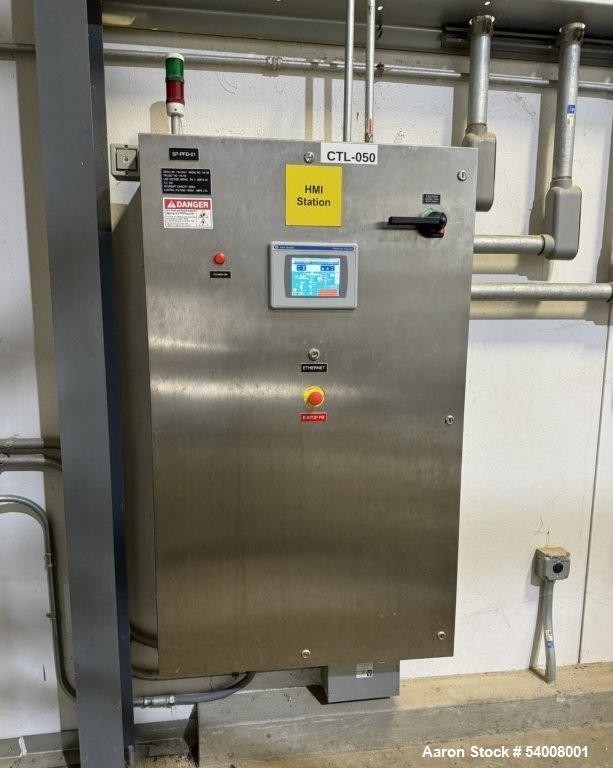

• Includes: Top plenum, control panel, Stelter & Brinck direct-fired gas heater

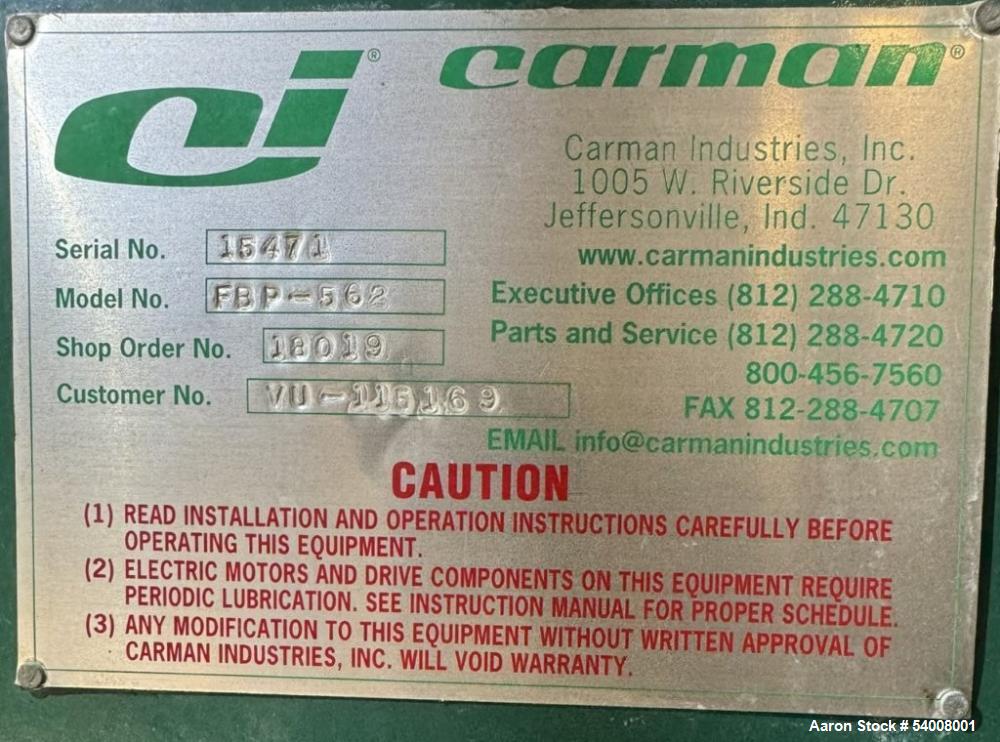

• Serial #: FBP-15471

• Year: 2016

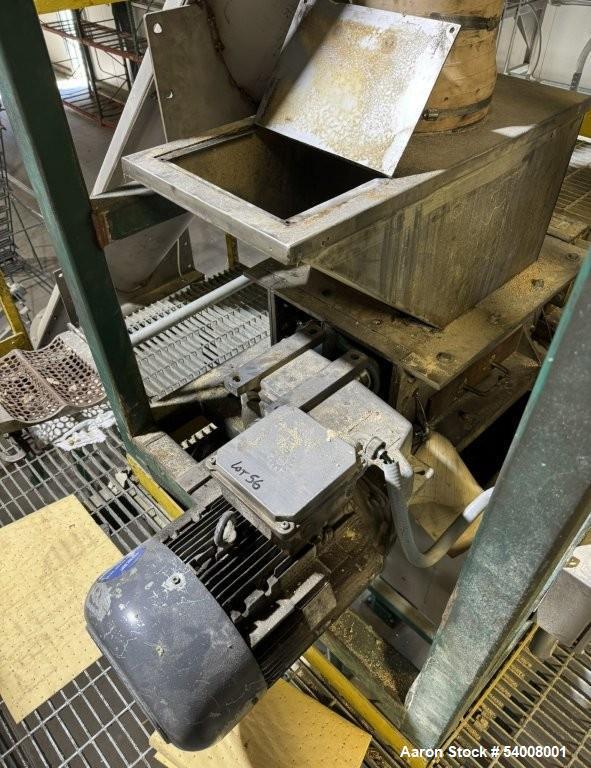

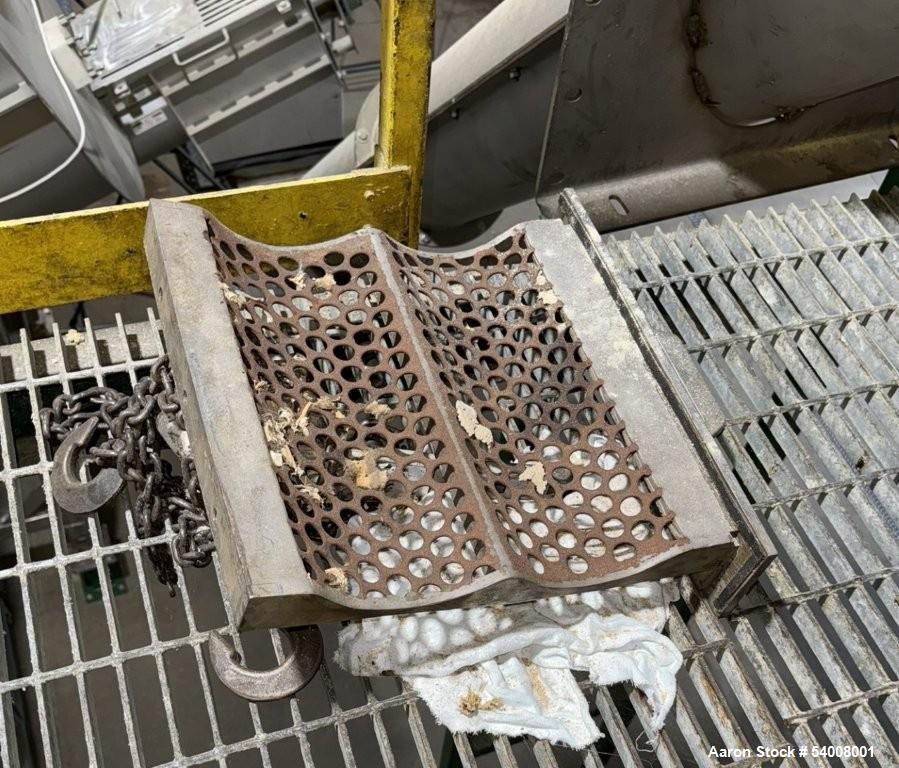

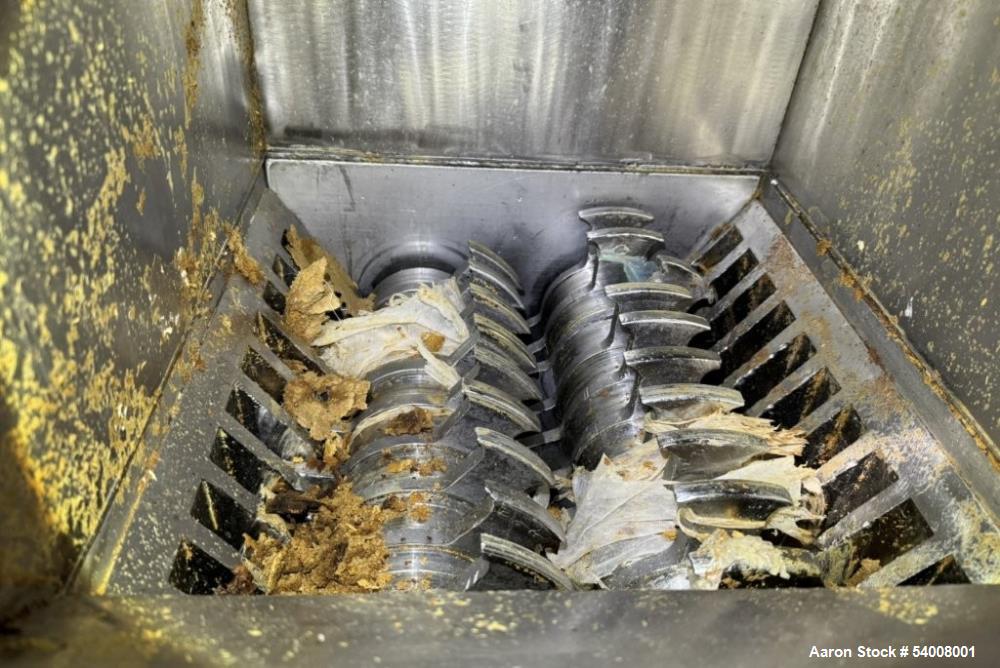

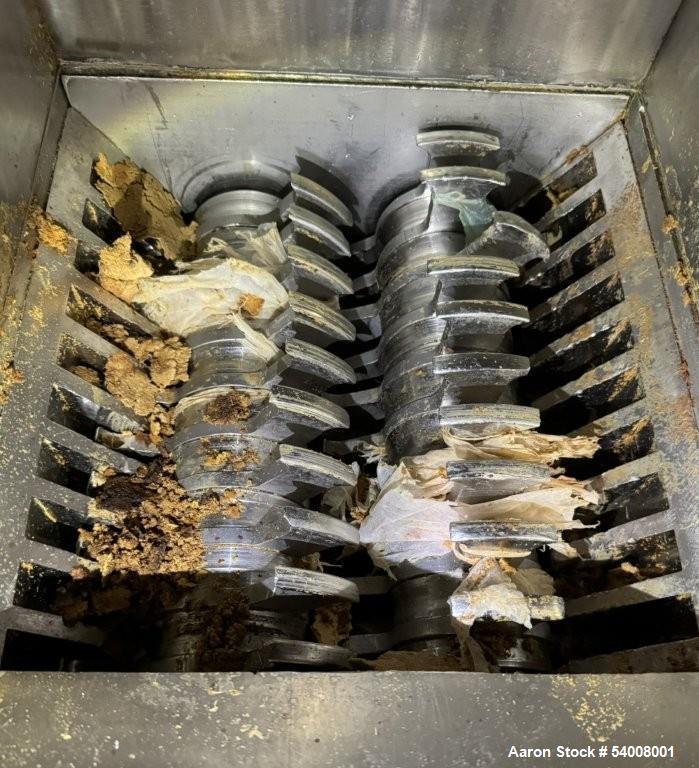

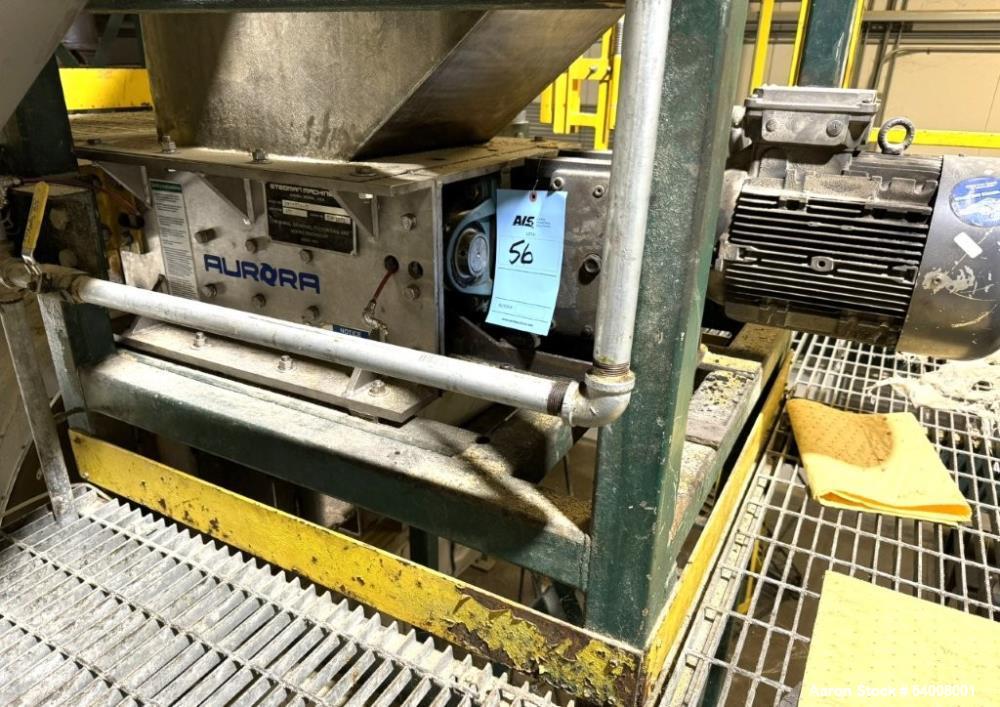

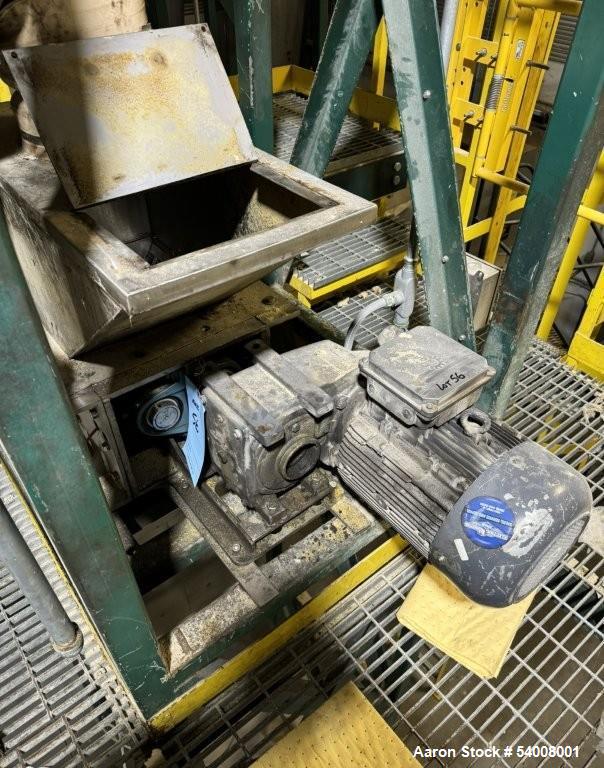

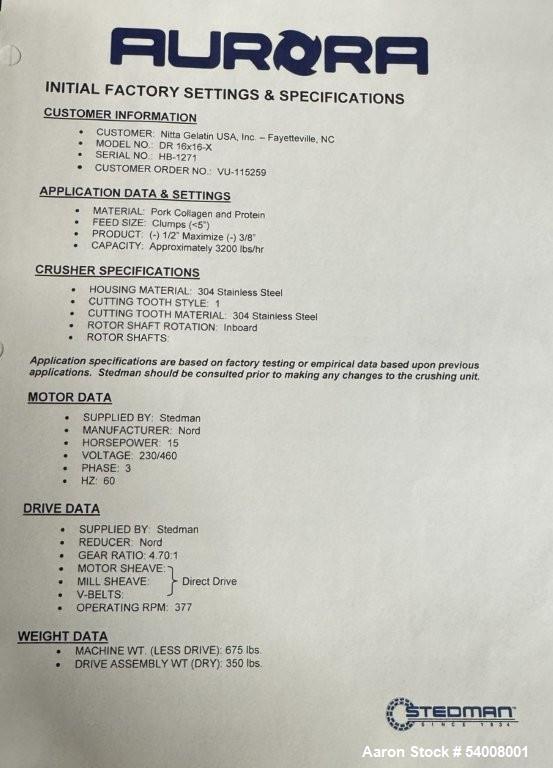

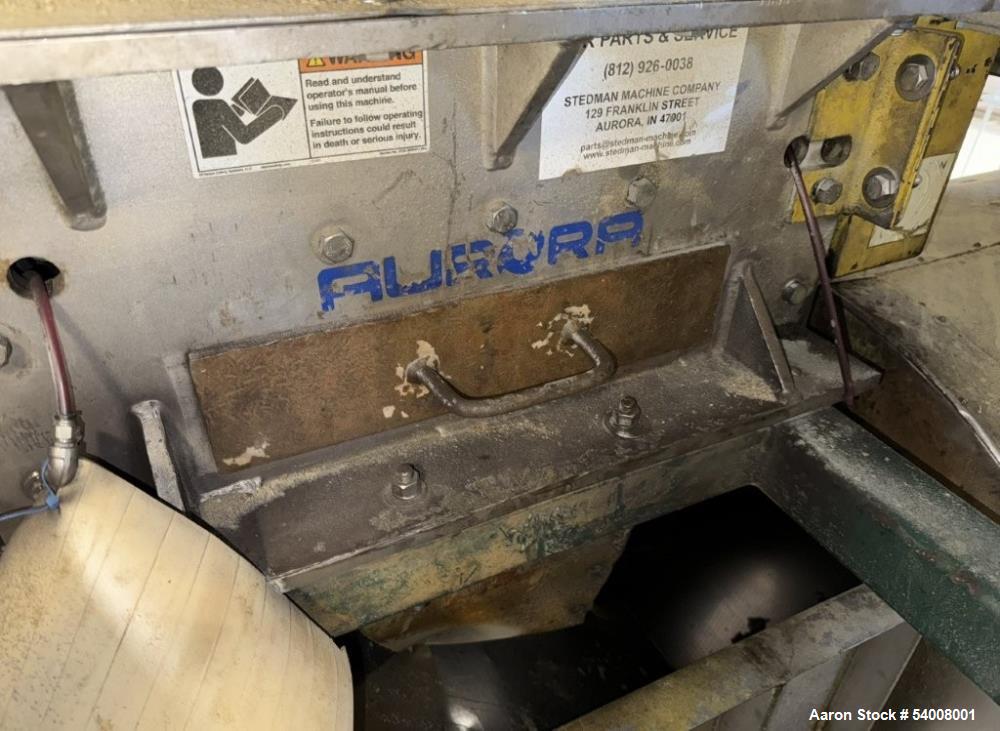

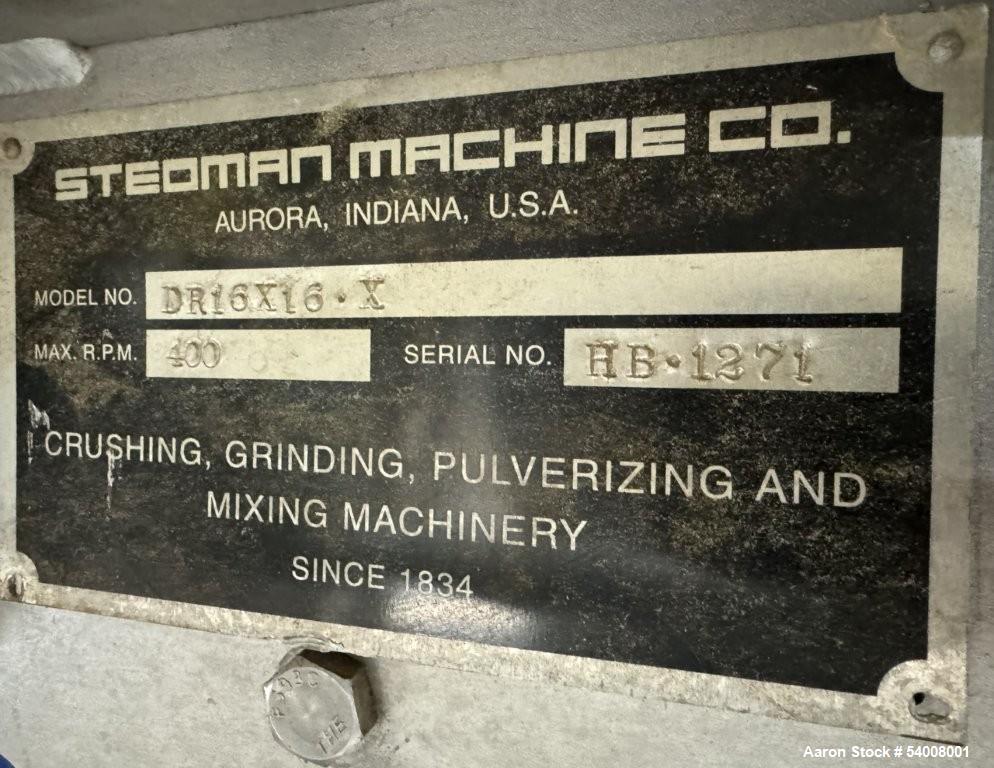

➤ Stedman Machine Dual Rotor Crusher (DR 16X16-X):

• Material: 304 Stainless Steel

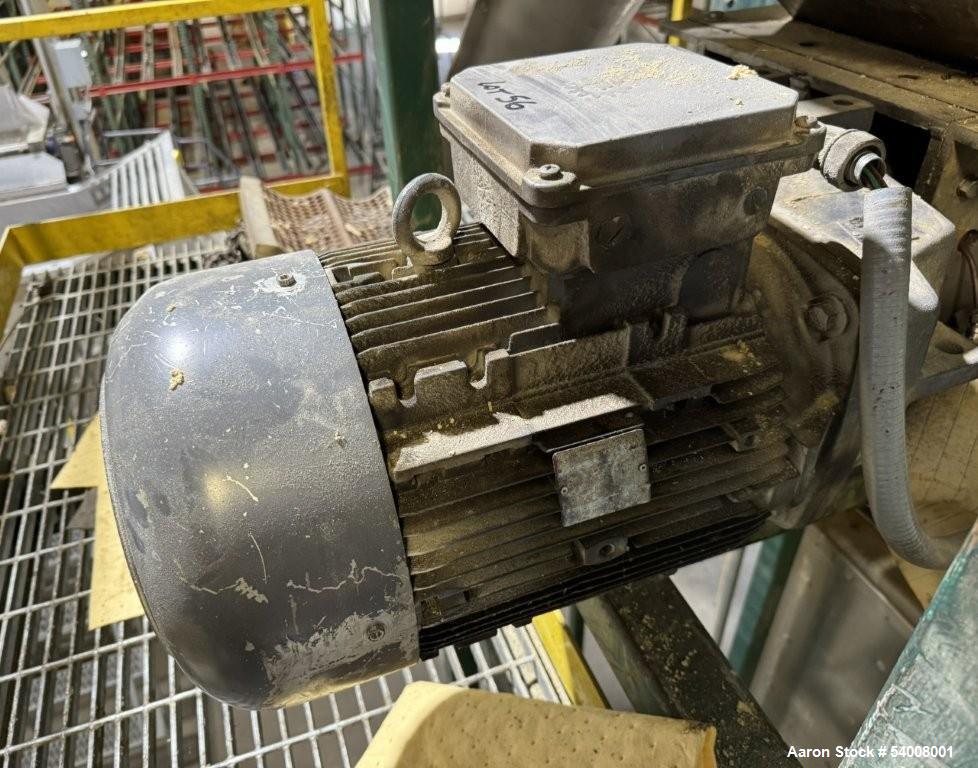

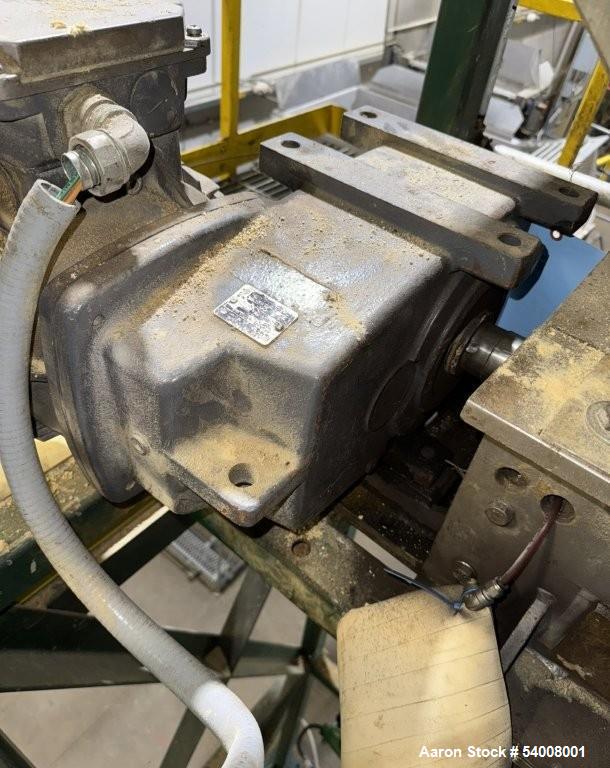

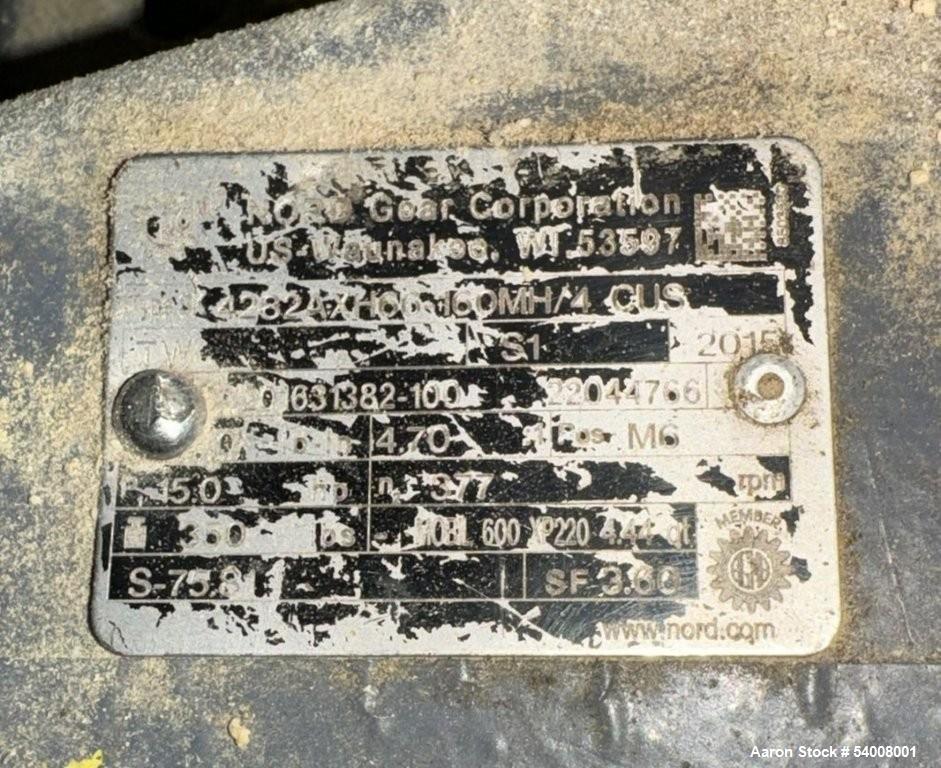

• Motor: 15 HP with reducer

• Serial #: HB-1271

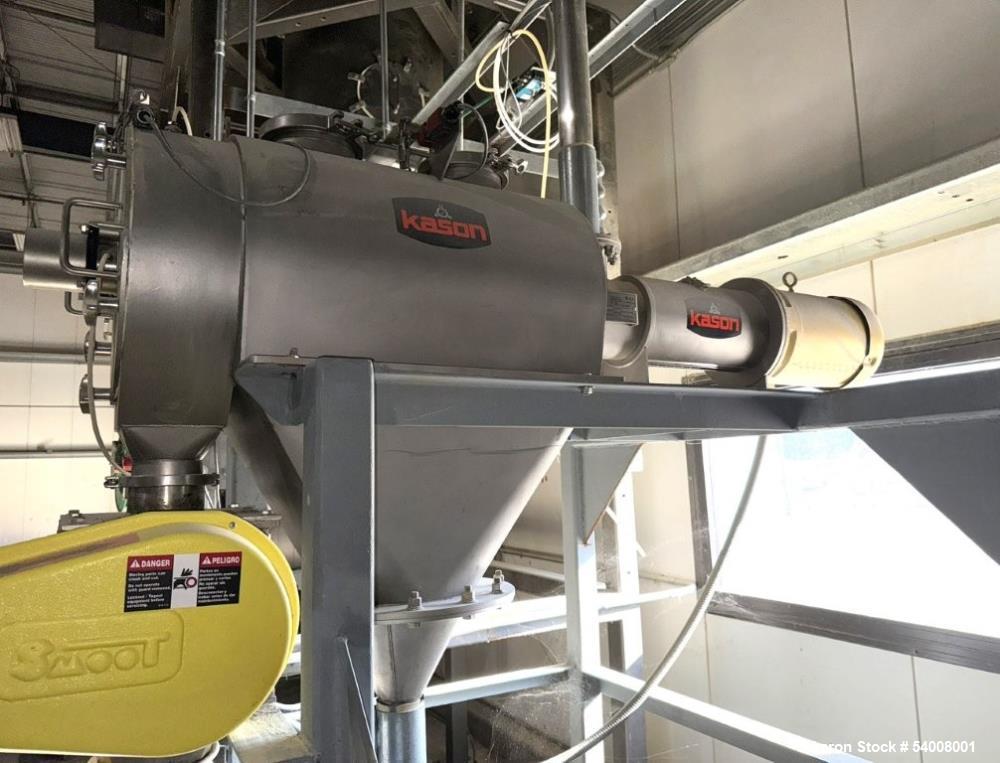

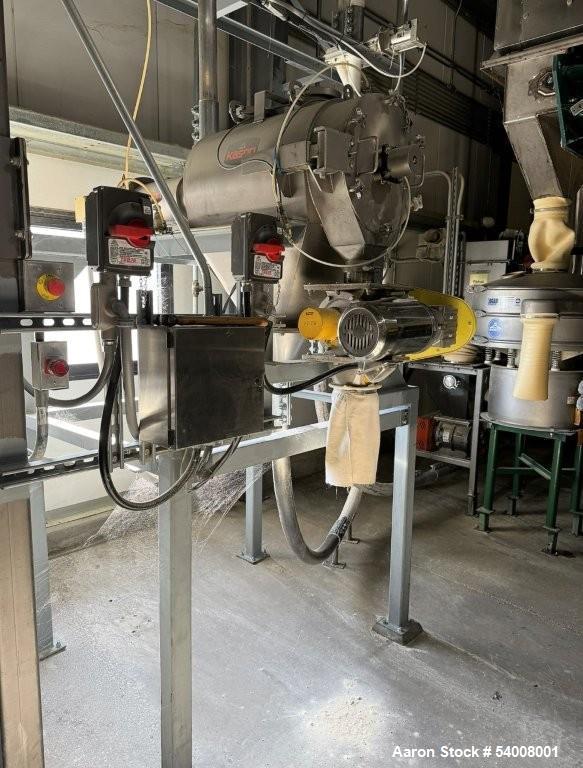

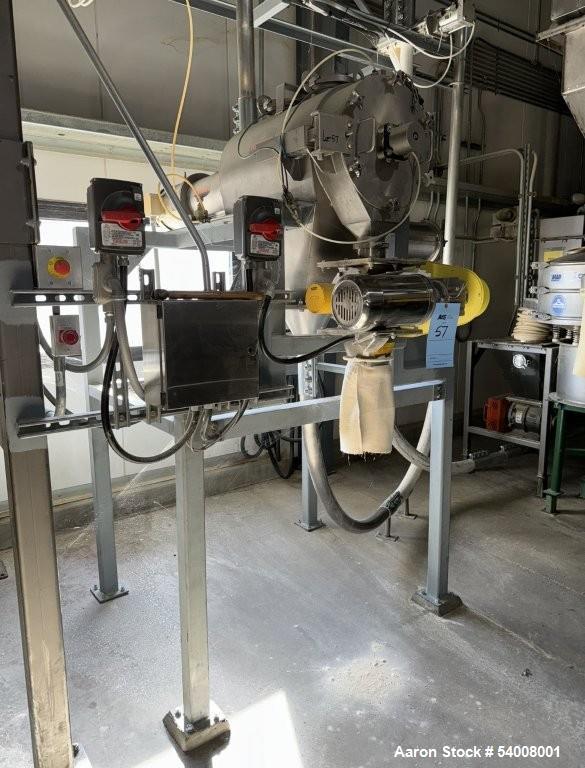

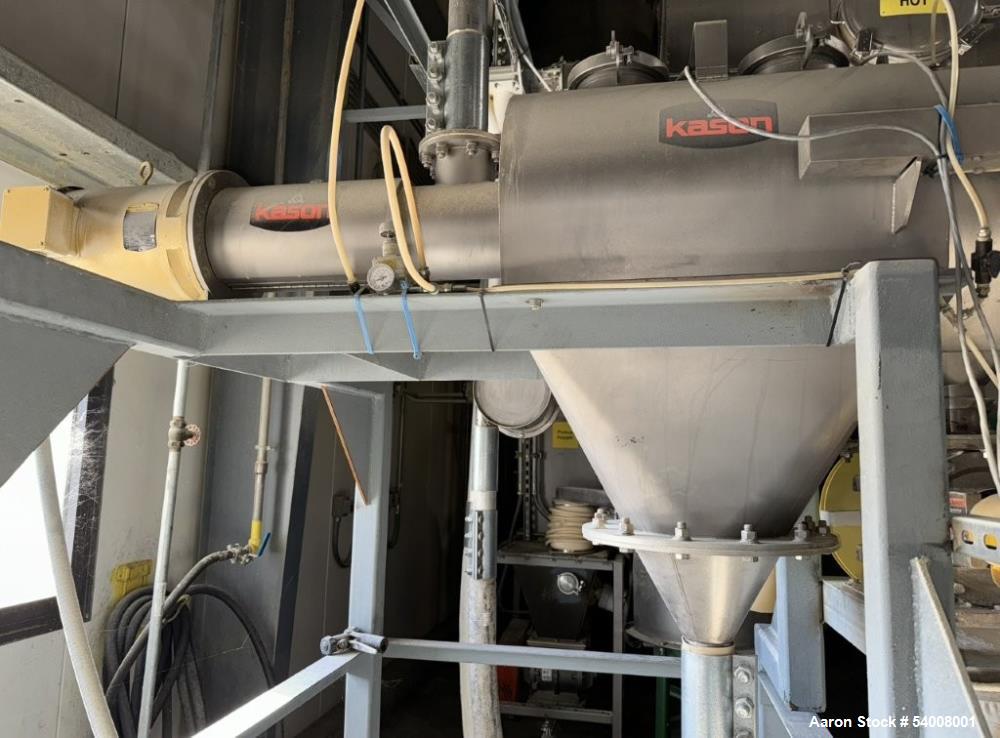

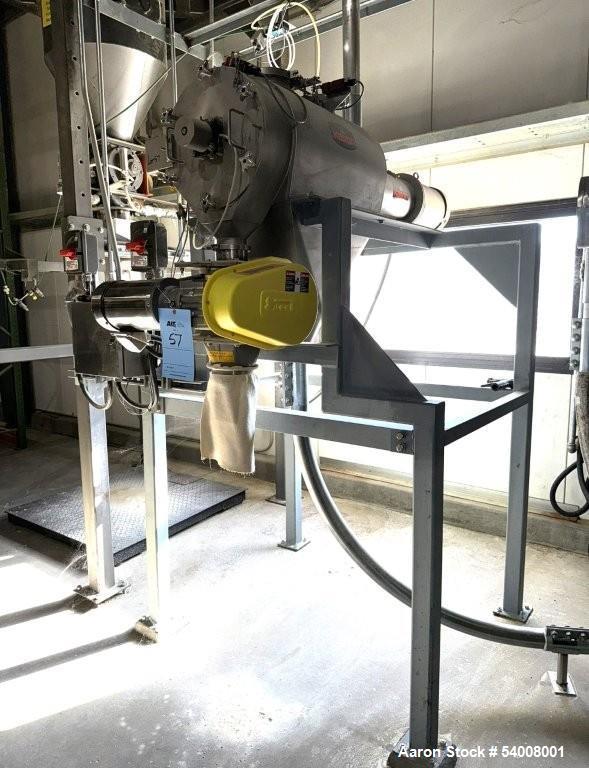

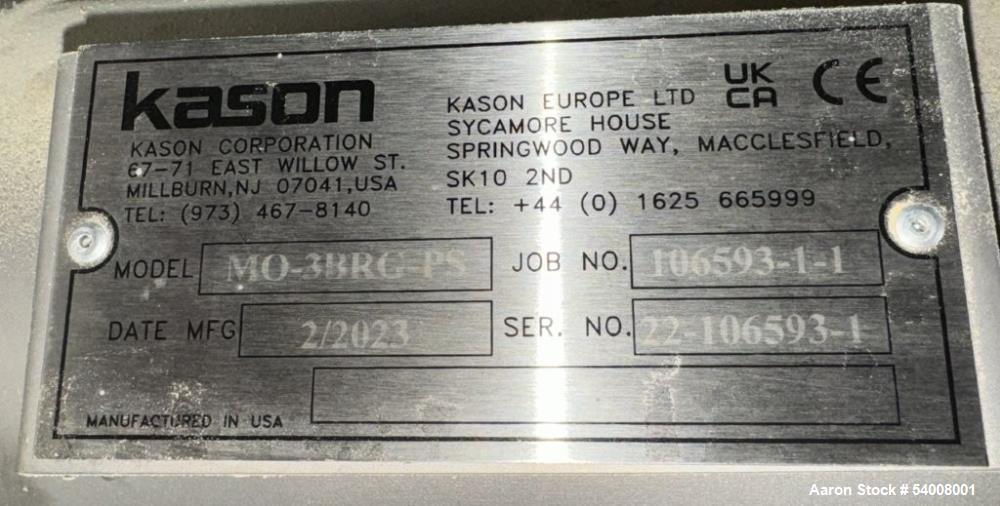

➤ Kason Centri-Sifter (MO-3BRG-PS):

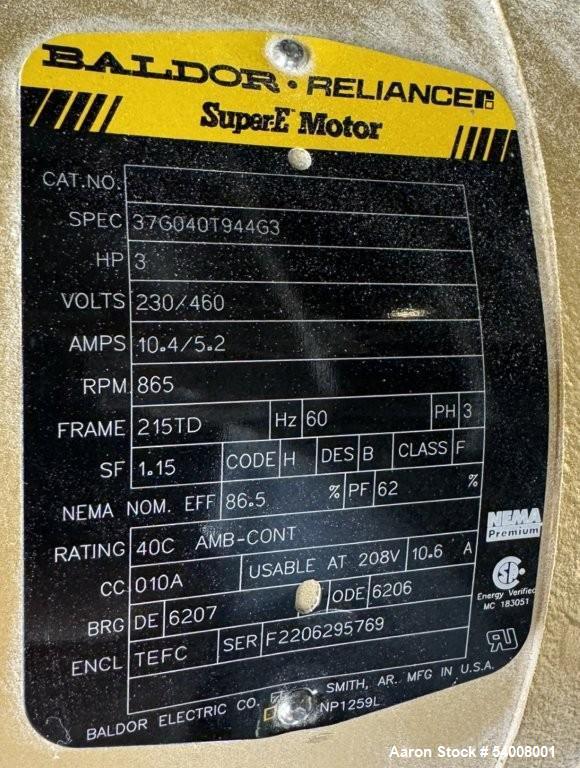

• Motor: 3 HP

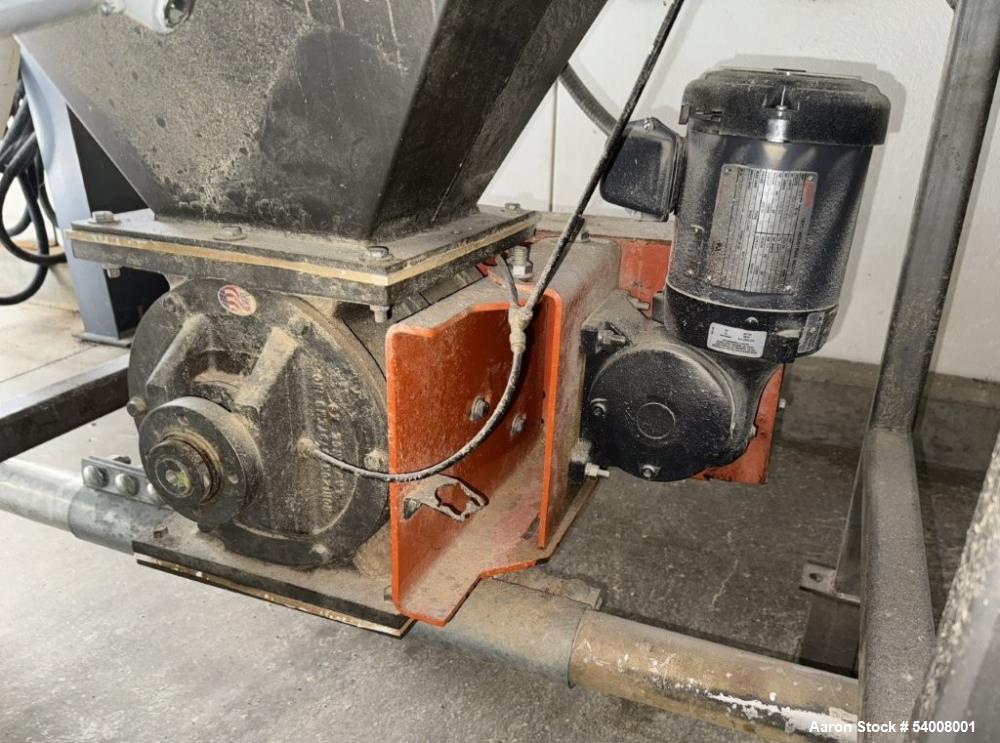

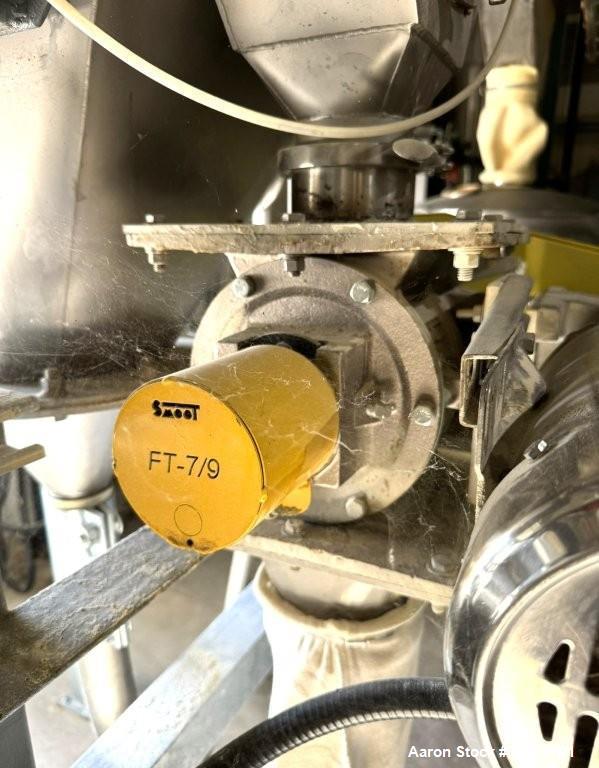

• Design: Top feed, end overs outlet (with Smoot rotary valve), bottom fines outlet

• Mount: Frame-mounted

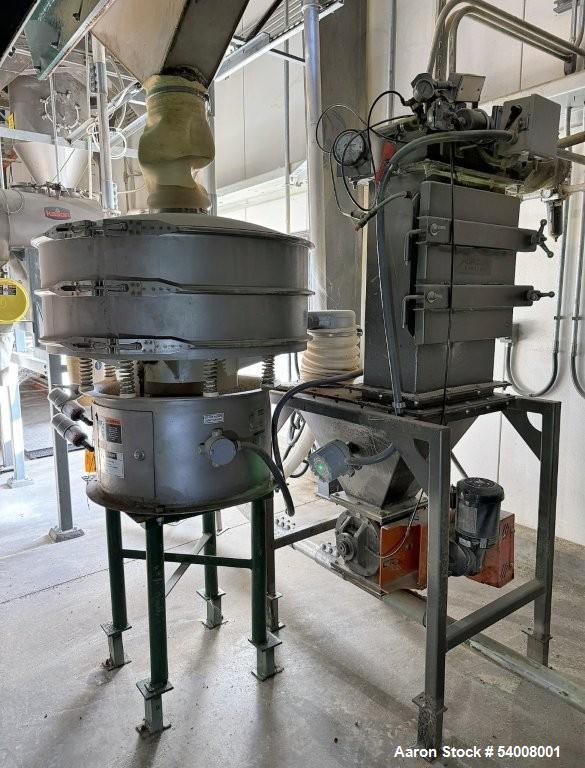

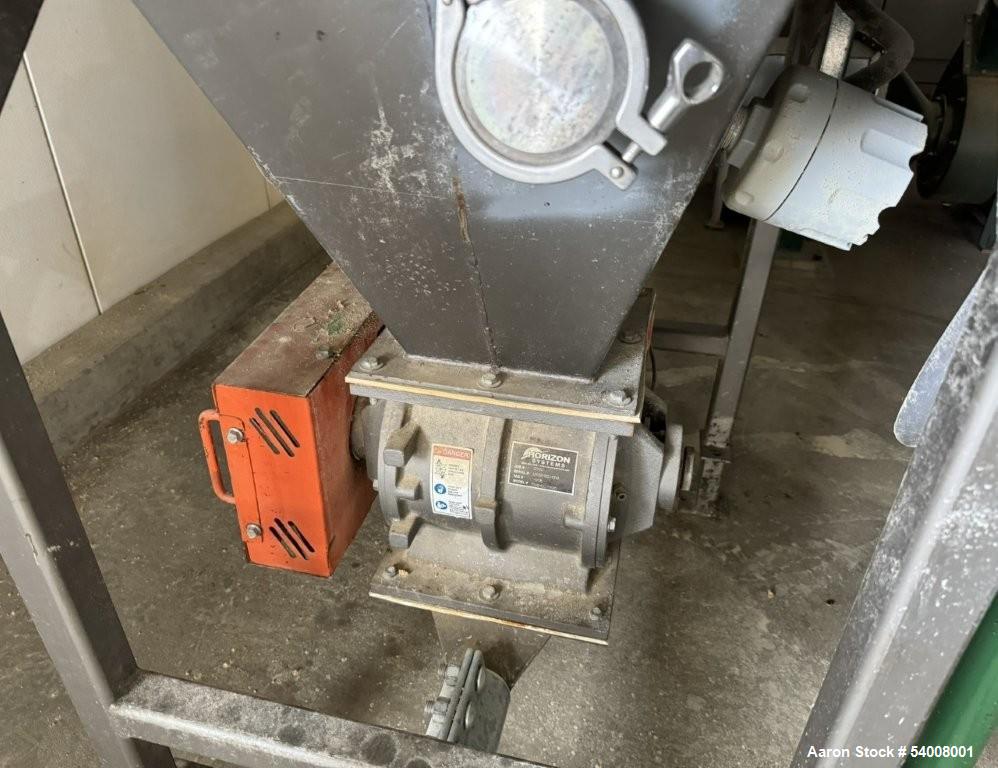

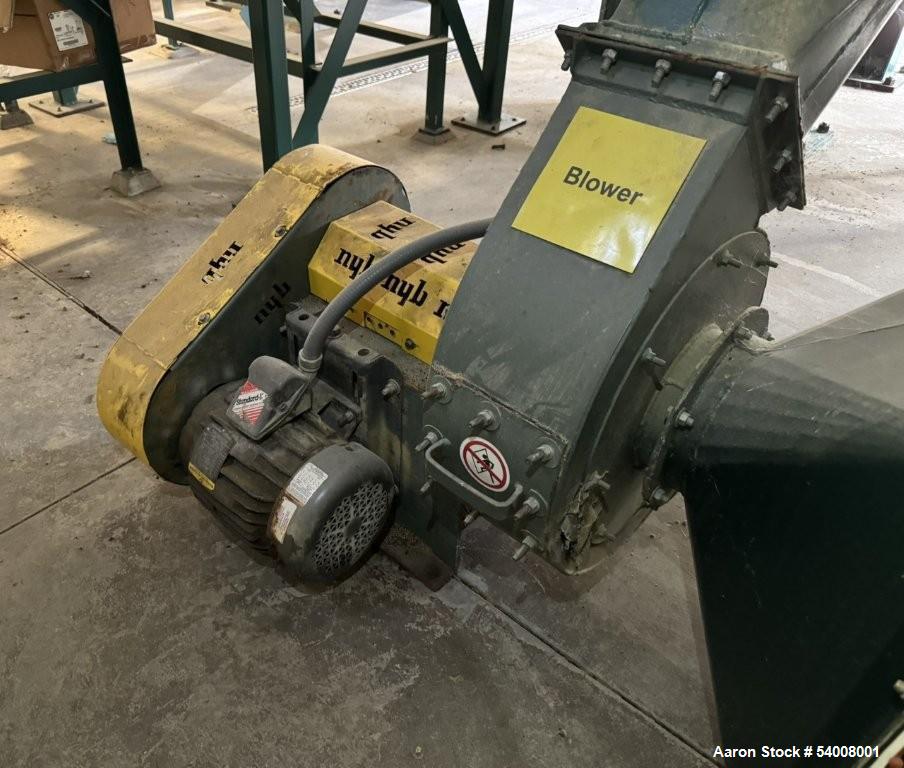

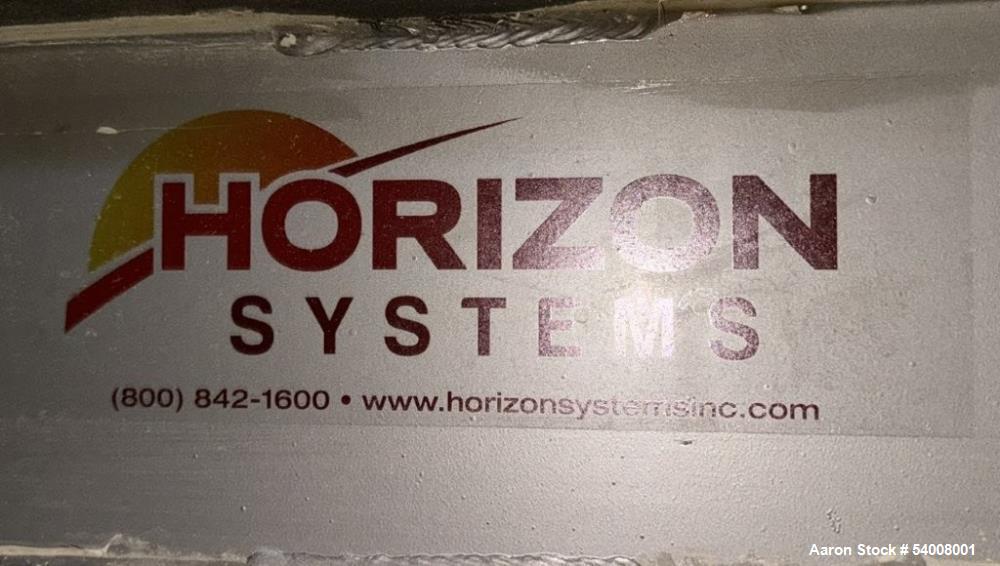

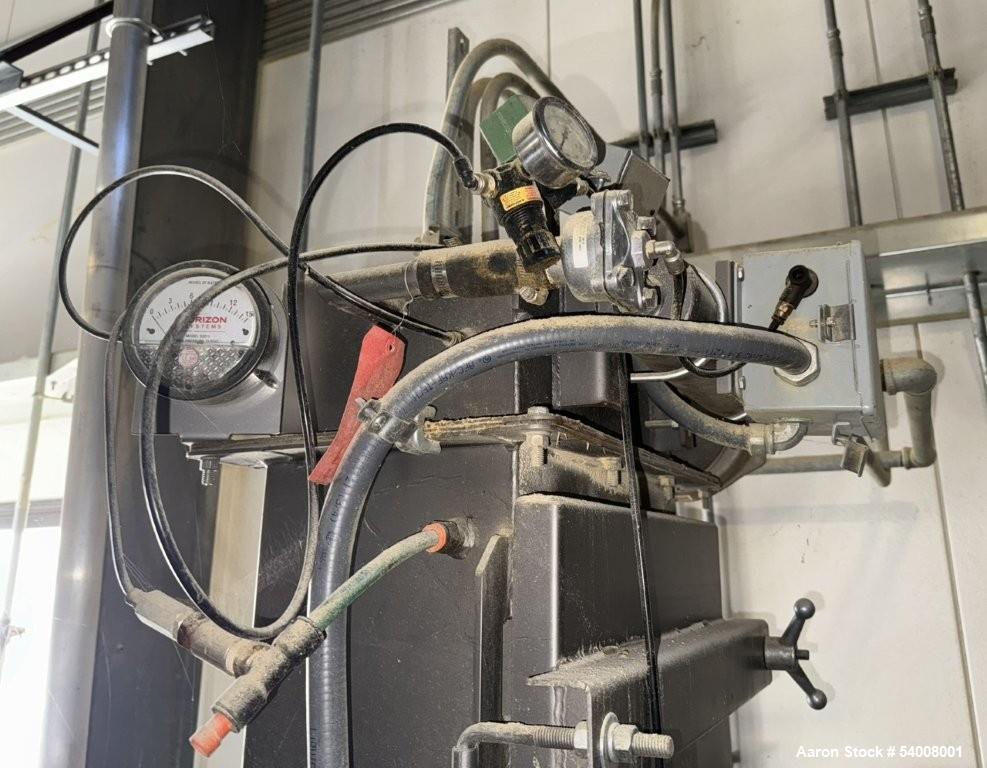

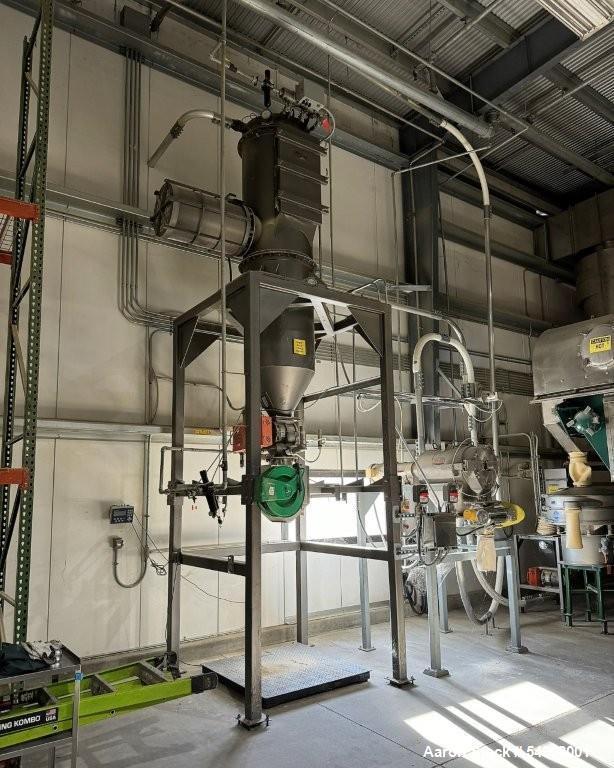

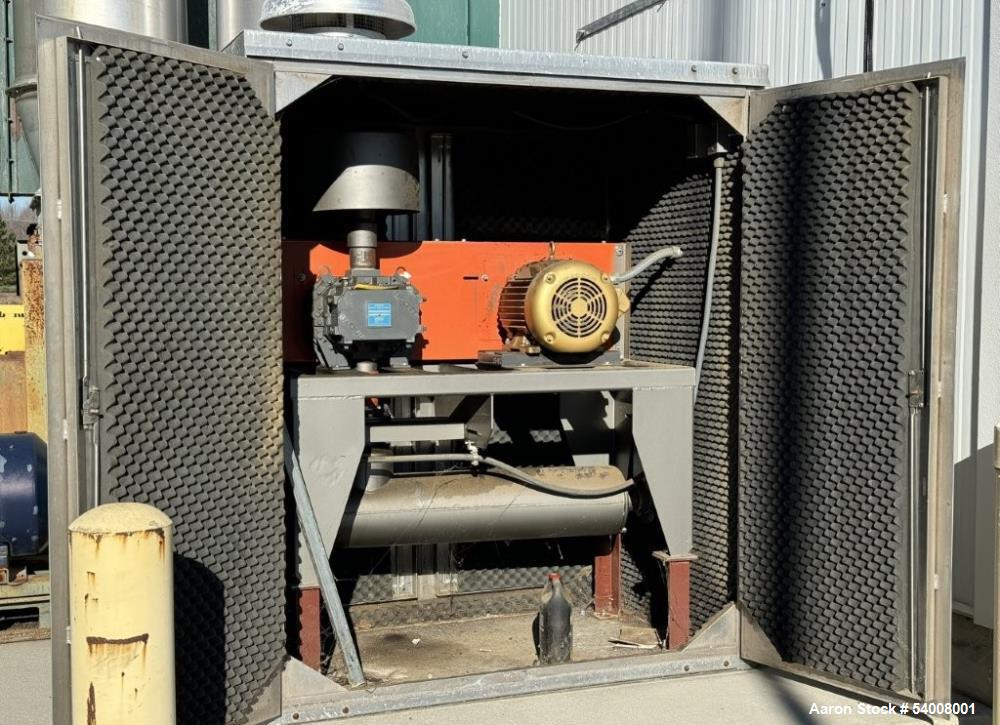

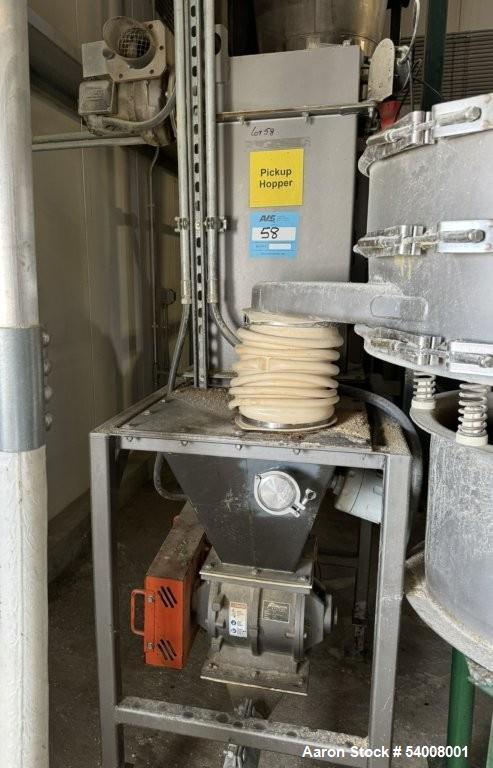

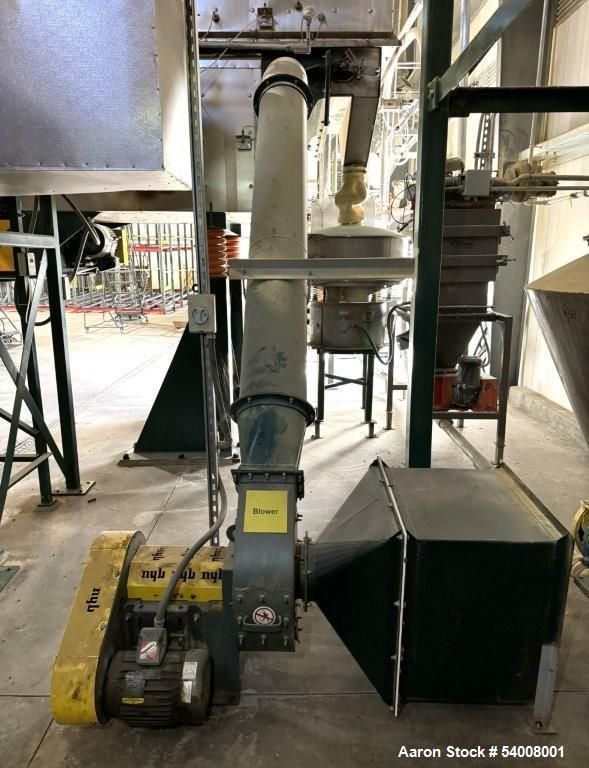

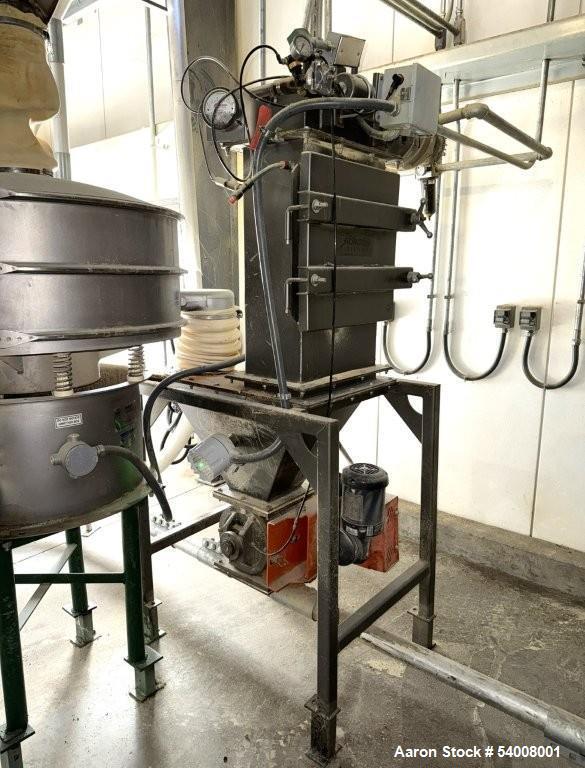

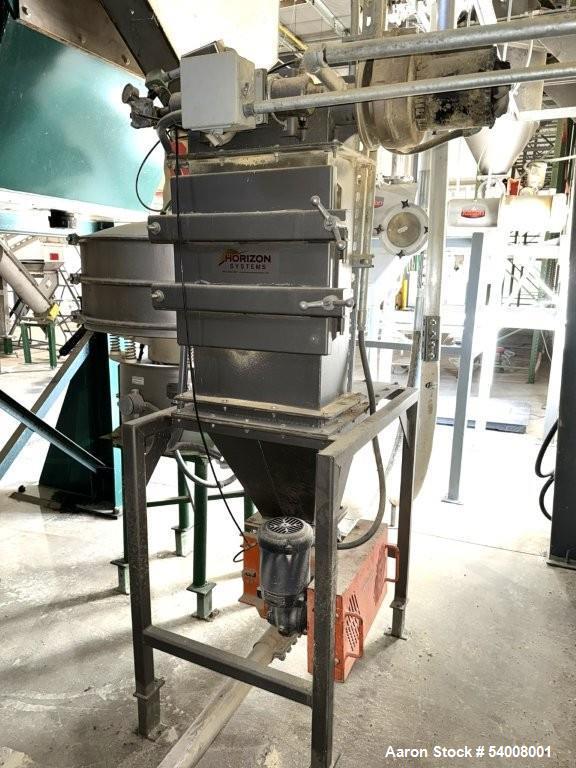

➤ Horizon Systems VHF Airlock Vent Hopper:

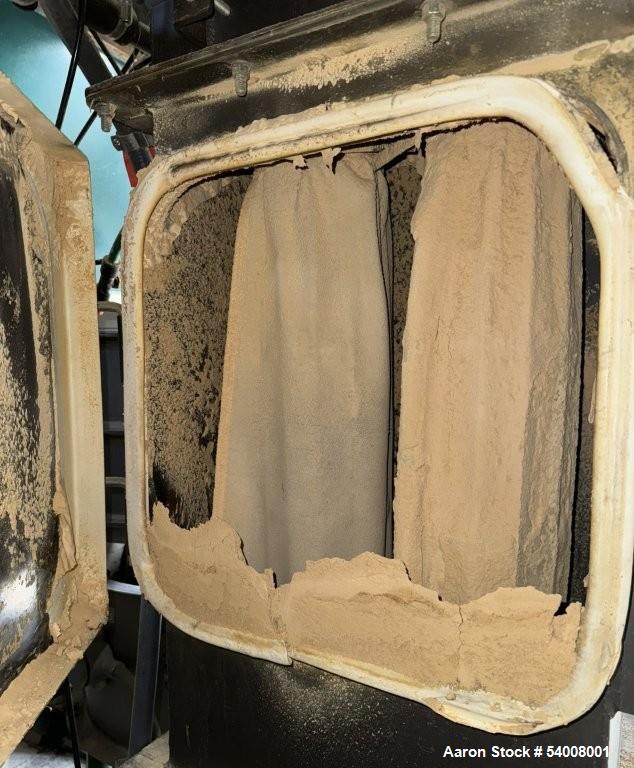

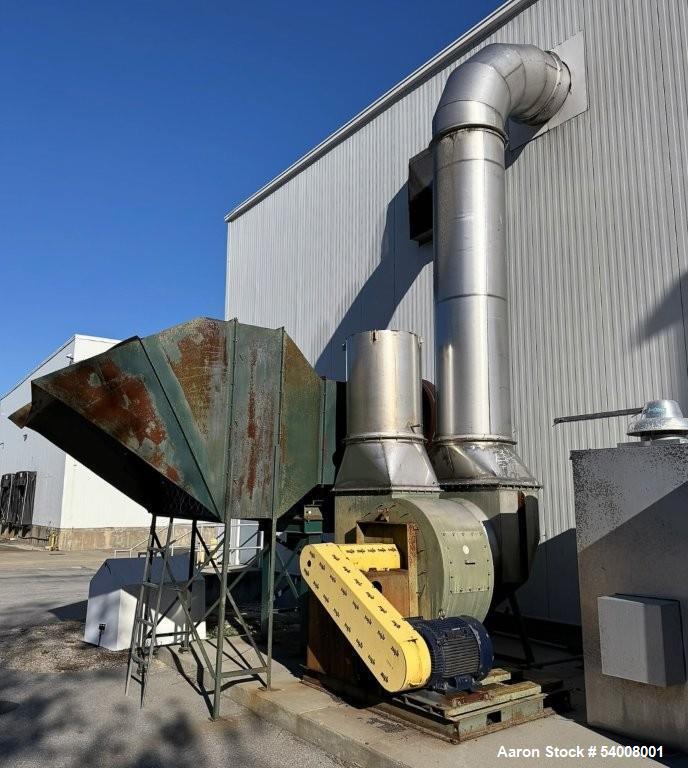

• Includes: Pulse jet filter, top-mounted blower, bottom rotary valve

• Mount: Frame-mounted

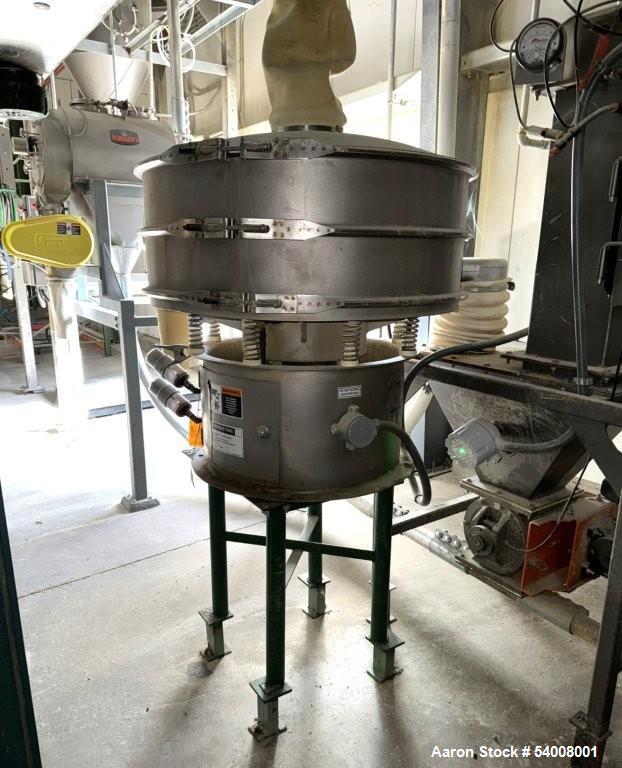

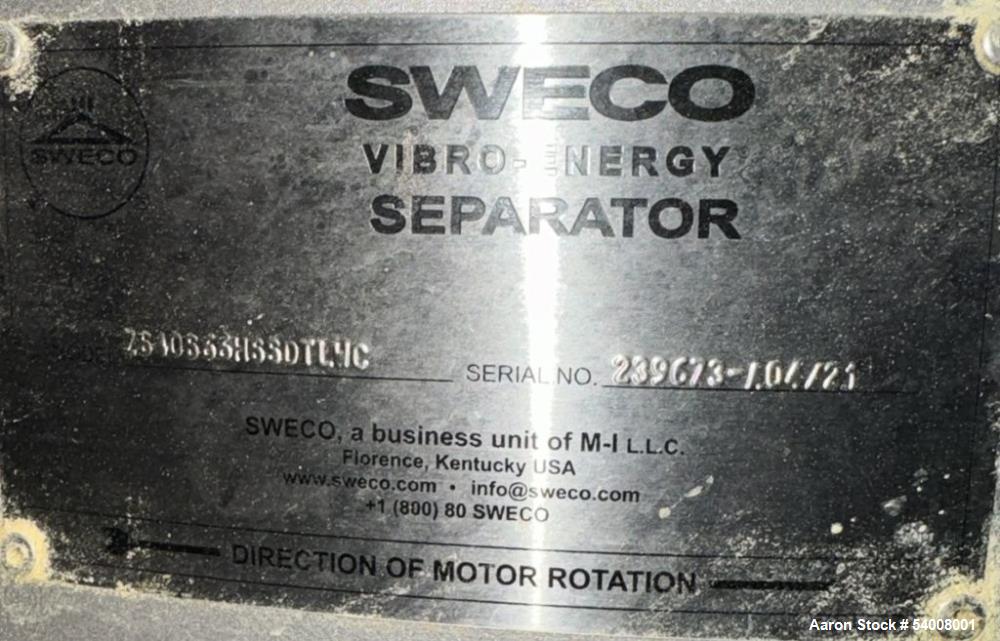

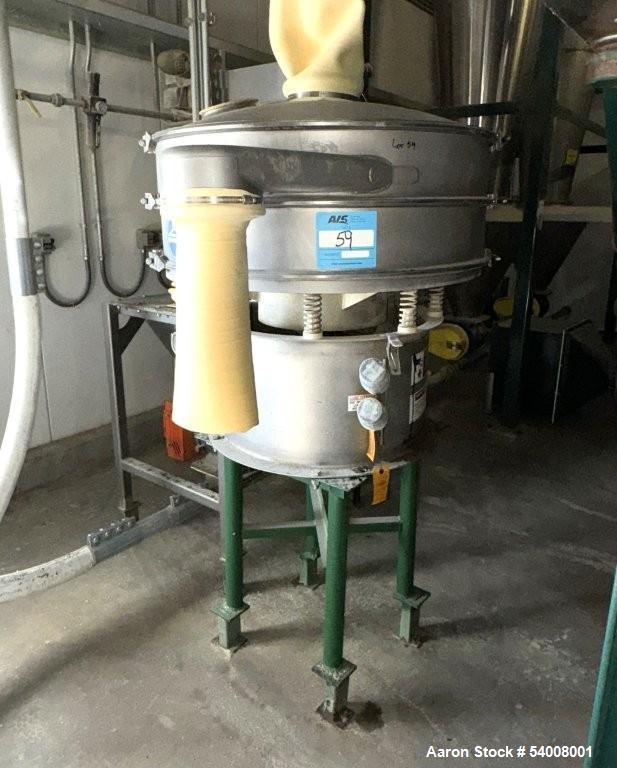

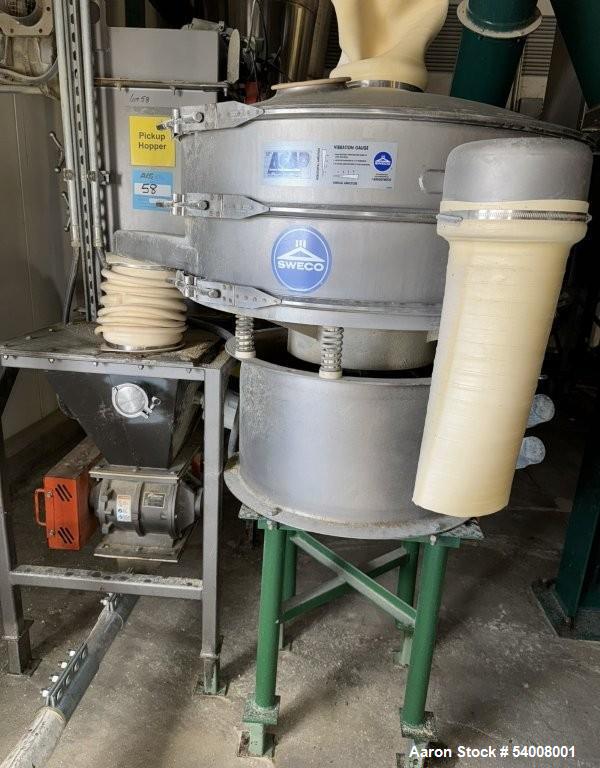

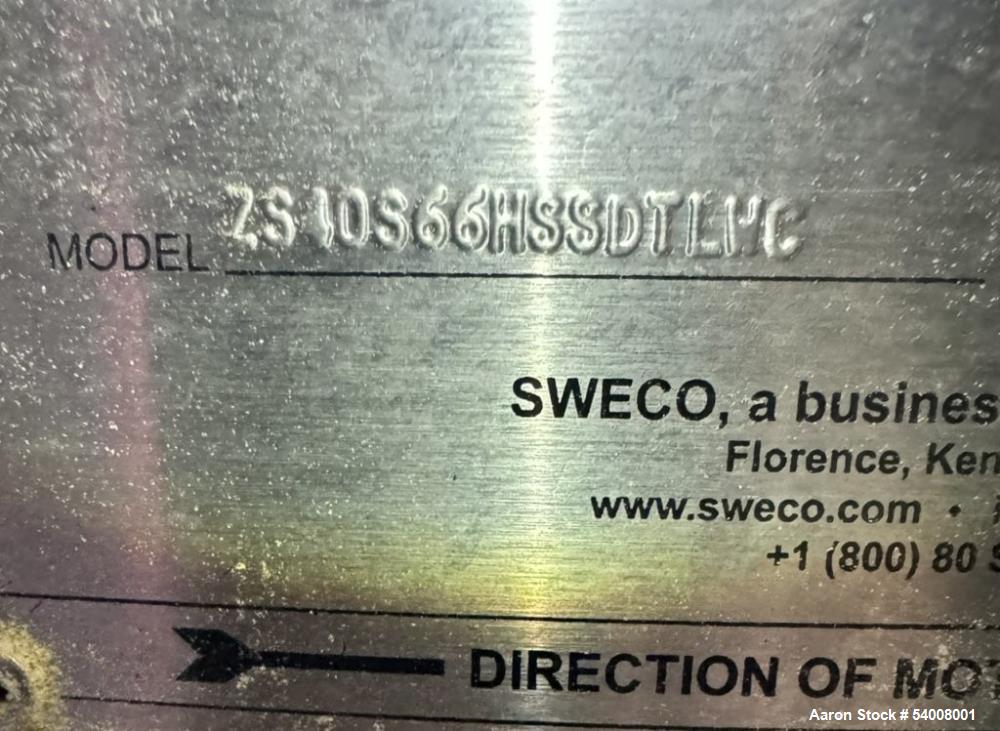

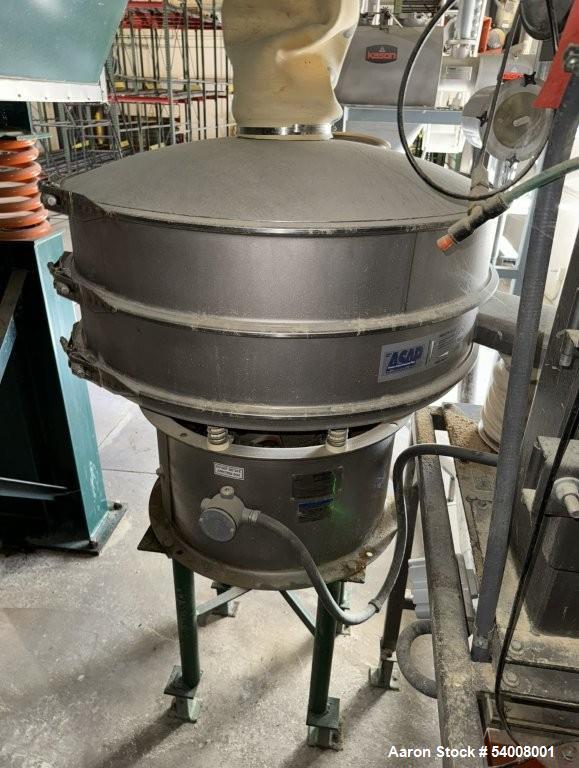

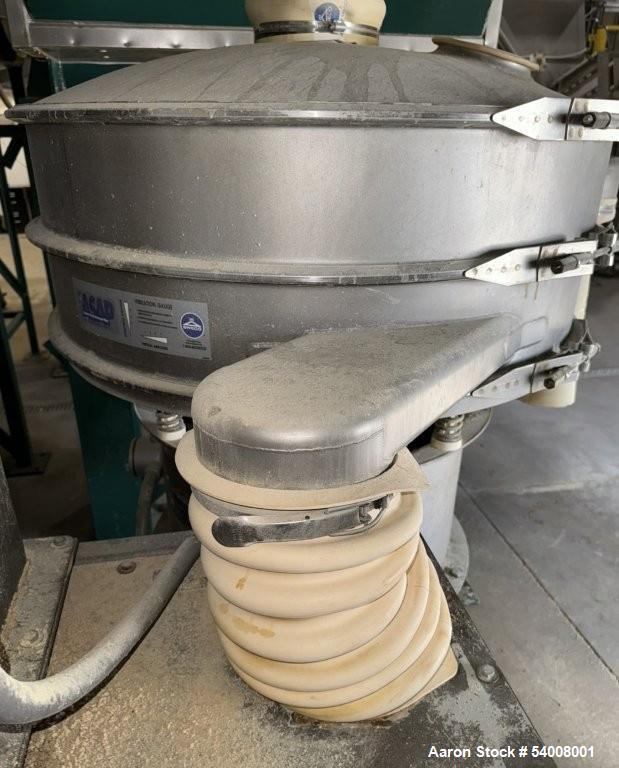

➤ Sweco Screener (Model ZS40S66HSSDTLWC):

• Diameter: 40"

• Design: Single deck, two-separation

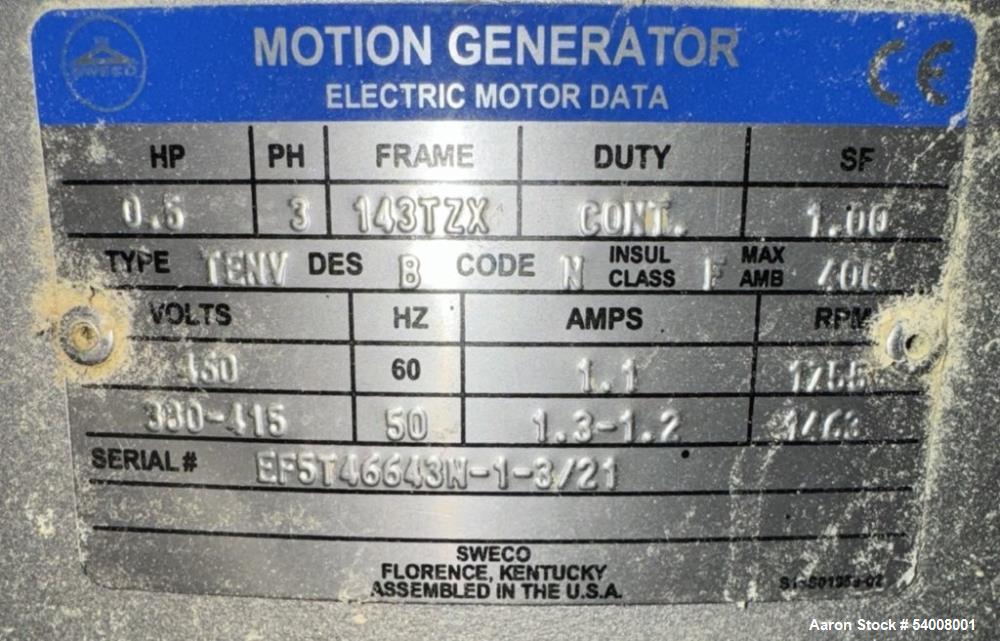

• Motor: 0.5 HP

• Mount: Stainless base with carbon steel legs

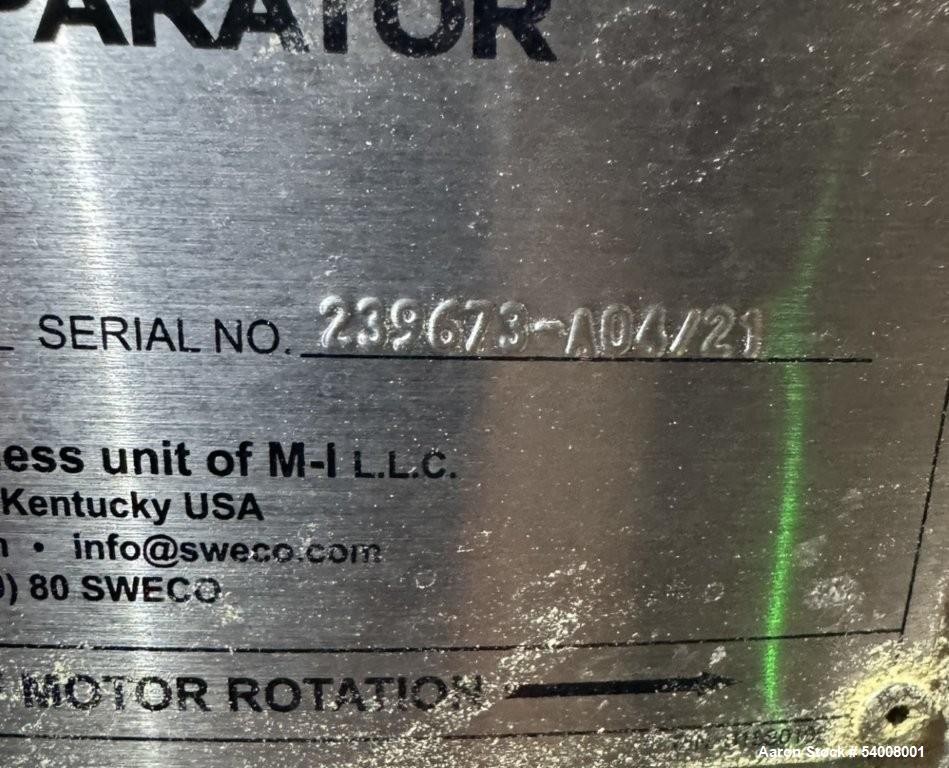

• Serial #: 239673-A04/21

🔹 Applications:

• Protein and meat byproduct drying

• Animal feed and pet food ingredient preparation

• Food waste dehydration

• Nutraceutical powder processing

• High-moisture organic material drying

• Thermal desorption for sludge or slurry

• Nutrient additive prep

• Crushed dry solids screening

• Pre-pellet conditioning of feed

• Bioprocessing solids drying
