USED: Patterson Conaform double cone vacuum dryer. 233.8 cubic foot max operating capacity. Carbon steel construction. Model...
Stock# 39008

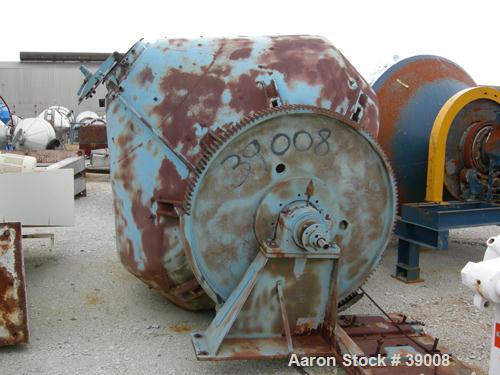

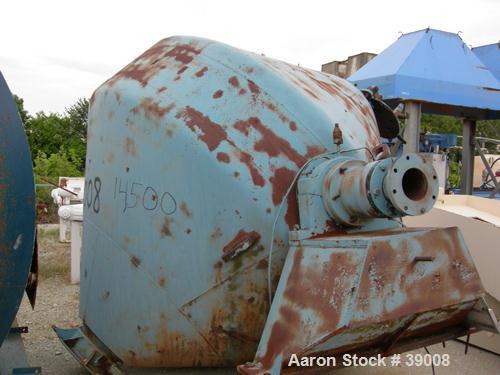

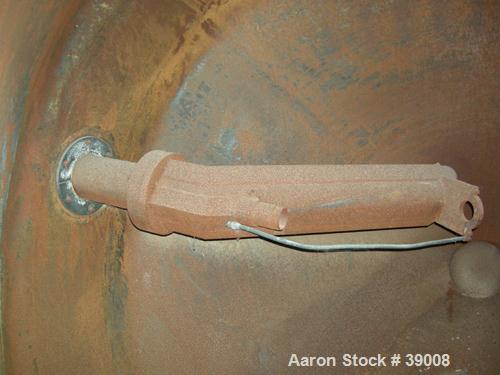

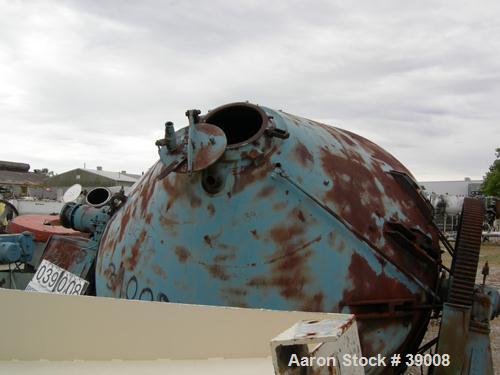

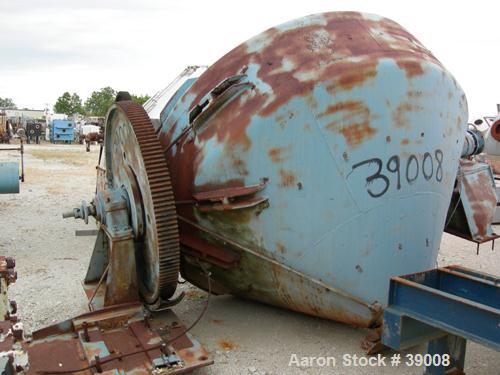

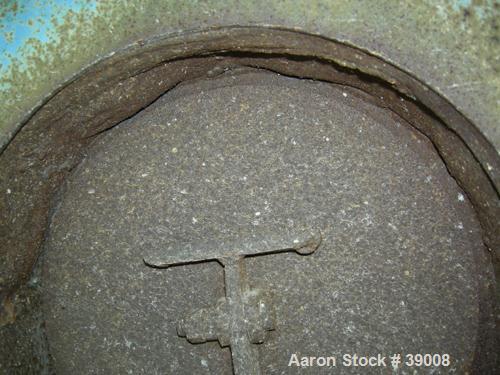

USED: Patterson Conaform double cone vacuum dryer. 233.8 cubic foot max operating capacity. Carbon steel construction. Model #3340. 16" charging inlet. 12" discharge outlet. 9' diameter, 67" top cone x 25" straight side x 67" bottom cone. Jacketed with vacuum tube. Vacuum rated with 5 1/2" inlet. Driven by 20 hp. 550 volt rewound to 230 volt gear driven motor. 1770 rpm, 3/60. Thru 25.69:1 gearbox with brake. 68 output rpm. Mounted on stand.
USED: Patterson Conaform double cone vacuum dryer. 233.8 cubic foot max operating capacity. Carbon steel construction. Model #3340. 16" charging inlet. 12" discharge outlet. 9' diameter, 67" top cone x 25" straight side x 67" bottom cone. Jacketed with vacuum tube. Vacuum rated with 5 1/2" inlet. Driven by 20 hp. 550 volt rewound to 230 volt gear driven motor. 1770 rpm, 3/60. Thru 25.69:1 gearbox with brake. 68 output rpm. Mounted on stand.
