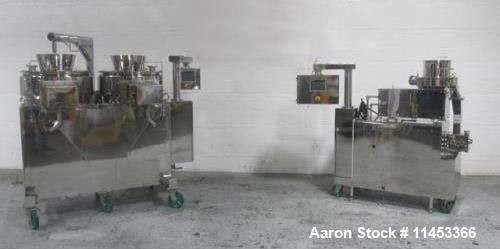

Unused- LCI Twin Dome Granulator Spheronizer System.

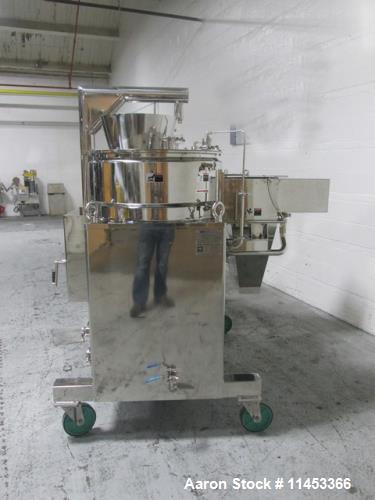

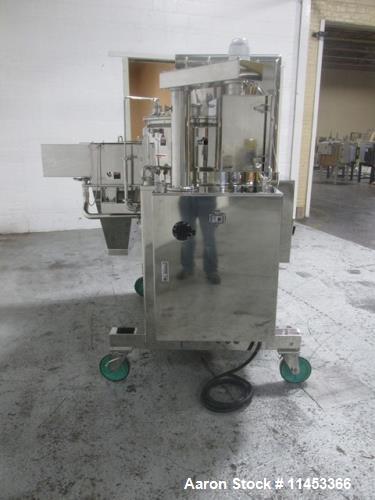

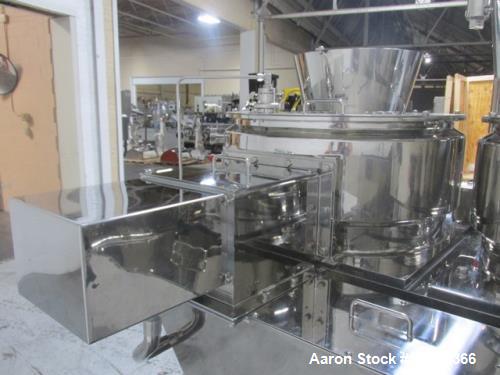

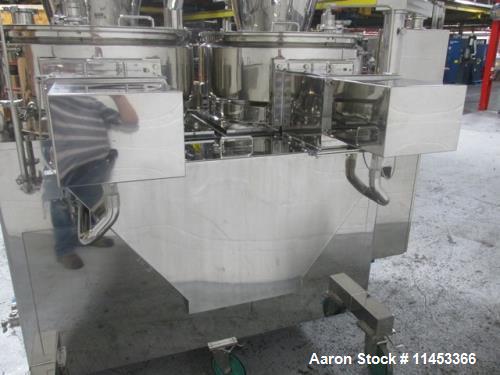

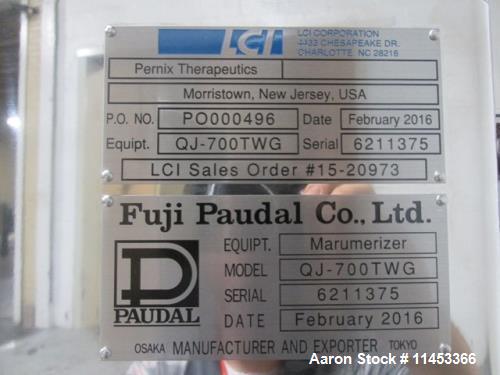

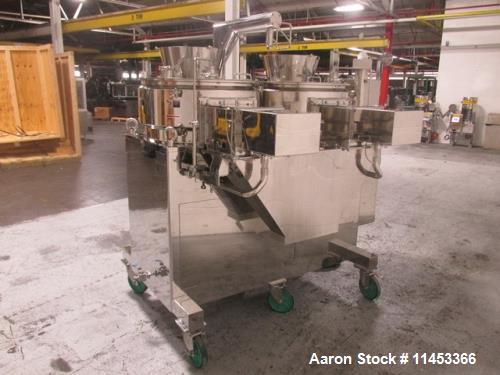

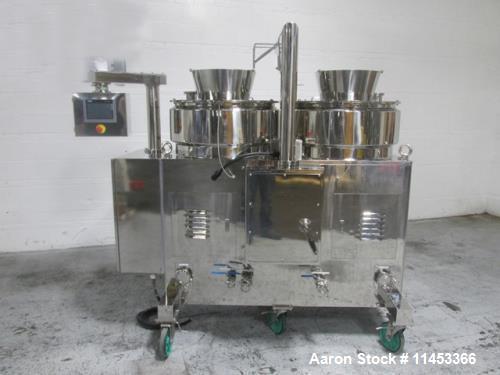

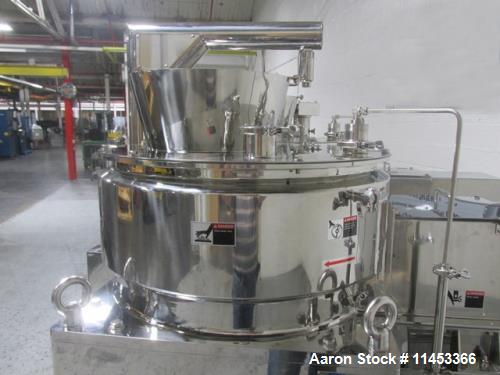

Unused- LCI Twin Dome Granulator Spheronizer System. 316 stainless steel product contact surfaces. Consisting of the following: Model CS-300-DH Yoshikawa Circle Feeder, 300 mm inlet. Model TDG-80A twin dome granulator extruder, up to 120 rpm shaft speed. .4 mm dome dies, rated approximately 100 - 15- kg/hr throughput, approximately 5 hp motor. Model QJ-700TWG twin bowl Marumerizer Spheronizer, dual 700 mm diameter bowl disks, 20 liter working capacity, 2 mm friction plates, jacketed bowl, on base with approximately 10 hp motor. 460 volt/3 phase, 60 hertz, with control panels for extruder/feeder and twin bowl spheronizer. Siemens S7-1200 plc controllers. Siemens Micromaster 420 motor VFD's and Siemens 7" comfort panel hmi's, built 2016. System is unused in original shipping crates, FAT was performed and never installed.
