Used Fitzpatrick Chilsonator System with Comminutor Mill & GKM Screener – Complete Dry Granulation Line

Manufacturer Information

• Chilsonator: Fitzpatrick – Model 16Lx20D

• Mill: Fitzpatrick – HAS030 Comminutor Mill

• Screener: GKM Siebtechnik – Model KTS 2600/5DS2V

• Category: Dry Granulation, Compaction, Milling, and Screening Equipment

• Construction: All stainless-steel wetted parts

Description

This integrated Fitzpatrick and GKM system provides a complete dry granulation and size reduction solution for powders across the pharmaceutical, chemical, food, and specialty materials industries.

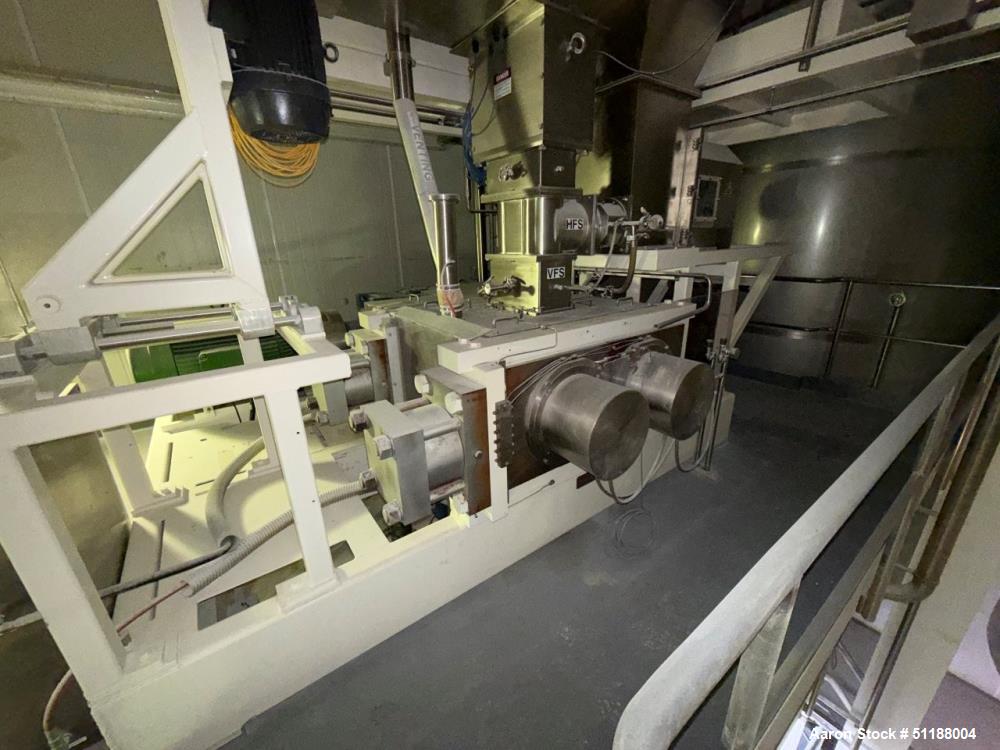

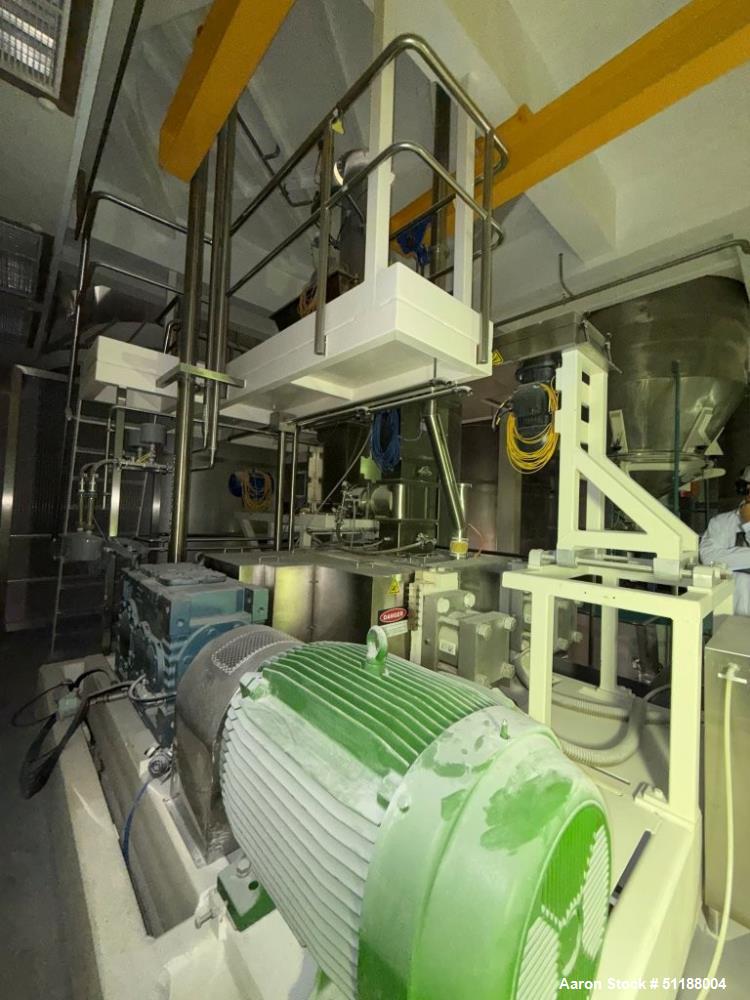

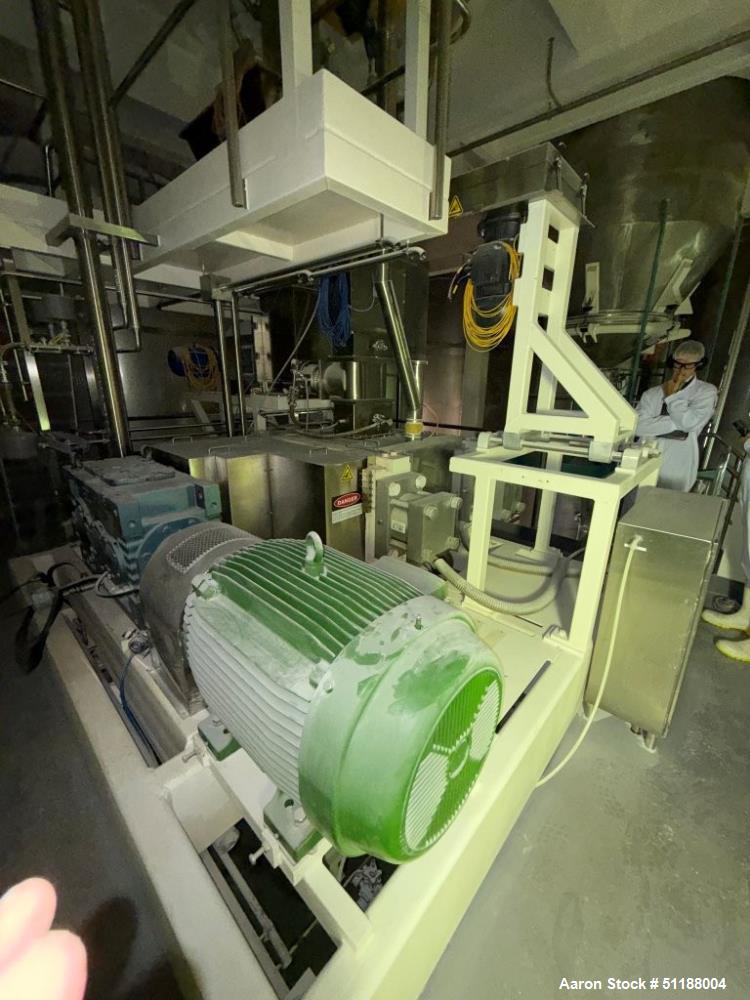

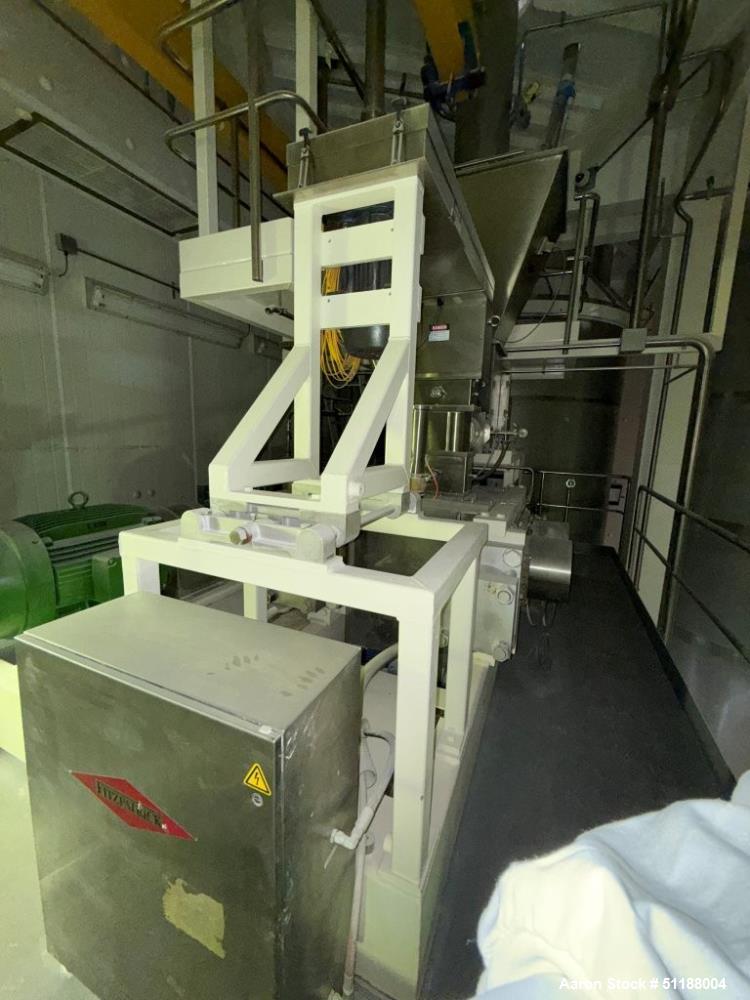

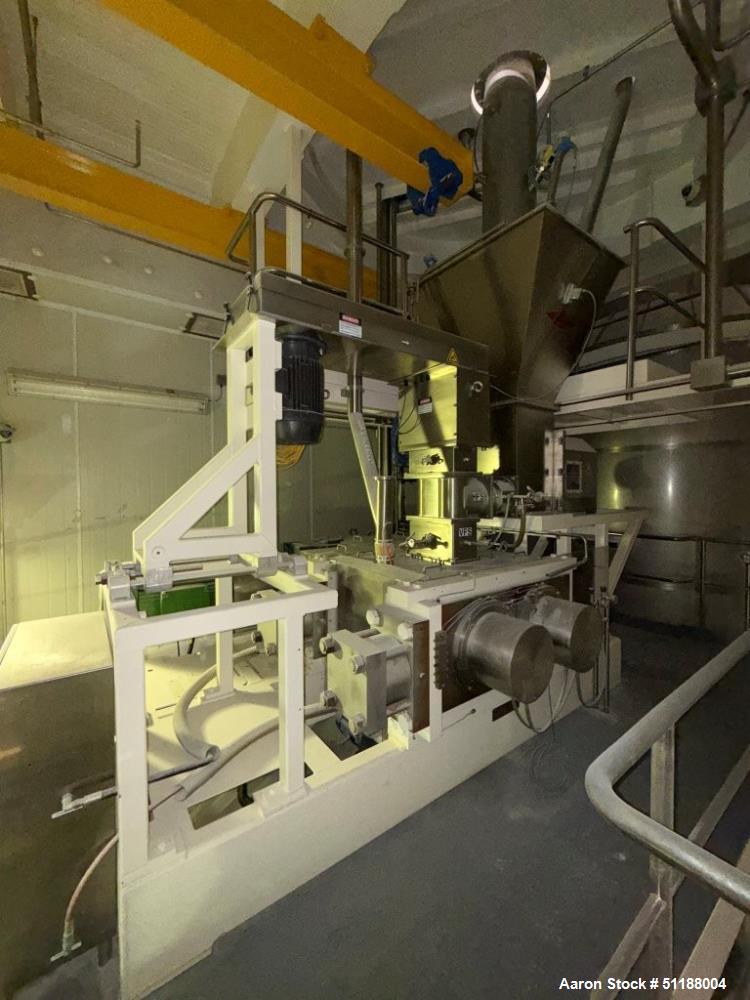

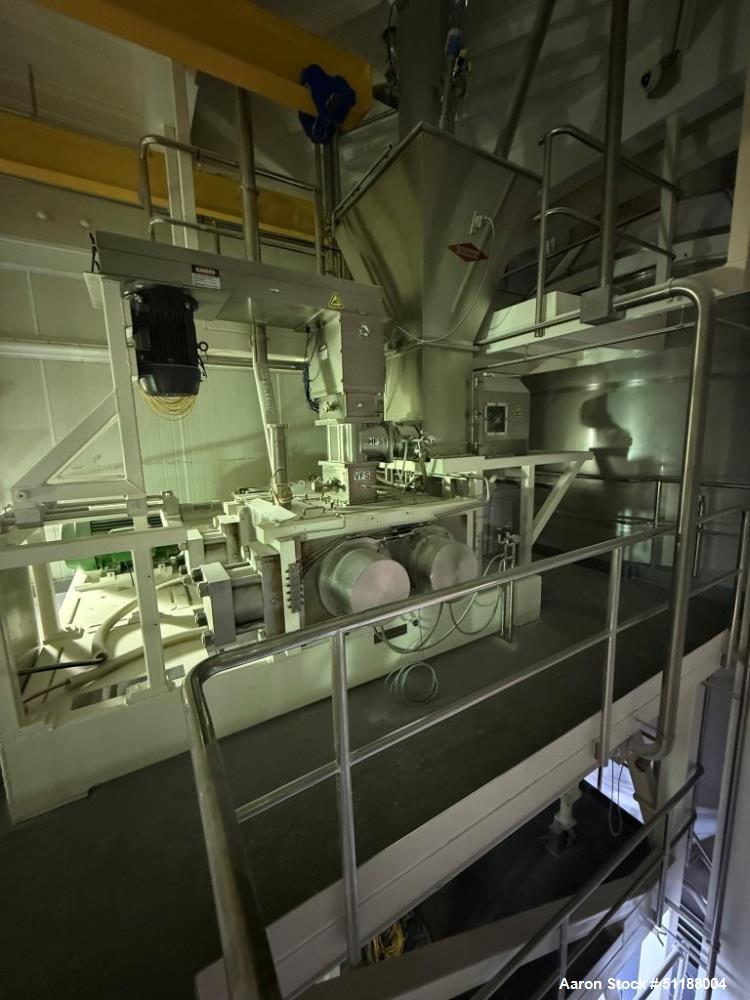

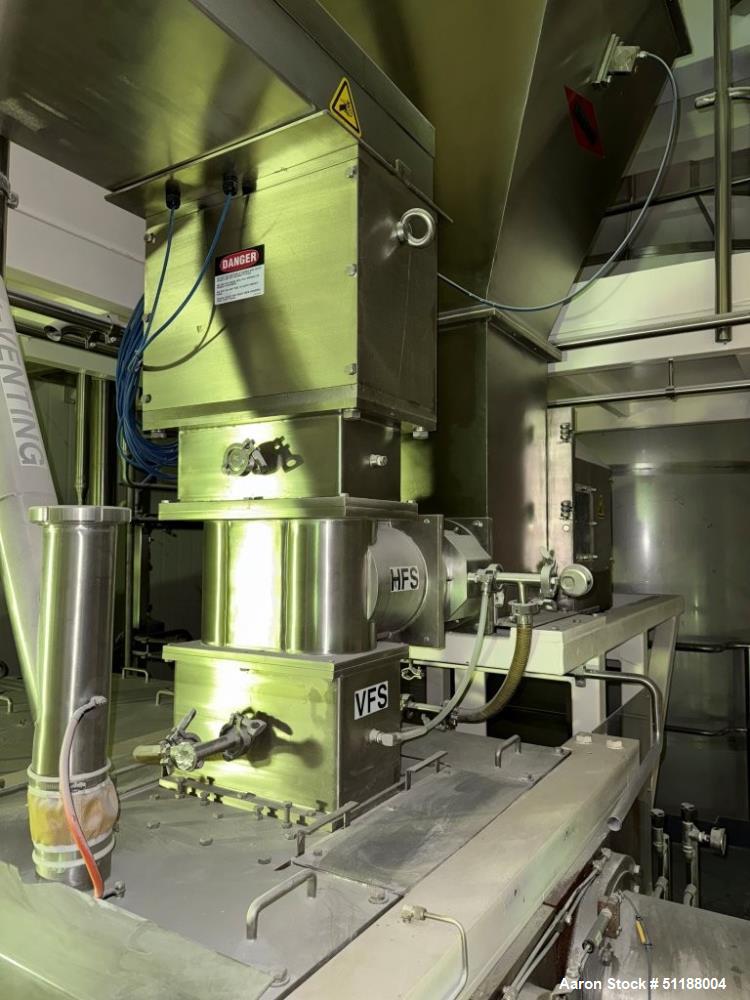

At the heart of the system is the Fitzpatrick Chilsonator Model 16Lx20D, which utilizes dual 16” x 20” compaction rolls with controlled hydraulic pressure and feed augers. This process compacts fine powders into uniform flakes or ribbons, dramatically reducing dust while improving flowability.

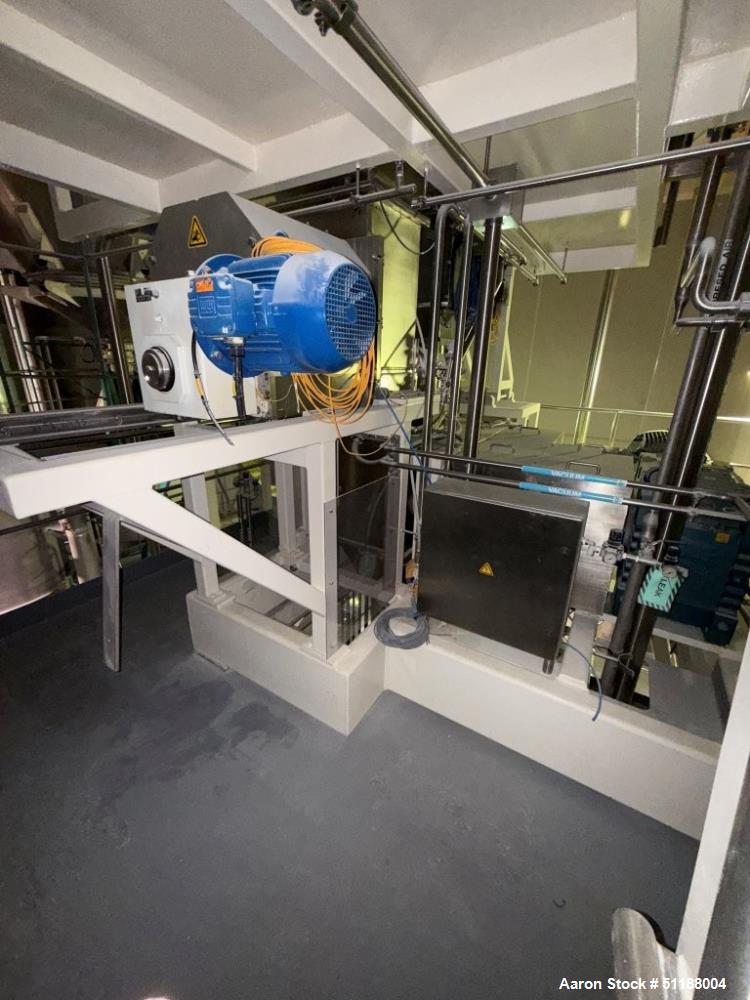

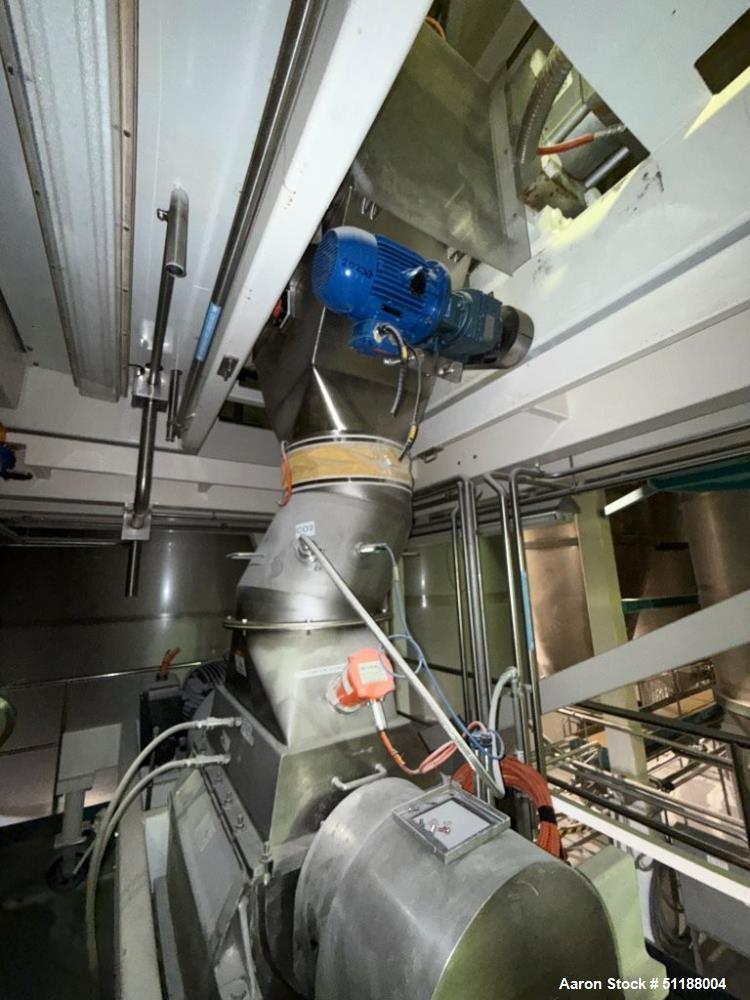

The ribbons are then processed by the Fitzpatrick HAS030 Comminutor Mill, which uses a hammer/knife rotor with interchangeable screens to deliver precise particle size reduction.

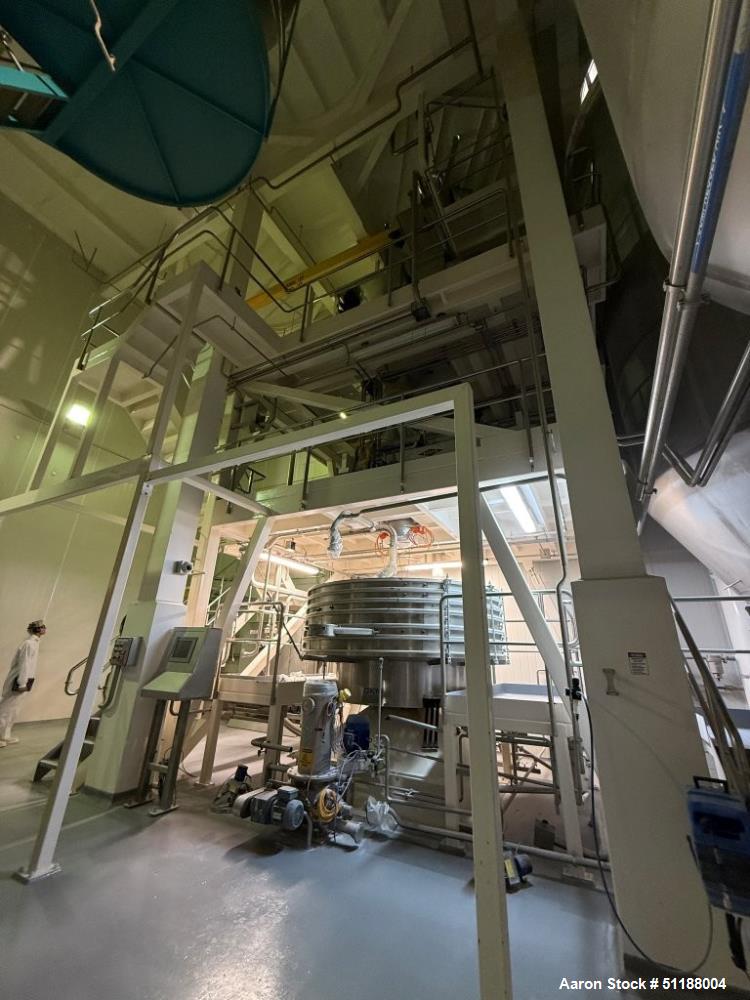

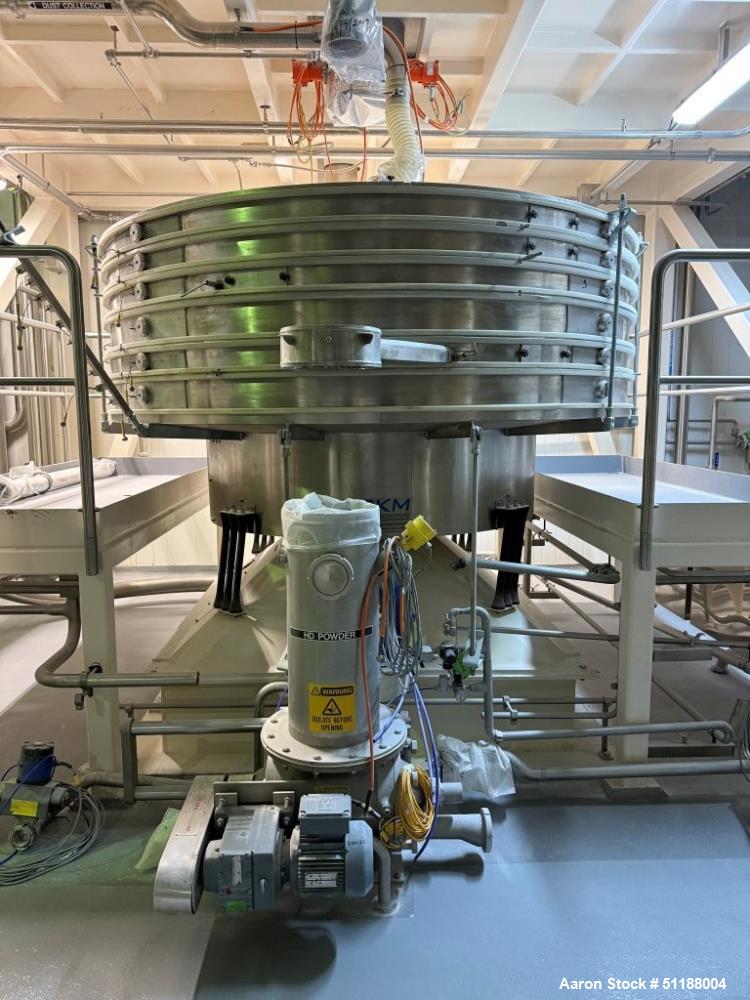

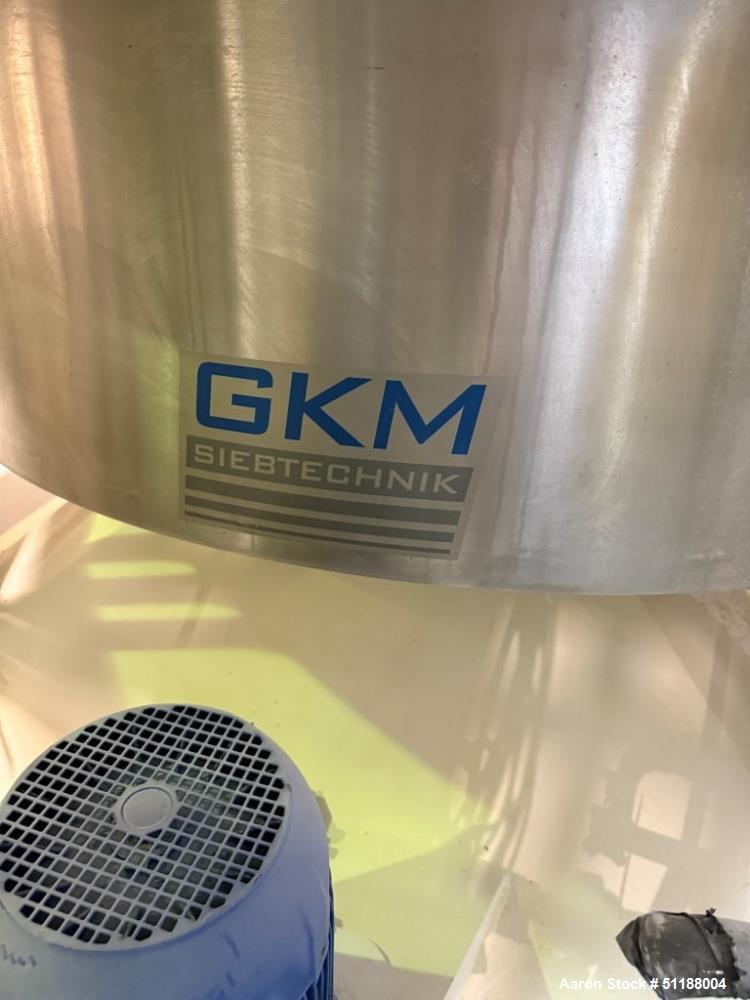

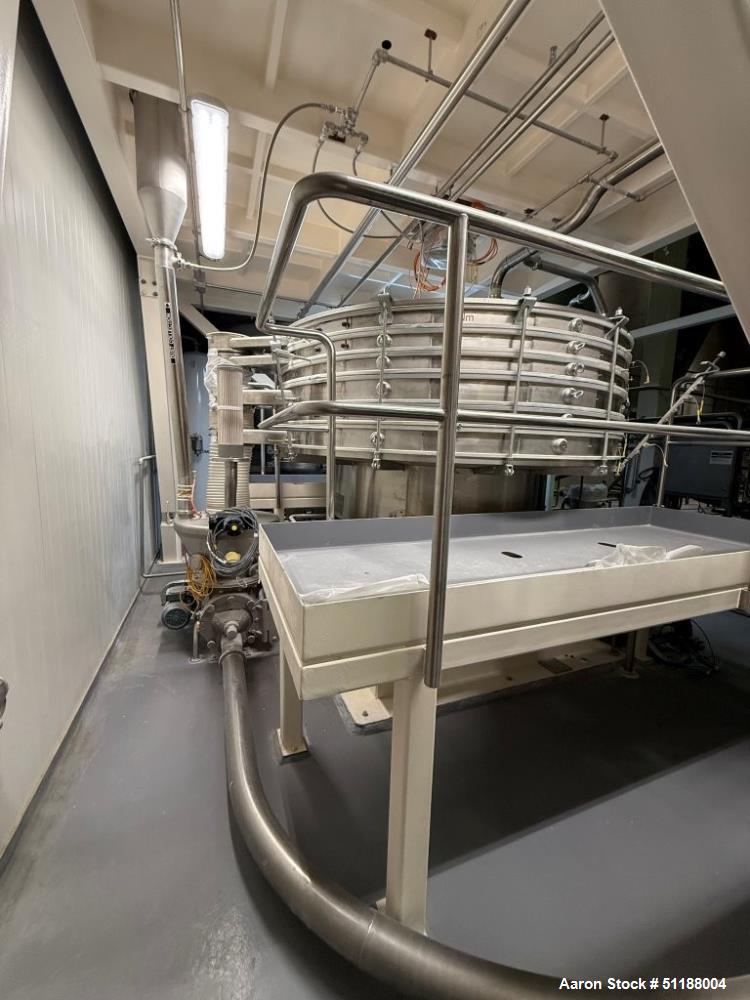

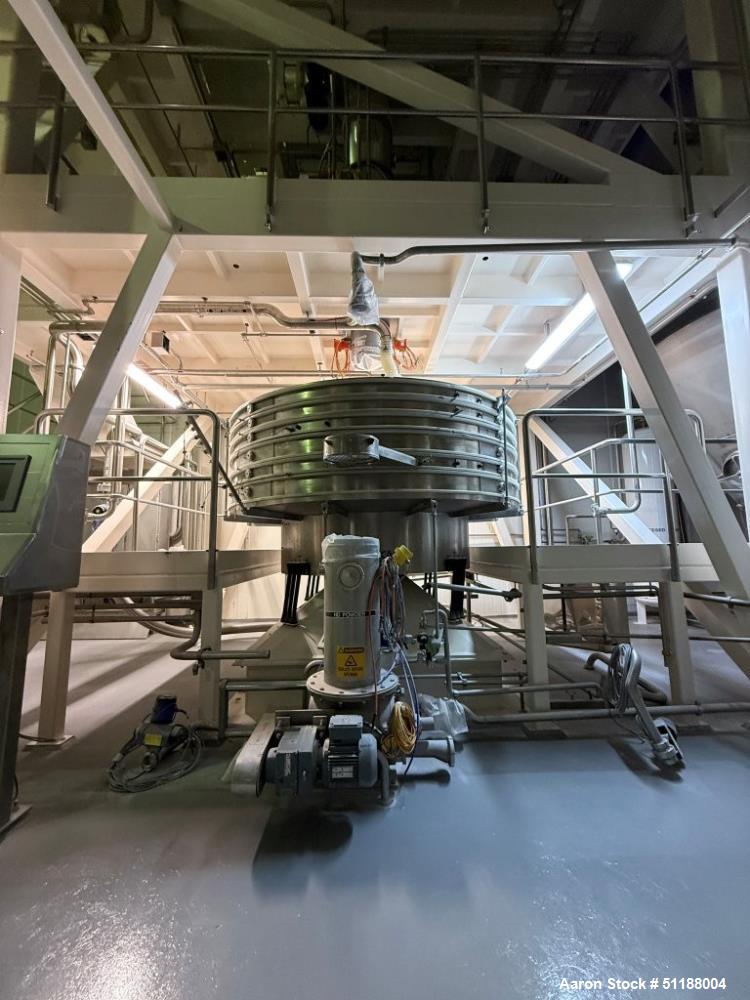

Final classification is achieved through the GKM Siebtechnik KTS 2600/5DS2V vibratory tumbler screener, featuring a 102.5” (2600 mm) diameter and five-deck design, ensuring high throughput with accurate particle size separation.

This turnkey line offers compaction, milling, and screening in one integrated solution, designed for maximum efficiency, consistency, and product quality.

Specifications

• Chilsonator (Fitzpatrick 16Lx20D):

  • Dual rolls: 16” x 20”

  • Hydraulic pressure control

  • Feed augers for uniform compaction

• Comminutor Mill (Fitzpatrick HAS030):

  • Hammer/knife rotor design

  • Interchangeable screens

  • Precision particle size reduction

• Screener (GKM Siebtechnik KTS 2600/5DS2V):

  • Vibratory tumbler screener

  • Diameter: 2600 mm / 102.5”

  • Five-deck configuration

  • High throughput separation

• Construction: All stainless-steel wetted parts

• Applications: Pharmaceutical, chemical, food, specialty powders

Applications

What might this be used for?

• Pharmaceutical dry granulation and compaction

• Tablet and capsule ingredient preparation

• Nutraceutical and dietary supplement powders

• Food powders (starches, proteins, cocoa, milk powders)

• Chemical powders and catalysts

• Agrochemicals and fertilizers

• Specialty powders for industrial products

• Powder metallurgy and ceramics preparation

• Battery material processing

• Any application requiring dust reduction and controlled particle size

Example Products Processed with this System

• Active pharmaceutical ingredients (APIs)

• Nutritional supplements and vitamins

• Starches, milk powder, and food additives

• Fine chemical intermediates

• Fertilizer granules

• Ceramic powders and abrasives

• Pigments, dyes, and colorants

• Polymer and plastic additives

• Battery electrode powders

• Specialty industrial minerals
