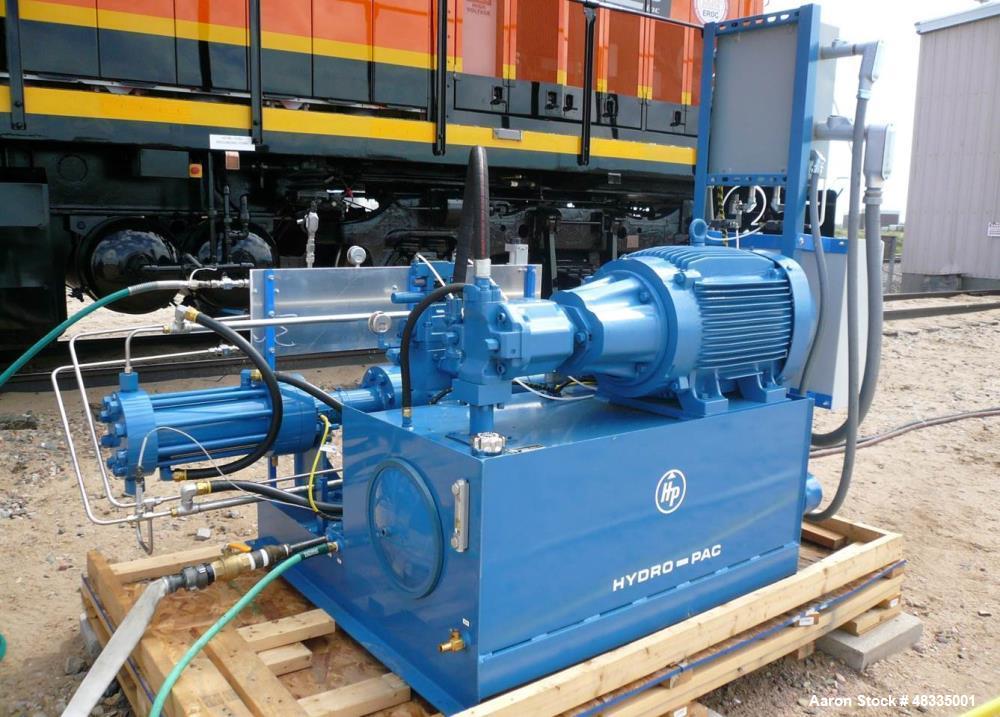

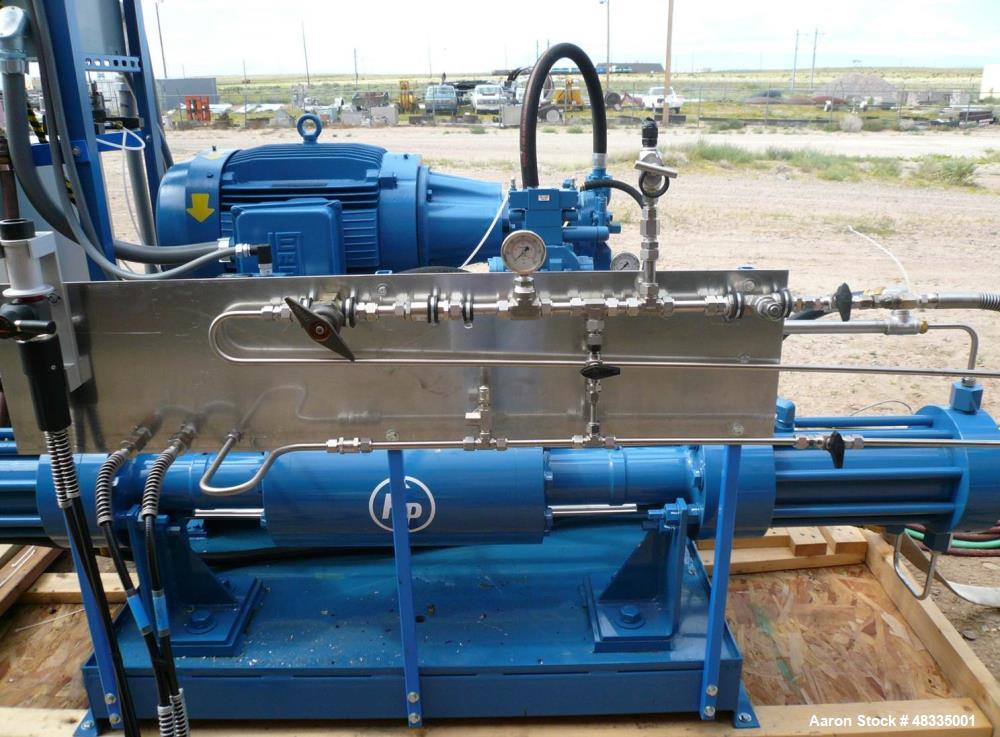

Used Hydro-Pac Lx-Series High Pressure Hydrogen Compressor Model: C06-60-5200lx. Specifications: process gas: hydrogen (suitable for use with other pure inert gases). Maximum discharge pressure: 6,000 psig. Inlet pressure range: 800 to 6,000 psig. Capacity at 2,000 psig, 80 deg F: 33.6 kg/hr (239 Scfm). Motor: 60 hp Nema class 1 division 2, Tefc. Power: 460v, 3ph, 60hz. Control power: 120v, 1 Ph, 60hz. Ambient operating temperature: 50 To 100 deg F. Cooling requirement: 15 gpm at 60 to 80 deg F. Includes: Explosion proof reciprocating circuit, gas aftercooler, explosion proof oil reservoir heater, on/off pressure control. Allows the operator to input high and low discharge pressure set points to start and stop the compressor. Included on the on/off pressure control. Full voltage 460v, 3ph, 60hz motor starter. Nema 4 enclosure. Start and stop push buttons. Control power transformer. Hour meter. Controller with dual set points. Discharge pressure transducer. The electrical enclosure that houses the controller and the motor starter requires installation in a non-hazardous environment. Necessary intrinsically safe barriers are included.
Used Hydro-Pac Lx-Series High Pressure Hydrogen Compressor Model: C06-60-5200lx. Specifications: process gas: hydrogen (suitable for use with other pure inert gases). Maximum discharge pressure: 6,000 psig. Inlet pressure range: 800 to 6,000 psig. Capacity at 2,000 psig, 80 deg F: 33.6 kg/hr (239 Scfm). Motor: 60 hp Nema class 1 division 2, Tefc. Power: 460v, 3ph, 60hz. Control power: 120v, 1 Ph, 60hz. Ambient operating temperature: 50 To 100 deg F. Cooling requirement: 15 gpm at 60 to 80 deg F. Includes: Explosion proof reciprocating circuit, gas aftercooler, explosion proof oil reservoir heater, on/off pressure control. Allows the operator to input high and low discharge pressure set points to start and stop the compressor. Included on the on/off pressure control. Full voltage 460v, 3ph, 60hz motor starter. Nema 4 enclosure. Start and stop push buttons. Control power transformer. Hour meter. Controller with dual set points. Discharge pressure transducer. The electrical enclosure that houses the controller and the motor starter requires installation in a non-hazardous environment. Necessary intrinsically safe barriers are included.
