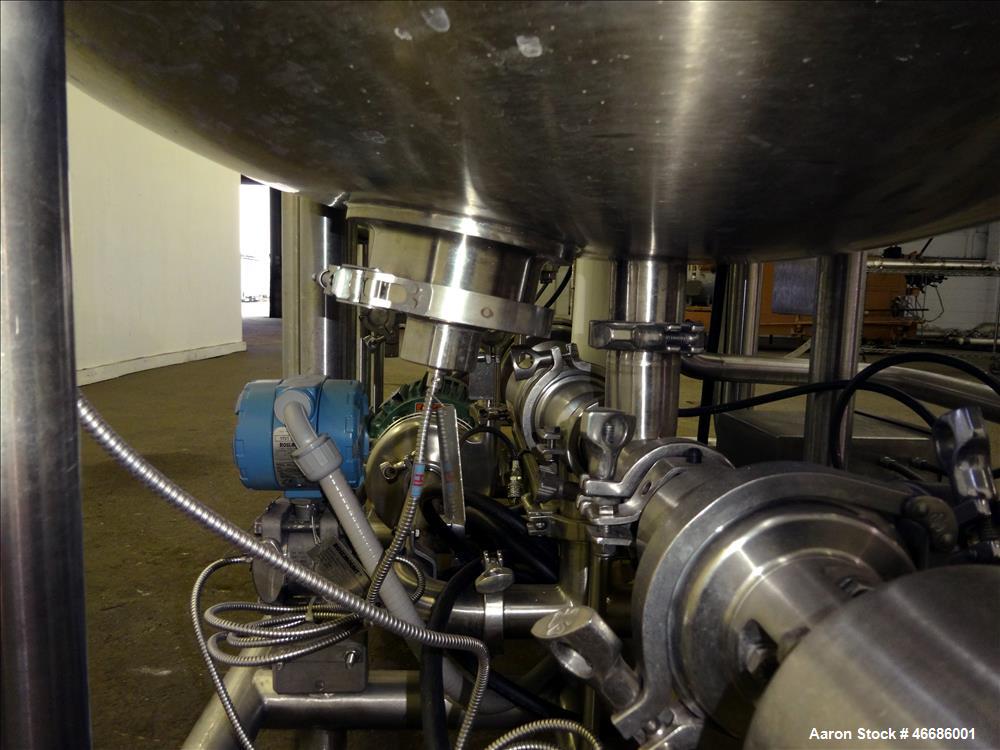

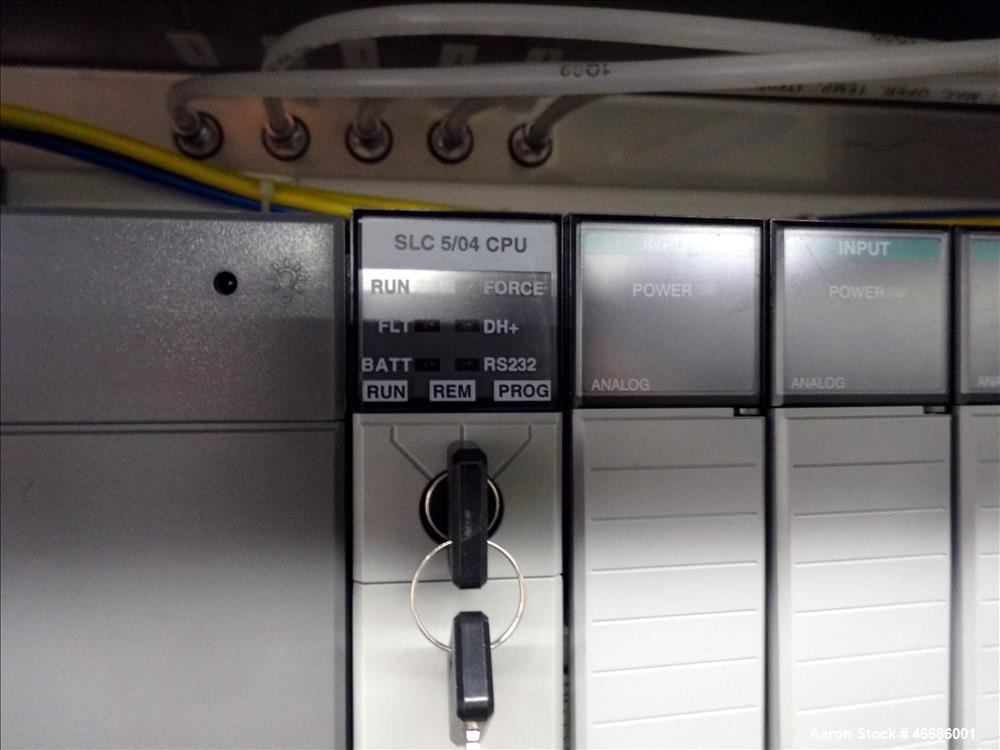

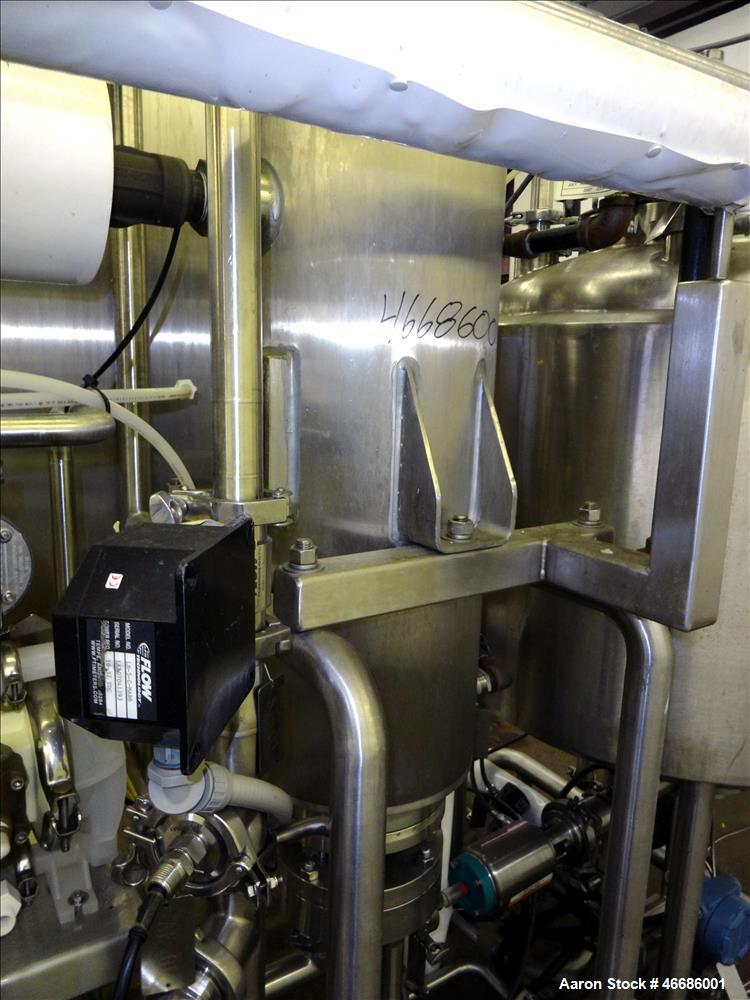

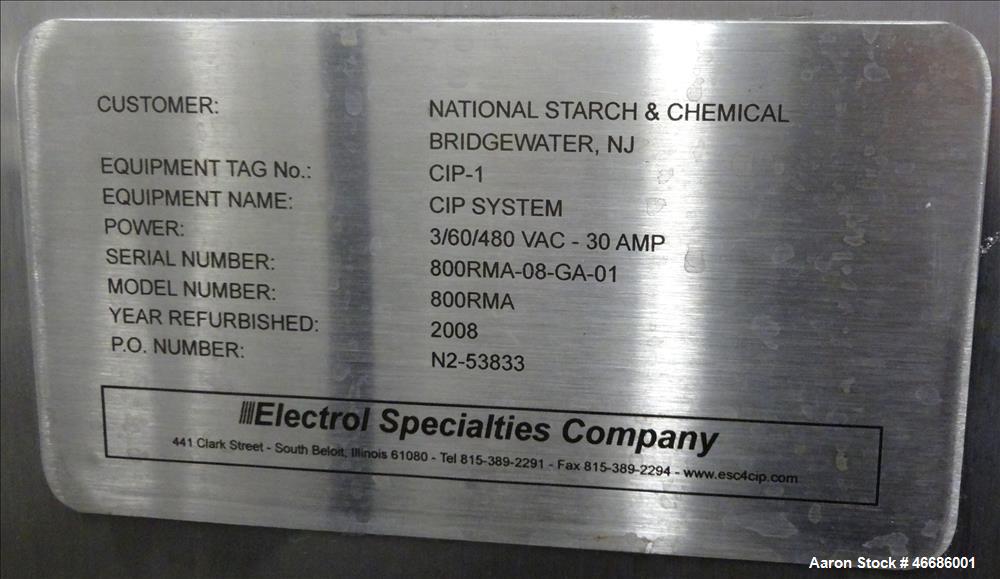

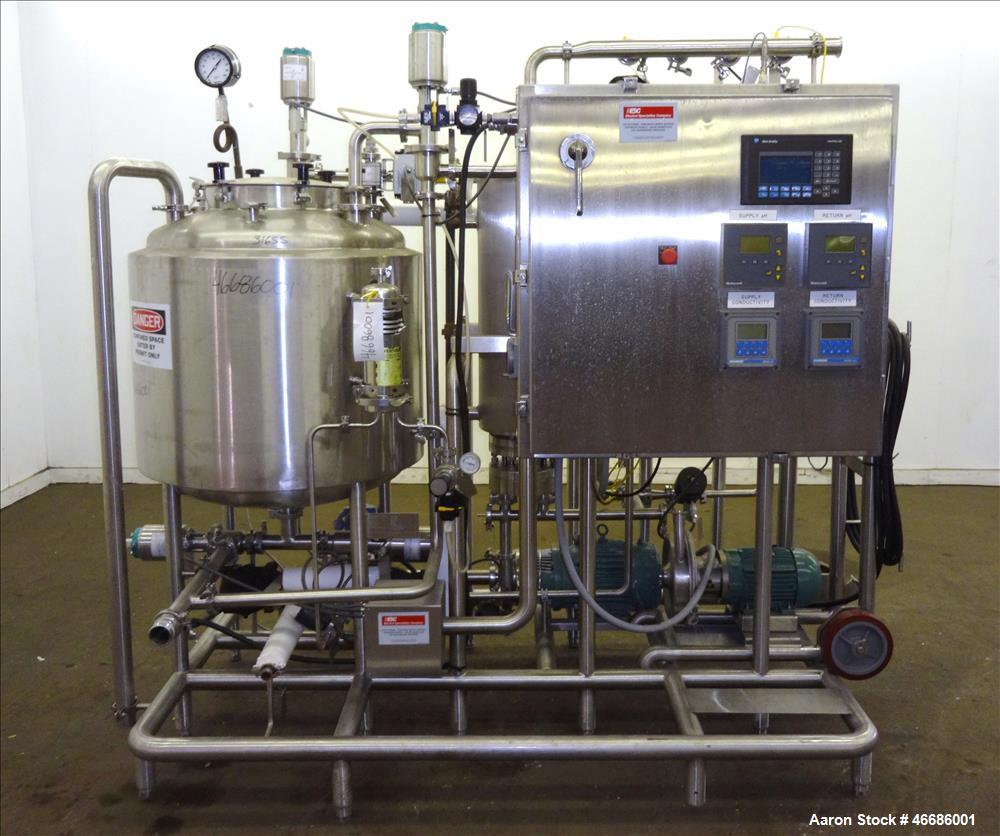

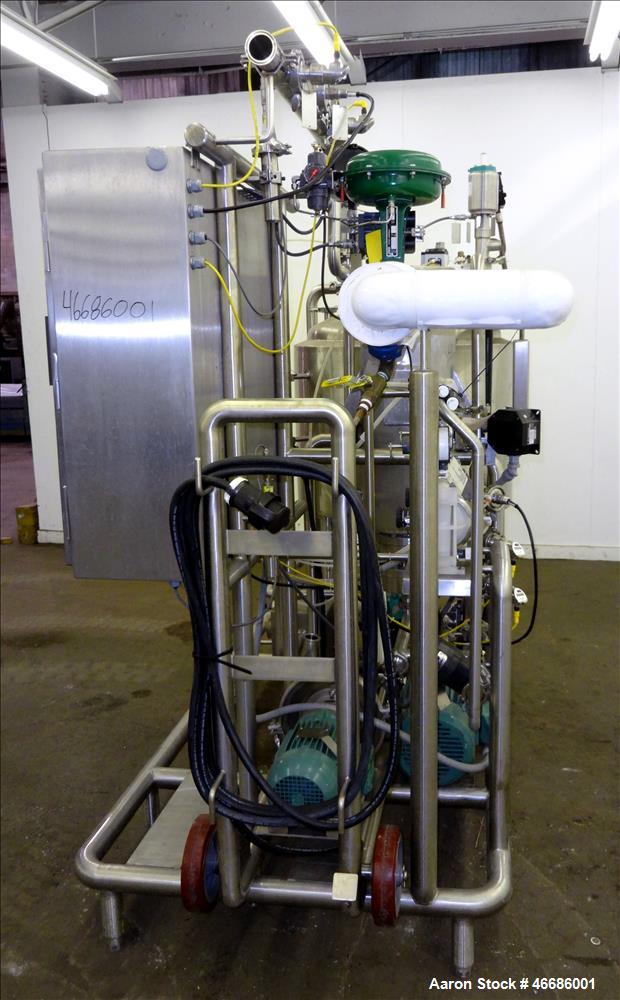

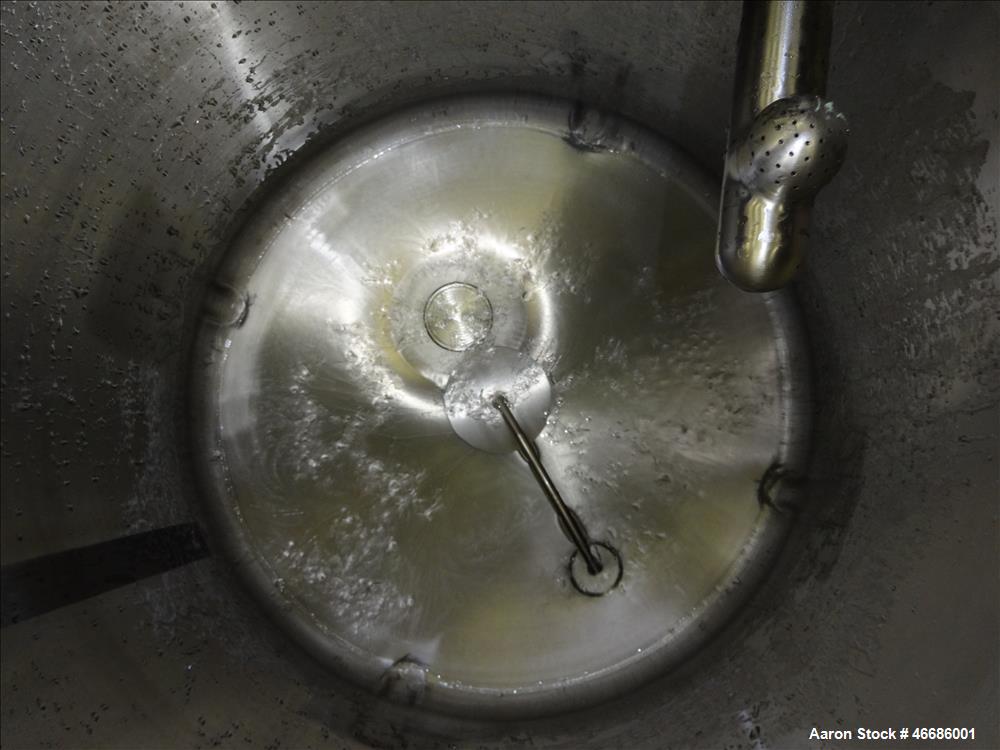

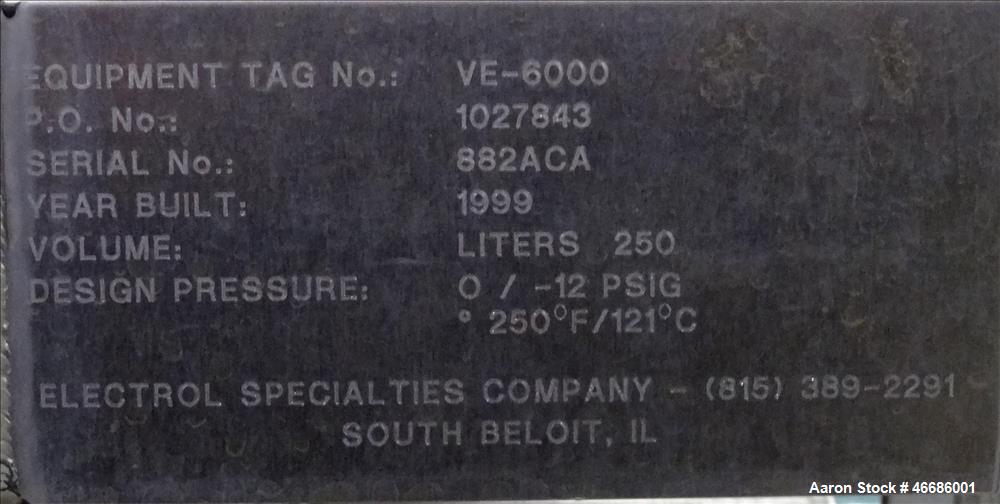

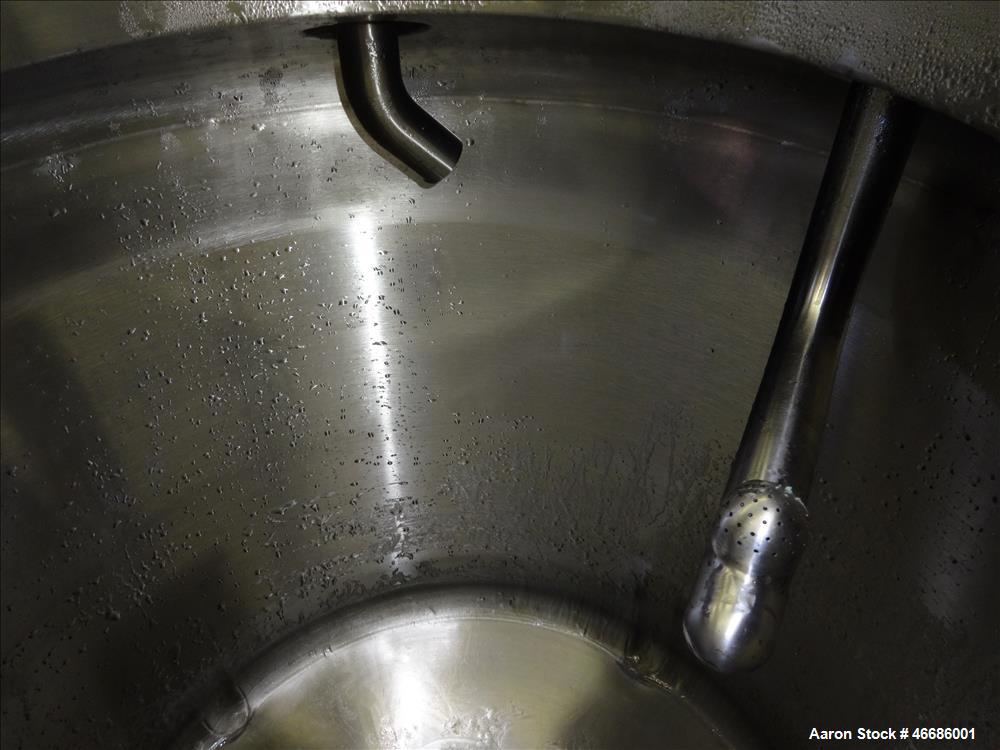

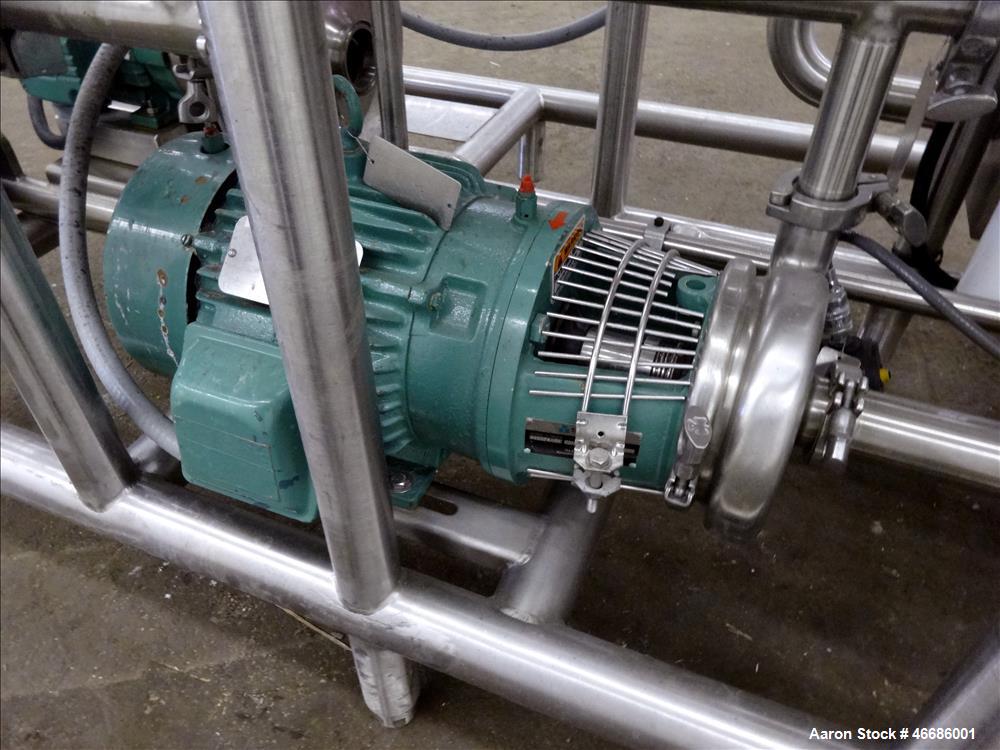

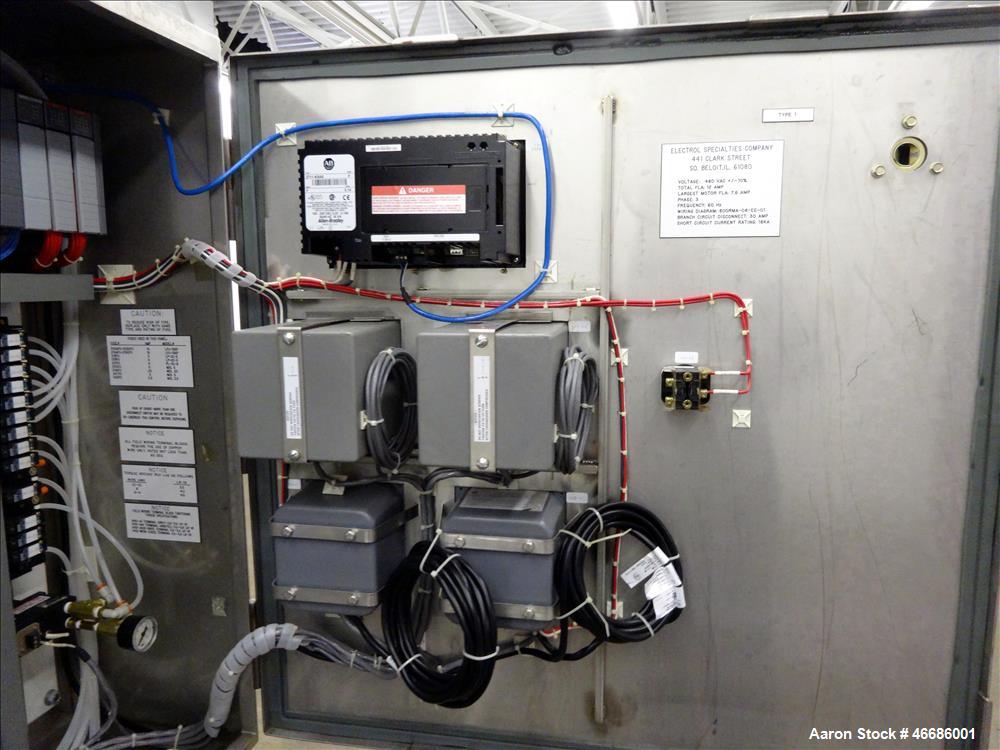

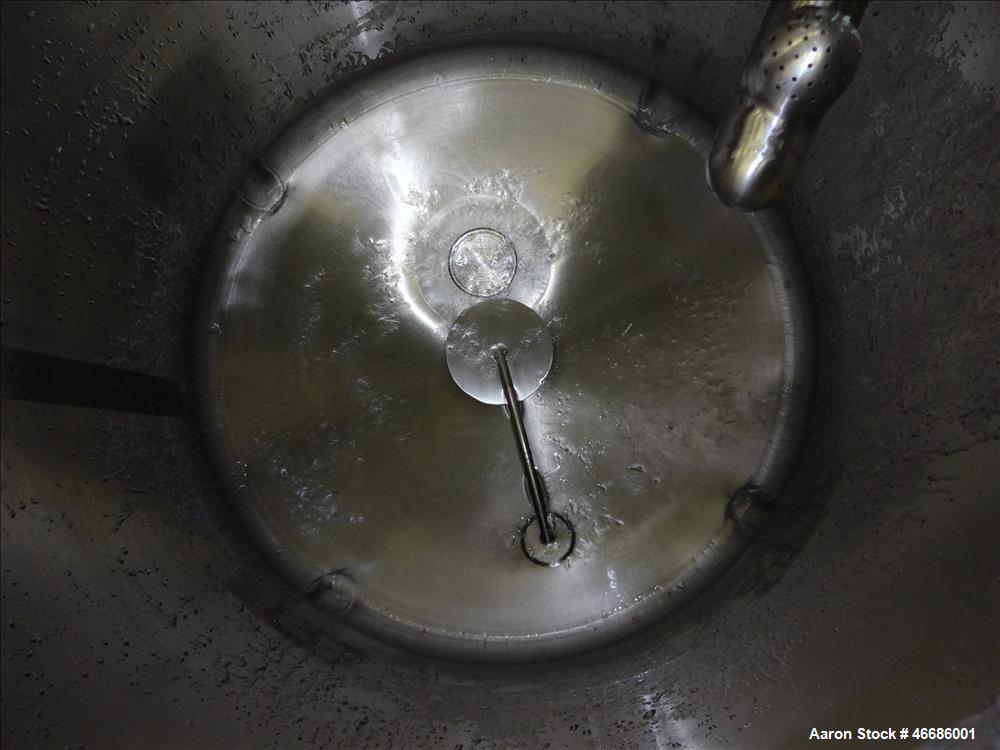

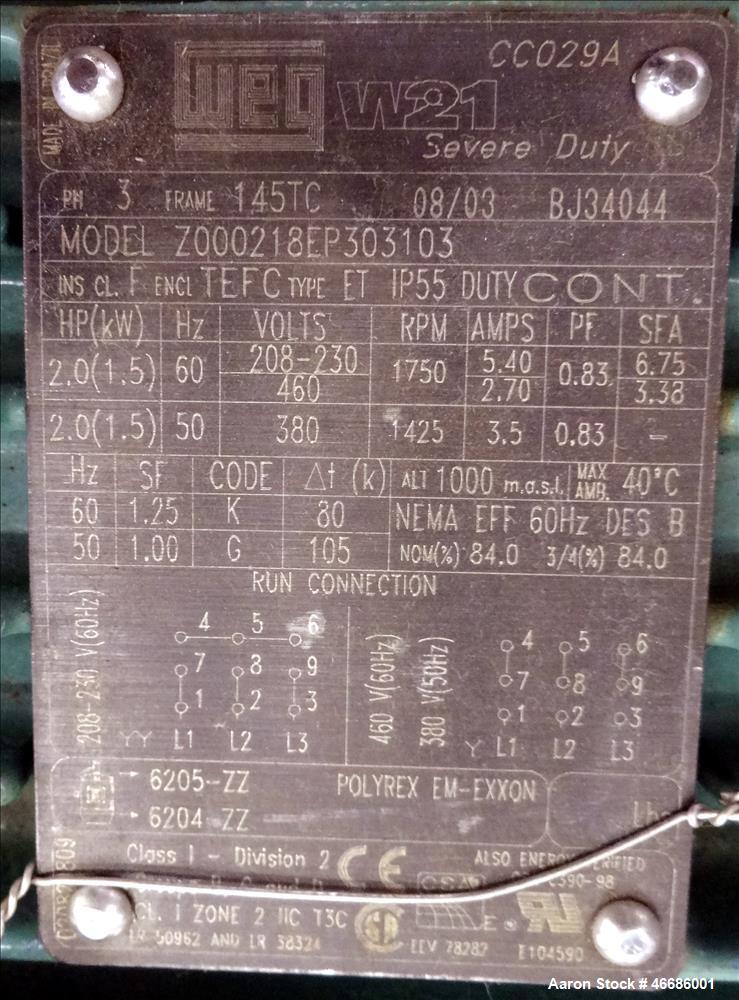

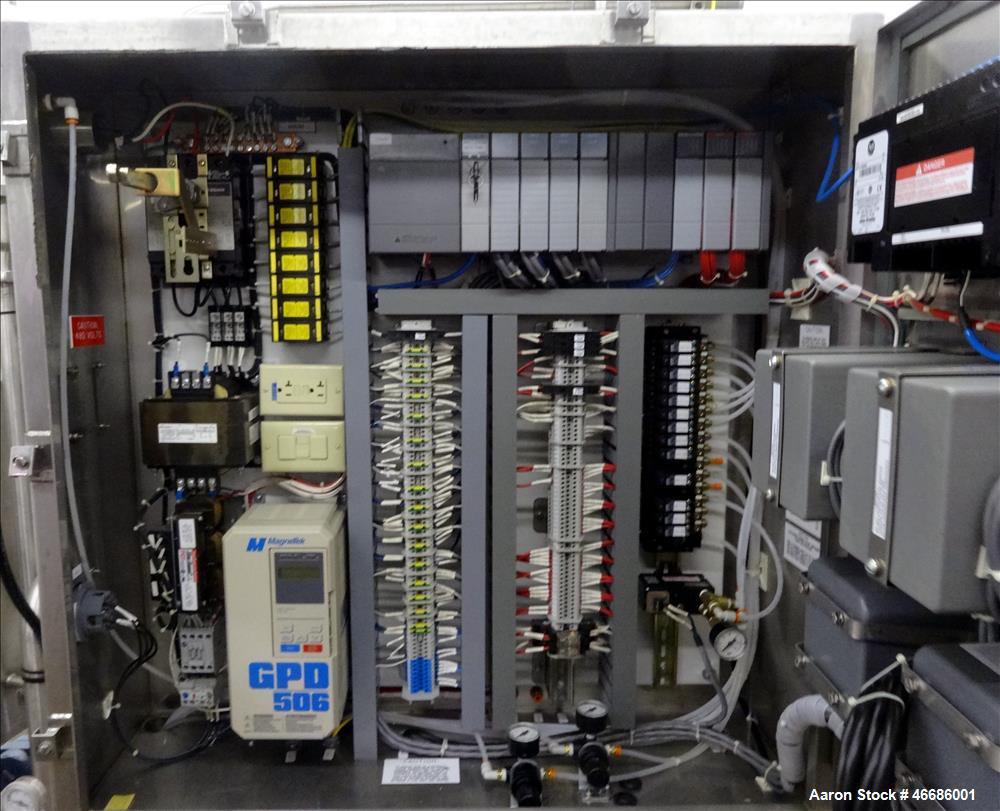

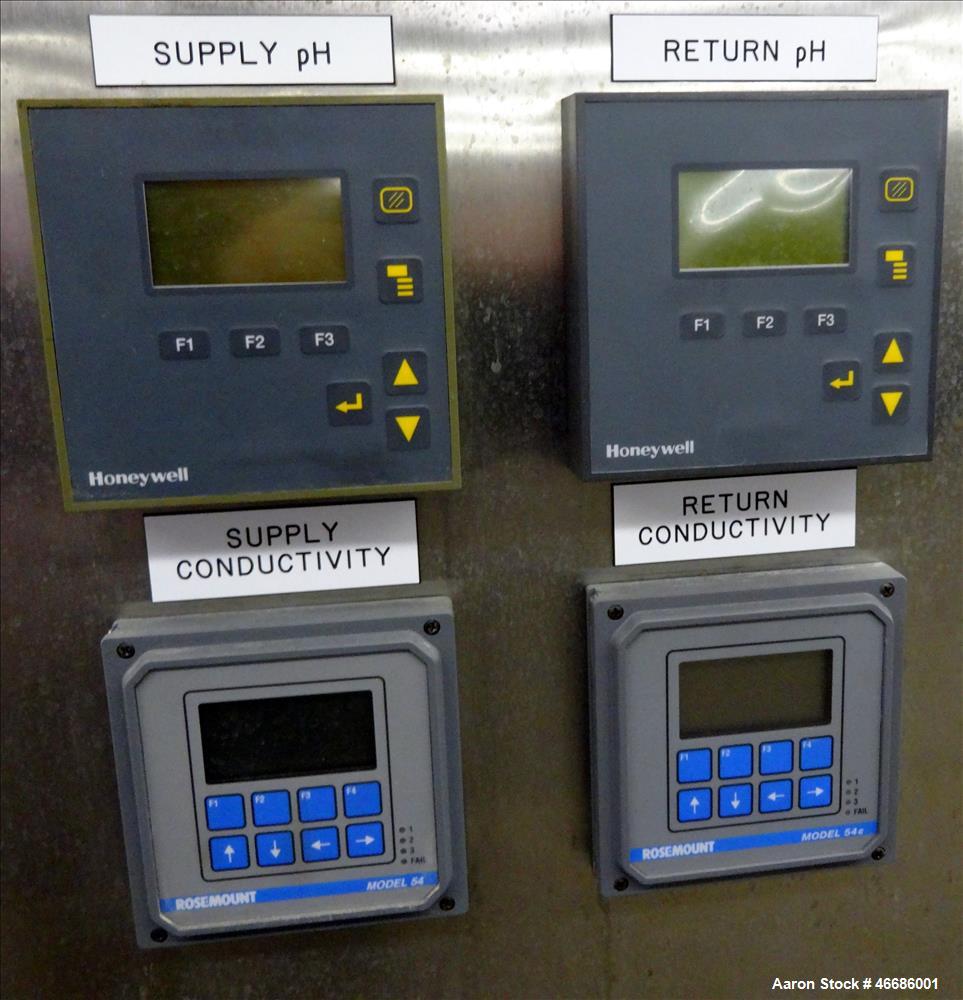

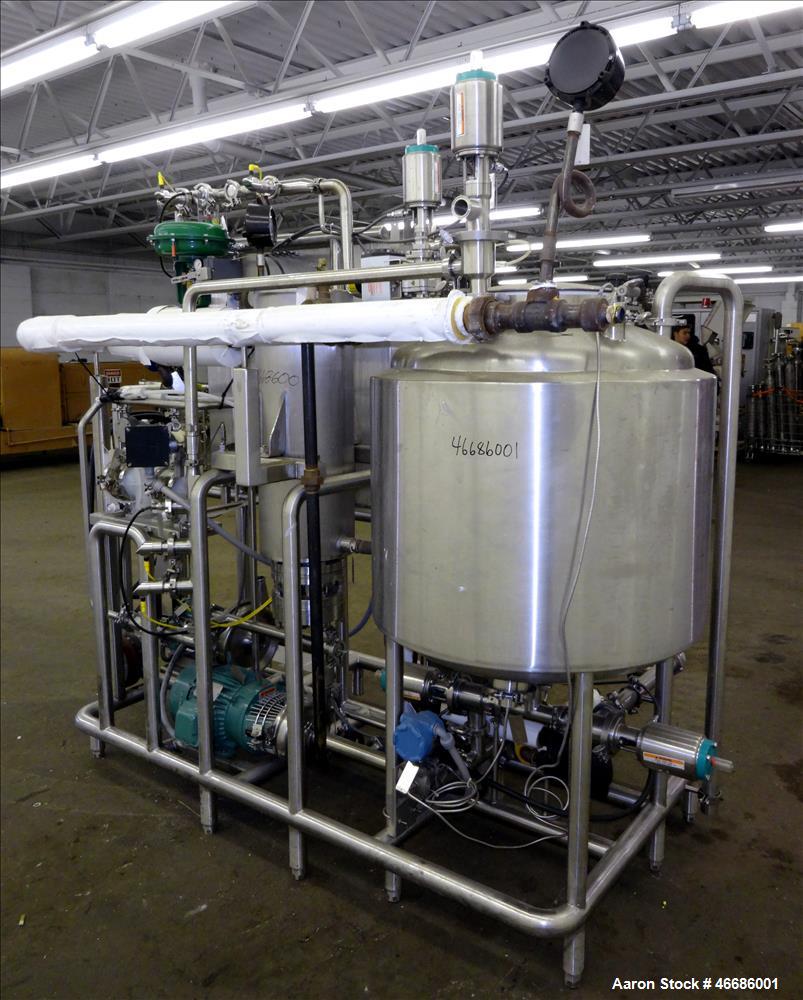

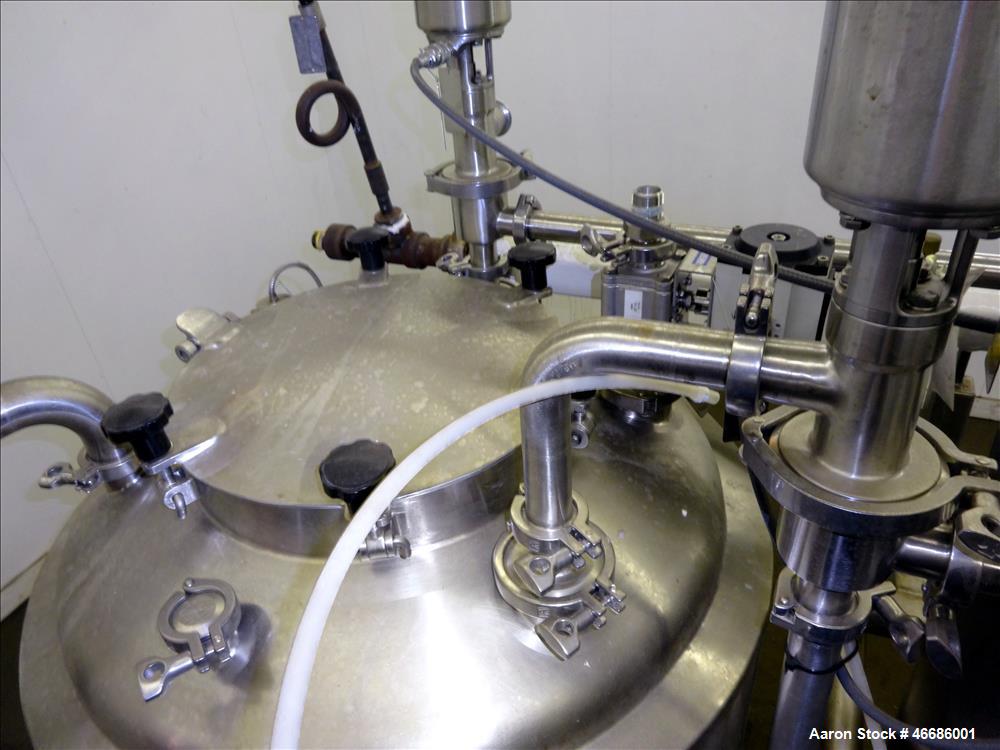

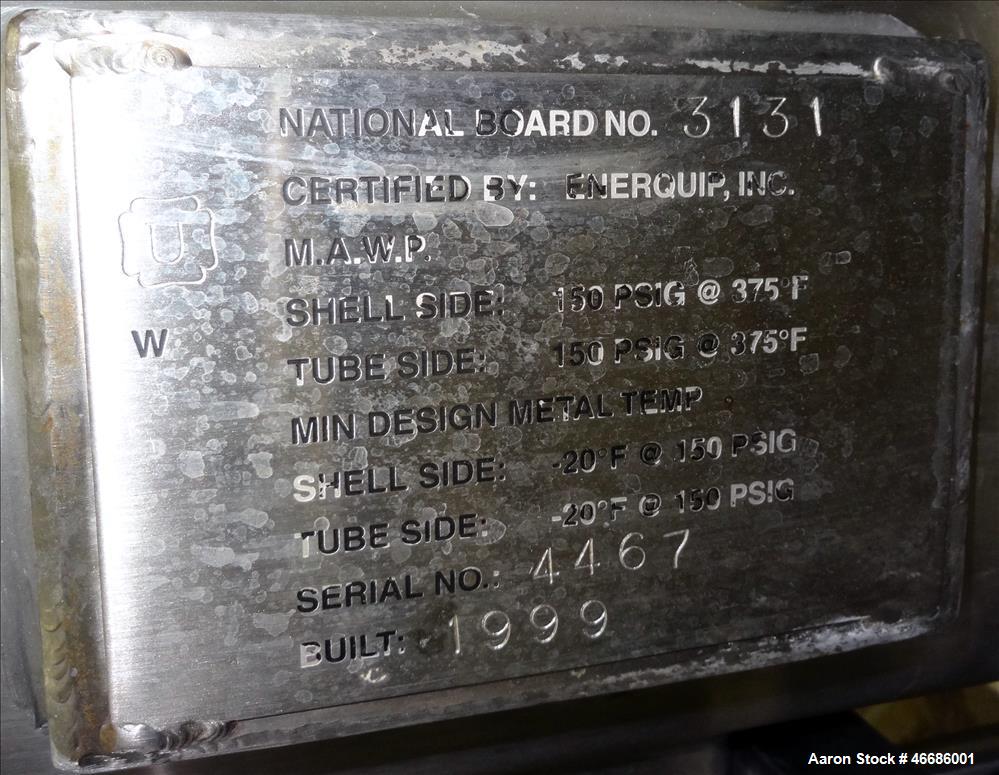

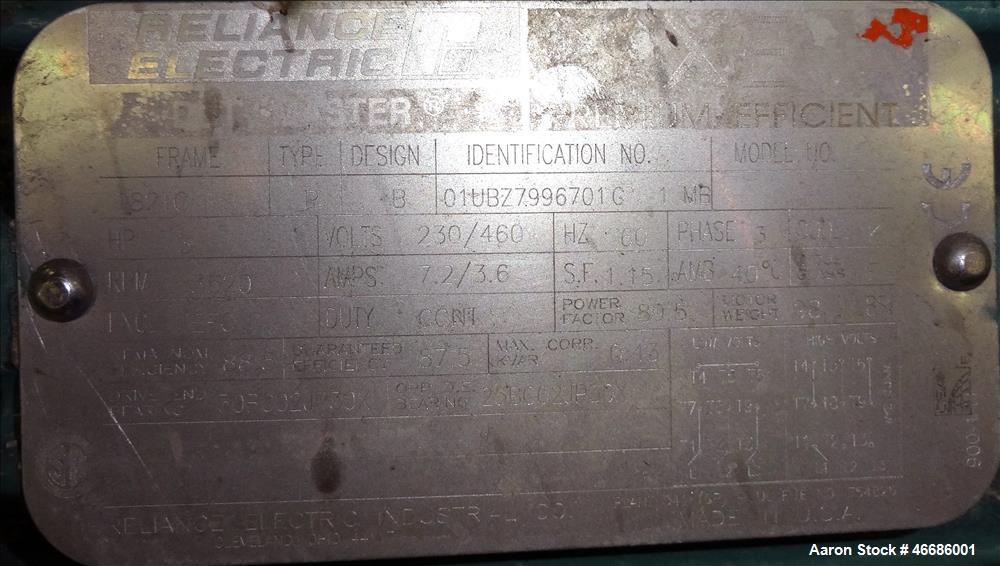

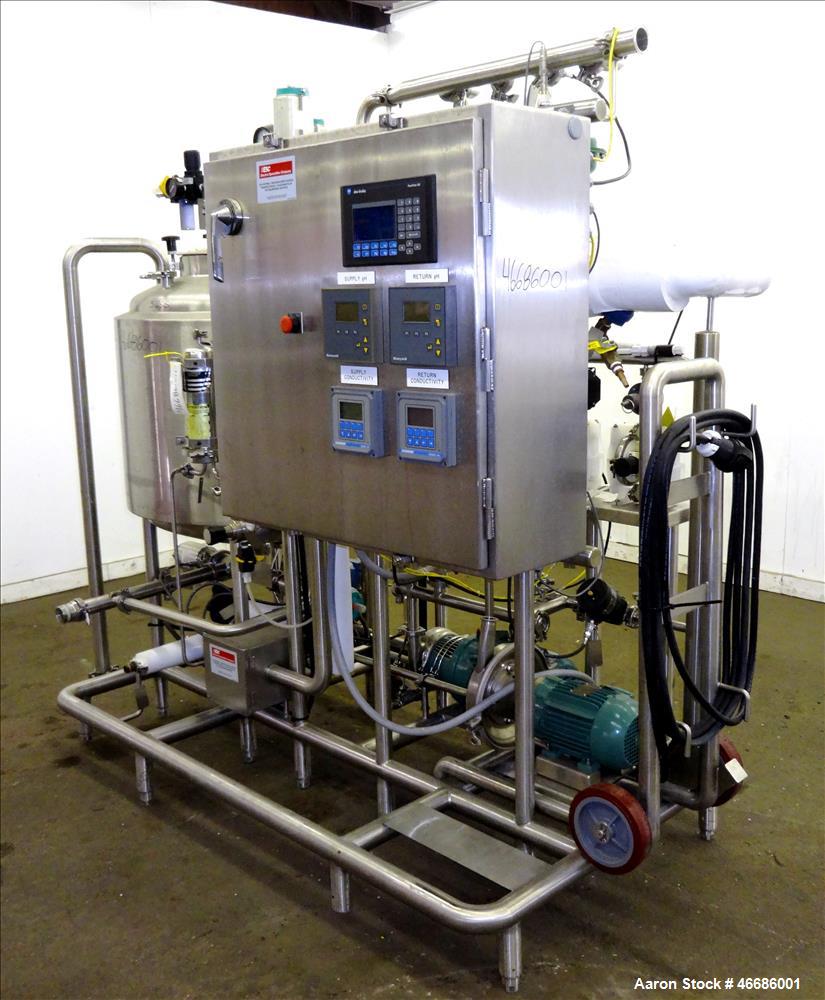

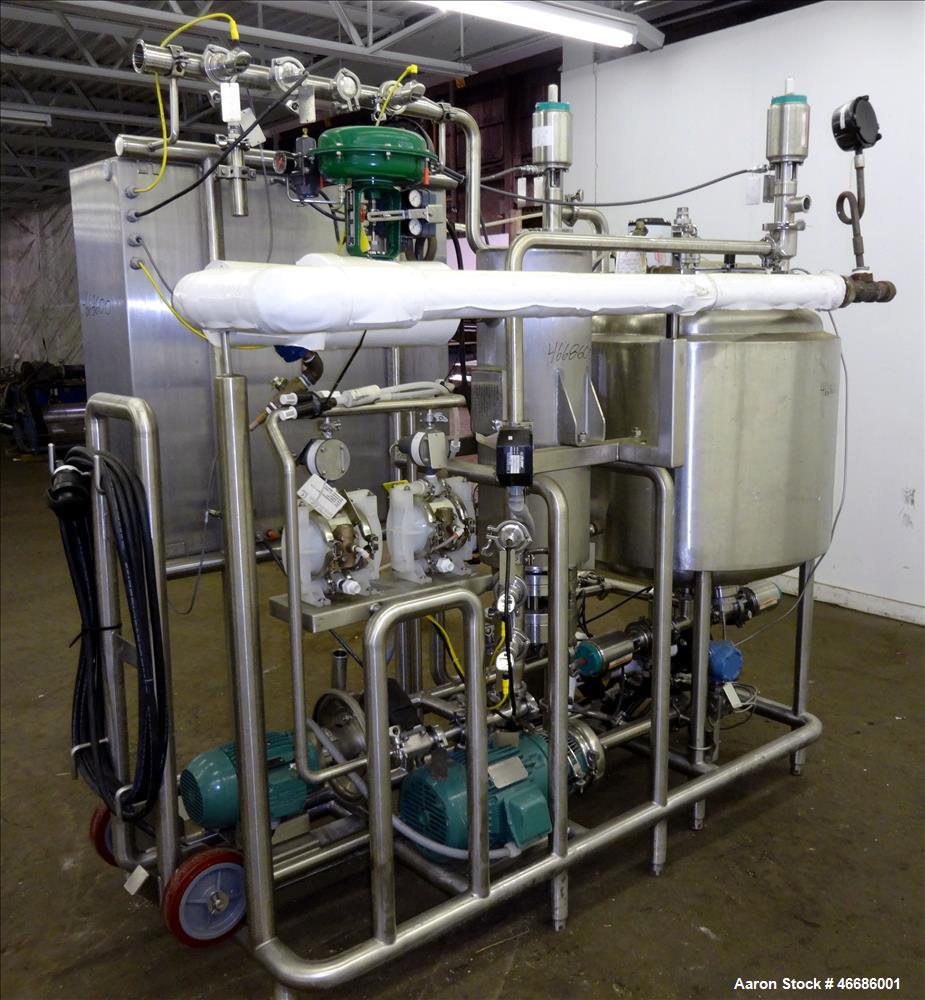

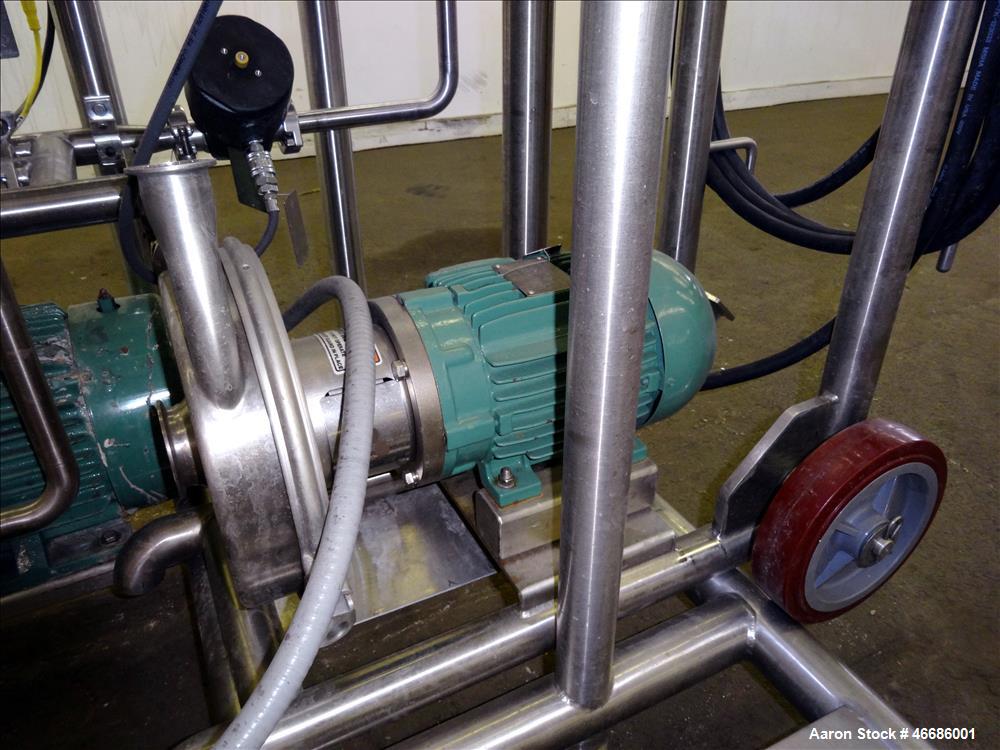

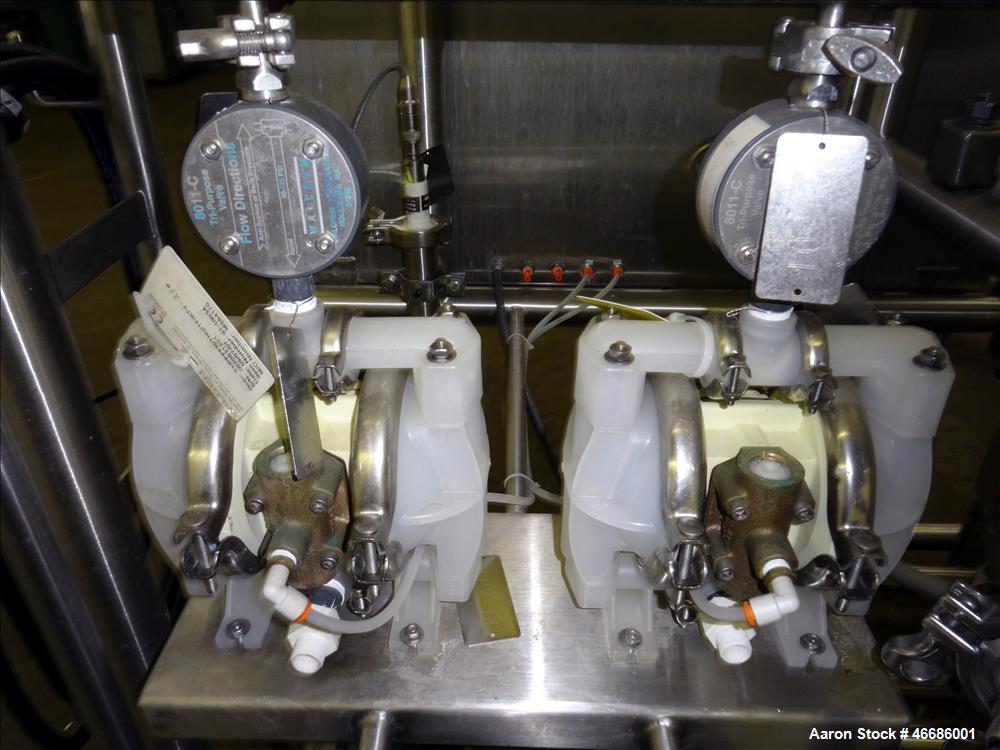

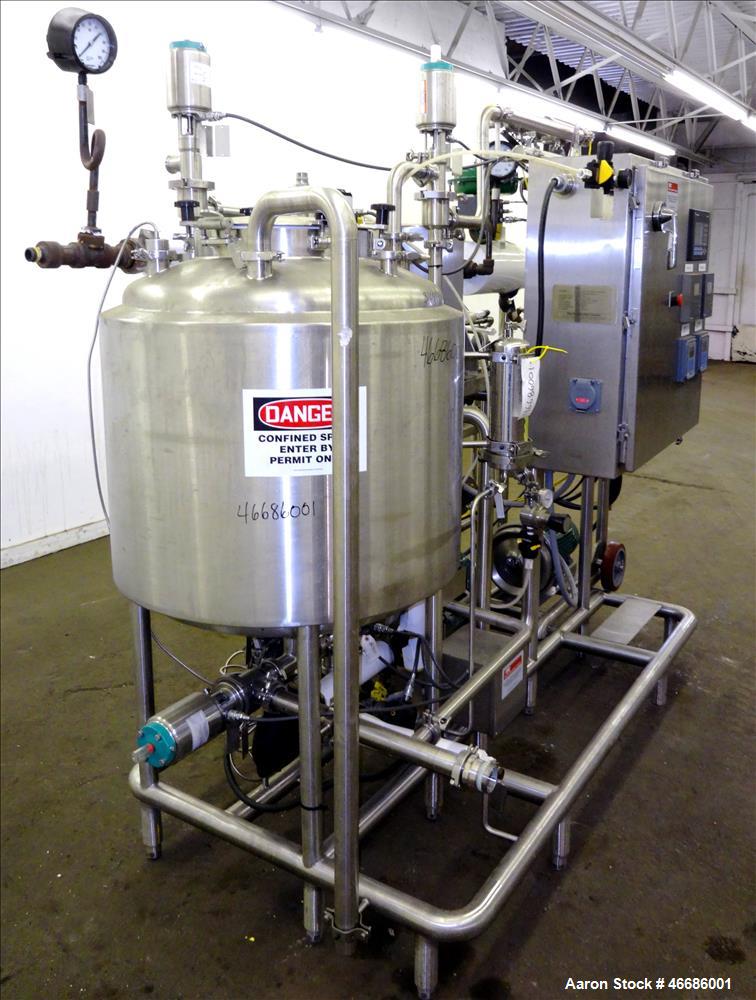

Used Electrol Specialties Company CIP Clean In Place Skid, Model 800RMA, 316 Stainless Steel. Consisting of: (1) 40 gallon (250 Liter) tank, (1) spray ball, 16" top manway cover, 2" center bottom outlet, internal rated 0/-12 psi at 250 degrees F. (1) Tri-Clover centrifugal pump, model C216MDG18T-S, serial# 492274-01, driven by a 3 hp, 3/60/230/460 volt, 3520 rpm motor. (1) Enerquip heat exchanger, approximate 6 square foot surface area, serial# 4467, national board# 3131. (2) Diaphragm pumps. Has (1) return pump, driven by a 2hp, 3/60/208-230/460 volt, 1750 rpm, mounted on a stainless steel cart. Includes control panel with Allen Bradley SCL5/04 PLC with Panel View 550 operator interface. Equipped with CIPS flow meter, conductivity sensors and analyzers, PH sensors and analyzers, RTDs with transmitters, CIPS pressure transmitter, level transmitter, return flow switch. Mounted on stainless steel frame. Serial# 800RMA-08-GA-01, Built 1999. Reported to be reconditioned, 2008.
Used Electrol Specialties Company CIP Clean In Place Skid, Model 800RMA, 316 Stainless Steel. Consisting of: (1) 40 gallon (250 Liter) tank, (1) spray ball, 16" top manway cover, 2" center bottom outlet, internal rated 0/-12 psi at 250 degrees F. (1) Tri-Clover centrifugal pump, model C216MDG18T-S, serial# 492274-01, driven by a 3 hp, 3/60/230/460 volt, 3520 rpm motor. (1) Enerquip heat exchanger, approximate 6 square foot surface area, serial# 4467, national board# 3131. (2) Diaphragm pumps. Has (1) return pump, driven by a 2hp, 3/60/208-230/460 volt, 1750 rpm, mounted on a stainless steel cart. Includes control panel with Allen Bradley SCL5/04 PLC with Panel View 550 operator interface. Equipped with CIPS flow meter, conductivity sensors and analyzers, PH sensors and analyzers, RTDs with transmitters, CIPS pressure transmitter, level transmitter, return flow switch. Mounted on stainless steel frame. Serial# 800RMA-08-GA-01, Built 1999. Reported to be reconditioned, 2008.
