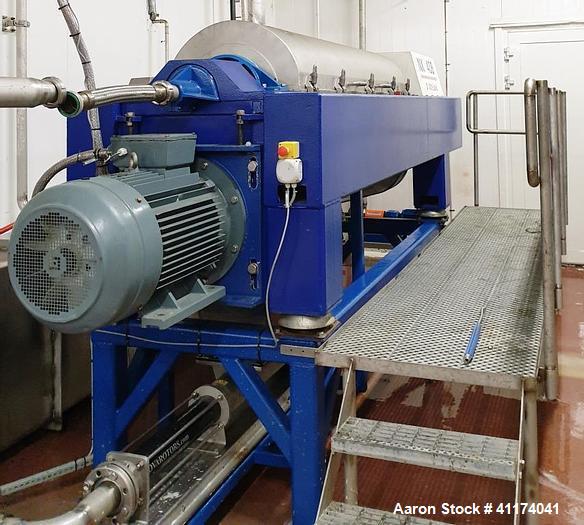

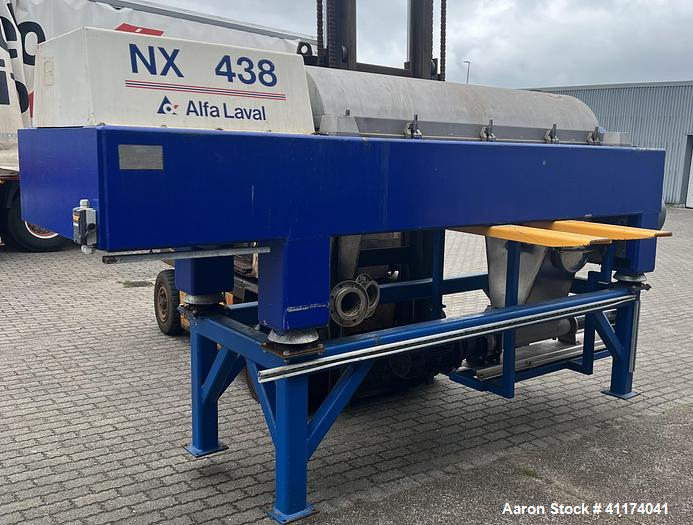

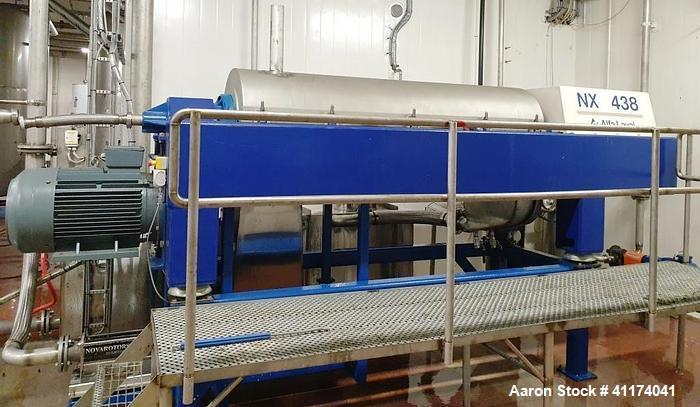

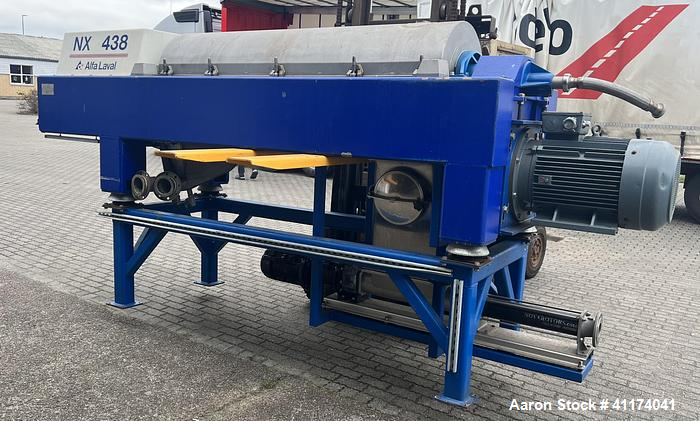

Used Alfa Laval NX-438B-11G Solid Bowl Tricanter Centrifuge
Alfa Laval NX-438B-11G Solid Bowl Tricanter Centrifuge-Used. 316 Stainless steel construction (product contact areas). Maximum bowl speed 3650 rpm. Single row of lined cake discharge ports, single lead conveyor, base, casing, gearbox, feed pip, main drive motor. 3.5 kNm gearbox. Back drive system. Mounted on a stand with 4 legs. Previous in a fish oil application. Capacity: Fish press liquid, m3/hour: 15-30 Cooked fish mass, m3/hour: 10-20 Wet rendering press liquid, m3/hour: 10-20. Reported reconditioned
Manufacturer: Alfa Laval
Model: NX-438B-11G
Construction Material: 316 Stainless Steel (Product Contact Areas)
Previous Application: Fish Oil Processing
Description:
The Alfa Laval NX-438B-11G Solid Bowl Tricanter Centrifuge is a high-performance three-phase separation system designed for efficient liquid-liquid-solid separation. Built with 316 stainless steel in all product contact areas, it offers superior corrosion resistance and durability, making it ideal for demanding industrial applications.

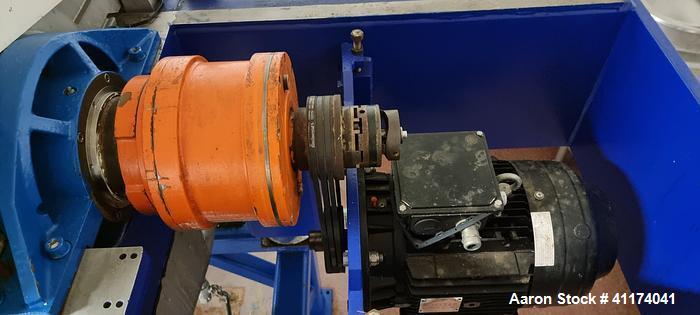

With a maximum bowl speed of 3650 RPM, this tricanter efficiently separates solids, water, and oil phases. The unit features a single row of lined cake discharge ports, a single lead conveyor, and a robust 3.5 kNm gearbox with a back drive system for precise torque control. The centrifuge includes a main drive motor, feed pipe, casing, and is mounted on a sturdy four-leg stand for stability.
Previously used in fish oil processing, the centrifuge has a reported capacity of:
- Fish Press Liquid: 15–30 m³/hour
- Cooked Fish Mass: 10–20 m³/hour
- Wet Rendering Press Liquid: 10–20 m³/hour
Specifications:
- Manufacturer: Alfa Laval
- Model: NX-438B-11G
- Bowl Type: Solid Bowl Tricanter
- Construction Material: 316 Stainless Steel (Product Contact Areas)
- Maximum Bowl Speed: 3650 RPM
- Discharge Ports: Single Row of Lined Cake Discharge Ports
- Conveyor: Single Lead Conveyor
- Gearbox: 3.5 kNm with Back Drive System
- Drive System:
- Main Drive Motor (specify HP if available)
- Back Drive for Torque Control
- Feed Pipe: Included
- Casing & Base: Included
- Mounting: Stand with 4 Legs
- Reported Capacity:
- Fish Press Liquid: 15–30 m³/hour
- Cooked Fish Mass: 10–20 m³/hour
- Wet Rendering Press Liquid: 10–20 m³/hour
Applications:
The Alfa Laval NX-438B-11G Tricanter Centrifuge is ideal for industries requiring efficient three-phase separation, including:
- Fish Oil & Marine Processing
- Food & Beverage Industry
- Edible Oil Refining
- Wastewater Treatment
- Chemical Processing
- Biotech & Fermentation
- Oil & Gas Separation
Used For:
- Three-phase separation (liquid-liquid-solid)
- Fish oil extraction and marine processing
- Clarification and dewatering processes
- Separation of oils, water, and solids in industrial applications
- Wet rendering and fish mass processing
Fish, Fish by-products, Fish Industry, Fish Oil, Fish Products, Food Plants, Food Processing, Food Production, Food Specialty Ingredients, Foods
- Alfa Laval NX-438B-11G Tricanter
- Used Solid Bowl Tricanter Centrifuge
- 316 Stainless Steel Centrifuge
- Fish Oil Processing Centrifuge
- Three-Phase Separator for Sale
- High-Speed Tricanter Centrifuge
- Industrial Liquid-Liquid-Solid Separator
- Alfa Laval Used Equipment
- Wastewater Treatment Centrifuge
- Edible Oil Separation Centrifuge
