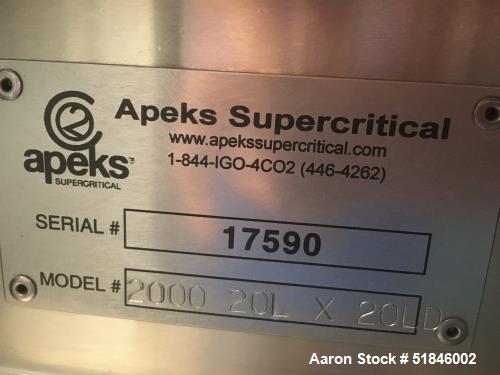

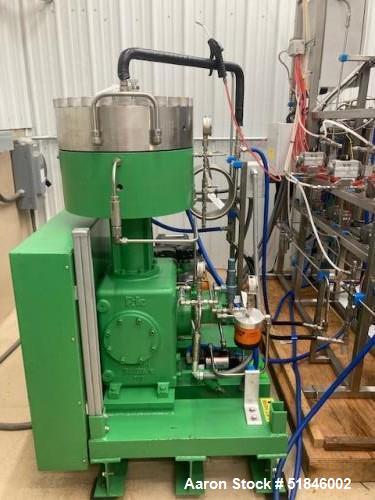

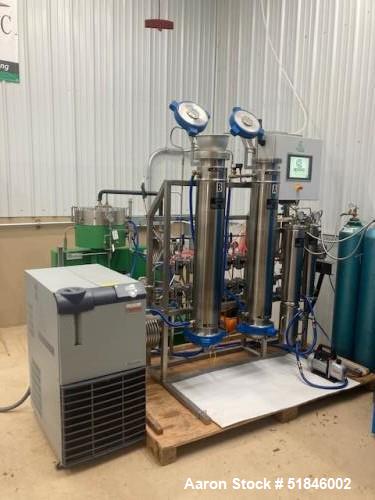

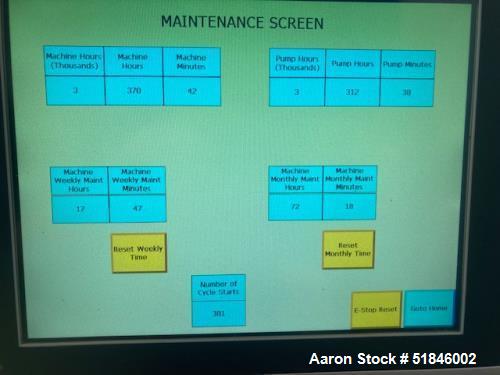

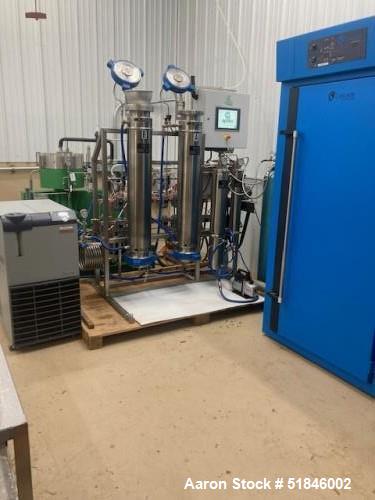

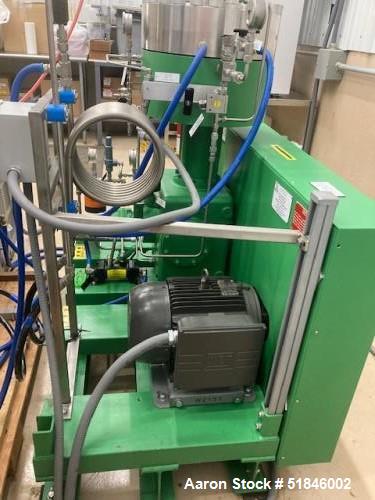

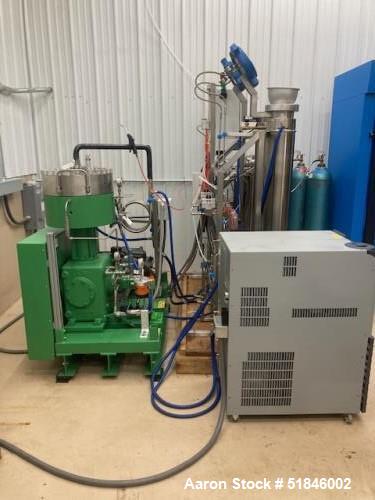

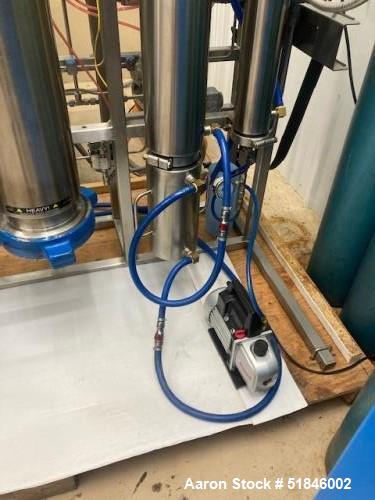

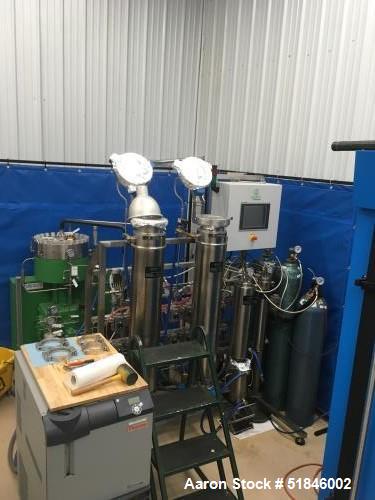

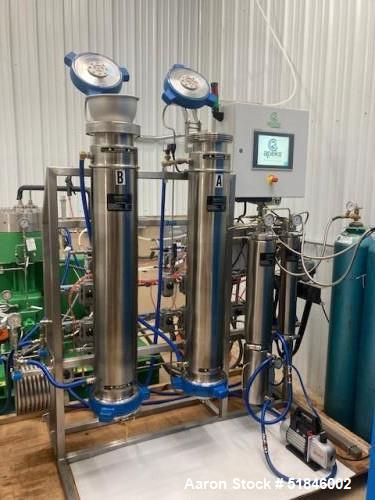

Used Apeks "Transformer" Subcritical and Supercritical CO2 Botanical Extraction System, Model 2000 20L X 20LD, 304 stainless steel 20Lx20L Vessel Combination; 2000 psi maximum pressure; 160 degrees F maximum temperature; Hammer union closures; Spring energized cup seal mechanism; Integral filters on closure heads (20 micron); Internal K type thermocouple senses actual extraction temperature; Non-isolable spring loaded safety relief valve prevents accidental over-pressurization. CO2 Recirculation Pump; Electric motor driven diaphragm compressor; 1.0-2.1 kg/min flowrate; hydraulically actuated diaphragm; all wetted parts are 316 stainless steel. Separation Mechanism; Valveless Expansion Technology (VET) flow path from extractor to 1st separator is continuous diameter with no constrictions. Separation occurs in 1st separator utilizing centrifugal separation and depressurization. Heat Exchangers; 304 stainless steel; 60F-140F system operational range. Control System; Fully automatic Programmable Logic Controller (PLC) touch screen interface with first level safety functionality and user programmable pressure, temperature and time. Also has built in hour and maintenance timers, and alarm log; Data acquisition; Push alerts for system messaging. Closed loop system recovers 95% of the CO2, Processes approximately 25-31 pounds of dried, ground cannabis in a 24 hour period.(2) legs of 30 Amp, 60 Amp breaker, 220 volt, single phase.
