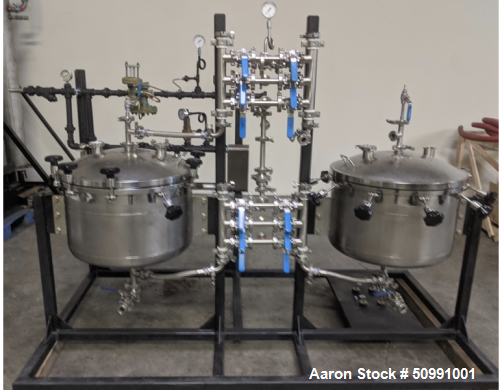

Used- Custom Solvent Extraction System

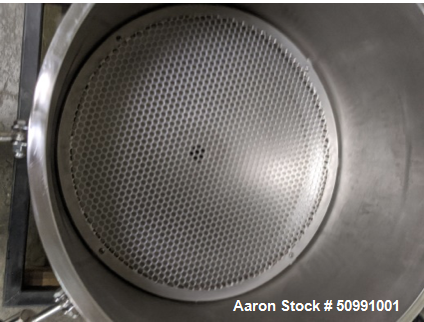

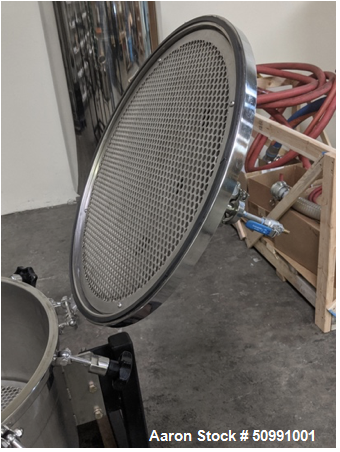

Used- Custom Solvent Extraction System. 304 Stainless Steel. Capacity of 60-90 pounds per hour. Compatible with both ethanol and heptane extraction solvents. Features two extraction cylinders which hold 30 pounds of biomass each. Extraction valve manifold allows for a variety of functions to be performed from one location including solvent washing, CO2 sparging, and steam sparging. Air operated, chemically compatible diaphragm pump for solvent pumping. 2 steam pressure regulating valves with heat exchanger. Steam pressure relief valves. Requirements: Compressed air supply: 30 CFM at 50 PSI. Steam supply: up to 345 pounds of steam per hour at 100 PSI. CO2 supply from dewar regulated to less than 15 PSI. When using heptane as the extraction solvent, this extraction system can use steam to recover much of the solvent that would be lost in the biomass which increases profitability. Last used in a Cannabis application.
