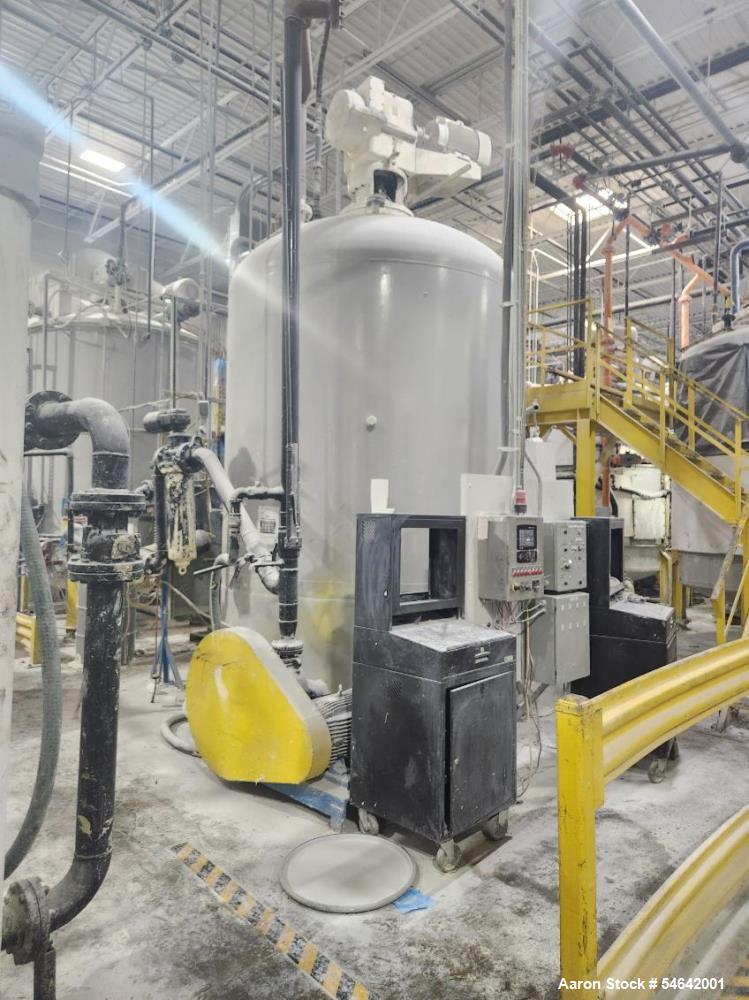

Used Hockmeyer HCS-II-1000 Dual-Shaft Disperser – 1,000-Gallon, 100 HP with 3 Jacketed Vacuum Tanks

Used- Hockmeyer Model HCS-II-1000 concentric dual-shaft disperser, 1,000-gallon working capacity and approximately 1,425-gallon total capacity. Equipped with 100 HP high-speed disperser drive and 30 HP low-speed anchor agitator drive, both 230/460-volt, 3-phase, 60 Hz, with variable-frequency drives. Includes 24" stainless steel high-speed disperser blade, low-speed anchor agitator with nylon scrapers, three 78" diameter jacketed tanks, sealed tank lids with 24-1/2" manways and sight glasses, and hydraulic lift with approximately 82" rise. Tanks rated for 14.5 PSI to 29.5" Hg vacuum; jackets rated for 14.5 PSI and designed for 30 PSI. Includes 5 HP hydraulic power unit with 100-gallon oil reservoir, remote operator control enclosure, digital tachometers, ammeters and temperature indicator. Approximate installation area: 15.6' x 16.6'. ********* THIS MIXER SYSTEM WILL NOT BE AVAILABLE TO SHIP UNITL THE END OF DECEMBER, 2026 OR INTO JANUARY 2027. ASK YOUR AARON SALES PROFESSIONAL FOR MORE INFORMATION*******

MFR: Hockmeyer

Used Hosokawa Mikropul 60 ACM Air Classifying Mill – 100 HP

Used Hosokawa Mikropul 60 ACM Air Classifying Mill With 100 HP Rotor Motor And Buffalo Pressure Blower. Constructed with 304 stainless steel product contact parts mounted on a carbon steel base. Driven by a 100 HP main rotor motor and 10 HP air classifier motor. Electrical requirements for the mill: 460V, 3-phase. Includes Buffalo Model 45-4 heavy-duty pressure blower driven by a 75 HP, 230/460V, 3-phase motor. Serial #80-C5004. Possible applications include fine grinding, particle size reduction and air classification of compatible chemical, mineral, food, pharmaceutical and other dry powder products.

MFR: Hosokawa

Used Patterson-Kelley 100 Cu Ft Twin-Shell Vacuum Dryer

Used Patterson-Kelley 100 Cubic Foot Twin-Shell Vacuum Dryer With 304 Stainless Steel Product Contact Surfaces. Drying chamber is rated for 150 psi and full vacuum, with carbon steel jacket rated for 30 psi at 250 F. Twin-shell drying chamber is designed to rotate from approximately 0.96 to 7.66 rpm using a 10 HP Reeves variable-speed drive with hazardous-location motor. Each outer shell measures approximately 56" diameter x 96" long. Chamber includes an 18" access panel and 12" bottom discharge. Product contact surfaces are constructed of 304 stainless steel, with maximum product density of 75 lb per cubic foot. Overall dimensions are approximately 19'9" long x 83" wide x 10'1" high. Serial #204190. Electrical requirements: 460V, 3-phase. Drawings are on file. Possible applications include vacuum drying and low-speed tumbling of compatible pharmaceutical, chemical, food, nutraceutical and other powder, granule or bulk solid products.

MFR: Patterson Kelley

Used Bühler 1500 Liter Stainless Steel Jacketed Vacuum Mixer

Used B?hler 1,500 liter (400 gallon) stainless steel jacketed vacuum mixer/process kettle, National Board #25516, Serial #26695, built 1995. Vessel is rated for full vacuum and 3 psi at 250 F, with jacket rated for 50 psi at 250 F. Vessel measures approximately 51" inside diameter x 66" straight side with a 12" cone bottom and 10" dished top. Top head is equipped with (3) 2" flanged fittings, (1) 1" flanged fitting, (1) 4" flanged fitting, (1) 8" flanged fitting and a 3" sight glass. Bottom features a 3" flanged center discharge connected to a ball valve, and the jacket is equipped with 2" flanged connections. Mixing system includes scrape agitation powered by a hydraulic motor and a 12" high-speed disperser blade with approximately 19" of vertical depth adjustment using a hydraulic lift system. Electric motor for the high-speed disperser is missing. Includes control panel and Reliance Electric GP2000 VS Drive, Model 2GU41100, variable-speed constant-torque AC controller designed for a 100 hp motor. Unit was previously mezzanine mounted and is equipped with three stainless steel mounting lugs. Approximate overall dimensions are 160" high x 54" wide. Good condition. Possible applications include vacuum mixing, blending, dispersing, heating and cooling of compatible coatings, adhesives, inks, chemicals, cosmetics, personal care products and other viscous or liquid process materials.

MFR: Buhler Inc.

Used 1995 Bühler 400 Gallon Vacuum Processing Mixer With Disperser

Used 1995 B?hler 1,500 liter (400 gallon) stainless steel jacketed vacuum processing mixer, Serial #26694, National Board #23519. Vessel is rated for full vacuum and 3 psi at 250 F, with jacket rated for 50 psi at 250 F. Vessel interior measures approximately 51" diameter x 66" straight side with a 12" cone bottom and 10" dished top. Top head includes (3) 2" flanged fittings, (1) 1" flanged fitting, (1) 4" flanged fitting, (1) 8" flanged fitting and a 3" sight glass. Bottom is equipped with a 3" flanged center discharge connected to a ball valve, with 2" flanged connections provided for the jacket. Mixing system features a scrape agitator powered by a hydraulic motor along with a 12" high-speed disperser blade. Disperser assembly provides approximately 19" of vertical depth adjustment through a hydraulic lift system. Electric drive motor for the high-speed disperser is missing. Includes control panel and Reliance Electric GP2000 VS Drive, Model 2GU41100, variable-speed, constant-torque AC controller for a 100 hp motor. Vessel was previously mezzanine mounted and is equipped with three stainless steel mounting lugs. Approximate overall dimensions are 160" high x 54" wide. Good condition. Possible applications include vacuum mixing, blending, dispersing, heating and cooling of compatible coatings, adhesives, inks, chemicals, cosmetics, personal care products and other liquid or viscous process materials.

MFR: Buhler Inc.

Used Prater-Sterling EV-4522 100 HP Hammer Mill

Used Prater-Sterling Model EV-4522 hammer mill, last used for processing hemp fiber. Carbon steel construction with swinging hammers and a 10" x 21" top feed opening with bottom discharge. Unit is equipped with 3/16" perforated screens and side access doors with door interlock switches. Driven by a 100 hp motor requiring 460 VAC, 3-phase electrical service. Mounted on a heavy-duty steel base. Serial #5008932. Possible applications include size reduction, grinding and pulverizing of compatible hemp fiber, biomass, agricultural products, wood products, grains, chemicals and other suitable dry or fibrous materials.

MFR: Prater

Used Bauermeister UZ42 100 HP Turbo Rotor Impact Mill

Used Bauermeister Model UT/USCH UZ42 turbo rotor impact mill, also referred to as a cage mill, designed for fine-to-coarse grinding of compatible soft to medium-hard materials up to approximately 5 Mohs hardness. Unit features a 6-7/8" x 11-3/8" feed throat and is driven by a 100 hp TEFC motor requiring 230/460 VAC, 3-phase electrical service. Serial #543184. Possible applications include size reduction and grinding of compatible sugar, gypsum, limestone, minerals, chemicals, food ingredients and other soft to medium-hard dry materials.

MFR: Bauermeister

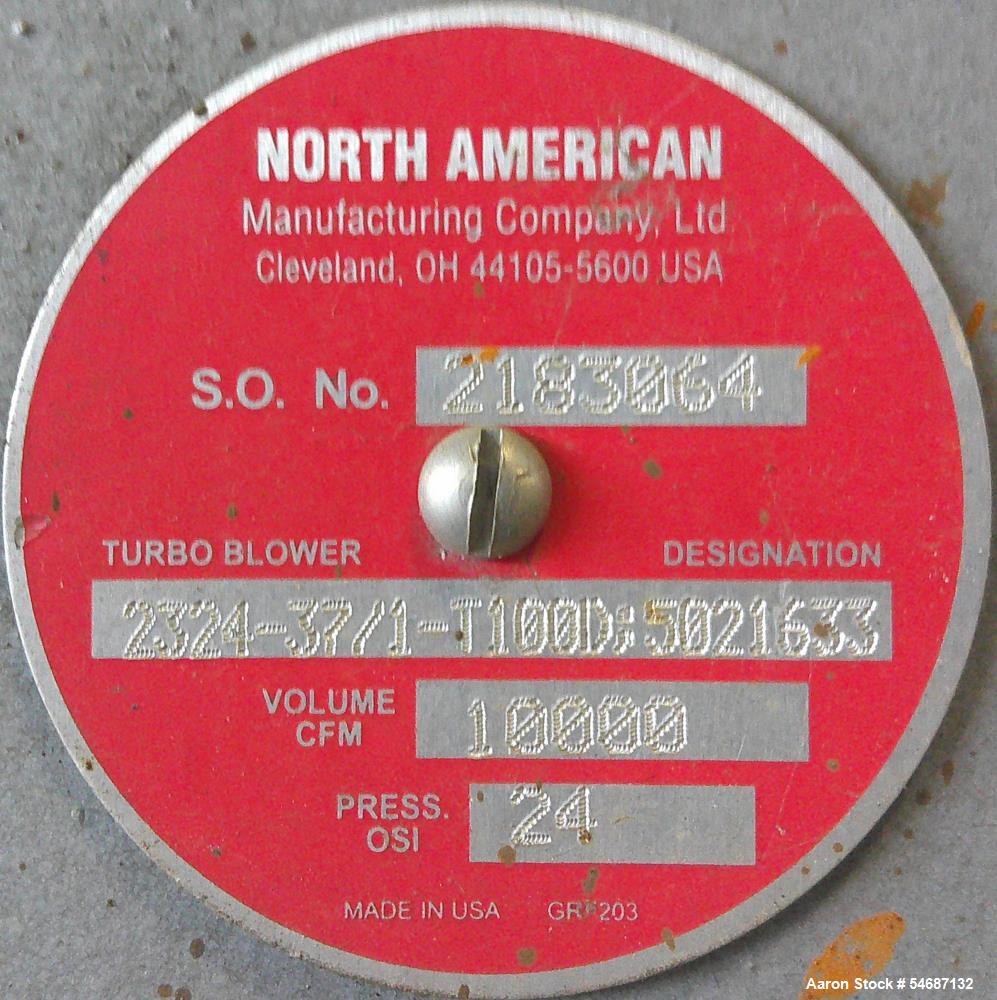

Used North American Mfg. Co. CS centrifugal fan. Rated for 10,000 cfm @ 24 SP. Blower has a 18" diameter inlet and a 23" outlet. Has a 100 hp motor. Requires 460 vac 3 phase electrical supply. Inlet...

Used-North American Mfg. Co. CS centrifugal fan. Rated for 10,000 cfm @ 24 SP. Blower has a 18" diameter inlet and a 23" outlet. Has a 100 hp motor. Requires 460 vac 3 phase electrical supply. Inlet has Fives North American combustion air filter 51" wide x 50.25" tall x 41" long. Overall dimensions 51" wide x 74.5" tall x 113" long. Five of the filter elements were lost in shipping and will need to be replaced if it is to be used with the air filter.

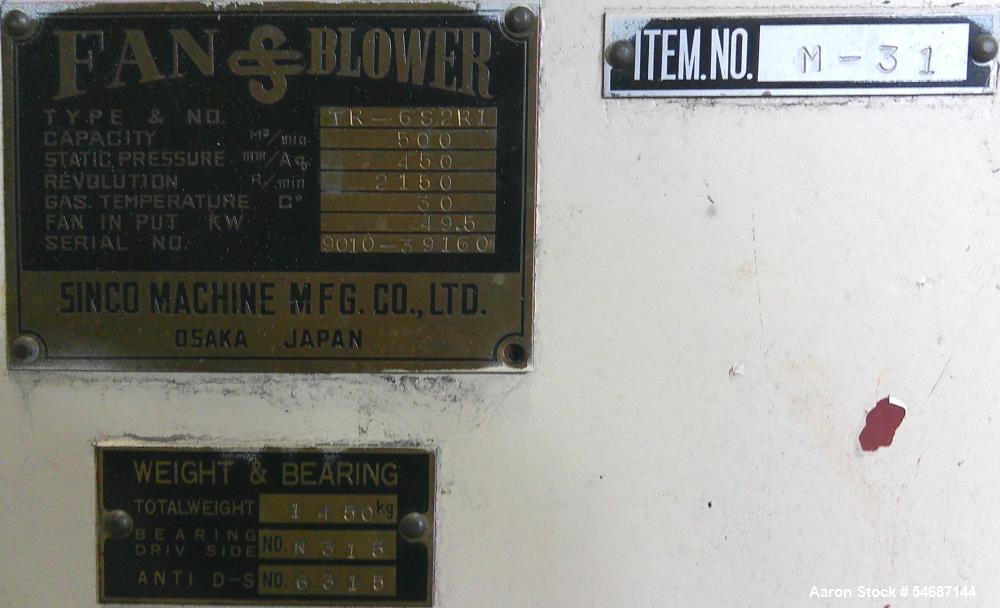

Used Sinco Machine Mfg. model TR-6S2R1 centrifugal fan. Serial number 9010-39160. It is rated for 500 cu. meters/min @ 450 mm/Aq. Blower has a 28" diameter inlet and 23 3/8" x 23 3/8" outlet. The 100...

Used-Sinco Machine Mfg. model TR-6S2R1 centrifugal fan. Serial number 9010-39160. It is rated for 500 cu. meters/min @ 450 mm/Aq. Blower has a 28" diameter inlet and 23 3/8" x 23 3/8" outlet. The 100 hp motor turns 2150 rpm. Requires 480 vac 3 phase electrical supply. Overall size 69"wide x 90" long x 68" tall.

Used Sullair LS20-100 AC air compressor. Serial # 003-118305. BOM # LS20/270300. 100 hp 460 vac 3 phase drive. Capable of 100 psi at 500 ACFM. This unit is air cooled. Requires 460 vac 3 ph electric ...

Used-Sullair LS20-100 AC air compressor. Serial # 003-118305. BOM # LS20/270300. 100 hp 460 vac 3 phase drive. Capable of 100 psi at 500 ACFM. This unit is air cooled. Requires 460 vac 3 ph electric supply. Hours run 57641.5. Hours under load 50,682.4.Machine does not have the external radiator.

MFR: Sullair

Alloy Fabricators Approximately 1,000 Gallon 304 Stainless Steel Reactor

Used- Alloy Fabricators Approximately 1,000 Gallon 304 Stainless Steel Reactor with Coils. 60" diameter x 72" straight side; Dished top and bottom; Internal rated 33 psi at 335 degrees F; Coils rated 85 psi at 335 degrees F; 1 hp axial type agitator, 304 stainless steel, Single hub with 4 blades, 26 1/2" dia; 18" dia. 2 blade radial flow at bottom Serial # 1-142A; Built 1991.

MFR: Alloy & Steel Fab

Used Cherry-Burrell 1,000-Gallon Sanitary Jacketed Stainless Steel Mix Tank | Food-Grade Heated Vessel

Used Cherry-Burrell 1,000-Gallon Sanitary Jacketed Stainless Steel Mix Tank | Food-Grade Heated Vessel. Approximately 72" diameter x 72" straight side. Dished top, pitched sloped bottom. Jacket Rated 100 PSI @ 300 Degrees F. Top mounted agitator driven by a 1.6/3 HP, 860/1740 rpm 460 volt motor into gearbox with 42.93 ratio for 20/40 RPM output speed. 3" Side bottom outlet. Approximately 9'6" OAH. National Board Rated. Last used in sanitary food plant.

MFR: Cherry Burrell
