Used Lee 400 Gallon 316 Stainless Steel Jacketed Double-Action Kettle

Used Lee 400 gallon stainless steel jacketed double-action kettle, Model # 400 D9MT, Serial # 26909-1-2, constructed of 316 stainless steel with a full jacket rated for 40 psi, double-action agitation with provisions for scrapers but missing the scrapers, 2-1/2" diameter bottom outlet, split cover, and vessel dimensions of 54" diameter x 48" high. Suitable for large-batch cooking, heating, blending, and mixing applications and products requiring double-action agitation.

MFR: Lee Ind

Used 400 Gallon A&B Process Systems Reactor

Used- A&B Process Systems Reactor. Approximate 400 Gallon, 304L Stainless Steel, Vertical. 54" Diameter x 24" straight side, Dished top, jacketed hemispherical bottom. Internal rated 150 psi at -20 to 425 degrees F. 304L stainless steel jacket rated 150 psi at -20 to 425 degrees F. Off center top entering angled anchor agitator with scrapers, driven by a 10 hp, 3/60/230/460 volt, 1770 rpm gear motor, ratio 40.80 to 1. Openings top: 18" man way with davit arm cover. 4" Center bottom outlet. Mounted on (3) side lugs. Serial # 1118160301B. National Board #1606. Built 2012.

MFR: A & B

Used Howden WRVH20416526 Rotary Screw Compressor Package – 400 HP Industrial Gas Compressor

Used Howden WRVH20416526 Rotary Screw Compressor Package 400 HP Industrial Gas Compressor. S/N MK6DS-2570 Rated Max working pressure high side 24.0 bar, Max working pressure low side 5.50 bar. Max Speed 4500 RPM. Driven by Hyundai 400 HP 3/60/2300-4160 volt motor 3562 RPM. Built 2011.

Howden WRVH Series Industrial Rotary Screw Compressor Powered by 400 HP Hyundai Motor

Howden WRVH Series Industrial Rotary Screw Compressor Powered by 400 HP Hyundai Motor. S/N MK6DS-2570 Rated Max working pressure high side 24.0 bar, Max working pressure low side 5.50 bar. Max Speed 4500 RPM. Driven by Hyundai 400 HP 3/60/2300-4160 volt motor 3562 RPM. Built 2011.

Used Groen 400 gallon 316L stainless steel jacketed kettle. National Board # 138786. The product chamber is rated at 15 psi maximum working pressure (MAWP) and full vacuum @ 30" Hg. The jacket has a ...

Used-Groen 400 gallon 316L stainless steel jacketed kettle. National Board # 138786. The product chamber is rated at 15 psi maximum working pressure (MAWP) and full vacuum @ 30" Hg. The jacket has a MAWP rating of 100 psi @ 338° F and a minimum design metal temperature (MDMT) rating of –20° F @ 100 psi. Kettle dimensions are 60" diameter x 17.5" straight side height with a 30" hemispherical bottom. The kettle top has an 18" diameter manway rated for 15 psi @ 250° F, a 15" wide x 64" long center agitator bridge, (4) 3" Tri-Clamp fittings, (1) 2" Tri-Clamp fitting, and (1) 1.5" Tri-Clamp fitting. The kettle side has (6) 2" NPT fittings. The kettle bottom has a 4" Tri-Clamp discharge and (3) 2" NPT fittings. The kettle has a side sweep agitator blade but no drive. Serial number 97464-3. The kettle’s total dimensions are 70" diameter x 95" high.

MFR: Groen

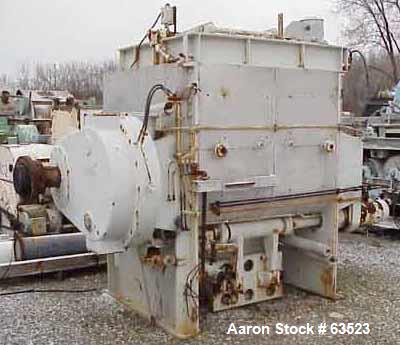

Used Werner & Pfleiderer UK1500 X 55 Double Arm Mixer – 400 Gal Working Capacity, 316 SS

Used- Werner & Pfleiderer Double Arm Mixer, Type UK1500 X 55. 316 Stainless Steel construction. Total capacity is 595 gallons (2250 liters). Working capacity is 400 gallons (1500 liters). 5'6" long x 4'9" wide x 4'2" deep (1690 mm long x 1450 mm wide x 1280 mm deep) mixing bowl. Geared one end, cored masticator blades. 7-3/4" shafts. Double jacketed. 2'3" x 1'8" bottom dump outlet. Flat one piece cover with (1) 32" x 34" hydraulic door, (2) 2", (2) 4" x 8" doors, (3) 8" openings.

MFR: Werner & Pfleiderer

CMW Inc Approximately 4000 Gallon Stainless Steel Vertical Storage Tank

Used- CMW Inc Approximately 4000 Gallon Stainless Steel Vertical Storage Tank. 96" diameter X 128" high straight side. Flat top and flat bottom with ibeam reinforcements. Top Openings: 6" diameter inspection port with lid, (3) 2" side top inlets, Openings Side: 24" side bottom manway, (4) 2" and (1) 3" side bottom outlets. Mounted on (4) 10" X 8" galvanized i-beam legs.

Unused Tripoint 4,000-Gallon Carbon Steel Horizontal Tank – 175 PSI, Dished Heads

Unused - Tripoint 4,000-Gallon Carbon Steel Horizontal Tank, dished heads, tank on (2) saddles, end swing arm manway cover. Approximately 6' diameter x 20' straight side. Internal rated 175 psi at -20 to 175 degrees F. Tank never certified. 10,307 empty weight, built 2018.

Unused - Tripoint Horizontal Tank, approximately 4000 Gallons

Unused - Tripoint Horizontal Tank, approximately 4,000 gallon. Carbon steel, dished heads, tank on (2) saddles, end swing arm manway cover. Approximately 6' diameter x 20' straight side. Internal rated 175 psi at -20 to 175 degrees F. Tank never certifed. 10,307 empty weight, built 2018.

Unused - Horizontal Carbon Steel Tank, Made By Tripoint, Approximately 4000 Gallons

Unused - Horizontal Carbon Steel Tank, Made By Tripoint, Approximately 4000 Gallons, dished heads, tank on (2) saddles, end swing arm manway cover. Approximately 6' diameter x 20' straight side. Internal rated 175 psi at -20 to 175 degrees F. Tank never certified. 10,307 empty weight, built 2018.

Unused - 4000 Gallon, Carbon Steel Tripoint Tank, Horizontal

Unused - 4000 Gallon, Carbon Steel Tripoint Tank, Horizontal, dished heads, tank on (2) saddles, end swing arm manway cover. Approximately 6' diameter x 20' straight side. Internal rated 175 psi at -20 to 175 degrees F. Tank never certified. 10,307 empty weight, built 2018.

Used 304 Stainless Steel Tank, 4000 gallon capacity

Used- 304 Stainless Steel Tank, 4000 gallon capacity. 8 diameter X 12 high straight side. Flat top and bottom. 4" side top inlet. (1) 2" and (1) 3" side bottom outlets. 24" side bottom manway. (1) 2" and (1) 3" top fittings.
