Manufacturer Information

Manufacturer: Howden
Model: WRVH20416526
Serial Number: MK6DS-2570
Equipment Type: Rotary Screw Compressor
Year Built: 2011
Condition: Used

Description

Available for sale is a used Howden Model WRVH20416526 Rotary Screw Compressor, engineered for demanding industrial gas compression, refrigeration, petrochemical, process gas, and energy applications. The WRVH series is recognized worldwide for its robust design, high efficiency, and reliable performance in continuous-duty operating environments.

This compressor is driven by a 400 HP Hyundai electric motor rated for 3/60/2300-4160 Volt operation with a motor speed of 3,562 RPM. The compressor itself is rated for speeds up to 4,500 RPM and is designed to handle substantial gas flow volumes while maintaining dependable performance under varying operating conditions.

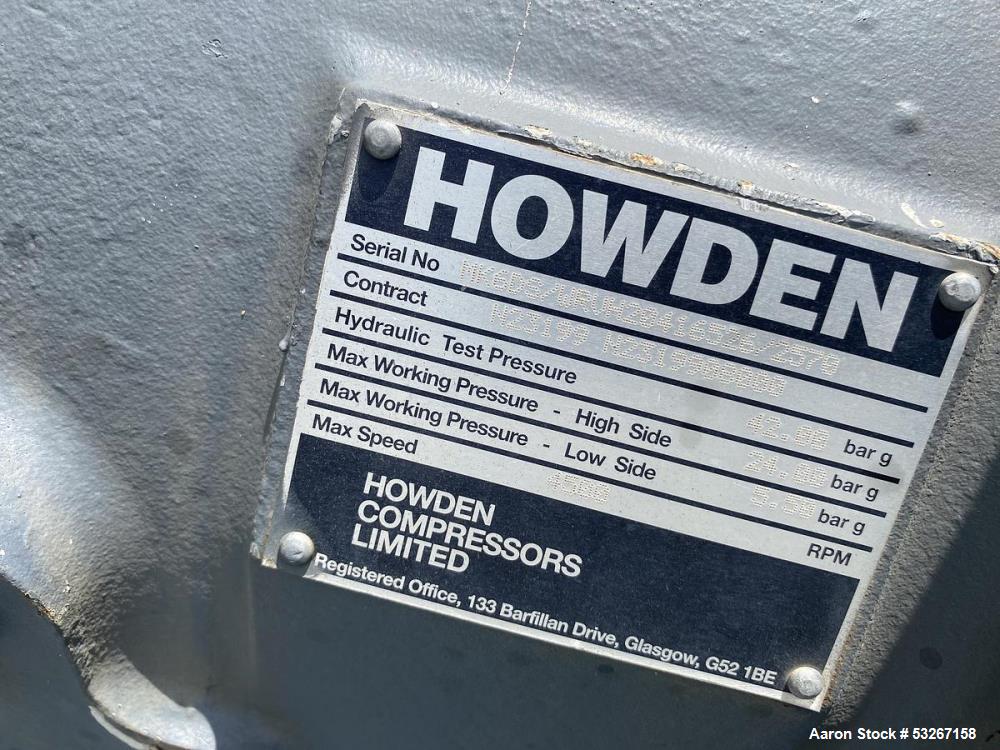

The unit features a maximum high-side working pressure of 24.0 bar and a maximum low-side working pressure of 5.50 bar, making it suitable for industrial refrigeration systems, hydrocarbon processing, gas compression stations, chemical processing plants, and specialty industrial applications.

Built in 2011, this Howden compressor represents a heavy-duty solution for facilities requiring reliable compression equipment with proven industrial performance.

Specifications

General Information

• Manufacturer: Howden
• Model: WRVH20416526
• Serial Number: MK6DS-2570
• Equipment Type: Rotary Screw Compressor
• Year Built: 2011
• Condition: Used

Compressor Specifications

Compressor Type

• Rotary Screw Compressor

Maximum Compressor Speed

• 4,500 RPM

High Side Pressure Rating

• Maximum Working Pressure: 24.0 Bar
• Approximately 348 PSI

Low Side Pressure Rating

• Maximum Working Pressure: 5.50 Bar
• Approximately 80 PSI

Drive Motor

Manufacturer

• Hyundai

Horsepower

• 400 HP

Motor Speed

• 3,562 RPM

Electrical Requirements

• Voltage: 2300-4160 Volt
• Phase: 3 Phase
• Frequency: 60 Hertz

Construction Features

• Heavy-Duty Industrial Design
• Continuous Duty Operation
• High-Efficiency Rotary Screw Compression
• Industrial Gas Service
• Process Compression Capability

Applications

• Industrial refrigeration
• Ammonia refrigeration systems
• Hydrocarbon gas compression
• Petrochemical processing
• Chemical manufacturing
• Natural gas processing
• Process gas compression
• Energy production
• Industrial utility systems
• Refrigeration compressor packages
• Gas recovery systems
• Industrial manufacturing

Products This Equipment Would Be Used For

• Ammonia refrigeration gas
• Natural gas
• Hydrocarbon gases
• Process gases
• Refrigeration refrigerants
• Chemical vapors
• Industrial gases
• Utility gas systems
• Petrochemical streams
• Energy production gases
• Gas recovery applications
• Manufacturing process gases

Frequently Asked Questions

• What type of compressor is the Howden WRVH20416526?
  This is a rotary screw compressor designed for industrial gas compression and refrigeration applications.
• What is the maximum compressor speed?
  The compressor is rated for speeds up to 4,500 RPM.
• What is the maximum high-side pressure rating?
  The compressor is rated for a maximum high-side working pressure of 24.0 bar (approximately 348 PSI).
• What is the maximum low-side pressure rating?
  The compressor is rated for a maximum low-side working pressure of 5.50 bar (approximately 80 PSI).
• What motor is installed?
  The unit is driven by a Hyundai 400 HP electric motor.
• What voltage does the motor require?
  The motor is rated for 2300-4160 Volt, 3 Phase, 60 Hertz service.
• What industries commonly use Howden screw compressors?
  Industrial refrigeration, petrochemical processing, chemical manufacturing, natural gas processing, power generation, and industrial utility facilities commonly use Howden compressors.
• What are the benefits of rotary screw compressor technology?
  Rotary screw compressors provide continuous flow, high efficiency, low vibration, reliable operation, and reduced maintenance requirements.
• Is this compressor suitable for refrigeration applications?
  Yes, Howden WRVH compressors are widely used in industrial refrigeration and process cooling systems.
• What year was this compressor built?
  The compressor was manufactured in 2011.
• Can Aaron Equipment assist with shipping and logistics?
  Yes, Aaron Equipment can coordinate inspections, dismantling, rigging, loading, transportation, export documentation, and worldwide logistics services.
• Does Aaron Equipment buy and sell used compressors and utility equipment?
  Yes, Aaron Equipment actively purchases and sells used compressors, refrigeration systems, chillers, heat exchangers, utility equipment, and complete industrial facilities worldwide.
