Used 500 liter (132 gallon) New Brunswick Scientific Co. Chemical Reactor. 304 SS jacket and 316L SS construction. National Board # 567. Has 28" diameter, 44" straight sidewith jacket on the lower 31...

Used 500 liter (132 gallon) New Brunswick Scientific Co. Chemical Reactor. 304 SS jacket and 316L SS construction. National Board # 567. Has 28" diameter, 44" straight sidewith jacket on the lower 31". Unit's vessel max allowable pressure 40 PSIG and max temperature is 300 F. Unit's Jacket max allowable pressure 35 PSIG and max temperature 300F. Hydrotest pressure is rated 80 PSIG on vessel and 100 PSIG on jacket. Top has n 18”RFSO with blind flange with a 1” agitator shaft(no motor included) , one 2- ¼” threaded sanitary fitting, one 1-¾” sightglass, one- 3/8” plug, one ¼” plug, one- ¾” plug and a Ametek MNG DIV. Pressure Gauge. The neck has one- ¾” threaded coupling, one- 1” threaded coupling, and two- ¼” couplings with plugs. The top portion has two- 2” 150lb. Pad flanges, one -1” 150lb. Pad flange, five- 1” couplings with fittings and two- 1” sanitary threaded couplings. The jacketed portion has two- 1” threaded couplings and one- ¾” threaded coupling. Below the jacket is three- 1” couplings with fittings, two- 1’ sanitary fittings, and one- ¾” sanitary fitting. The bottom has one- 1” center drain valve, one- 2” 150lb. Pad flange, one- 1” threaded coupling and one- ¾” threaded coupling.. Unit Stand on (4) 30" steel legs. Overall dimensions: 32" x33" x 82" h.

MFR: New Brunswick Scientific

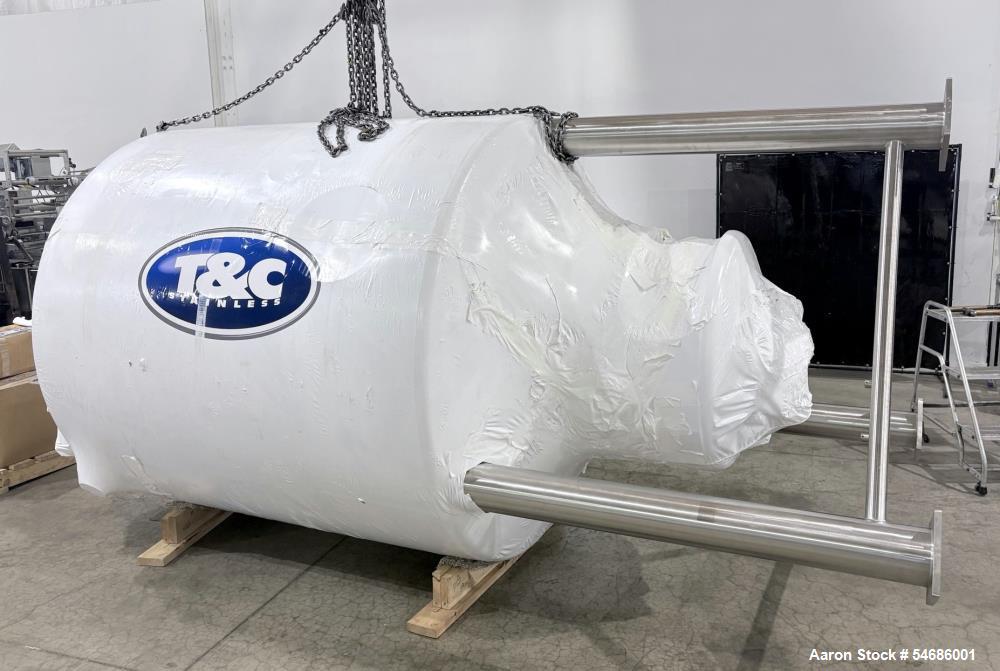

Unused T&C Stainless 5,000 Liter 316L Sanitary Jacketed Reactor

Unused T&C Stainless 5,000 Liter 316L Stainless Steel Jacketed ASME Sanitary Reactor With Metenova ZG9 Magnetic Mixer. Vessel has a 5,000 liter working capacity and approximately 6,326.1 liter total volume, with a 72" internal diameter x 72" straight side. Constructed of 316/316L stainless steel with 3/8" shell and heads. Vessel is rated for 45 psi from -20 to 350 F and 15 psi vacuum. 316/316L stainless steel dimple heat-transfer surface is rated for 150 psi from -20 to 350 F and includes 1-1/2" inlet and outlet connections. Product-contact surfaces are mechanically polished and electropolished to 15 Ra, with approximately 35 Ra exterior finish. Vessel is insulated with 2" insulation and stainless steel sheathing. Equipped with bottom-mounted Metenova ZG9 magnetic mixer with RPM sensor and stainless steel IP66 IE3 drive, 4" ASEPCO TF40-100-2 flush-mounted pneumatic diaphragm outlet valve with USP Class VI EPDM diaphragm, (3) 3" sprayballs rated 38 GPM at 25 psi, vortex breaker, thermowell, sight/light connection, GWR, conductivity, pH and sample connections, 4" product-supply and retentate-return connections, and multiple additional sanitary process connections. Three-leg-supported vessel is constructed to ASME Section VIII, Division 1. Overall height is approximately 165-5/16" with an empty weight of approximately 5,294 lb. Drawing available. Possible applications include sanitary mixing, blending, holding and temperature-controlled processing of compatible pharmaceutical, biopharmaceutical, food, beverage, cosmetic, personal-care and sanitary chemical products.

MFR: T&C

Used ER Manufacturing 13,200 Gallon Vertical Carbon Steel Storage Tank with Cone Bottom

Used ER Manufacturing 13,200 Gallon Vertical Carbon Steel Storage Tank with Cone Bottom. 13,200 gallon/50 cubic meter capacity. 9'3" diameter x 36' overall height. 24" x 36" side manway. 8" center bottom outlet port. 6" internal feed line. Cone bottom. With removable caged ladder. On (4) leg frame.

MFR: ER

Used Wenzhou ACE-M 5,000 Liter Stainless Steel Mixing and Emulsifying Kettle

Used Wenzhou ACE-M 5,000 Liter (Approx 1,321-gallon) Stainless Steel Mixing and Emulsifying Kettle, Model ACE-M. Manufactured in China, unit features a fully enclosed stainless steel mixing vessel constructed of SUS316L/304 stainless steel, equipped with multiple top-mounted agitator drives and a high-shear emulsification system. Mixing system includes an 18.5 kW (approximately 25 HP) Mixer A, 30 kW (approximately 40 HP) Mixer B, and a separate 30 kW (approximately 40 HP) emulsifier, providing a combined installed mixing and emulsification motor capacity of 78.5 kW (approximately 105 HP). Vessel is designed for operating temperatures from 0C to 110C (32F to 230F). Interior features multiple mixing elements, including sweep-type agitation components and additional mixing assemblies designed to facilitate product circulation, blending, dispersion and homogenization. Unit includes stainless steel vessel cover, top-mounted motor and gearbox assemblies, process connections, and associated electrical control cabinet with operator controls. Suitable for processing liquid and viscous products, including creams, lotions, cosmetics, personal care products, food ingredients, chemical formulations, detergents and emulsions. Manufacturer's identification plate indicates Model ACE-M, Product Mark 20231023G, manufactured October 2023, with CE marking.

MFR: Wenzhou Echo Machinery

Unused Alfa Laval TK20-BWFX Plate and Frame Heat Exchanger – 1,344 Sq. Ft.

Unused Alfa Laval Model TK20-BWFX plate and frame heat exchanger, manufactured in 2024, with approximately 1,344 square feet of heat transfer surface area. Unit is rated for maximum allowable working pressures of 612/235 PSIG at 230F and a minimum design metal temperature of -20F at 612/235 PSIG. Equipped with approximately 0.8 mm plates and an A-dimension of approximately 992 mm. ASME certified and National Board registered, NB No. 65553. Serial number AAN1000484, Alfa Laval order number 18036240. Equipment is identified as a Cathode Cooler, equipment tag NG-21-HX-0001. Certified by Alfa Laval, Richmond, Virginia. Late-model industrial plate and frame heat exchanger suitable for demanding process cooling and heat-transfer applications. Possible applications include liquid-to-liquid process cooling, data center cooling water systems, industrial chilled water systems, heat recovery, cathode cooling, closed-loop process cooling, HVAC heat transfer and other compatible high-capacity industrial thermal management applications.

MFR: Alfa Laval

IN STOCK AND NEW- Paul O. Abbe Model RB-135 Ribbon Blender.

NEW & IN STOCK- Paul O. Abbe Model RB-135 Ribbon Blender. In -Stock .135 Cubic Foot working capacity. 146 Cubic Foot total volume. Type 304 stainless steel polished. Food grade. All stainless steel construction. Trough dimensions: Approximately 49.6" wide x 105.5" long x 53.6" deep. Internal double spiral ribbon. Packing glands and pillow block bearings. 40 hp SEW Euro drive hollow bore design. 230/460 volt, 1775 rpm, 3/60 with approximately output 33 rpm. Top cover with hold down clamps and limit switch. Center Loading cover with welded safety grate, 30" wide x 50" long. Approximate 4.7" wide x 19.7" flush air operated plug valve. Discharge housing is approximate 20.5" wide x 28.4" long. Approximately 8" discharge height. Approximate weight 7,920 pounds. Approximate overall dimensions: 64.8" wide x 158.3" long x 84.7" high. Controls are available upon request.

MFR: Paul O Abbe

J.H. Day 135 Cu Ft Ribbon Blender, Stainless Steel, (2) Bag Dump Stations, XP Motor

Used J.H. Day stainless steel double spiral ribbon blender with approximate 135 cu ft capacity. Equipped with top cover, (2) bag dump stations, 30 HP explosion-proof motor and reducer, and center bottom outlet with valve. Serial #85051.

Used Cummins DQGAB 1500 kW Diesel Generator – Tier 2, PMG, Sound Enclosure, UL2085 Fuel Tank

Used-1500 kW standby (1350 kW prime) Cummins diesel generator set model DQGAB, SN-G110233080. Cummins QSK50-G4 engine rated 2220 HP at 1800 RPM, SN-25366503, EPA Tier 2 emissions. 3/60/277/480V, 12 lead reconnectable to other voltages. 2500 Amp main-line circuit breaker. PMG - Permanent magnet generator. Oversized generator end rated 1612 kW. UL 2200 listed package. Engine cooling high ambient air temperature. PowerCommand digital control panel. Battery charger. Coolant heater. Sound attenuated enclosure. 5181 gallon UL2085 listed sub-base fuel tank with secondary containment. 770 Hrs. Year 2011. Passed load test 1/3/2025. Overall dimensions enclosure with genset 150W x 397L x 153H, 51,000 lbs, fuel tank 144W x 397L x 37H 25,389 lbs.

MFR: Cummins

Used Alfa Laval M10-MFG Plate Heat Exchanger – 137.3 Sq. Ft., 100 PSI, Stainless Steel

Used- Alfa-Laval Plate Heat Exchanger, Model M10-MFG. 137.3 Square Feet. (58) 304 Stainless Steel plates, approximately 253mm (9.9") wide x 34" long x 0.40mm thick plates. Rated 100psi at -20 to 190 degrees F. Mounted in expandable frame with (3) legs. Serial# 30105-61105.

MFR: Alfa Laval

Used 13,800 gallon vertical stainless steel clad tank. Tank has 168" diameter x 144" tall, flat bottom, slightly conical top, (2) 3" threaded drains in bottom, side has 3" flanged connection, (2) 1" ...

Used-13,800 gallon vertical stainless steel clad tank. Tank has 168" diameter x 144" tall, flat bottom, slightly conical top, (2) 3" threaded drains in bottom, side has 3" flanged connection, (2) 1" threaded connection, (1) 1.5" flanged connection, 6" cut off pipe, large rectangular manway in top, and has a ladder inside the tank. Fair condition.

Unused CMS 139.2 Sq. Ft. 304L Stainless Steel Shell and Tube Heat Exchanger

Unused CMS Heat Transfer Division 139.2 Square Foot 304L Stainless Steel Horizontal Shell And Tube Heat Exchanger With 150 PSI Pressure Rating. Industrial shell and tube heat exchanger designed for liquid-to-liquid heat transfer, chemical process cooling and industrial temperature control applications. Features approximately 139.2 square feet of heat transfer surface area with (48) straight tubes constructed of 304L stainless steel, each measuring 3/4" in diameter. Shell and tubes are constructed of 304L stainless steel and rated for a maximum allowable working pressure of 150 psi and full vacuum at temperatures ranging from -20 F to 500 F. Process connections include (2) 4" shell-side openings, (2) 3" tube-side openings and (4) 3/4" auxiliary nozzles. Originally designed as a naphthalene cooler, Equipment Tag E-617. Manufactured by CMS Heat Transfer Division, Inc., Bohemia, New York, for Cincinnati Heat Exchangers. Serial #3194.5. National Board #2249. Possible applications include naphthalene cooling, chemical process cooling, liquid-to-liquid heat transfer, solvent temperature control, circulating cooling water systems, heat recovery, industrial oil cooling and thermal management of other compatible chemical and industrial process liquids.

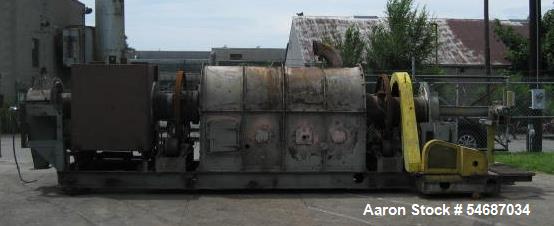

Used CO Bartlett & Snow indirect fired rotary calciner. It has a 14" diameter tube. The tube is constructed of stainless steel. The hot section is 7'8" long and it has 4 heating zones. The water ...

Used-CO Bartlett & Snow indirect fired rotary calciner. It has a 14" diameter tube. The tube is constructed of stainless steel. The hot section is 7'8" long and it has 4 heating zones. The water spray cooling sections is 4'. Overall tube length is 18' 5". Tube is capable of 3.92 rpm to 11.8 rpm. It is rated for temperatures up to 1200 F. It is equipped with a variable speed 4" x 3' screw type product infeed. Everything is mounted on a uni- frame. Last used in chemical operation. Shop # k3869. Overall dimensions are 32' l x 6'w x 6' h.
