Used Wenzhou ACE-M 5,000 Liter Stainless Steel Mixing and Emulsifying Kettle

Manufacturer Information

Wenzhou ACE Machinery Co., Ltd. is the identified manufacturer of this ACE-M stainless steel mixing and emulsifying kettle. The equipment was manufactured in China in October 2023 and features SUS316L/304 stainless steel construction, multiple mixing drives, and a dedicated high-shear emulsification system.

Main Product Description

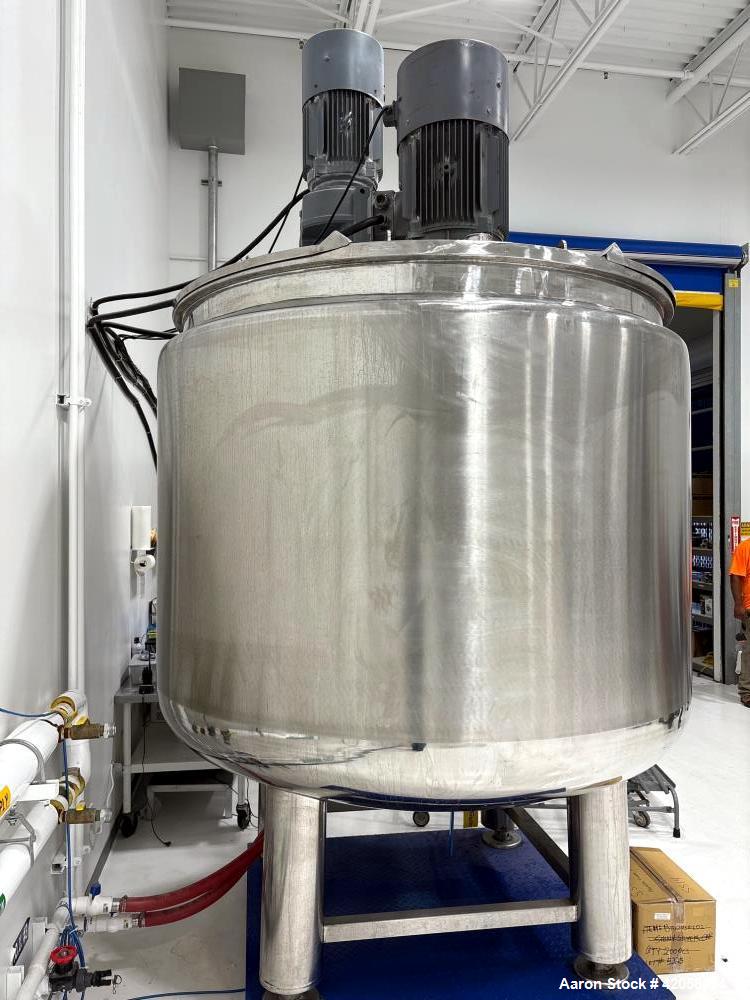

Used Wenzhou ACE Machinery Co., Ltd., Model ACE-M, 5,000-liter (approximately 1,321-gallon) stainless steel mixing and emulsifying kettle manufactured in October 2023. This fully enclosed SUS316L/304 stainless steel processing vessel features multiple top-mounted agitator drives and a dedicated high-shear emulsifier for blending, dispersion, mixing, and homogenization of liquid and viscous products. The mixing system includes an 18.5 kW (approximately 25 HP) Mixer A, a 30 kW (approximately 40 HP) Mixer B, and a separate 30 kW (approximately 40 HP) emulsifier, providing a combined installed mixing and emulsification motor capacity of 78.5 kW (approximately 105 HP). Internal mixing elements include sweep-type agitation components and additional mixing assemblies designed to promote product circulation and consistent blending. The vessel is designed for operating temperatures ranging from 0°C to 110°C (32°F to 230°F) and includes a stainless steel vessel cover, top-mounted motors and gearboxes, process connections, and an associated electrical control cabinet with operator controls. Suitable for manufacturing creams, lotions, cosmetics, personal care products, food ingredients, chemical formulations, detergents, and emulsions.

Specifications

• Equipment Type: Mixing and Emulsifying Kettle

• Manufacturer: Wenzhou ACE Machinery Co., Ltd.

• Model: ACE-M

• Condition: Used

• Vessel Capacity: 5,000 Liters

• Approximate Capacity: 1,321 Gallons

• Vessel Construction: SUS316L/304 Stainless Steel

• Vessel Design: Fully Enclosed

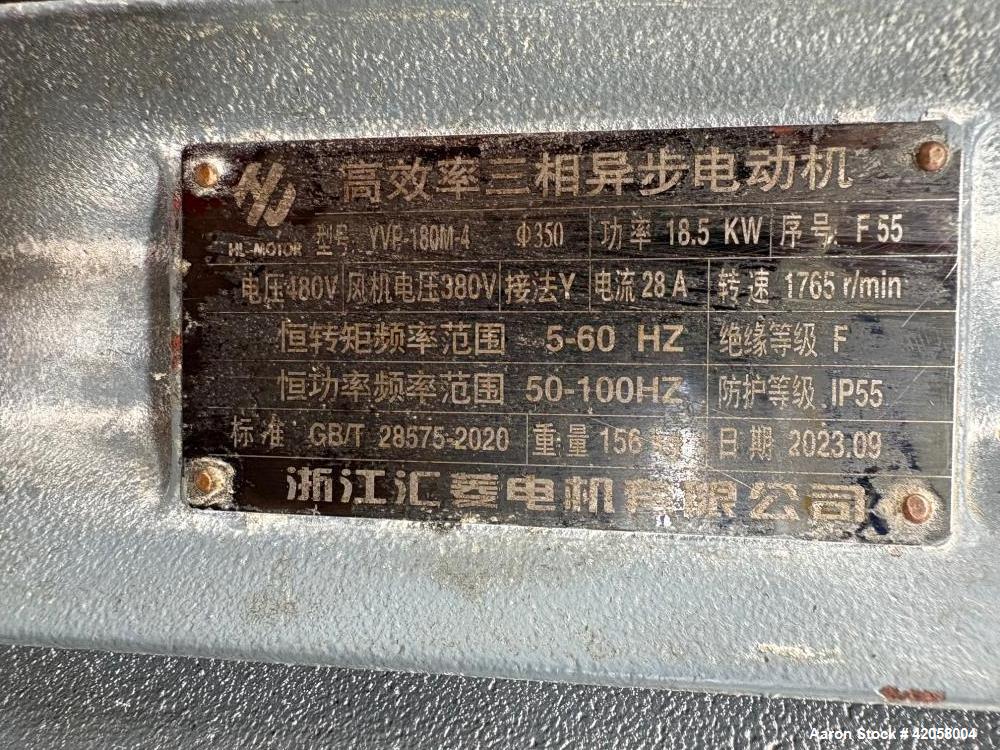

• Mixer A Motor: 18.5 kW (Approximately 25 HP)

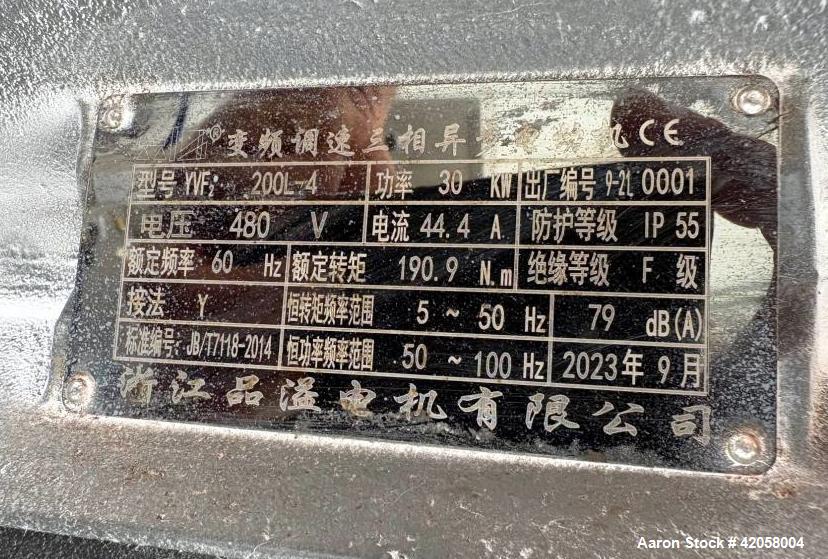

• Mixer B Motor: 30 kW (Approximately 40 HP)

• Emulsifier Motor: 30 kW (Approximately 40 HP)

• Combined Installed Mixing/Emulsification Motor Power: 78.5 kW (Approximately 105 HP)

• Mixing Configuration: Multiple Top-Mounted Agitator Drives

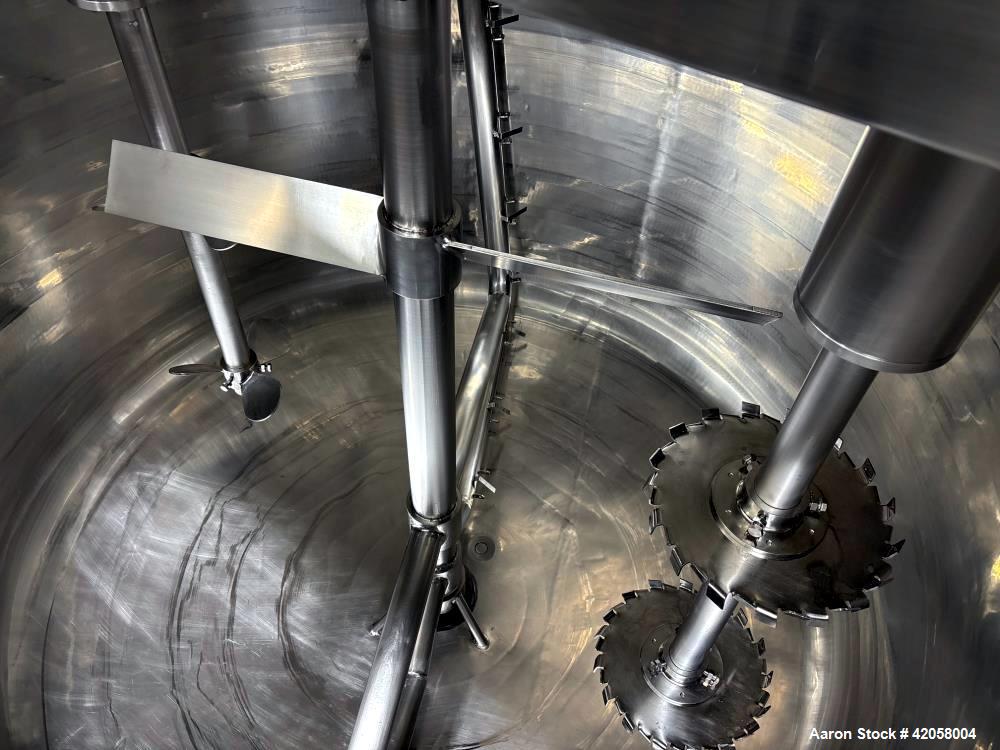

• Emulsification System: High-Shear Emulsifier

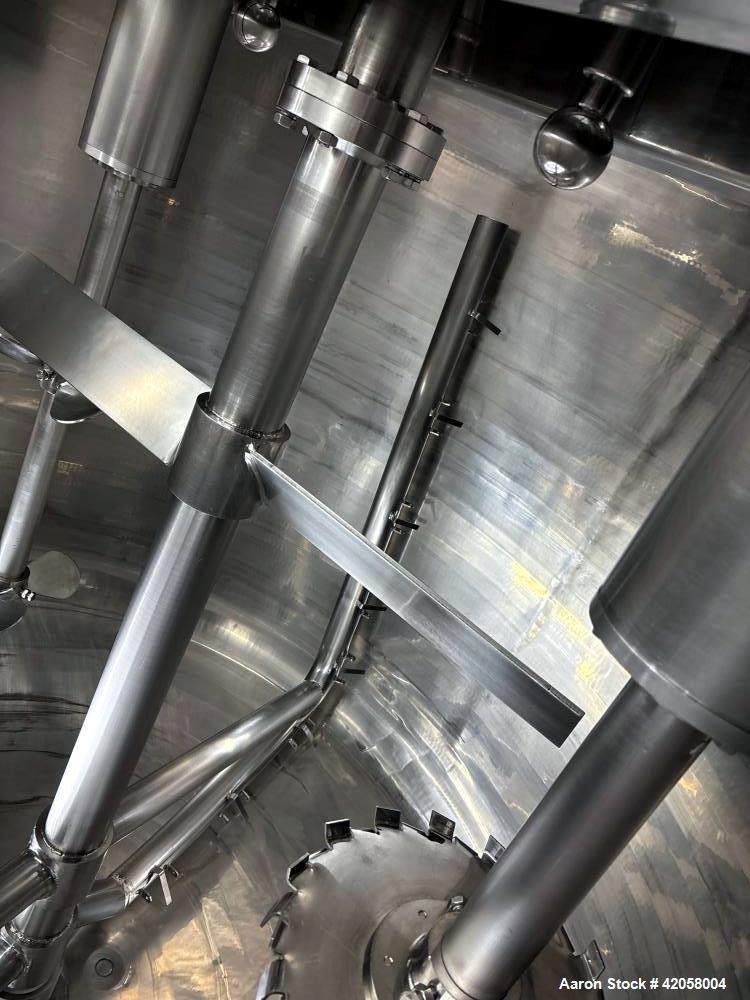

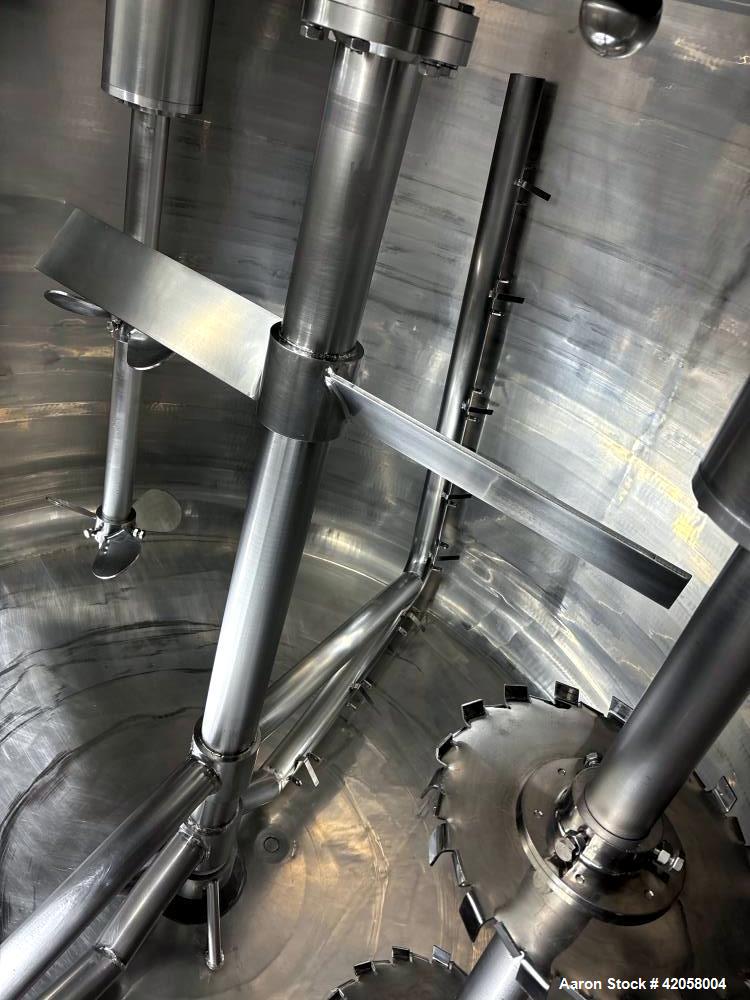

• Internal Agitation: Sweep-Type and Additional Mixing Assemblies

• Operating Temperature Range: 0°C to 110°C (32°F to 230°F)

• Vessel Cover: Stainless Steel

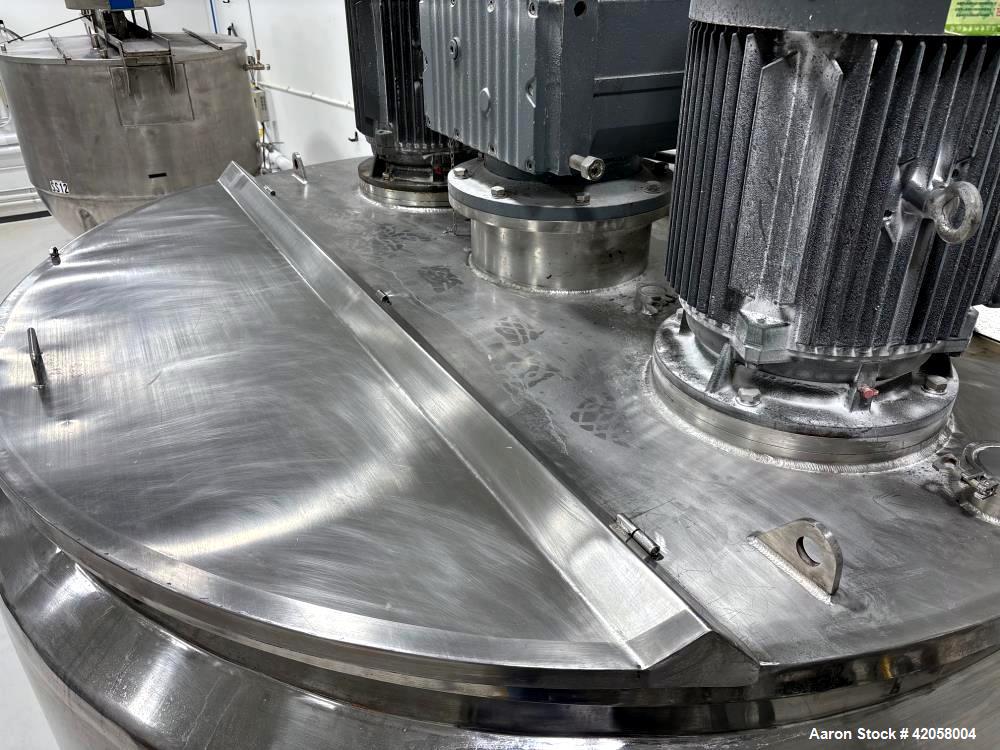

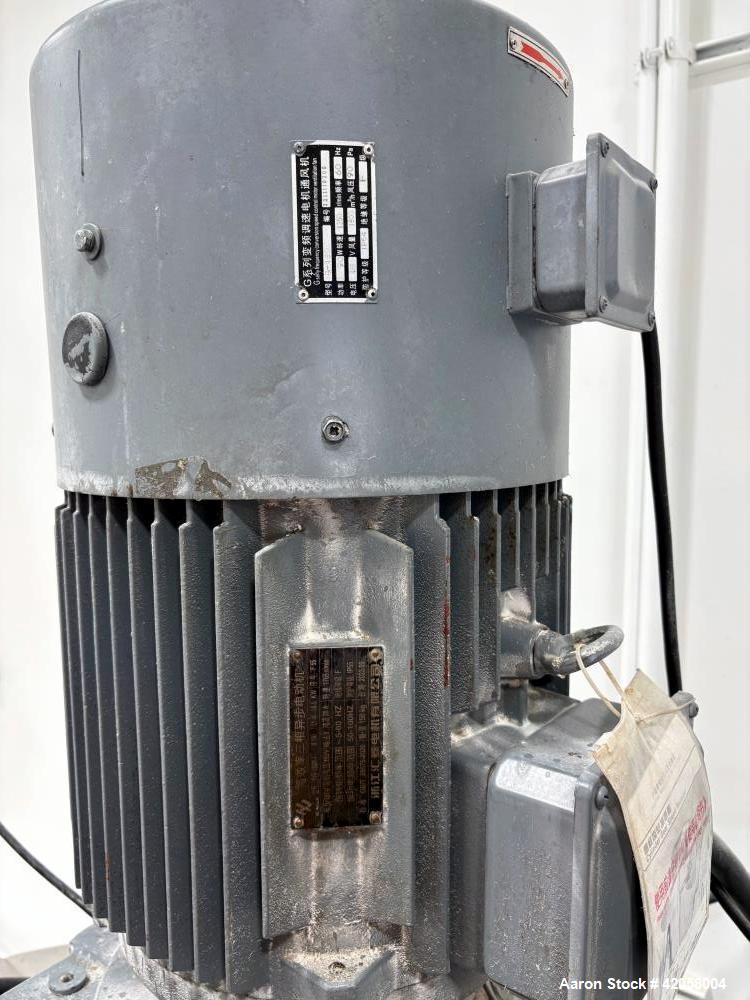

• Drive Components: Top-Mounted Motors and Gearboxes

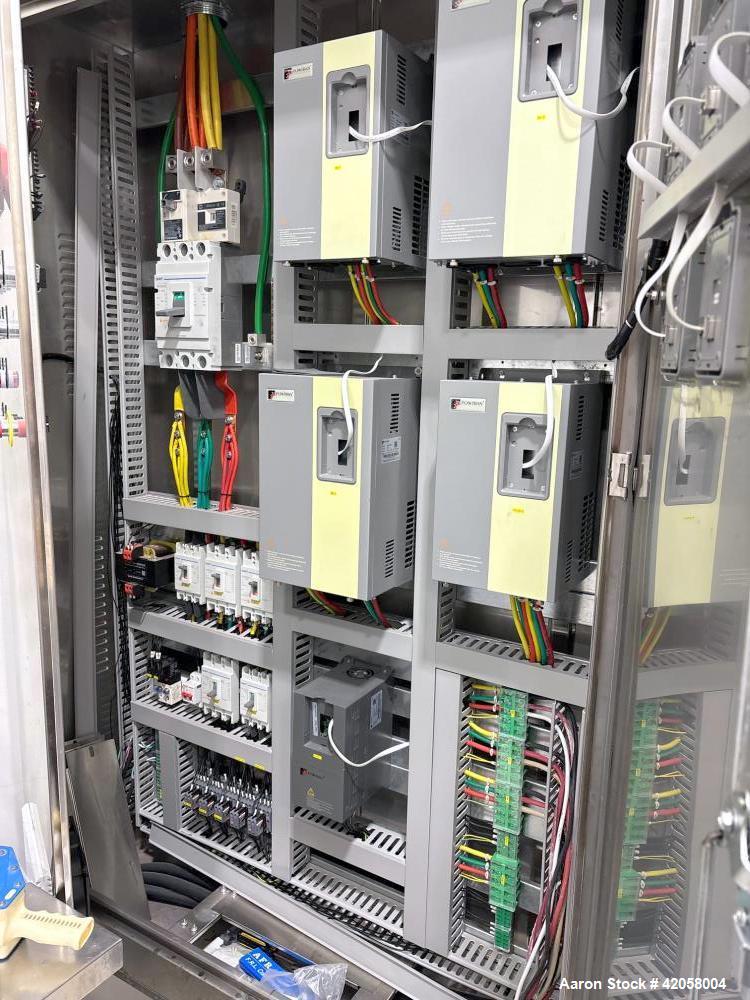

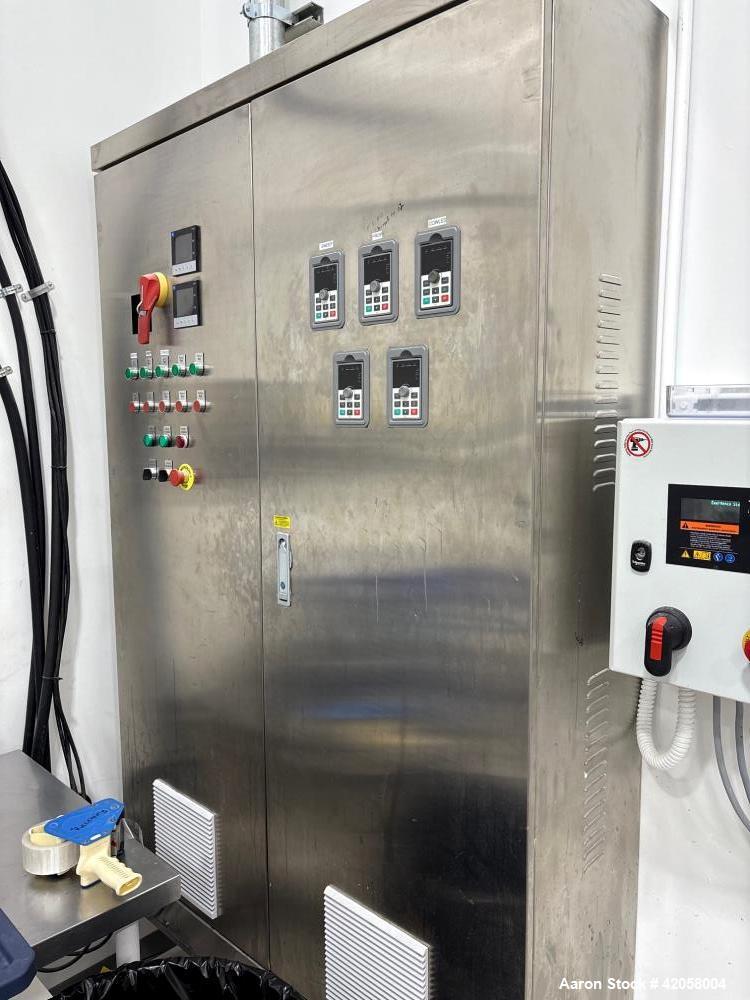

• Controls: Associated Electrical Control Cabinet with Operator Controls

• Process Connections: Included

• Country of Manufacture: China

• Manufacture Date: October 2023

• Product Mark: 20231023G

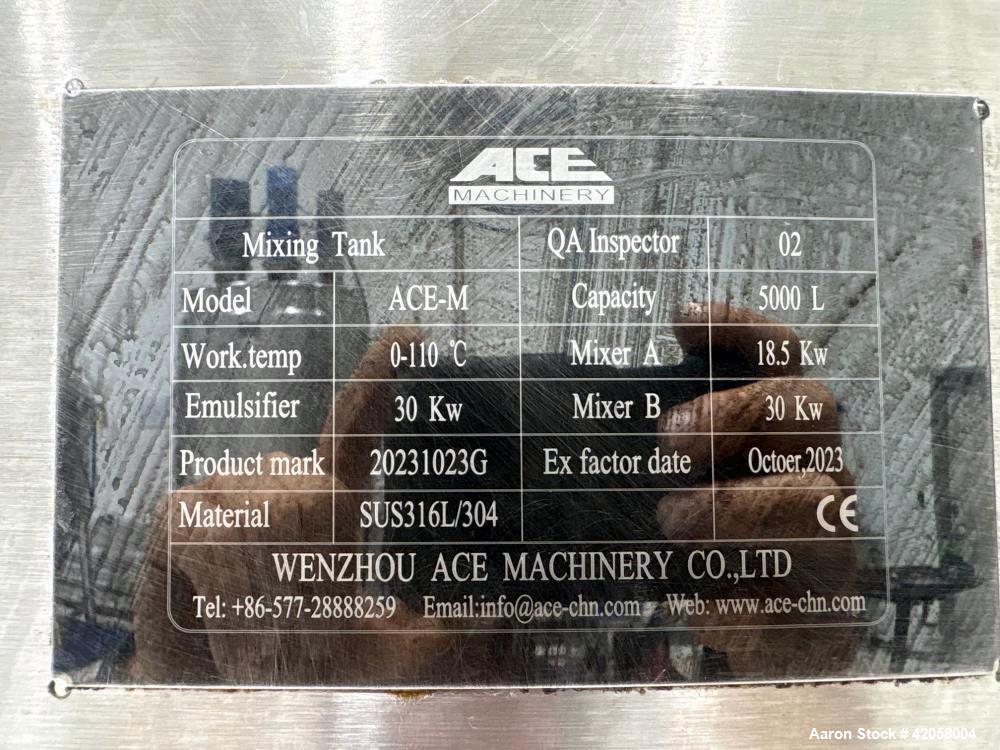

• Identification Plate: CE Marking

Applications

• Cosmetic and personal care product manufacturing

• Cream and lotion production

• Liquid and viscous product blending

• High-shear emulsification and homogenization

• Food ingredient mixing and formulation

• Chemical processing and blending

• Detergent and cleaning product manufacturing

• Industrial liquid mixing and dispersion

Suitable Products and Materials

• Cosmetic creams

• Body lotions

• Personal care formulations

• Liquid emulsions

• Viscous liquid products

• Food ingredients

• Chemical formulations

• Liquid detergents

• Cleaning product formulations

• Liquid blends and dispersions

Frequently Asked Questions (FAQs)

- What is the capacity of this Wenzhou ACE mixing and emulsifying kettle?

The vessel has a nominal capacity of 5,000 liters, equivalent to approximately 1,321 US gallons.

- Does this mixing kettle include a high-shear emulsifier?

Yes. The unit includes a dedicated 30 kW (approximately 40 HP) high-shear emulsifier in addition to two separate mixing drives.

- What materials are used in the vessel construction?

The vessel is constructed of SUS316L/304 stainless steel. The specific stainless steel grade used for individual components is not specified.

- What is the total installed mixing motor power?

The two mixer motors and separate emulsifier have a combined installed motor capacity of 78.5 kW, approximately 105 HP.

- Can this equipment process creams, lotions, and viscous products?

The equipment is designed for mixing and emulsifying liquid and viscous formulations, including creams, lotions, and personal care products. Suitability for a specific formulation depends on its processing requirements.

- What is the operating temperature range?

The vessel is designed for operating temperatures from 0°C to 110°C (32°F to 230°F).

- Does the unit include an electrical control cabinet?

Yes. An associated electrical control cabinet with operator controls is included in the supplied equipment description.

- When was this mixing kettle manufactured?

The manufacturer's identification plate indicates October 2023.

- Can Aaron Equipment arrange shipping for this mixing kettle?

Aaron Equipment can help coordinate shipping and transportation arrangements for this industrial mixing kettle. Contact our team to discuss equipment location, loading requirements, freight options, and delivery logistics.

- How can Aaron Equipment help me determine whether this mixer is suitable for my application?

Aaron Equipment can assist with available equipment specifications, additional information, and purchasing questions to help determine whether this 5,000-liter mixing and emulsifying kettle meets your processing needs.
