Stock No.: 10715039
IN STOCK AND NEW- Paul O. Abbe Model RB-135 Ribbon Blender.
NEW & IN STOCK- Paul O. Abbe Model RB-135 Ribbon Blender. In -Stock .135 Cubic Foot working capacity. 146 Cubic Foot total volume. Type 304 stainless steel polished. Food grade. All stainless steel construction. Trough dimensions: Approximately 49.6" wide x 105.5" long x 53.6" deep. Internal double spiral ribbon. Packing glands and pillow block bearings. 40 hp SEW Euro drive hollow bore design. 230/460 volt, 1775 rpm, 3/60 with approximately output 33 rpm. Top cover with hold down clamps and limit switch. Center Loading cover with welded safety grate, 30" wide x 50" long. Approximate 4.7" wide x 19.7" flush air operated plug valve. Discharge housing is approximate 20.5" wide x 28.4" long. Approximately 8" discharge height. Approximate weight 7,920 pounds. Approximate overall dimensions: 64.8" wide x 158.3" long x 84.7" high. Controls are available upon request.
-
ManufacturerPaul O Abbe
-
ModelRB-135
-
CategoryMixers
-
SubcategoryRibbon Blenders
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information
- Manufacturer: Paul O. Abbe
- Model: RB-135
- Condition: NEW & IN STOCK
- Country of Origin: USA
- Availability: Immediate
Description
NEW & IN STOCK! The Paul O. Abbe Model RB-135 Ribbon Blender is a high-efficiency, industrial-grade mixer designed for blending powders, granules, and bulk solids. With a 135 cubic foot working capacity and a 146 cubic foot total volume, this ribbon blender is ideal for large-scale applications in the food, pharmaceutical, chemical, and nutraceutical industries.
Manufactured with Type 304 polished stainless steel, this food-grade blender ensures sanitary operation and durability. The internal double spiral ribbon design guarantees uniform mixing and quick blending cycles. The trough dimensions are approximately 49.6" wide x 105.5" long x 53.6" deep, providing ample space for batch production.
Powered by a 40 HP SEW Eurodrive hollow bore motor, operating at 230/460 volts, 1775 RPM, 3 phase / 60 Hz, with an approximate output speed of 33 RPM, this blender delivers consistent and reliable performance. Safety features include a top cover with hold-down clamps and a limit switch, and a center loading cover with a welded safety grate (30" wide x 50" long).
Discharge is managed through a 4.7" wide x 19.7" air-operated flush plug valve, with a discharge housing approximately 20.5" wide x 28.4" long, and a discharge height of approximately 8", making it ideal for integration with downstream equipment. The total weight of the unit is approximately 7,920 pounds, with overall dimensions of 64.8" wide x 158.3" long x 84.7" high. Controls are available upon request.
Specifications
- Manufacturer: Paul O. Abbe
- Model: RB-135
- Condition: NEW & IN STOCK
- Construction: Type 304 Polished Stainless Steel, Food Grade
- Working Capacity: 135 Cubic Feet
- Total Volume: 146 Cubic Feet
- Trough Dimensions: 49.6" Wide x 105.5" Long x 53.6" Deep

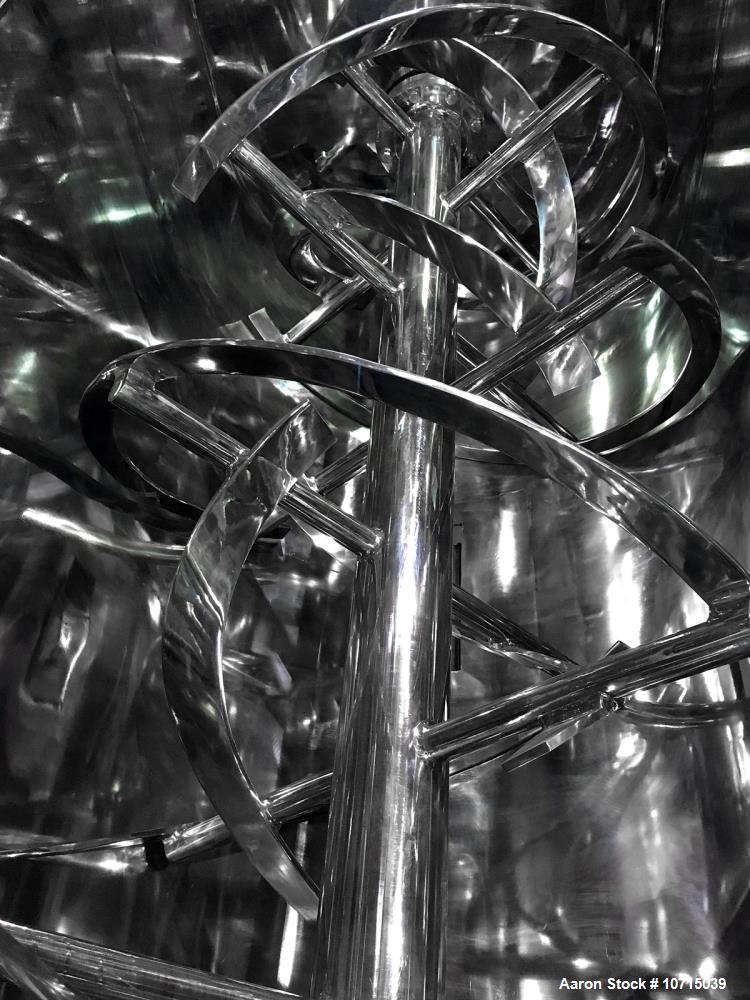

- Mixing Element: Internal Double Spiral Ribbon

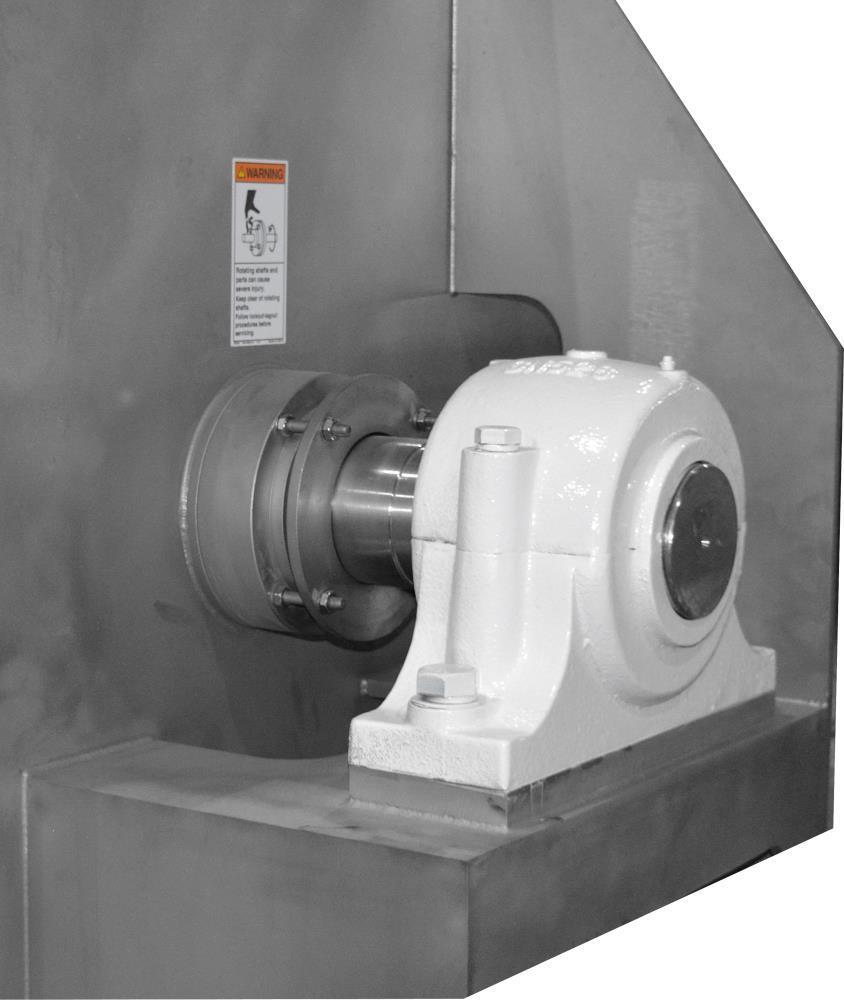

- Bearings: Packing Glands & Pillow Block Bearings
- Motor: 40 HP SEW Eurodrive Hollow Bore
- Electrical Requirements: 230/460 Volt, 1775 RPM, 3 Phase / 60 Hz
- Output Speed: Approximately 33 RPM

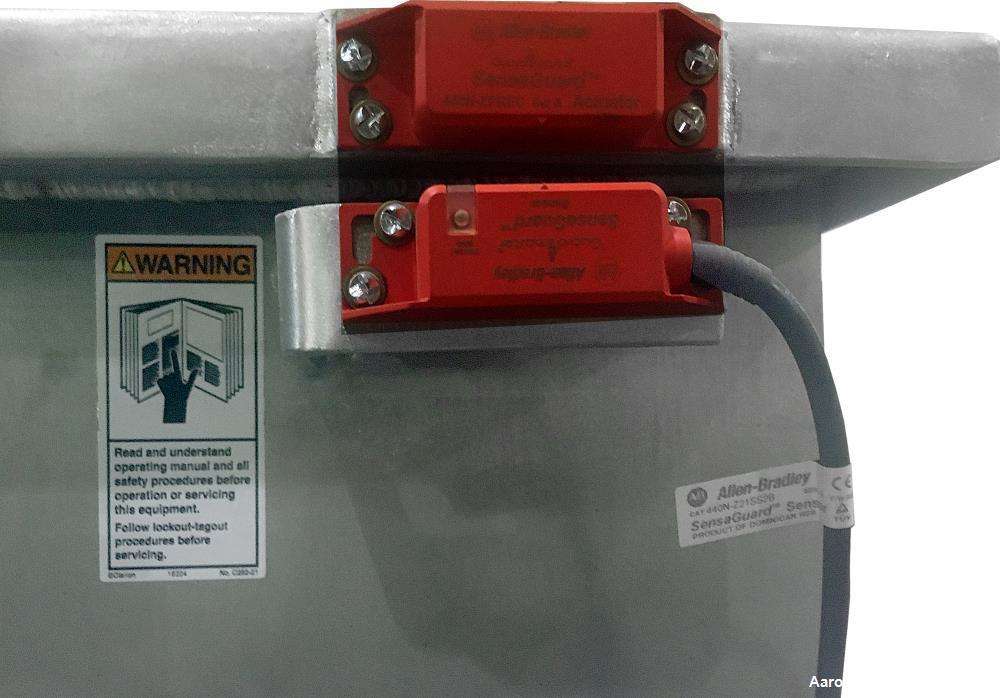

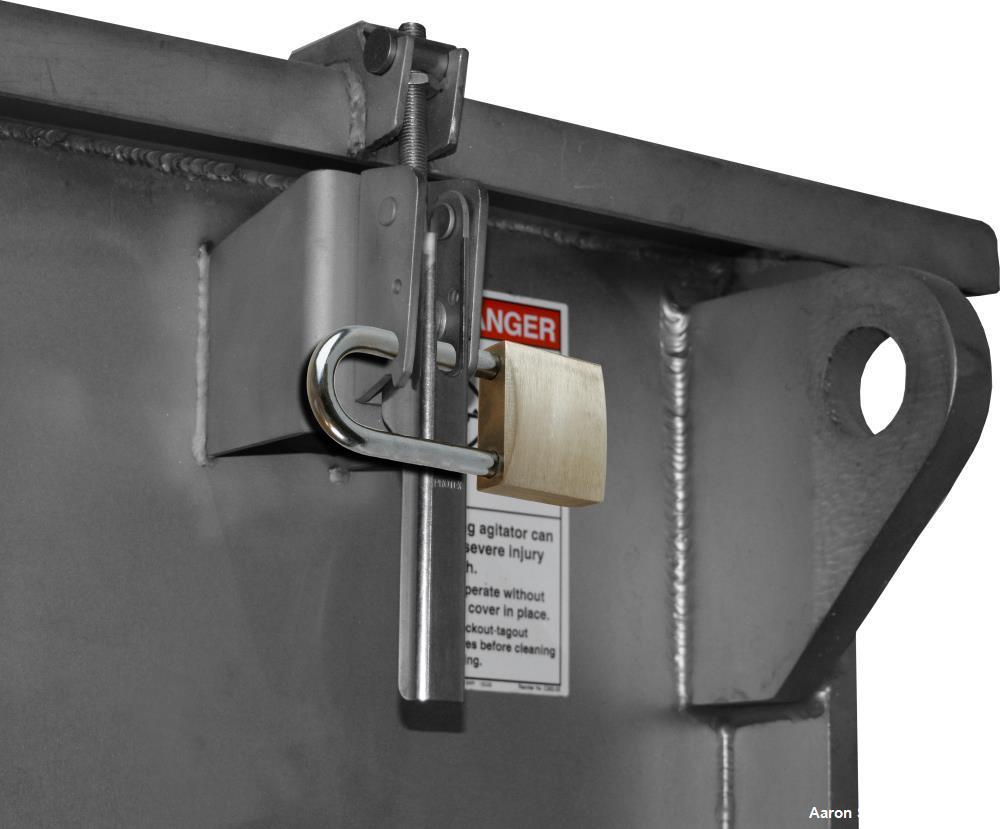

- Top Cover: Hold-Down Clamps with Limit Switch

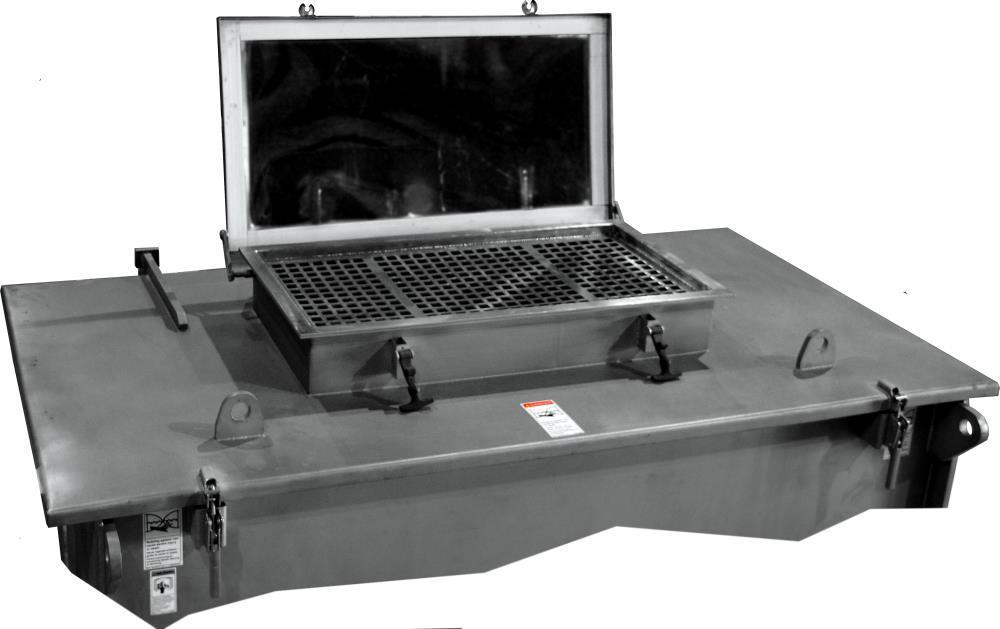

- Center Loading Cover: Welded Safety Grate, 30" Wide x 50" Long

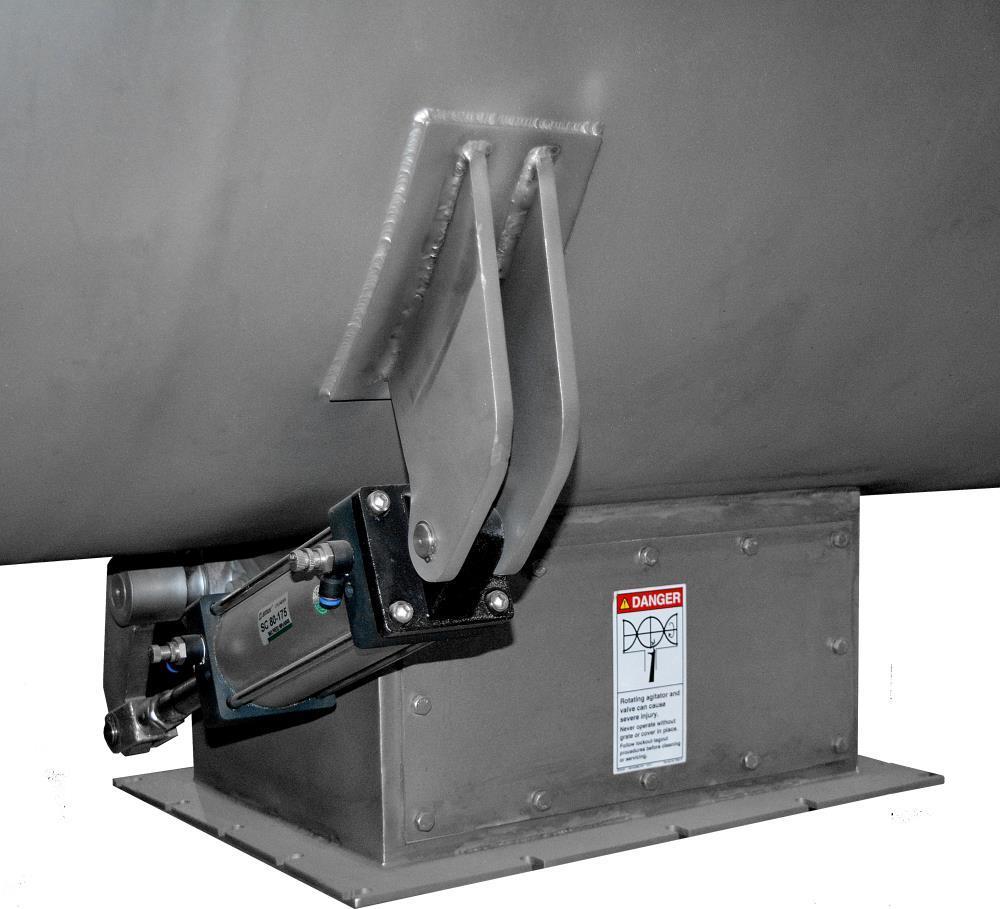

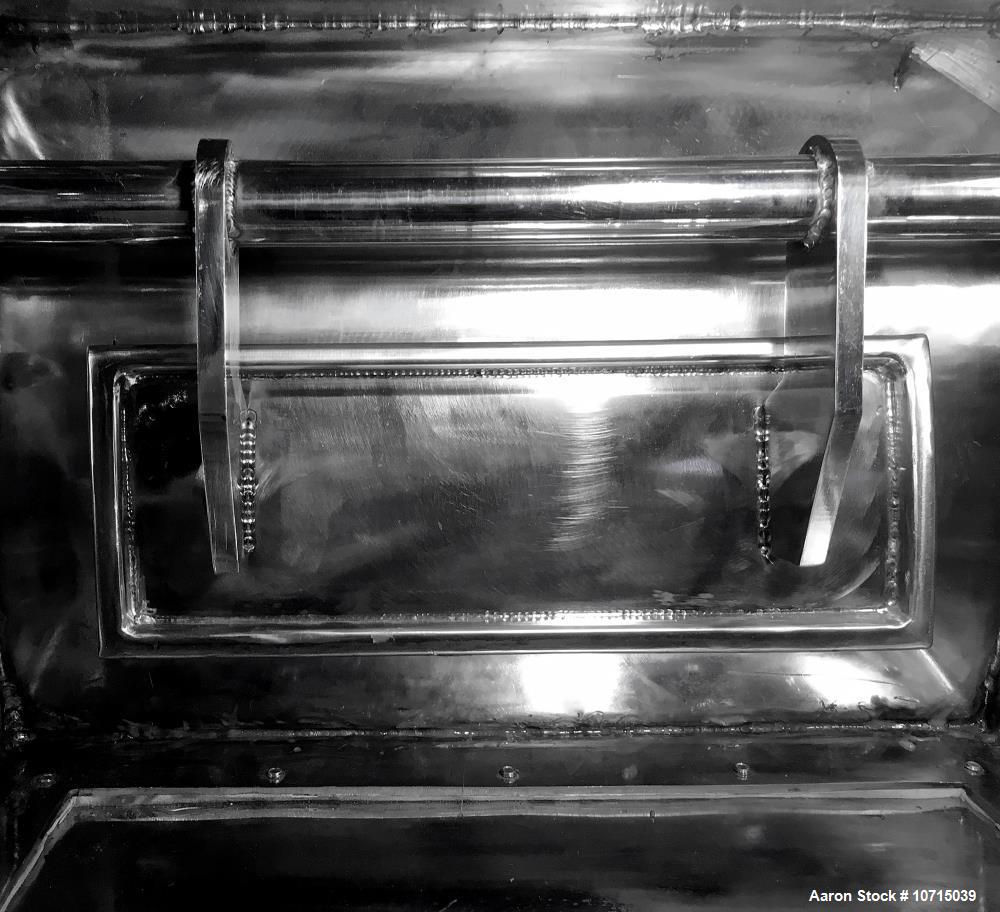

- Discharge Valve: 4.7" Wide x 19.7" Flush Air-Operated Plug Valve
- Discharge Housing: 20.5" Wide x 28.4" Long
- Discharge Height: Approximately 8"
- Weight: Approximately 7,920 lbs
- Overall Dimensions: 64.8" Wide x 158.3" Long x 84.7" High
- Controls: Available Upon Request
Applications
- Food and beverage powder blending
- Nutraceutical ingredient mixing
- Pharmaceutical powder processing
- Chemical blending applications
- Plastic pellets and resin mixing
- Fertilizer blending
- Animal feed production
- Cosmetic powder formulation
- Bulk material processing
- Industrial powder blending
Products This Blender Can Be Used For
- Protein powders
- Nutraceutical and dietary supplements
- Pharmaceutical powders
- Spices and seasoning blends
- Chemicals and resins
- Fertilizers and soil amendments
- Plastic pellets and compounds
- Pet food and animal feeds
- Cosmetic powders
- Agricultural seed coatings
