Stock No.: 51698001

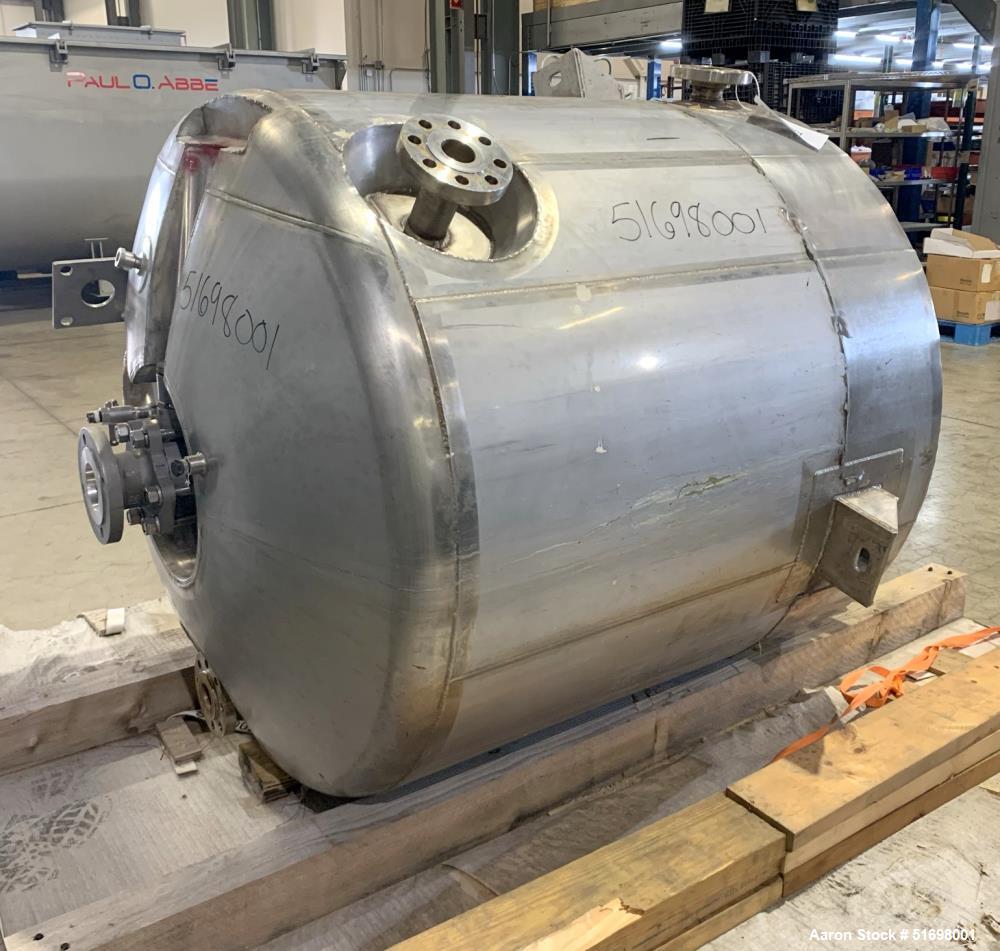

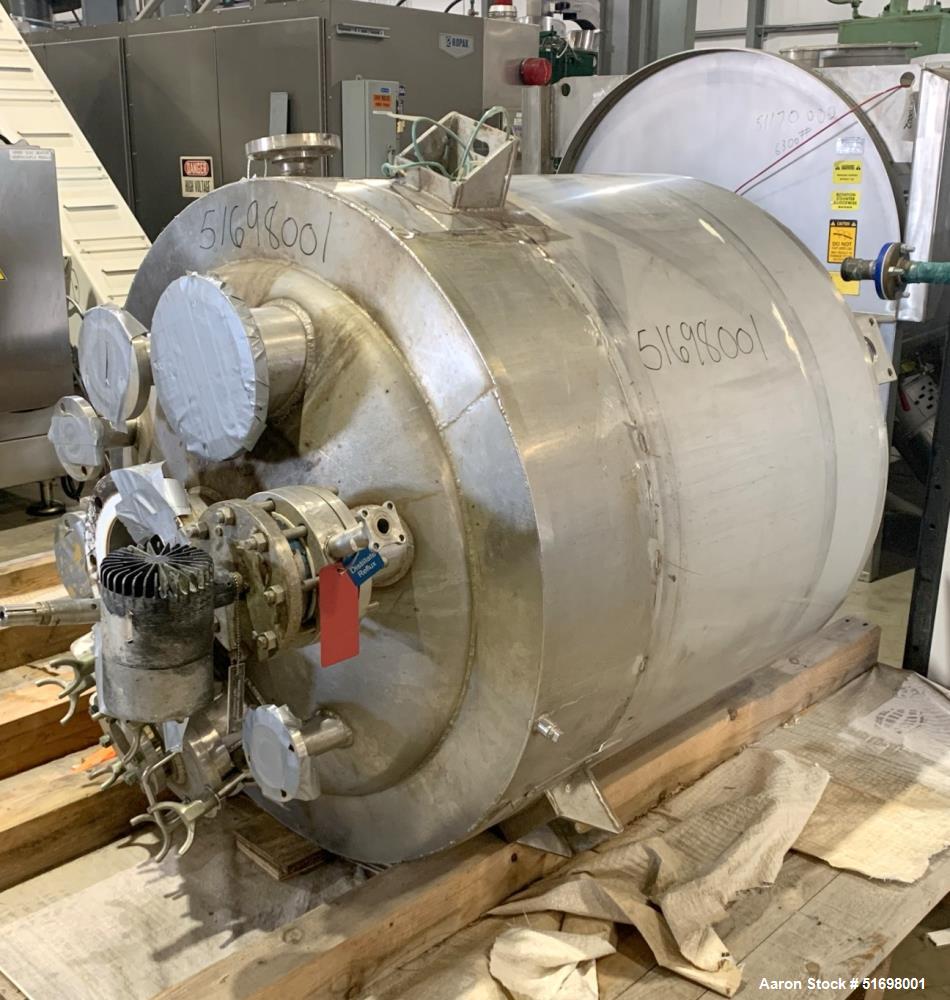

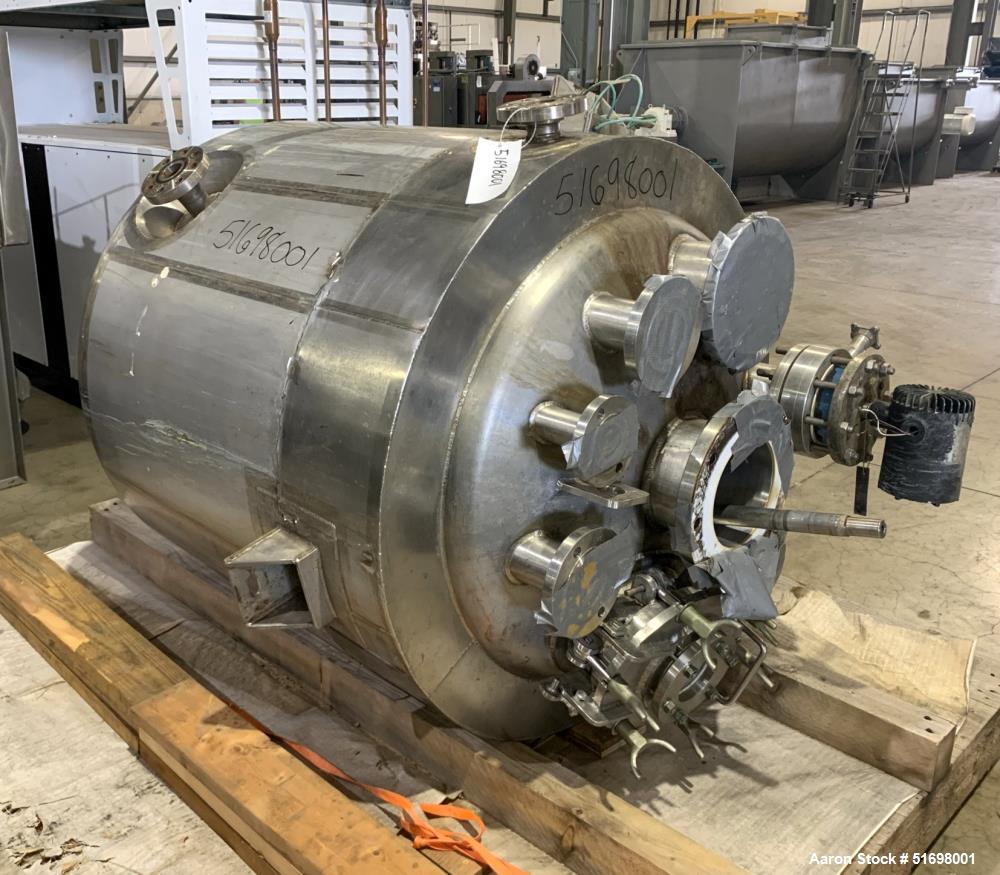

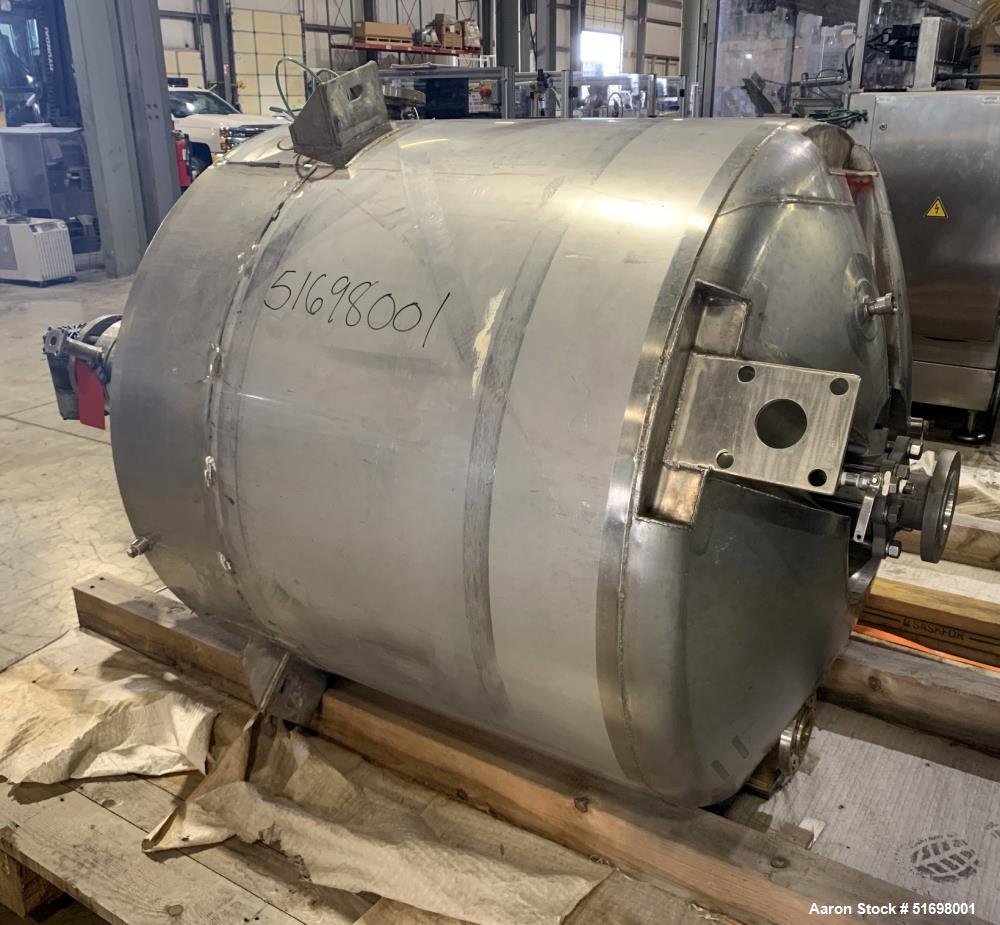

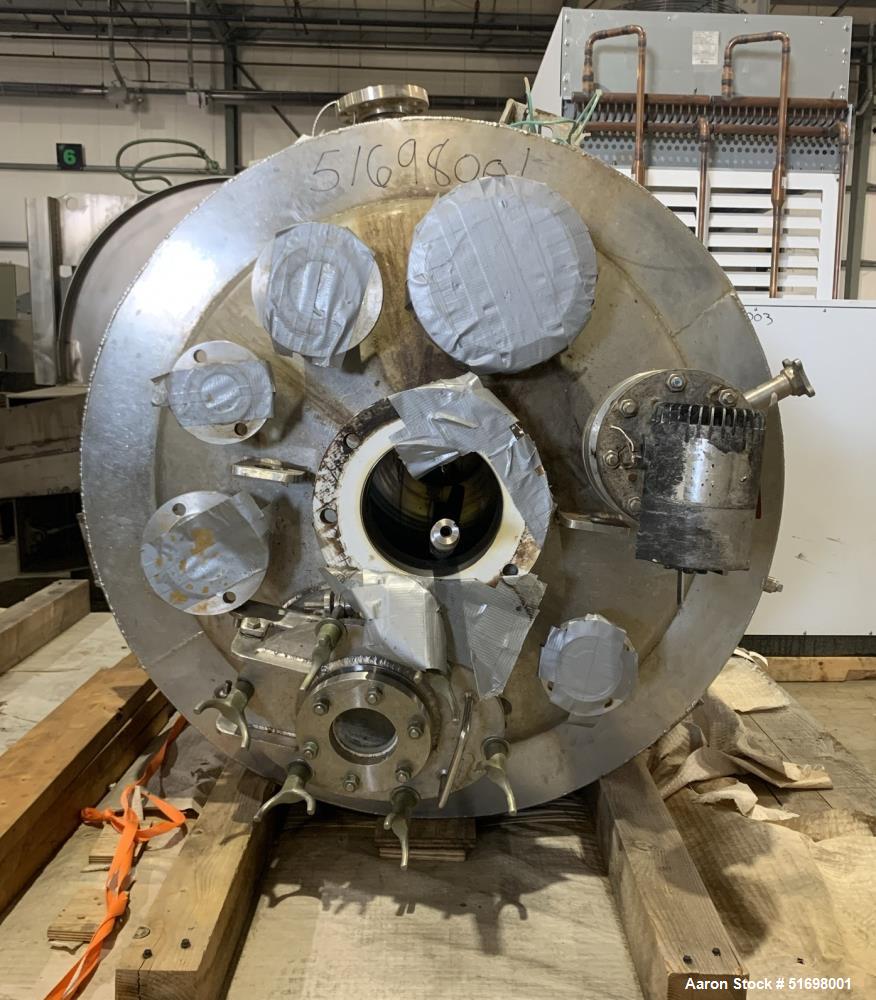

Northland Stainless 200 Gallon Stainless Steel Reactor

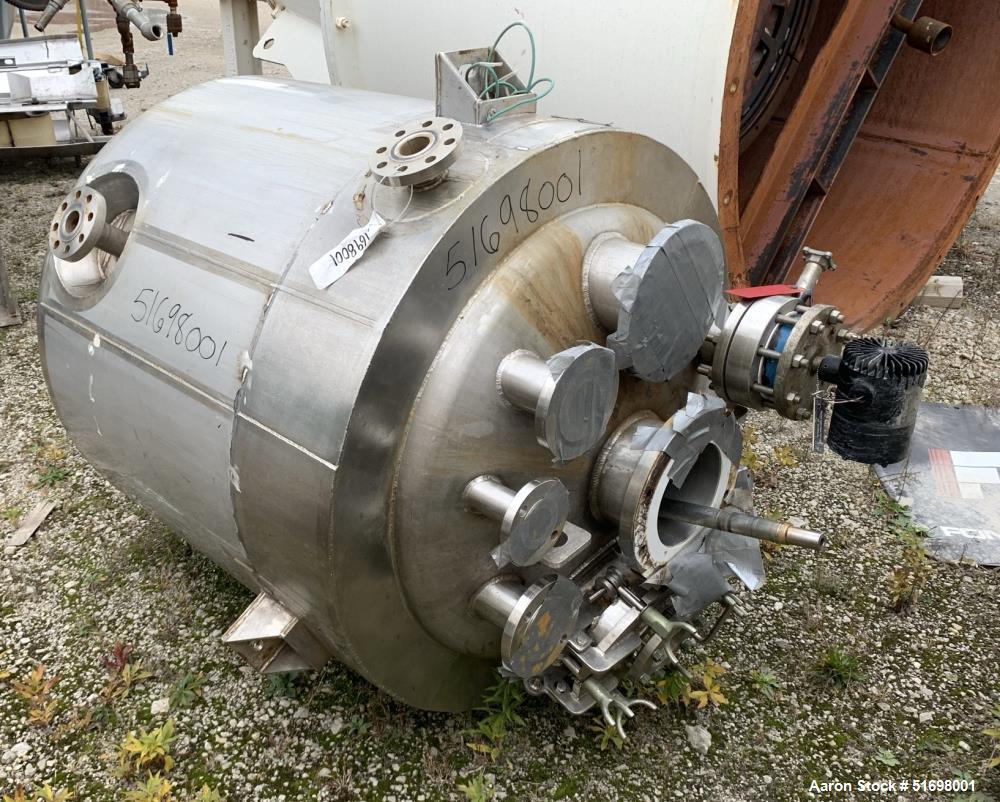

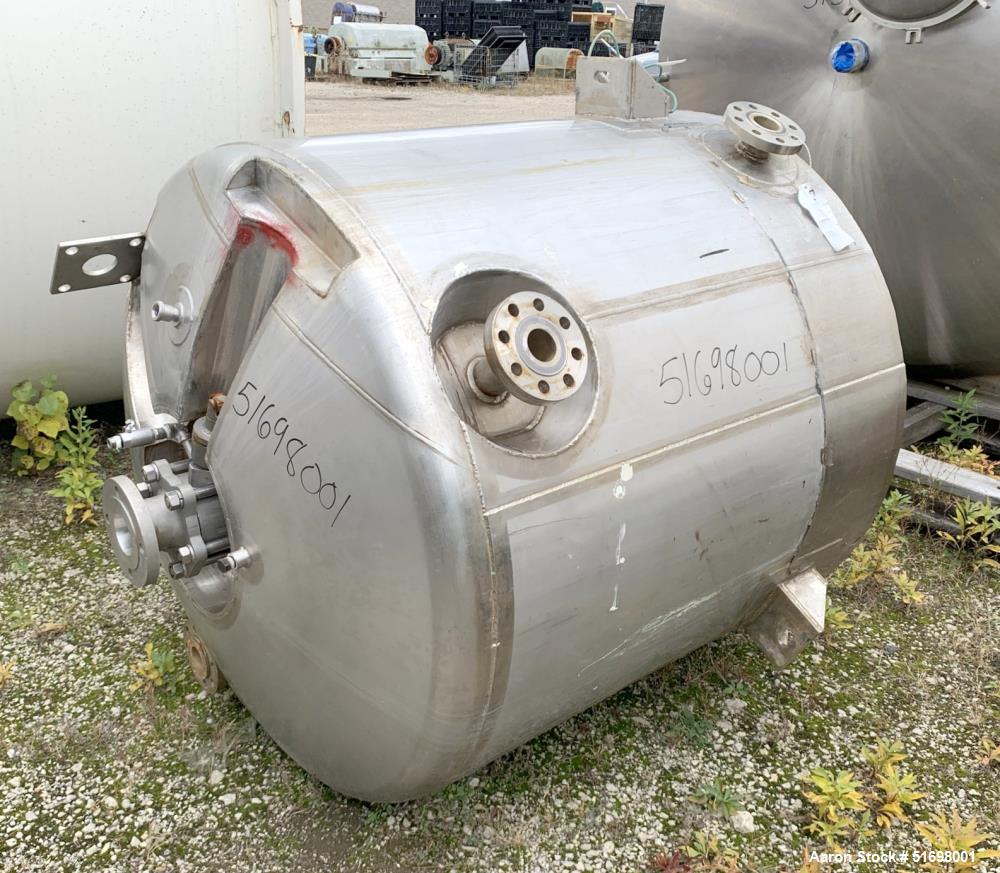

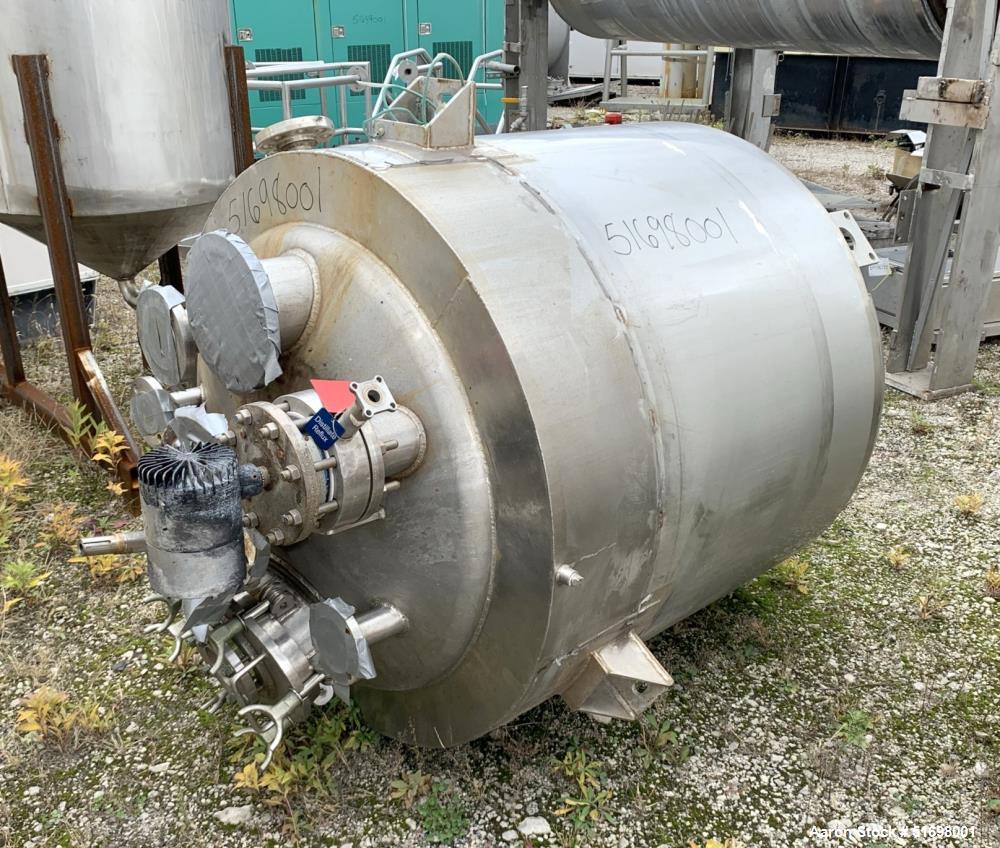

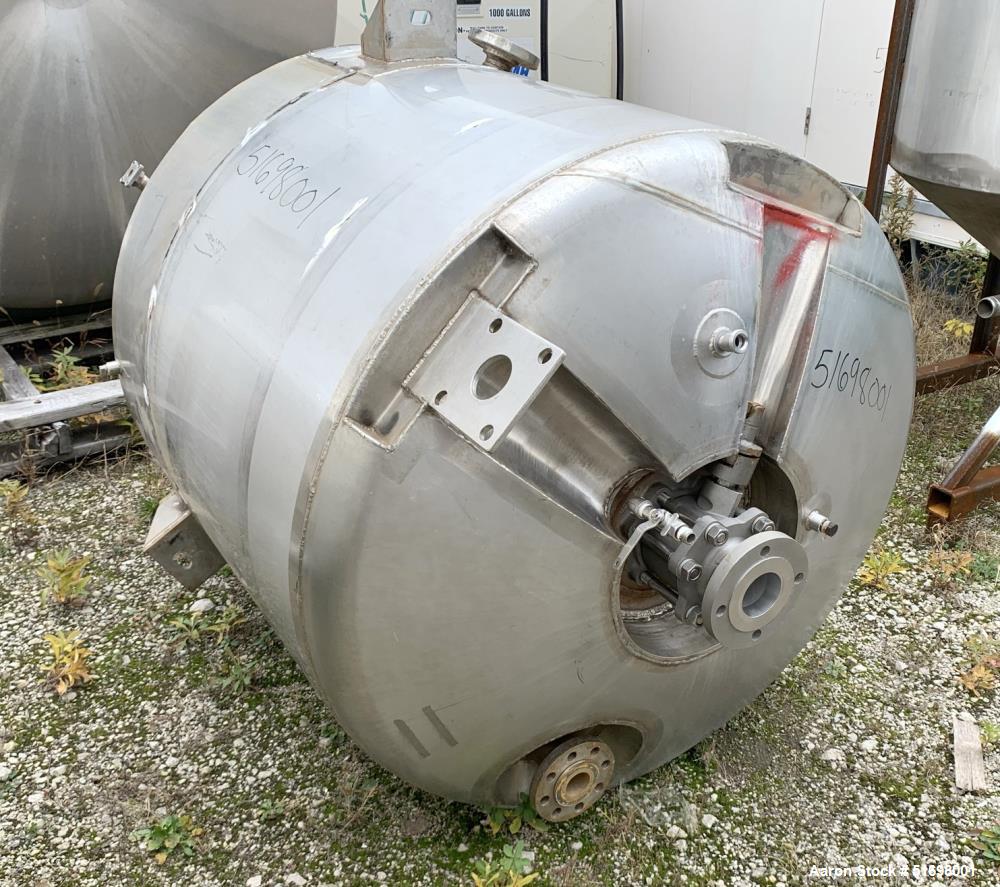

Used- Northland Stainless Reactor, Approximate 200 Gallon, 316L Stainless Steel, Vertical. Approximately 37" diameter x 36" straight side. Dished top and Bottom. Shell rated 100 psi/FV at -20 to 500 degrees F. 304L Stainless steel jacket rated 100 psi/FV at -20 to 500 degrees F. Openings Top: 12" x 8" handhole with hinged cover, 8" for agitator, 6", 4", (2) 3", (2) 2". 3" Center bottom outlet. Includes top entering agitator shaft with (2) 3 blade propellers, requires drive motor. (3) Sidewall baffles. Side lug mounted. National Board# 1227, Serial# 915485, Built 1992.
-
ManufacturerNorthland
-
Serial #915485
-
CategoryReactors
-
SubcategoryStainless Steel 0-499 Gallon
-
Gallons200
-
Material Of Construction316L Stainless Steel
-
Horizontal Or VerticalVertical
-
Diameter48"
-
Straight Side42"
-
Top Head StyleDished Head
-

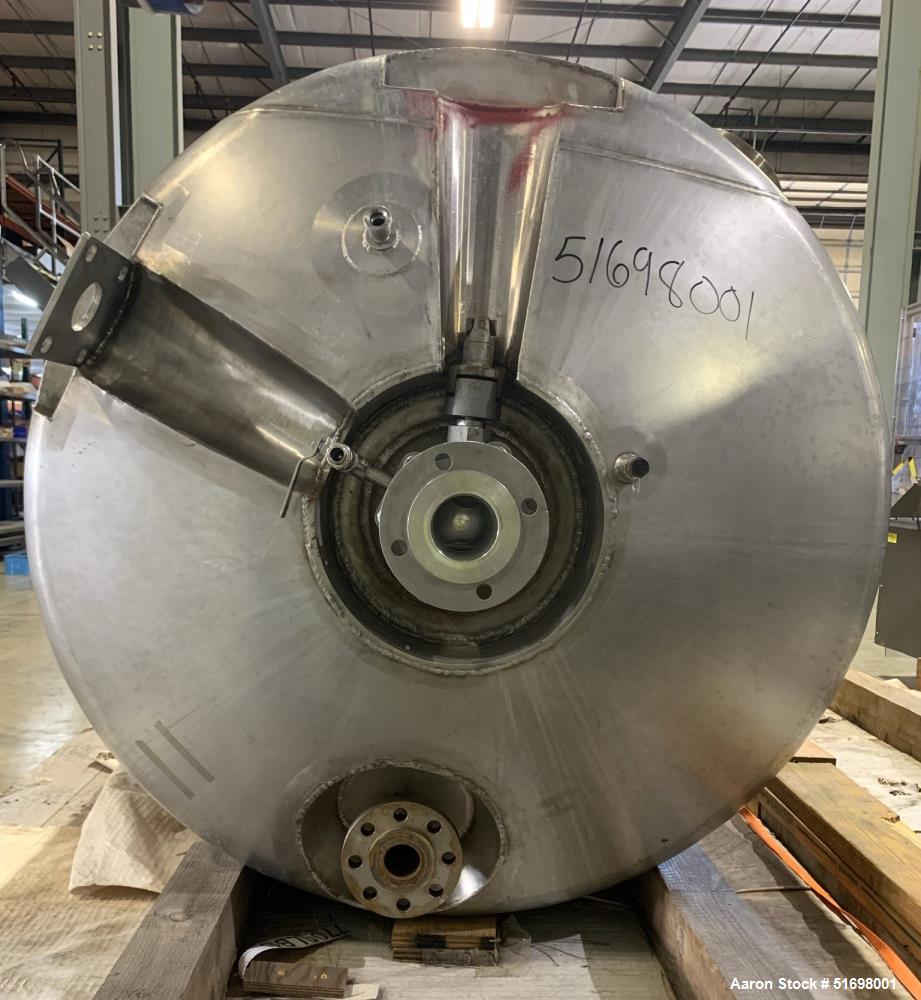

BottomDished Bottom
-
Internal PressureFV/100
-
Internal Temperature-20 to 500 F
-
Pressure JacketFV/100
-
Temperature Jacket-20 to 500 F
-

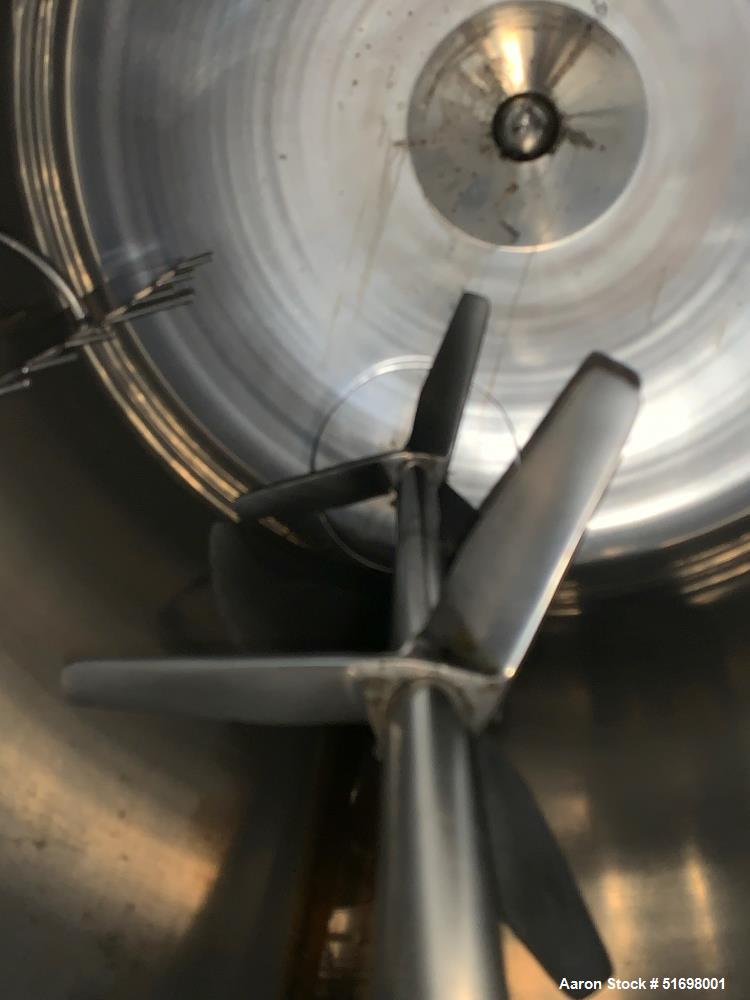

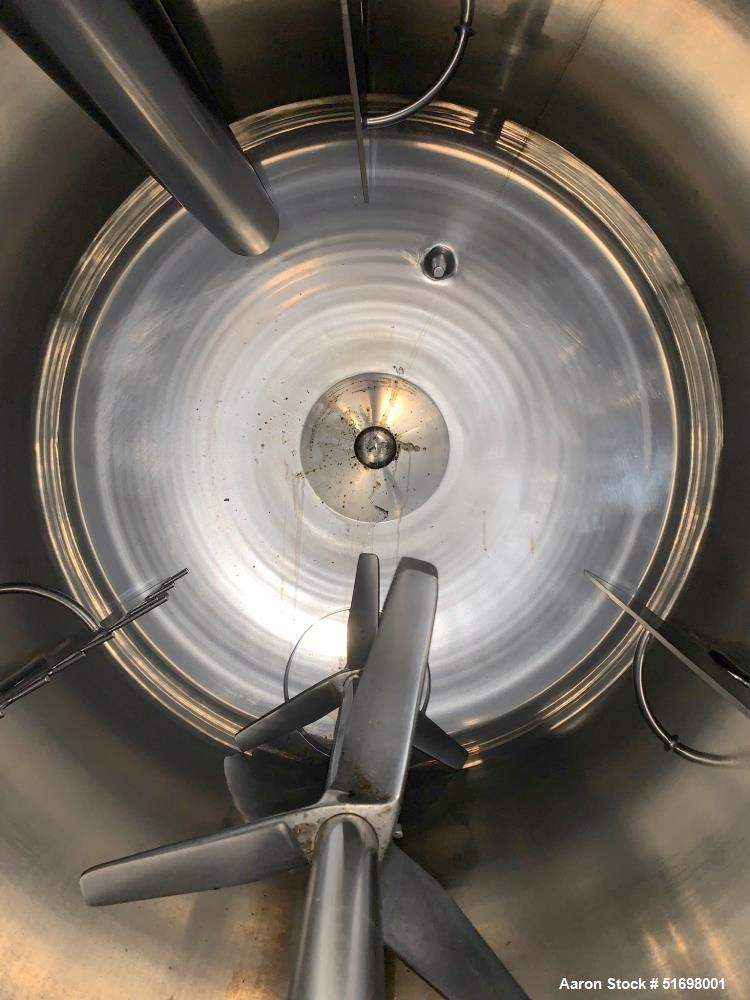

Mixer Type3 Blade Prop
-

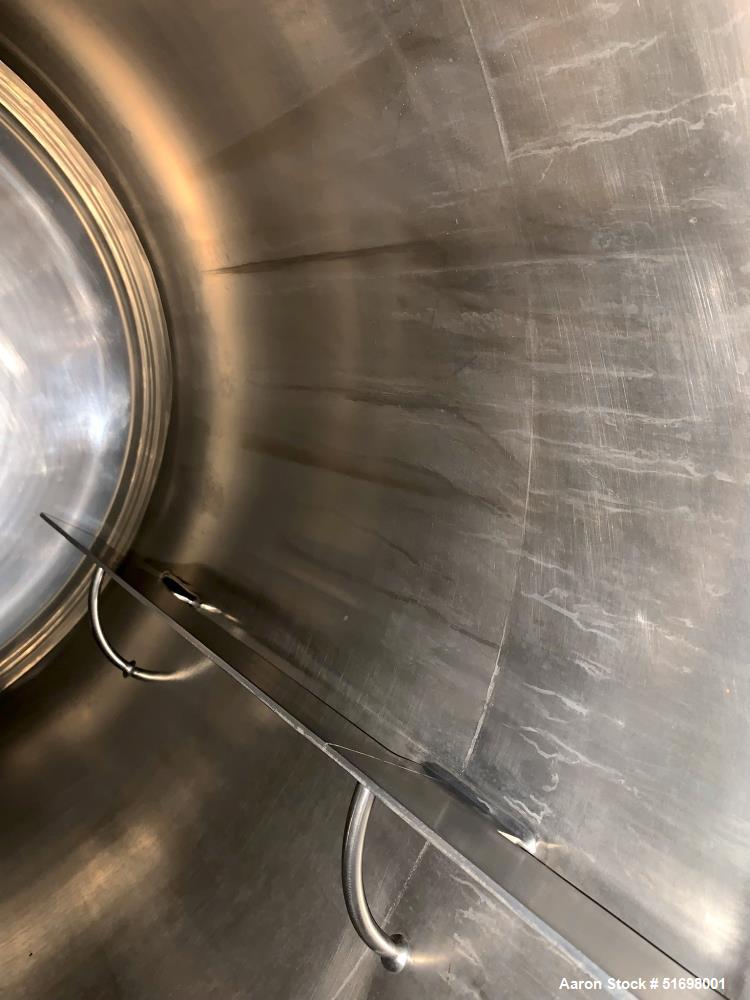

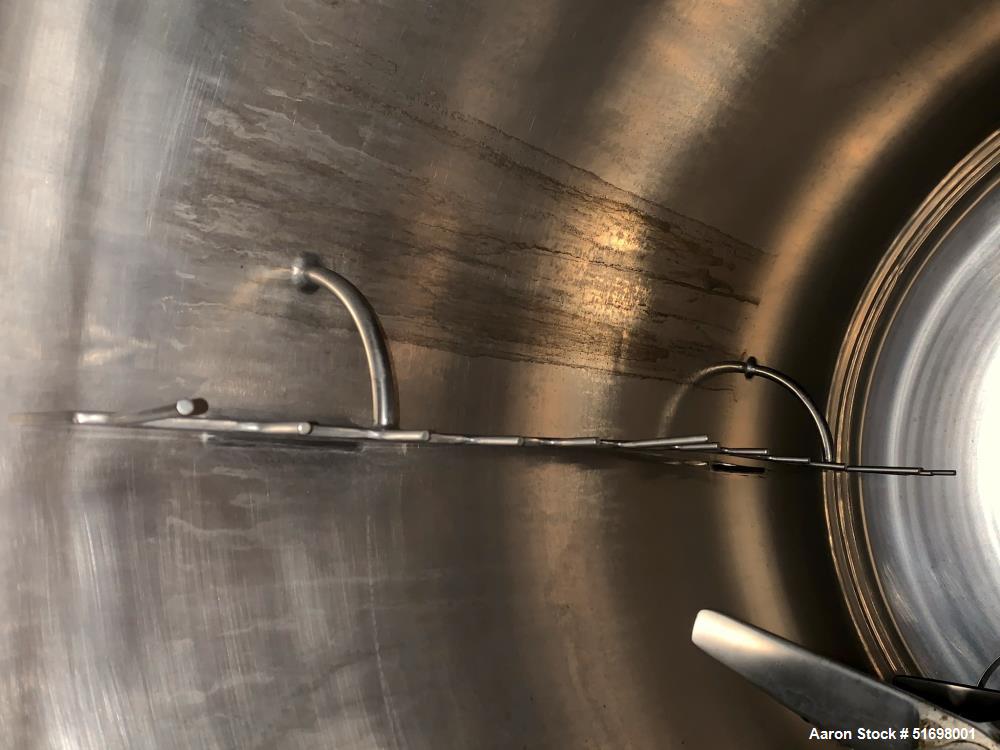

Number Of Baffles3
-
Opening8" for agitator, 6", 4", (2) 2", (2) 3/4"
-
Opening CoverYes
-
Outlet Size3"
-
Outlet LocationBottom
-
Overall Dimensions103" x 88" x 66"T
-

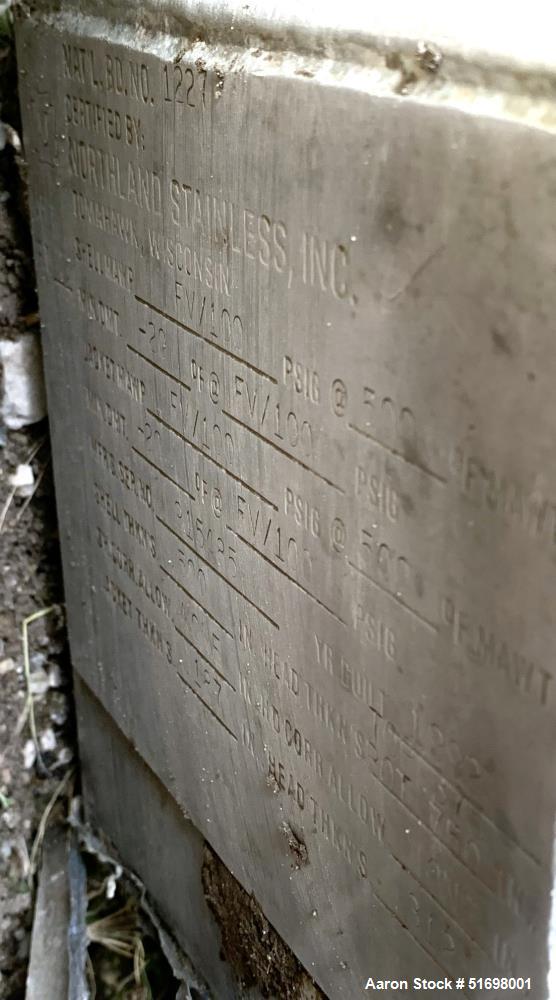

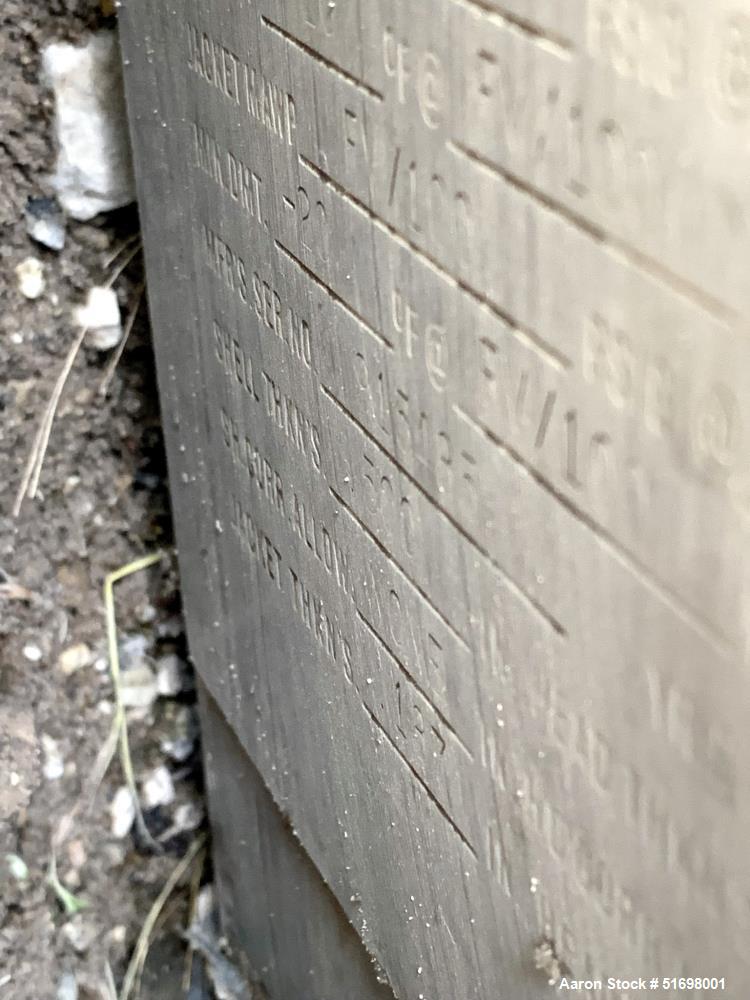

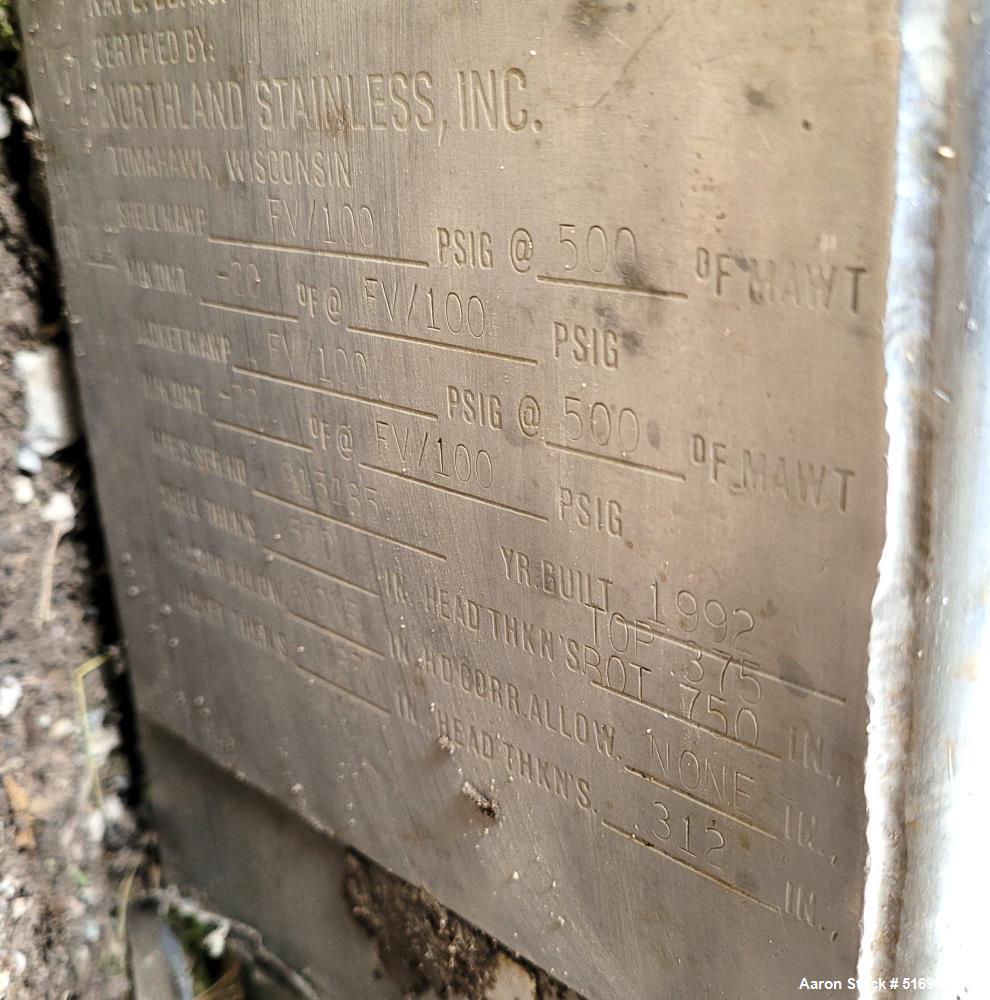

National Board No.1227
-
Year Built1992
